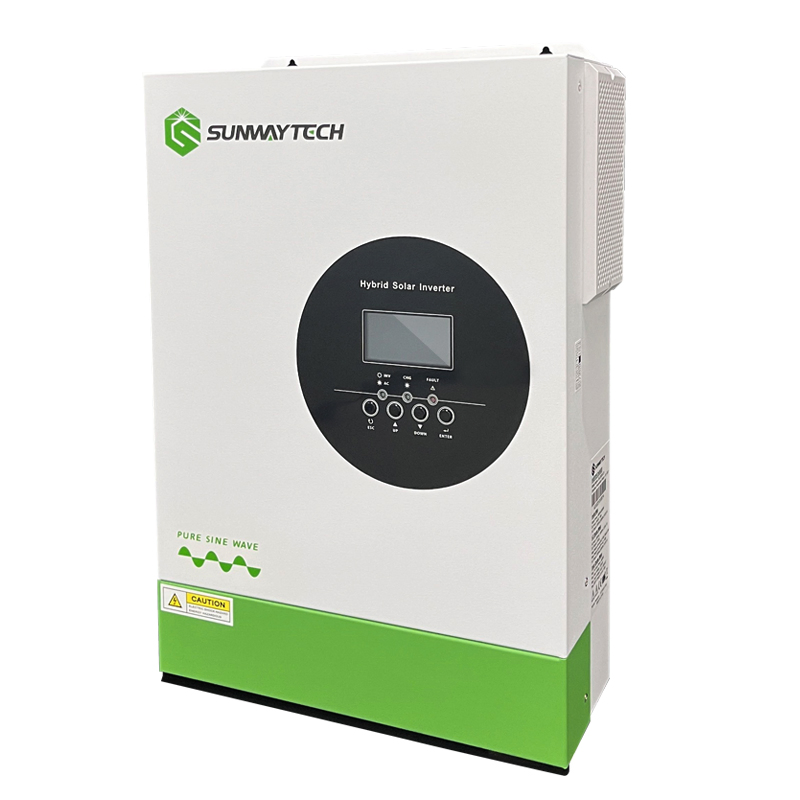

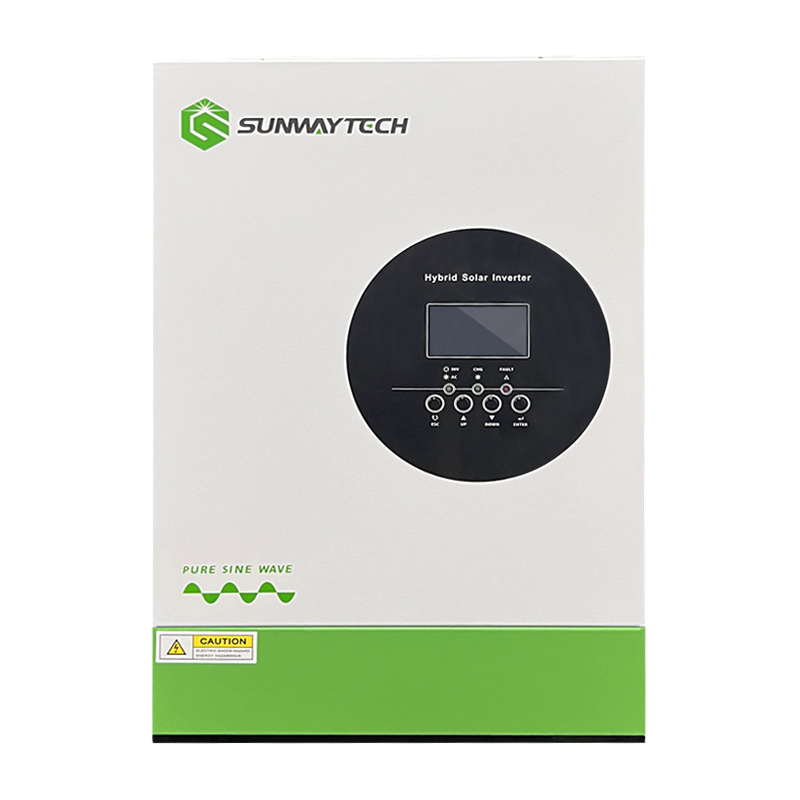

Sunway 5kVA MPPT 450VDC PV Input 220V 48V 5kw on off Grid Tie Hybrid Solar Inverter

1 / 5

Sunway 5kVA MPPT 450VDC PV Input 220V 48V 5kw on off Grid Tie Hybrid Solar Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

SK-3500S-24

Nature of Source

Passive inverter

Phase

Single

Output Power

3500W

Certification

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Wave String

Sine Wave Inverter

Origin

China, Anhui

📦

Packaging & Delivery

Package Size

54.00cm * 39.00cm * 22.00cm

Gross Weight

15.000kg

Production Capacity

10000 Pieces/Month

📝

Product Description

Technical Specifications

Model	SK-3500S-24	SK-5500P-48L
Capacity	3500VA/3500W	5500VA/5500W
Battery type	Lead Acid	Lead Acid/LiFePO4
Parallel Capability	No	Yes
Input
Nominal Voltage	230VAC
Voltage Range	170-280VAC (PC), 90-280VAC (Appliances)
Output
Surge Power	7000VA	11000VA
Wave Form	Pure sine wave
Peak Efficiency (PV to INV)	96%
Solar & AC Charge
Solar Charge Type	MPPT
Max PV Array Power	4000W	5500W
MPPT Voltage Range	120VDC~450VDC
Max Solar Charge Current	100A	100A
Physical

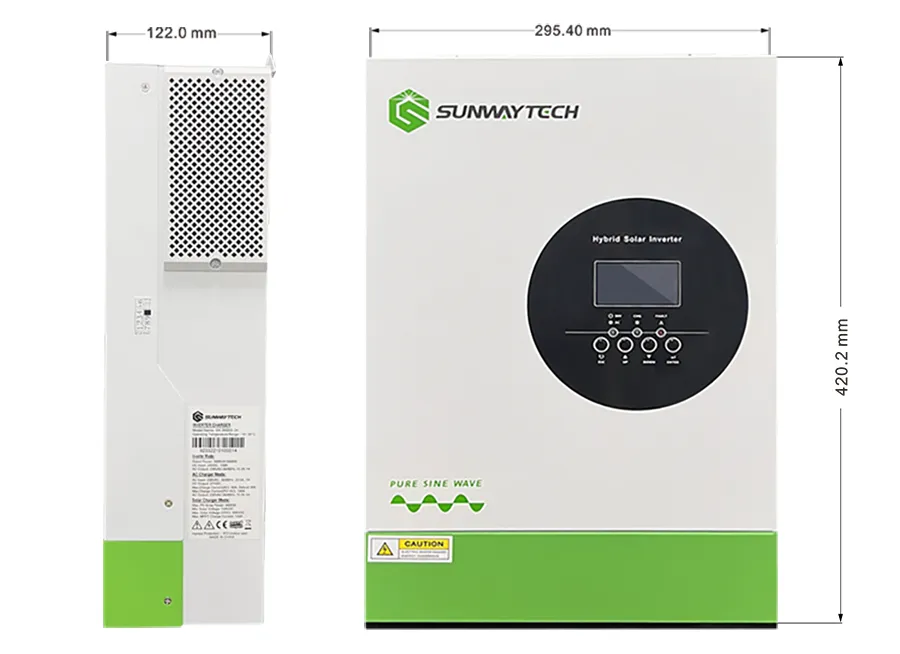

Dimension (mm)	448295129mm
Net Weight	9KG	10KG

🔍

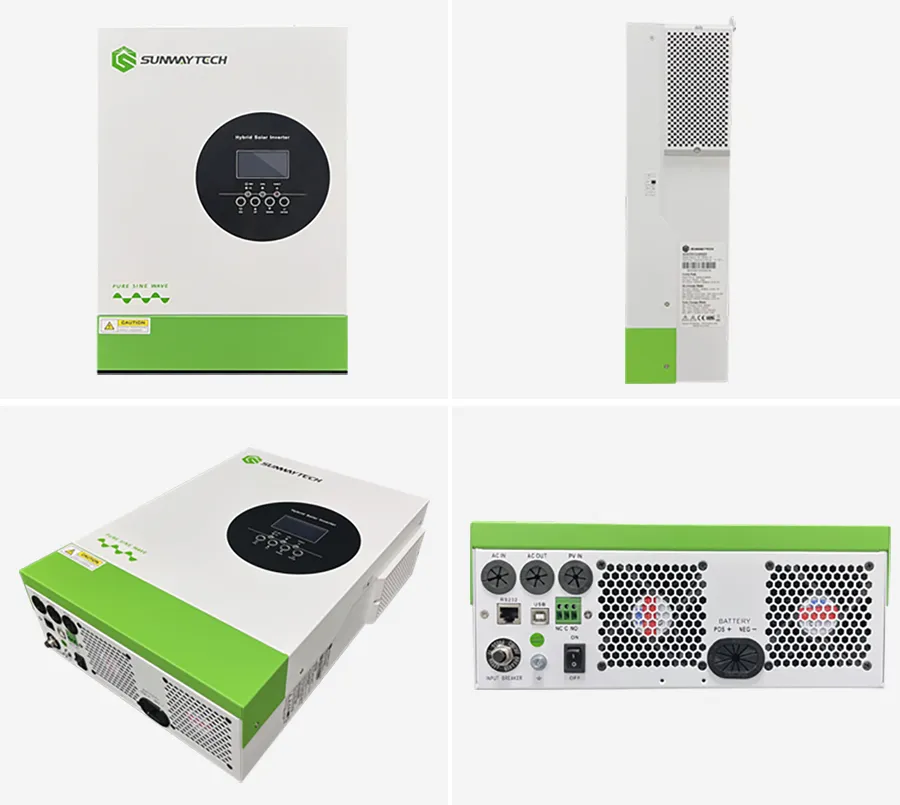

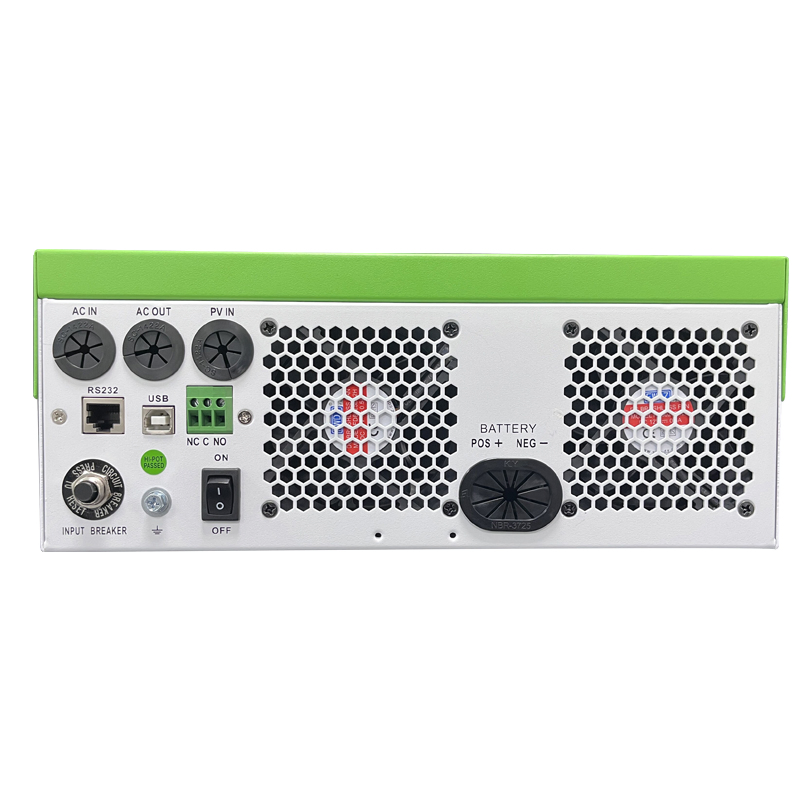

Product Details

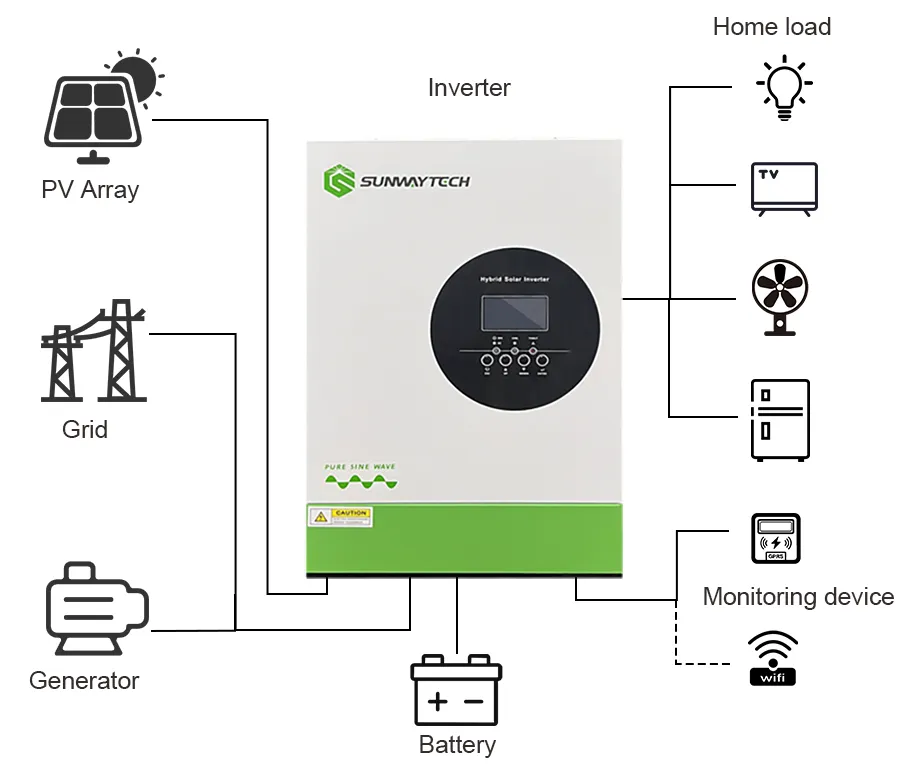

Solar System Connection

📦

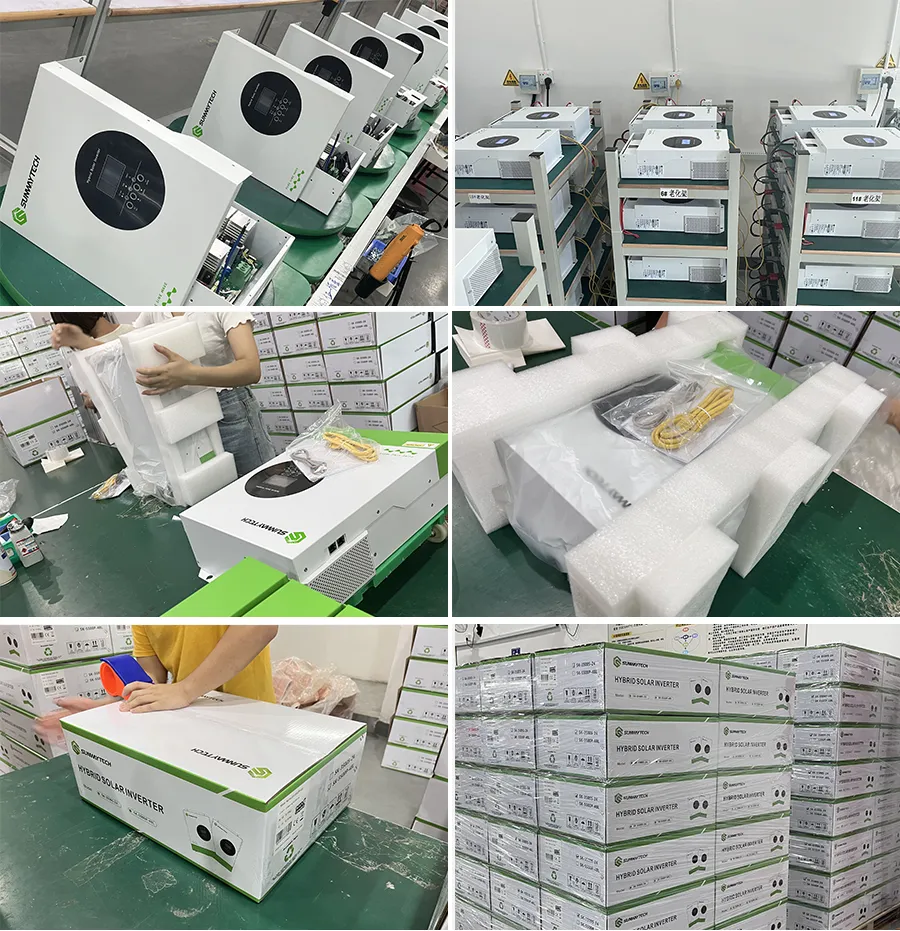

Product Packaging

❓

Frequently Asked Questions

What is the maximum PV input voltage for these inverters?

Both models support a maximum PV array open circuit voltage of 500VDC, with an MPPT voltage range between 120VDC and 450VDC.

Do these inverters produce a pure sine wave?

Yes, these are pure sine wave inverters, ensuring high-quality power output that is safe for sensitive electronic appliances.

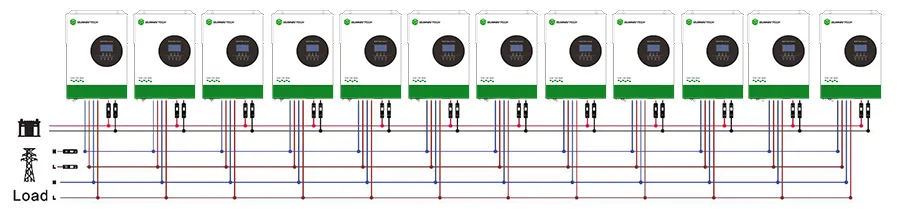

Can the 5500W model be used in parallel?

Yes, the SK-5500P-48L model features parallel capability, whereas the SK-3500S-24 model does not.

What types of batteries are compatible?

The 24V model (3500W) is designed for Lead Acid batteries, while the 48V model (5500W) supports both Lead Acid and LiFePO4 battery types.

What is the peak efficiency of the solar charging?

The inverters achieve a peak efficiency of up to 96% when converting from PV (Solar) to Inverter output.

What is the transfer time between utility and battery?

The transfer time is typically 10ms for personal computers and 20ms for home appliances, ensuring minimal interruption.
