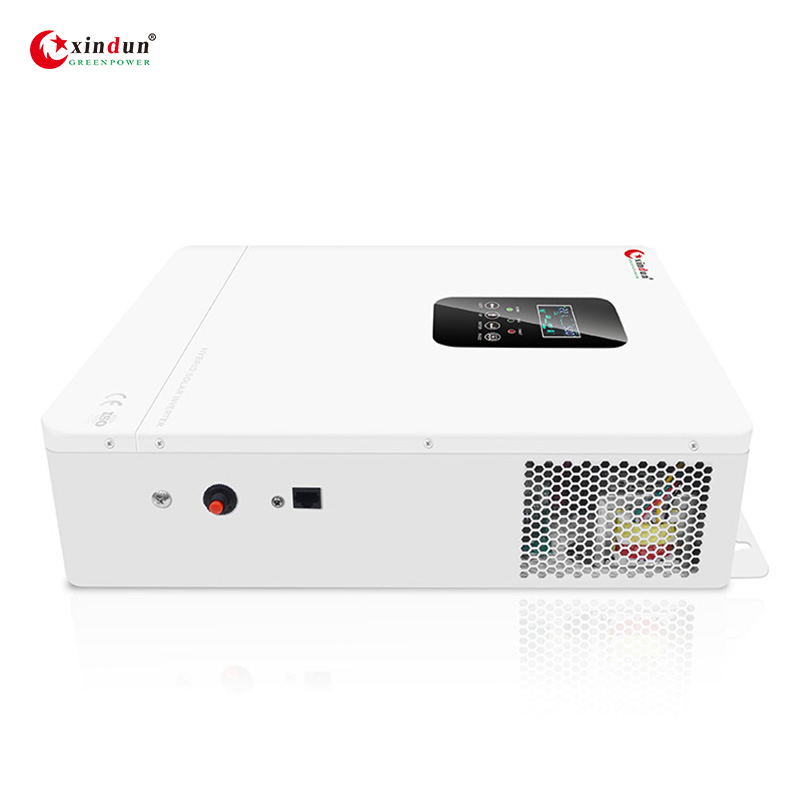

China Best Wholesale Photovoltaic 12V 24V 220V 1kw 1000 Watt 1500W 1000W 6kw 2kw 5000W 3000W DC to AC Power PV MPPT Hybrid Solar Panel Inverter Prices for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	1~12 Months

📋 Overview & Basic Information

Model NO.

XD-HP PRO T

Nature of Source

Active Inverter

Phase

Single Phase Solar Inverter

Output Power

1000W - 8000W Range

Certification

CE, ISO9001, Test Report

Type

DC/AC Inverters

Power Source

Solar Power

Wave String

Pure Sine Wave

Output Efficiency

>99%

Rated Voltage

220V/230V/240V (VAC)

Charging Mode

Built-in MPPT

Battery Type

Lithium / Lead Acid / Gel / Others

Working Modes

AC First, Battery First, PV First

Display

LCD+LED Dual Display

🚀 Inverter Features

1

High frequency design, high power density, small size, and high efficiency with low no-load loss.

2

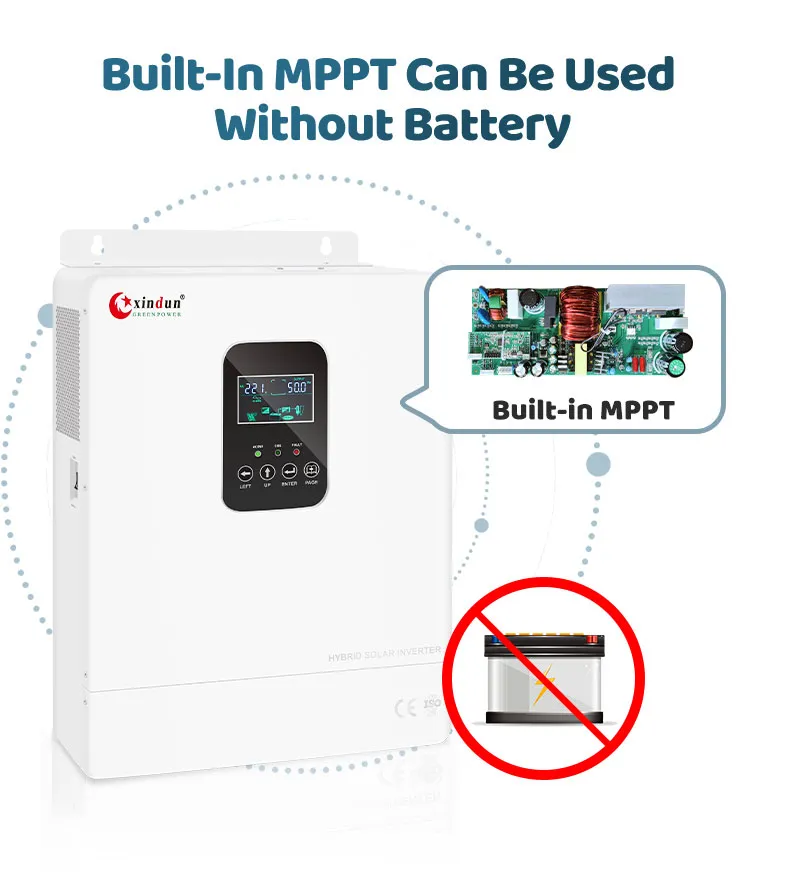

Built-in MPPT solar charge controller for optimized solar energy harvesting.

3

Pure sine wave output, perfectly adaptable to all types of loads.

4

Adjustable battery charge/discharge parameters to prolong battery life.

5

Three flexible working modes: AC first, Battery first, or PV first.

6

Adjustable output voltage and frequency to adapt to different grid environments.

7

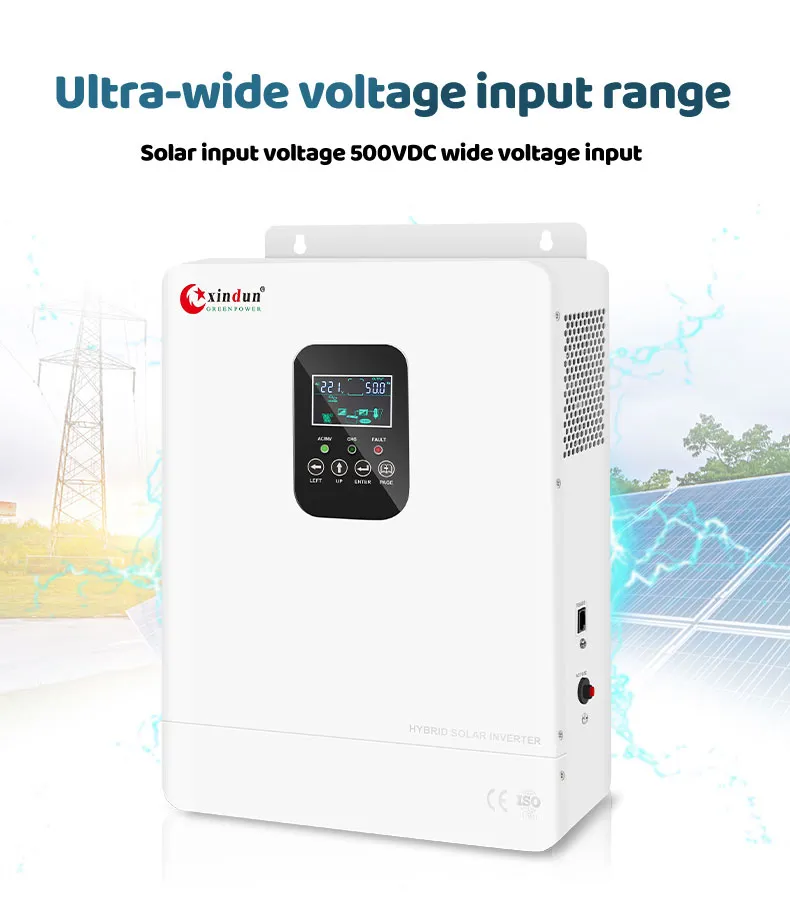

Extra wide voltage and frequency input range, supporting mains or generator inputs.

8

User-friendly LED+LCD display for easy data checking and function setting.

9

Comprehensive protection: Overload, over temperature, and short circuit protection.

10

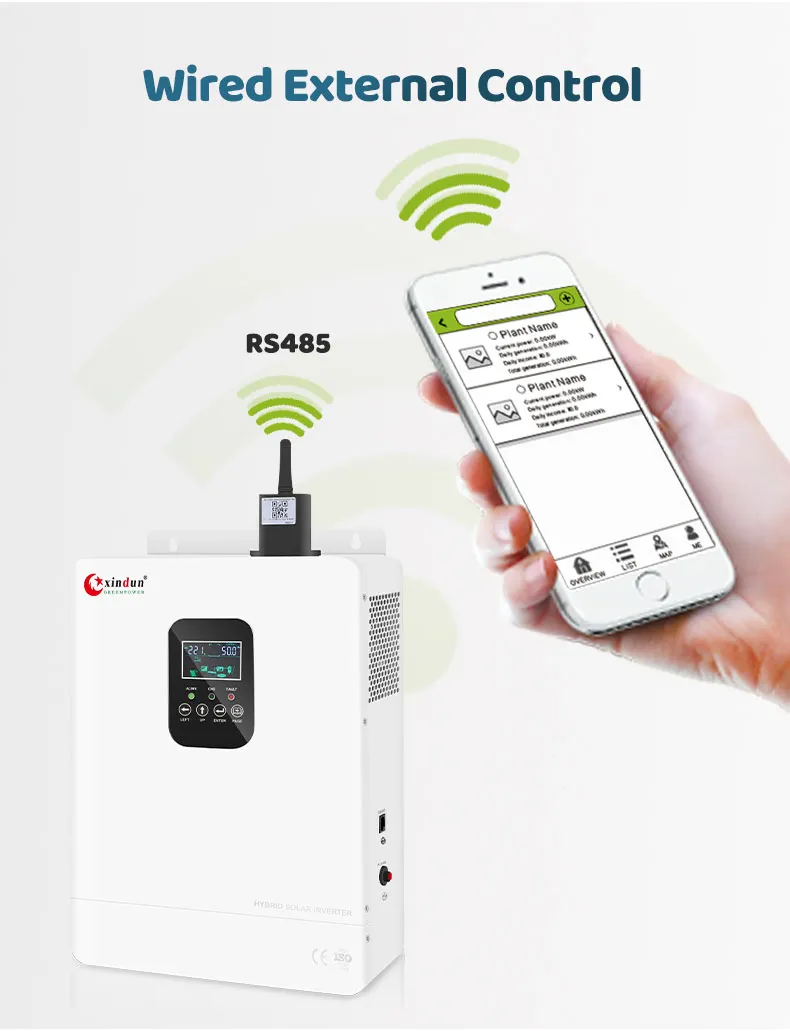

RS485 communication port and optional APP monitoring (WiFi/GPRS).

📸 Product Highlights

📊 Technical Specifications

Model: HP pro-T Series	10212	20224	32224	50248	72248
Rated Power	1000W	2000W	3200W	5000W	7200W
Peak Power (20ms)	3000VA	6KVA	9.6KVA	15KVA	21.6KVA
Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
Max PV Input (Voc)	120VDC	120VDC	500VDC	500VDC	500VDC
Efficiency (AC Mode)	>99%
Transfer Time	≤10ms
Output Waveform	Pure Sine Wave

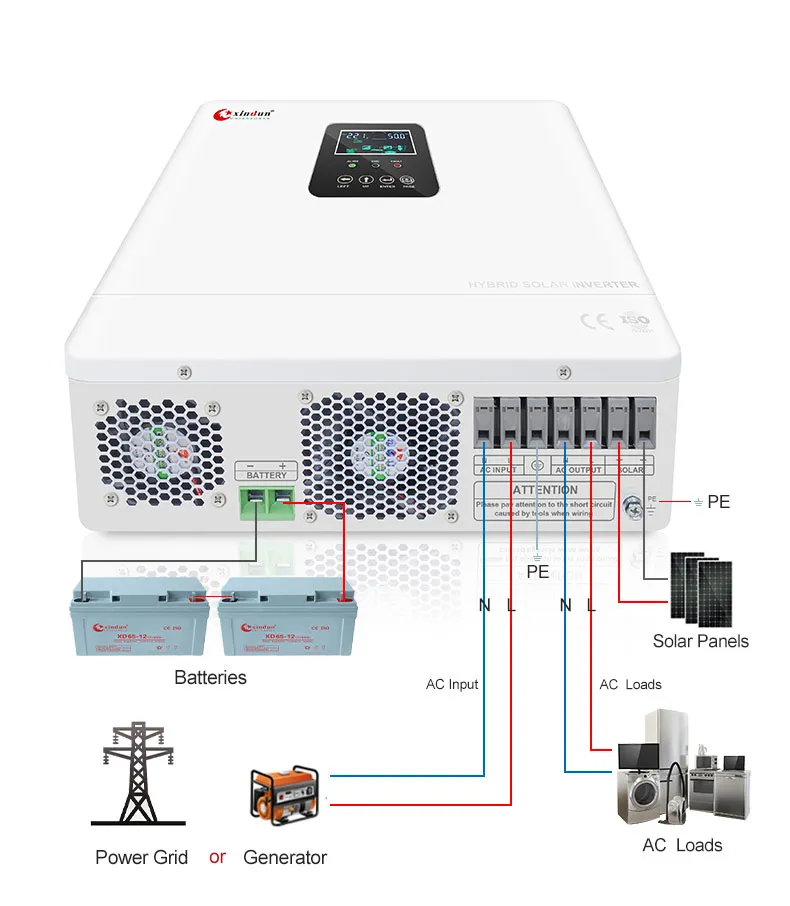

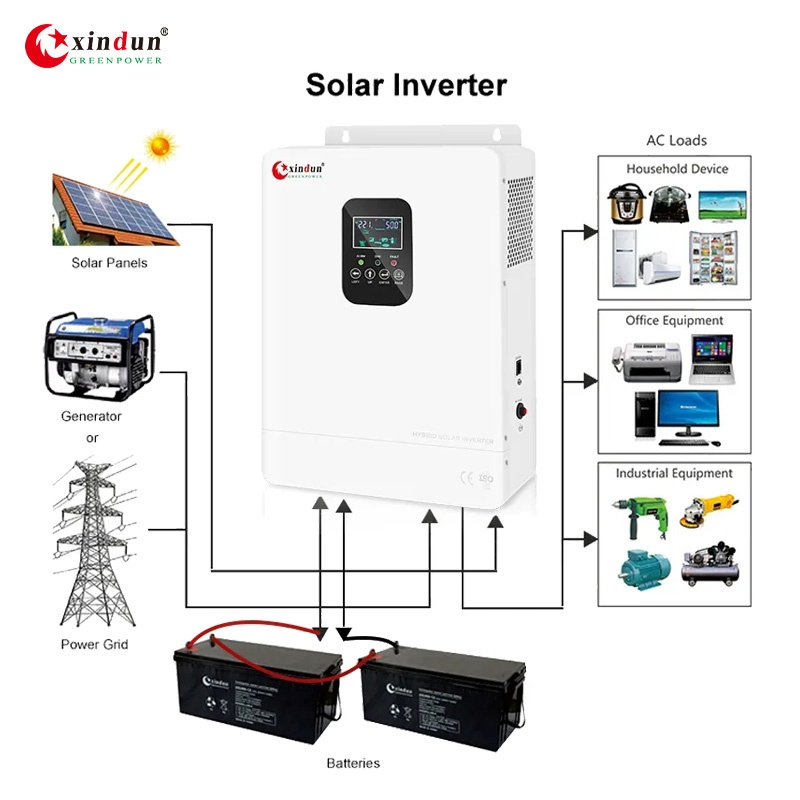

🔌 Wiring & Application

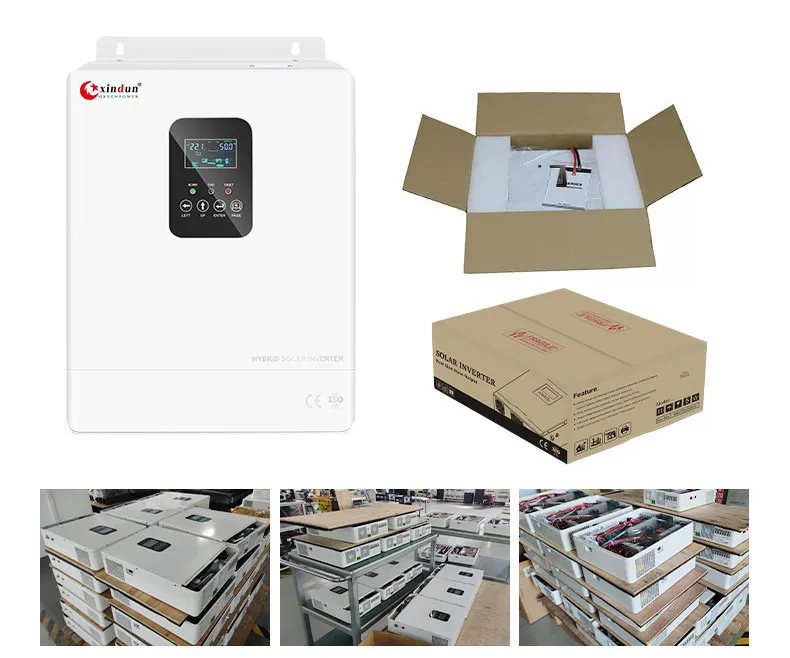

📦 Packing & Delivery

Package Details

Standardized Carton Box for secure packaging. For sample orders, Wooden Boxes are recommended to ensure maximum protection during international transit.

Shipping Options

1. Express: Fedex / DHL / TNT / UPS for samples (Door-to-Door).
2. Bulk Orders: By Air or Sea for batch goods.
3. Logistics: Supports customer-specified freight forwarders.
4. Lead Time: ~7 days for samples; 10-25 days for batch orders.

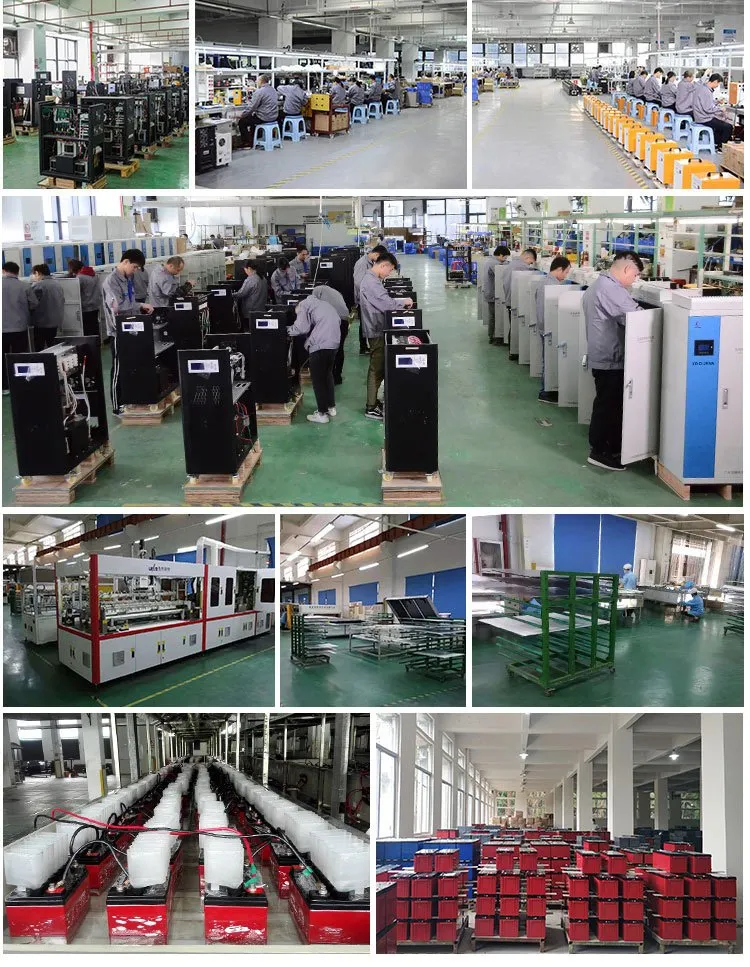

🏭 Production Workshop

❓ Frequently Asked Questions

What is a Pure Sine Wave Inverter and why do I need it?

A pure sine wave inverter provides clean and stable electricity identical to the grid. It is essential for protecting sensitive electronic devices, appliances with motors, and medical equipment from damage or interference.

Does this inverter support Lithium batteries?

Yes. The charging and discharging parameters are fully adjustable via the operation panel, making it compatible with Lithium, Lead-Acid, Gel, and other battery types.

What are the three working modes?

Users can choose between AC Priority (uses grid power first), Battery Priority (uses battery power until a threshold is reached), and PV Priority (maximizes solar energy usage).

Is the solar charge controller built-in?

Yes, this model features a built-in MPPT (Maximum Power Point Tracking) solar charge controller, which increases solar charging efficiency significantly compared to standard PWM controllers.

Can I monitor the inverter remotely?

Absolutely. The inverter includes an RS485 communication port and supports optional WiFi or GPRS monitoring via a dedicated mobile APP.

How long is the transfer time between solar and grid power?

The transfer time is less than or equal to 10ms, ensuring that most sensitive electronics and computers will not reboot during the switch.
