📋 Basic Information
Model NO.
SUN-8K-SG04LP3-EU
Certification
SAA, CE, ROHS, ISO9001, CCC
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Specification
422× 658× 254mm
🚀 Product Description

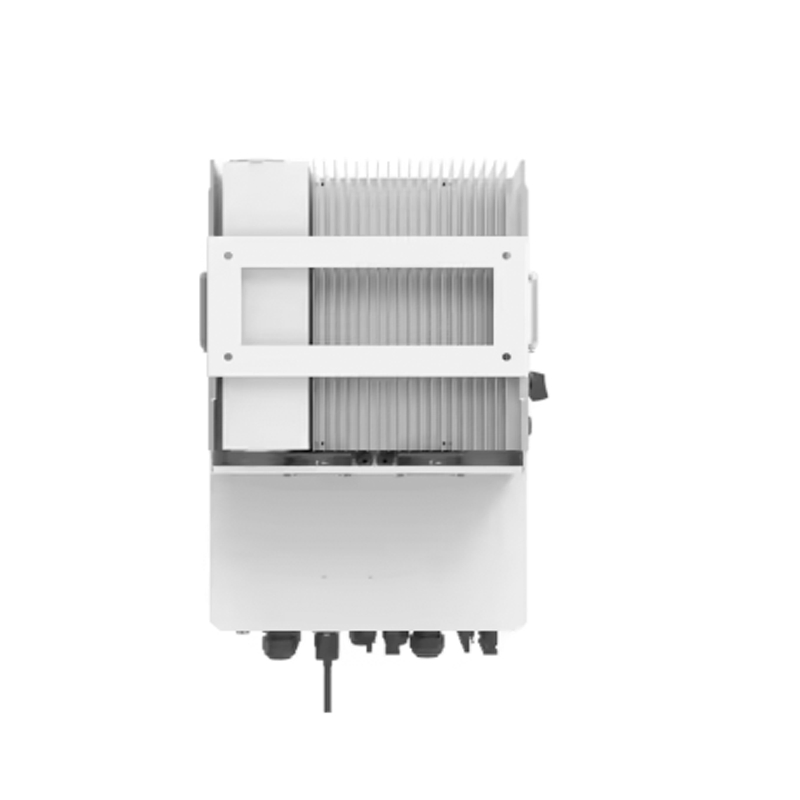

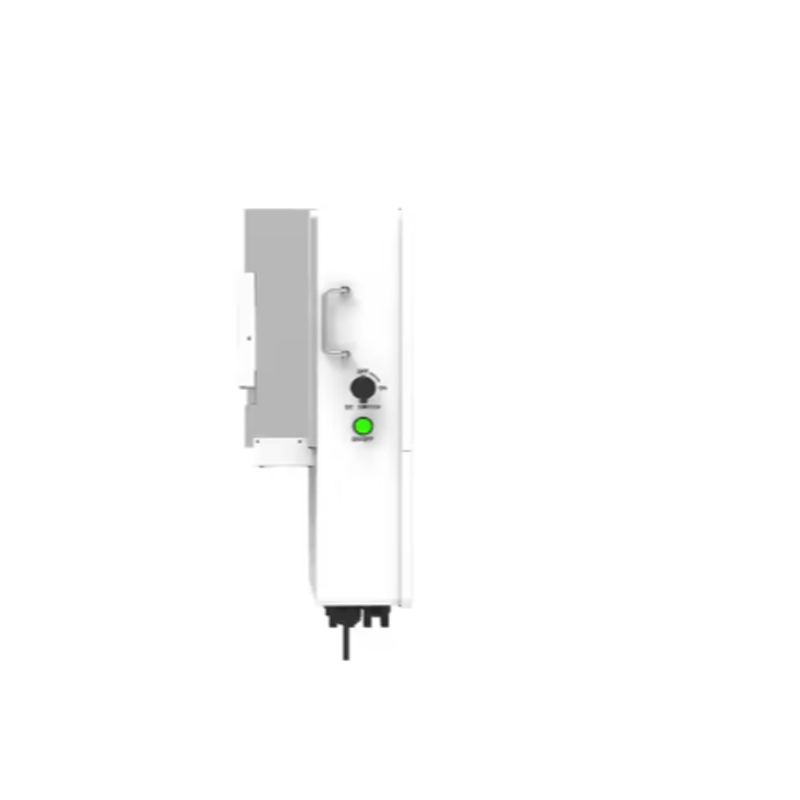

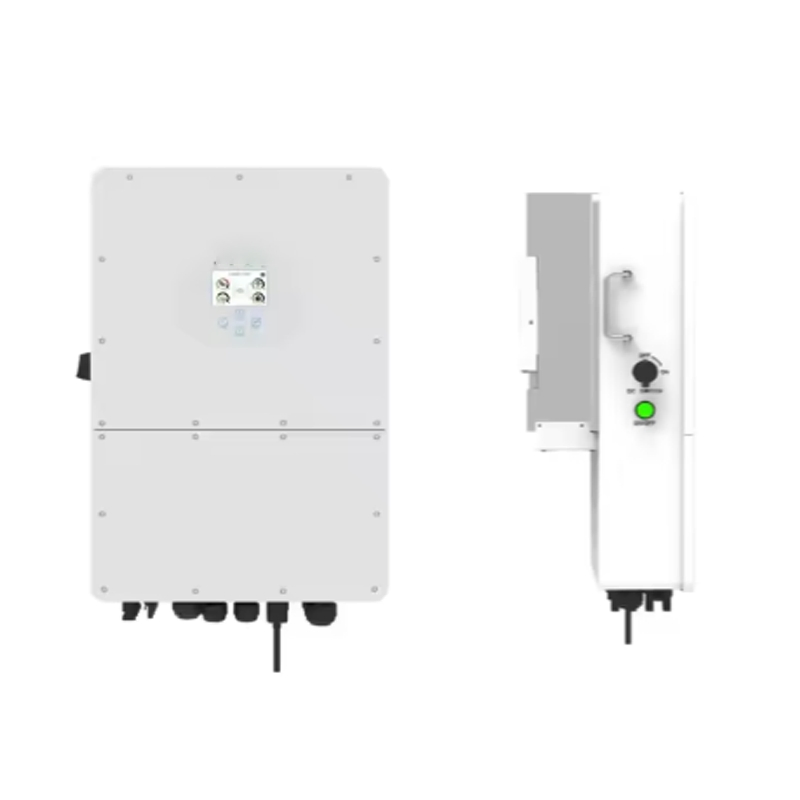

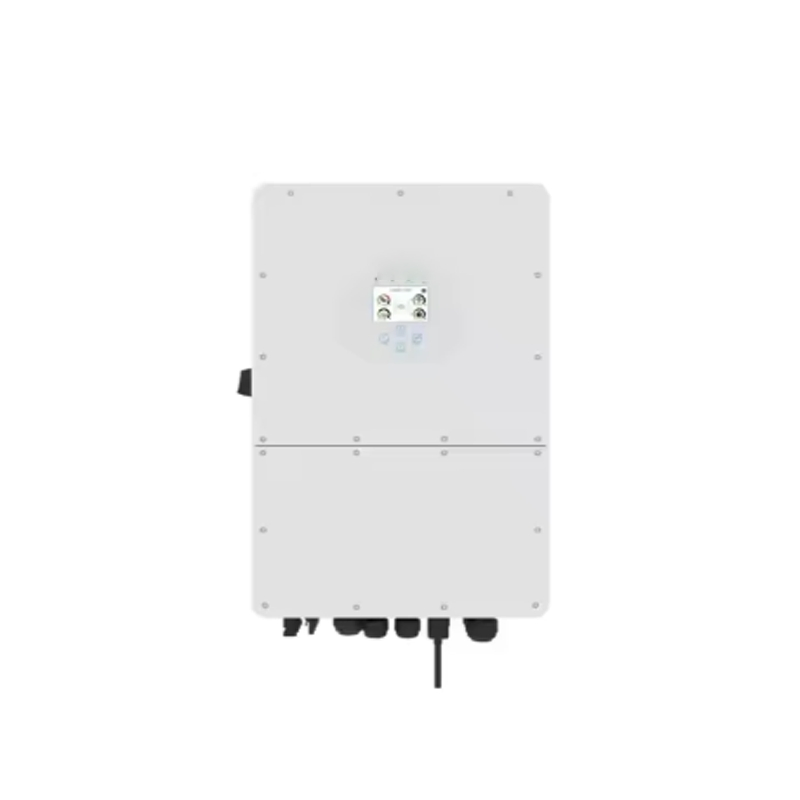

The SUN-8K-SG04LP3-EU is a high-performance three-phase hybrid inverter designed for PV retrofit with AC coupling and IP65 protection, ensuring efficient power conversion and reliable energy storage management.

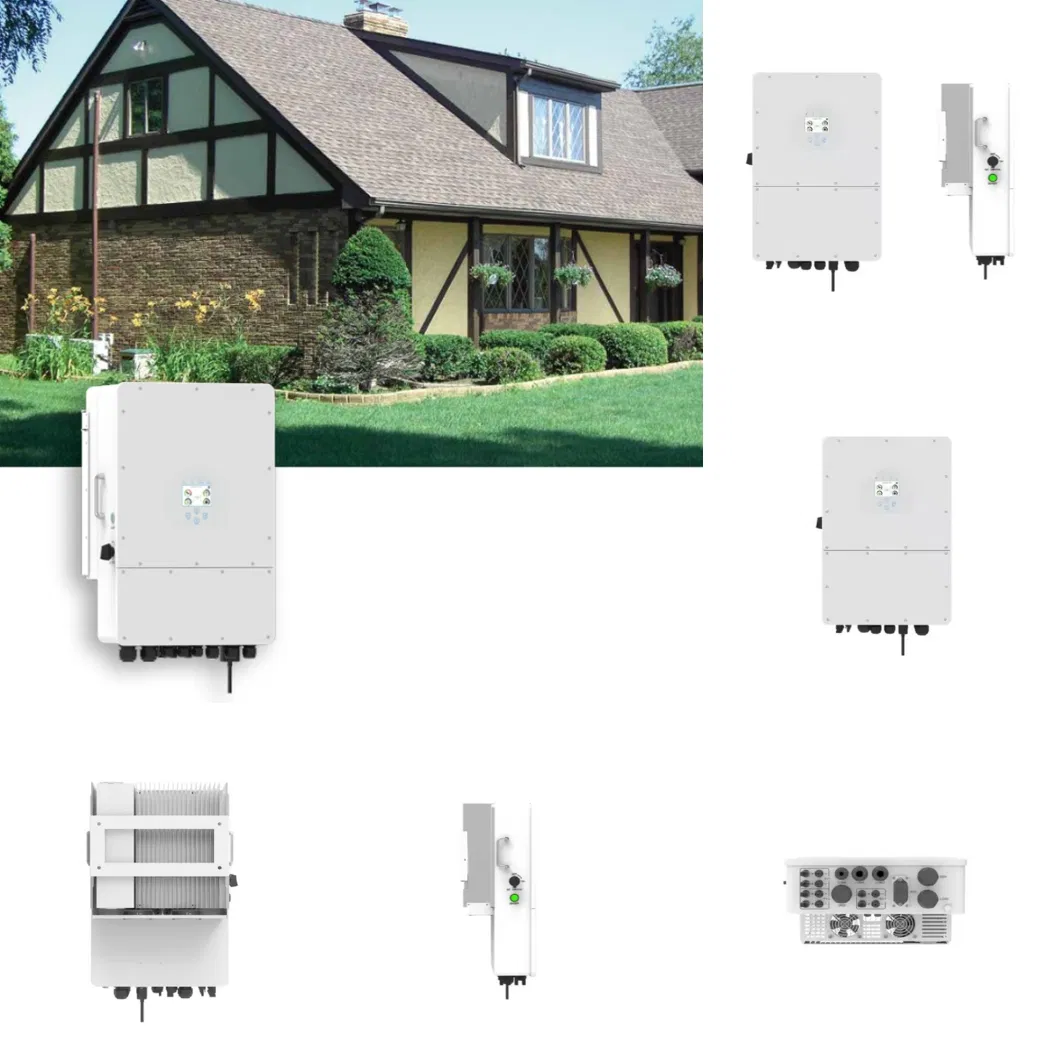

🖼️ Products Display
📊 Technical Specification
| Model | SUN-8K-SG04 P3-EU |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40 - 60 |
| Max. Charging Current (A) | 190 |
| Max. Discharging Current (A) | 190 |
| Charging Strategy | Self-adaption to BMS |
| Max. PV Input Power (W) | 10400 |
| Max. PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200 - 650 |
| Rated AC Input/Output Power (W) | 8000 |
| Max. AC Input/Output Current (A) | 13.4 / 12.8 |
| Peak Power (off-grid) | 2 times of rated power, 10s |
| Max. Efficiency | 97.60% |
| MPPT Efficiency | >99% |

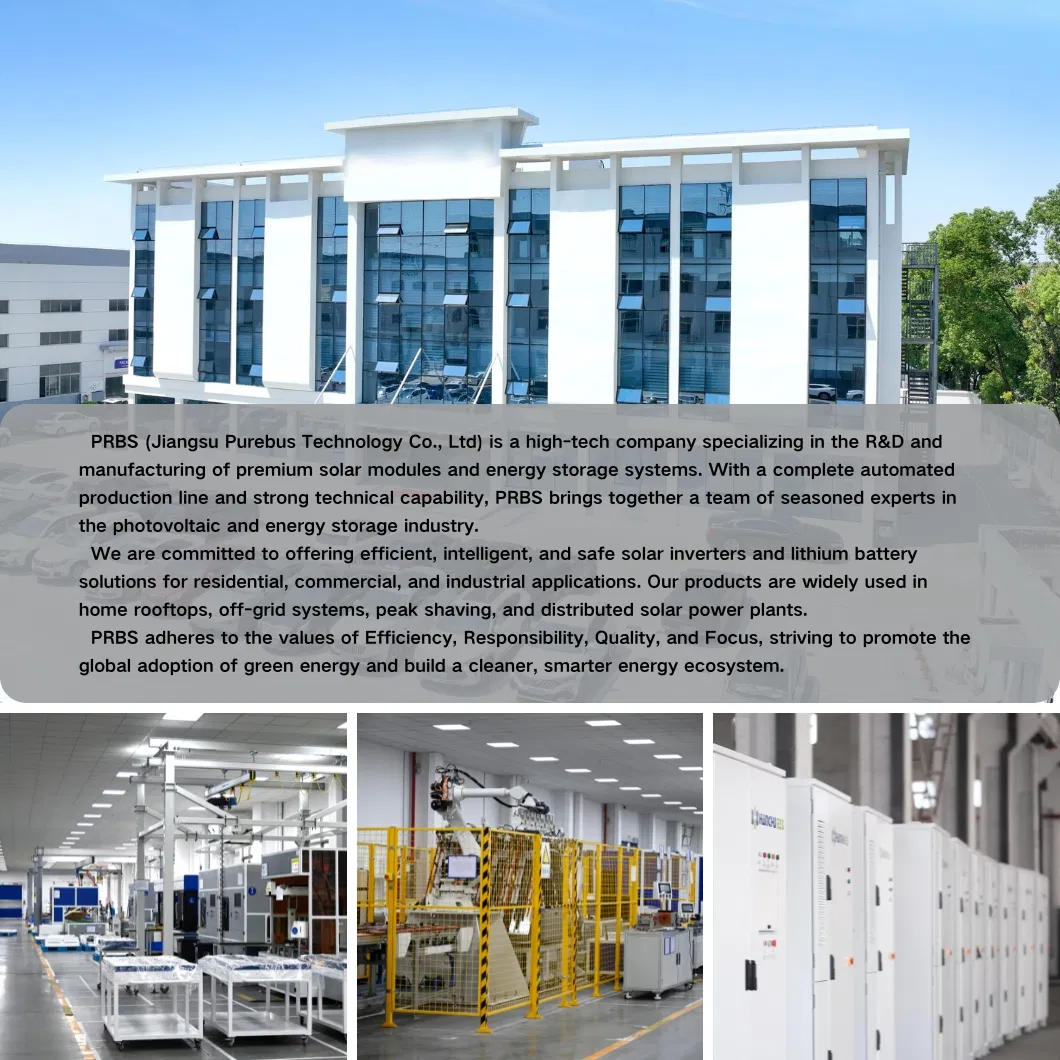

🏢 Manufacturing & Certifications
📦 Packaging & Shipping
❓ Frequently Asked Questions
Do the energy systems comply with international electrical and safety standards?
Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability (e.g., IP54/IP66 rated enclosures).
Can you provide customized configurations?
Yes. Custom options include battery capacity (up to 280Ah/module), nominal voltage (LV 51.2V or HV 135-750V), and communication protocols (CAN, RS485, Wi-Fi, Ethernet). Both modular and rack-mounted systems are available.
What is the lead time for delivery?
Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days. Expedited orders and scheduled production are available upon request.
Do you support third-party inspections?
Yes. We welcome third-party inspections from SGS, TUV, or client-assigned agents. Full test reports and compliance certificates are provided before shipment.
Are systems compatible with other inverter brands?
Yes. The energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of inverter brands. Configuration tools and wiring diagrams are provided for seamless setup.
What is the protection rating for these inverters?
Our inverters feature high-level ingress protection, typically rated as IP65 or Type3r, making them suitable for various outdoor and indoor installation environments.
