Customization: Available
Nature of Source Flow: Active Inverter
Phase: Single
Send Inquiry

Product Description

Basic Specifications
Model NO.
LW1000W-6000W
Output Power
500W to 8000W
Certification
CE, ROHS, ISO9001, CCC
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Wave Form
Pure Sine Wave
Frequency
50Hz, 60Hz
Input DC Voltage
12V, 24V, 48V DC
Peak Power
3 times of Rating Power
Efficiency
96% (AC Mode)
Product Description

5KW 24VDC 230VAC Pure Sine Wave Off Grid PV Inverter

This LW Series Pure Sine Wave Inverter takes low frequency converter technology with a built-in isolation transformer. Designed for high-end stability, it utilizes Motorola MCU digital processing and SPWM wave modeling to ensure clean power output and high efficiency.

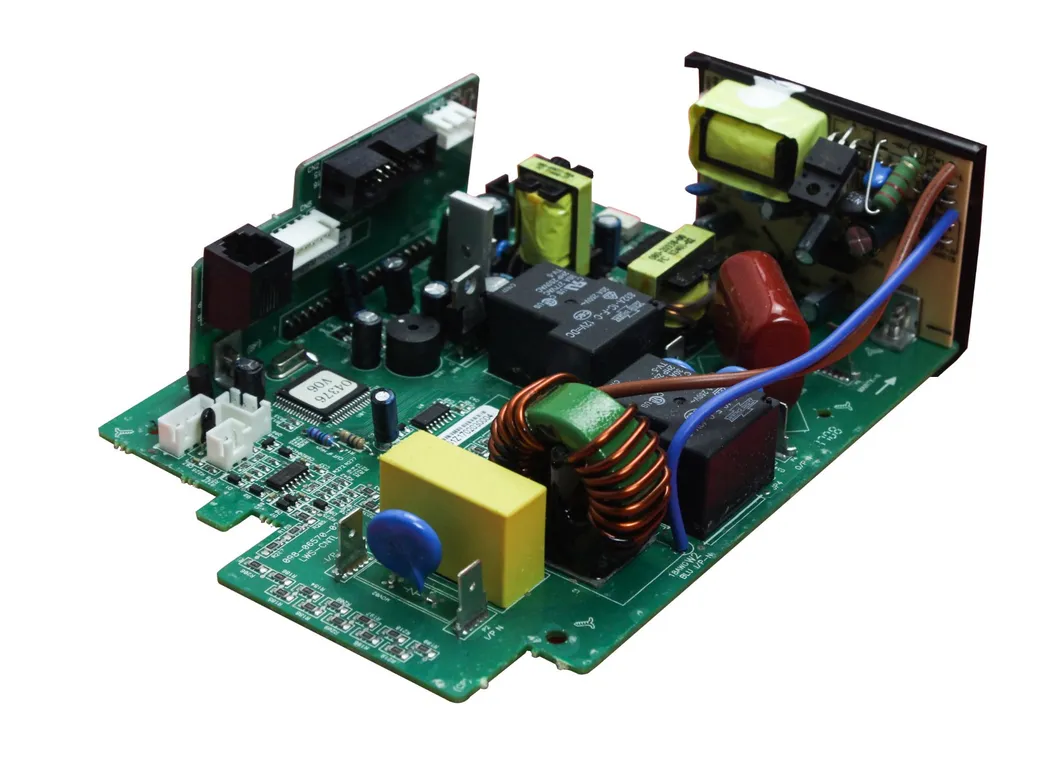

Inverter Display 1

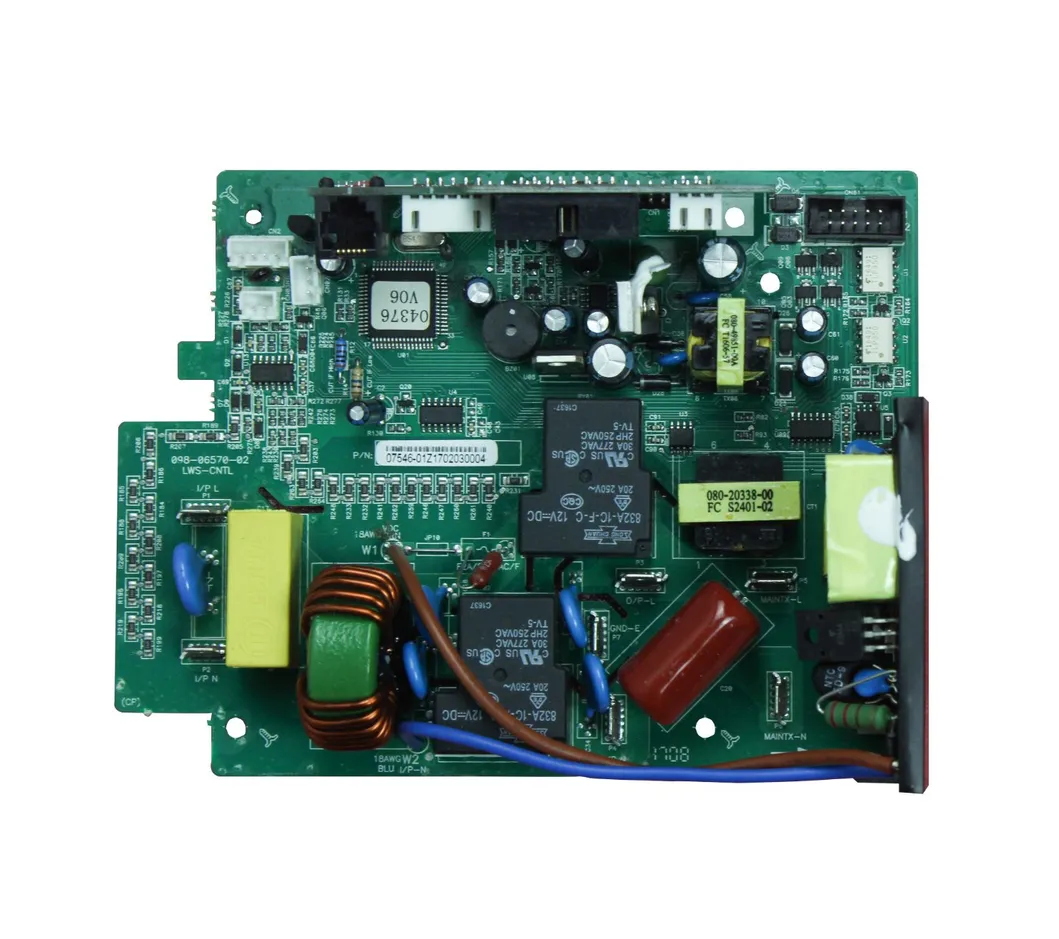

Inverter Display 2

Main Features:

  • LCD digital display showing voltage, load, and battery info in real-time.
  • Peak power is three times the rated power.
  • Compatible with inductive loads (Air conditioners, motors, etc.).
  • 4-step progressive charging with 7 battery type selectors.
  • High power factor 0.9, low power consumption.
  • Automatic transfer between battery and line modes.
  • Full protection: Overload, temperature, short circuit, and low battery.
Technical Highlights

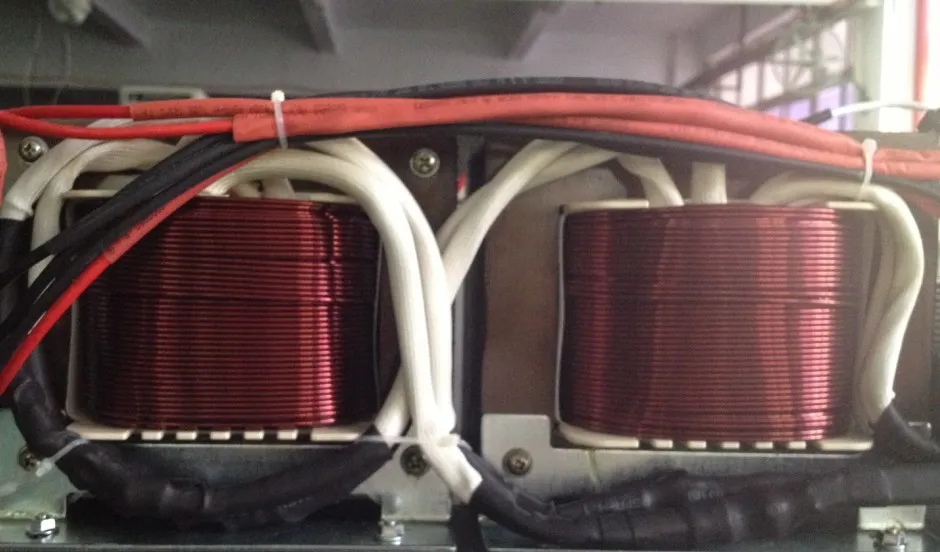

Strong Copper Transformer

Copper Transformer

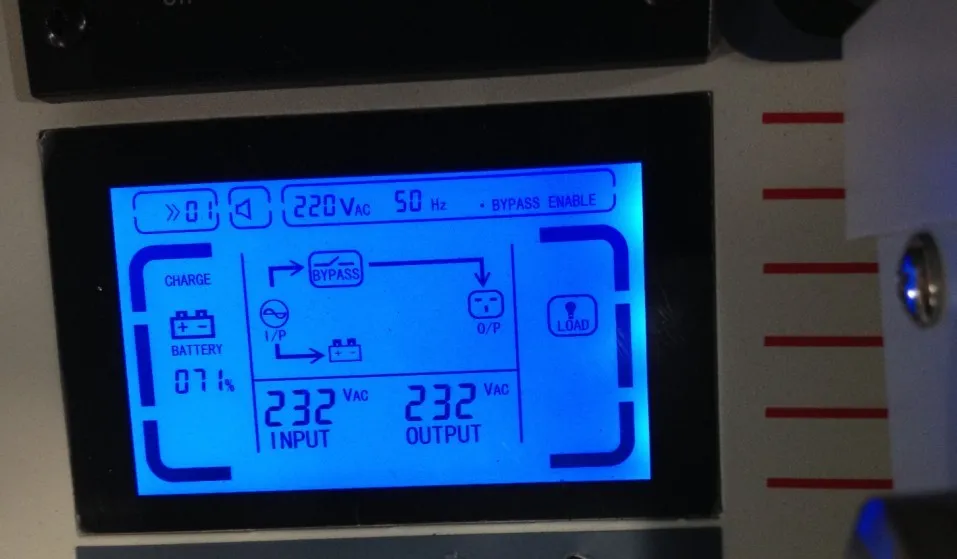

Digital LCD Display

LCD Display Info

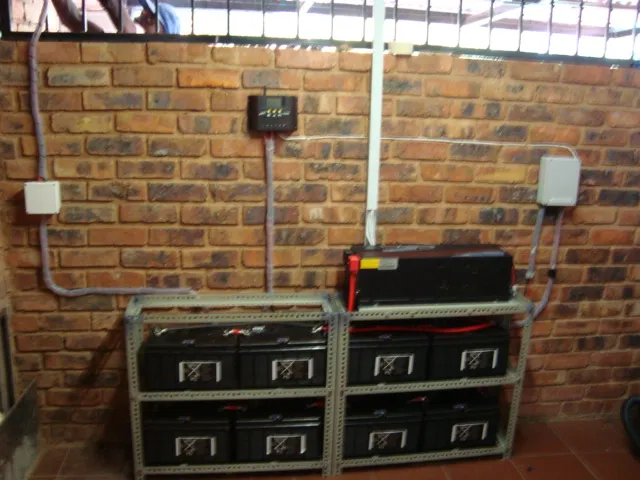

Installation Diagram

Installation
Detailed Specifications
Model LW 1000 LW 2000 LW 3000 LW 4000 LW 5000 LW 6000
Continuous Power (W) 1000 2000 3000 4000 5000 6000
Surge Rating (W) 3000 6000 9000 12000 15000 18000
Nominal Efficiency > 88%
Wave Form Pure Sine Wave
Line Transfer Time 10ms Typical
Charge Current 35A / 70A
Net Weight 18kg 20kg 22kg 35kg 38kg 40kg
Service & Logistics

Payment Terms

T/T, Western Union, PayPal, L/C at sight. Arrangement within 3-7 working days after payment.

Shipment Options

Express (DHL, FedEx, UPS), Air Freight, or Sea Freight via authorized agents.

Lead Time

Samples: 7 days | General Orders: 7-15 days | Bulk Orders: 15-25 days.

Frequently Asked Questions
Q1. What is the standard of the package?
A. For small capacity units, we use high-quality cartons. For larger capacity units, we use strong wooden cases for maximum protection during transit.
Q2. What kind of material is used in the transformer?
A. We offer two types: 100% pure copper and copper with aluminum. Copper is recommended for a longer lifespan and superior performance.
Q3. Can this inverter be connected to a solar system?
A. Yes. It combines an inverter, charger, and AC auto-transfer switch into one complete system, making it ideal for solar setups and backup power.
Q4. What certifications do your products have?
A. Our products have achieved ISO, FCC, and CE certifications, ensuring international quality standards.
Q5. What is the typical delivery time?
A. Standard production usually takes about 7-10 days depending on the order volume and specifications.
Q6. Do you support OEM services?
A. Yes, we provide full OEM services including logo application, custom labels, and manual design for volume orders.
