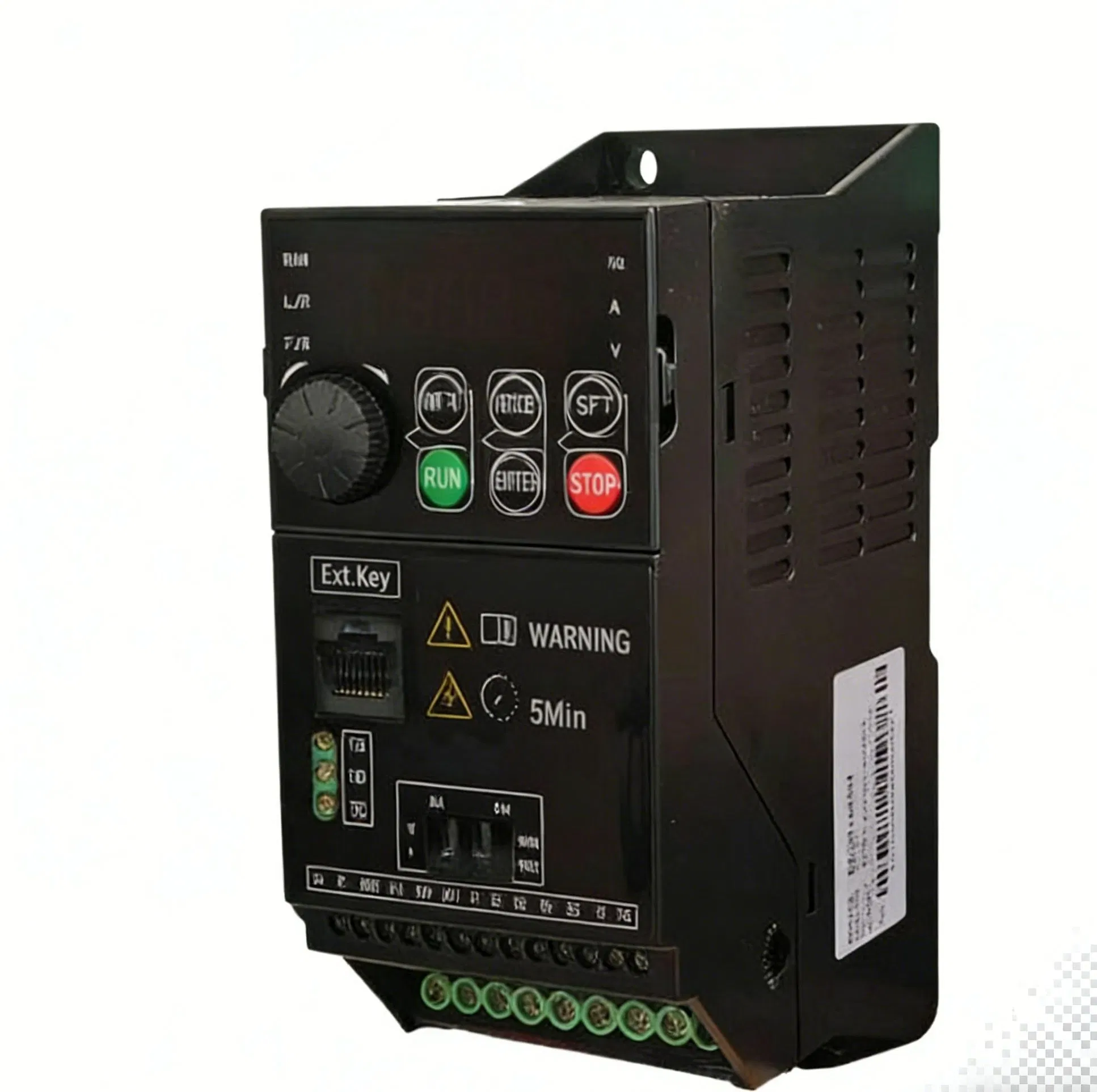

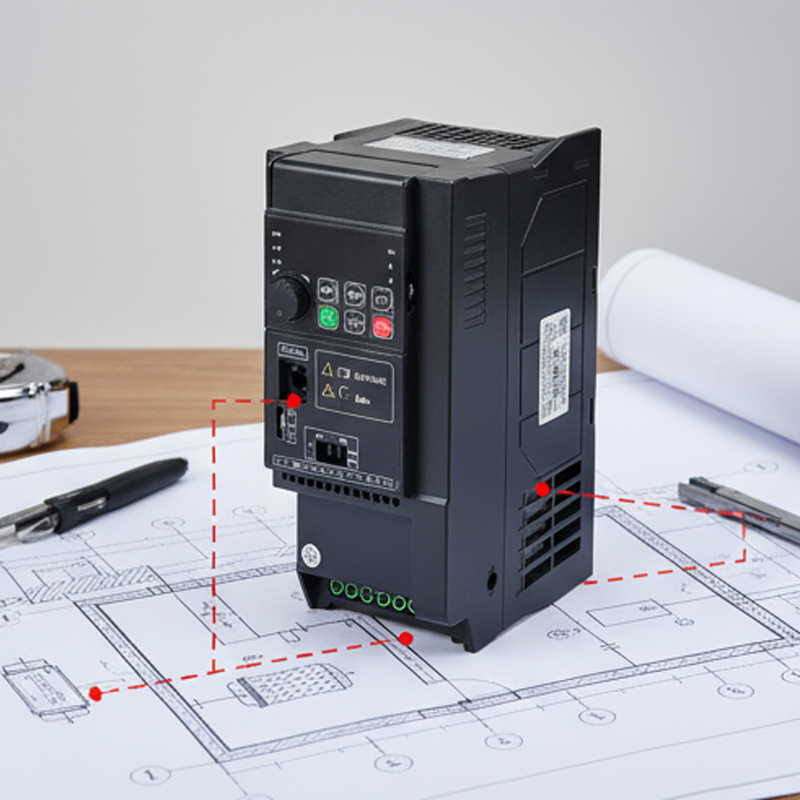

| Model NO. | HE100 |
| Principle of Work | V/F Control Transducer |
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Power Supply | Medium Voltage Variable-Frequency Drive |
| Transformation Link | AC-AC Variable-Frequency Drive |
| Power Range | 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5kw |
| Frequency Range | 0.00-500 Hz / 500-3000 Hz |
| Protection Environment | -40ºC ~ +70ºC Storage |
| Dimensions | 164 * 68 * 117mm |

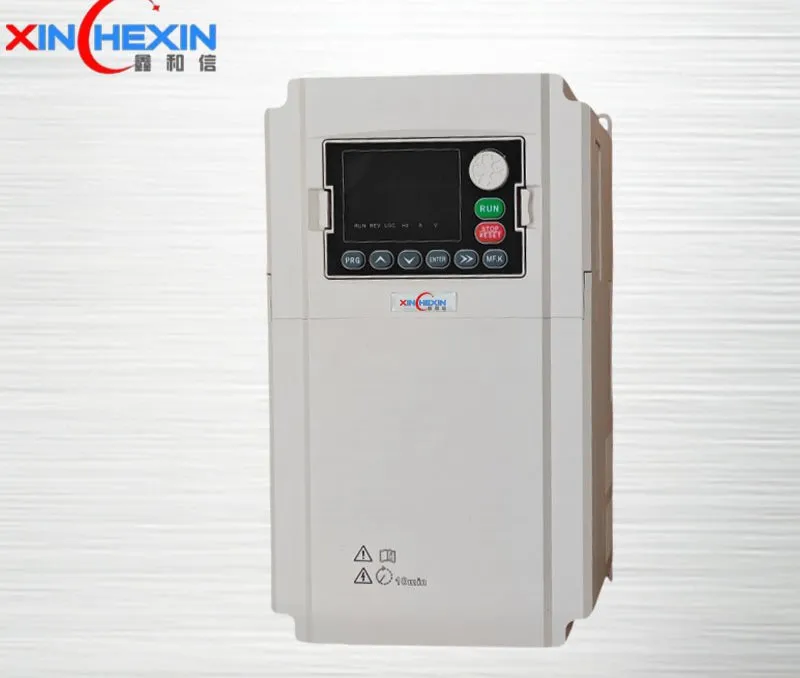

High-performance vector frequency converter featuring large low-speed starting torque, optimized current limiting, and advanced frequency reduction processing. It provides complete protection for over-current, overload, over-voltage, and short-circuits. Supports non-inductive permanent magnet synchronous vector control and English LCD keyboards.
Industrial-grade components suitable for high-temperature and high-humidity environments with IP20/IP21 rating.
Supports open-loop/closed-loop vector control, providing high starting torque and precise speed regulation for various motors.
Built-in PID control and fault protection mechanisms for overcurrent, overvoltage, and short circuits.
Optimizes motor efficiency and speed regulation on demand, significantly reducing consumption for fans and pumps.
