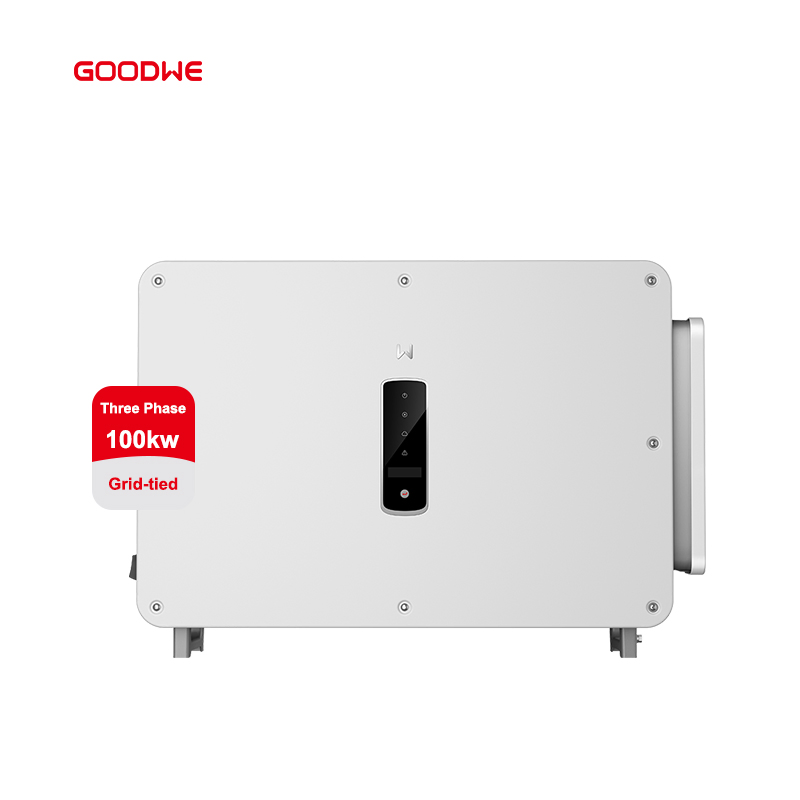

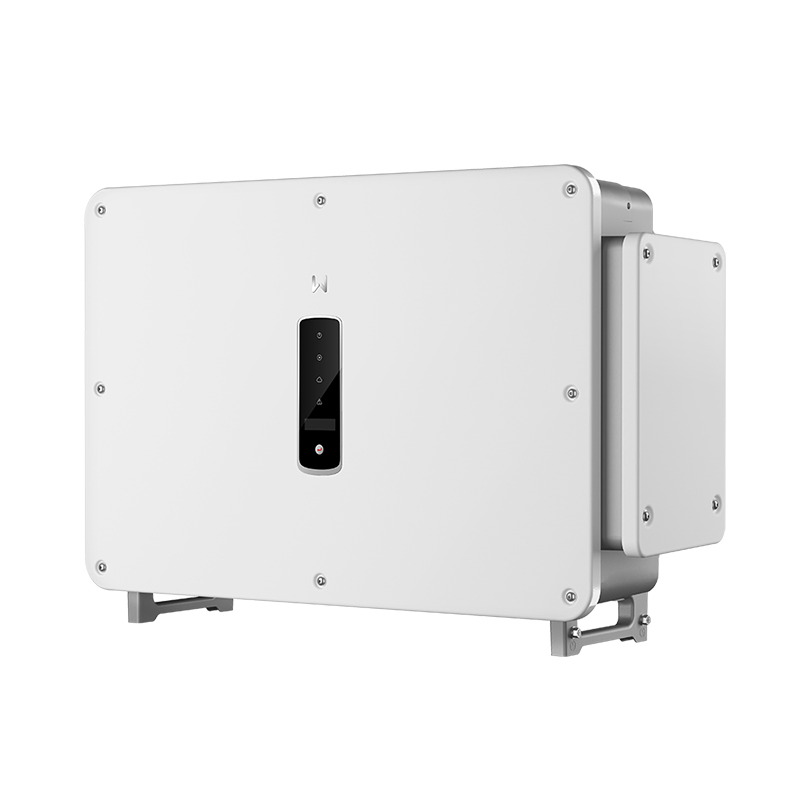

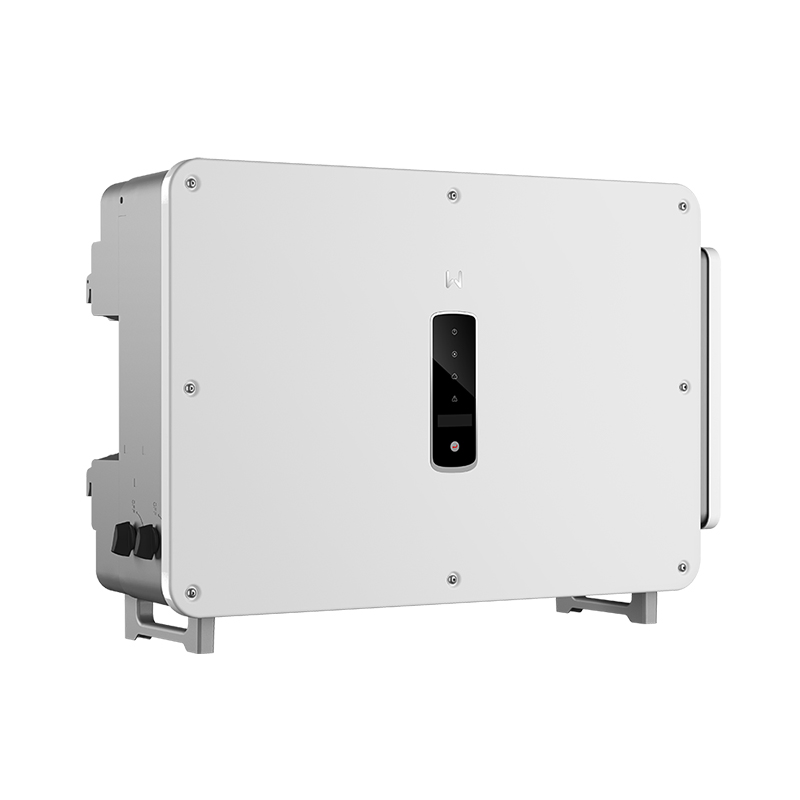

Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
1 / 5
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects
Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects

Goodwe Gw100K-Gt 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
GW100K-GT
Nature of Flow
Active Inverter
Phase
Three Phase
Output Power
100kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Goodwe
Power Source
Solar Power
Input Voltage
600V
Protection
IP66
Cooling
Smart Fan Cooling
Product Description

Goodwe GW100K-GT 3 Phase 100kw on Grid Solar Inverter for C&I PV Projects

Goodwe Inverter

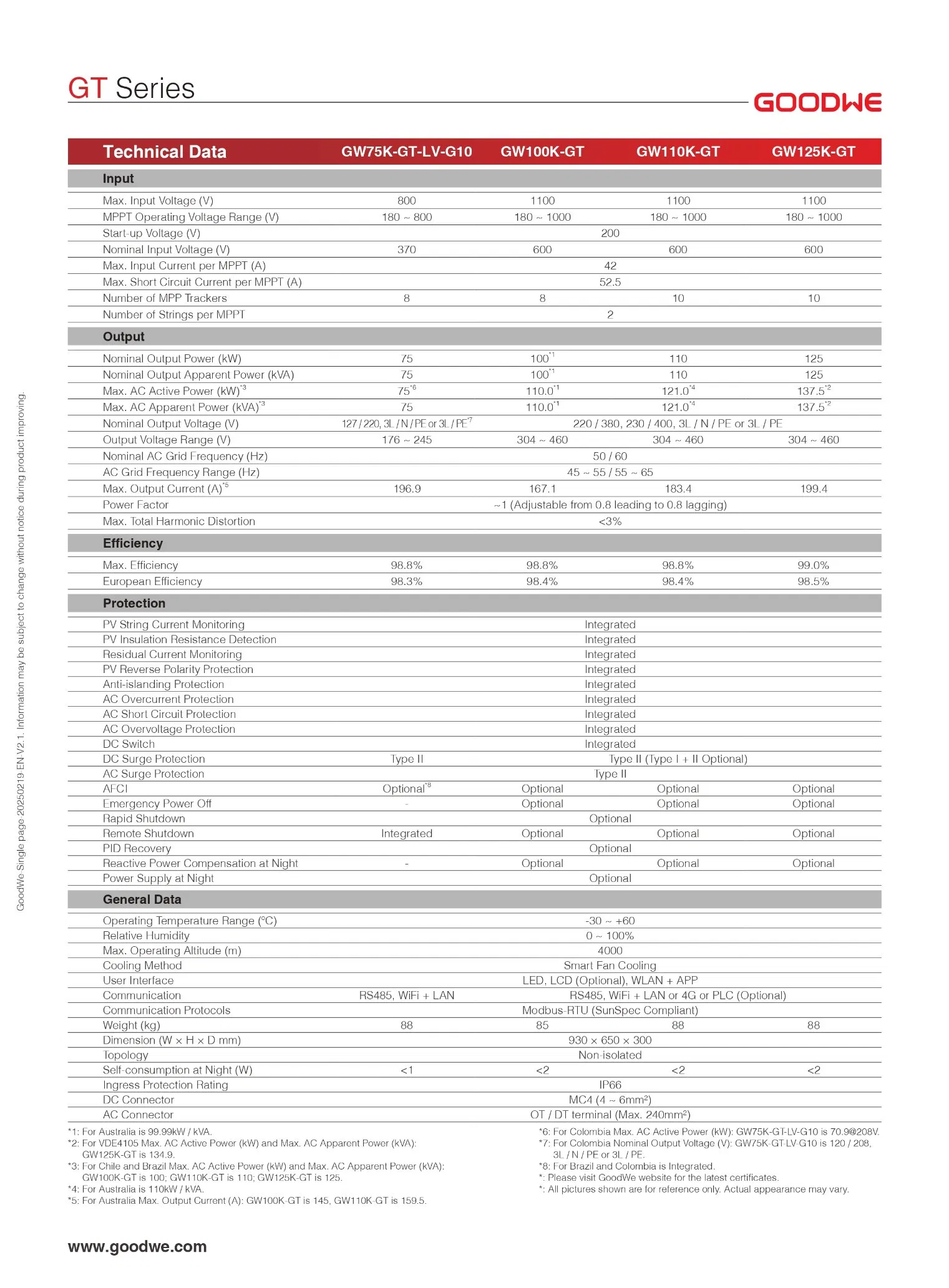

Technical Parameters
Technical Data GW100K-GT GW110K-GT GW125K-GT
Input
Max. Input Voltage (V)1100
MPPT Voltage Range (V)180 ~ 1000
Nominal Input Voltage (V)600
Number of MPP Trackers81010
Output
Nominal Output Power (kW)100110125
Max. AC Active Power (kW)110121137.5
Nominal Output Voltage (V)220/380, 230/400, 3L/N/PE or 3L/PE
Max. Output Current (A)167.1183.4199.4
Efficiency
Max. Efficiency98.8%98.8%99.0%
European Efficiency98.4%98.4%98.5%
General Data
Operating Temp Range-30 ~ +60 ºC
Protection RatingIP66
Dimension (W×H×D mm)930*650*300
Packaging & Project Case
Packaging
Project Case
Frequently Asked Questions
What is the maximum efficiency of the GW100K-GT inverter?
The Goodwe GW100K-GT features a maximum efficiency of 98.8%, ensuring minimal energy loss during the DC to AC conversion process.
Is this inverter suitable for outdoor installation?
Yes, the inverter comes with an IP66 ingress protection rating, making it highly resistant to dust and high-pressure water jets, ideal for various outdoor environments.
How does the cooling system work?
The unit utilizes a Smart Fan Cooling system that adjusts the cooling intensity based on the internal temperature, maintaining optimal performance and longevity.
What communication protocols are supported?
It supports RS485 as standard, with options for WiFi, LAN, 4G, or PLC (Power Line Communication), and is compliant with Modbus-RTU protocols.
How many MPP trackers does the GW100K-GT have?
The GW100K-GT model is equipped with 8 MPP trackers, while the GW110K and GW125K models feature 10 MPP trackers for maximum design flexibility.
What is the DC input voltage range?
The MPPT operating voltage range is from 180V to 1000V, with a maximum input voltage capacity of up to 1100V.
