| Model NO. | EPS0050 |
| Source Flow | Active Inverter |
| Phase | Three |
| Output Power | 50kw |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| IP Rating | IP20 |
| Cooling | Intelligent Air Cooling |
| Battery Type | Lead-Acid or Lithium-Ion |
| Work Mode | On Grid, Off Grid and Hybrid |
| Display | LCD Touch-Screen |
| Certification | SAA, CE, ROHS, ISO9001, CCC |

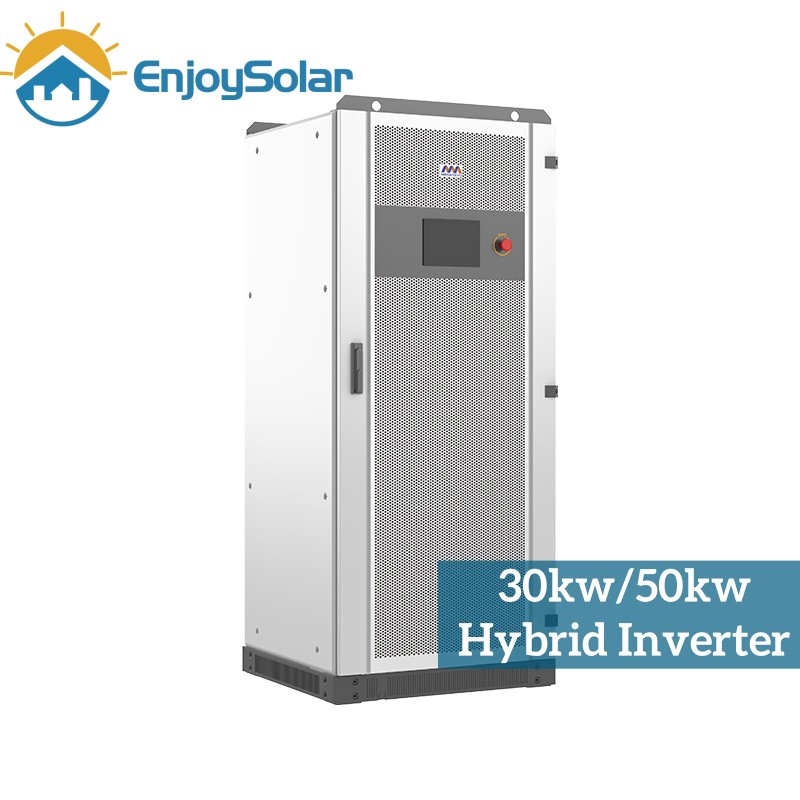

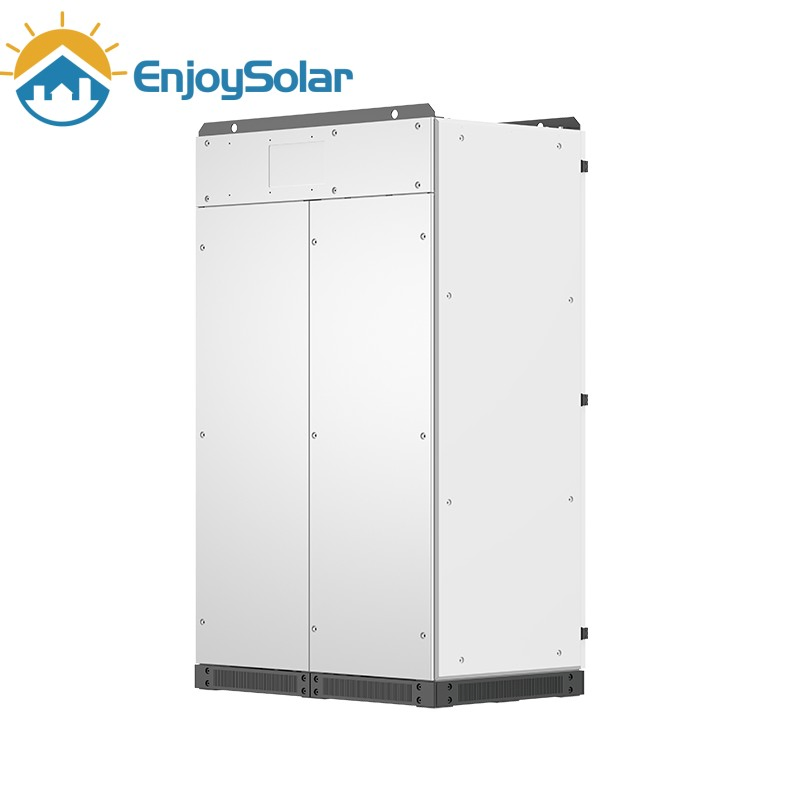

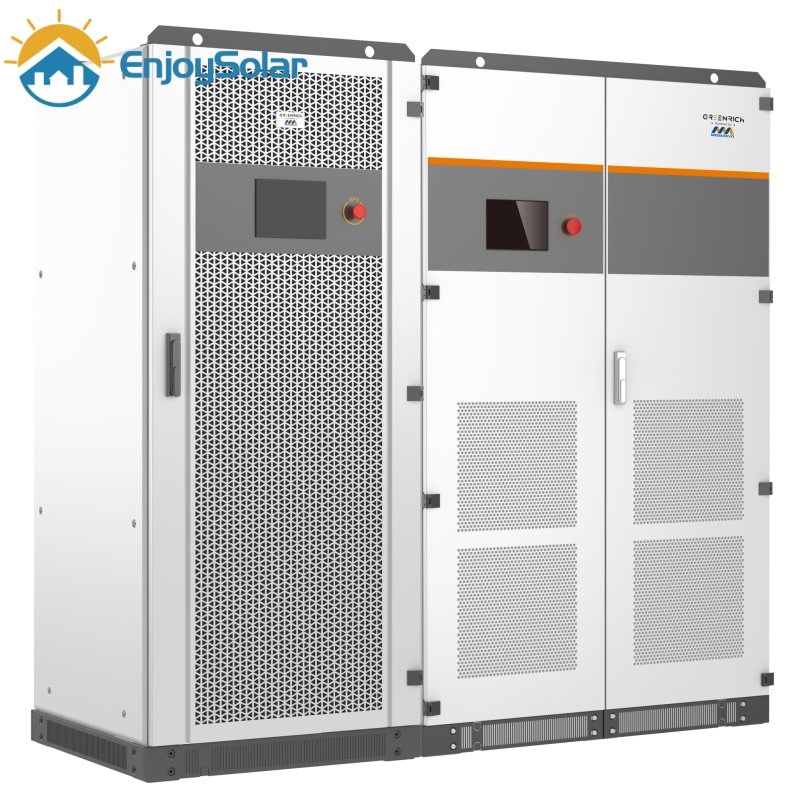

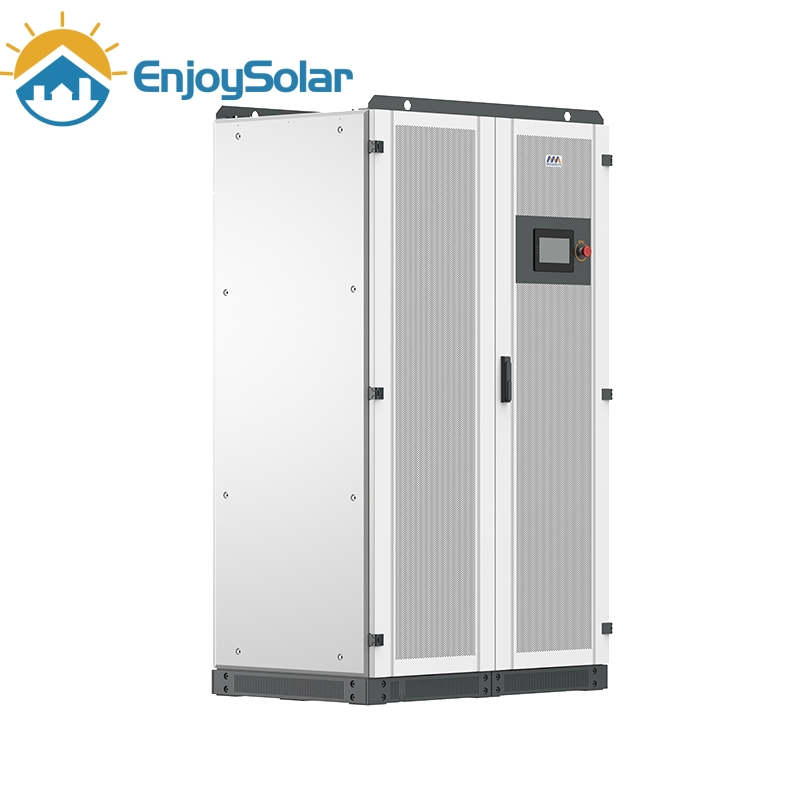

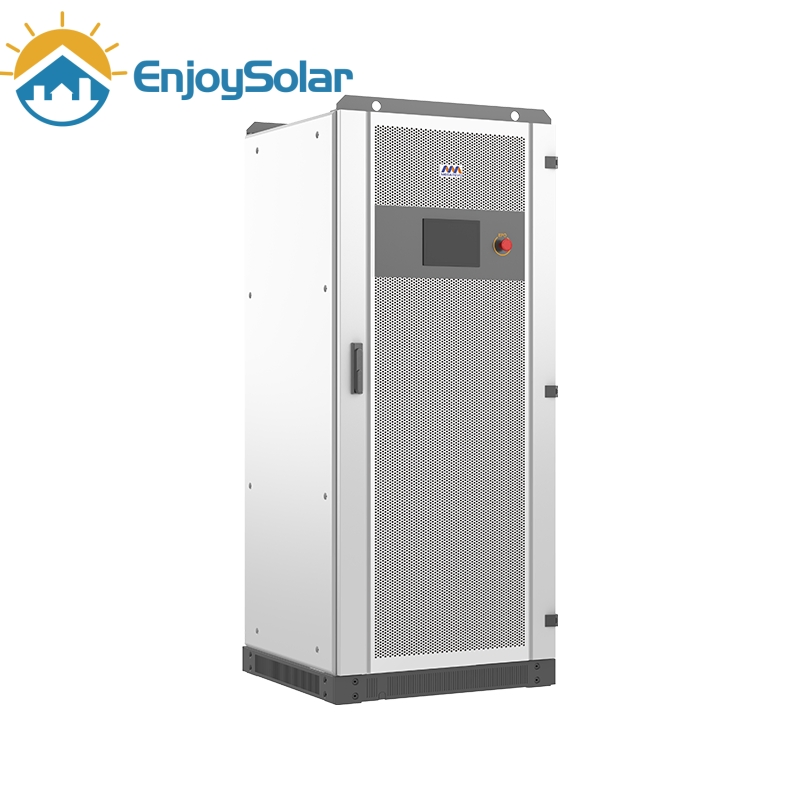

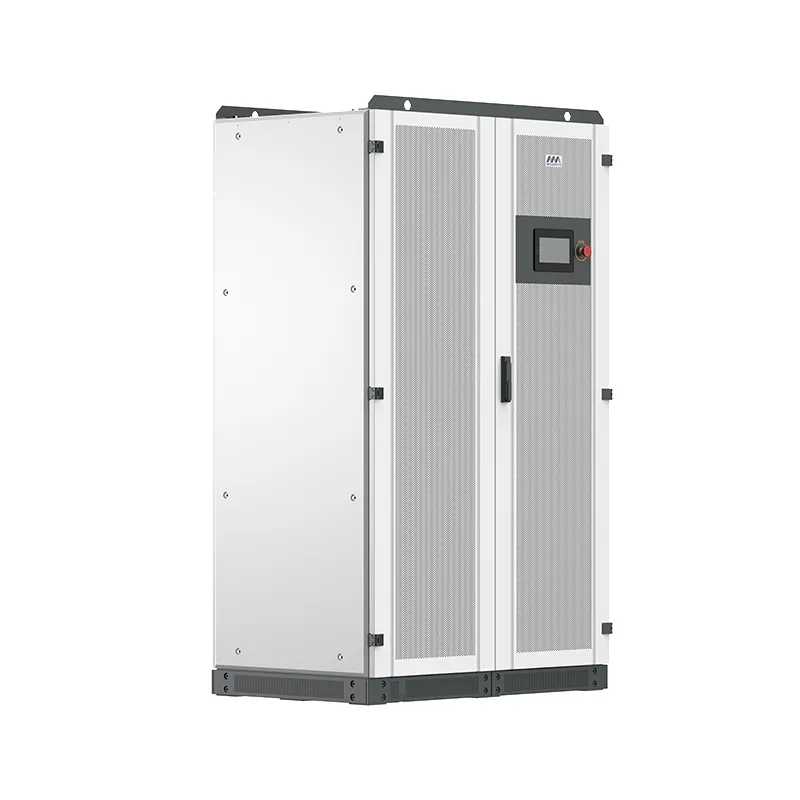

EPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak. The system's strong load adaptability and complete protection function ensure power supply security and stability.
Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 test certification.

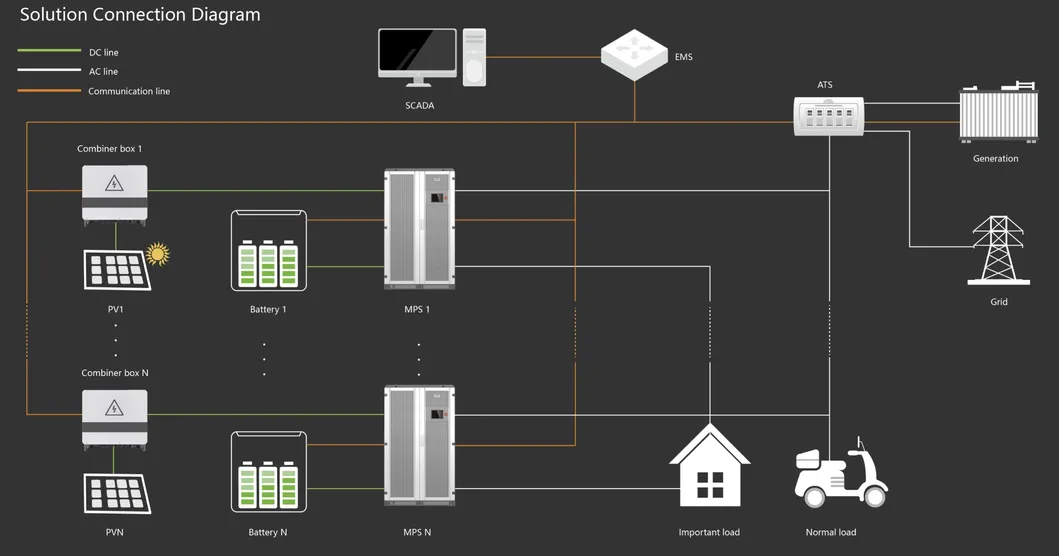

Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly.
Supports unattended operation, with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.
Save more installation and commissioning costs
Reduce fossil fuel use and be environmentally friendly
Increase the penetration of renewable energy
Continuous and stable power supply
| Model | EPS0030 | EPS0050 | EPS0100 | EPS0150 | EPS0250 | EPS0500 |
|---|---|---|---|---|---|---|
| AC (On-Grid) | ||||||
| Rated Output Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Max. Output Power (kW) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Voltage (V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| PV Input | ||||||
| Max. PV Input Voltage (V) | 1,000 | |||||
| MPPT Voltage Range (V) | 250~850 | |||||
| Battery | ||||||
| Battery Voltage Range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| General Data | ||||||
| Protection Rating | IP20 | |||||
| Display | LCD Touch Screen | |||||

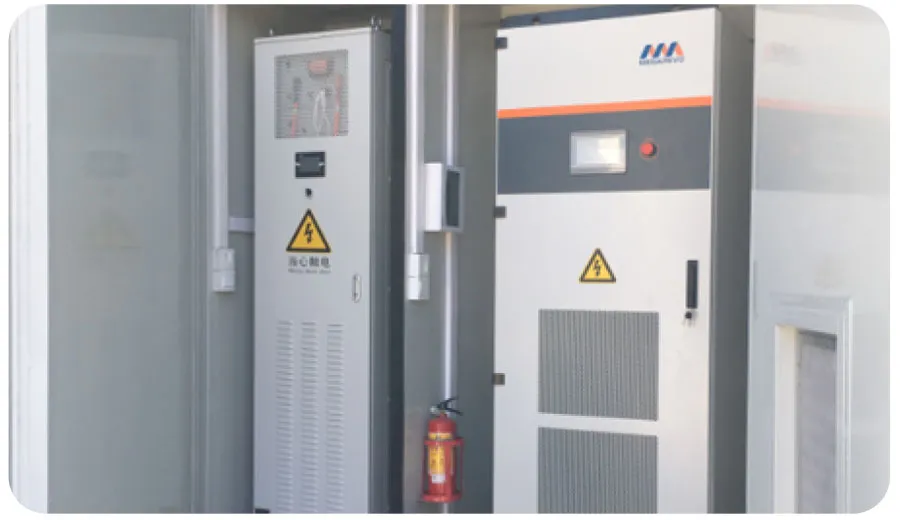

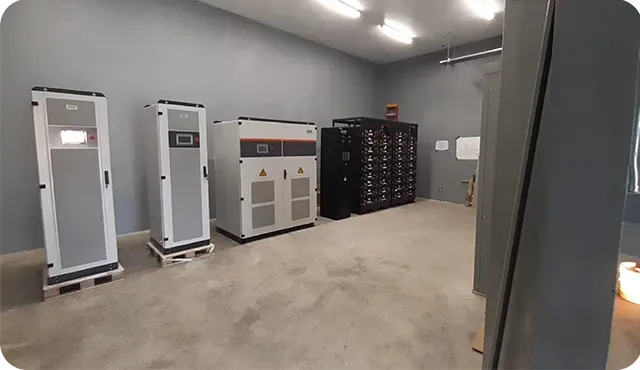

We provide feasible solutions and turnkey services according to different applications. Whether small-scale distributed or large-scale centralized, we have already helped more than 1,000 regions to achieve energy freedom globally.
