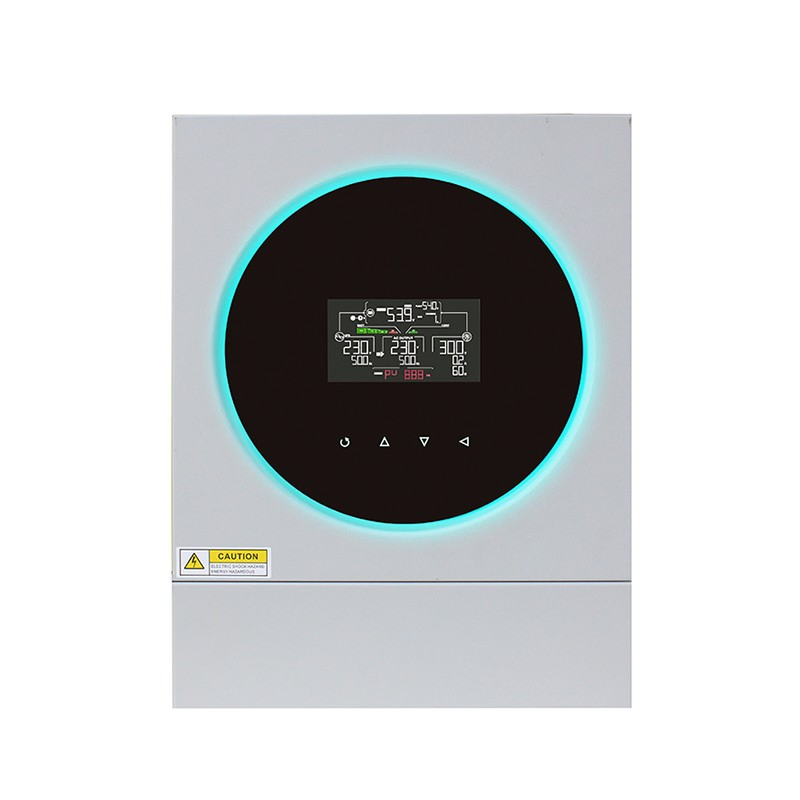

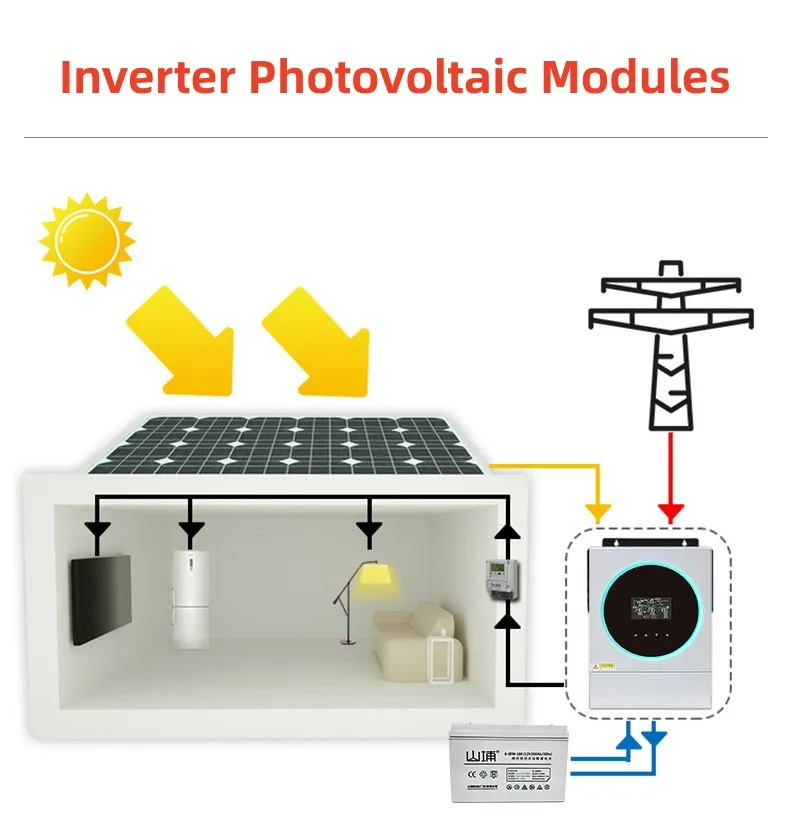

This smart hybrid solar inverter serves as a photovoltaic panel inverter, converting solar energy for storage and power generation systems. It is ideally suited to power high-demand household equipment including washing machines, televisions, electric fans, and water heaters.
Advanced DPS digital control technology for off-grid reverse control.
Input PFC technology with 0.99 power factor and efficient inverter topology.
Battery balancing function optimizes performance and storage efficiency.
Supports WIFI communication and includes a built-in dust net for harsh environments.
| PRODUCT ATTRIBUTES | |
| Product Model | SP-IV-3.6KW |
| Rated Power | 3600VA / 3600W |
| AC INPUT | |
| Voltage | 230Vac |
| Voltage Range | 170-280Vac (PC) / 90-280Vac (Appliances) |
| Frequency | 50/60Hz |
| PV INPUT | |
| Maximum PV Array Power | 4000W |
| Max PV Array Open Circuit Voltage | 500Vdc |
| MPPT Range / Operating Voltage | 120Vdc-450Vdc |
| ENERGY STORAGE & BATTERY | |
| Battery Voltage | 24V |
| Maximum Charging Current | 120A |
| Battery Type | Lead acid, Lithium battery, etc. |
| Weight | 10kg |
