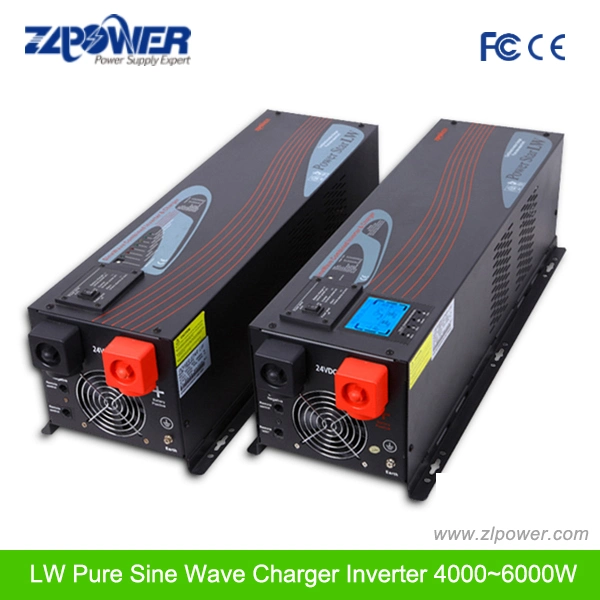

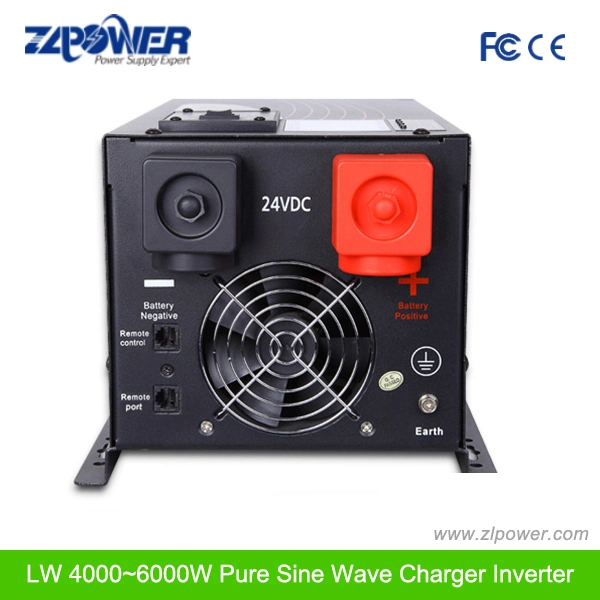

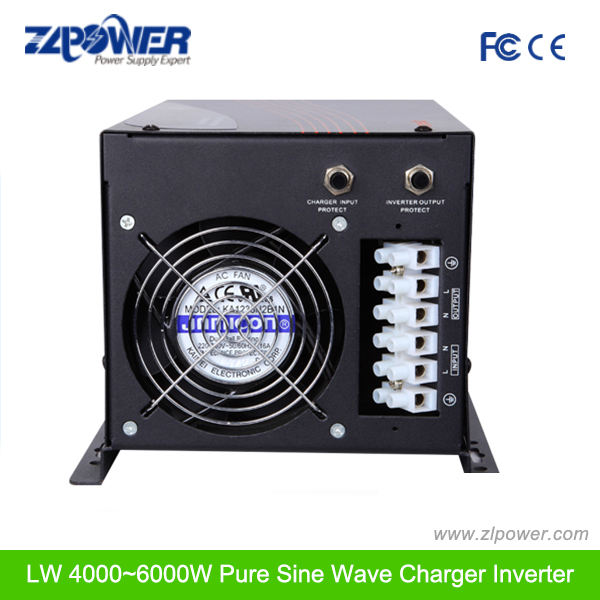

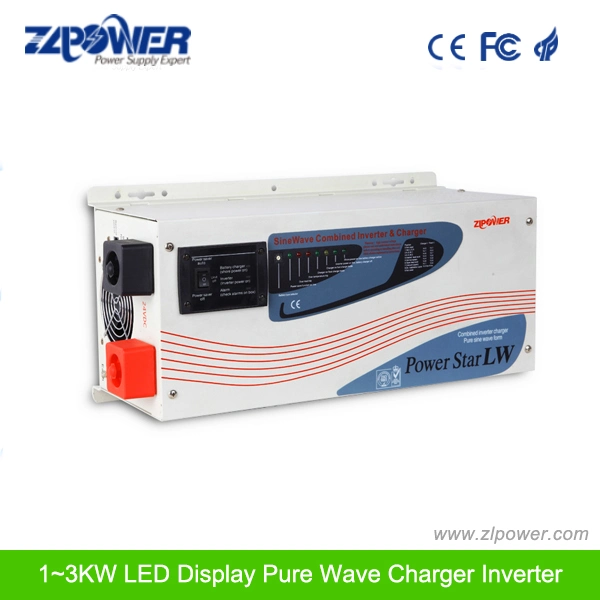

Power Star W7 Home Solar Power System PV Inverter 48VDC 230VAC 5000W 6000W

1 / 5

Power Star W7 Home Solar Power System PV Inverter 48VDC 230VAC 5000W 6000W

Customization:	Available
Phase:	Single
Output Power:	500W to 8000W

Send Inquiry

Product Description

Basic Information

Model NO.

LW series 1000w~6000w

Certification

CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Rated Power

500W-8000W

Wave Form

Pure Sine Wave

Efficiency

96% (AC Mode)

Peak Power

3 times of Rated Power

HS Code

8504403090

Power Star W7 Home Solar Inverter

Power Star W7 Home Solar Power System PV Inverter 48Vdc 230Vac 5000W 6000W

Suitable for all kinds of home appliances, office equipment, solar power systems, and other equipment which use single phase power.

Pure sine wave output for sensitive loads.

Peak power is three times of rated power.

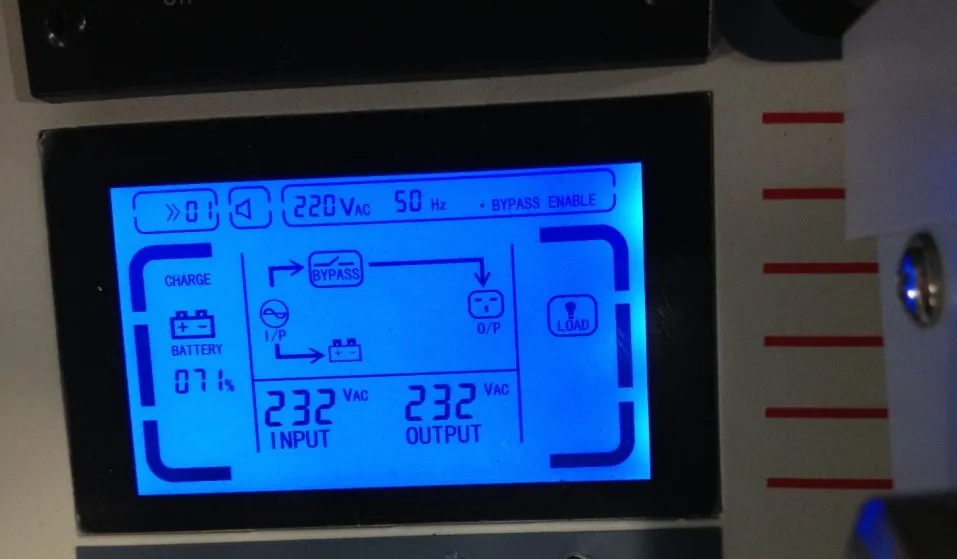

LCD digital display for real-time voltage and load.

4-step progressive charging, 7 battery selectors.

Microprocessor control guarantees high reliability.

Full protection: Overload, Short circuit, Low battery.

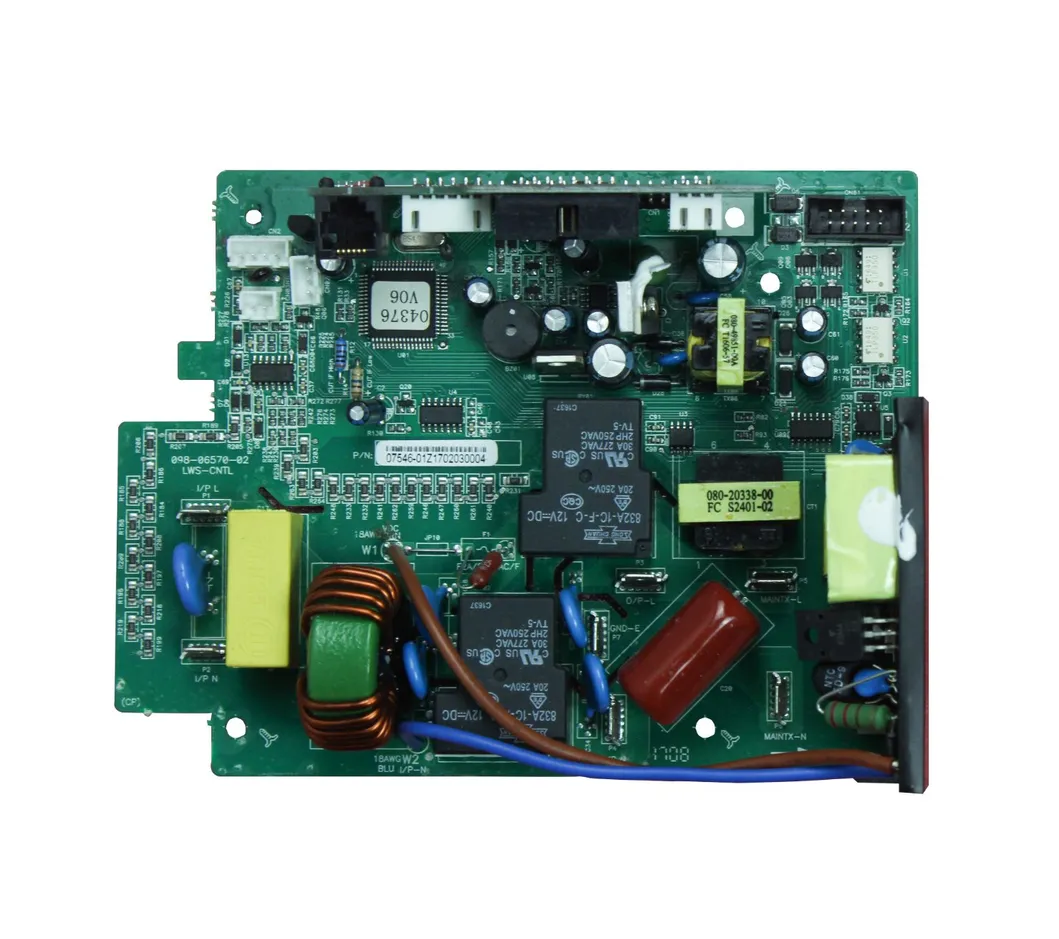

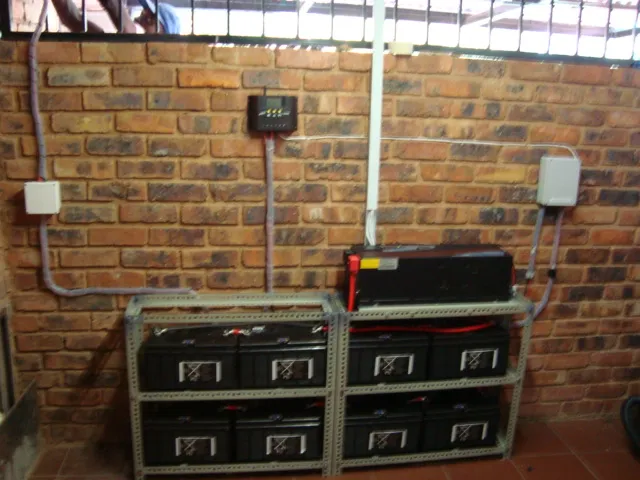

Installation & Components

Technical Specifications

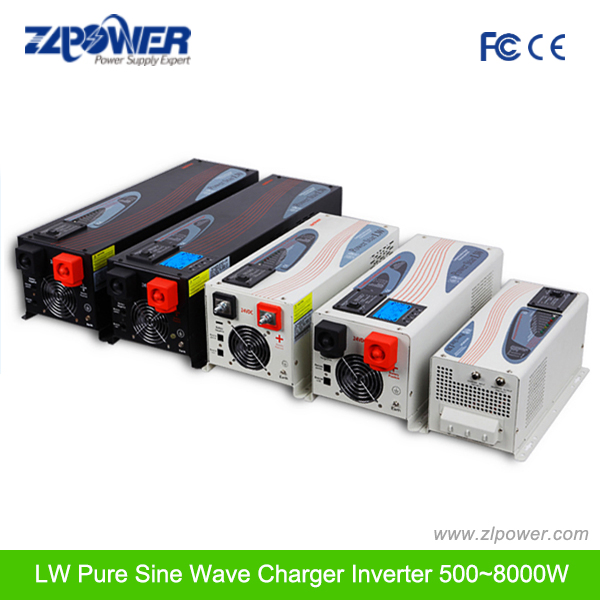

Model Parameter	LW 1000	LW 2000	LW 3000	LW 4000	LW 5000	LW 6000
Continuous Power (W)	1000	2000	3000	4000	5000	6000
Surge Rating (W)	3000	6000	9000	12000	15000	18000
Input Voltage	12V / 24V / 48V DC
Output Voltage	120VAC / 230VAC
Wave Form	Pure Sine Wave
Transfer Time	10ms Typical
Charge Current	35A / 70A
Net Weight (kg)	18	20	22	35	38	40

Frequently Asked Questions

What is the standard delivery time for orders?

Usually, it takes about 7-10 working days for production of general orders. Samples can be delivered within 7 working days.

Can this inverter be used with solar systems?

Yes. It combines an inverter, charger, and AC auto-transfer switch into one complete system, making it ideal for solar battery packs and home systems.

What kind of protection does the inverter offer?

It provides multiple protections including Input low voltage, Overload, Short circuit, Low battery alarm, Input over voltage, and Over temperature.

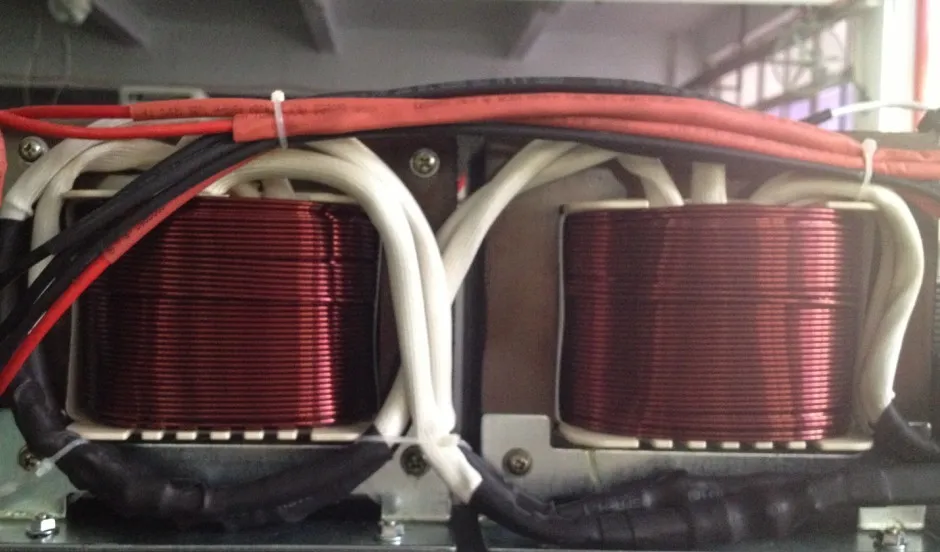

What materials are used in the transformer?

We offer two types: 100% pure copper or copper with aluminum. Pure copper is recommended for a longer lifespan and better performance.

What is the peak power capacity?

The peak power (surge rating) is 3 times the rated power, allowing it to handle inductive loads like air conditioners and motors.

Does the inverter work with sensitive electronics?

Yes, the pure sine wave output (THD < 3%) is suitable for sensitive loads, office equipment, and harsh environments.
