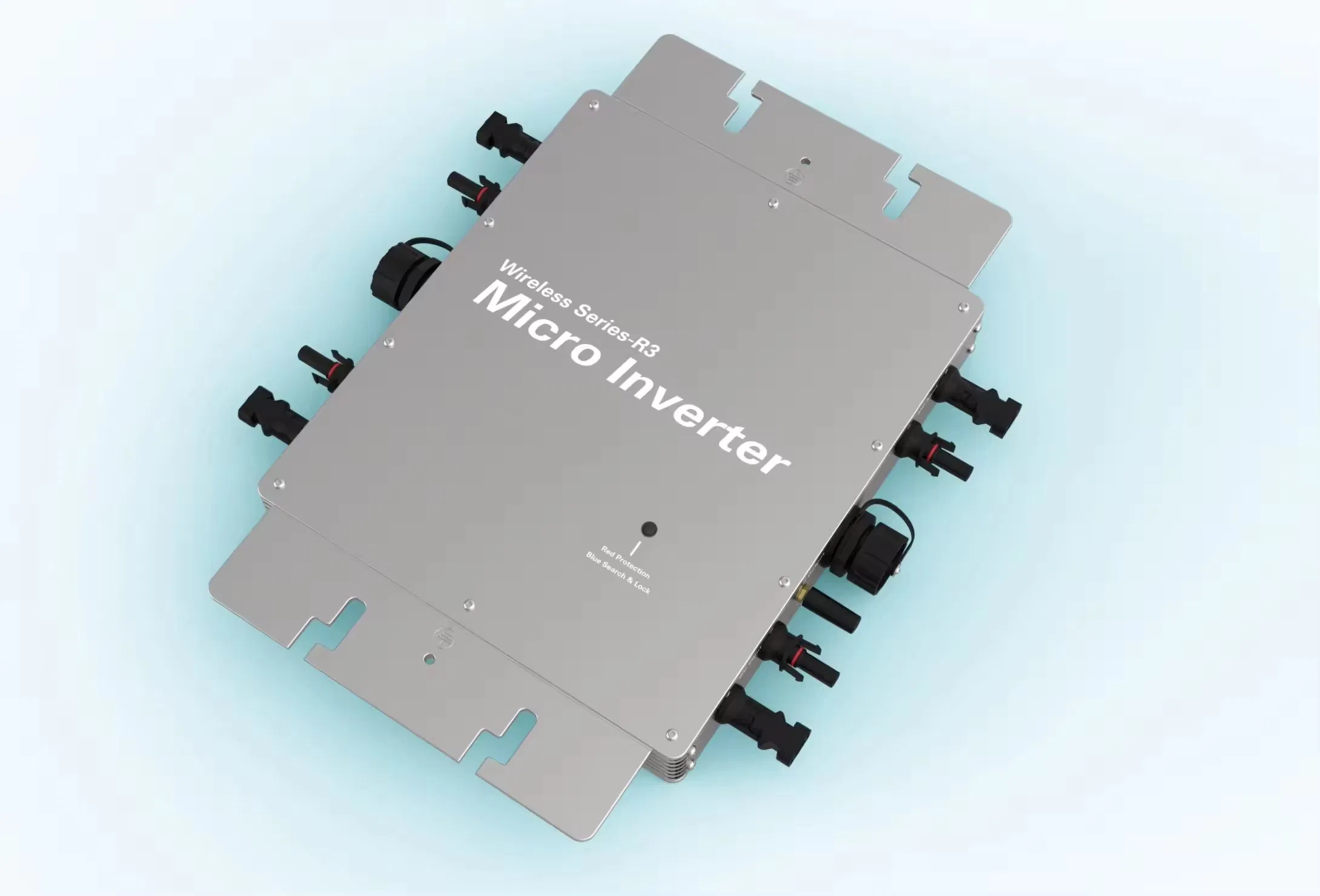

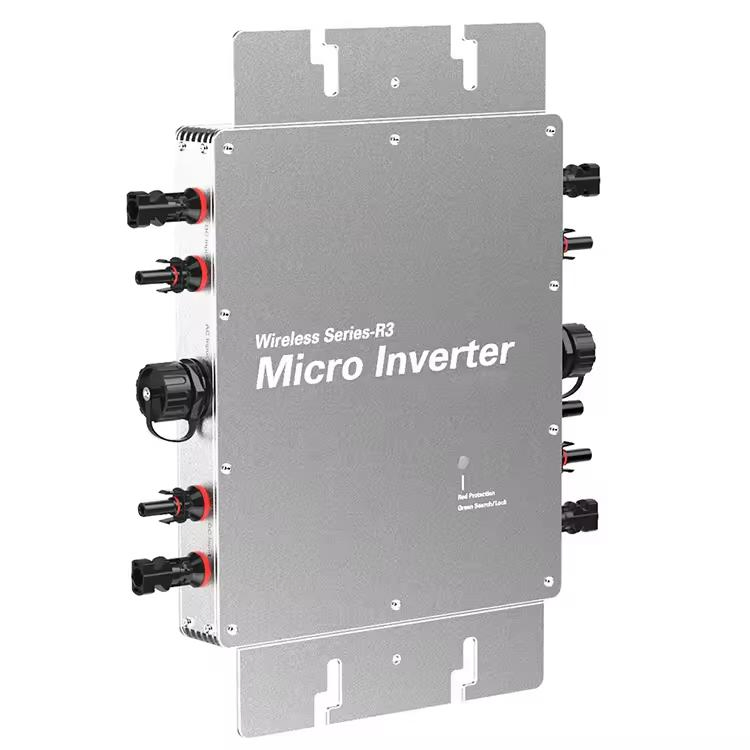

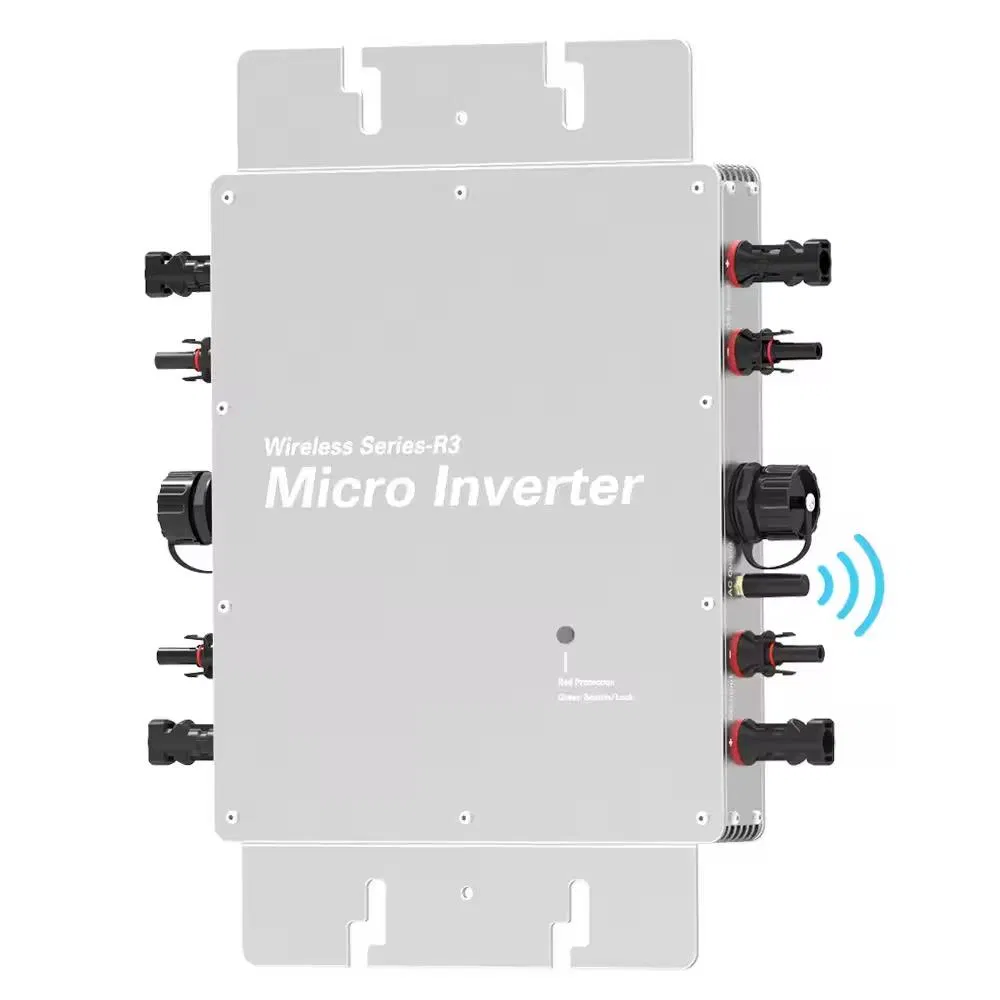

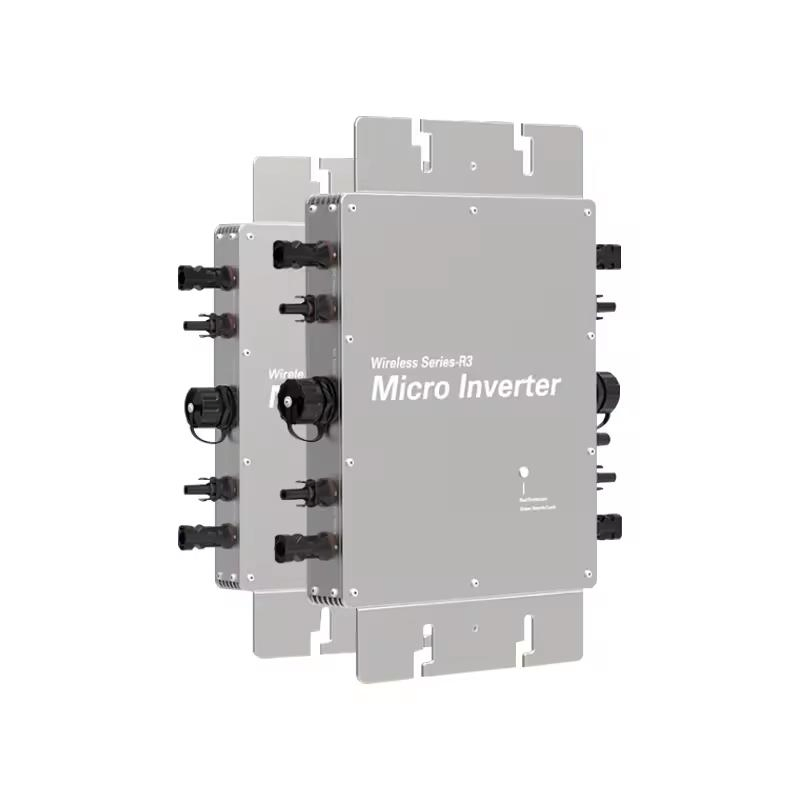

High Efficiency Solar Microinverter Micro Solar Power Inverter for 2800W Solar PV Panels

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

Basic Specifications

Model NO.
WVC-2800
Source Flow
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, TUV
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Recommended Panels
4*875watt
Voltage Mode
120/230V Auto Switch
PV Open Circuit
30-54voc
Operating Range
22-60V
Short-Circuit Current
4*32A
Dimensions
370*300*41.6mm
Origin
China

Packaging & Delivery

Package Size
43.00cm * 37.50cm * 14.00cm
Gross Weight
4.360kg

Product Display

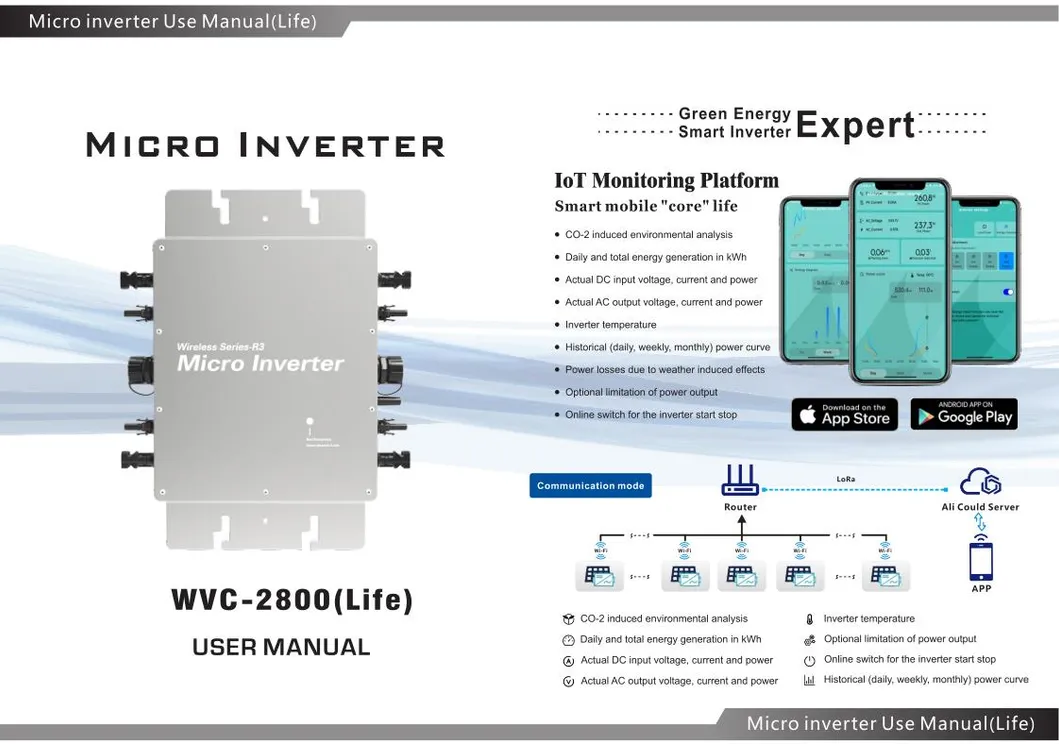

Solar Microinverter 2800W High Efficiency Microinverter
Solar PV Panel Inverter Micro Solar Power System

Detailed View

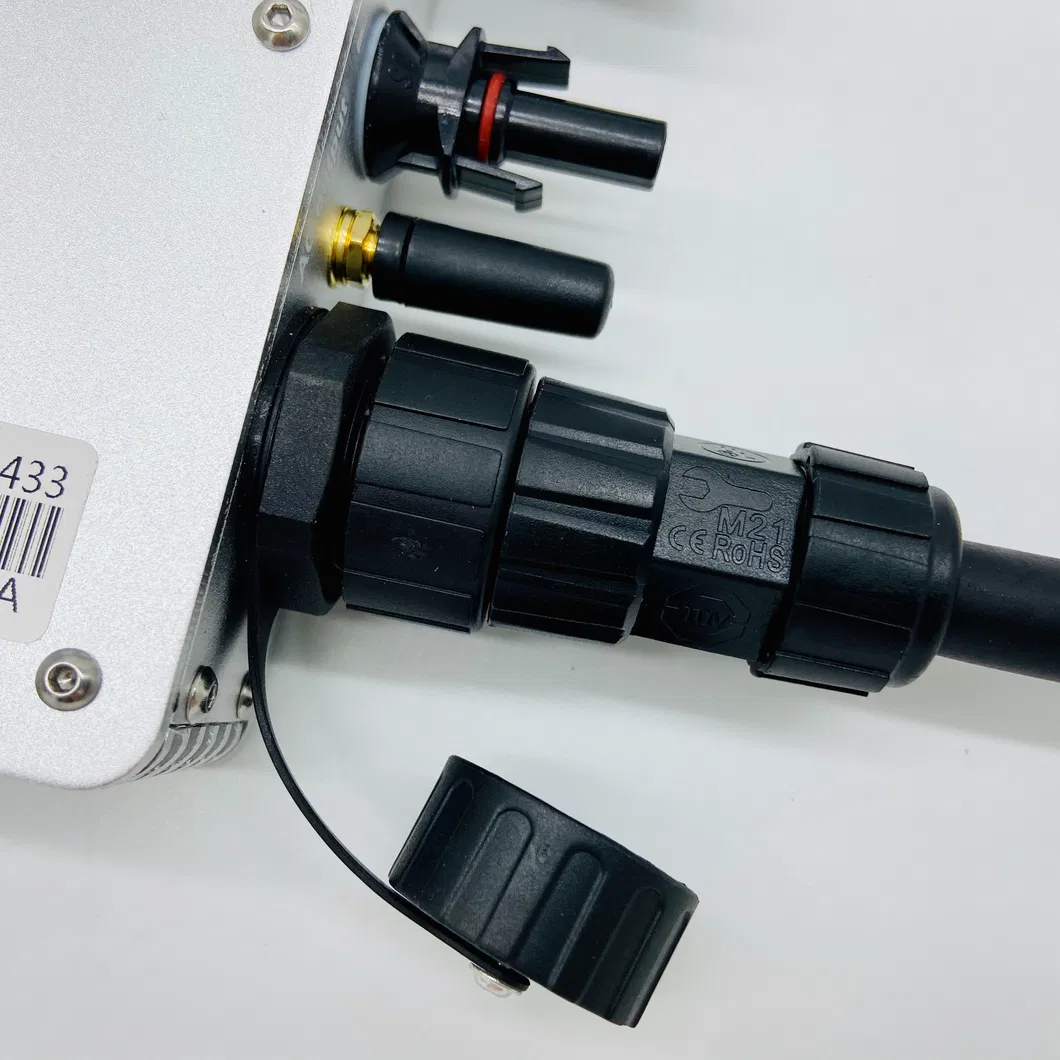

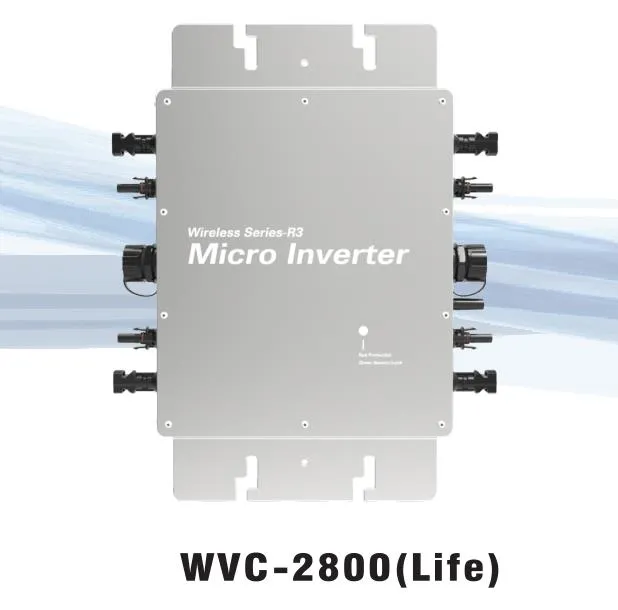

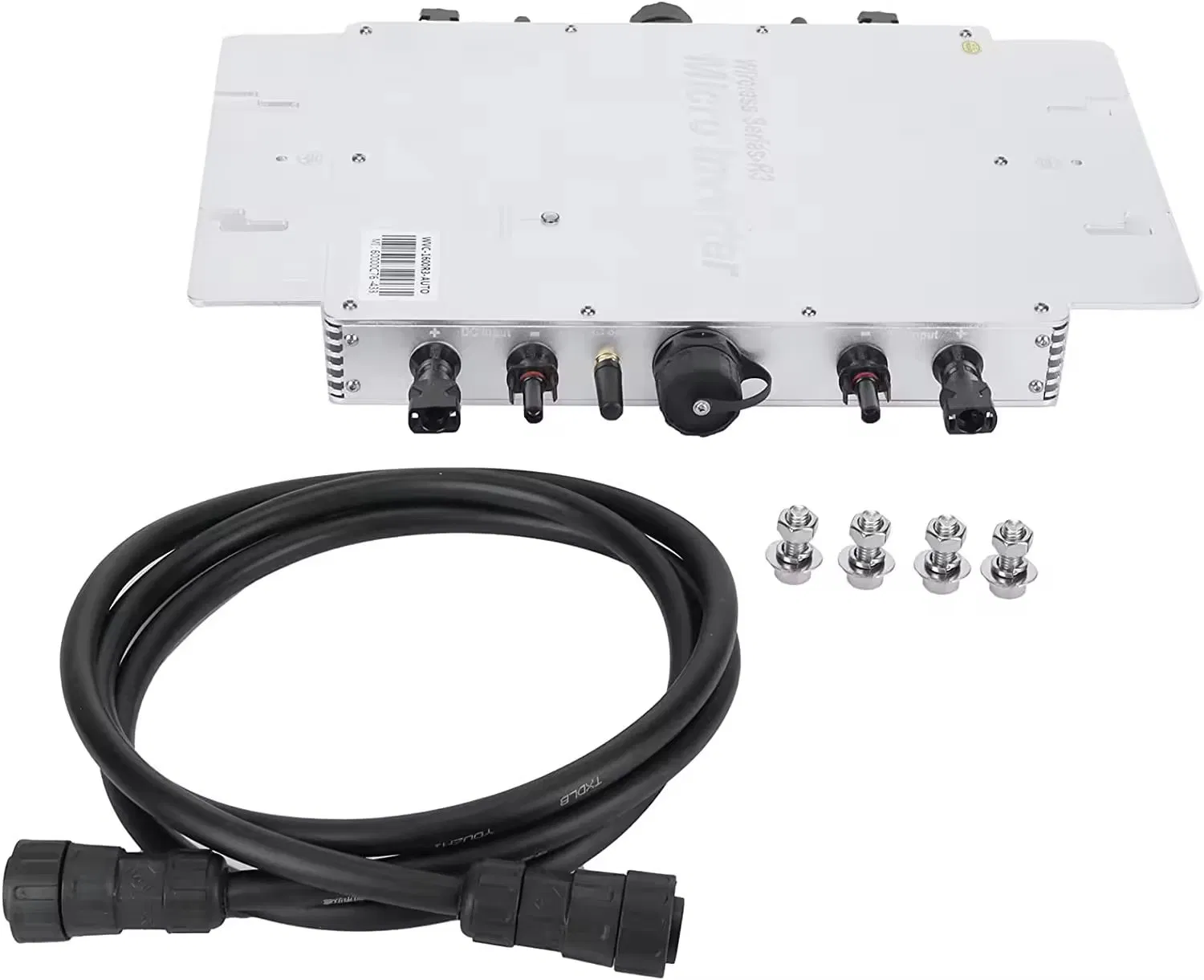

Detail 1 Detail 2

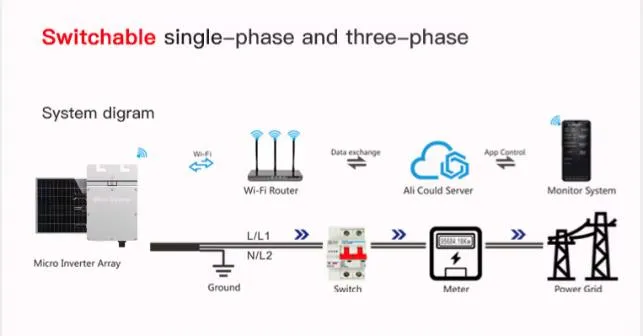

Technical Layout

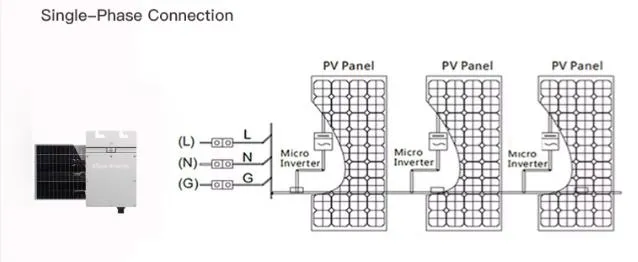

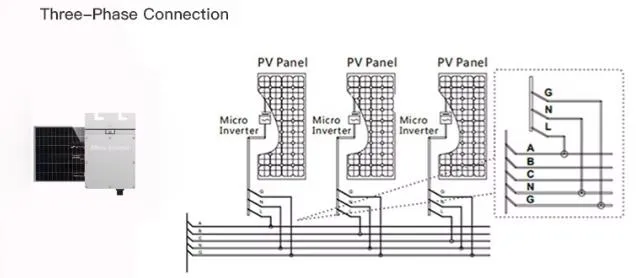

Interface 1 Interface 2

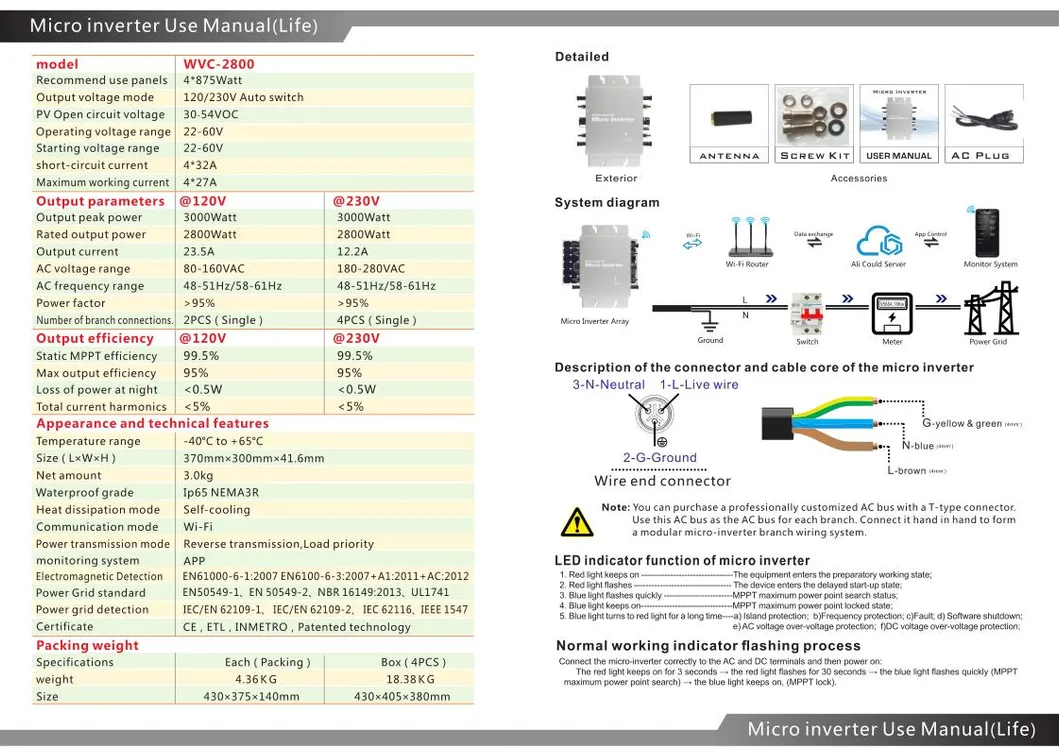

Technical Parameters

Output Parameters @120V @230V
Output Peak Power 3000W 3000W
Rated Output Power 2800W 2800W
Output Current 23.5A 12.2A
AC Voltage Range 80-160VAC 180-280VAC
Power Factor >95% >95%
Output Efficiency @120V @230V
Static MPPT Efficiency 99.5% 99.5%
Max Output Efficiency 95% 95%
Loss of Power at Night <0.5W <0.5W

Logistics & Packing

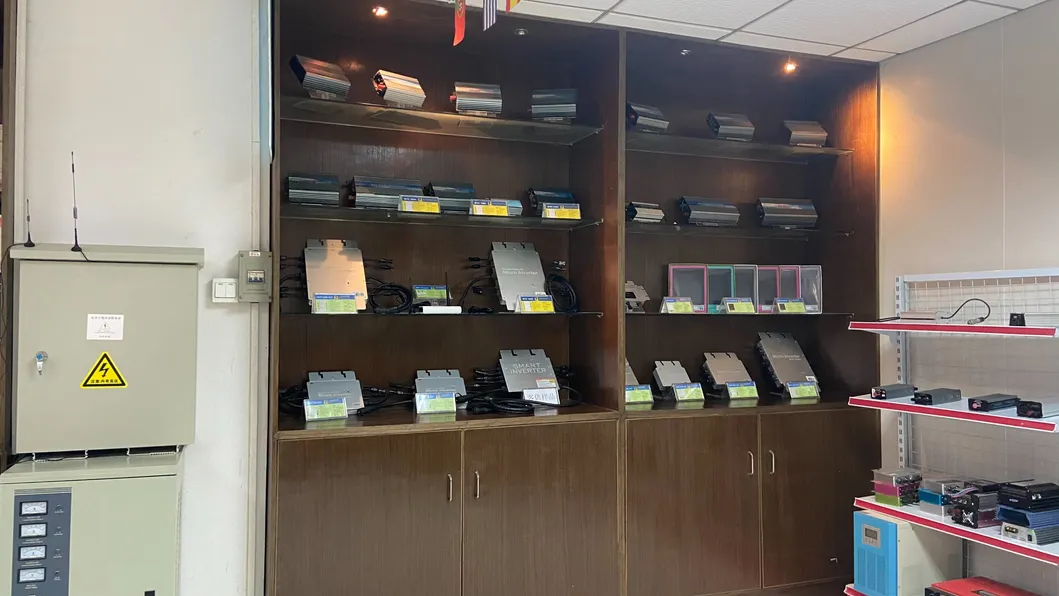

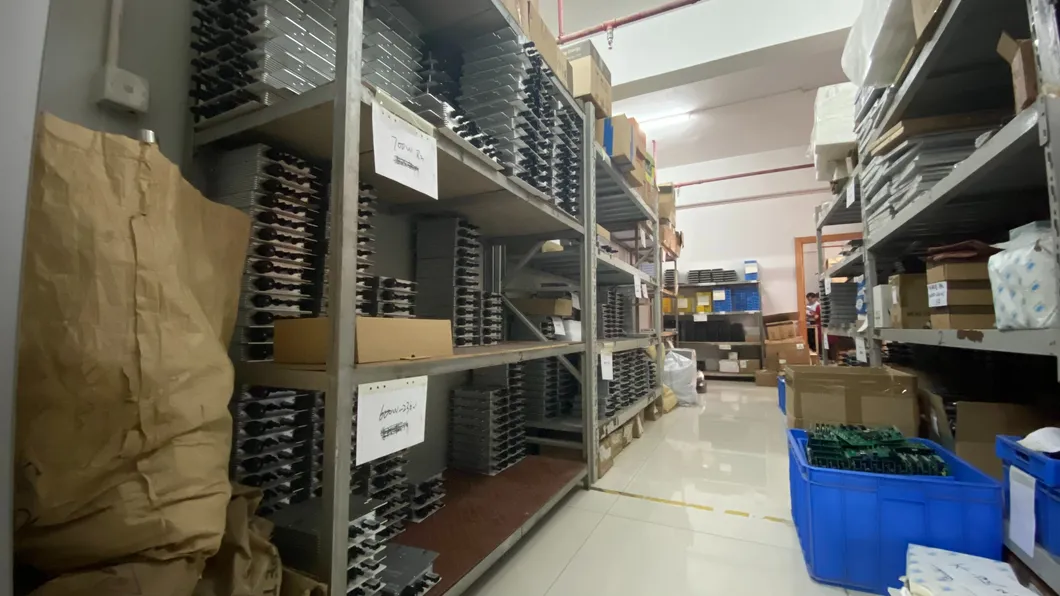

Shipping 1 Shipping 2
Warehouse 1 Warehouse 2

Frequently Asked Questions

What is the lifespan of a photovoltaic power generation system?
The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. Actual lifespan depends on usage and maintenance.
How much maintenance do photovoltaic systems require?
Maintenance is relatively simple. Regularly clean the panels and check the system's operating status. Professional maintenance services are also available for system optimization.
How much will I save on electricity bills after installation?
Savings depend on the system scale, generation efficiency, and your local electricity rates. Generally, a photovoltaic system significantly reduces long-term electricity expenses.
What types of buildings are suitable for these systems?
They are suitable for various structures, including residential, commercial, and industrial buildings, provided the installation location has sufficient sunlight exposure.
Can these systems be combined with battery storage?
Yes, photovoltaic systems can be integrated with energy storage solutions (like batteries) to improve energy utilization and achieve a more stable power supply.

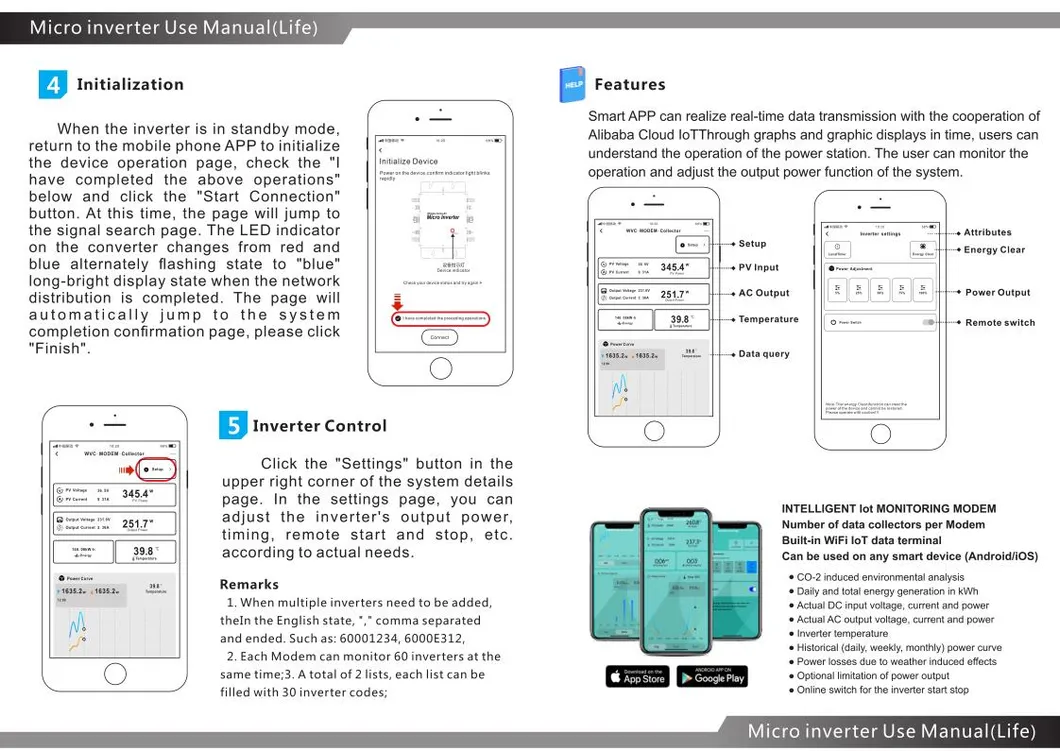

How can I monitor the system performance?
We provide an online monitoring platform where you can view real-time data and historical records of your power generation system via web or mobile devices.
