2077 Growatt High Efficiency 5kw on&off-Grid PV Inverter Household Solar Power Plant

1 / 5

2077 Growatt High Efficiency 5kw on&off-Grid PV Inverter Household Solar Power Plant

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Core Specifications

Output Power >1000W

Certification SAA, CE, ROHS, ISO9001

Power Source Solar Power

Wave Type Sine Wave Inverter

MPPT Efficiency 99.5%

Protection Level IP 65

Cooling Smart Cooling

Noise Emission 50dB

Technical Datasheet

Datasheet	2500TL-X	3000TL-X	3600TL-X	4200TL-X	4600TL-X	5000TL-X	6000TL-X
Input Data (DC)
Max. Recommended PV Power	3500W	4200W	5040W	5880W	6440W	7000W	8100W
Max. DC Voltage	500V	500V	550V	550V	550V	550V	550V
MPP Voltage Range	80V-500V	80V-500V	80V-550V	80V-550V	80V-550V	80V-550V	80V-550V
Output Data (AC)
AC Nominal Power	2500W	3000W	3600W	4200W	4600W	5000W	6000W
Max. Efficiency	98.2%	98.2%	98.2%	98.4%	98.4%	98.4%	98.4%
General Data
Dimensions (W/H/D)	375/350/160mm
Weight	10.8kg
Protection Degree	IP65

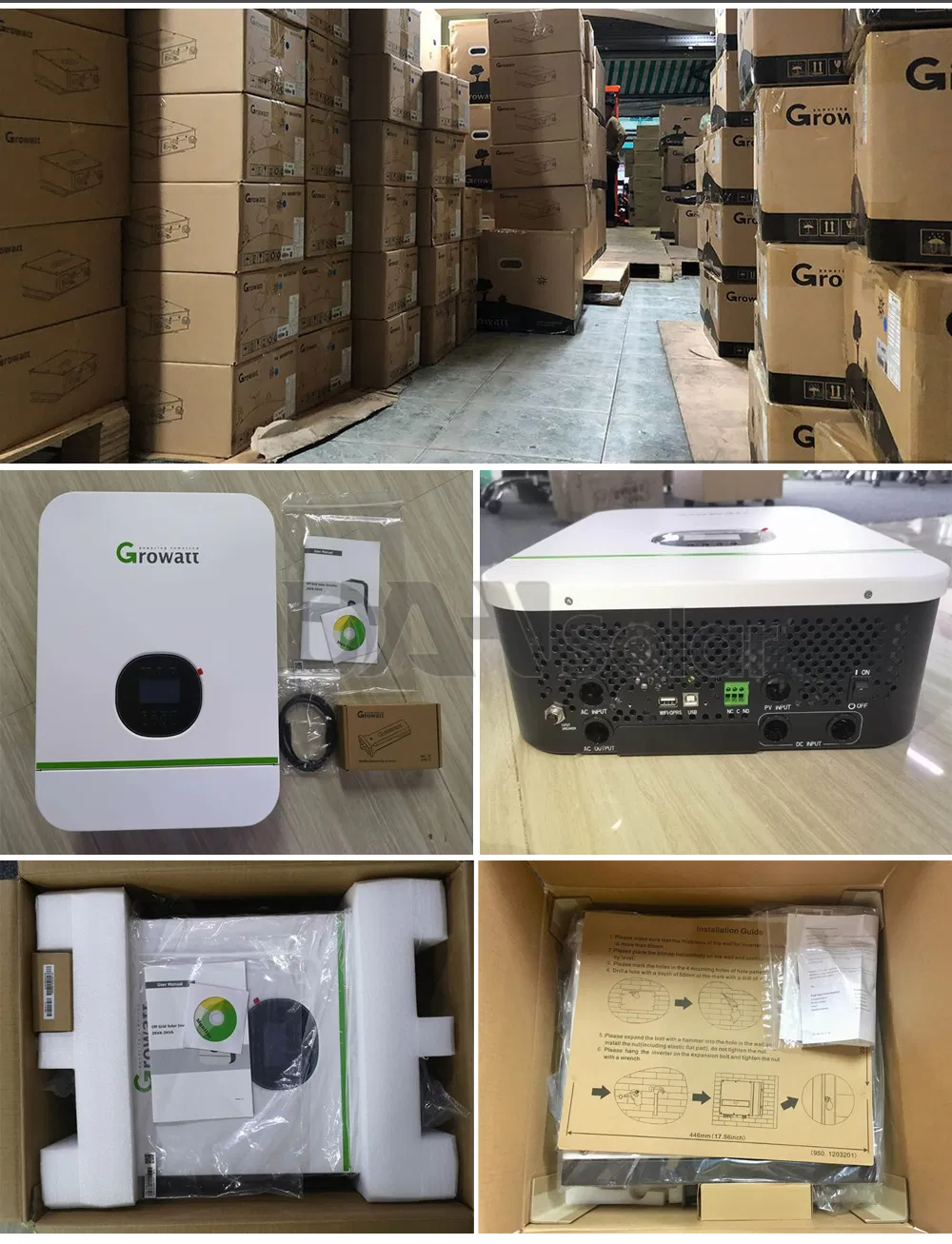

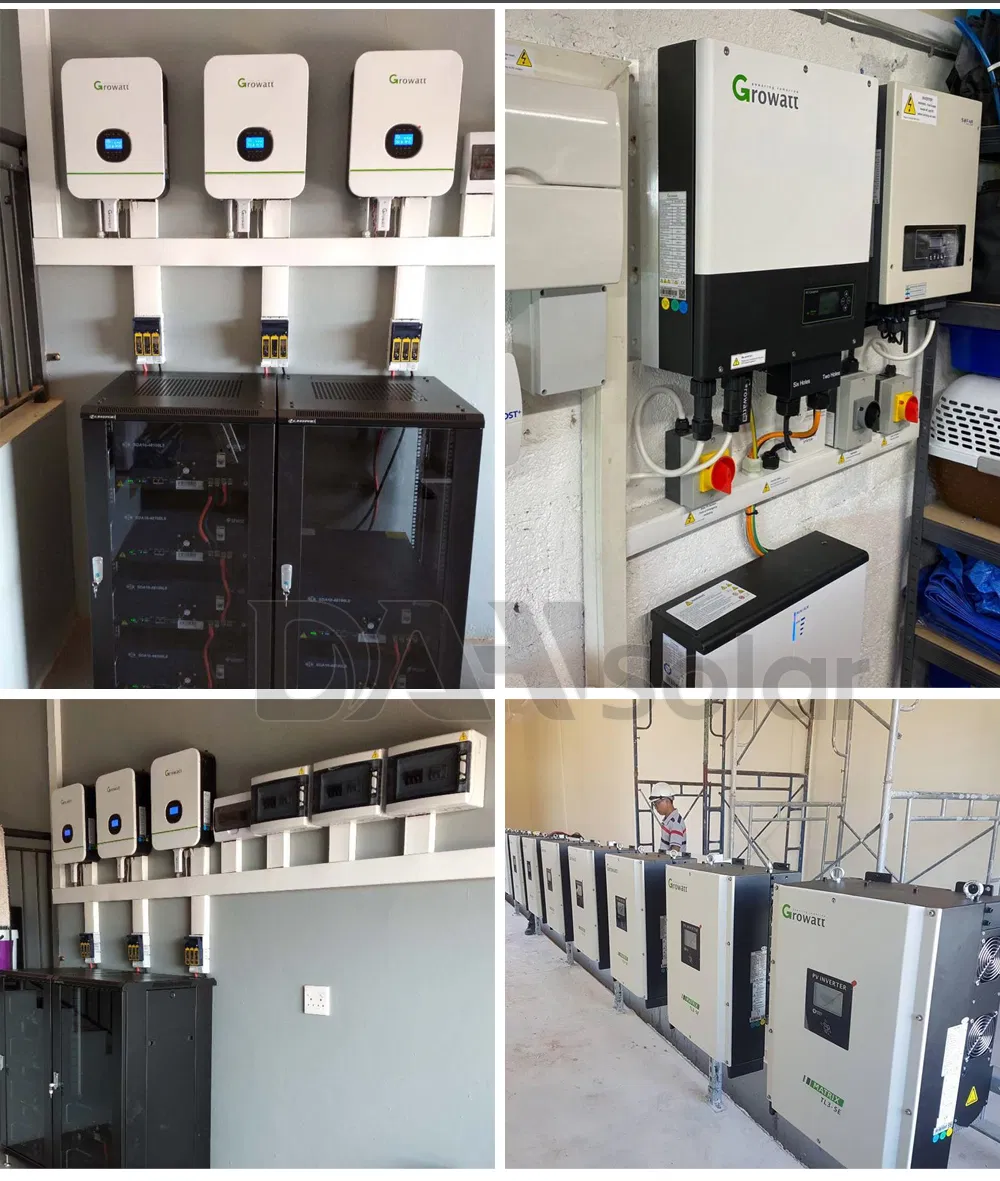

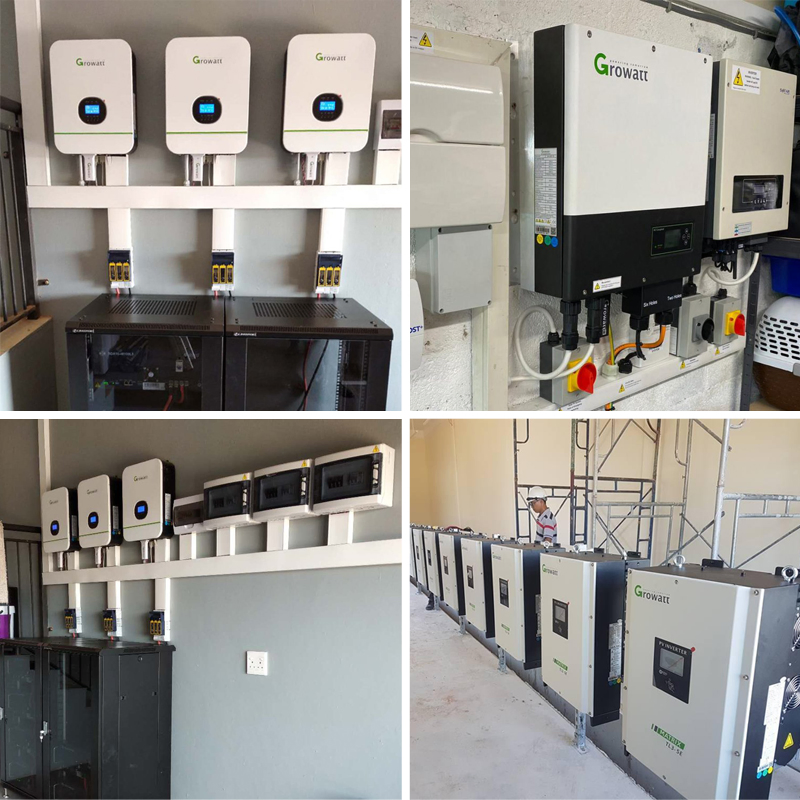

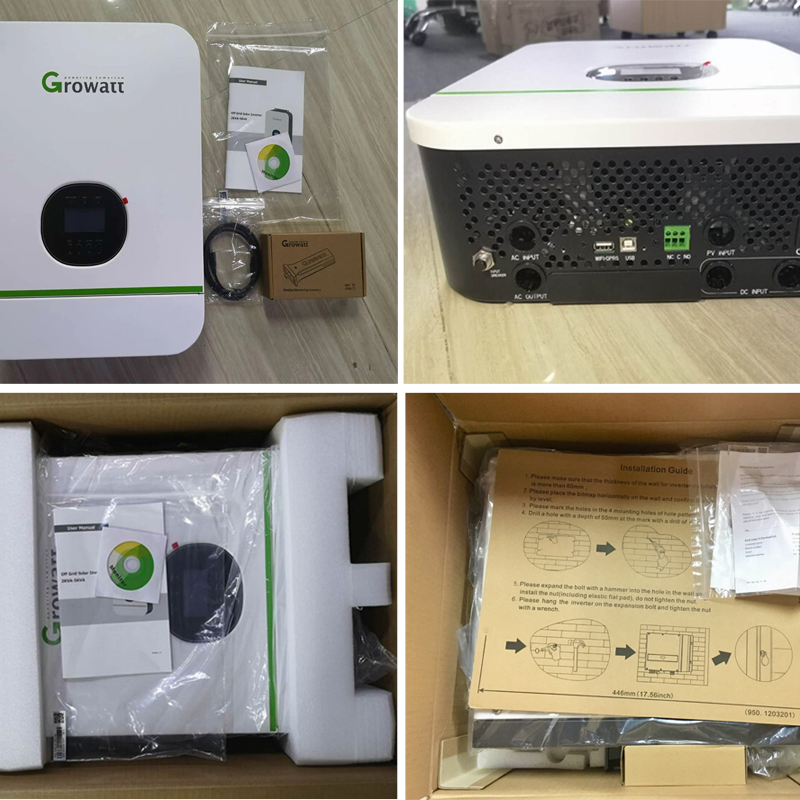

Package & Projects

Frequently Asked Questions

What is the maximum efficiency of this solar inverter?

The inverter features a maximum efficiency of up to 98.4% and an MPPT efficiency of 99.9%, ensuring minimal energy loss during the conversion process.

Is this inverter suitable for outdoor installation?

Yes, the unit is designed with an IP65 protection level, making it highly resistant to dust and water, suitable for various outdoor environments.

What kind of monitoring interfaces are supported?

It supports multiple communication interfaces including RS485, USB, WiFi, and optional GPRS, LAN, or RF for easy system monitoring via App or PC.

Does the inverter operate quietly?

Absolutely. With noise emissions typically ≤35 dB(A) and natural convection cooling, it operates very quietly, making it ideal for household use.

What safety protections are built into the device?

The inverter includes comprehensive protection features such as DC reverse polarity protection, DC switch, AC/DC surge protection (Type II/III), insulation resistance monitoring, and anti-islanding protection.
