Greensun 5000W PV Growatt SPF5000es Single Phase off Grid Solar Inverter SPF5000es 48V with WiFi Module

1 / 5

Greensun 5000W PV Growatt SPF5000es Single Phase off Grid Solar Inverter SPF5000es 48V with WiFi Module

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Product Overview

Model:

Growatt-5000ES

Certification:

ISO, CE, VDE

Application:

Home, Industrial, Commercial

Output Power:

5kW

Battery Voltage:

48 VDC

Inverter Type:

Off Grid Solar Inverter

Output Voltage:

230V

Protection:

IP65

Waveform:

Pure Sine Wave

Frequency:

50/60Hz

Key Features

◆High Yield: Maximum DC Voltage up to 450V for optimized solar harvest.
◆Compact Design: High power density, offering lighter weight and easy installation.
◆Smart Monitoring: Real-time monitoring with flexible communication options (RS485, WiFi, GPRS).
◆Scalability: Supports parallel capability up to 6 units for expanded power needs.
◆Reliability: Standard warranty of 5 to 10 years ensuring long-term performance.

Technical Parameters

Model	SPF 3500ES	SPF 5000ES
Rated Power	3500VA / 3500W	5000VA / 5000W
Battery Voltage	48VDC	48VDC
Battery Type	Lithium / Lead-acid
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC - 430VDC
Max Solar Charger Current	80A	100A
Protection Degree	IP20
Dimensions (W/H/D)	330 / 485 / 135mm

Packaging & Projects

◆Professional Packing: Reinforced Carton, Wooden Pallet, and Wooden Box options.
◆Shipping Methods: Global Express (TNT, DHL, FedEx, UPS), Air Freight, and Sea Freight available.

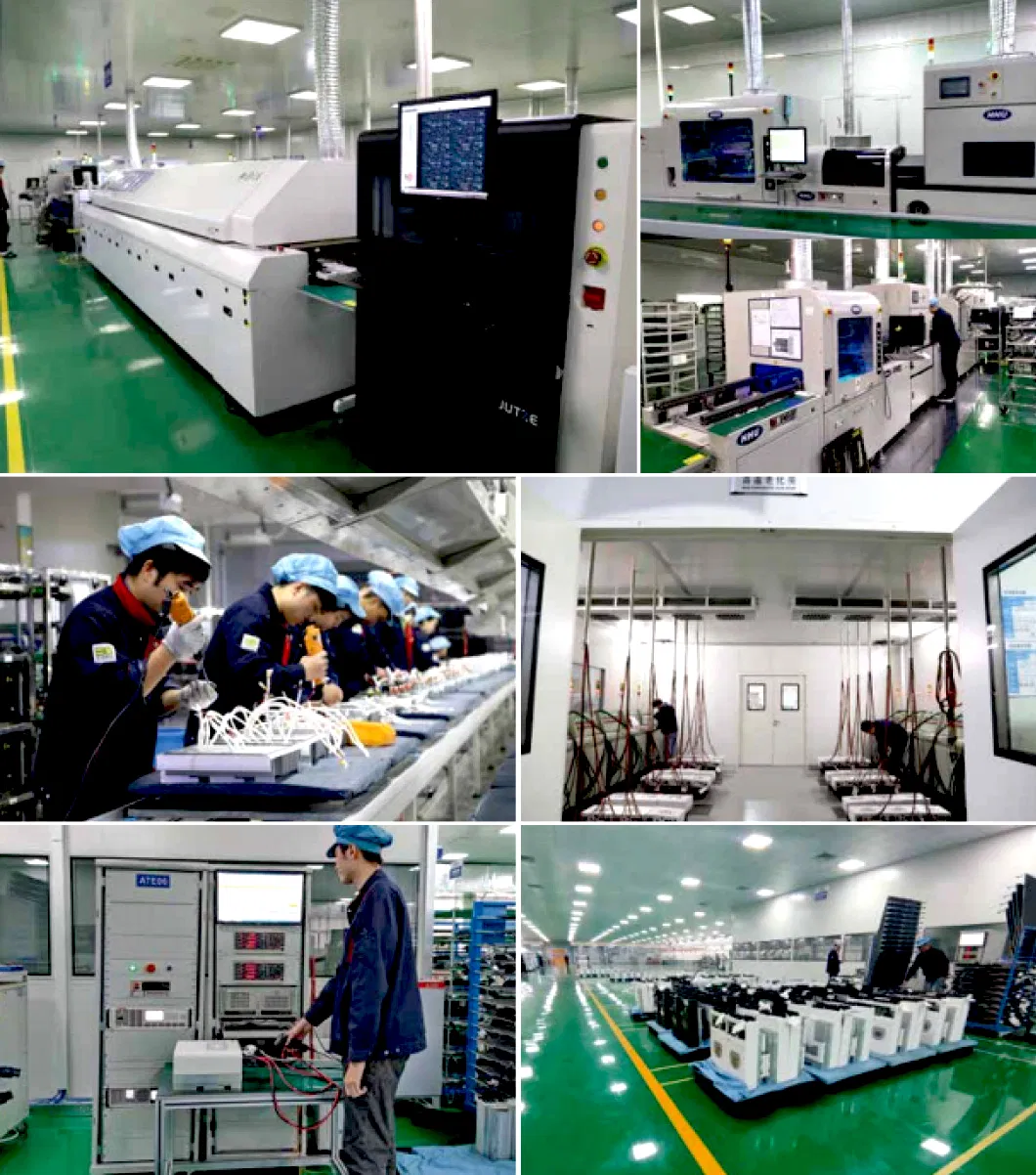

◆Quality Assurance: 100% testing performed before delivery to ensure customer benefit.

Frequently Asked Questions

Can the SPF 5000ES inverter work without a battery?

Yes, this series supports working without batteries, allowing the system to power loads directly from solar energy during the day.

How many units can be connected in parallel?

You can connect up to 6 units in parallel to expand the system capacity for larger power requirements.

What types of batteries are compatible with this inverter?

The inverter is compatible with both Lithium and Lead-acid batteries, specifically designed for 48VDC systems.

Is remote monitoring available?

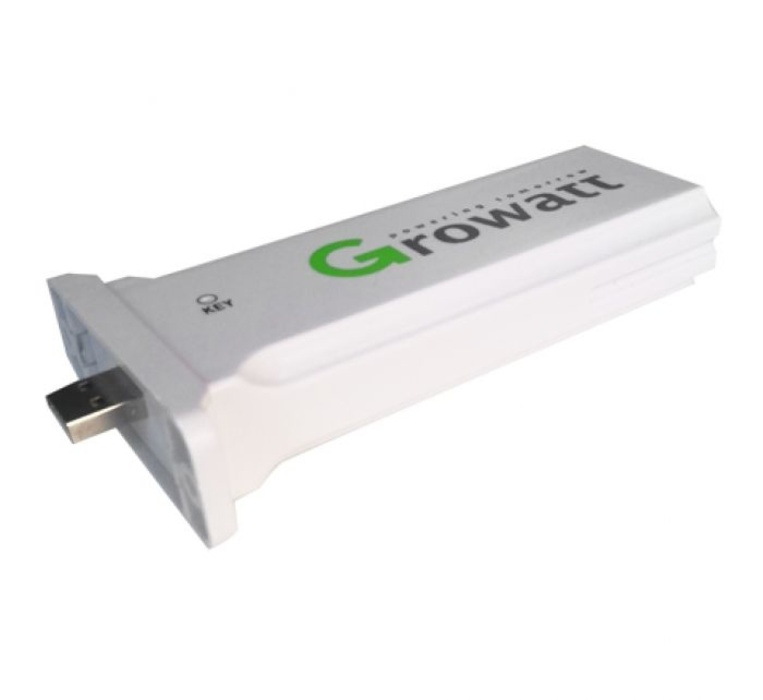

Yes, the inverter supports real-time monitoring via optional WiFi or GPRS modules, allowing you to track performance through an app or web portal.

What is the peak efficiency of the inverter?

The inverter achieves a peak efficiency of 93%, ensuring minimal energy loss during the DC to AC conversion process.

What is the maximum solar input voltage?

The maximum PV array open circuit voltage is 450VDC, with an MPPT operating range between 120VDC and 430VDC.
