380V 400V Panel Solar PV System Hybrid Power DC to AC Atess Inverter HPS50

1 / 5

380V 400V Panel Solar PV System Hybrid Power DC to AC Atess Inverter HPS50

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HPS50

Nature of Source

Active Inverter

Phase

Three Phase

Output Power

>1000W

Certification

CE, ISO9001, CCC, TUV, VDE

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave

Pure Sine Wave Inverter

Application

Commercial Hybrid Solar System

Protection

IP65

Cooling

Smart Cooling

Noise Emission

<30dB

⚙️ Technical Specifications

Model	HPS30	HPS50	HPS100	HPS150
AC (Grid-connected)
Apparent power	33kVA	55kVA	110kVA	165kVA
Rated power	30kW	50kW	100kW	150kW
Rated voltage	400V	400V	400V	400V
Rated current	43A	72A	144A	217A
Voltage range	360V - 440V
AC (Off-grid)
Apparent power	33kVA	55kVA	110kVA	165kVA
Overload capability	110%-10 mins, 120%-1 min
DC (Battery and PV)
Battery voltage range	352-600V
Max. charge power	45kW	75kW	150kW	225kW
Max. discharge power	33kW	55kW	110kW	165kW
General Information
Protection degree	IP20
Operating temp	-25 °C~+55 °C
Dimension (W/H/D) mm	700/1660/600	950/1860/750	1200/1900/800	1200/1900/800
Weight	355kg	610kg	948kg	1230kg

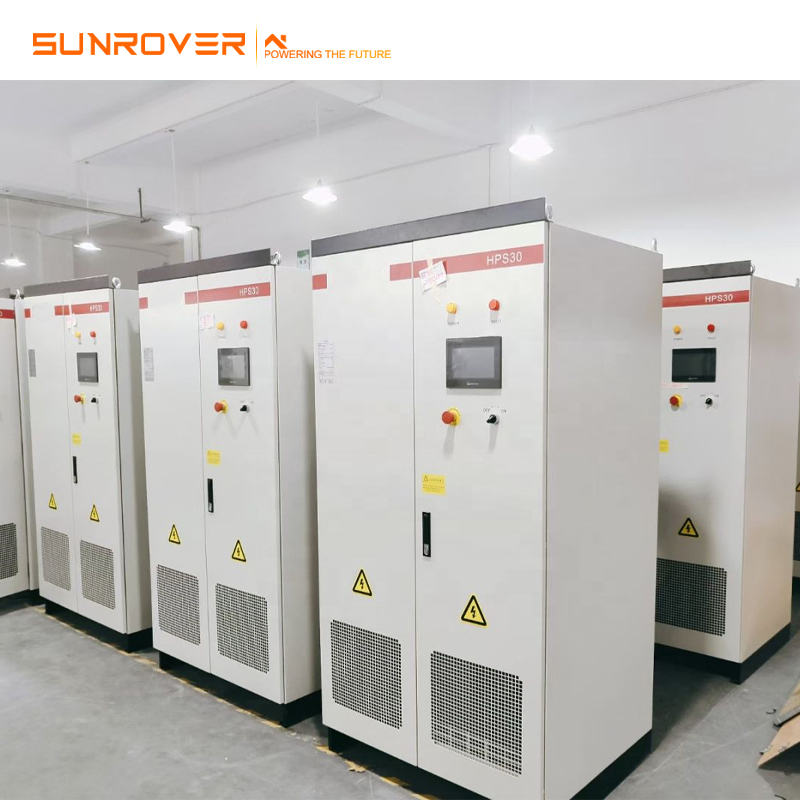

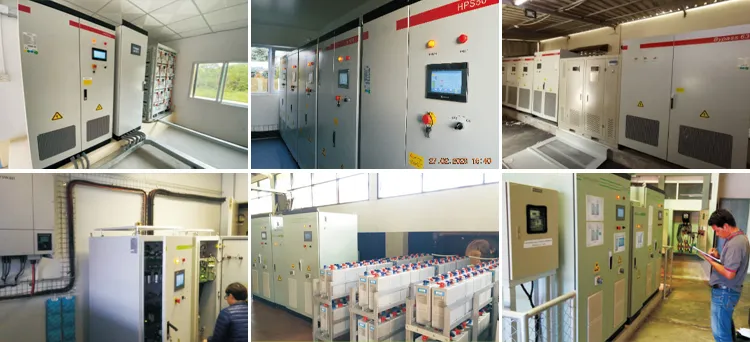

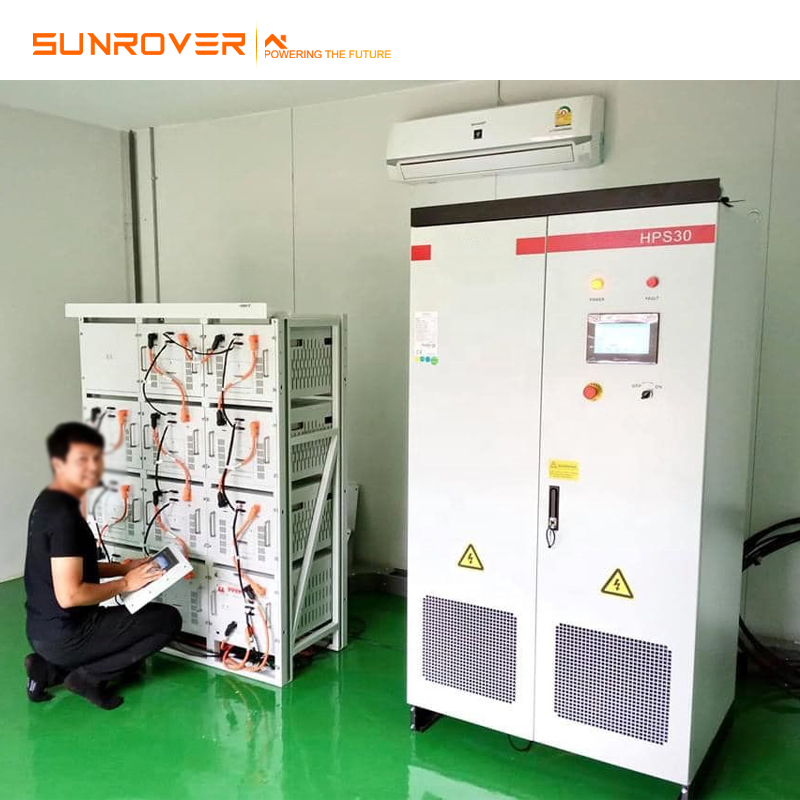

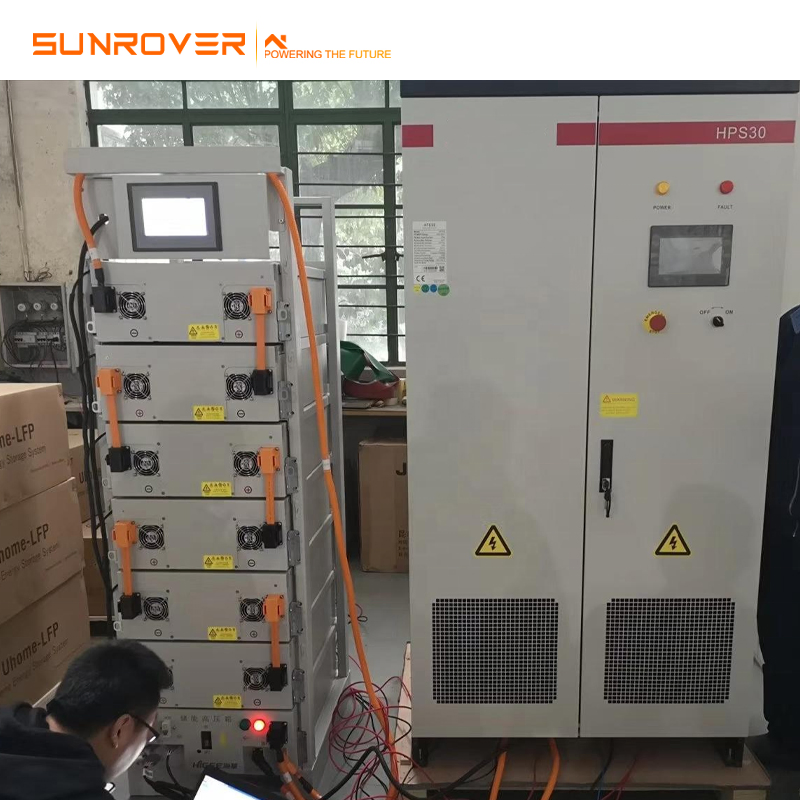

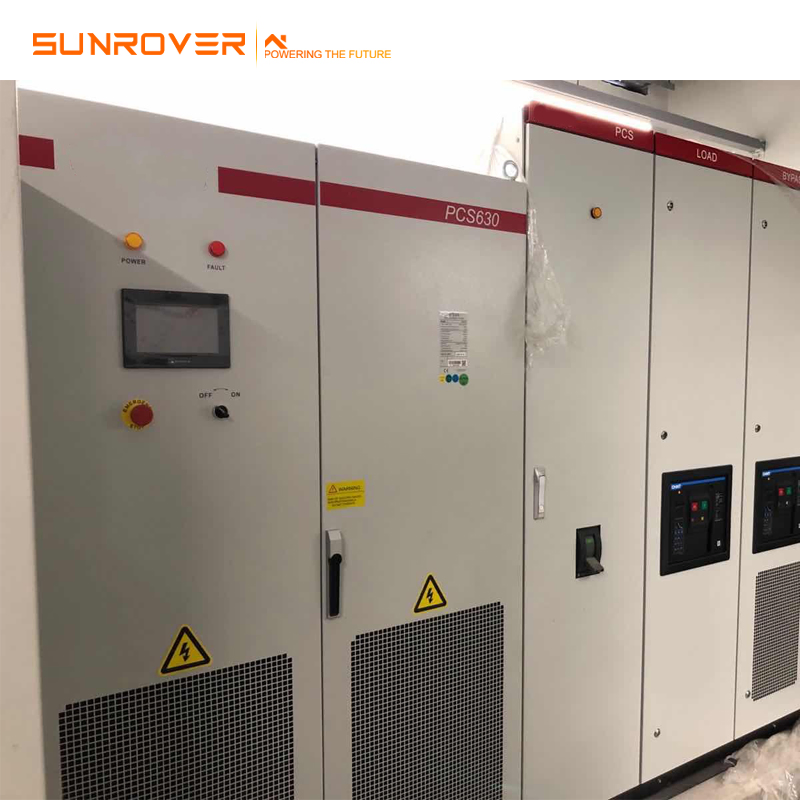

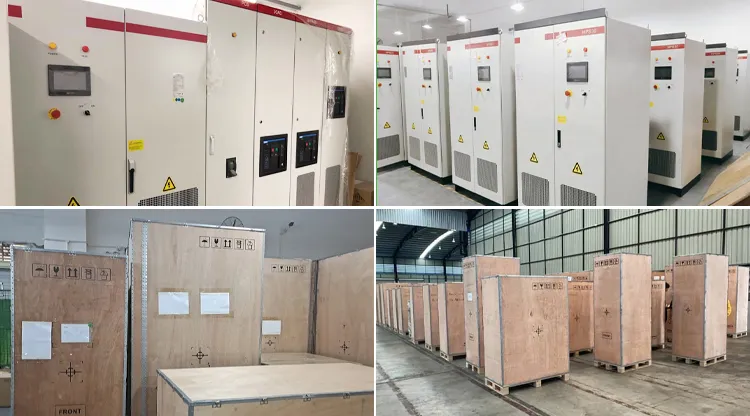

📸 Product Showcase

❓ Frequently Asked Questions

What is the main application of the HPS50 inverter?

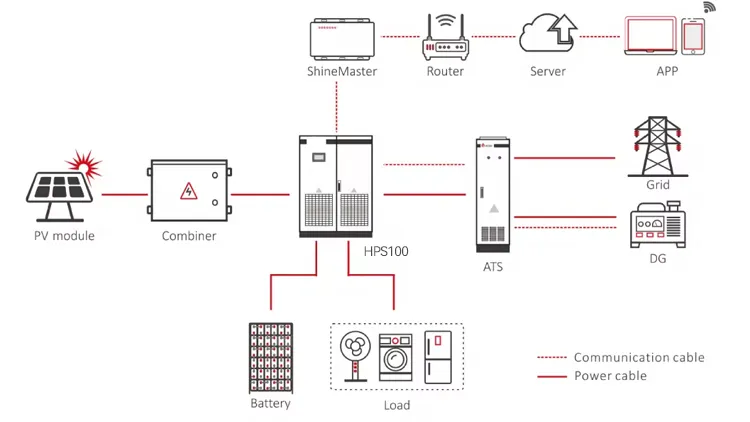

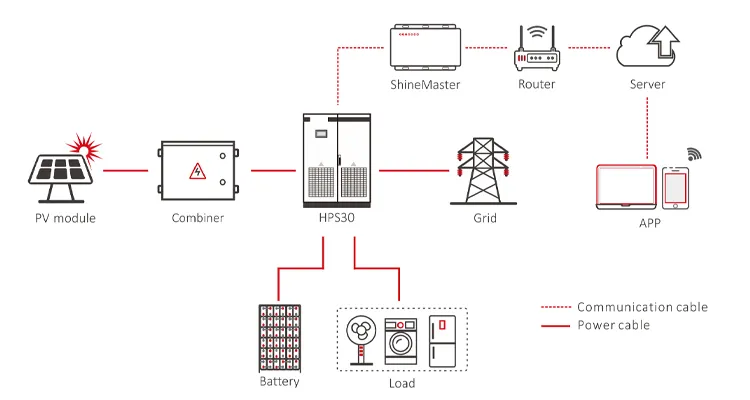

The HPS50 is designed for commercial hybrid solar systems, supporting both grid-connected and off-grid operations.

What are the battery voltage requirements?

The battery voltage range for the HPS series is 352V to 600V, with maximum charging power optimized between 500V-600V for the HPS50 model.

Does the system support overload in off-grid mode?

Yes, the HPS series features robust overload capabilities, supporting 110% load for 10 minutes and up to 120% load for 1 minute in off-grid scenarios.

What kind of cooling system does the inverter use?

The unit utilizes a smart forced-air cooling system to maintain optimal operating temperatures between -25 °C and +55 °C.

What certifications does this solar inverter hold?

The product is fully certified with CE, ISO9001, CCC, TUV, and VDE, ensuring compliance with international quality and safety standards.
