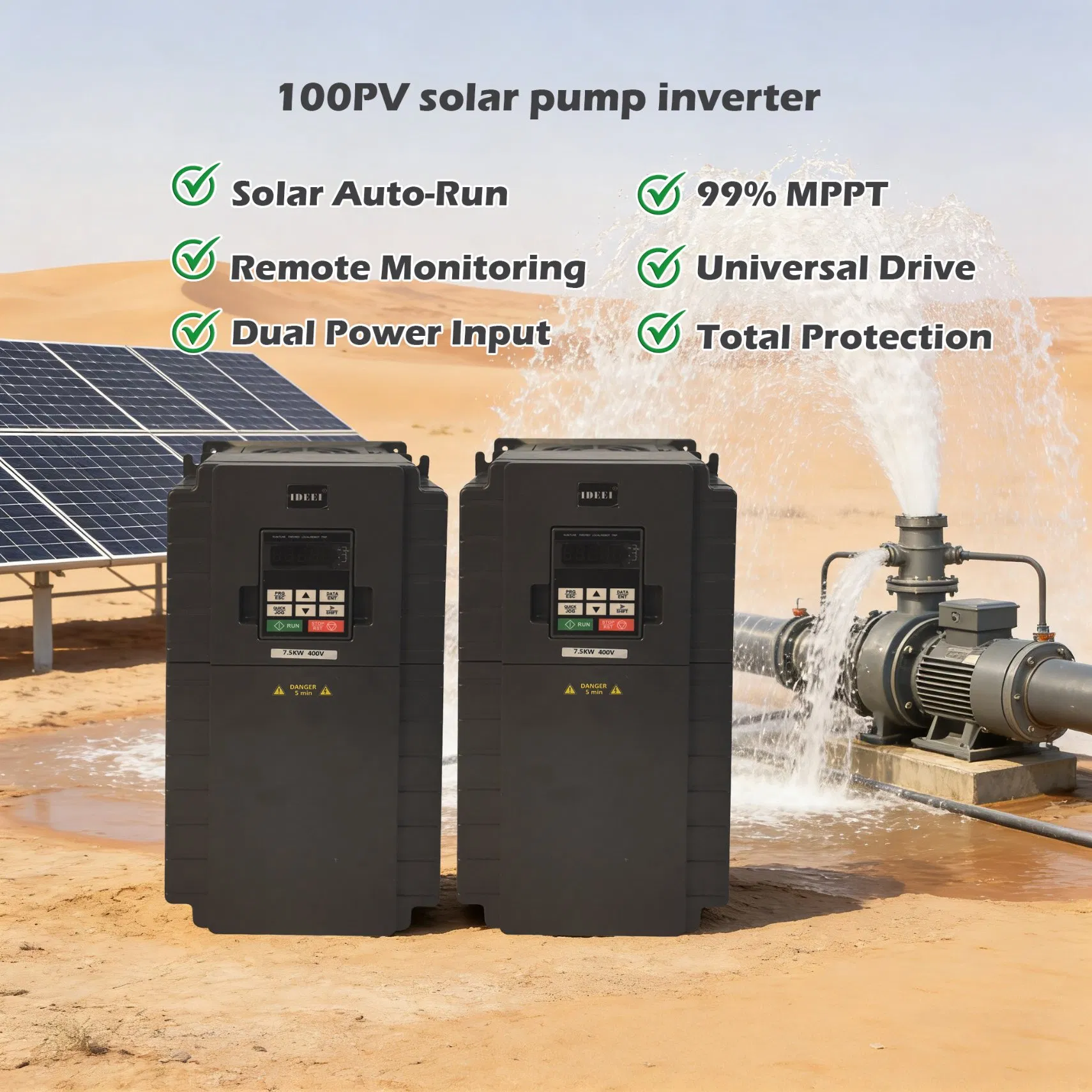

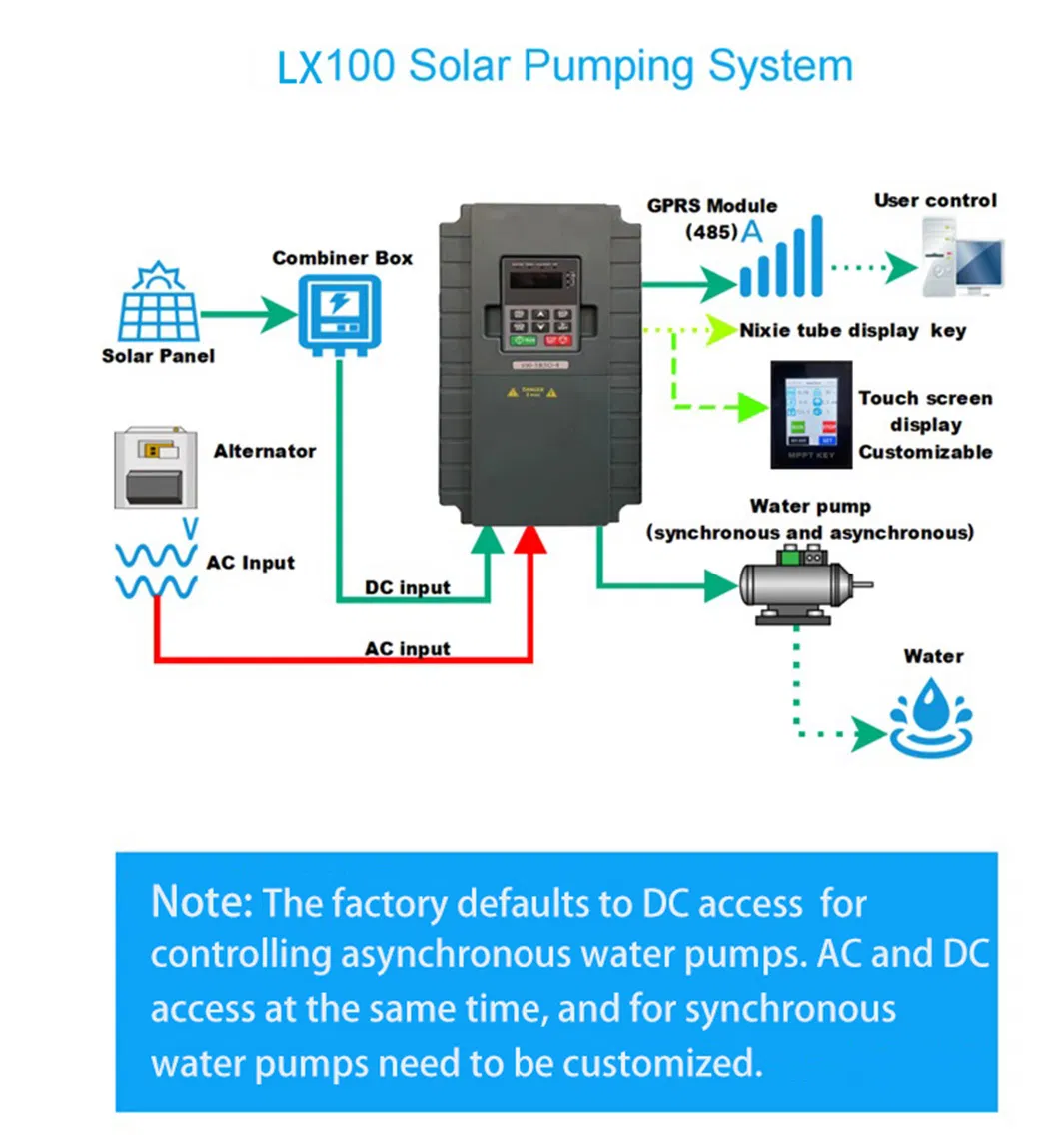

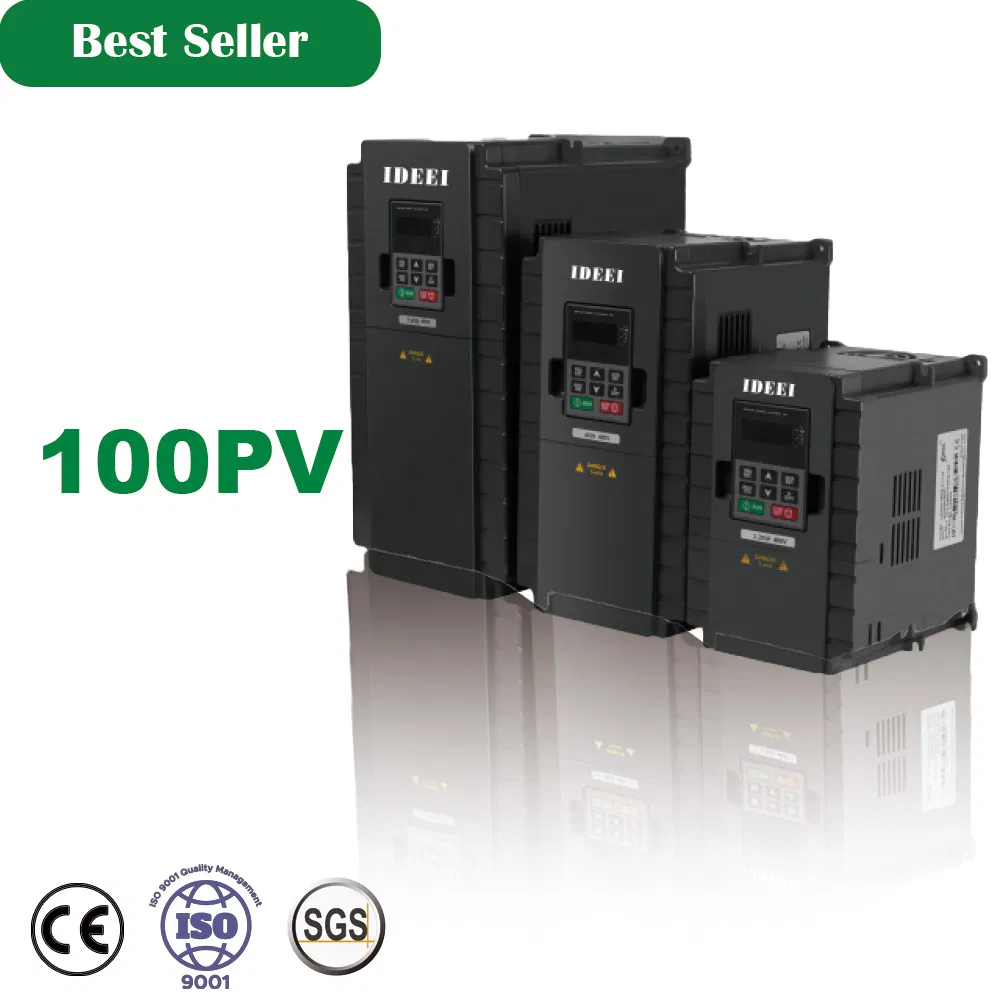

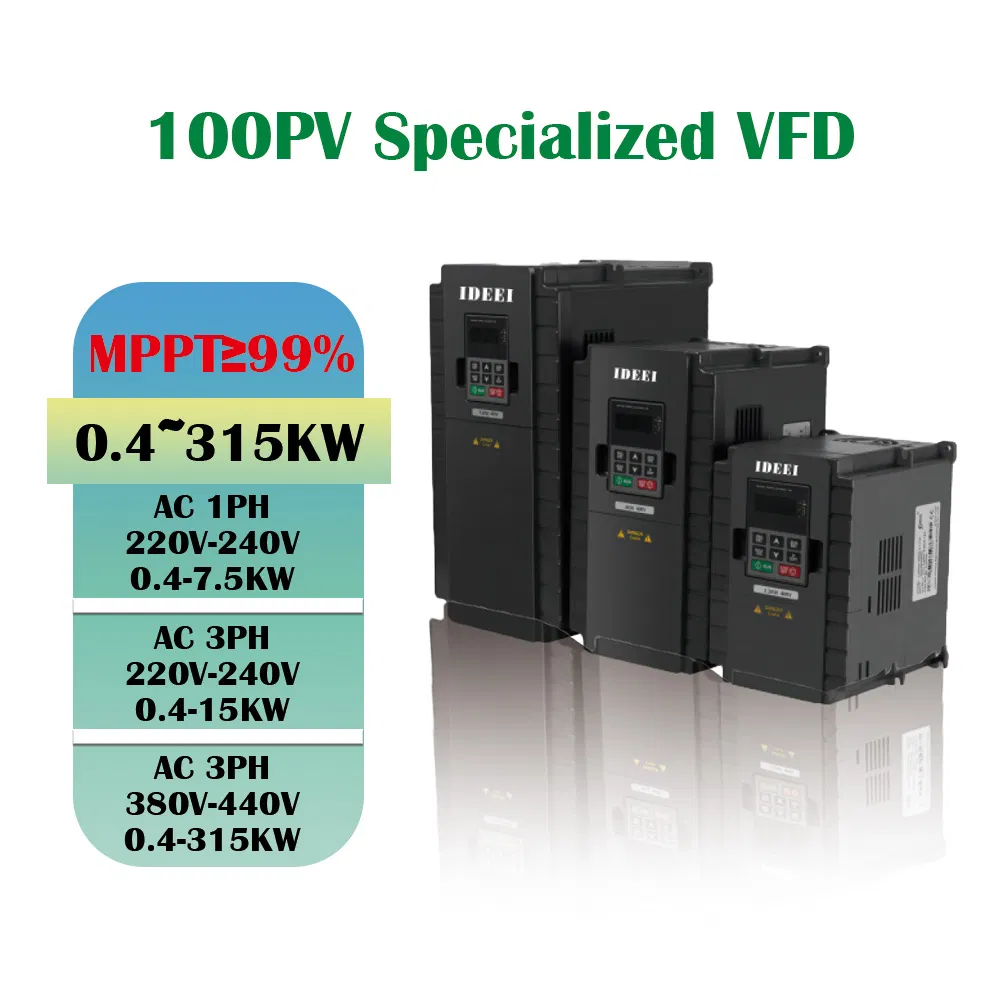

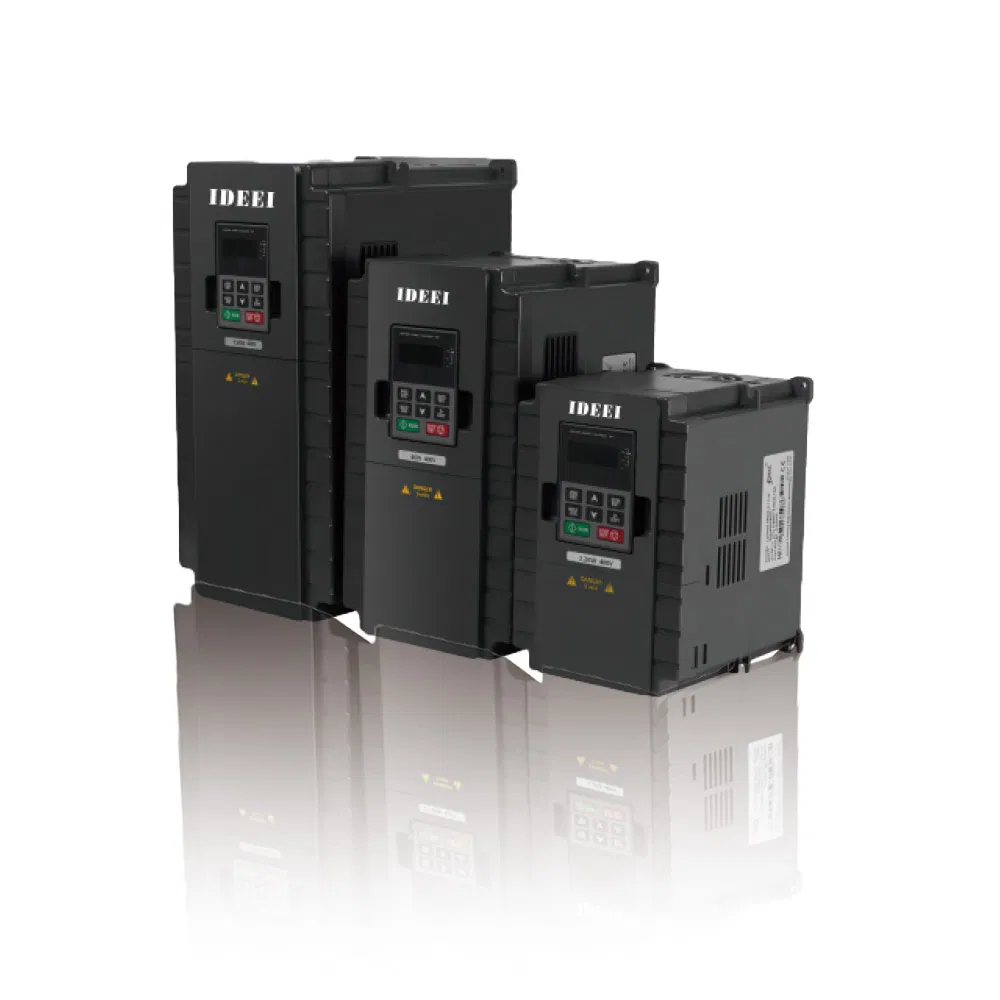

LX100-PV solar water pump inverter is a high-efficiency solar water pump controller which can make full use of solar energy to drive water pumps for agricultural irrigation, water supply systems, and groundwater lowering. Designed for PV pumping systems with MPPT function, it ensures the best output power while maximising the performance of the Pump throughout the day. The automatic start and stop function saves money and fuel during daylight hours.
| VFD Model | Input Voltage | Rated Power (KW) | Input Current (A) | Output Current (A) |
|---|---|---|---|---|
| LX100-0R4G-SS2-PV | Single Phase 220V | 0.4 | 6.5 | 4.2 |
| LX100-0R7G-SS2-PV | 0.75 | 9.3 | 7.2 | |
| LX100-1R5G-SS2-PV | 1.5 | 15.7 | 10.2 | |
| LX100-2R2G-SS2-PV | 2.2 | 24 | 14 | |
| LX100-0R7G-4-PV | Three Phase 380V | 0.75 | 3.4 | 2.5 |
| LX100-1R5G-4-PV | 1.5 | 5.0 | 4.2 | |
| LX100-2R2G-4-PV | 2.2 | 5.8 | 5.5 | |
| LX100-004G-4-PV | 4.0 | 13.5 | 9.5 |

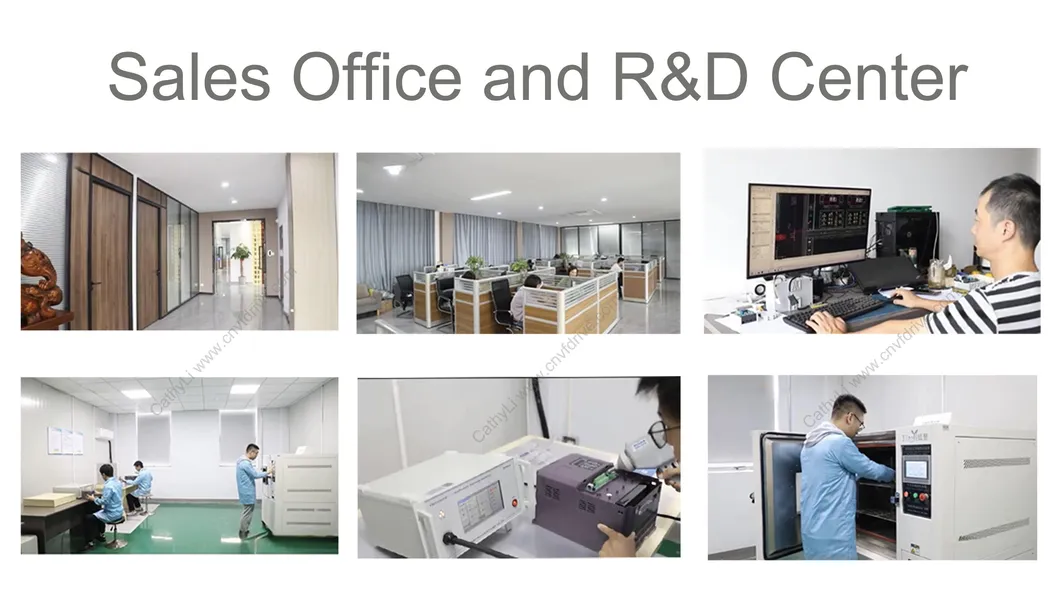

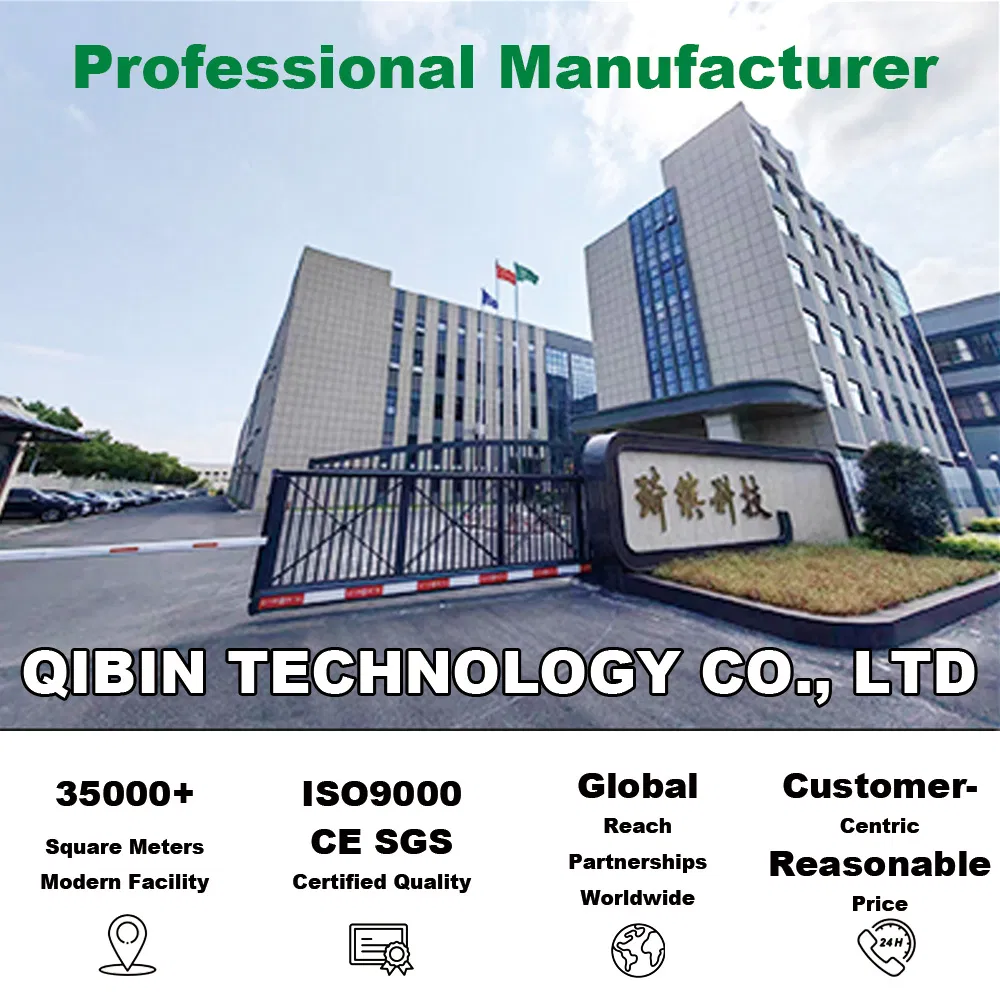

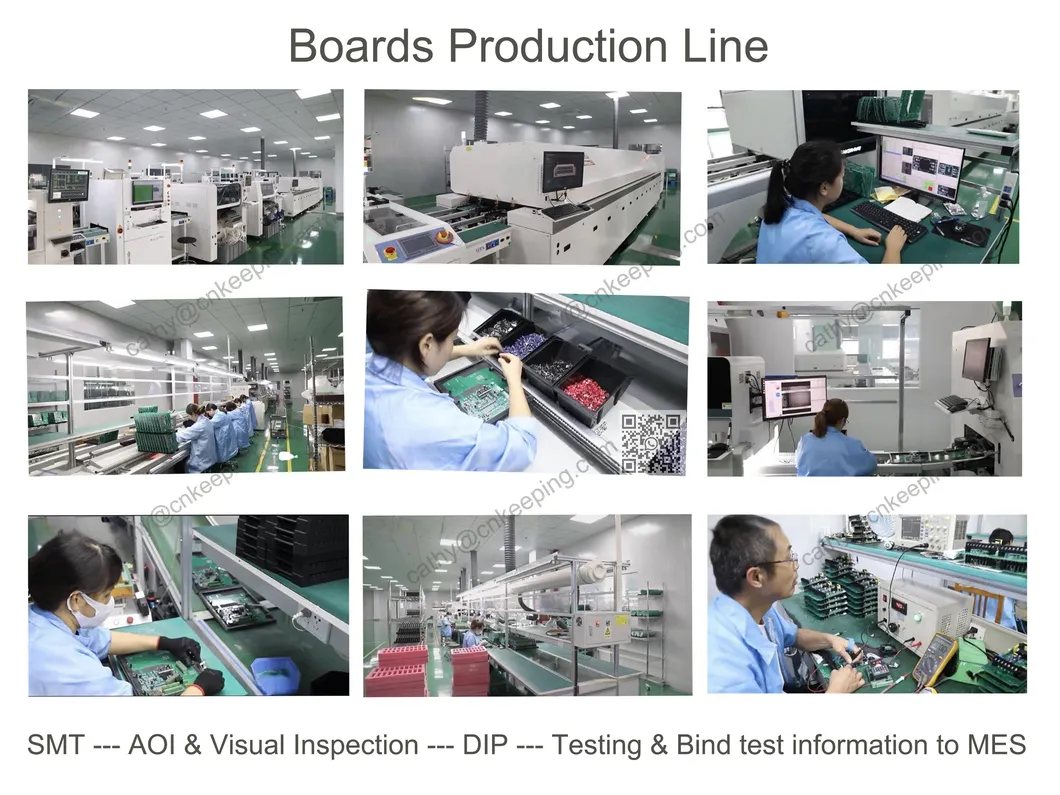

We are a professional manufacturer of frequency inverters, integrating R&D, production, and sales. We have a modern plant area of more than 26,794 square meters, equipped with international manufacturing and testing equipment and an intelligent laboratory. Our products are widely used in steel, building materials, textile, printing, and machine tool industries. We have created partnerships with thousands of customers worldwide including Southeast Asia, Middle East, Europe, and the US.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
