📋 Basic Information
Model NO.
GA200093-GA200095
Output Power
8kW / 10kW / 12kW
Certification
CE, ROHS, ISO9001
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Battery Type
LiFePO4 Lithium Battery
Efficiency
Dual MPPT up to 99.9%
Cooling Method
Air-Cooling
📦 Packaging & Delivery
Package Size
43.00cm * 35.00cm * 20.00cm
Package Gross Weight
30.000kg
🔍 Product Description

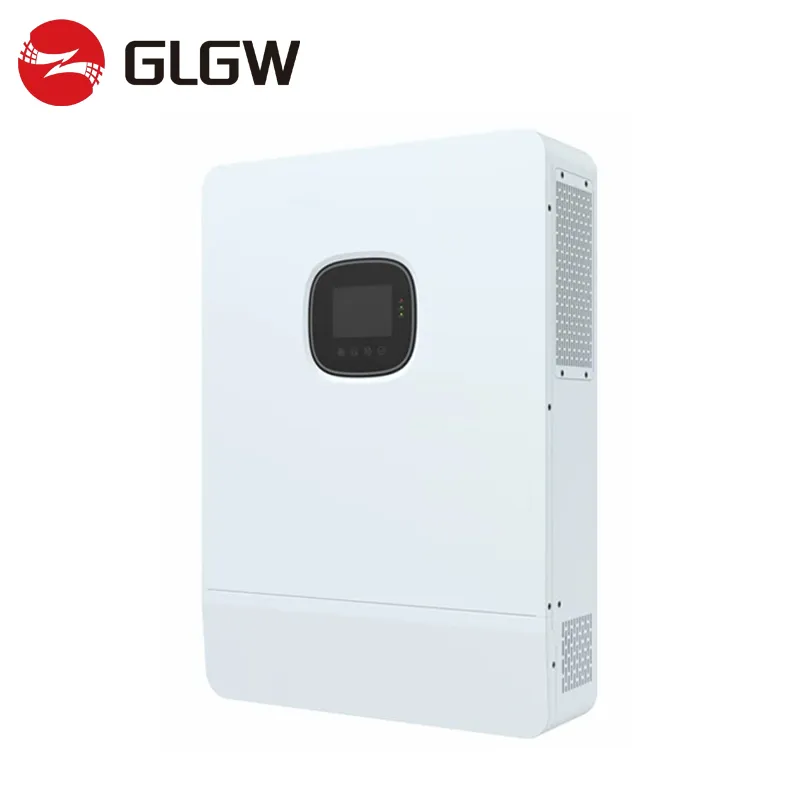

3-Phase Inverter 8KW 10KW 12KW Dual MPPT for Home Energy Storage System
High-Performance Energy Solution
The three-phase smart hybrid inverter integrates off-grid power, UPS function, and high-efficiency solar management. It is designed for factories, power plants, and home energy systems requiring stability and flexibility.
- Flexible Scheduling: Four charging & two output modes allow adjustment based on electricity rates and weather.
- Battery Maintenance: Segmented charging/discharging and lithium activation extend battery lifespan.
- UPS Protection: Seamless 10ms transfer ensures backup power for critical loads.
- Intelligent Monitoring: LCD screen and LED indicators for real-time operation insight.
- Quiet Cooling: Intelligent variable-speed fan provides efficient cooling with low noise (<60dB).
- Pure Sine Wave: Full-digital control protects sensitive loads like medical equipment and AC.
| Product Model |
Parameters |
Battery Voltage |
Capacity |
| GA200093 |
Three-Phase |
48V DC |
8kW |
| GA200094 |
Three-Phase |
48V DC |
10kW |
| GA200095 |
Three-Phase |
48V DC |
12kW |
🖼️ Product Display & Capability
❓ Frequently Asked Questions
Q: What are the core advantages of these energy storage systems?
A: Our systems utilize high-performance lithium batteries with an advanced BMS, offering high energy density, over 6000 cycles, and intelligent grid connection for peak-valley arbitrage.
Q: Can this inverter integrate with existing Photovoltaic (PV) systems?
A: Yes, the systems are fully compatible with PV setups, allowing for efficient solar energy storage and on-demand power supply to maximize renewable utilization.
Q: What is the typical lead time for custom energy storage projects?
A: Depending on the scale, lead times range from 4 to 12 weeks, covering design, production, and professional commissioning.
Q: What kind of after-sales support is provided?
A: We offer comprehensive support including installation guidance, system debugging, training, and 24/7 remote monitoring with a standard warranty on core components.
Q: Do the systems comply with international grid connection standards?
A: Absolutely. Our systems meet IEC, UL, and GB standards, and we provide all necessary certification documents for smooth local grid implementation.
Q: How does the UPS function operate during power failures?
A: The system features a high-speed UPS function with a 10ms transfer time, ensuring that critical electronic loads continue to operate without interruption.
