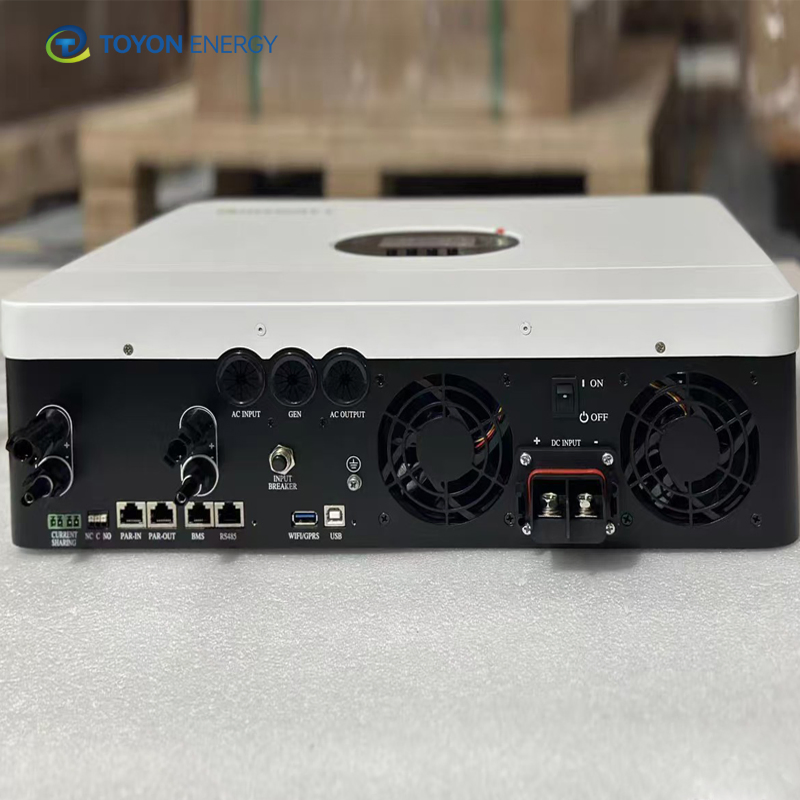

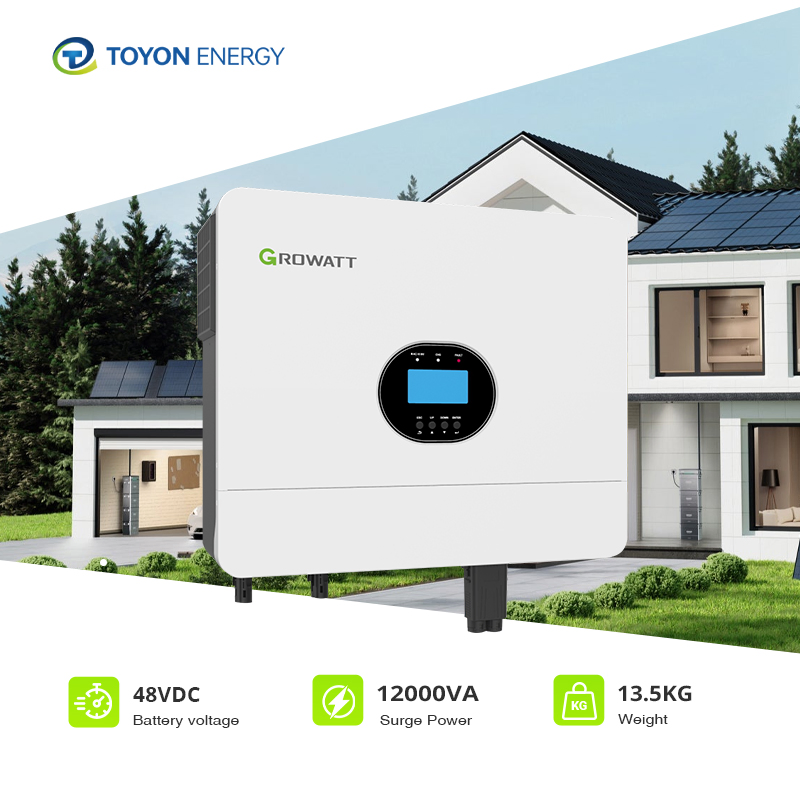

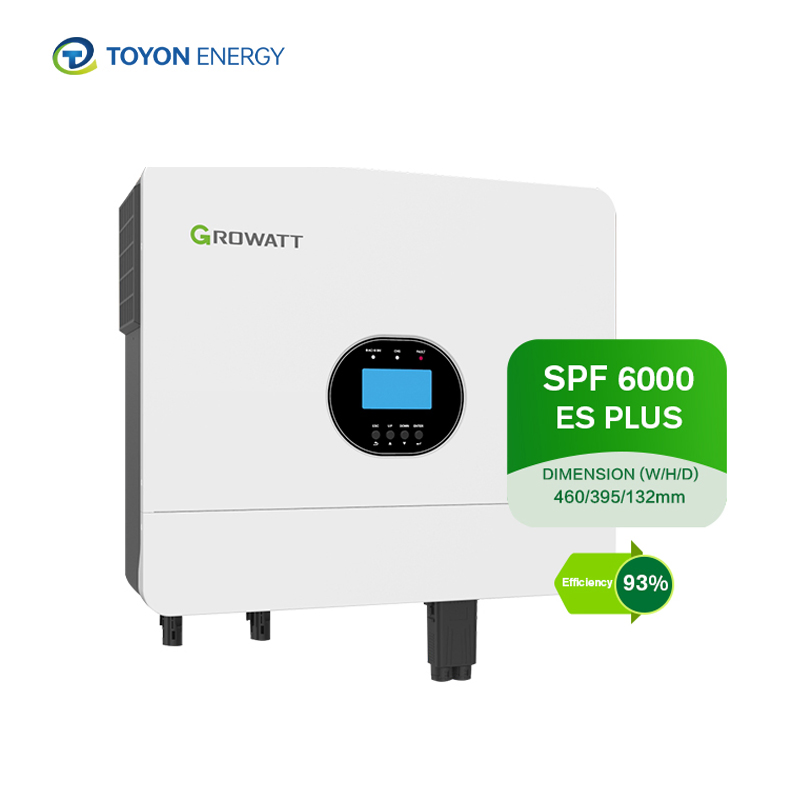

Growatt Top Brand SPF 6000 Es Plus off Grid Solar Power Inverter for Solar System

📋 Basic Information

Model NO.

SPF 6000ES PLUS

Certification

CE, ROHS

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Battery Voltage

48VDC

Protection Degree

IP20

MPPT Range

120VDC ~ 450VDC

Surge Power

12000va

Max PV Array Power

8000W

Net Weight

13.5 Kgs

Parallel Capability

Yes, 6 Units Maximum

HS Code

8504403090

📍 Product Description

SPF 6000 Es Plus off Grid Solar Power Inverter

📝 Technical Specification

DATASHEET
Model Name	SPF 6000 ES Plus
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	6000VA/6000W	5000VA/ 5000W
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
SOLAR CHARGER
Maximum PV Array Power	8000W
MPPT Range @ Operating Voltage	120VDC ~ 450VDC
Max. Input Current per Tracker	16A
Max. PV Array Open Circuit Voltage	500VDC
AC CHARGER
Charge Current	80A
Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (PC); 90-280 VAC (Appliances)

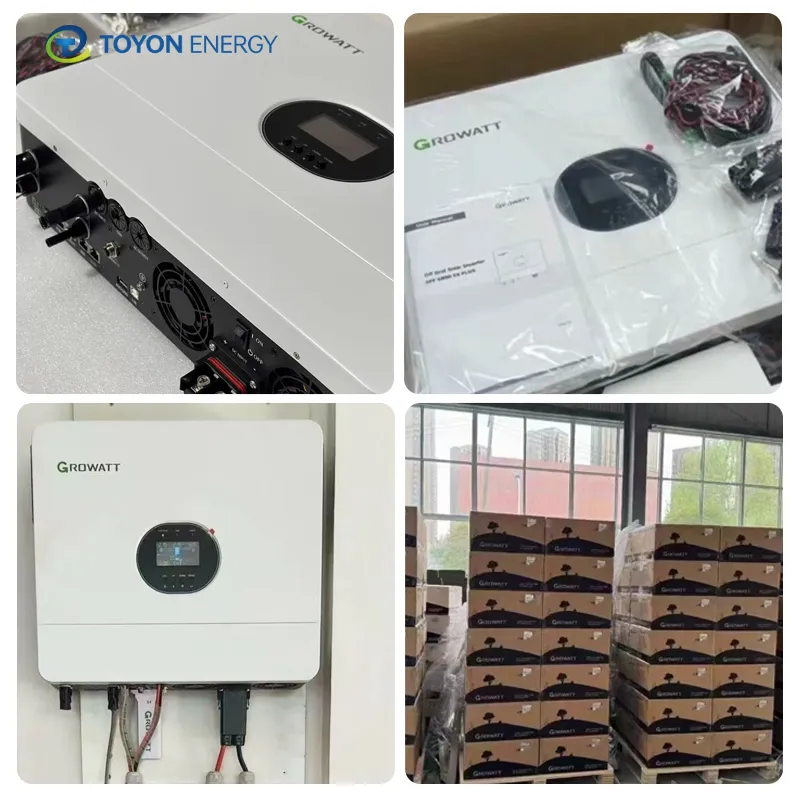

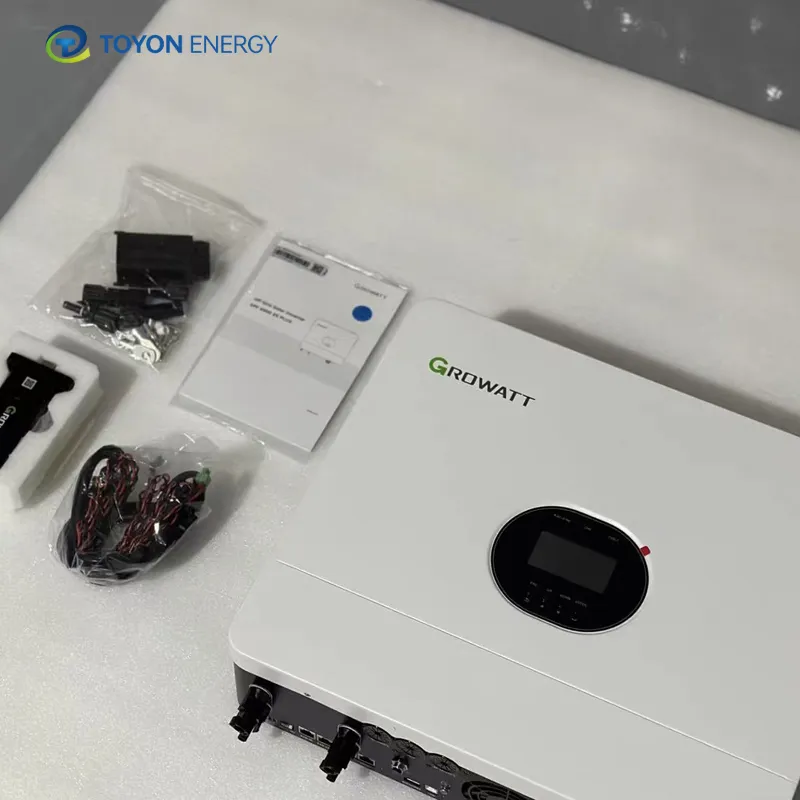

📦 Packing & Delivery

Package Size

46.00cm * 39.50cm * 13.20cm

Gross Weight

20.00kg

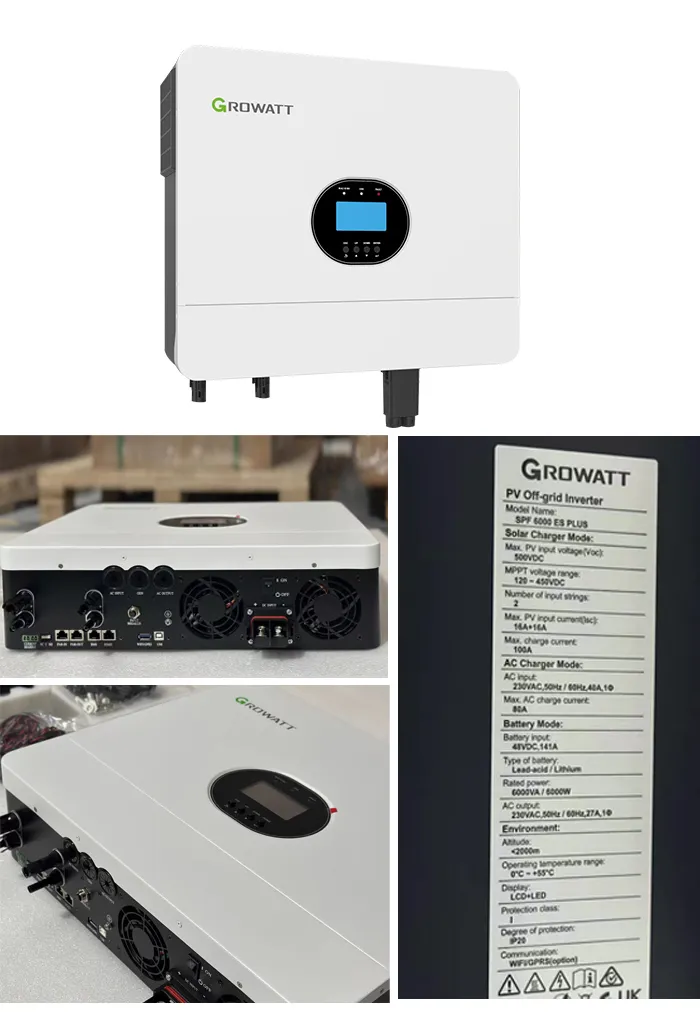

📷 Product Gallery

❓ Frequently Asked Questions

What main products can you provide?

We can provide many series of solar products, mainly producing solar panels, solar inverters, power walls, lithium-ion batteries, gel batteries and all solar system solutions according to your needs.

How is your technical support?

We can provide lifetime online support. We will always provide you with video calls if you have any questions after delivery.

How about the delivery time?

We can always deliver within 5-15 working days. Ordinary products we always have stock, it can be sent out within 15 days. Large orders need to negotiate the completion of production time.

Can you provide OEM service?

Yes, as a professional solar system manufacturer, we can provide customers with full support for OEM and on-site installation, as well as after-sales service.

How do we guarantee quality?

We can provide pre-production samples before mass production, and final inspection before shipment. We also provide 24-hour after-sales service to solve problems as soon as possible.

What are the payment terms?

Accept delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accept payment methods: T/T, L/C, PayPal. Professional, environmentally friendly, and efficient packaging services are provided to ensure the safety of your goods.
