Grid Solar Parallel Operation Hybrid Solar Power Inverter Generator for Home

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	CCC, RoHS, CE

Send Inquiry

Product Description

Basic Information

Model NO.

OPIP-2000

Output Power

>1000W

Grid Type

Off-Grid Inverter

Output Type

Single

Wave Form

Pure Sine Wave Inverter

Circuit Topology

Full-Bridge Type

Weight

4100/4500g

Warranty

1 Year

Cooling Method

Intelligent Air Cooling

Production Capacity

10,000 pieces/Month

Product Features

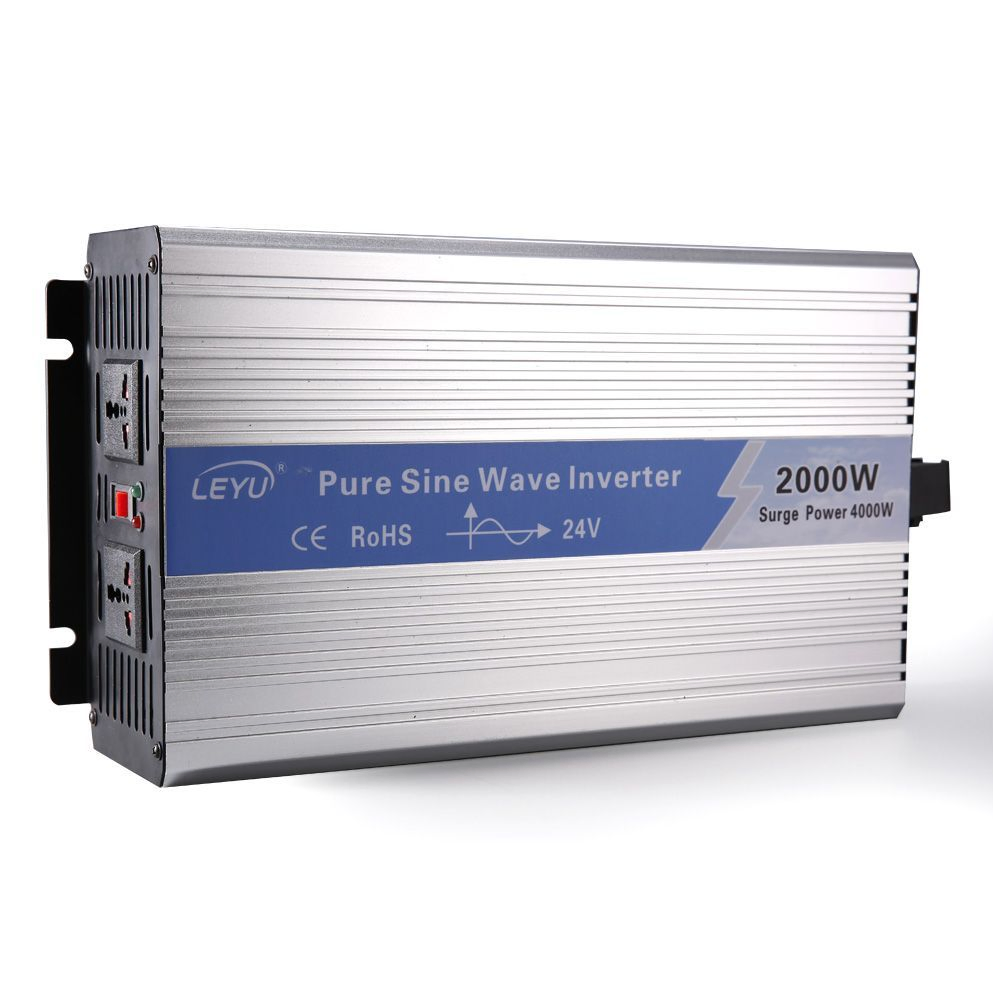

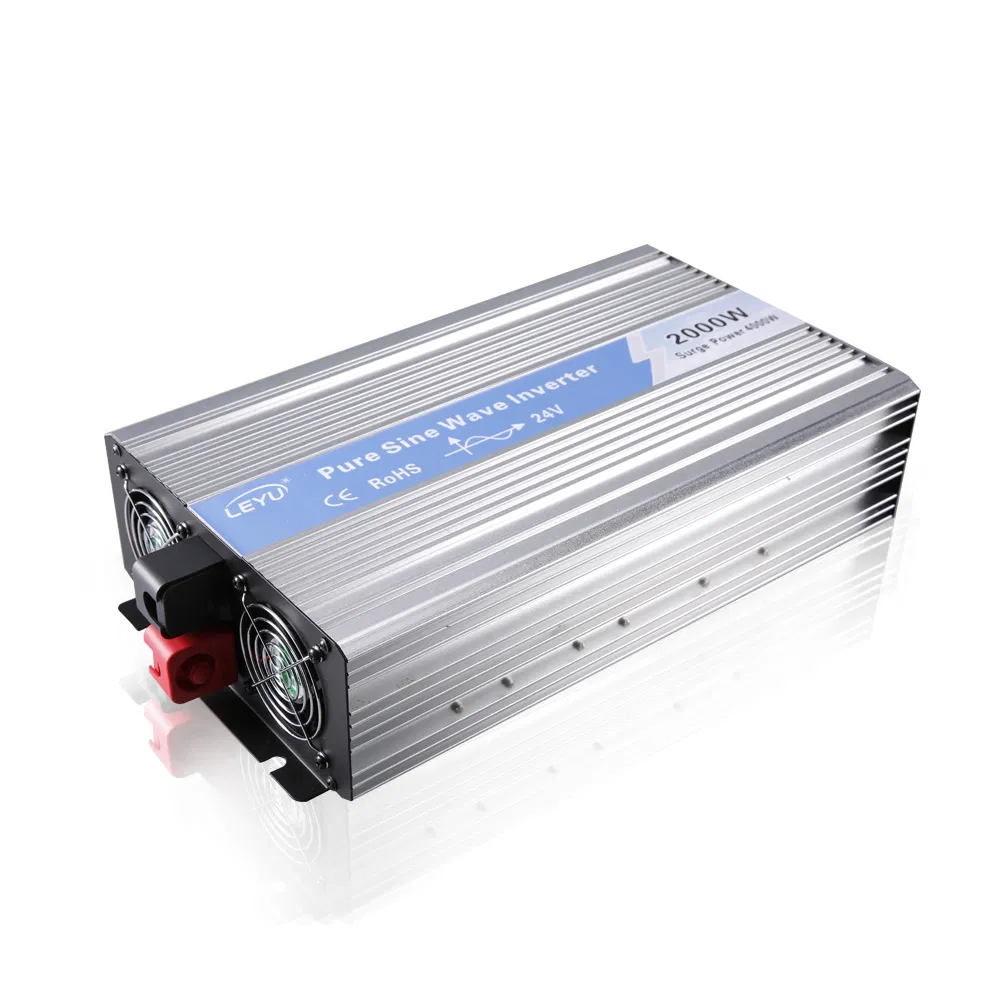

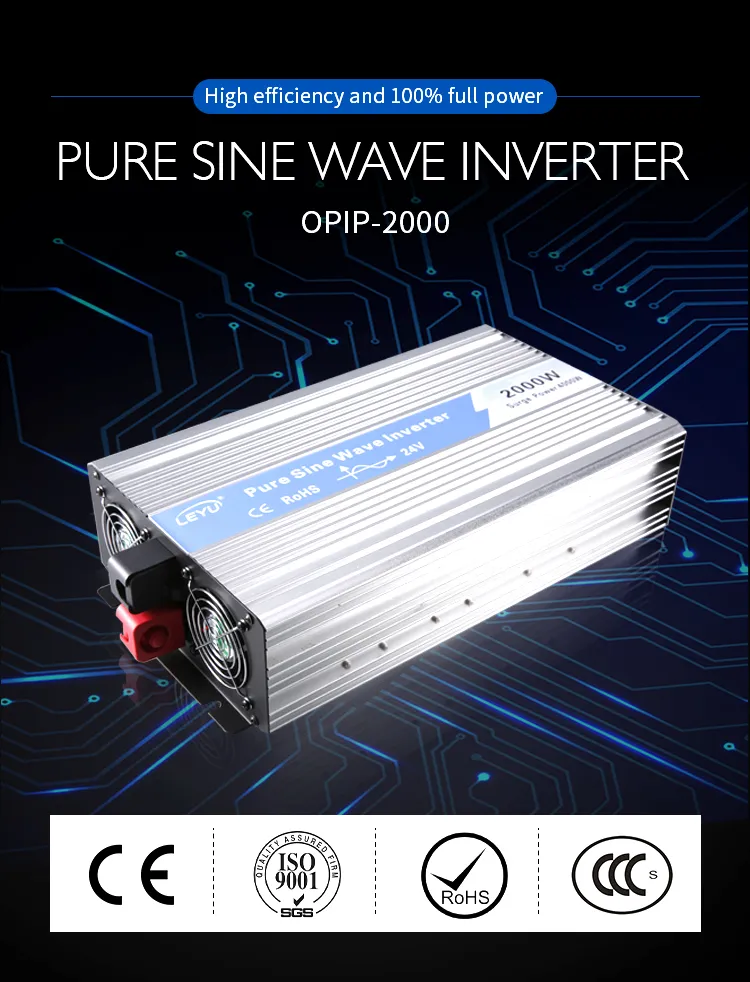

OPIP-2000 12V/24V Pure Sine Wave Inverter (2000W)

High-end chip with high-performance CPU for enhanced reliability

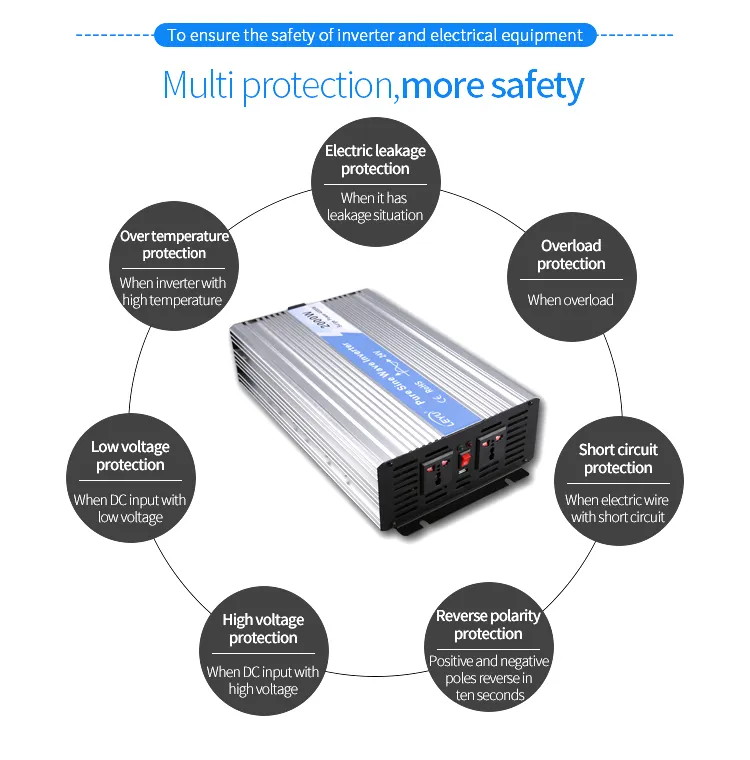

Comprehensive protection: Overvoltage, low voltage, over temperature, overload, short circuit, and reverse connection
Equipped with sound and light alarm system for under-voltage alerts
Intelligent frequency-conversion cooling fan for optimal heat management
Soft-start function to significantly increase loading capacity

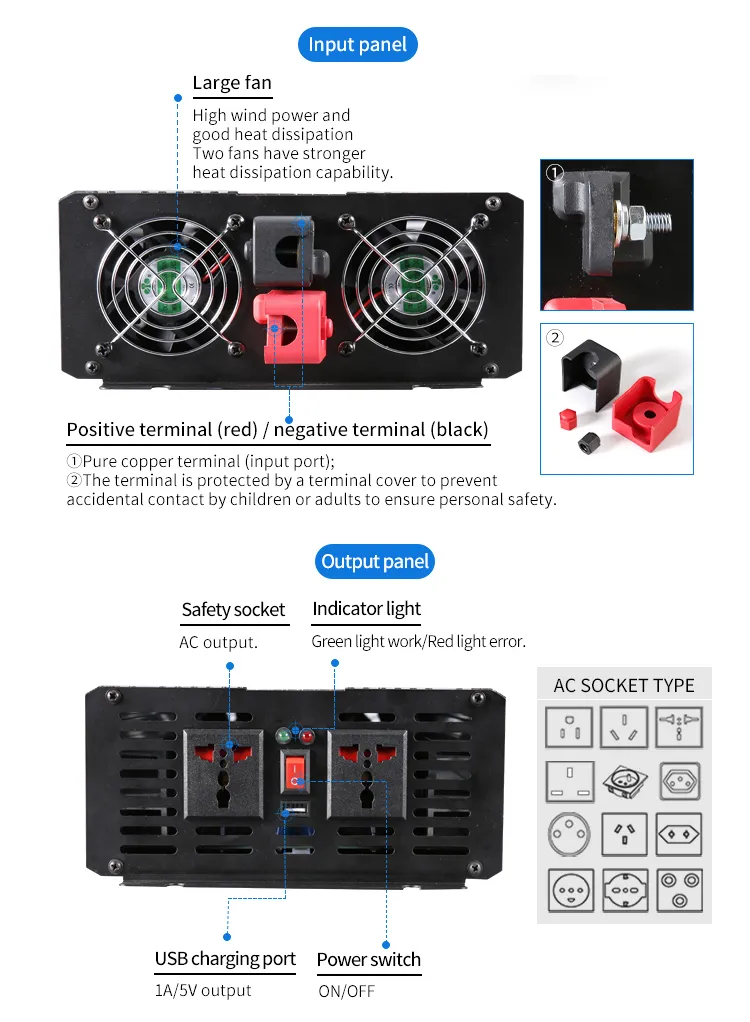

Durable aluminum alloy shell for superior heat elimination
Standard package includes battery clips and manual

Technical Parameters

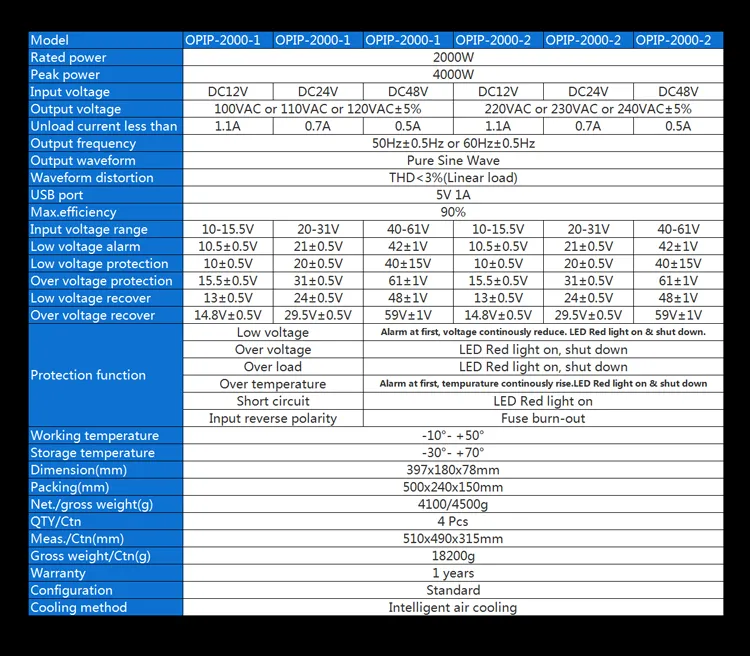

2000W Pure Sine Wave Inverter Specifications
Model	OPIP-2K-1 (110V Series)			OPIP-2K-2 (220V Series)
Rated Power	2000W
Peak Power	4000W
Input Voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output Voltage	100/110/120VAC ±5%			220/230/240VAC ±5%
Output Frequency	50Hz/60Hz ±0.5Hz
Efficiency	90%
Input Range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Protection	Low Voltage: Alarm first, then LED Red light & shutdown
	Over Voltage: LED Red light on & shutdown
	Over Load: LED Red light on & shutdown
	Short Circuit: LED Red light on
Working Temp.	-10°C to +50°C

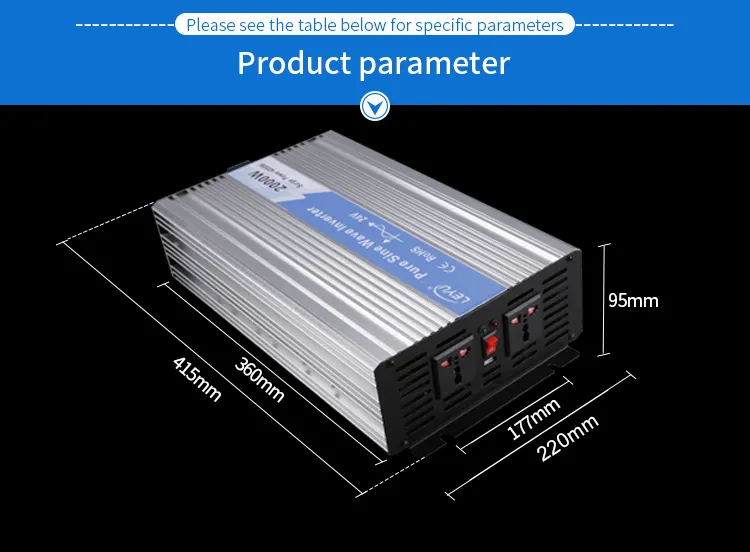

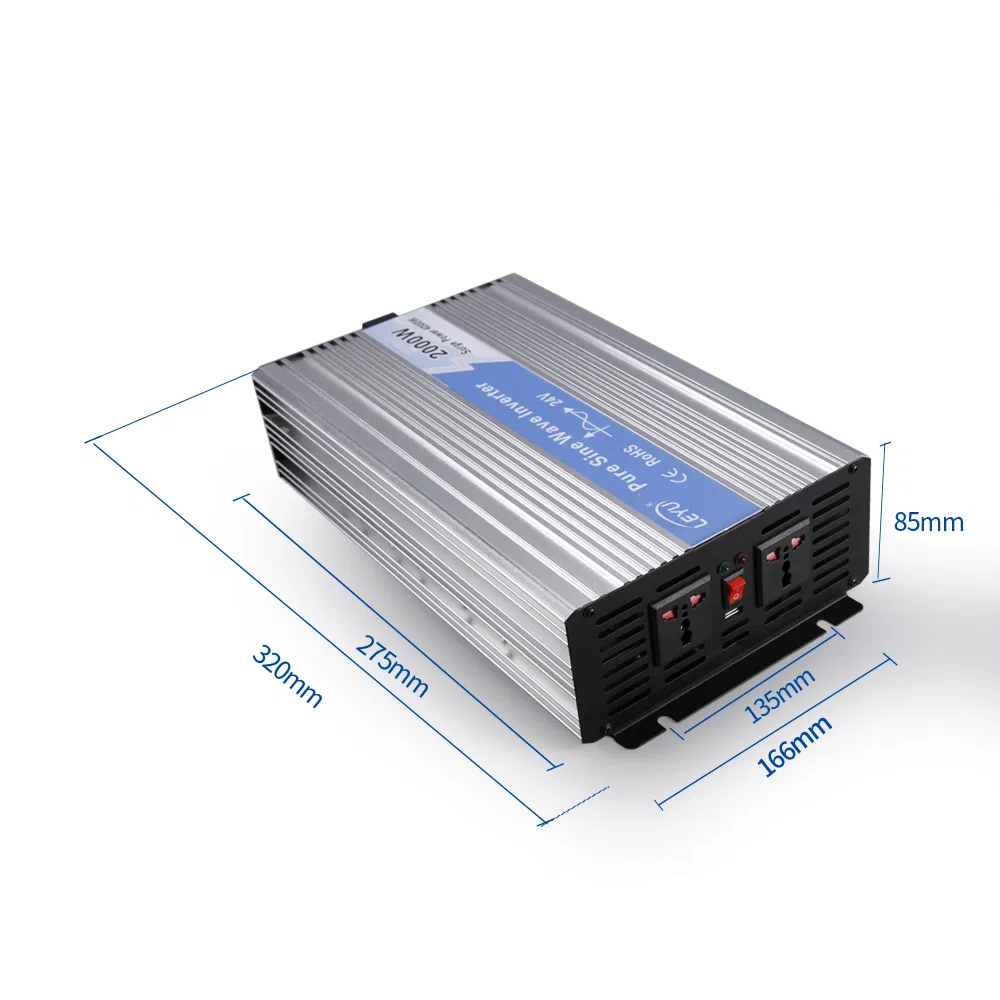

Dimensions	397 x 180 x 78 mm

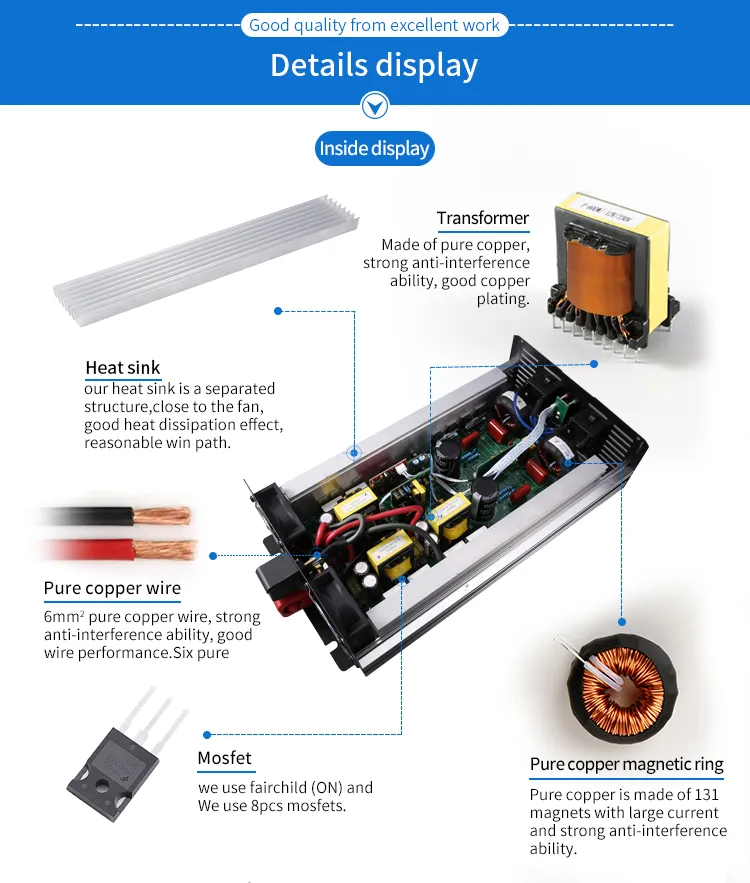

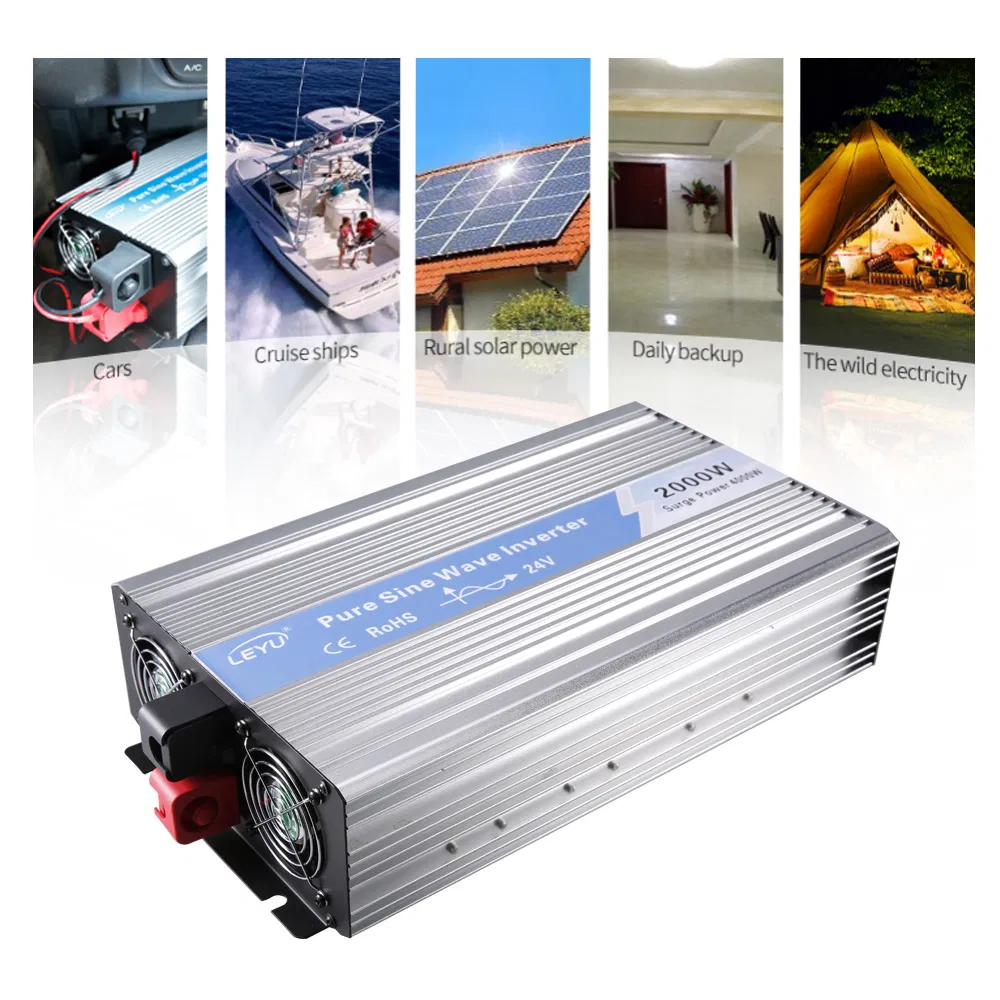

Product Showcase

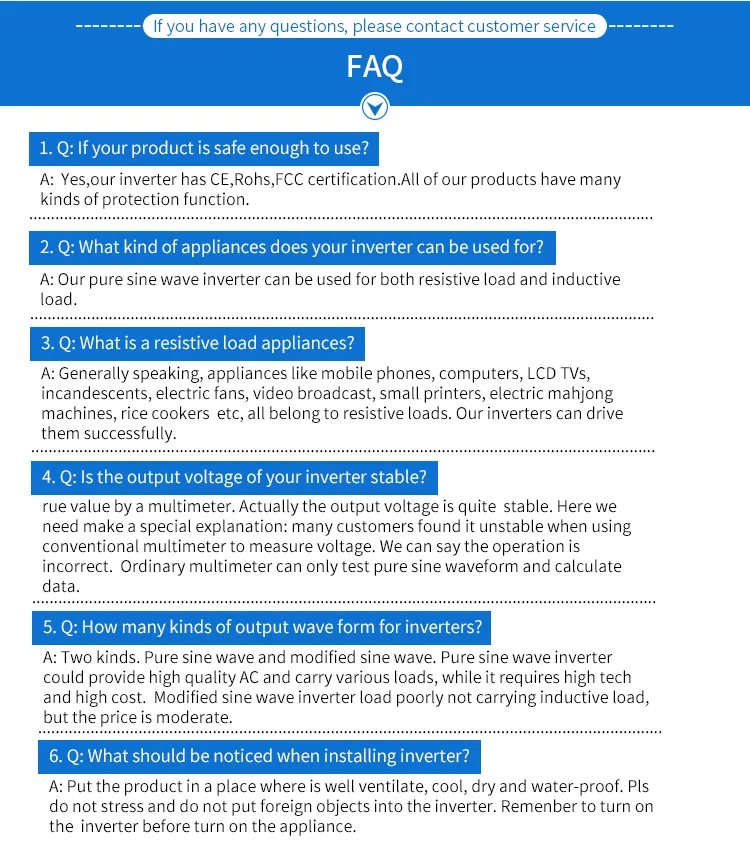

Frequently Asked Questions

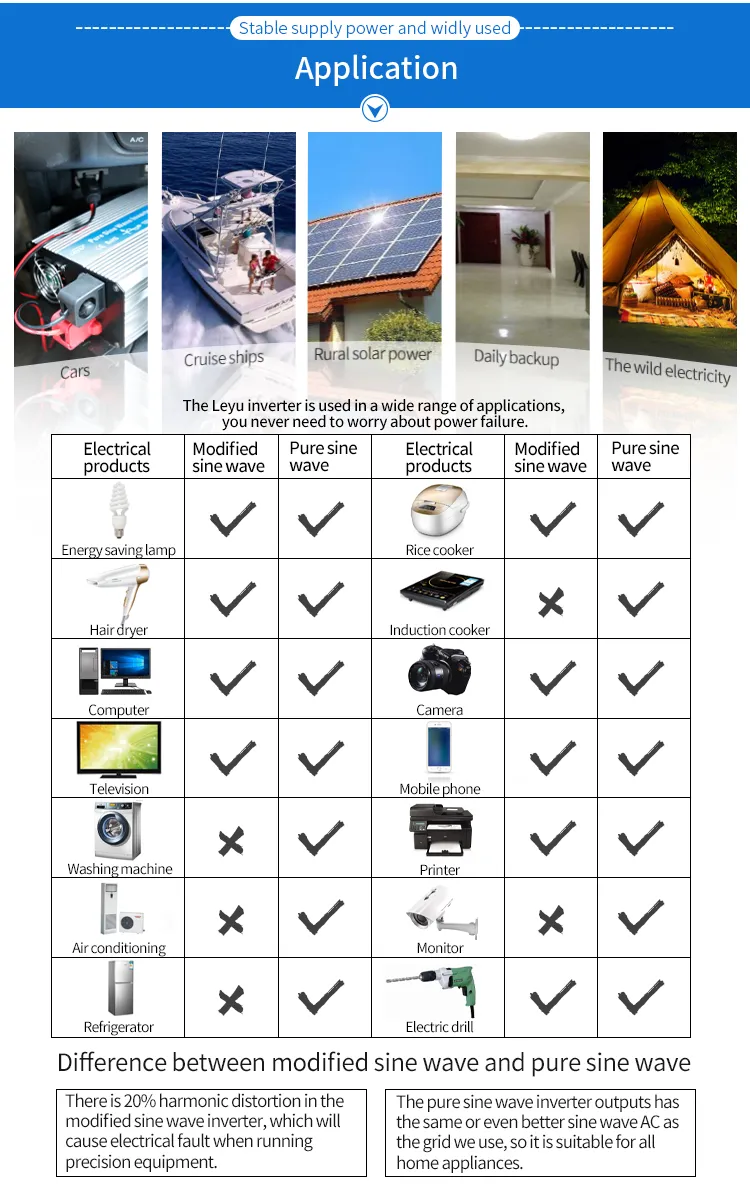

What is the advantage of a Pure Sine Wave Inverter over Modified Sine Wave?

Pure sine wave inverters provide cleaner, more stable power that is identical to the electricity from the grid. This ensures your sensitive electronics and inductive loads (like refrigerators or motors) run cooler, quieter, and more efficiently without interference.

What appliances can a 2000W inverter run?

A 2000W inverter can power most household appliances such as laptops, TVs, fans, small refrigerators, power tools, and microwaves, provided the total continuous power does not exceed 2000W.

Does this inverter have built-in protection?

Yes, it features 6 comprehensive protection layers: overvoltage, low voltage, over temperature, overload, short circuit, and input reverse polarity protection with an intelligent alarm system.

How does the intelligent cooling fan work?

The inverter uses a frequency-conversion cooling fan that only activates or increases speed based on the internal temperature and load. This helps save battery power and reduces noise.

Can I use this for a 24V solar system?

We offer specific models for different input voltages. Please ensure you select the 24V DC input model for a 24V battery or solar system to ensure compatibility.

Is the output voltage customizable?

Yes, while standard models are 110V or 220V, we can customize input voltages (36V, 72V, 96V, etc.) and output voltages (120V, 130V, 240V) upon request.
