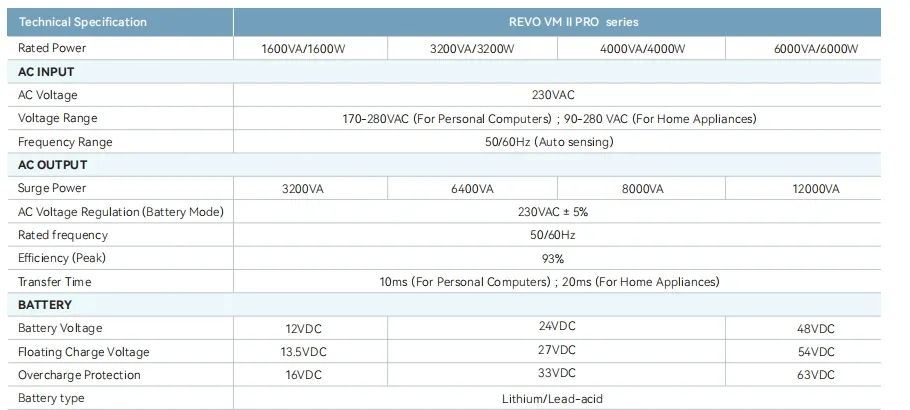

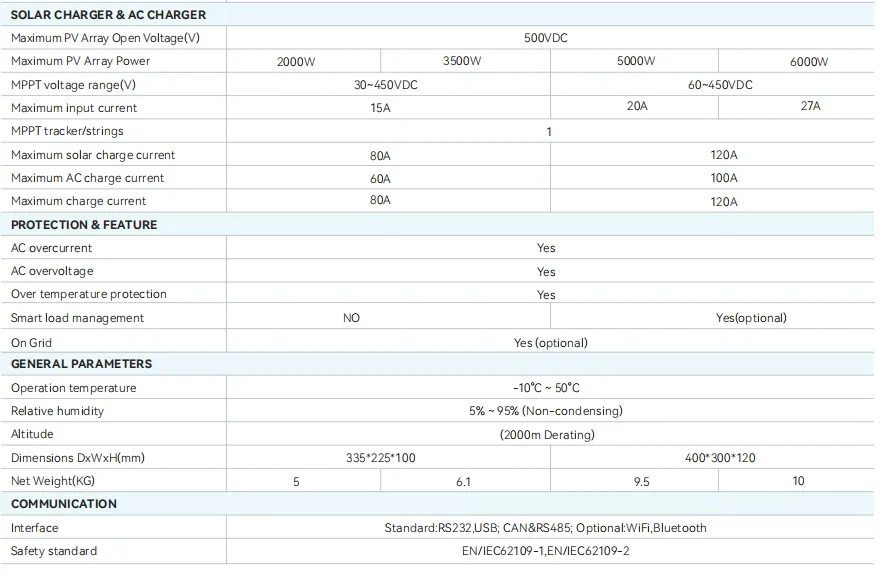

| Model NO. | REVO VM II PRO |
| Nature of Source Flow | Passive inverter |
| Phase | Single |
| Output Power | >1000W |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Nature of Wave String | Sine Wave Inverter |
| Nominal Output Voltage | 220/230/240VAC |
| Power Factor | 1.0 |
| Maximum Conversion Efficiency | up to 93.5% |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| Maximum Solar Charge Current | 90A |
| Maximum AC Charge Current | 60A |
| Operating Temperature | 0 to 50 °C |

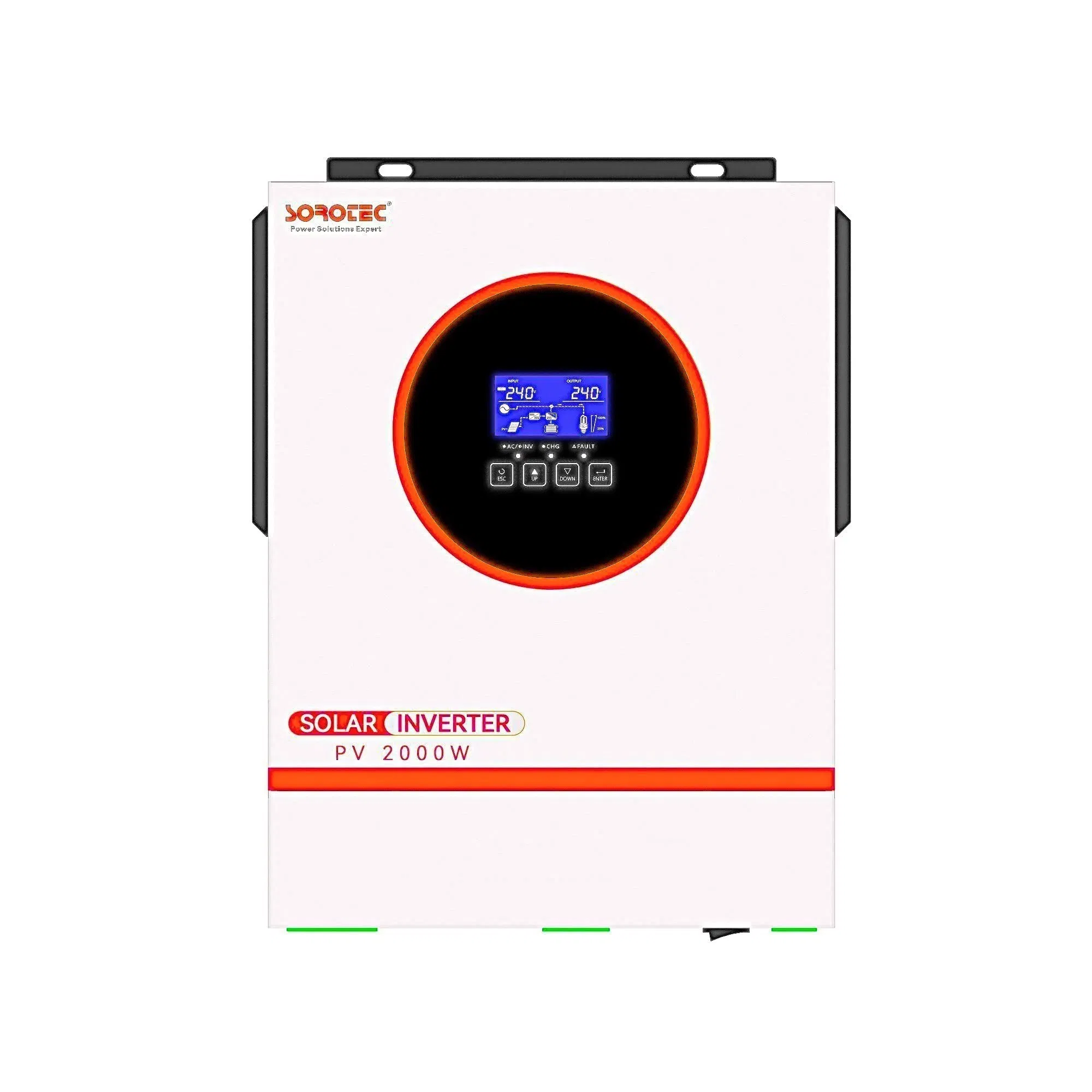

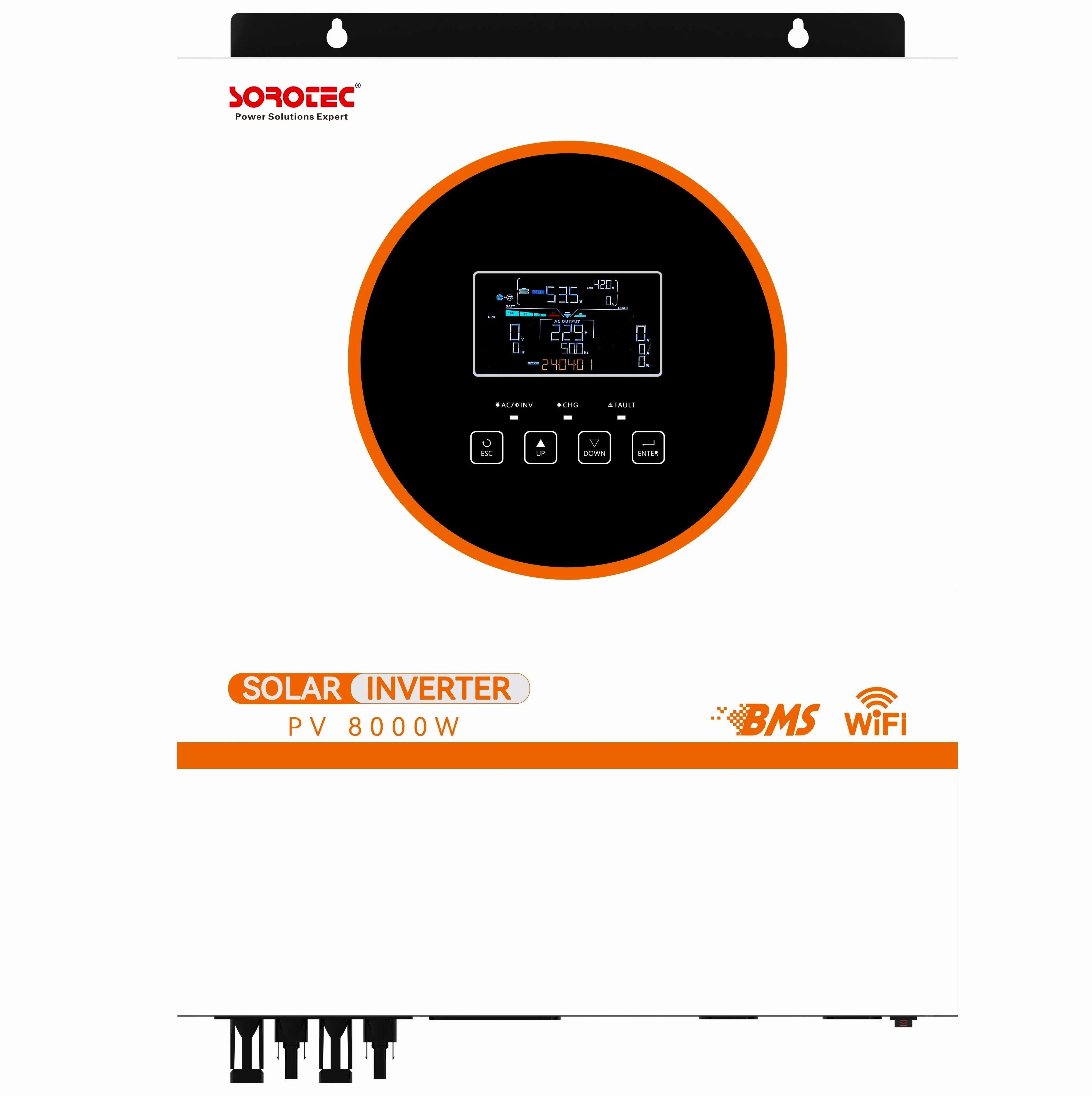

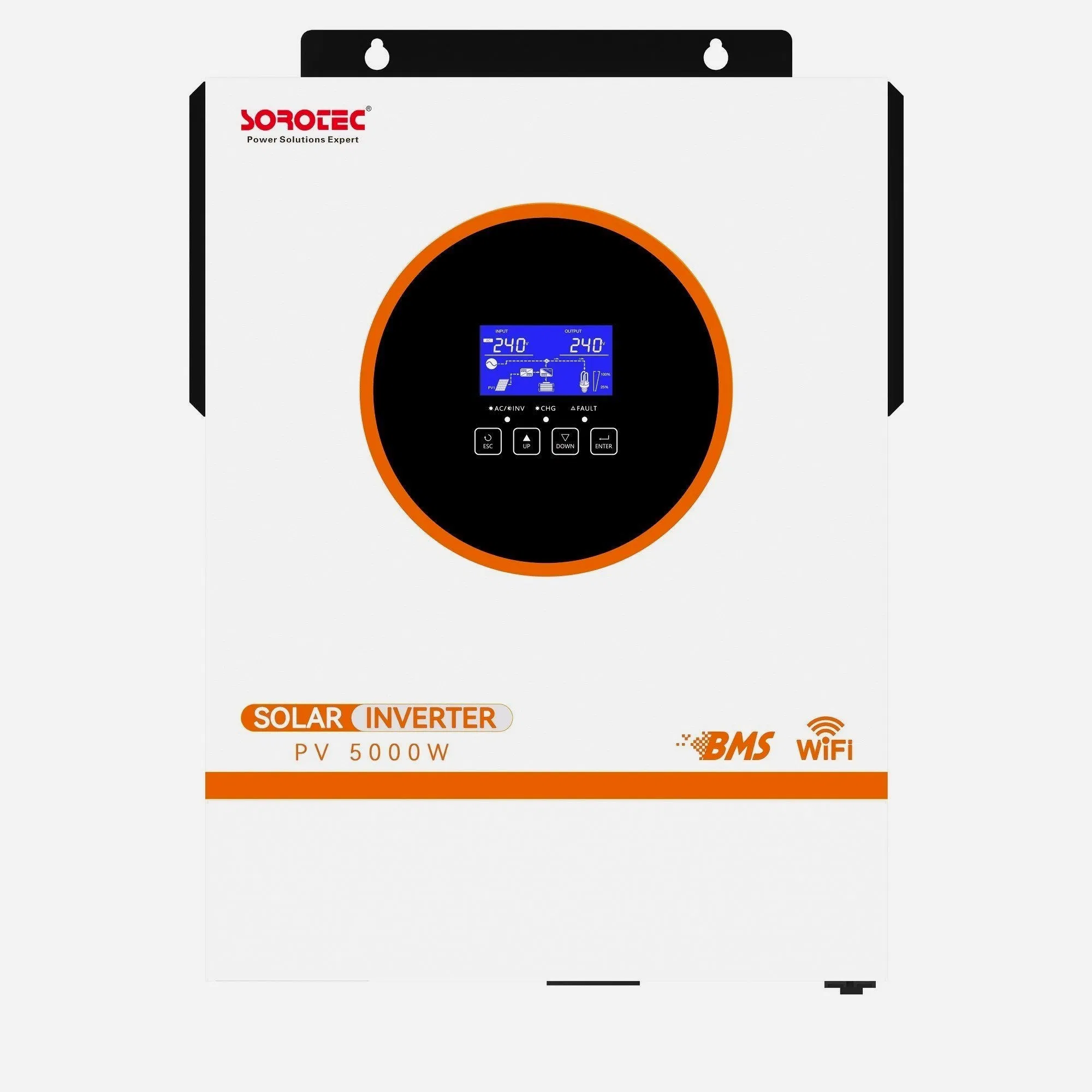

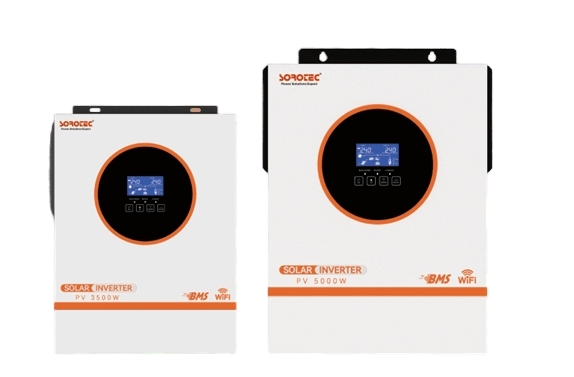

REVO-II Series Touch Display Screen 3-5.5KW On/Off Grid Hybrid Energy Storage Solar Inverter

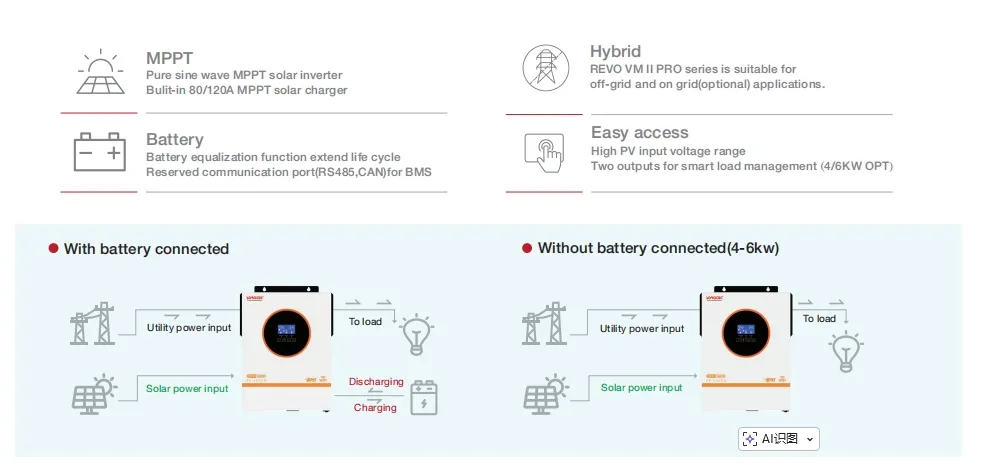

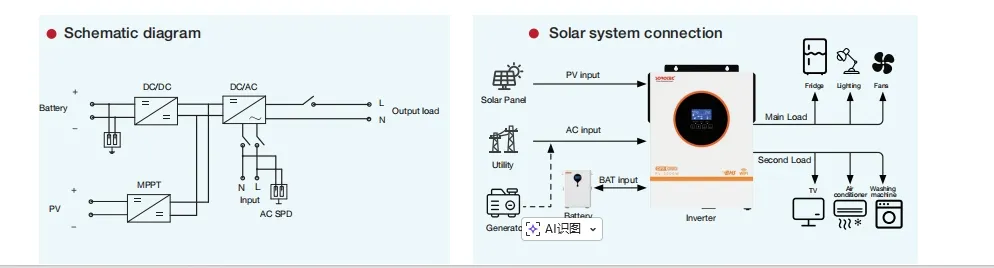

The system is engineered as an affordable yet highly reliable hybrid solar inverter, designed to deliver strong performance in regions where power stability is a daily challenge. It supports Lithium and Lead-acid batteries, operates at 230VAC, and outputs a pure sine wave, ensuring compatibility with a wide range of household and commercial loads.
With MPPT efficiency up to 99.9% and overall inverter efficiency reaching 93%, it offers multiple MPPT options optimized for PV input ranges. Parallel operation is supported on 4kW-10kW models (up to 6 units), enabling users to scale based on budget and future expansion.
| Package Size | 70.00cm * 40.00cm * 51.00cm |
| Package Gross Weight | 10.000kg |
| Transport Package | Standard Exported Package |
