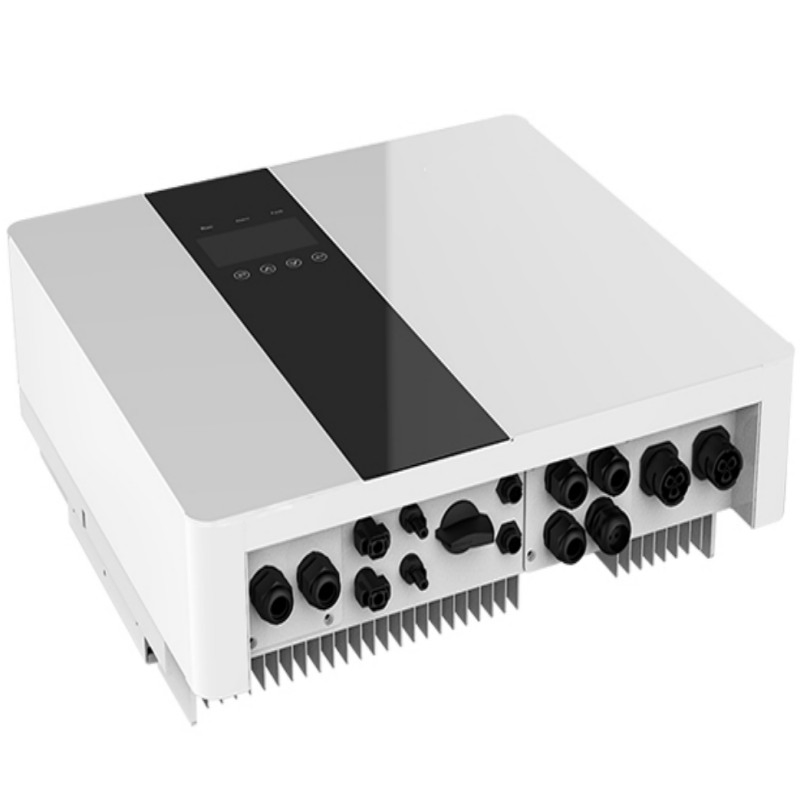

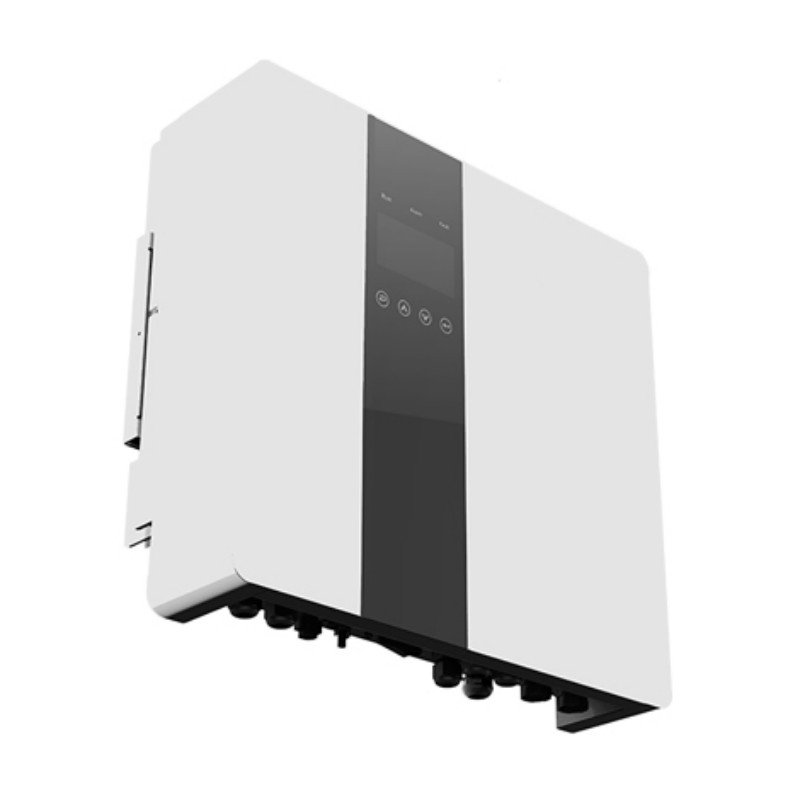

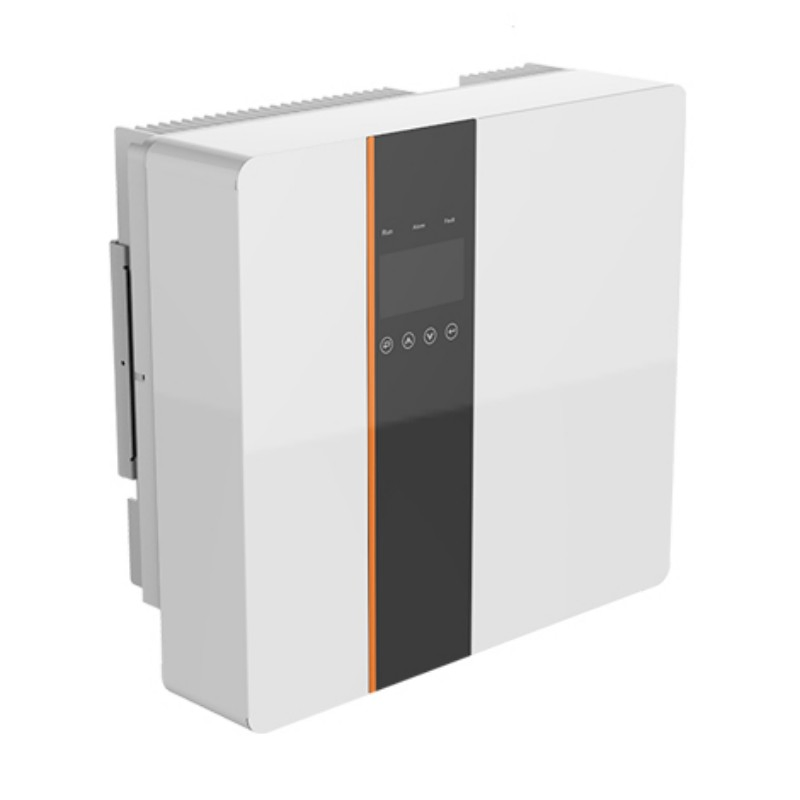

Wholesale Hybrid Solar Energy System Complete Industrial 8kw PV Solar Hybrid System 10kw 12kw Mono Solar Panel Hybrid Inverter

Basic Information

Model NO.

hybrid solar inverter

Nature of Source

Active Inverter

Phase

Three

Output Power

>1000W

Certification

CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

Product Name

MPPT Hybrid Solar Powre Inverter

Function

Storage Inverter

Class

IP65

Size

530 X 560 X 200mm

Weight

24 Kgs

Communication

RS485/Can/DRM

HS Code

8504403090

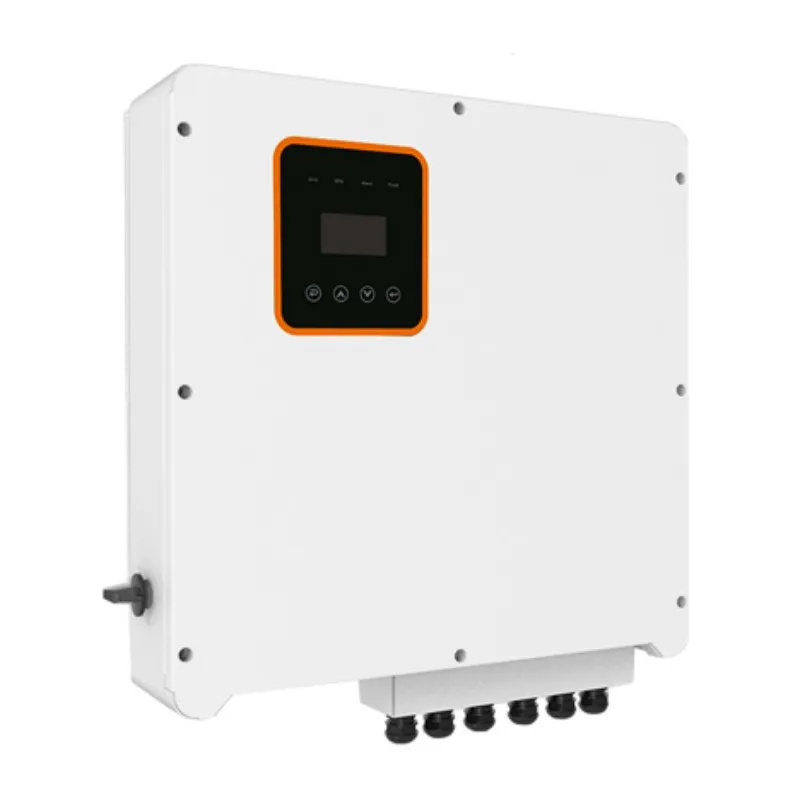

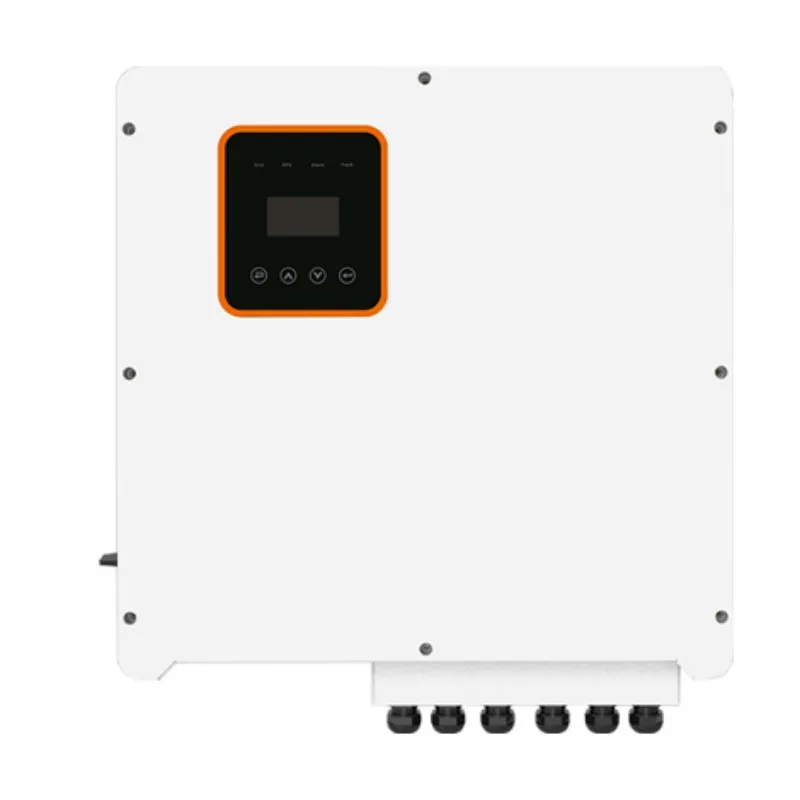

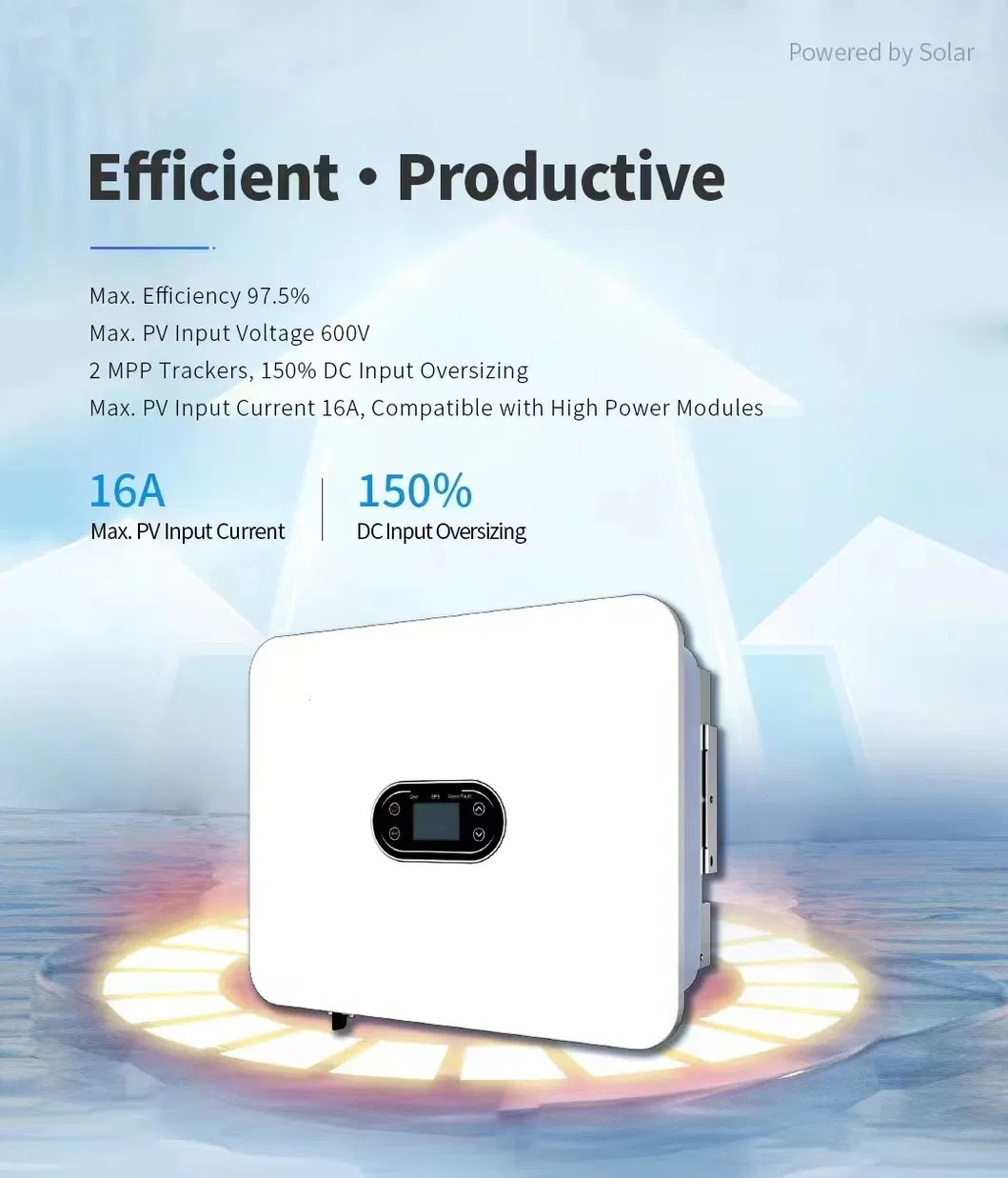

Detailed Photos

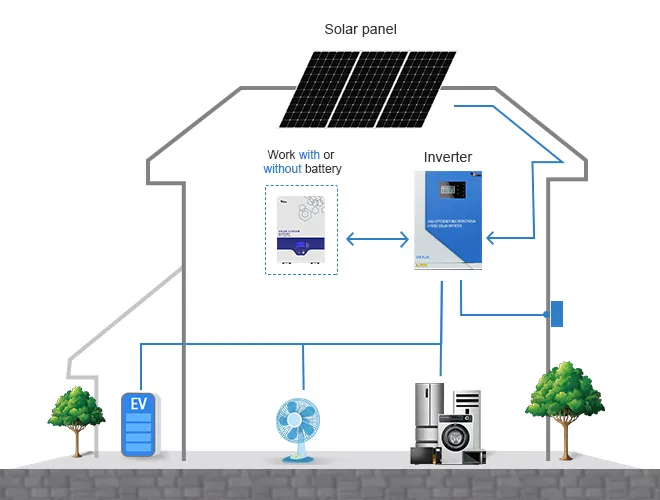

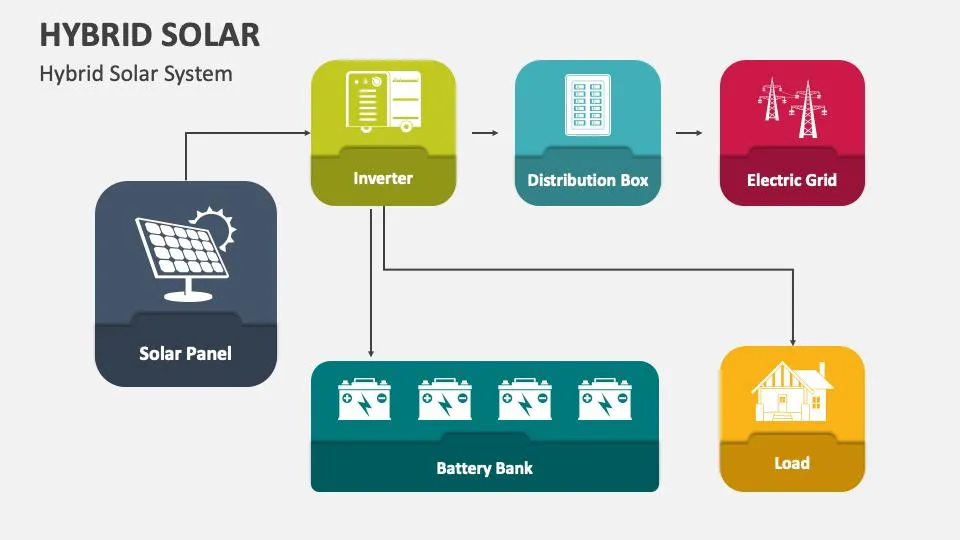

Hybrid Inverter: A new generation of photovoltaic energy storage products based on the idea of intelligent and maintenance free, which integrates many functions such as charging, energy storage, photovoltaic, BMS battery management system and so on. It can automatically identify the off grid / grid connection mode and connect to the smart grid to achieve peak load and valley demand.

Product Parameters

Parameter	8kw-RH3	10kw-RH3	12kw-RH3
Input (PV)
Max. PV Input Power	10.4kw	13kw	15.6kw
Max. PV Input Voltage	1000V
MPPT Voltage Range	125V-850V
Output (AC)
Max. Output Power	8.8KVA	11KVA	13.2KVA
Rated Voltage	400V
Frequency	50Hz / 60Hz
Battery
Battery Voltage Range	125V-600V
Charge / Discharge Current	50A
Battery Type	Lithium / Lead-acid

✔

Advanced: Intelligent energy management system; Power dispatching and demand side response.

✔

Flexible: Wide input voltage range; Compatible with various battery types.

✔

Reliable: Anti-counter flow function; Battery reverse connect protection.

✔

Grace: Fashion appearance; Natural cooling; Low noise; IP65 rated.

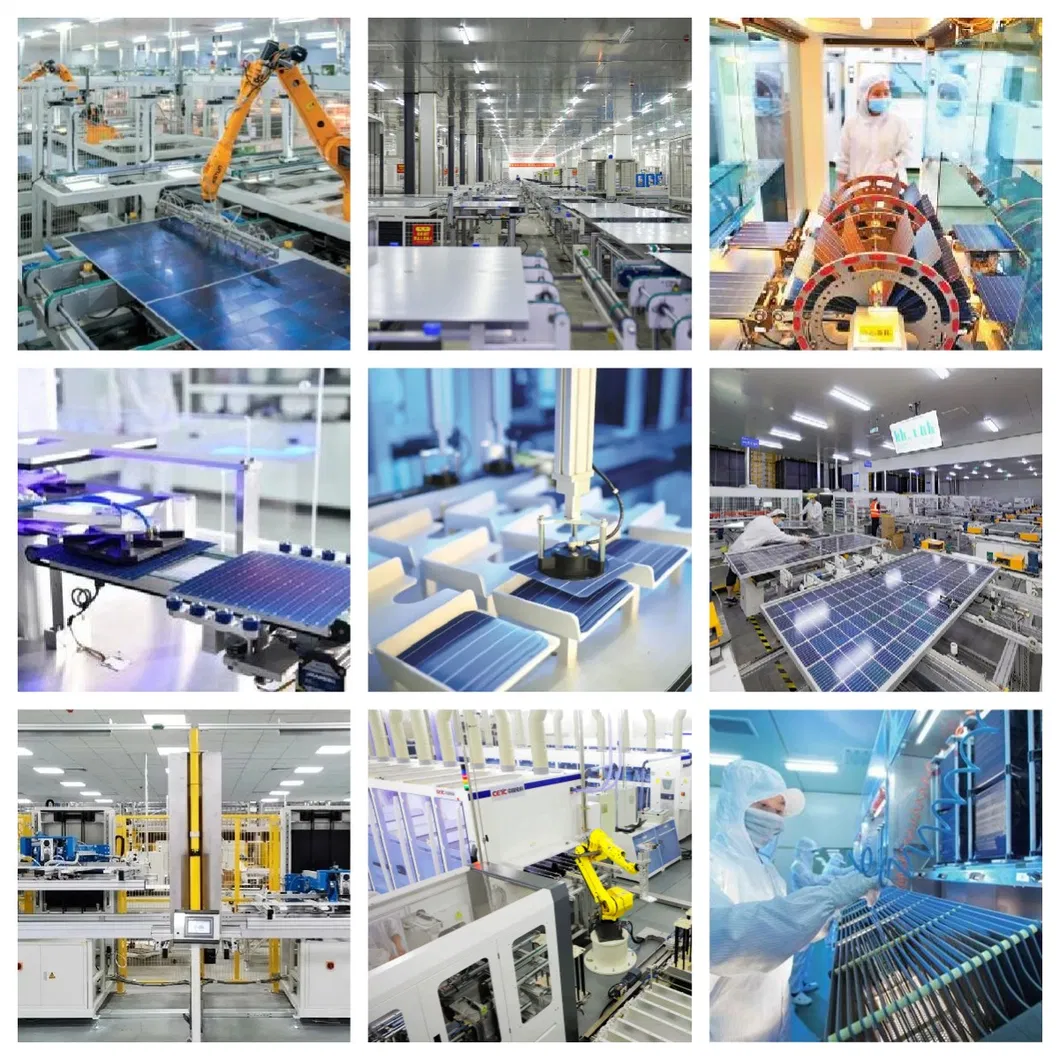

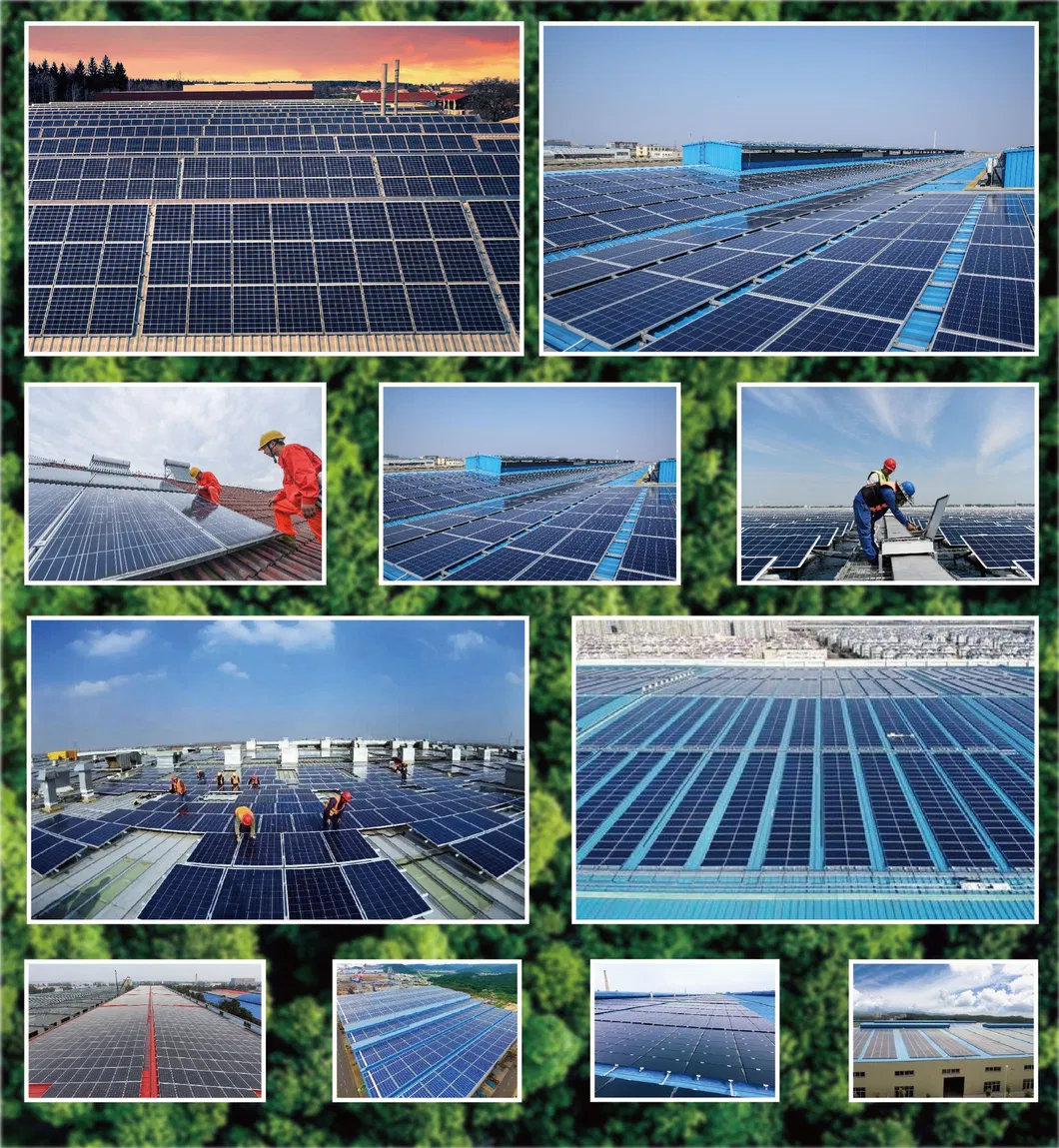

Production Line & Projects

An industry-leading solar energy company with a current high-efficiency module production capacity of 10GW. By designing, manufacturing and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products, system solutions and related services globally.

Certifications & Shipping

Frequently Asked Questions

Q1: What is the lead time for orders?

A1: Typically 10 days for requirements under 200kW. For larger orders, schedules are negotiated based on specific needs.

Q2: What are the accepted payment methods?

A2: We accept 100% TT, or 30% TT in advance with the remaining 70% TT once goods are ready before shipment.

Q3: How are the products transported?

A3: International shipping is generally via sea transport. For inland delivery, multimodal transport involving rail or barge is utilized.

Q4: What kind of warranty is provided?

A4: We offer a 10-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.

Q5: Is this inverter compatible with different battery types?

A5: Yes, the system is compatible with lithium-ion, lead-acid, and other advanced battery technologies.

Q6: Can this system withstand outdoor environments?

A6: Absolutely. The inverter features an IP65 protection degree and a wall-mounted design suitable for various environments.
