Basic Information
Output Voltage
220/380V, 230/400V
Certification
SAA, CE, ROHS, ISO9001, CCC
🛡️

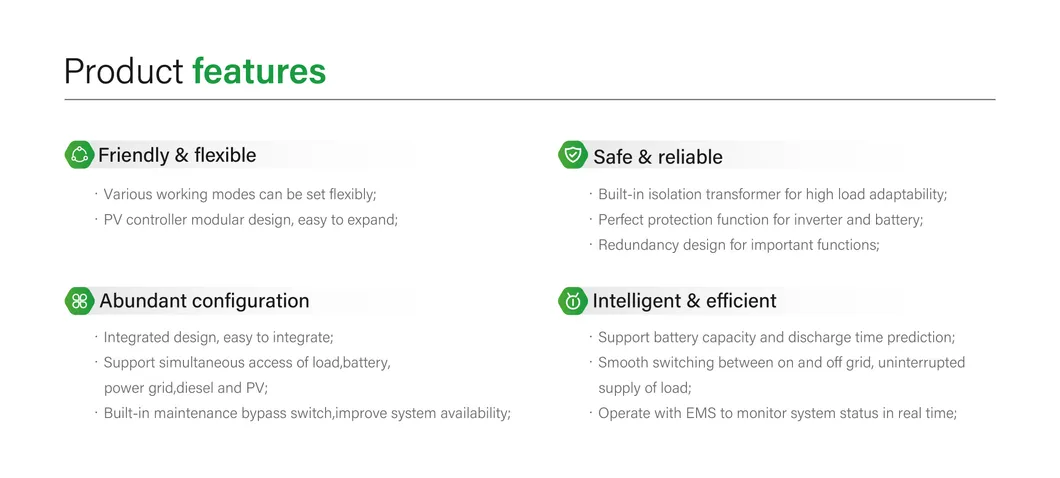

Product Highlights
⚡
Highly integrated: Easy to deploy, significantly shortening installation and debugging time.
🔋
Internal integration: Combines PV, storage, and PCS equipment for unified bus control and system stability.
📈
Easy expansion: Supports flexible PV configuration and modular growth.
🧠
Integrated EMS: Built-in Energy Management System functions to improve economic benefits.
⚙️

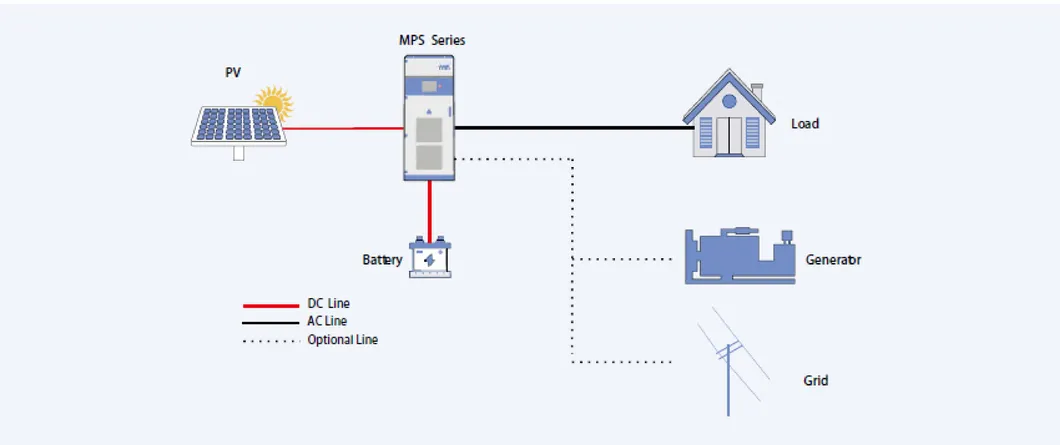

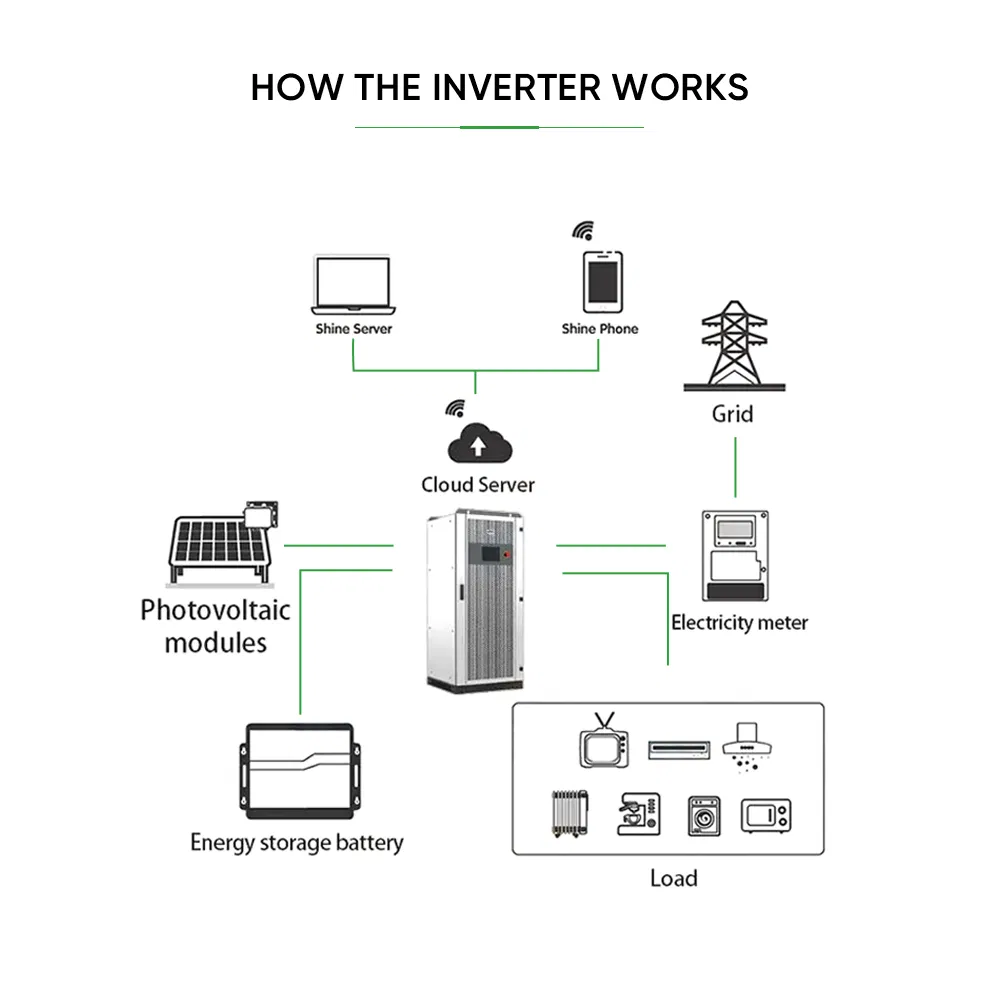

Operational Modes
1. Self Consume: Priority is given to powering the user load; excess solar energy charges the batteries. Remaining power can flow to the grid.
2. Battery First: Priority is given to charging batteries. Grid supplements when PV power is insufficient. Batteries act as backup power.
3. Mixed Mode: Economic mode divided into peak, normal, and valley periods to maximize electricity cost savings.
📋

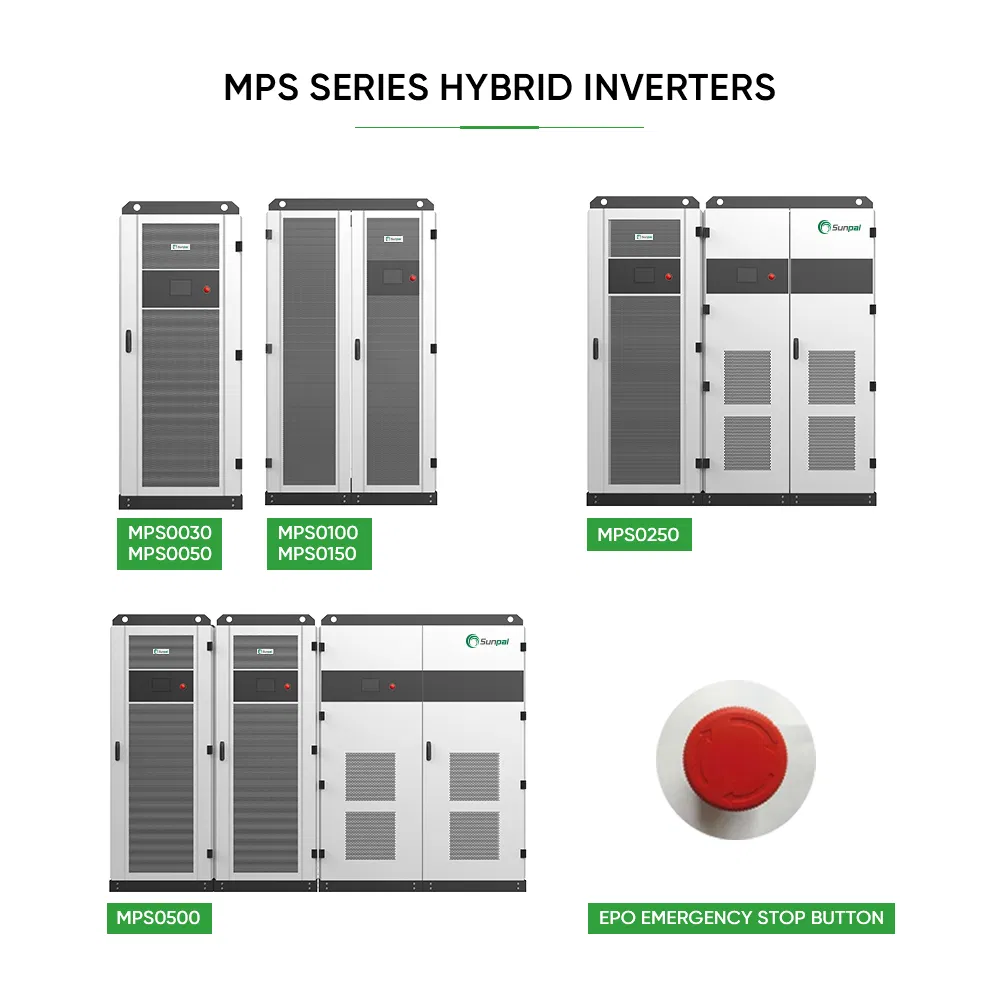

Technical Specifications
| Model |
MPS0030 |
MPS0050 |
MPS0100 |
MPS0150 |
MPS0250 |
MPS0500 |
| Rate output power (kW) |
30 |
50 |
100 |
150 |
250 |
500 |
| Rated voltage (V) |
400 |
| THDi |
<3% |
| Max.PV power (kW) |
36/72 |
60/120 |
120/180/240 |
120/180/240 |
300/360 |
600/660/720 |
| MPPT voltage range (V) |
250-850 |
| Battery voltage range (V) |
250~850 |
320~850 |
420~850 |
420~850 |
420~850 |
500~850 |
| Operation temperature (ºC) |
-30 ~ 55 |
🔋
Compatible Battery Solutions

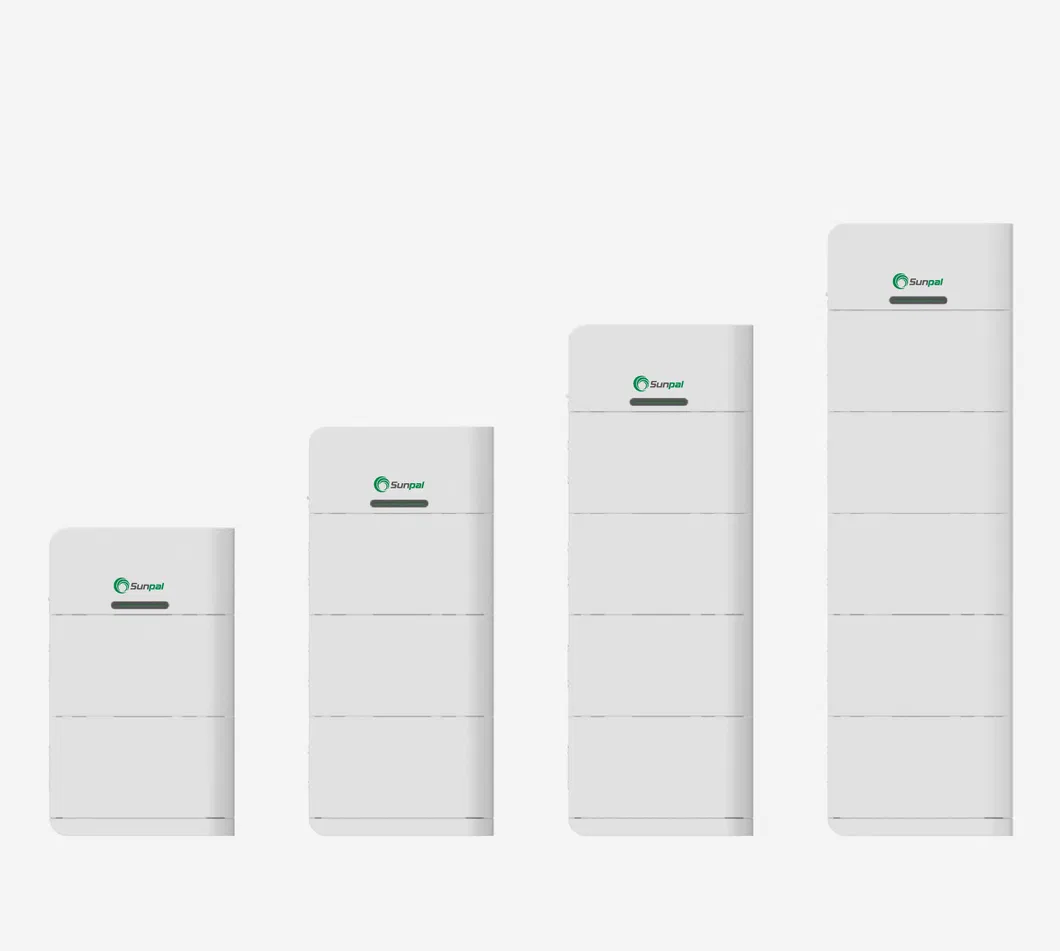

Stacked Lithium Battery Features:
- 🚀 Strong Expansibility: Support 16 modules in parallel.
- 🔌 Compatibility: Matches mainstream protocols and inverters.
- ⏳ Long Life: Durable consistency screening.
- 🛡️ Safety: Nano-coating and self-healing LFP technology.

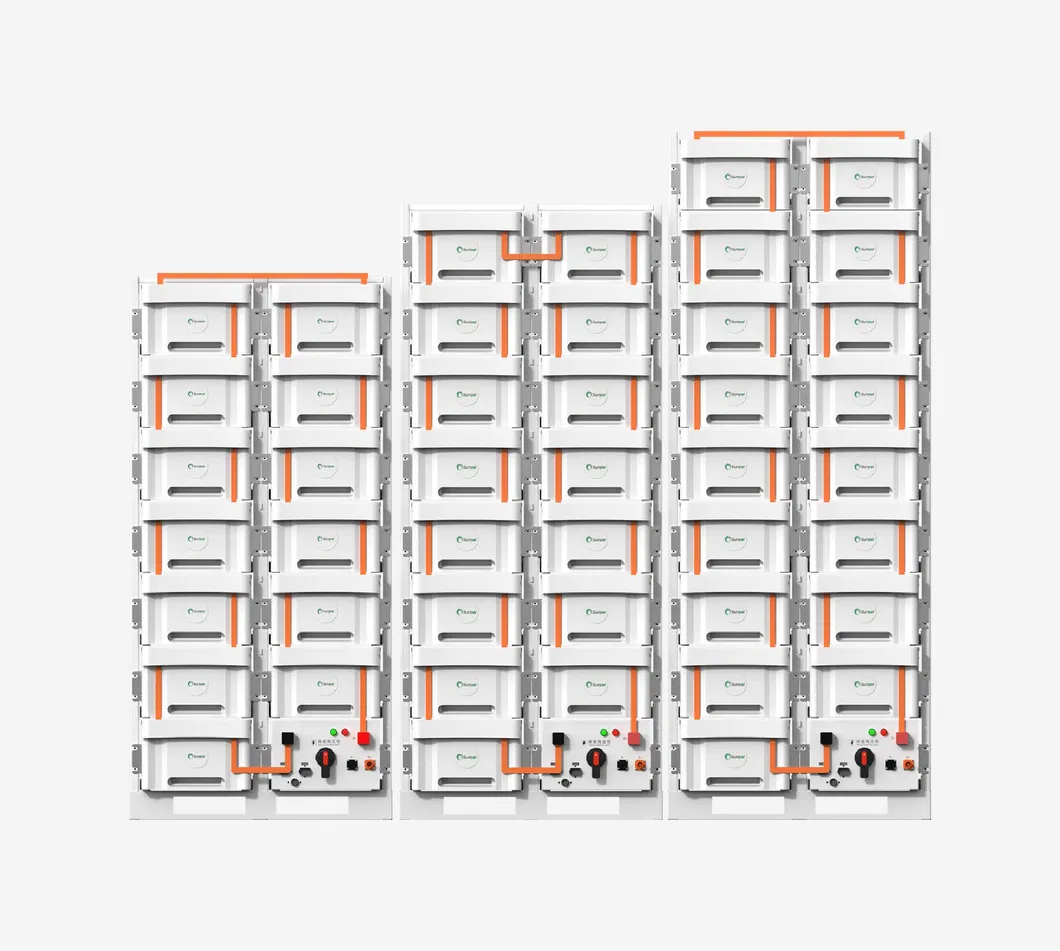

HV Lifepo4 Battery System:
- ⚡ Patented Modular Plug Design
- 🛠️ Easy Installation & Expansion
- 🔄 6000+ Cycles Long Life
- 💻 Smart BMS System
📦

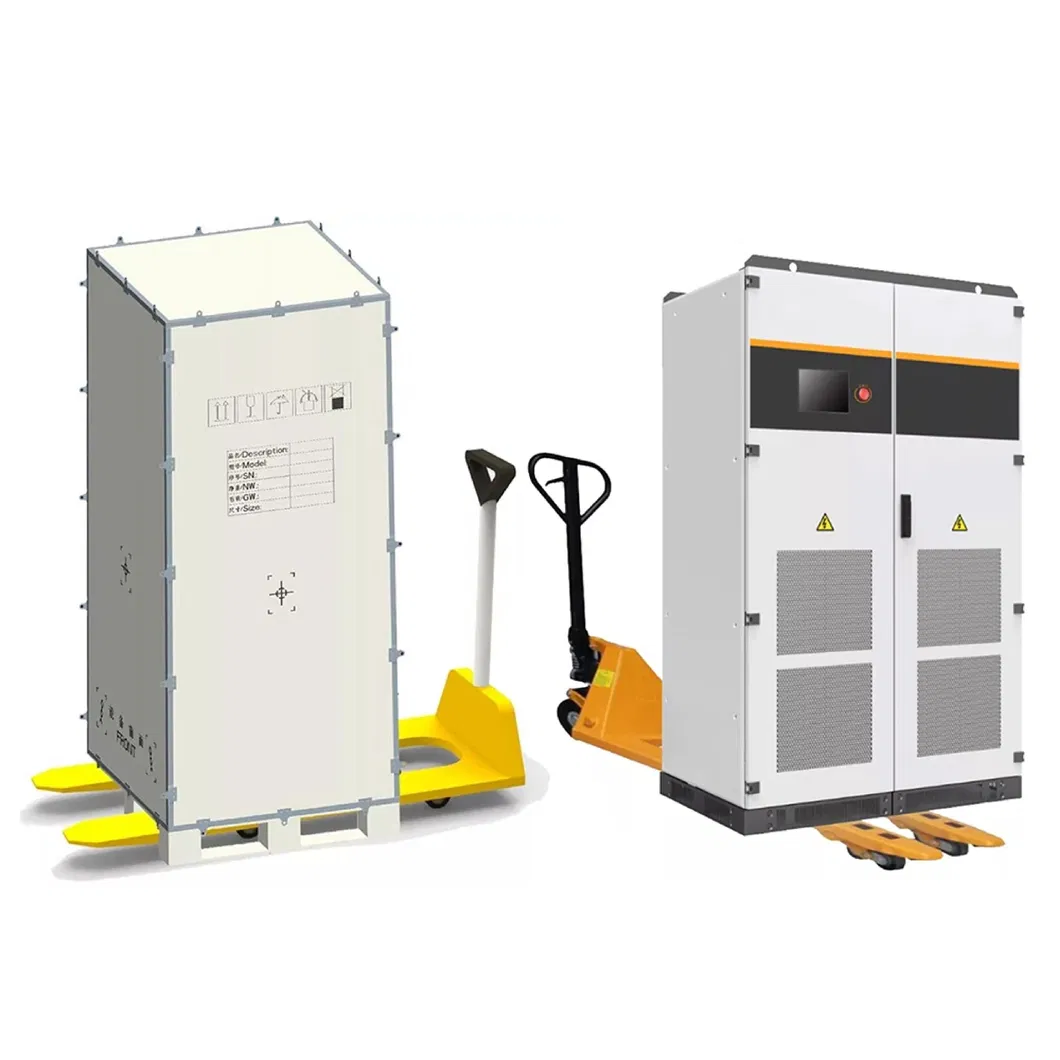

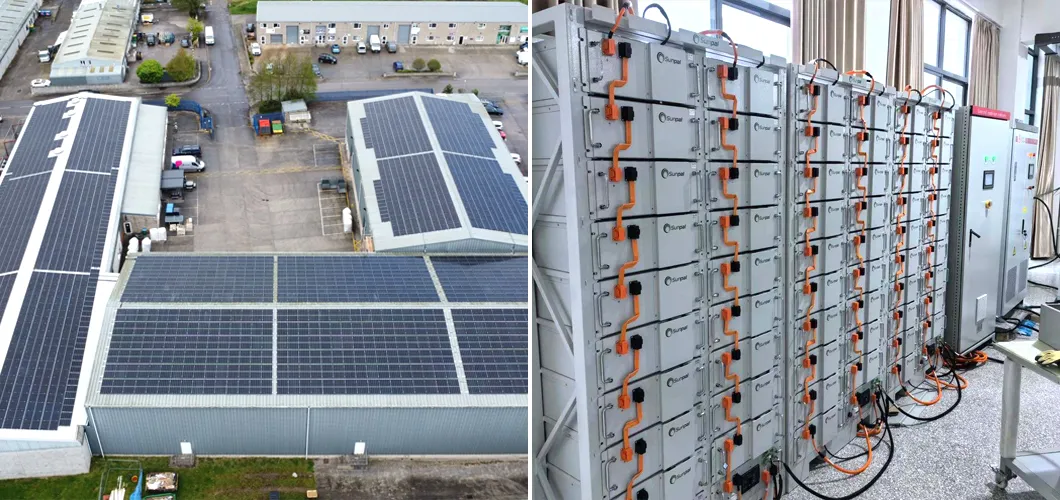

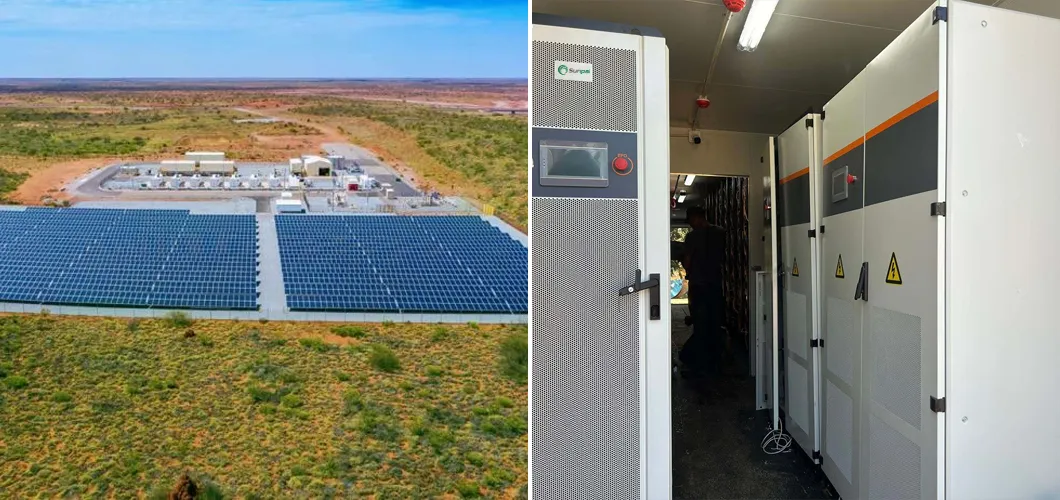

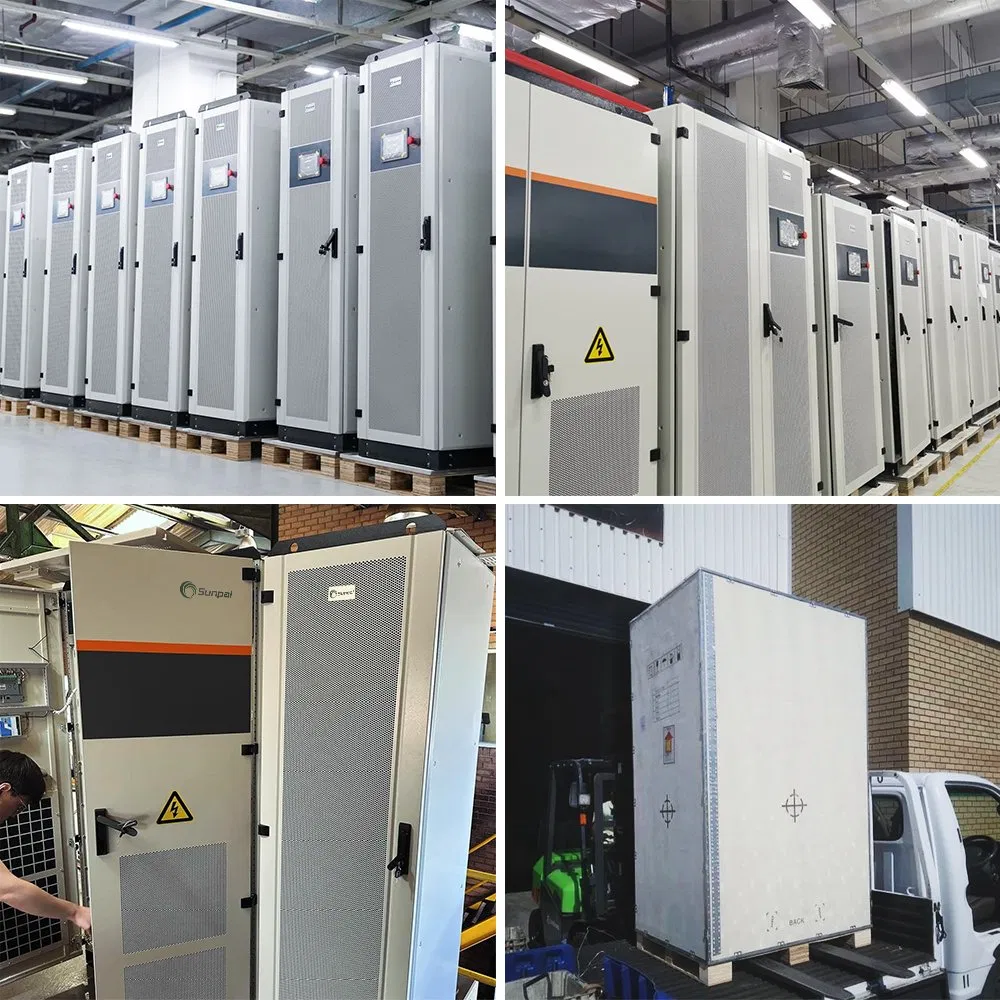

Packaging & Global Projects
❓
Frequently Asked Questions
What is the maximum efficiency of this 3-phase hybrid inverter?
The inverter reaches a maximum efficiency of 97.60%, ensuring minimal energy loss during DC/AC conversion.
Can I expand the system capacity later?
Yes, the system is designed for easy expansion, supporting flexible PV configurations and battery module paralleling.
Is the inverter compatible with different battery types?
It is specifically optimized for Lithium-ion (LiFePO4) batteries with a voltage range between 250V and 850V.
What are the protection ratings for industrial use?
The unit features an IP20 protection degree and includes comprehensive certifications like CE, ROHS, and ISO9001.
How does the "Mixed Mode" work for cost saving?
Mixed mode allow users to set operation based on time-of-use electricity prices, utilizing battery power during peak price periods.

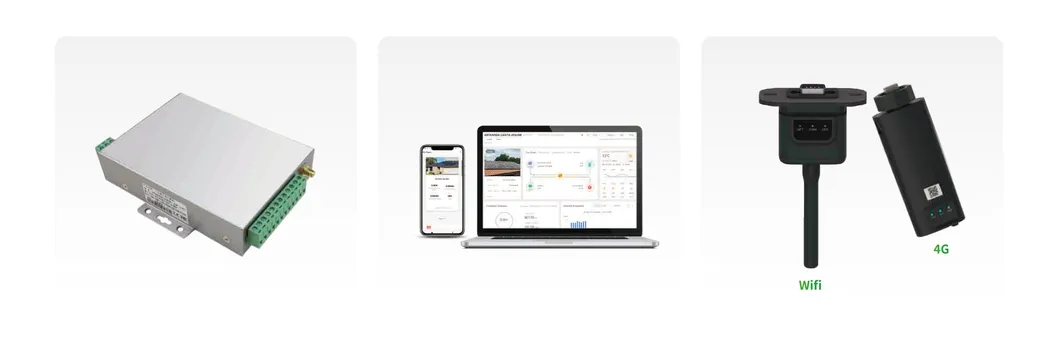

Does it support remote monitoring?
Yes, the system supports RS485, CAN, and TCP/IP communication for BMS and EMS integration.
