| Model NO. | HE100-2.2KW |
|---|---|
| Principle of Work | V/F Control Transducer |
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Voltage of Power Supply | Medium Voltage Variable-Frequency Drive |
| Link of Transformation | AC-AC Variable-Frequency Drive |
| Nature of DC Power | Voltage Variable-Frequency Drive |
| Function | Simple Type, Textile Special, Constant Torque Universal Type |
| Power | 2.2kw |
| Frequency Control Range | 0.00-500 Hz / 500-3000 Hz |
| Input Mode | Frequency(Speed)Input, Torque Input |
| Storage Environment | -40ºC~+70ºC |
| Rated Output Current | Continuous Output of 100% Rated Current |
| Transport Package | Carton |
| Specification | 164*68*117mm |
| HS Code | 8504409999 |
| Production Capacity | 50000 Pieces/Year |
| Product | Variable Frequency Drive |
|---|---|
| Condition | New & Original |
| Lead Time | 15-20 days |
| Package Size | 16.40cm * 6.80cm * 11.70cm |
| Package Gross Weight | 1.000kg |
Utilizes industrial-grade components and a compact structure, suitable for high-temperature and high-humidity industrial environments. Features protection ratings (e.g., IP20/IP21).

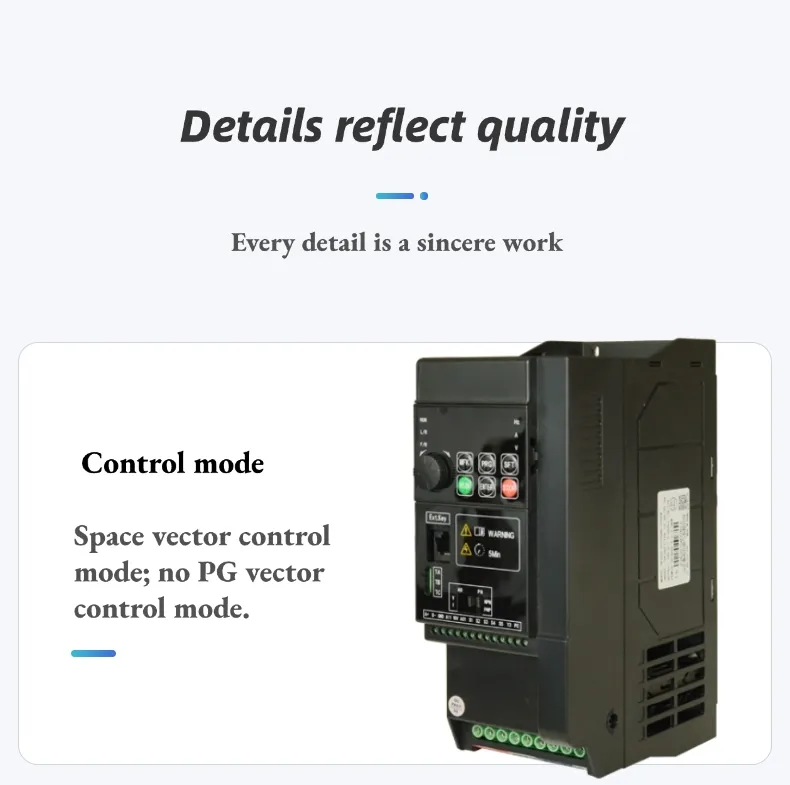

Supports open-loop/closed-loop vector control, providing high starting torque and precise speed regulation for asynchronous and permanent magnet motors.
Built-in PID control, multi-step speed, and automatic energy-saving. Equipped with overcurrent, overvoltage, overload, and short circuit protection mechanisms.

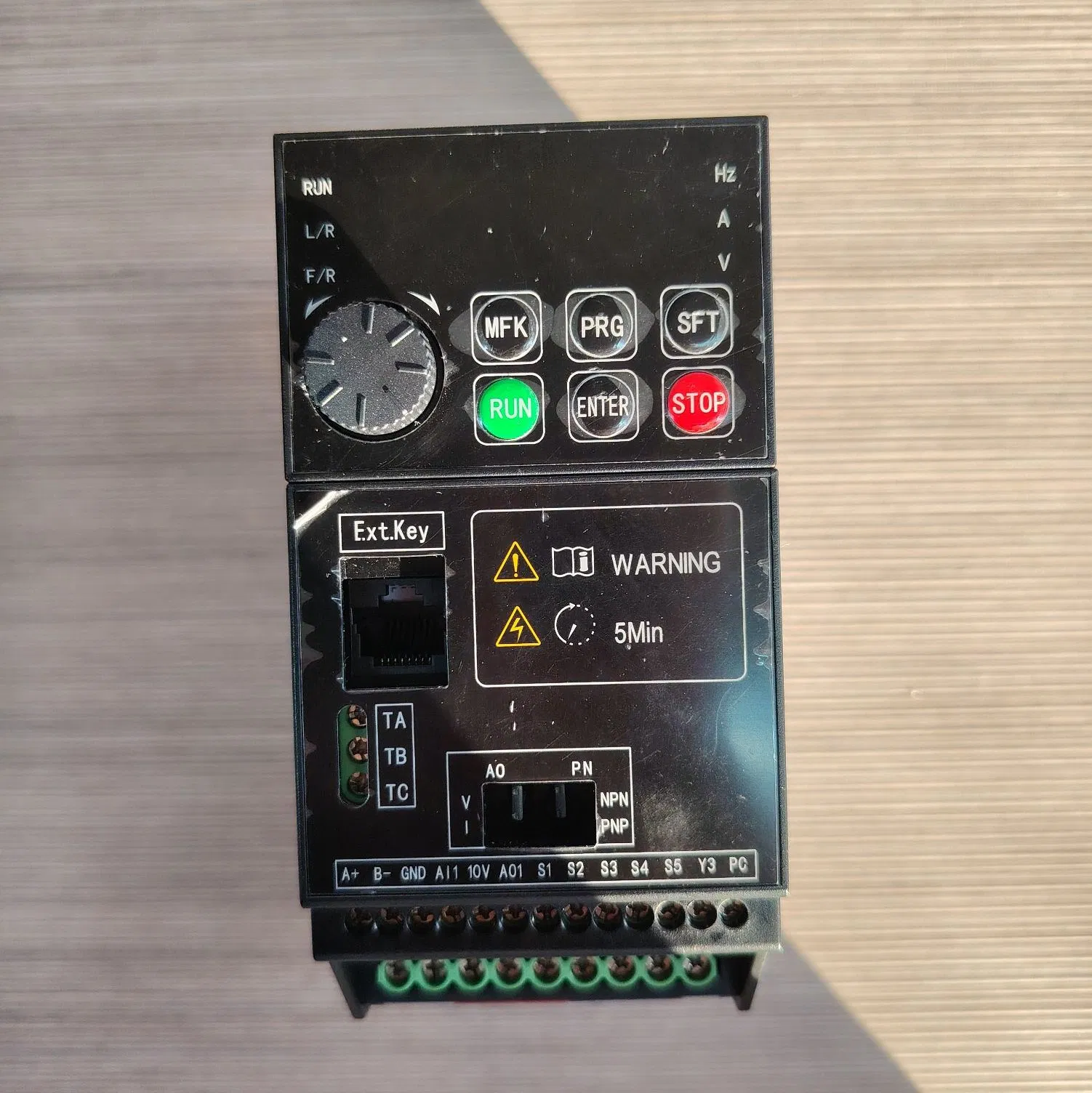

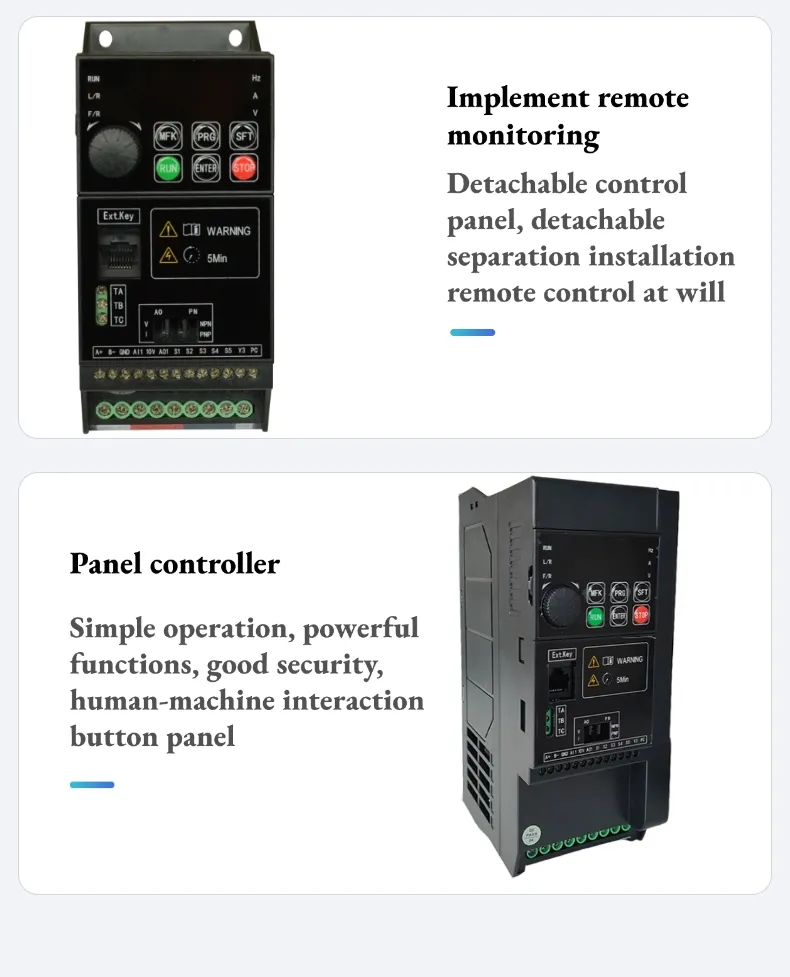

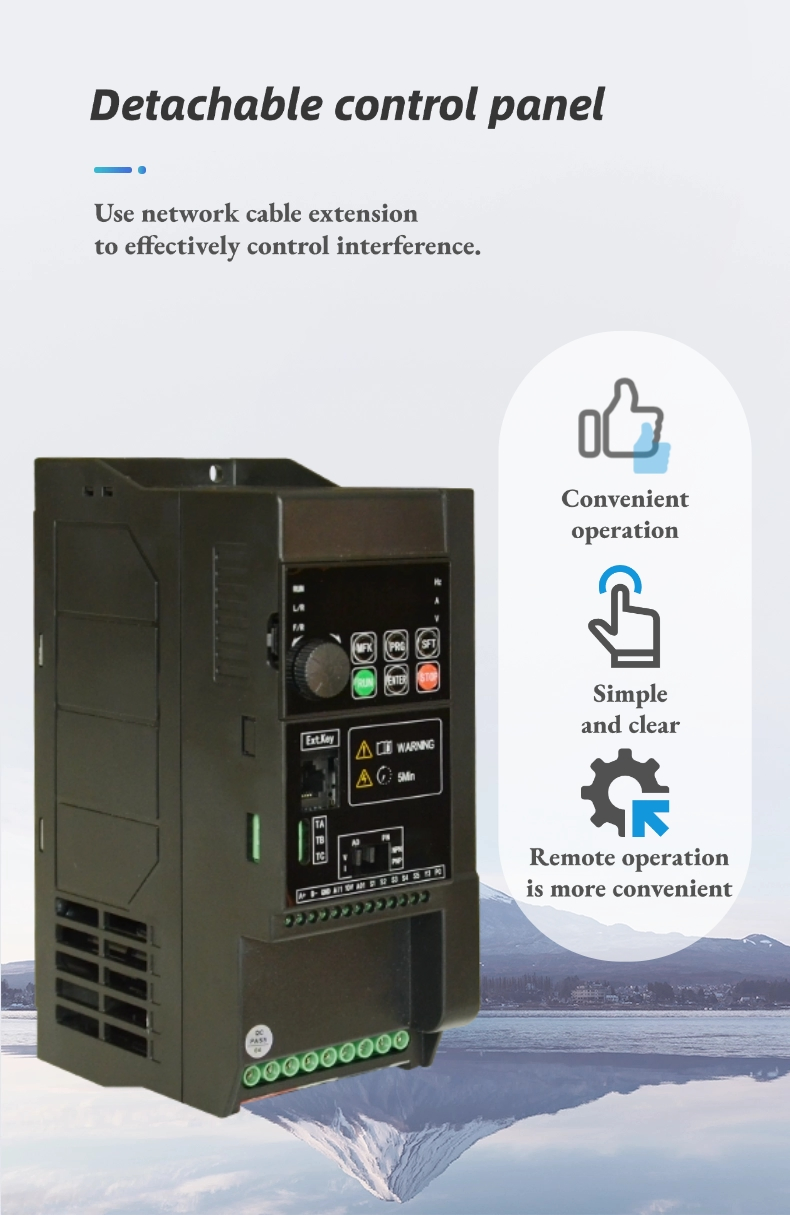

Supports keypad operation, remote control, and communication interfaces like Modbus/CANopen. Real-time monitoring of frequency, current, and voltage.
Optimizes motor operating efficiency and reduces energy consumption, especially effective for fans, pumps, and compressors.
Offers various optional accessories including braking units, expansion cards, and filters to meet diverse application requirements.
