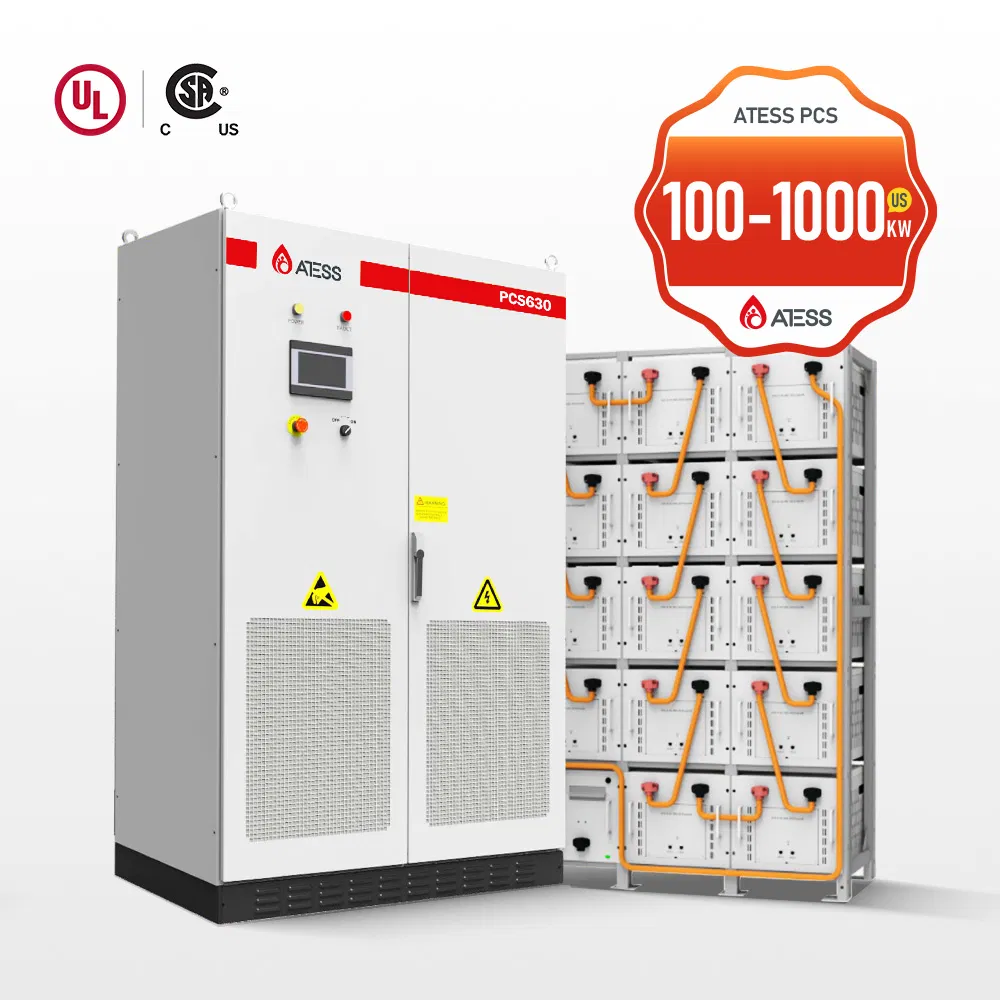

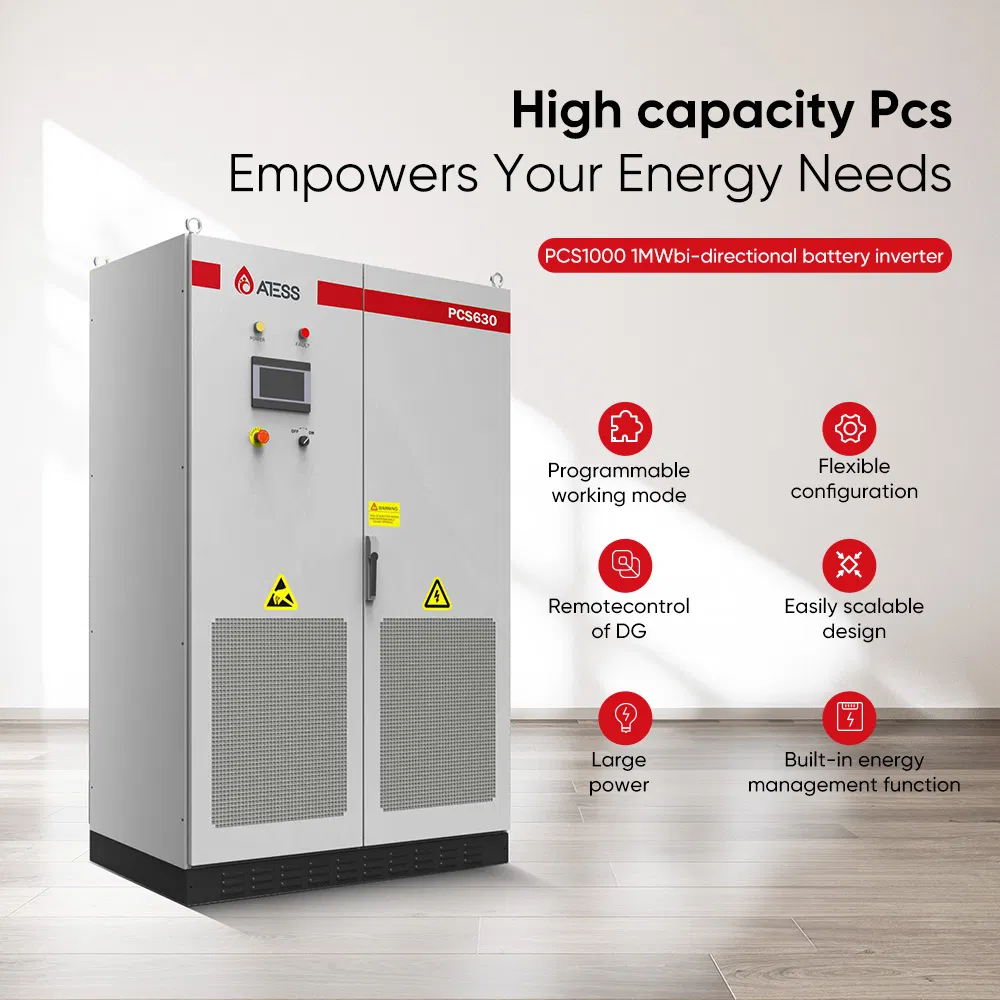

PCS 100kW to 1000kW Battery Inverters offer various options for businesses with high power demand. They apply to AC and DC coupling, off-grid, and hybrid scenarios.
The systems meet necessary safety and performance requirements, featuring multi-parallel units for expanded capacity and seamless transfer within 10ms, supporting battery, load, grid, and solar connections.

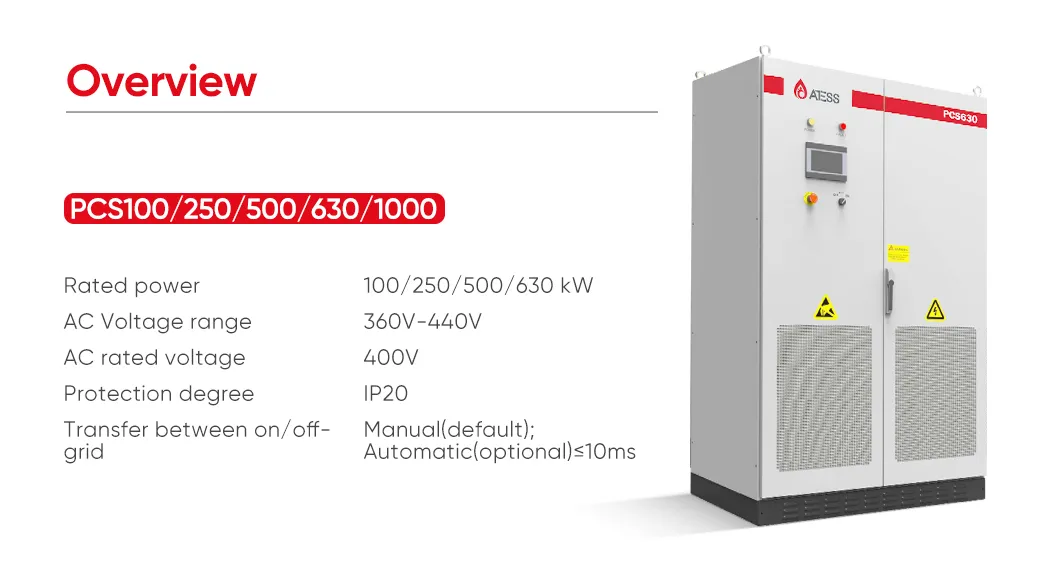

| Model | PCS100-US | PCS250-US | PCS500-US | PCS630-US | PCS1000-US |
|---|---|---|---|---|---|
| Rated Power | 100kW | 250kW | 500kW | 630kW | 1000kW |
| Rated Voltage | 480V | 480V | 480V | 480V | 480V |
| Max Efficiency | 97.1% | 97.3% | 98.5% | 98.5% | 99.0% |
| Built-in Transformer | Yes | Yes | No | No | No |
| Weight | 820kg | 1465kg | 870kg | 900kg | 1500kg |

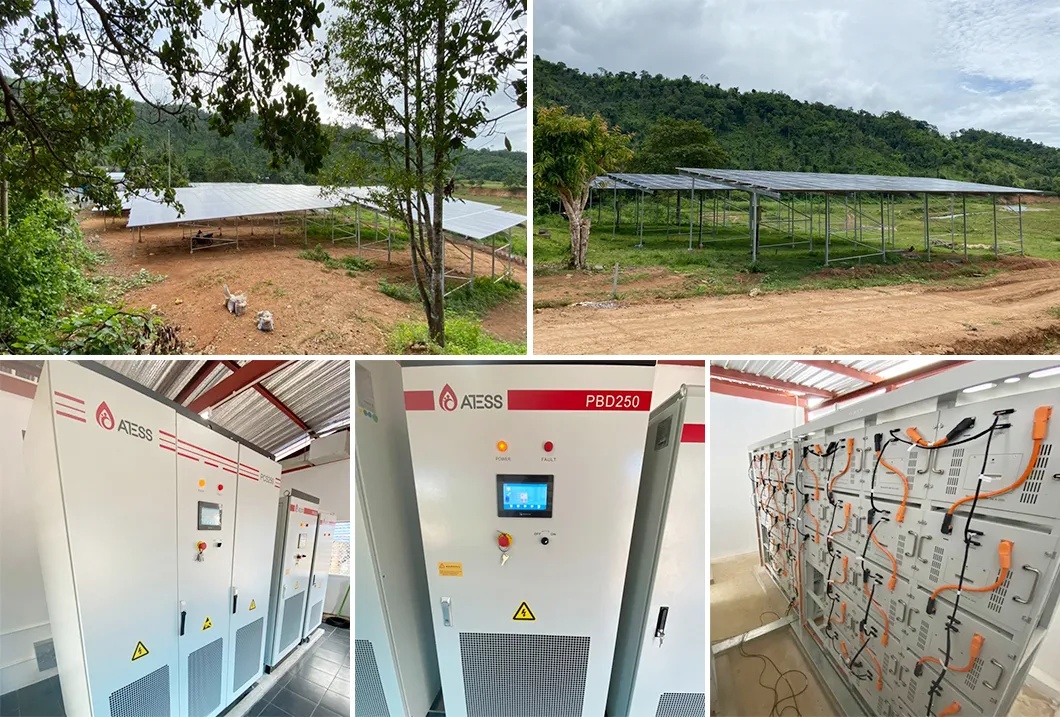

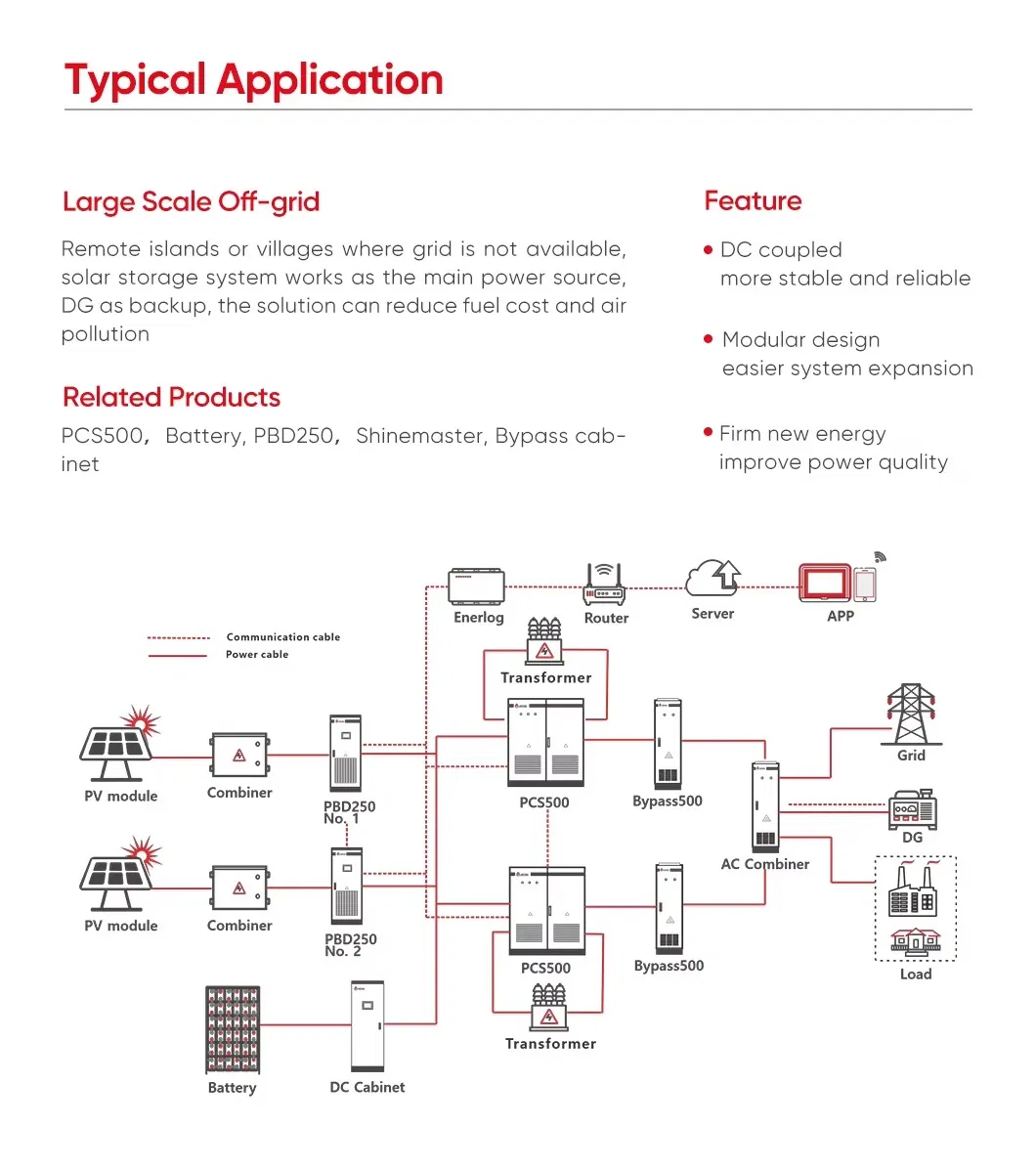

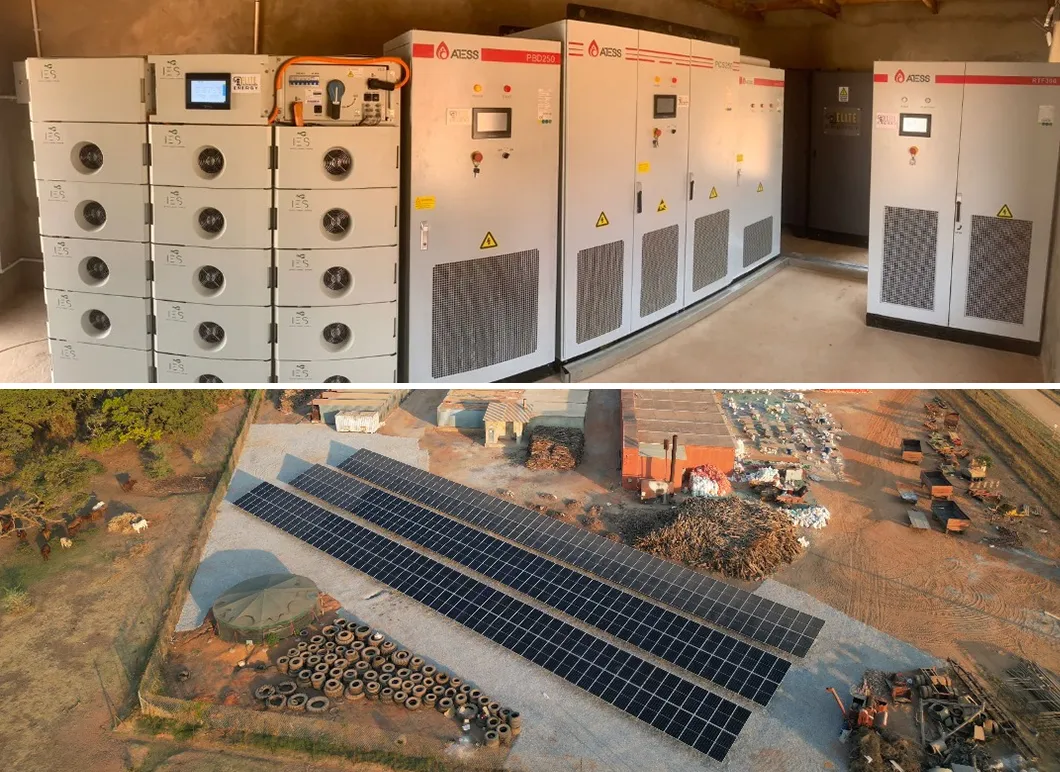

Ideal for remote islands or villages where the grid is unavailable. The solar storage system works as the main power source with DG as backup, significantly reducing fuel costs and air pollution.
