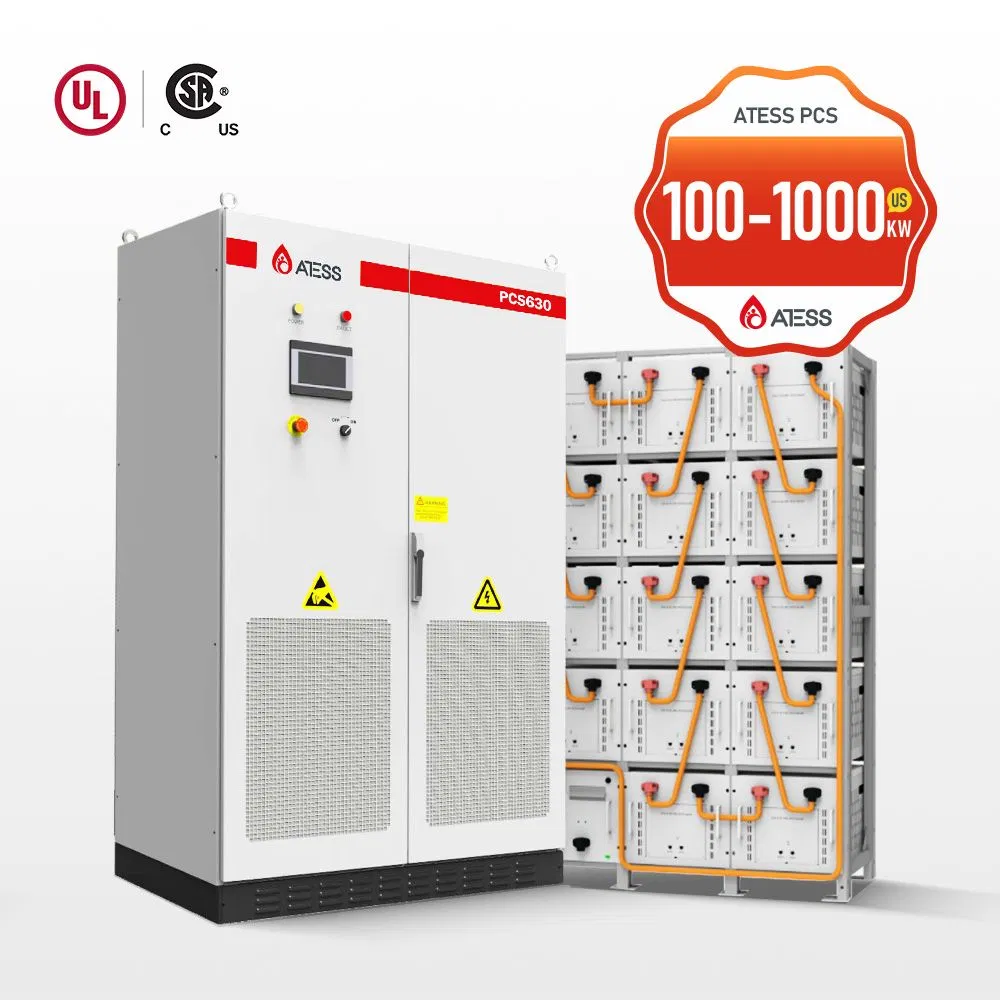

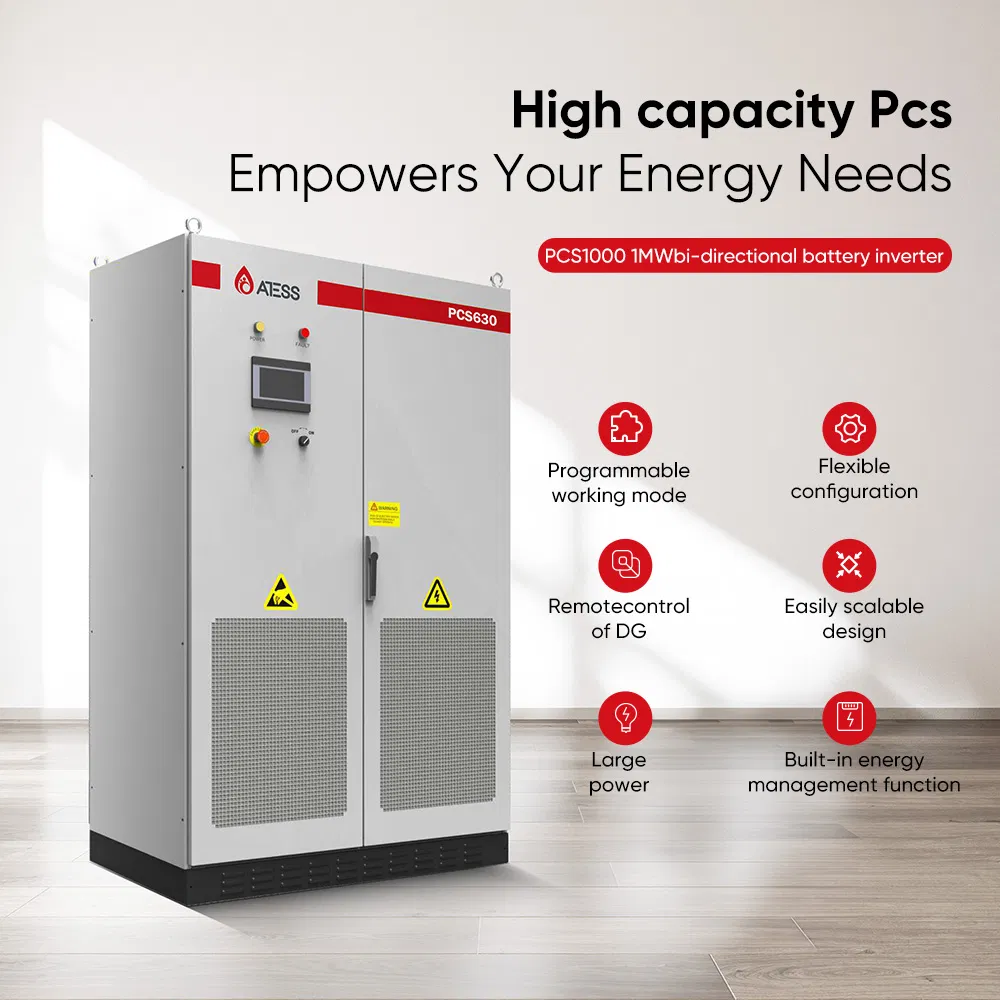

PCS 100kW to 1000kW battery inverters offer various options for businesses with high power demand. They apply to AC and DC coupling, off-grid, and hybrid scenarios.
The hybrid inverters have passed prestigious certifications including CSA and UL for North America. These all-in-one hybrid inverters are designed for performance and safety, featuring support for battery, load, grid, and solar connections with seamless transfer within 10ms.

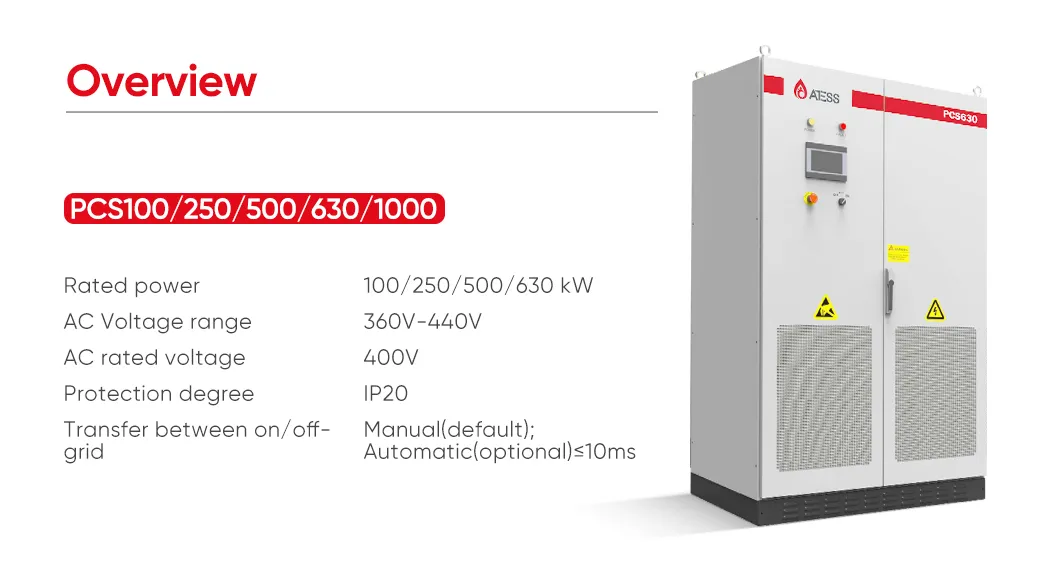

| Model | PCS100-US-480 | PCS250-US-480 | PCS500-US-480 | PCS630-US-480 | PCS1000-US-480 |
| Rated power | 100kW | 250kW | 500kW | 630kW | 1000kW |
| Rated voltage | 480V | 480V | 480V | 480V | 480V |
| Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Max Efficiency | 97.1% | 97.3% | 98.5% | 98.5% | 99.0% |
| Weight | 820kg | 1465kg | 870kg | 900kg | 1500kg |
| Build-in transformer | Yes | Yes | No | No | No |

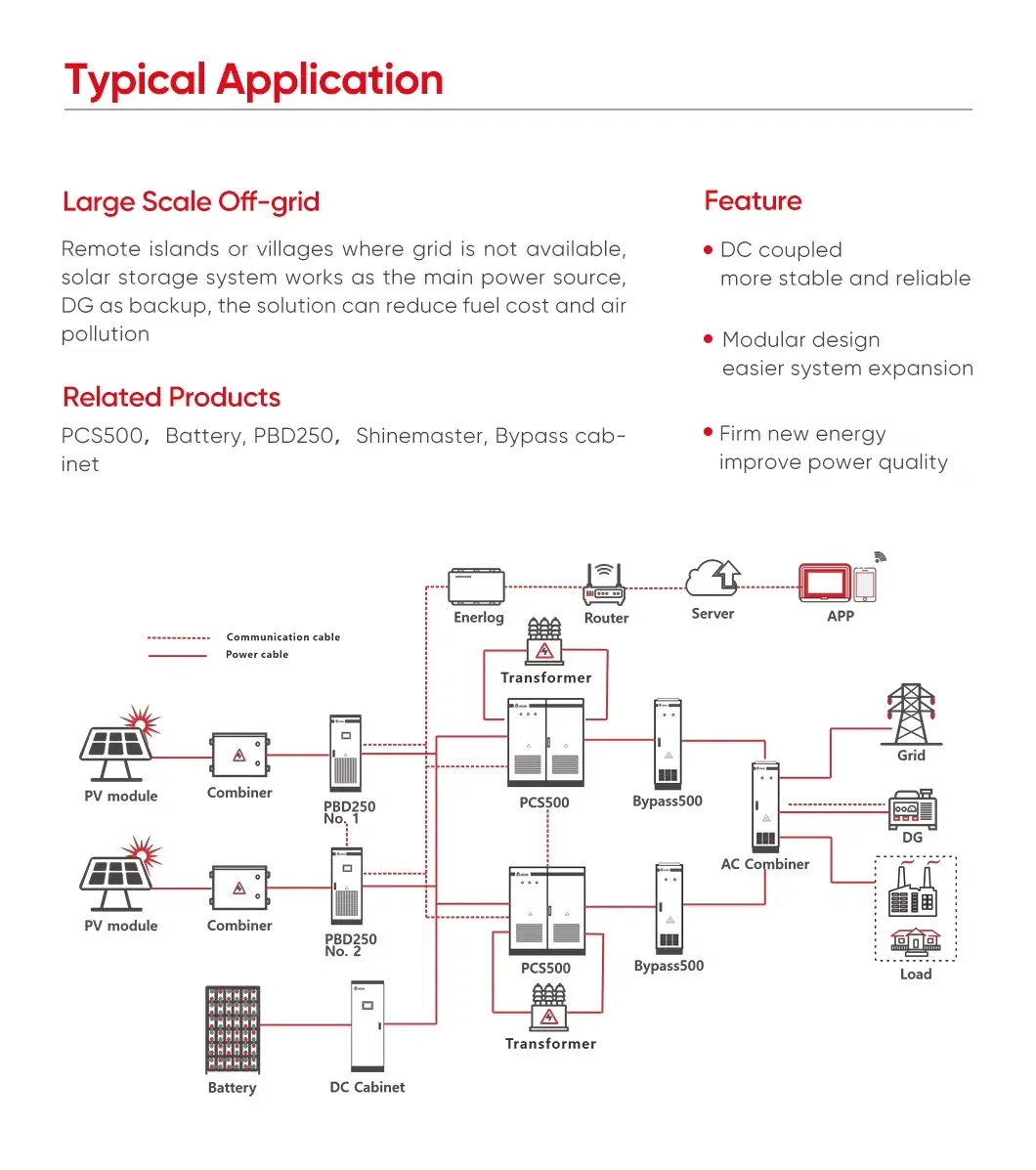

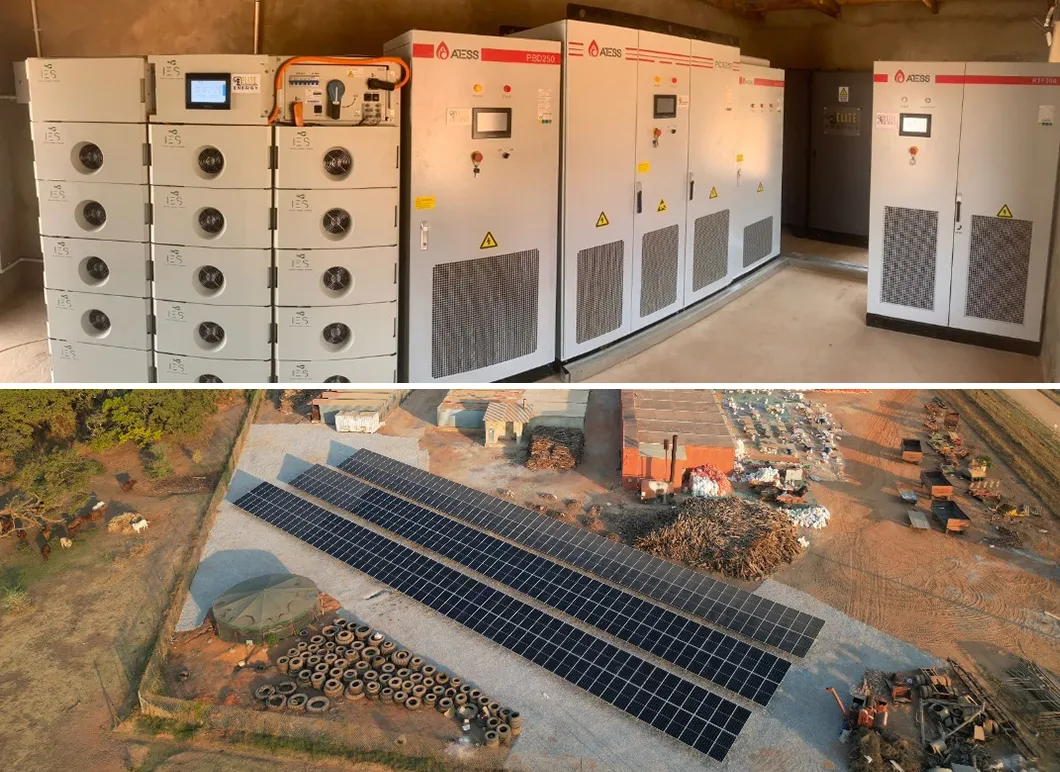

Large Scale Off-grid Solutions: Ideal for remote islands or villages where the grid is not available. The solar storage system works as the main power source, with DG as backup, significantly reducing fuel costs and air pollution.
