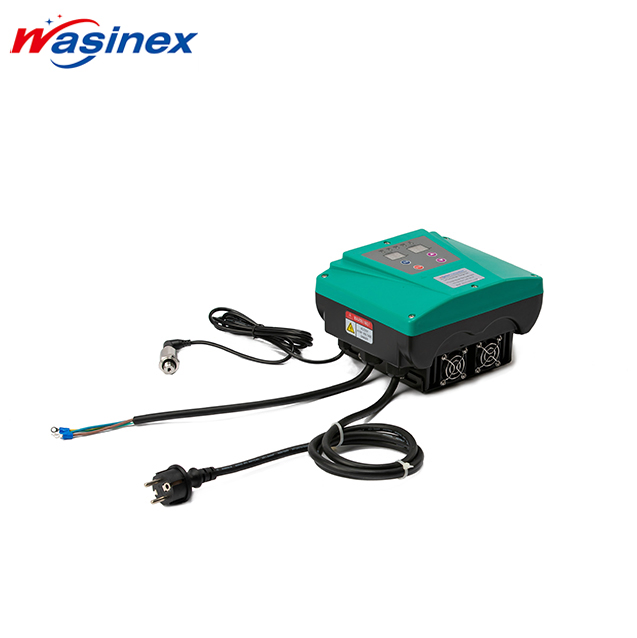

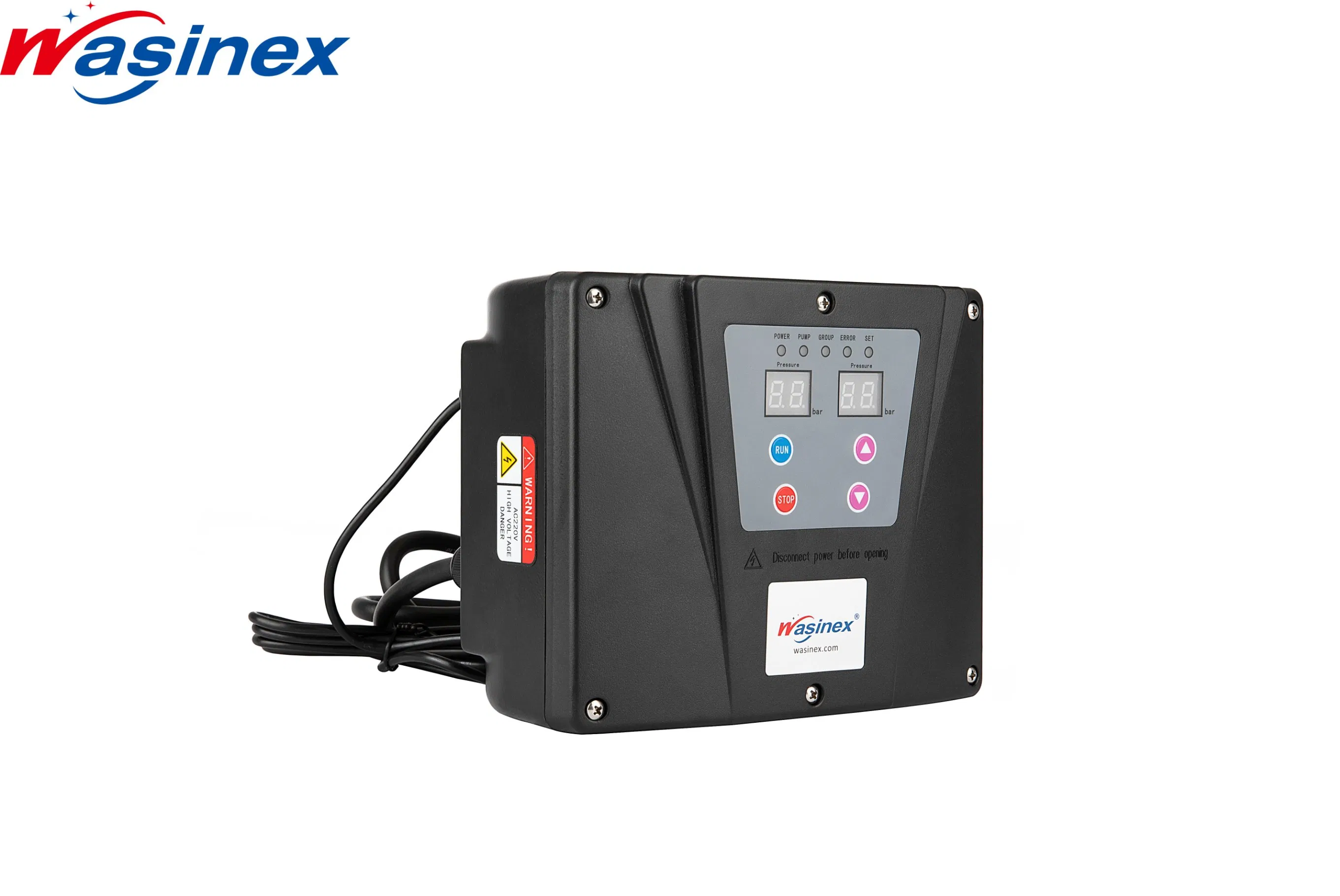

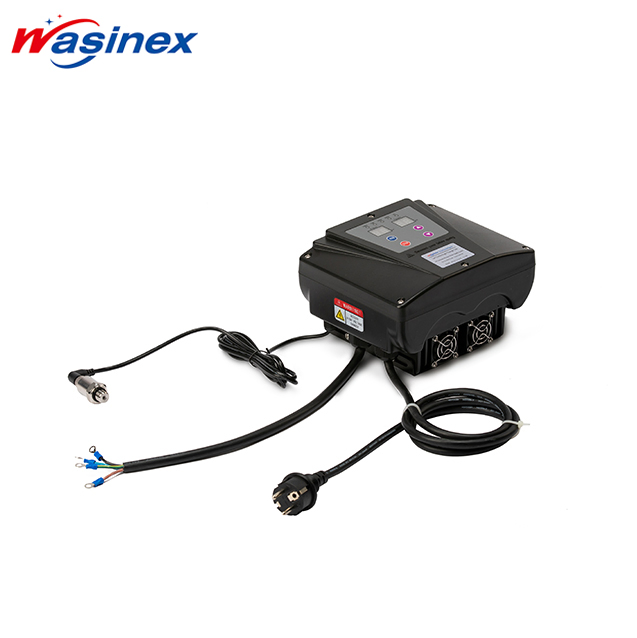

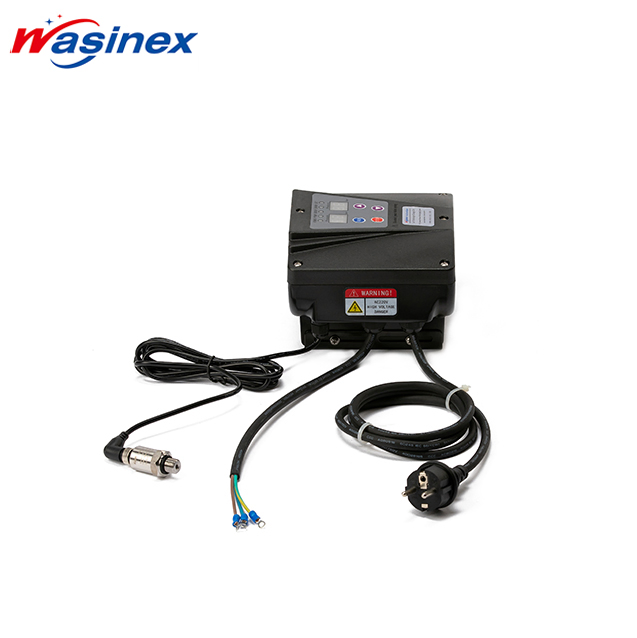

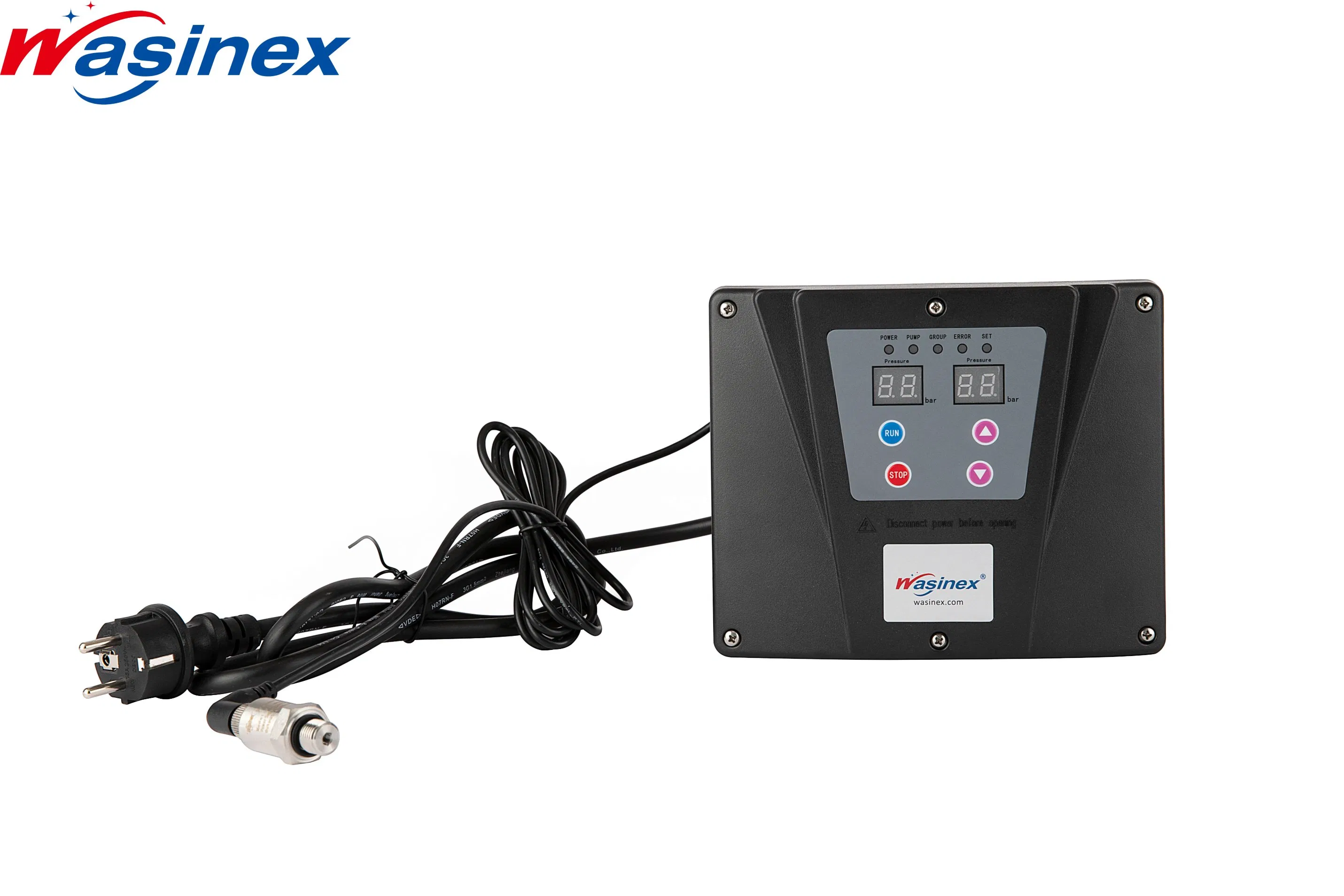

Wasinex Smart 3HP Single Phase Input Three Phase Output Inverter for Water Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Technical Specifications
Model NO.
VFA-10S/2.2KW
Principle of Work
V/F Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Voltage of Power Supply
220V
Link of Transformation
AC-DC-AC Variable-Frequency Drive
Nature of DC Power
Voltage Variable-Frequency Drive
Function
Constant Torque Universal Type
Rated Current
9.6A
Input Frequency
50/60Hz
Output Frequency
20-50/60Hz
Pressure Sensor
4-20mA+24V 10bar
Transport Package
Carton Wooden Box
Specification
210*173*124mm 2.6kg/NW
Production Capacity
2000 Pieces Per Day

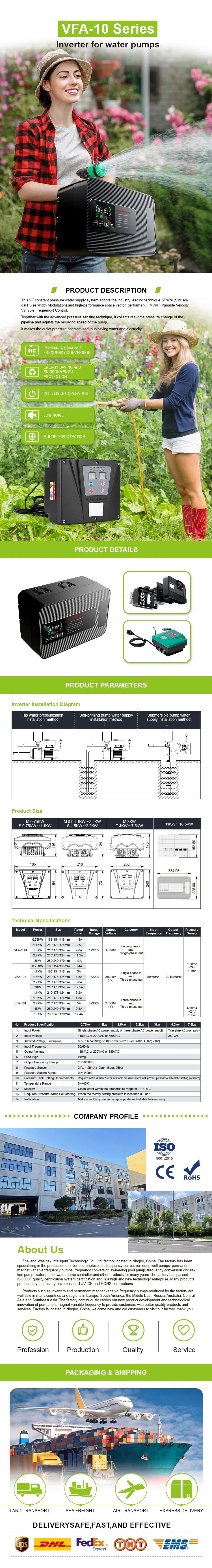

Product Presentation
Frequently Asked Questions
Is there a dedicated technical team for support?
Yes, a professional technical team and engineers are available to assist with any technical problems and provide comprehensive support.
How do these inverters differ from universal frequency inverters?
These frequency inverters are specifically designed for water pumps, offering superior performance, enhanced stability, and simpler operation compared to universal models.
What are the MOQ requirements for pump inverters?
There is no strict MOQ requirement; however, higher quantities are more economical regarding transport costs. For OEM services, 300 PCS per model is required, and 1000 PCS for custom colors.
What is the lead time and warranty period?
Lead time is approximately 20-45 working days. Products come with a 12-month warranty from shipment, and after-sales support responds within 24 hours.
How is the start and stop of the pump controlled?
The system is controlled based on the real-time feedback from the integrated pressure sensor.
Can you provide higher power inverters, such as 11KW?
Currently, standard production ranges from 0.75KW to 7.5KW. For large order quantities, custom molds can be developed for higher power requirements.
