LC630 Series Factory Direct VFD Drive AC VFD Drive Frequency Converter VFD 220V Single Phase to 3 Phase 220V 0.4kw-5.5kw Inverter

Customization: Available
Application: High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type: Triple

Product Description

LC630 Series VFD Drive
Basic Information
Model NO.
LC630A
Principle
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM
Power Supply
Low Voltage VFD
Rated Power
0.75-22kw
Control Mode
V/F, SVC, FVC
Input/Output
1PH 220V / 3PH 380V
Frequency
0-500Hz
Communication
RS485/Modbus
Origin
Shandong, China
Product Description
VFD Features
  • Flexible Range: 220V (0.4-7.5KW) & 380V (0.75-22KW) available.
  • Economic Efficiency: Most cost-effective models for industrial use.
  • Dynamic Performance: Excellent response and control accuracy.
  • Overload Capacity: Super overload handling for demanding starts.
  • Stable Operation: Built for long-term reliability in harsh environments.

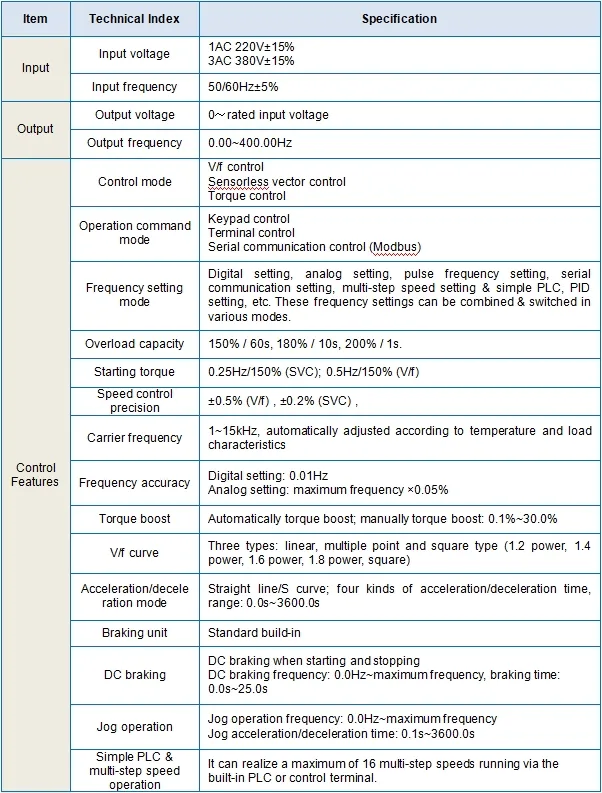

Technical Specification
Item Technical Index Specification
Input Input voltage 1AC 220V±15% / 3AC 380V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0~rated input voltage
Output frequency 0.00~400.00Hz
Control Control mode V/f control, SVC, Torque control
Overload capacity 150% / 60s, 180% / 10s, 200% / 1s
Starting torque 0.25Hz/150% (SVC); 0.5Hz/150% (V/f)
Speed precision ±0.5% (V/f), ±0.2% (SVC)
Model Selection
Model Name Power (kW) HP Rated Current (A)
1AC 220V ±15%
LC630A-2T-0.75G0.7514
LC630A-2T-1.5G1.527
LC630A-2T-2.2G2.239.6
3AC 380V ±15%
LC630A-4T-0.75G0.7512.5
LC630A-4T-2.2G2.235.8
LC630A-4T-5.5G5.57.513
LC630A-4T-11G111525
LC630A-4T-22G223045
Product Gallery
VFD Detail 1

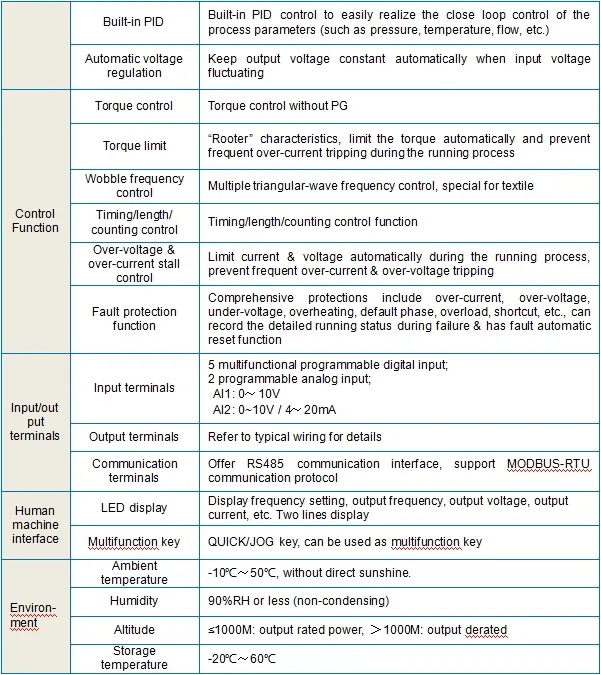

VFD Detail 2

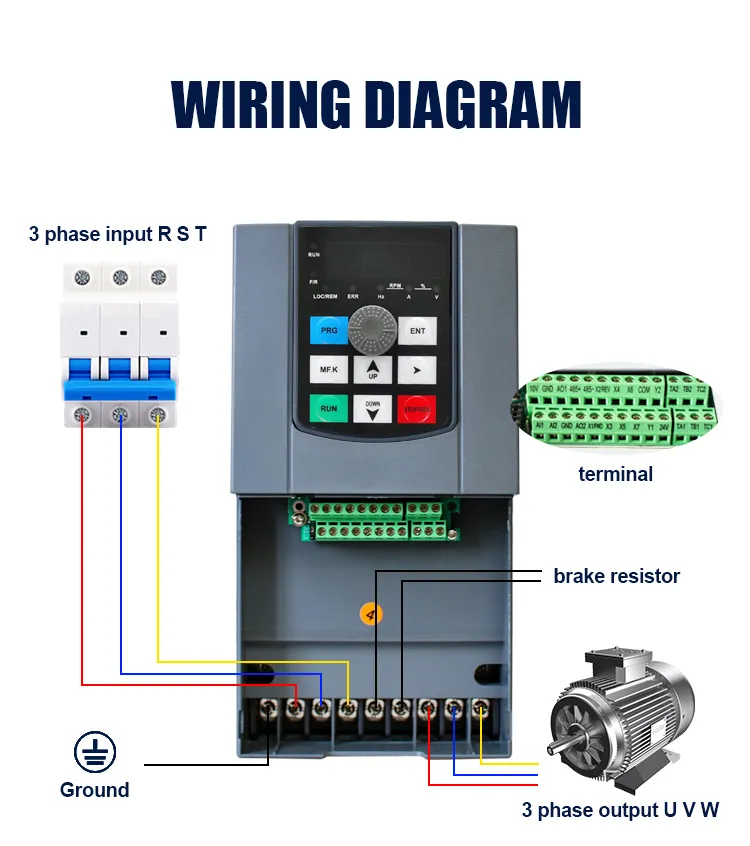

VFD Detail 3

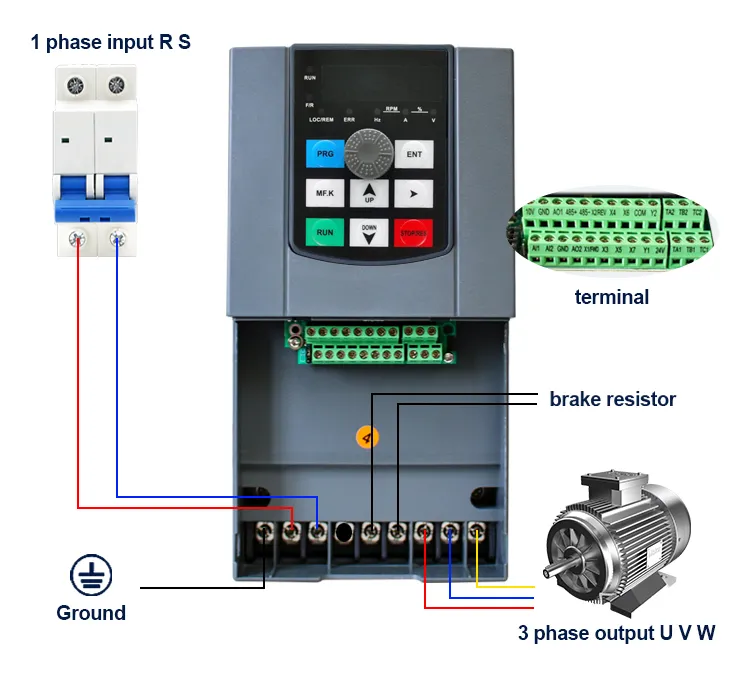

VFD Detail 4

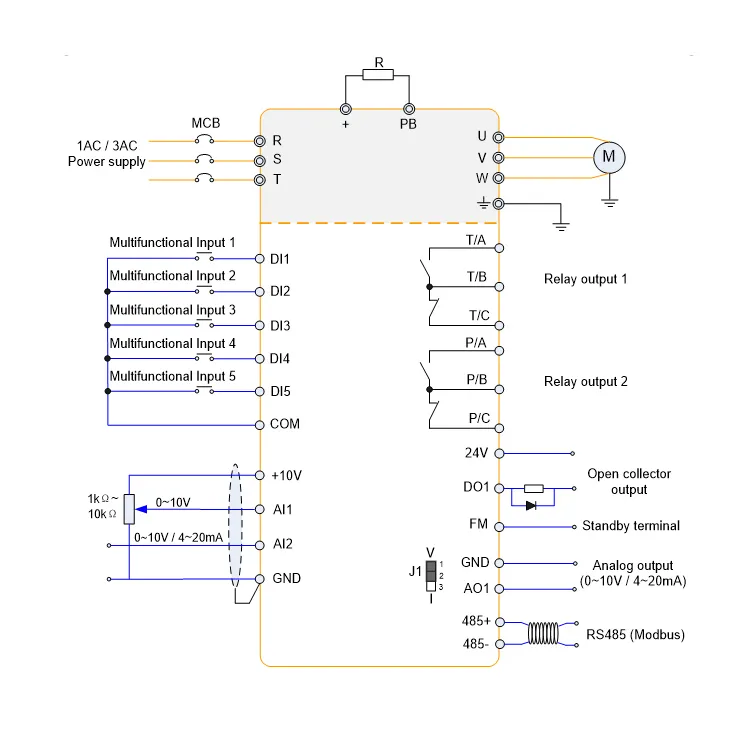

VFD Detail 5
VFD Detail 6
Frequently Asked Questions
What is the primary function of this VFD?
The VFD controls the speed and frequency of motors, widely used in industrial control, automation systems, and pump systems to improve efficiency and control.
How do you ensure the quality of the VFDs?
Each unit undergoes four rigorous tests: AOI test, Pre-test, Aging Test, and a Final Whole Test. We hold CE and ISO9001 certifications to guarantee performance.
What is the typical delivery timeframe?
Standard stock orders are usually delivered within 3-7 days after payment. For OEM orders, the timeframe is approximately 12-20 days depending on the deposit and quantity.
How do I choose the right VFD for my specific machine?
You should check the nameplate of your motor. Provide us with those details, and our technical team will recommend the most suitable model for your application.
What after-sales support is provided?
We provide a 1-year warranty for all inverter types. Our technical support is available to assist with any installation or troubleshooting needs.
What payment and shipping terms are accepted?
We accept various terms including FOB, CFR, CIF, and EXW. Payment can be made via T/T, LC, PayPal, or Western Union. We ship globally via DHL, UPS, Sea, or Air.
