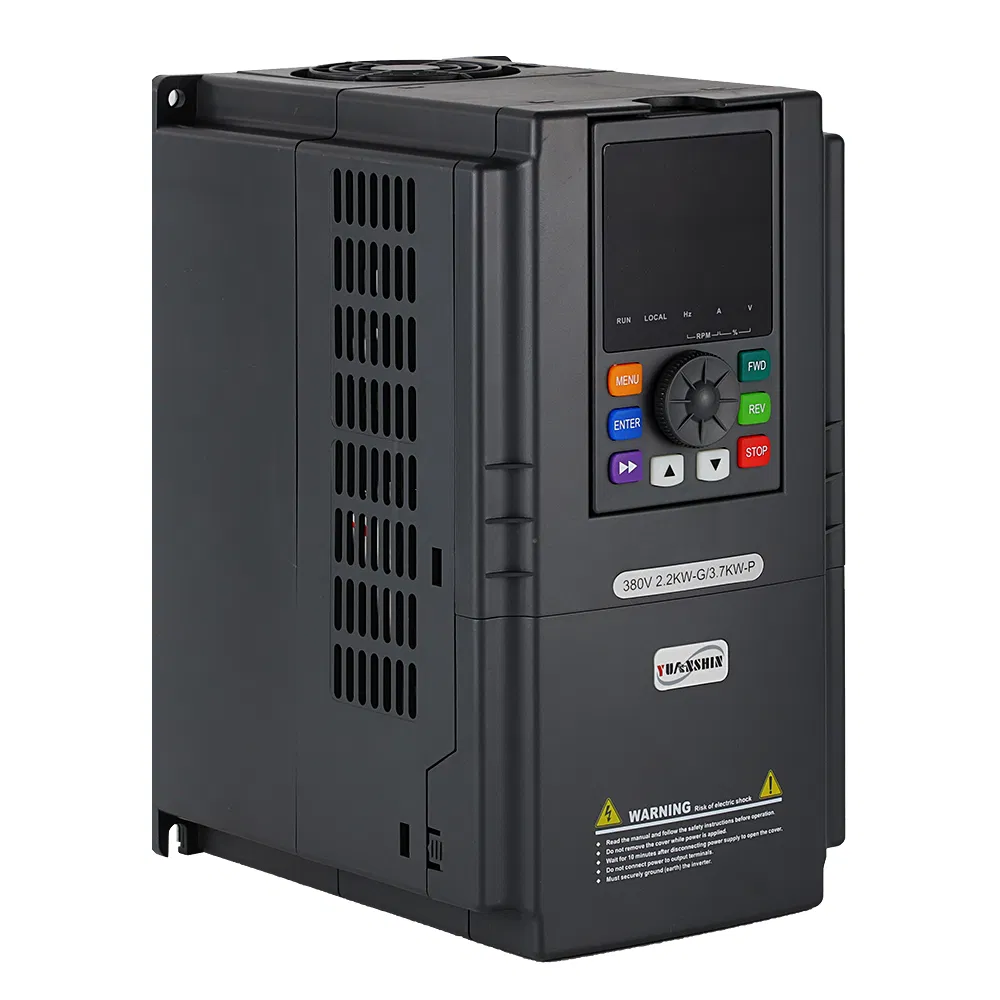

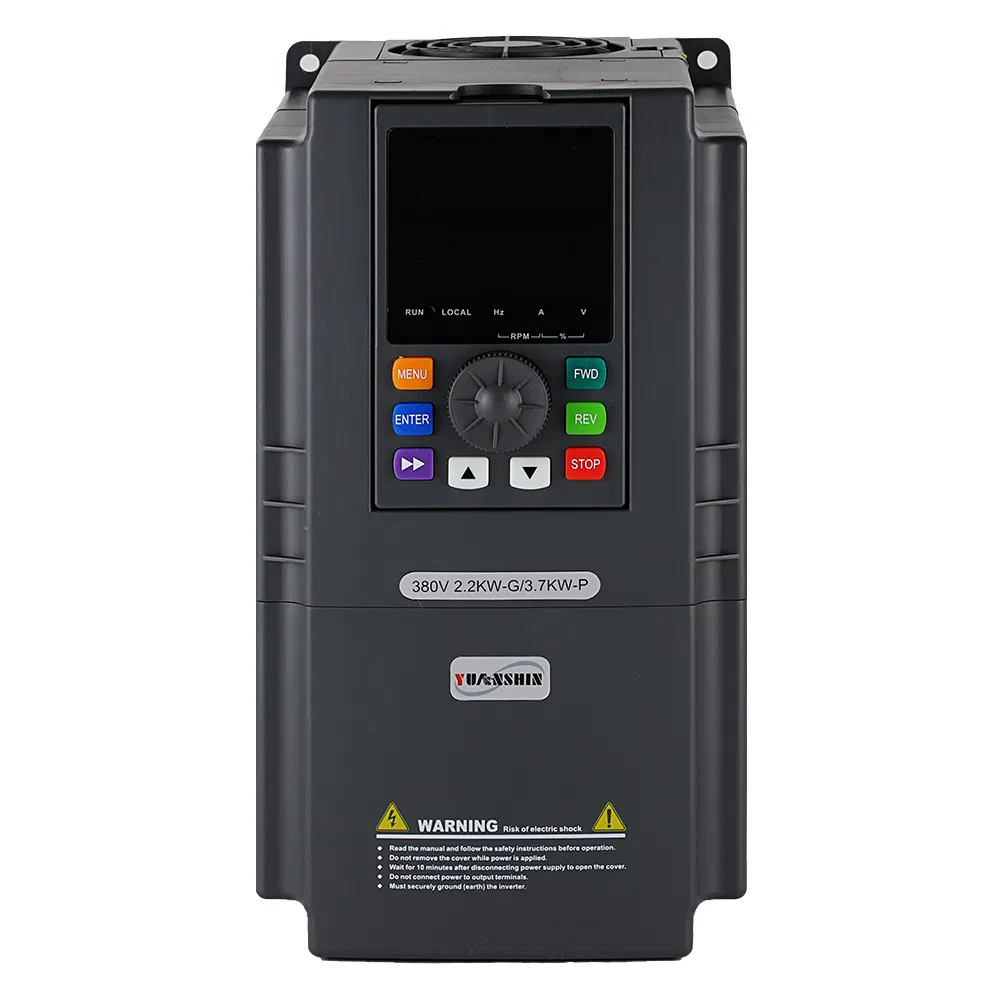

CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
1 / 5
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter
CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter

CE Certificated Vector Control 220V 380V Single Phase Three Phase AC Drive VFD Variable Frequency Inverter

Customization: Available
Application: Three Phase Transducer, High Frequency Converter Transducer
Output Type: Triple
Send Inquiry

Product Description

Product Overview
Model NO.
YX9000
Work Principle
Vector Control Transducer
Switch Mode
PWM Control
Main Circuit
Voltage Type
Voltage
Low Voltage VFD
Function
Constant Torque Universal
Warranty
18 Months
Capacity
6000 PCS /Month
Professional VFD Solutions
A 25-year experience VFD Manufacturer now expanding globally.
  • Diverse Products: VFDs, Solar VFDs, servo drives, PLCs, and more.
  • Versatile Solutions: Tailored for any automation need.
  • Industry Range: Petrochemicals, industry, printing, and more.
  • Competitive Pricing: Own factory, affordable prices.
  • Certifications: CE, ISO9001 for quality assurance.
  • Innovation Focus: 60+ patents, pushing boundaries.
Technical Specifications
Items Specifications
Input Rated Voltage Single phase 220V, three phase 200V, 380V, 480V; 50Hz/60Hz
Range Voltage: ±20%; Frequency: ±5%
Output Frequency Range 0Hz~500Hz (Resolution: 0.01Hz)
Overload 150% for 1 min, 180% for 3 sec
Modulation Optimized SVPWM modulation
Control Mode Sensorless vector control
Torque Boost Auto/Manual (0.1%~30.0%)
DC Braking Frequency: 0~15Hz; Time: 0~60s
Communication RS485, support MODBUS (RTU/ASCII)
Environment Temperature -10ºC ~ +40ºC (Storage: -20ºC ~ +60ºC)
Protection IP20; Forced air cooling
Product Detailed Display

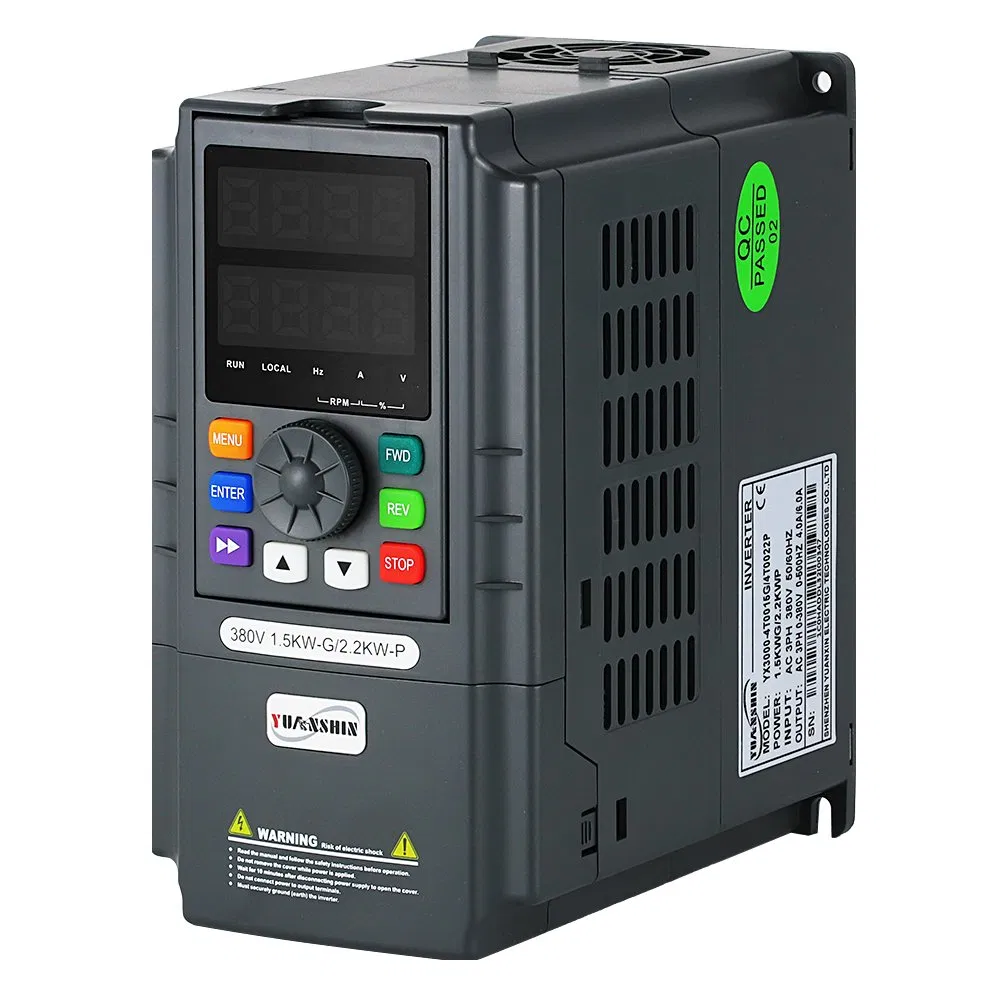

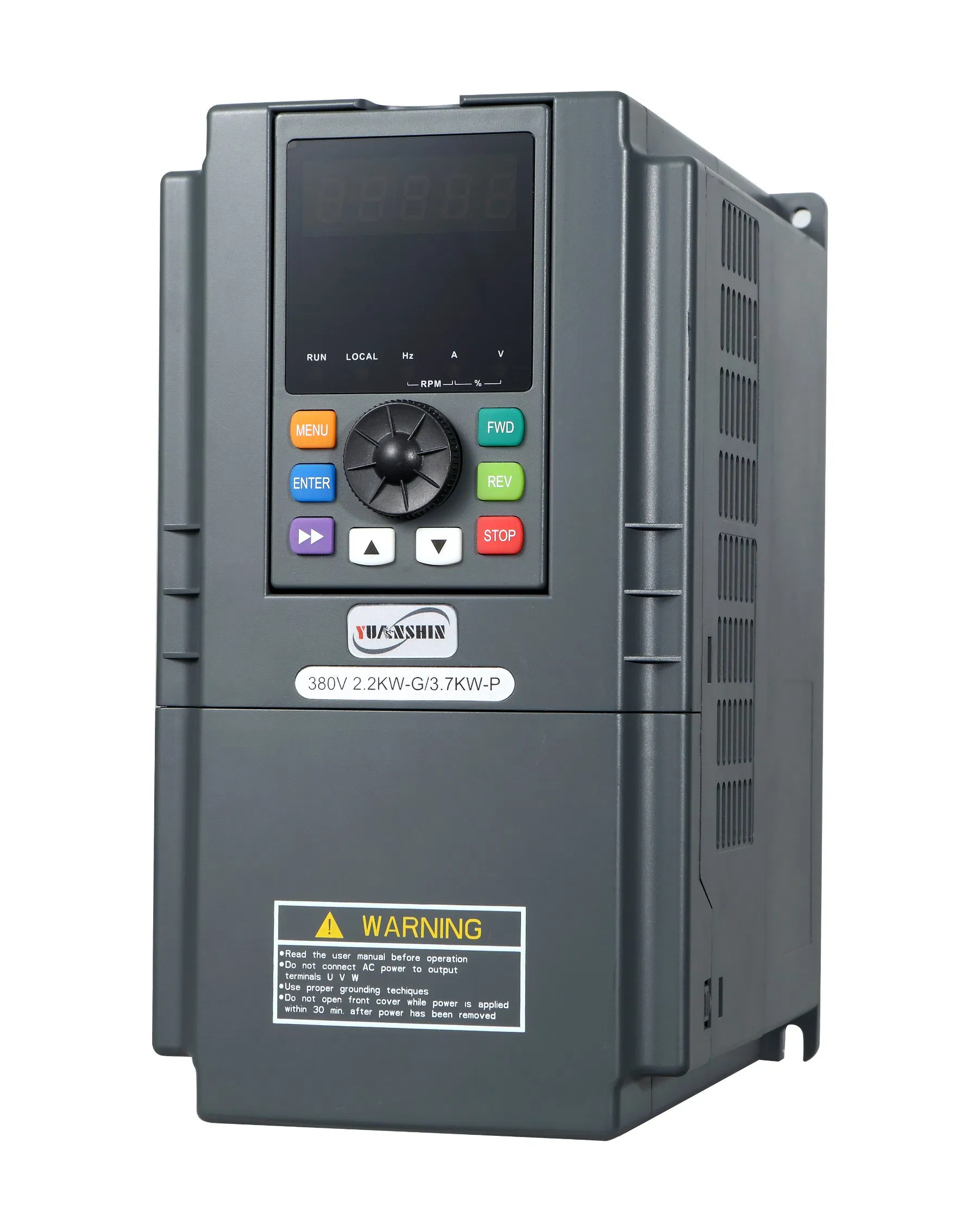

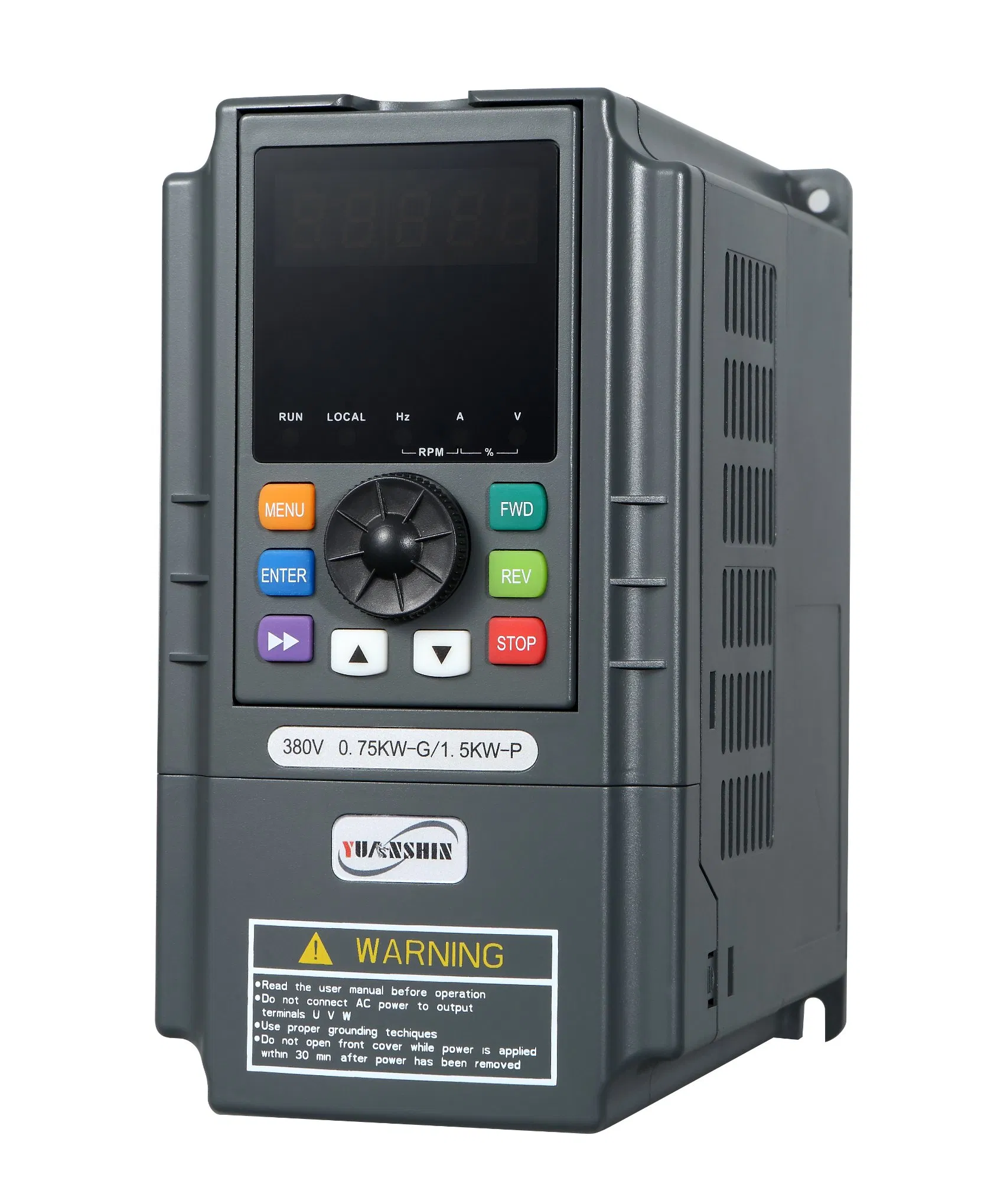

Vector Control AC Drive

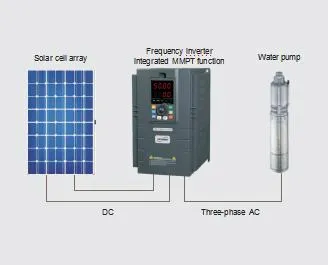

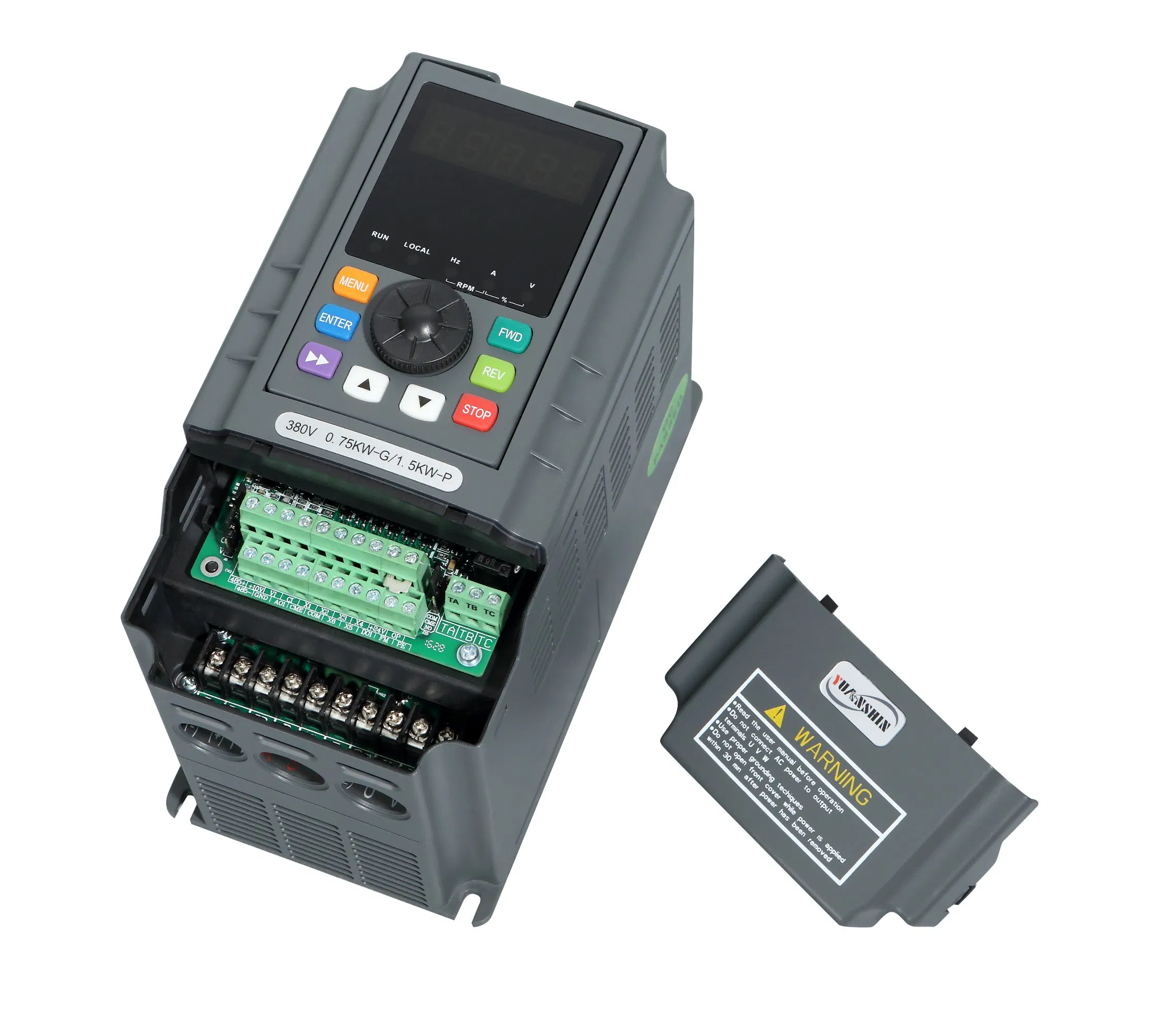

VFD Inverter Detailed View
Packaging & Shipping
Packaging
Shipping Logistics
Industry Applications
VFD Application
Quality Certifications
CE Certification
Quality Management Certification
Frequently Asked Questions
What is the warranty period for the YX9000 VFD?
The YX9000 comes with a standard 18-month warranty for quality assurance.
Does this inverter support different input voltages?
Yes, it supports single-phase 220V, and three-phase 200V, 380V, and 480V at 50Hz/60Hz.
What control modes are featured in this series?
It features high-performance sensorless vector control with optimal low-frequency compensation and SVPWM modulation.
Is OEM support available?
Yes, we provide full support for OEM requirements to meet specific industrial needs.
What kind of communication protocol does it use?
It includes a standard RS485 port and supports the MODBUS protocol (both ASCII and RTU modes).
