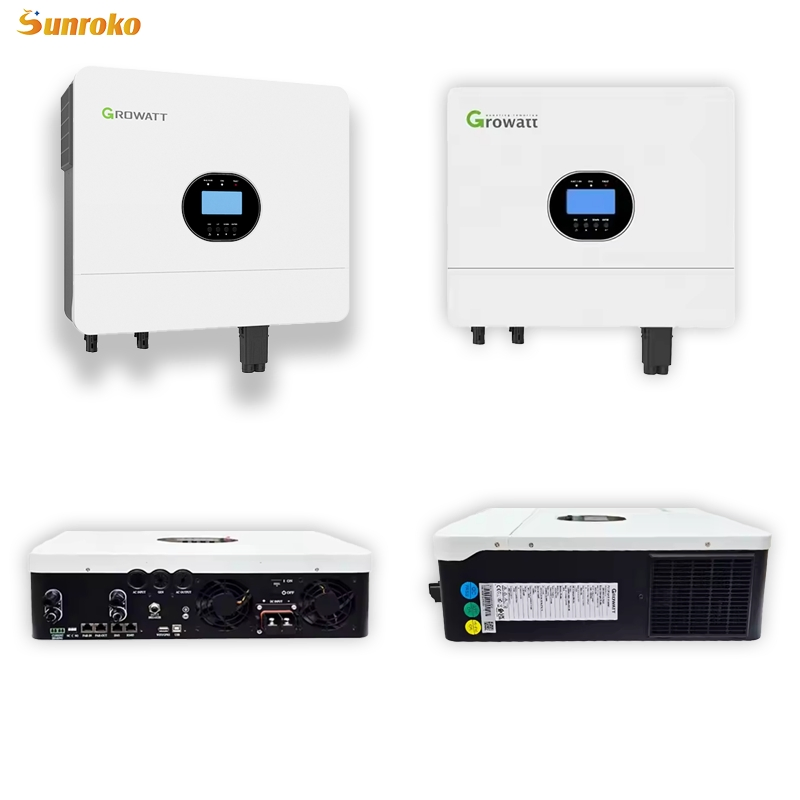

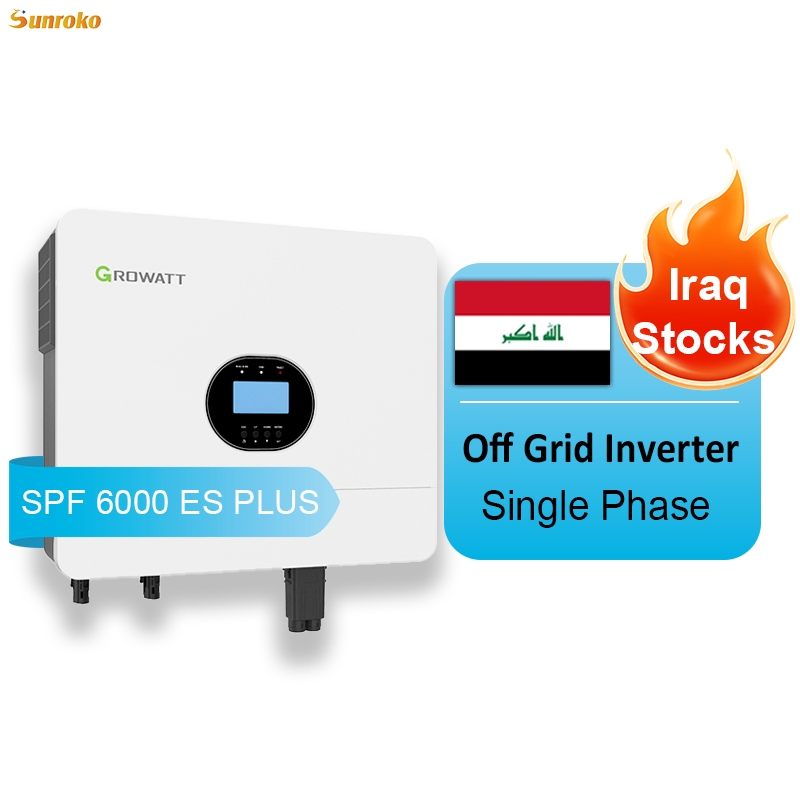

Growatt SPF 6000 Es Plus off Grid Solar Inverter 6kw 6000W Single Phase Hybrid Solar Power Inverter Price List

1 / 5

Growatt SPF 6000 Es Plus off Grid Solar Inverter 6kw 6000W Single Phase Hybrid Solar Power Inverter Price List

Customization:	Available
After-sales Service:	24/7
Warranty:	10 Years

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Spf 6000 Es Plus

Nature of Source

Active Inverter

Phase

Single

Output Power

>1000W

Certification

Type

DC/AC Inverters

Power Source

Solar Power

Weight

13.5kg

Output Voltage

230VAC

Battery Type

Lead Acid/Lithium

Product Description

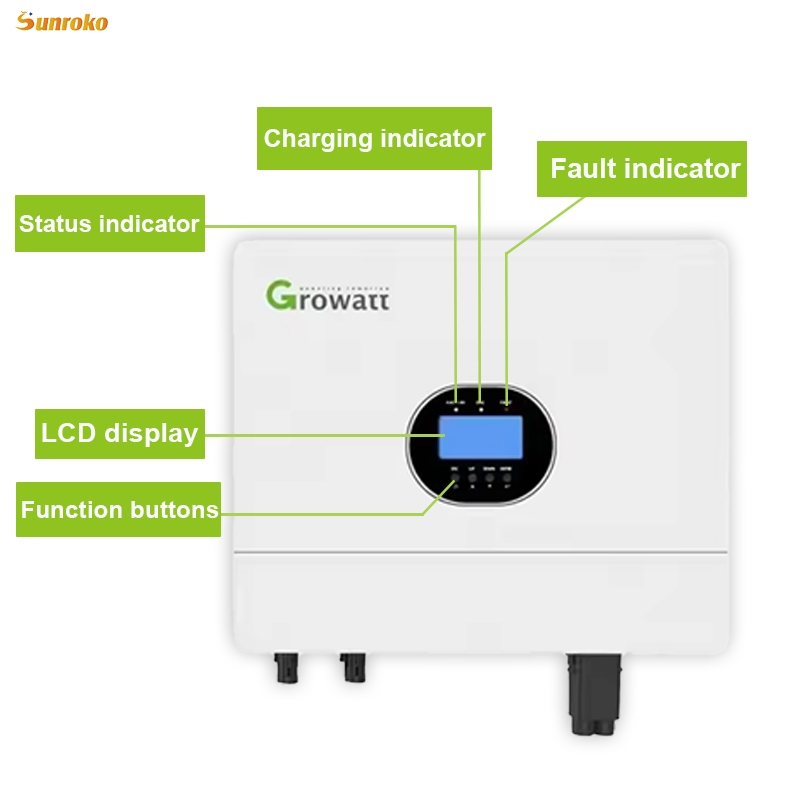

Growatt SPE 6000 ES Plus Inverter: The SPE 6000 ES Plus hybrid inverter is engineered for residential energy resilience, seamlessly integrating solar, battery, and grid power to ensure 24/7 electricity autonomy. With dual MPPT trackers and 98.3% peak efficiency, it maximizes solar harvest even in partial shading, while intelligent energy management prioritizes solar self-consumption (load > battery > grid), slashing grid dependency by up to 70% in high-sun regions.

Technical Specifications

SPF 6000 ES Plus Datasheet
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
Rated Power	6000VA/6000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Maximum PV Array Power	8000W
MPPT Range	120VDC ~ 450VDC
Number of MPPT Trackers	2/1
Max. Solar Charge Current	100A
Protection Degree	IP20
Operating Temperature	0°C - 55°C

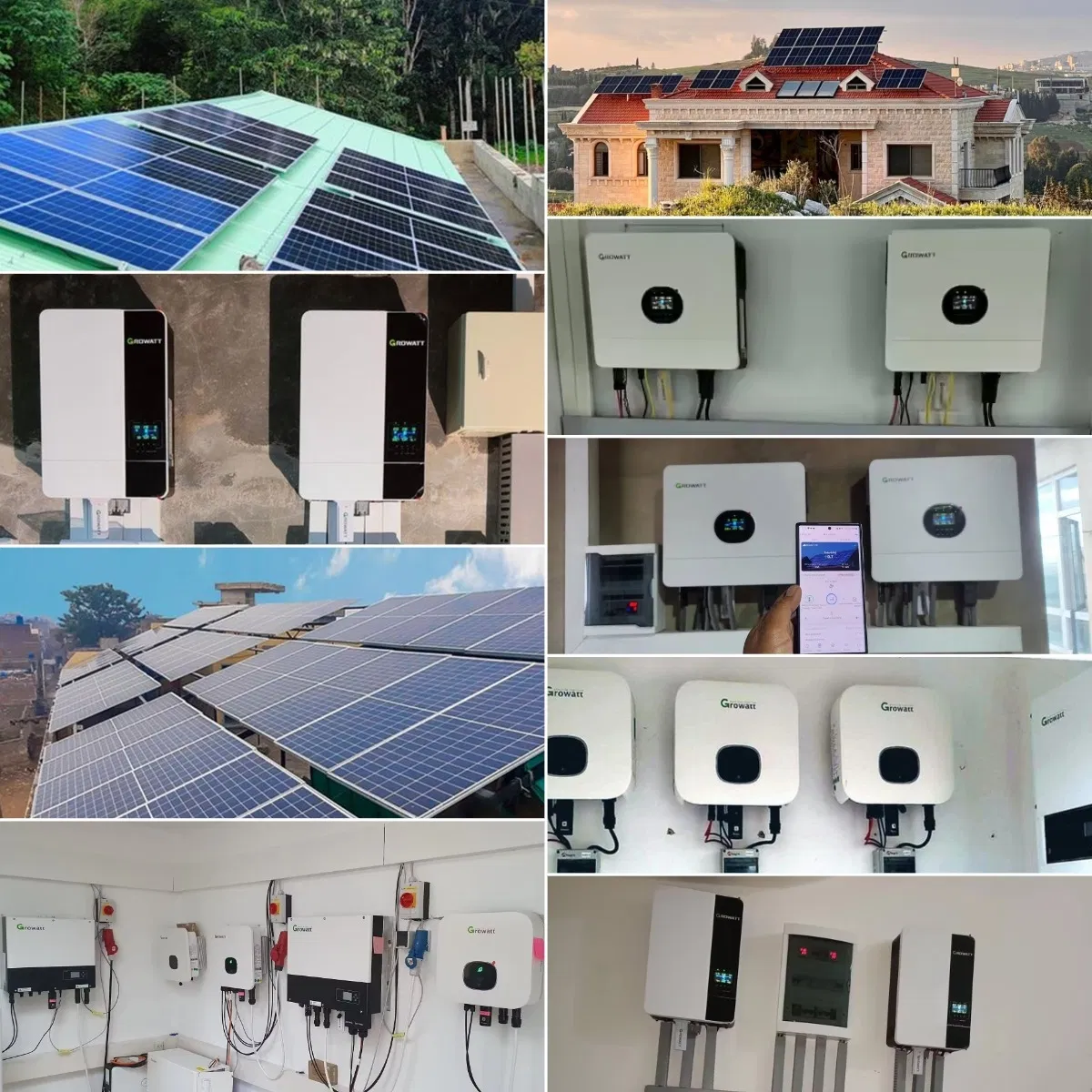

Product & Project Showcase

Frequently Asked Questions

Q1: What is the maximum output power of the SPF 6000 ES Plus?

A: The inverter provides a rated power of 6000W (6000VA) and can handle surge power up to 12000VA.

Q2: Can I use this inverter with different battery types?

A: Yes, it is compatible with both 48VDC Lithium and Lead-acid batteries.

Q3: How many MPPT trackers does it have and what is the PV input limit?

A: It features 2 independent MPPT trackers and supports a maximum PV array power of 8000W with an MPPT operating voltage range of 120VDC to 450VDC.

Q4: Is it possible to expand the system capacity later?

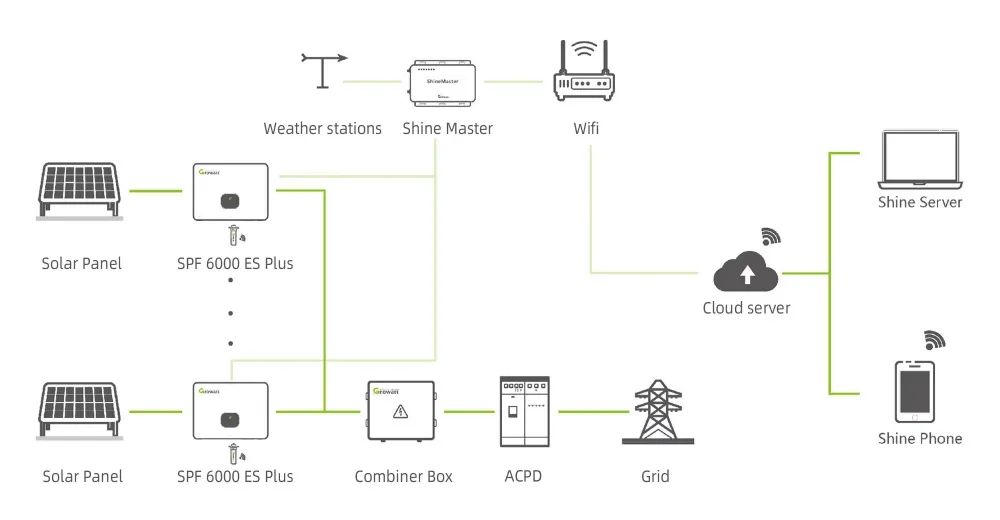

A: Yes, the SPF 6000 ES Plus supports parallel capability for up to 6 units, allowing for significant system expansion.

Q5: What is the transfer time between grid and battery mode?

A: The typical transfer time is 10ms for personal computers and a maximum of 20ms for home appliances.

Q6: What is the peak efficiency of this solar inverter?

A: The inverter achieves a peak efficiency of 93%, ensuring minimal energy loss during DC to AC conversion.
