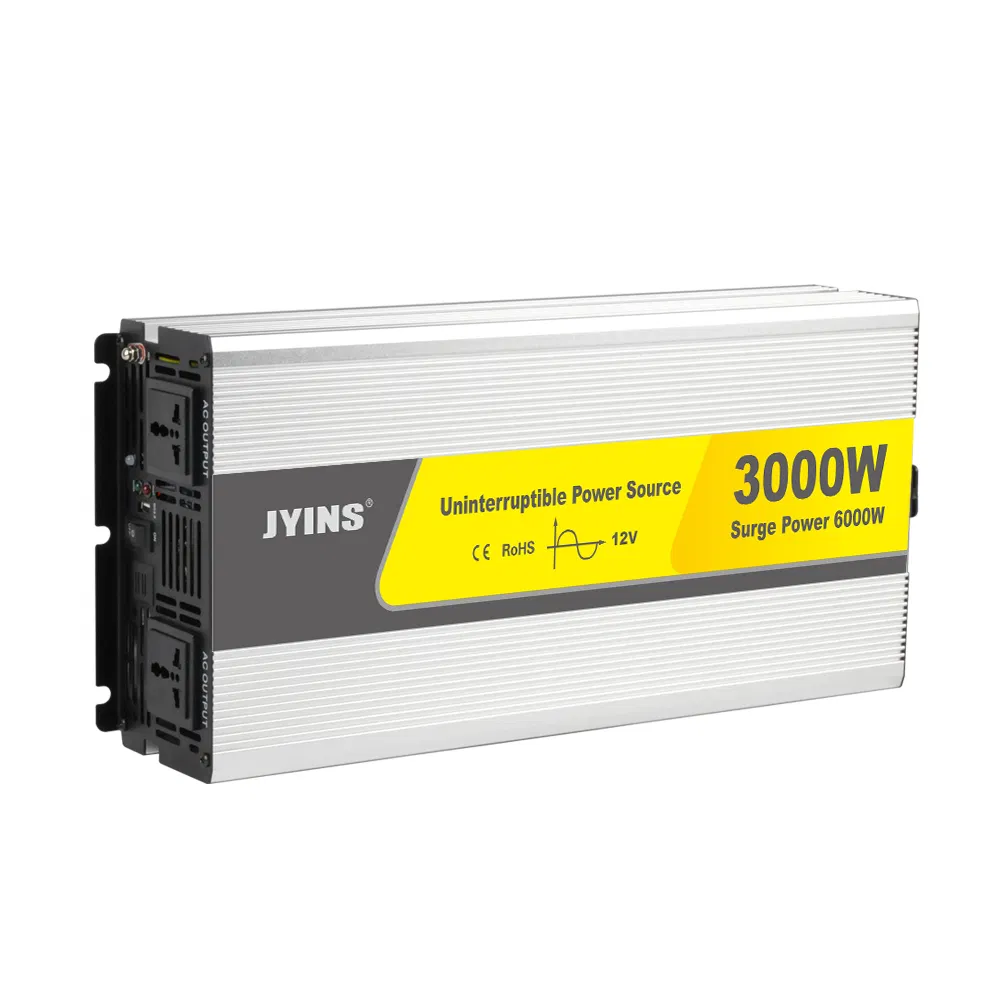

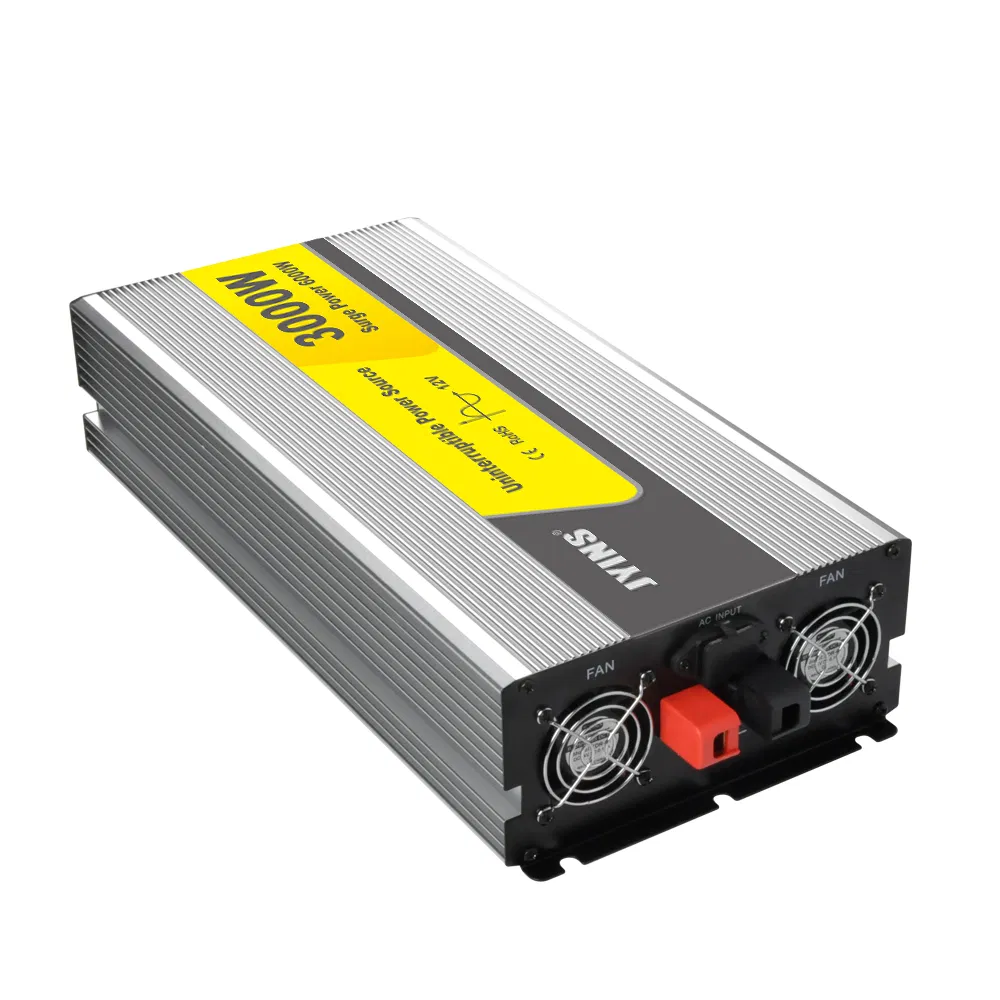

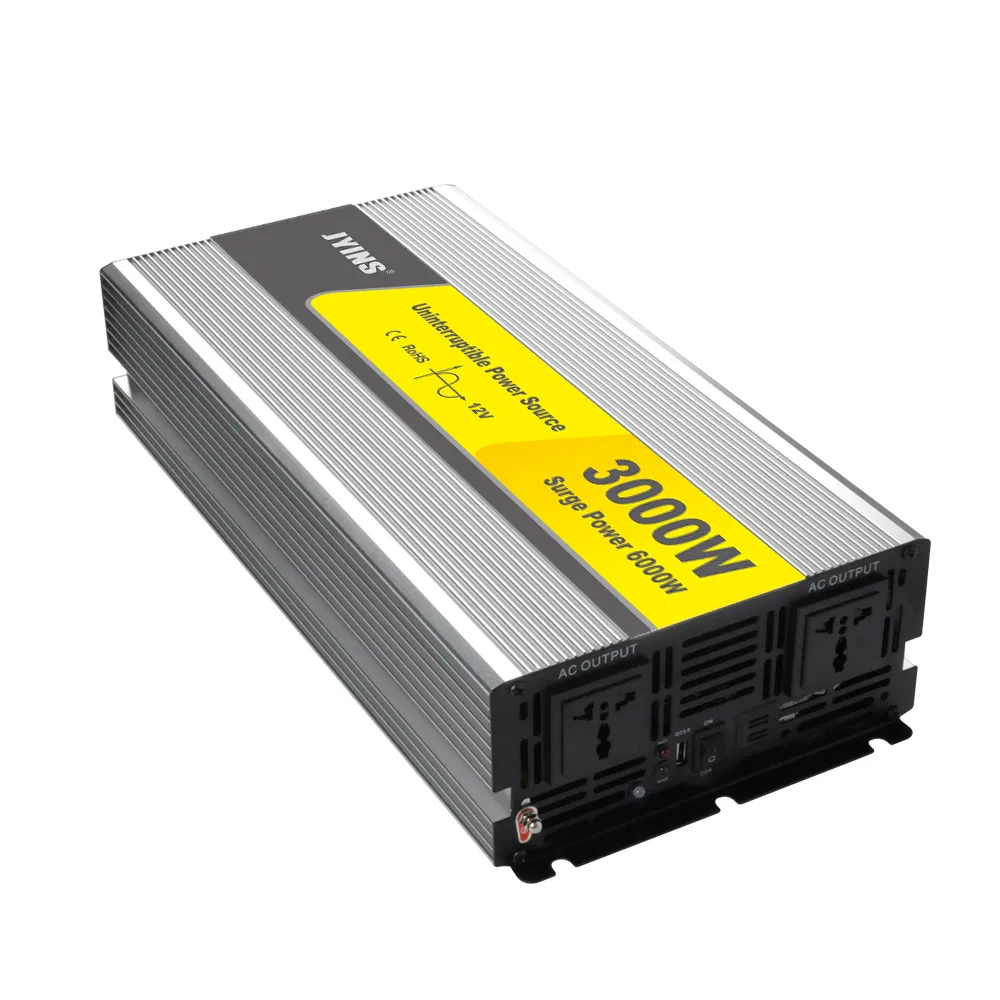

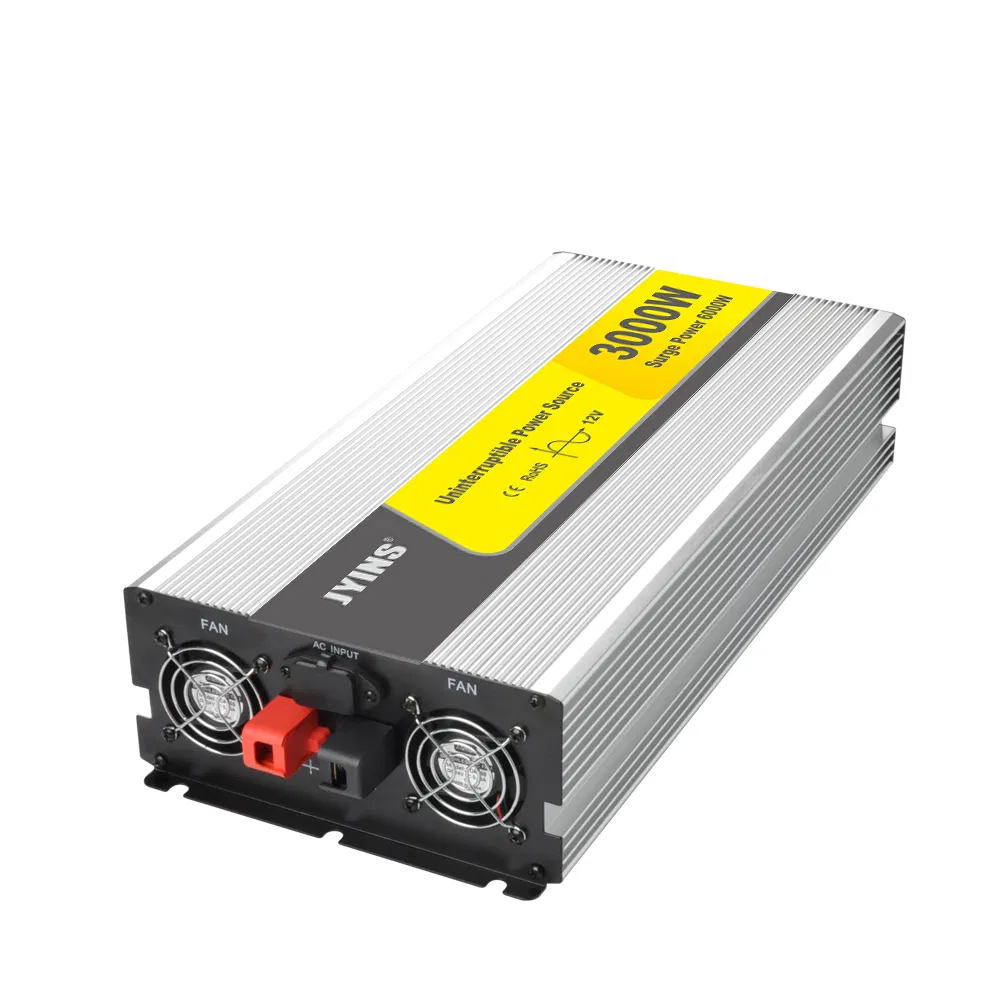

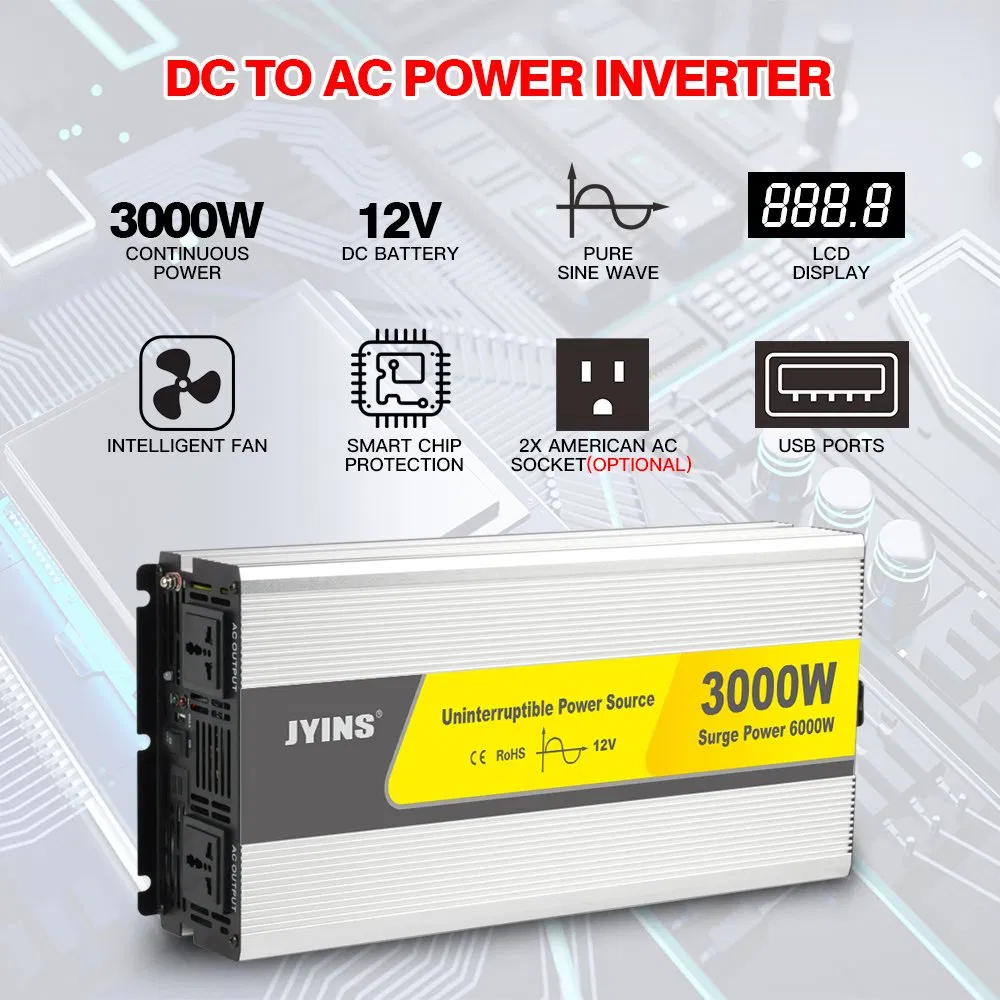

UPS 12V 3000W Pure Sine Wave Solar Power Inverter

1 / 5

UPS 12V 3000W Pure Sine Wave Solar Power Inverter

Customization:	Available
Warranty:	18 Months
Nature of Source Flow:	Active Inverter

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

JYPU-3000

Phase

Single

Output Power

3000W

Certification

CE, ROHS

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Full-Bridge Type

Nature of Wave

Sine Wave Inverter

Size

450X166X128mm

Weight

5300g

Input Voltage

12V, 24V, 48V

Output Voltage

110V, 220V

Technical Parameters

Ups 12v 3000w pure sine wave solar power inverter detailed specifications:

Model	JYPU-3K-1	JYPU-3K-1	JYPU-3K-2	JYPU-3K-2
Rated power	3000W
Peak power	6000W
Input voltage	DC12V	DC24V	DC12V	DC24V
Output voltage	100V/110V/120VAC±5%		220V/230V/240VAC±5%
Output waveform	Pure Sine Wave (THD<3%)
Max.efficiency	90%

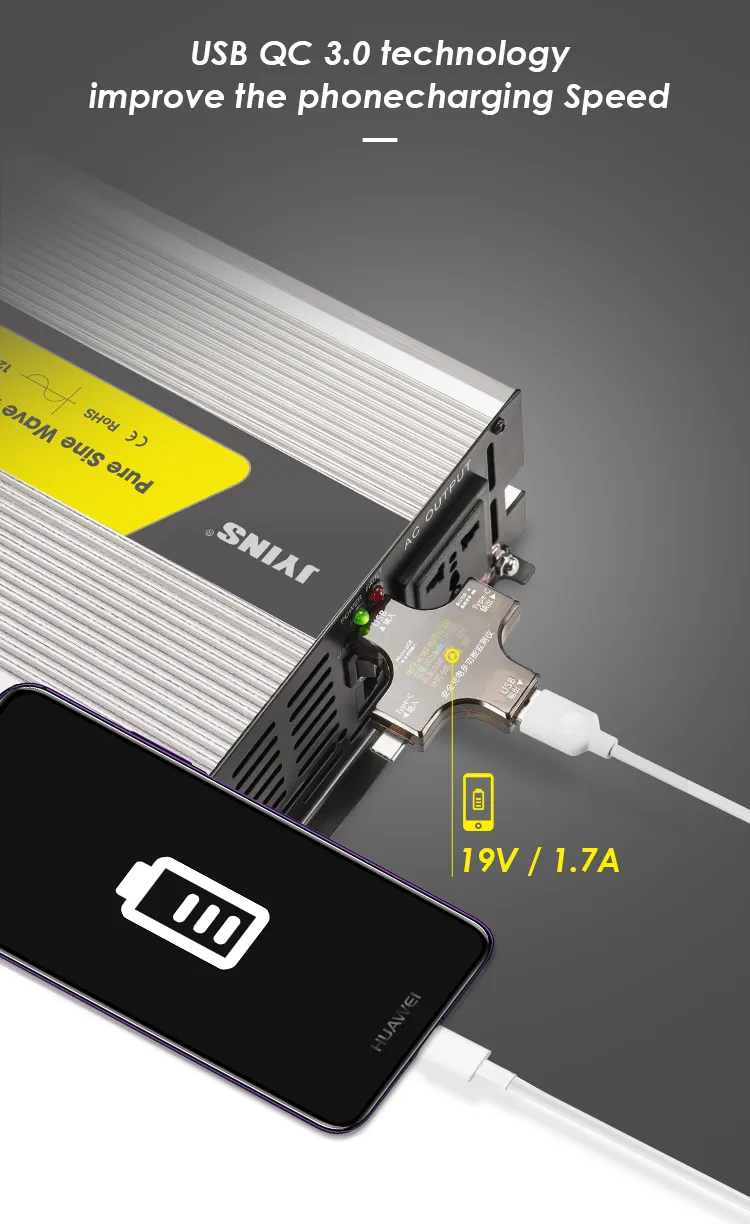

USB port	5V 1A

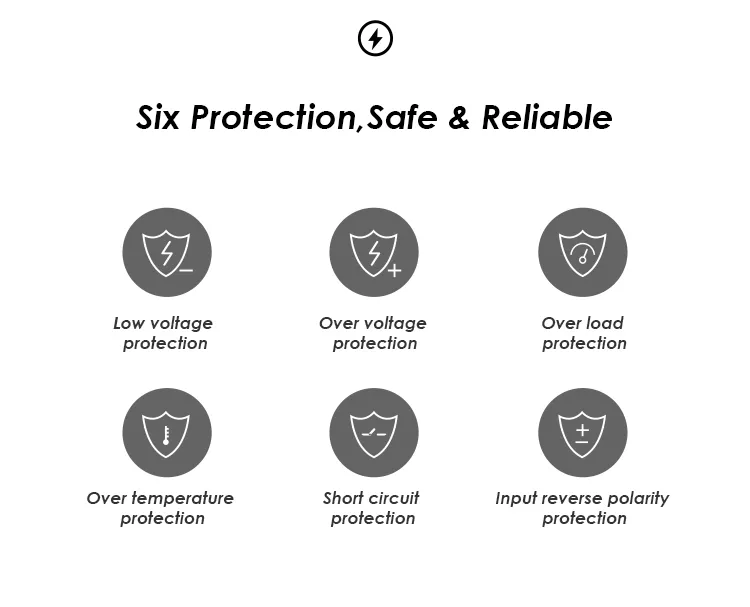

Protection	Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit

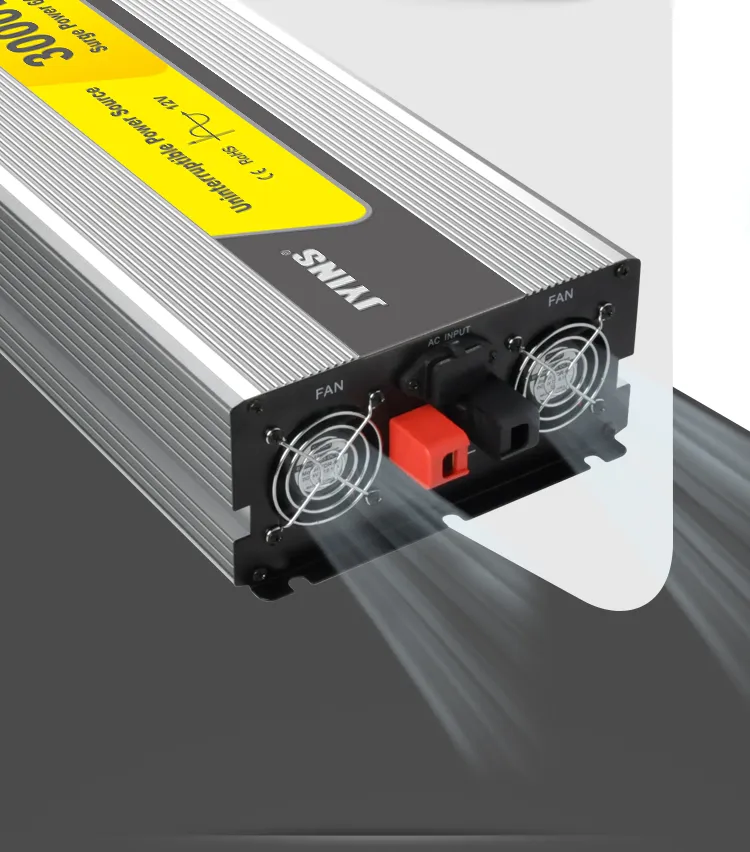

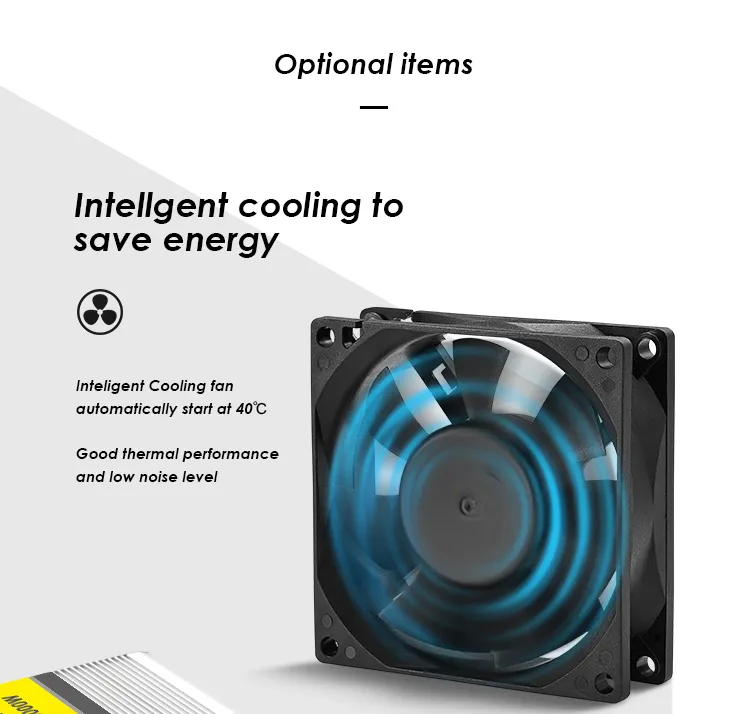

Cooling	Intelligent air cooling

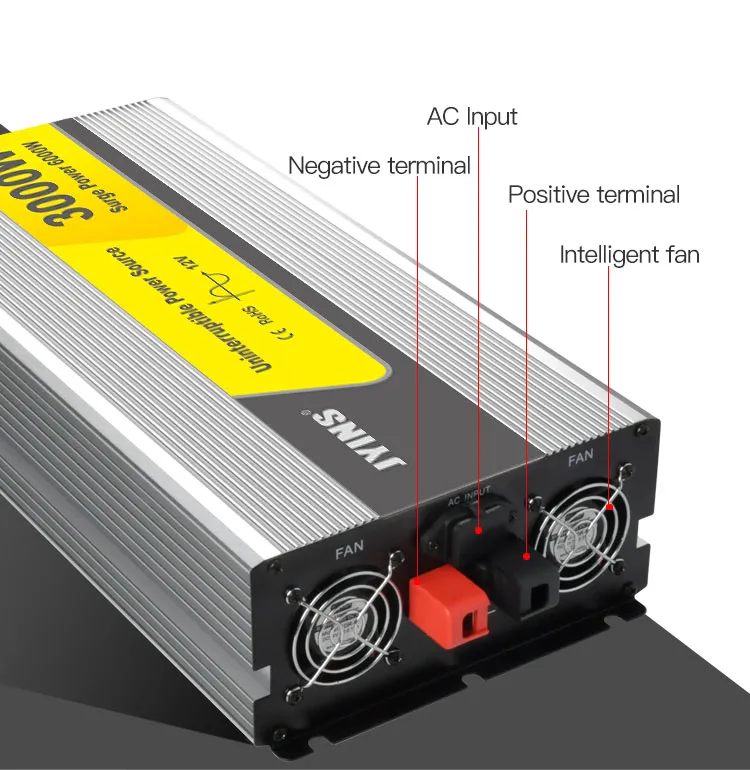

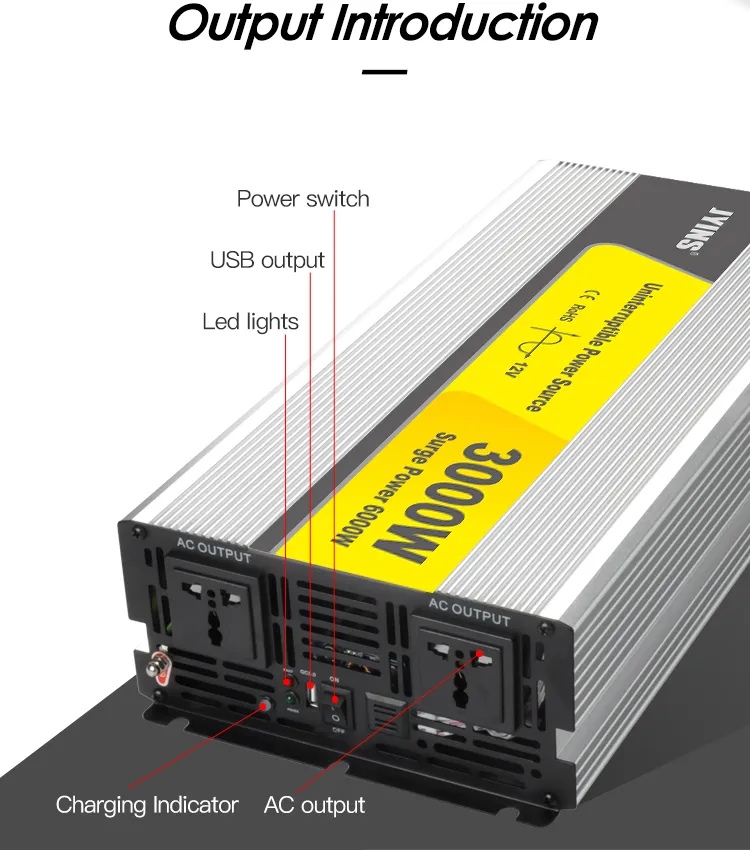

Product Details

Our Advantages

Frequently Asked Questions

Why is the quotation different between suppliers?

The market contains mixed brands. Low-cost inverters often use substandard components in unlicensed workshops, posing security risks. Always choose a reliable inverter to protect personal and property safety.

What are the main categories of inverters based on waveform?

1. Modified Sine Wave: Cost-effective, suitable for most equipment but may have 20% harmonic distortion. 2. Pure Sine Wave: High stability, isolated circuit design, suitable for all loads including sensitive inductive devices like refrigerators and drills without interference.

Is the output voltage stable?

Yes. Our inverters feature advanced regulator circuits. Note that ordinary multimeters may show incorrect readings because they are often designed only for standard grid waveforms; a true RMS multimeter is required for accurate measurement.

What are resistive load appliances?

These include mobile phones, computers, LCD TVs, incandescent lights, electric fans, and rice cookers. Modified sine wave inverters can power these successfully.

What are inductive load appliances?

These are products using electromagnetic induction like motors, compressors, refrigerators, and air conditioners. They require 3-7 times their rated power during startup, so only pure sine wave inverters are suitable.

What should be noticed during installation?

Place the unit in a well-ventilated, cool, dry, and waterproof location. Do not place objects on the inverter and ensure the inverter is turned on before connecting the appliance.
