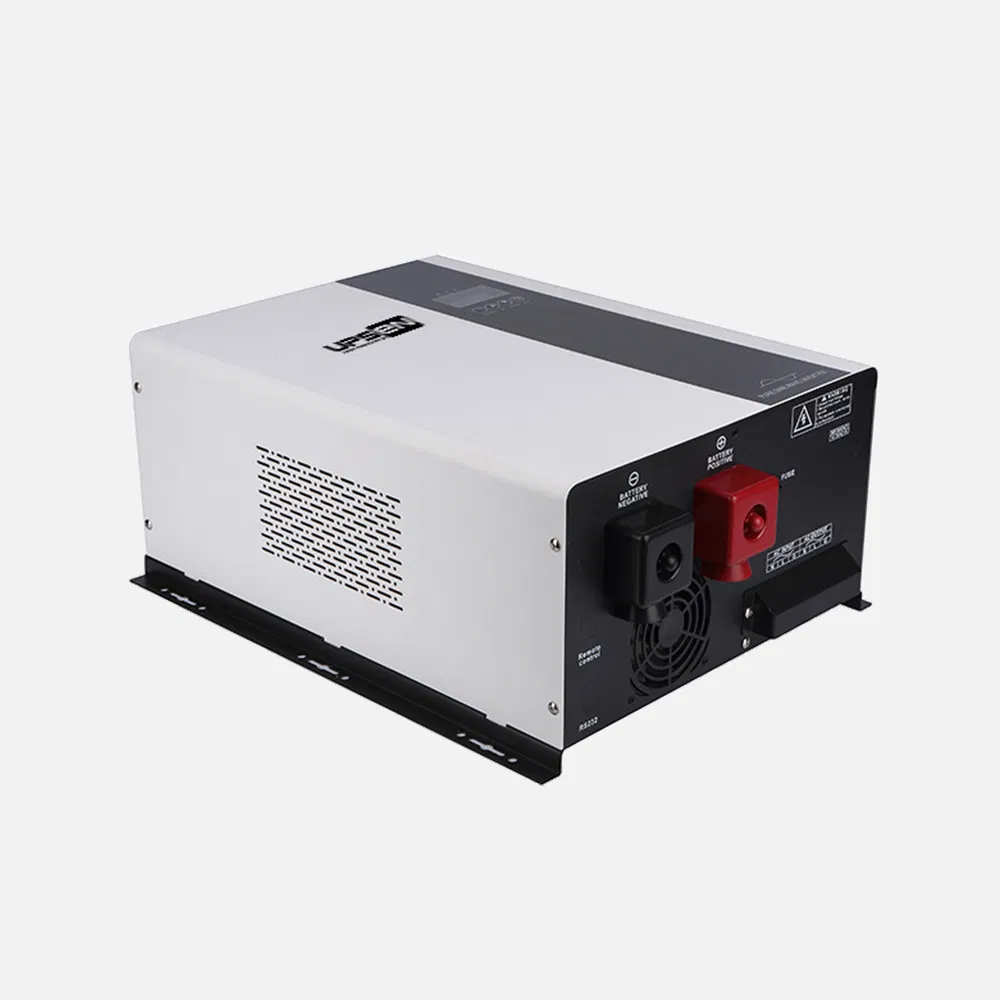

Low Frequency Inverter Charger 1000W 12V 24VDC with Toroidal Transformer and Max 50AMP AC Charger

1 / 5

Low Frequency Inverter Charger 1000W 12V 24VDC with Toroidal Transformer and Max 50AMP AC Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Winner Series 1KW-12KW

Output Power

1kw-10kw

Grid Type

off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Wave String

Sine Wave Inverter

Type

Standby

Protection

Short Circuit

Phase

Single Phase

Power Source

Electric, Solar & Wind Power

Origin

China

Production Capacity

3000PCS/Month

★

Low Frequency Inverter Charger

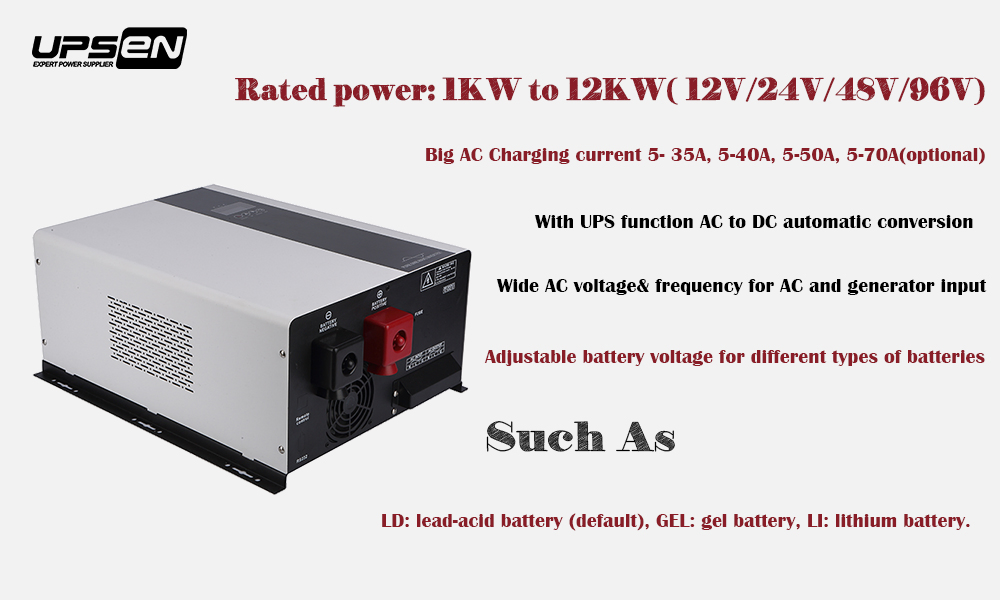

Pure Sine Wave Inverter Winner Series 1KW-12KW with Toroidal Transformer

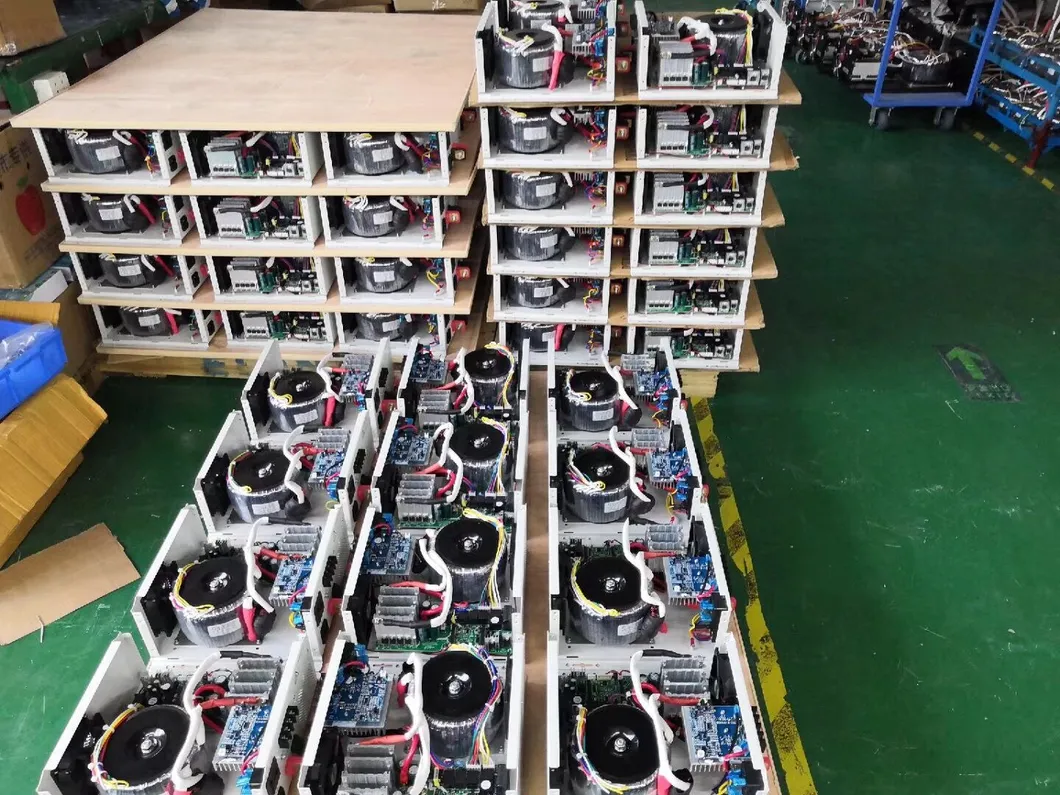

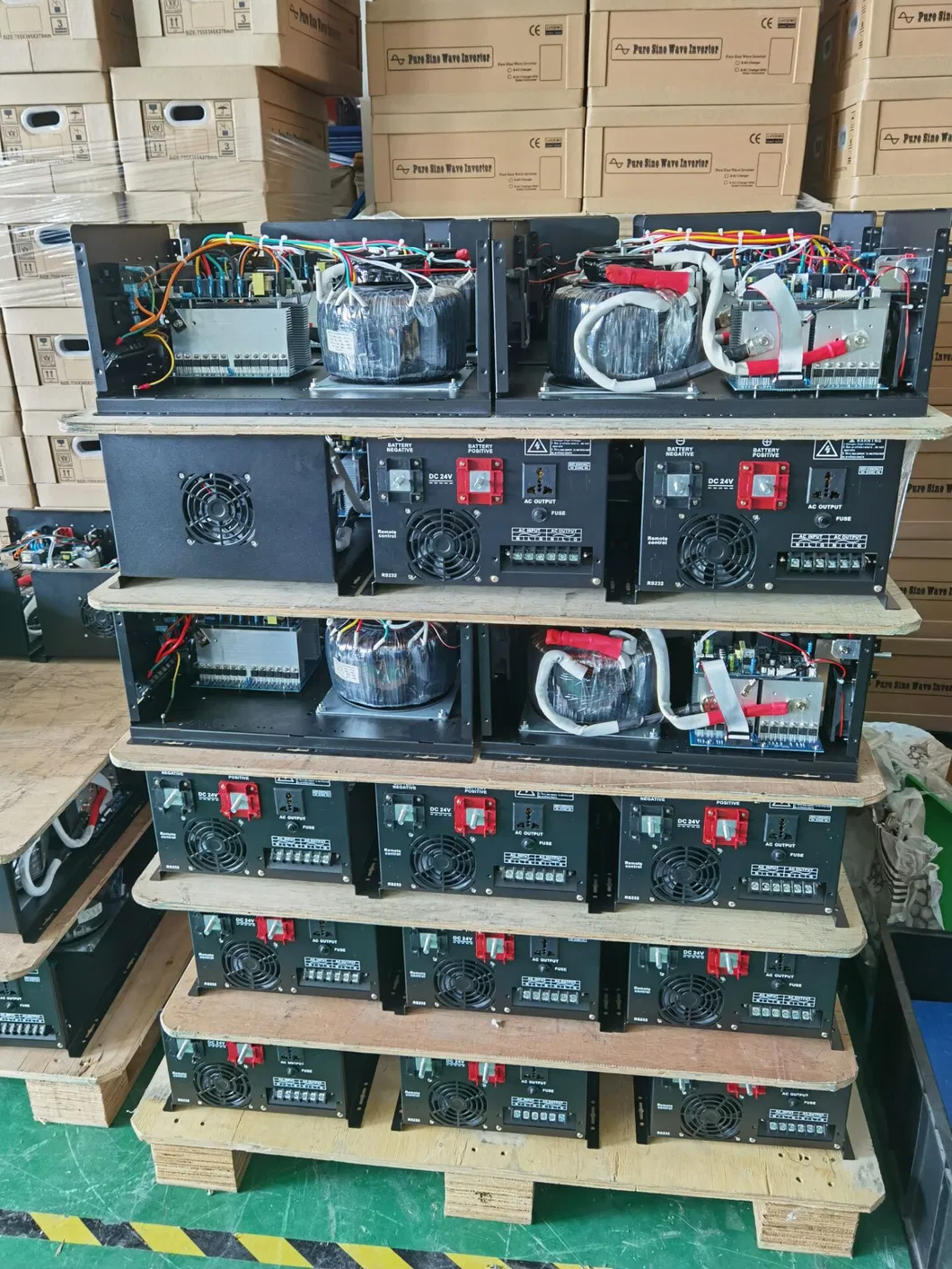

Inbuilt Pure Copper Toroidal Transformer

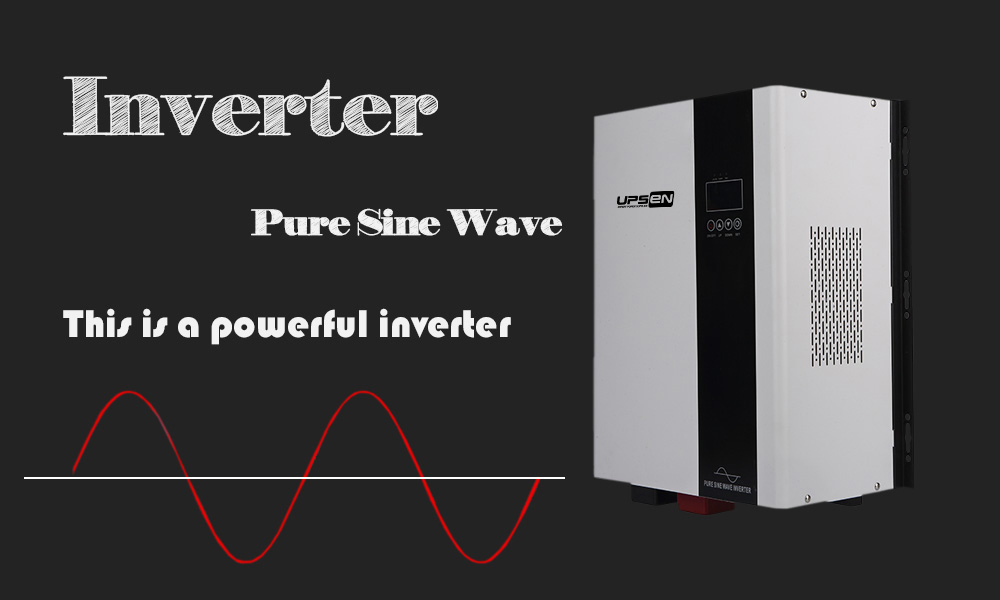

Pure sine wave output (THD < 3%)
High Efficiency more than 95%
Built-in super AC Charger 35-70AMP
Compatible with Solar and Wind Power Systems
AC Charging current adjustable 0-35A

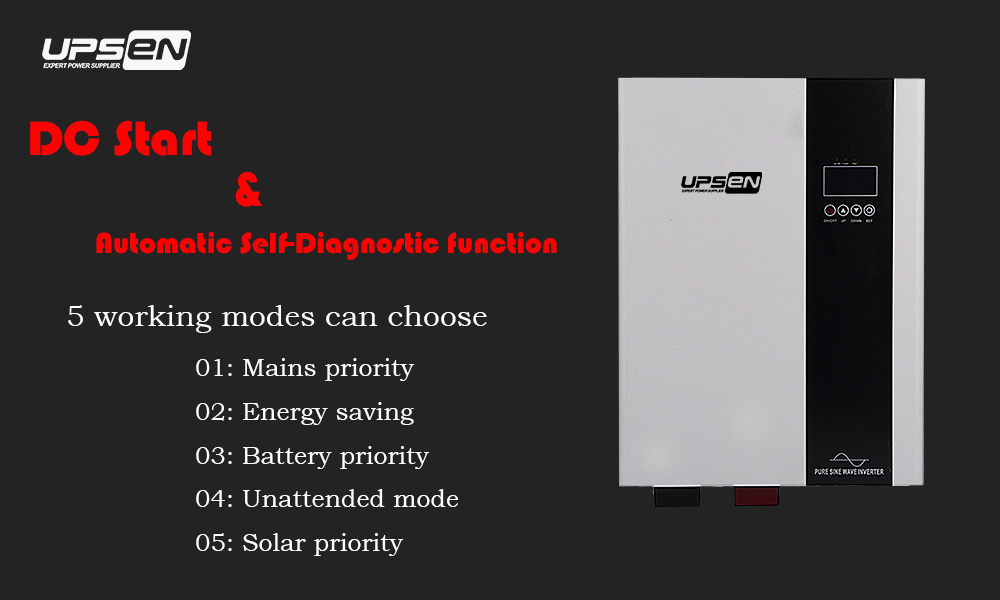

Selectable battery priority or utility priority
Comprehensive Protection: Overload, Short-circuit, Over-temperature

📊

Technical Parameters

Model		W1000	W1500	W2000	W3000	W4000	W5000	W6000	W8K	W10K	W12K
Input	Rated capacity	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8KW	10KW	12KW
Input	Peak power	3000W	4500W	6000W	9000W	12000W	15000W	18000W	24KW	30KW	36KW
Battery	DC Voltage	12VDC / 24VDC / 48VDC				48VDC	48VDC / 96VDC				96VDC
Battery	DC Input Range	12V:10.5-15V \| 24V:21-30V \| 48V:42-60V \| 96V:84-120V
Output	Waveform	Pure Sine Wave
	Transfer Time	Typical: 5ms (Including detection)
	Efficiency	>95%
Size/Weight	External Size(mm)	460230200mm				650270200mm			763315248mm
Size/Weight	Net Weight (kg)	17	21	22	29	37	39	43	60	63	65

*Specification is subject to change without prior notice.

✚

Core Advantages

Three Years' warranty for peace of mind

Professional experience in power field for over 10 years

Professional technical support before and after sales

Timely response and flexible operations

Free OEM & ODM Services available

High-quality components with mature technology

🖼

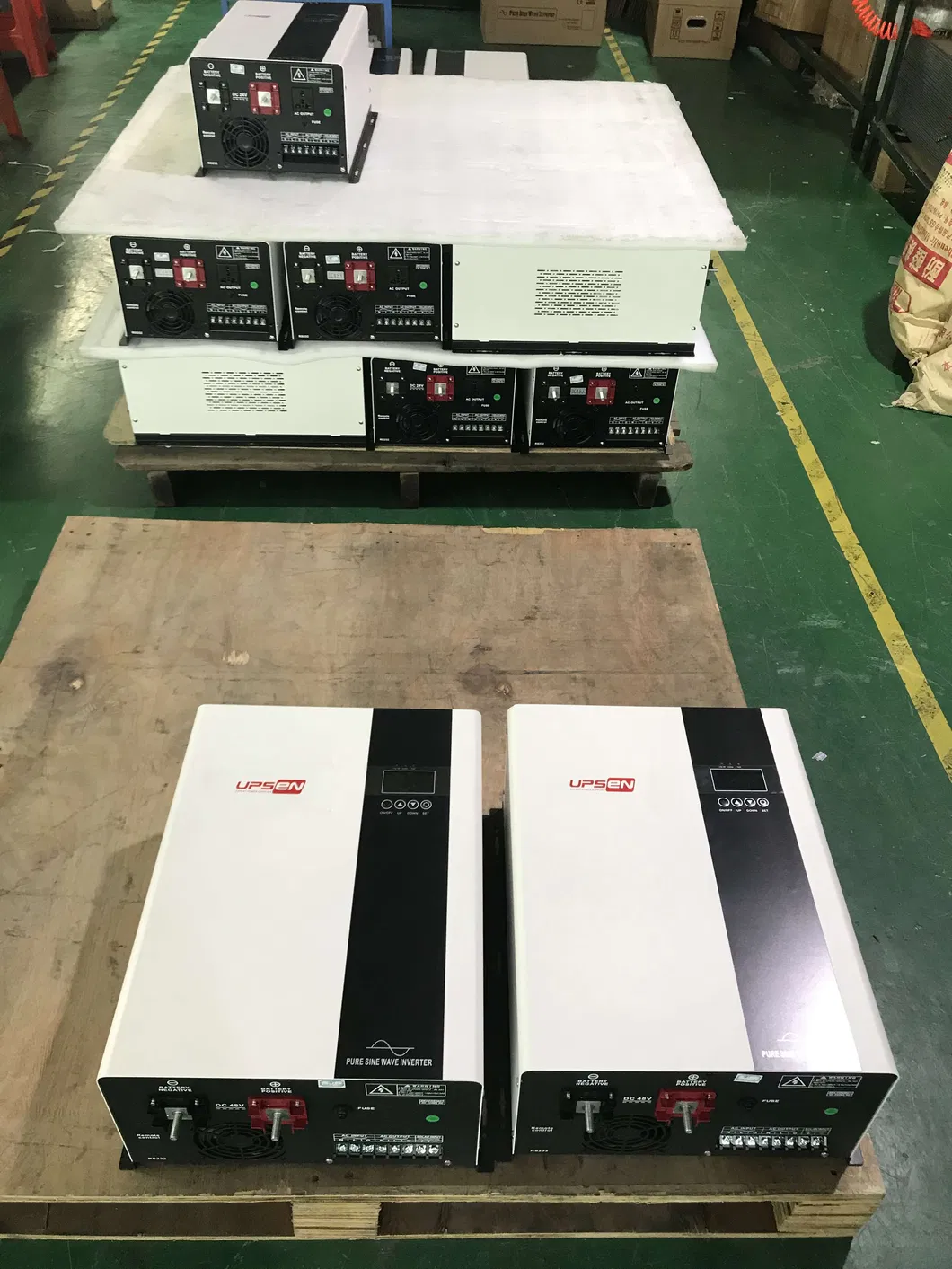

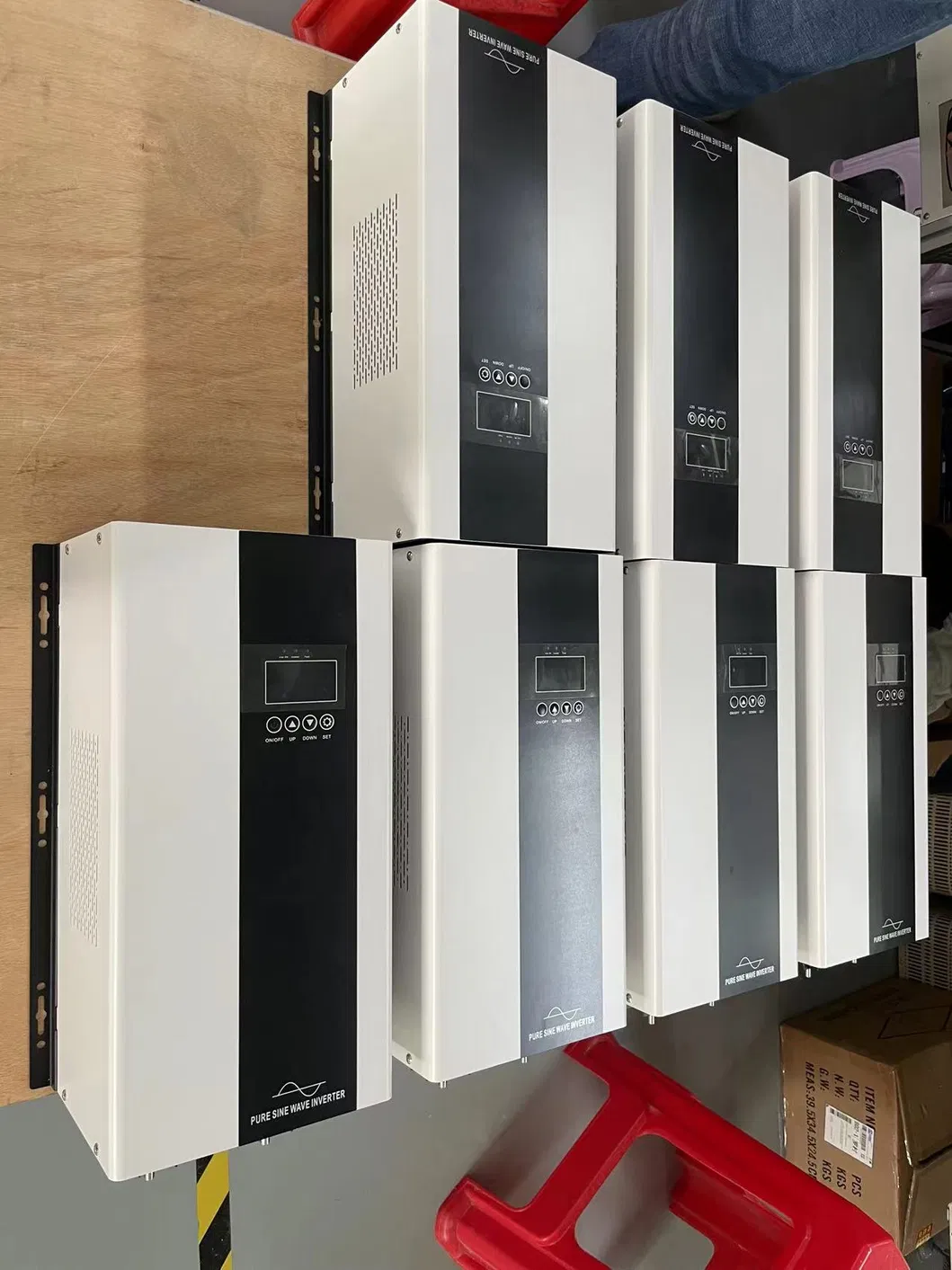

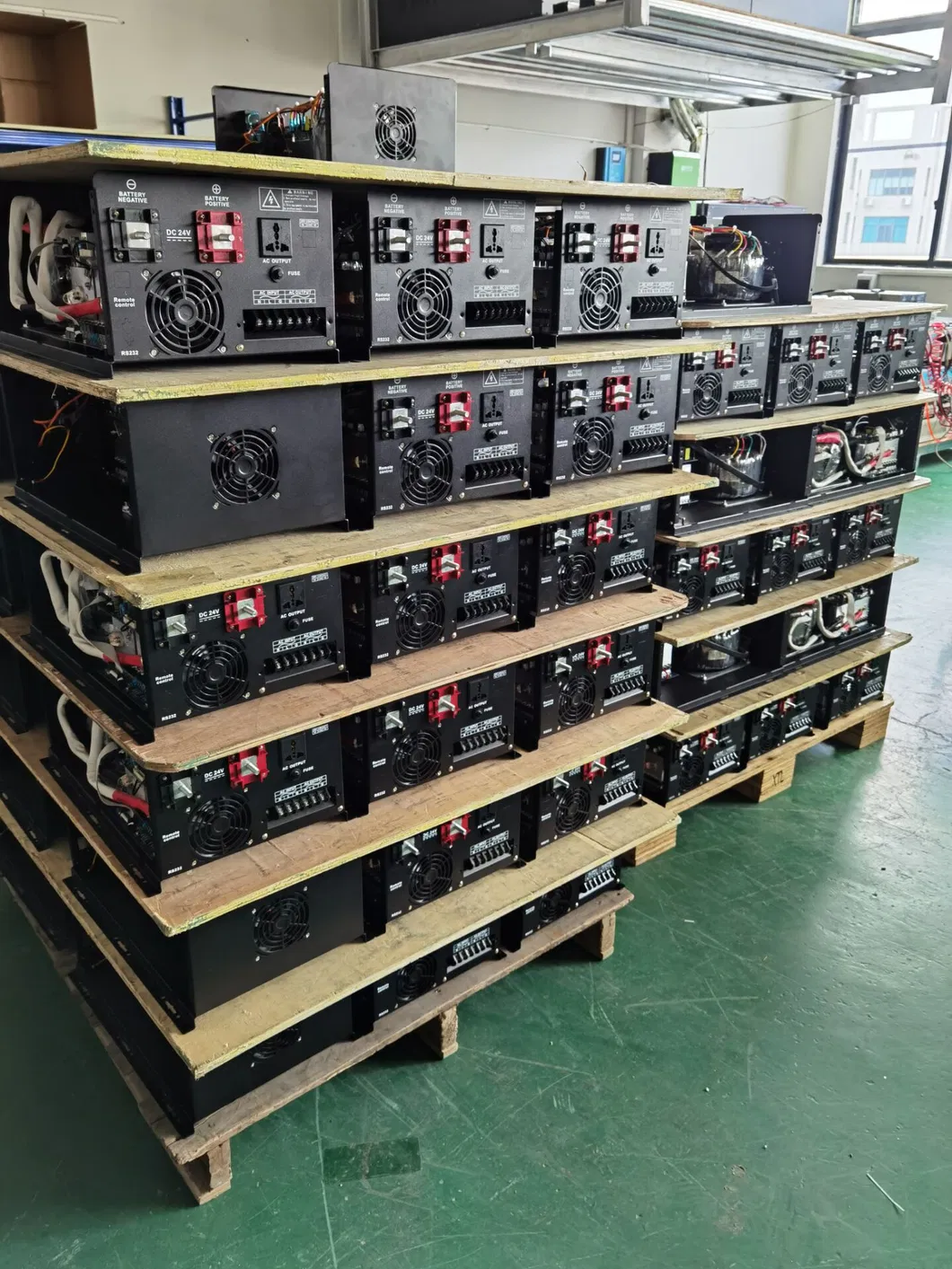

Product Showcase

Frequently Asked Questions

What are the benefits of a toroidal transformer in an inverter?

Toroidal transformers provide higher efficiency (over 95%), lower electromagnetic interference, and a more compact design compared to standard EI transformers, making them ideal for high-performance low-frequency inverters.

Can this inverter be used for motor-based appliances?

Yes, this series is specifically designed with a high peak power capability (3 times the rated power), allowing it to start electric motors from 0.5HP to 3HP depending on the model.

Does the inverter support different battery types?

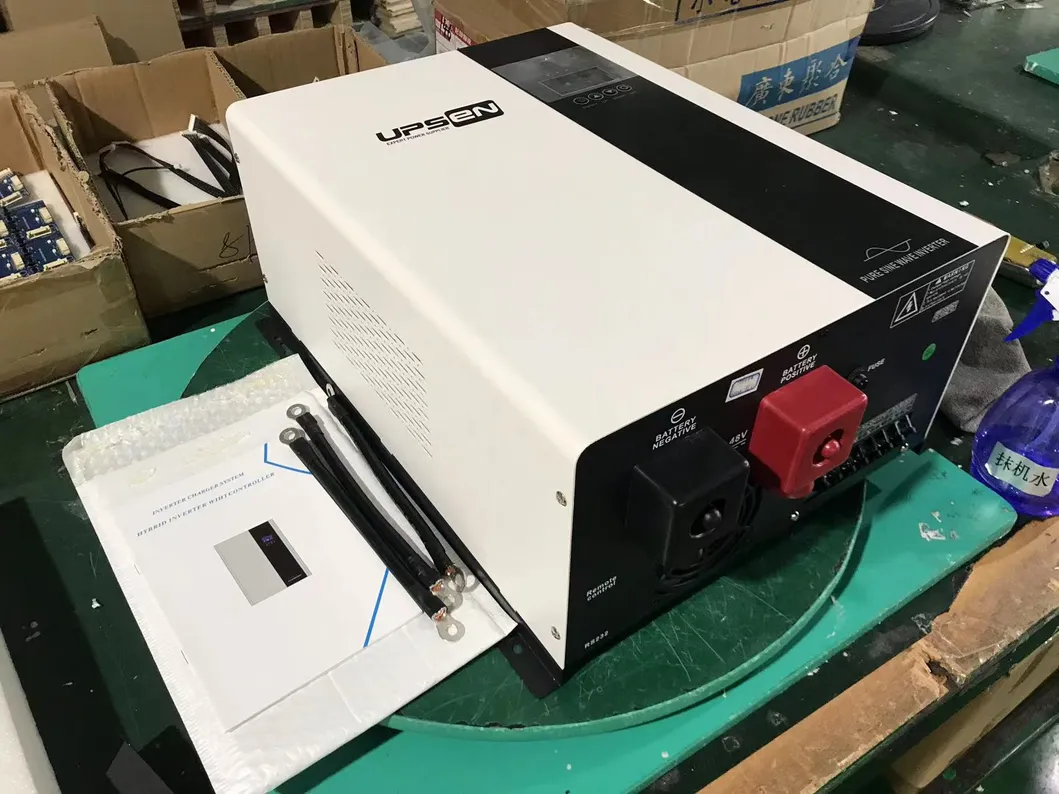

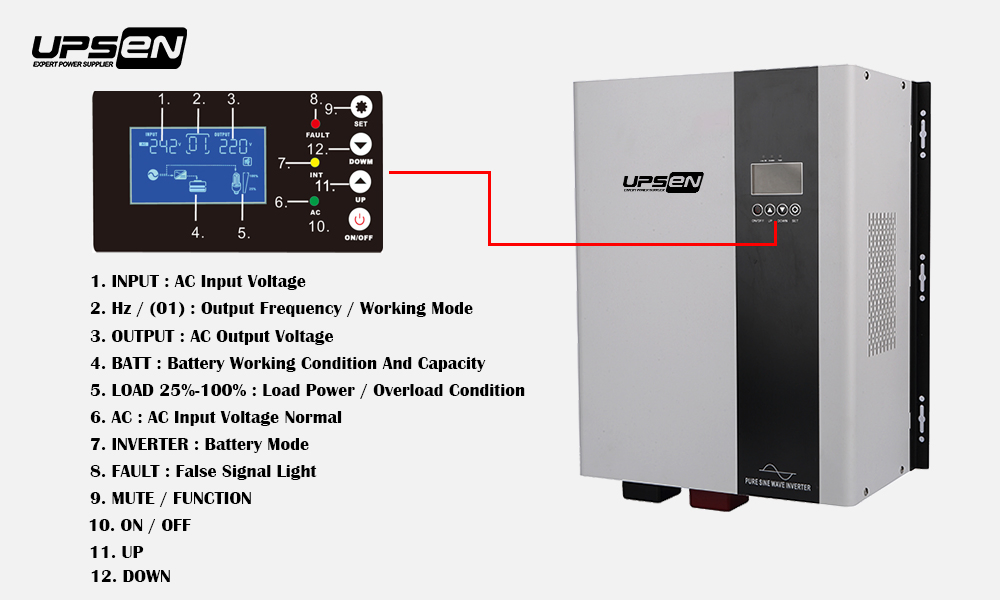

Absolutely. The system allows users to choose different types of batteries and set the parameters via the LCD panel to ensure optimal charging and protection.

What is the transfer time during a power outage?

The typical transfer time is 5ms, including detection time. This ensures that most sensitive electronic equipment continues to operate without interruption.

How does the intelligent cooling system work?

The intelligent control fan rotates slowly when the temperature is below 42°C and switches to high speed when it reaches 45°C or higher to ensure efficient thermal management and longevity.

Is the output frequency stable?

Yes, the inverter provides a stable frequency of 50Hz or 60Hz (±0.5Hz) in inversion state and automatically tracks the commercial power supply frequency when in mains mode.
