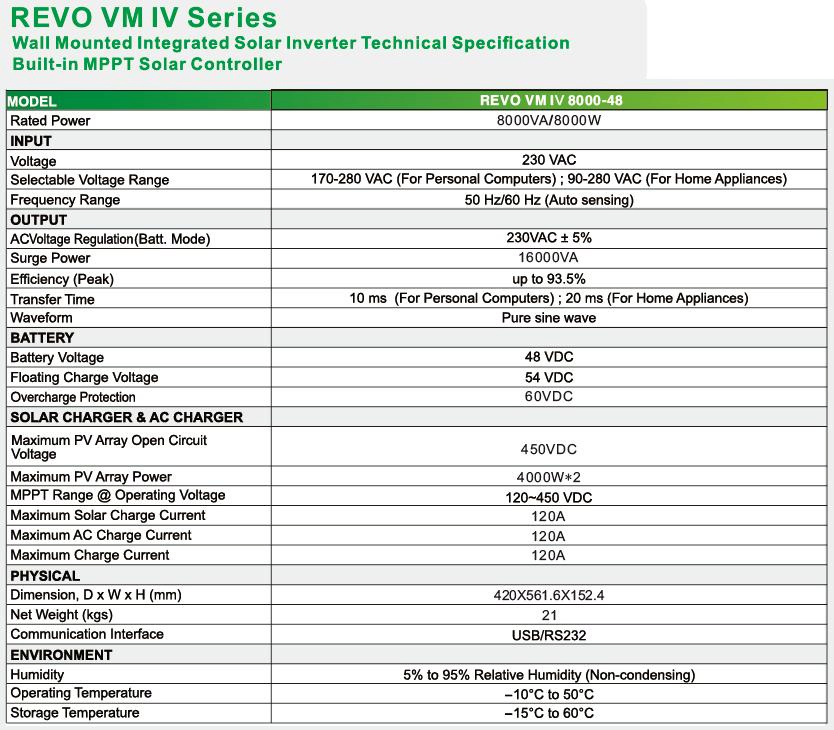

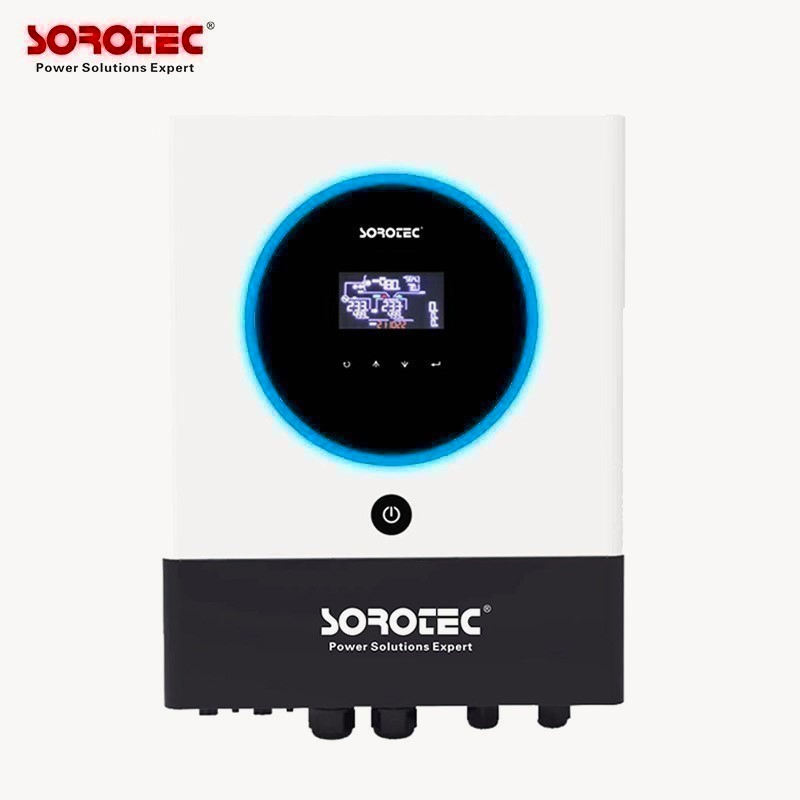

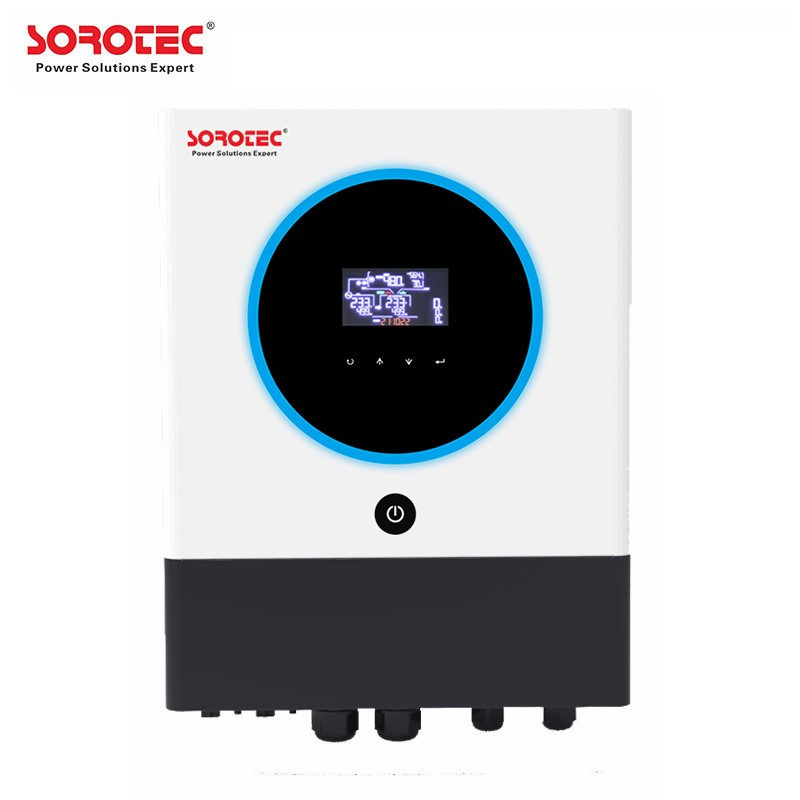

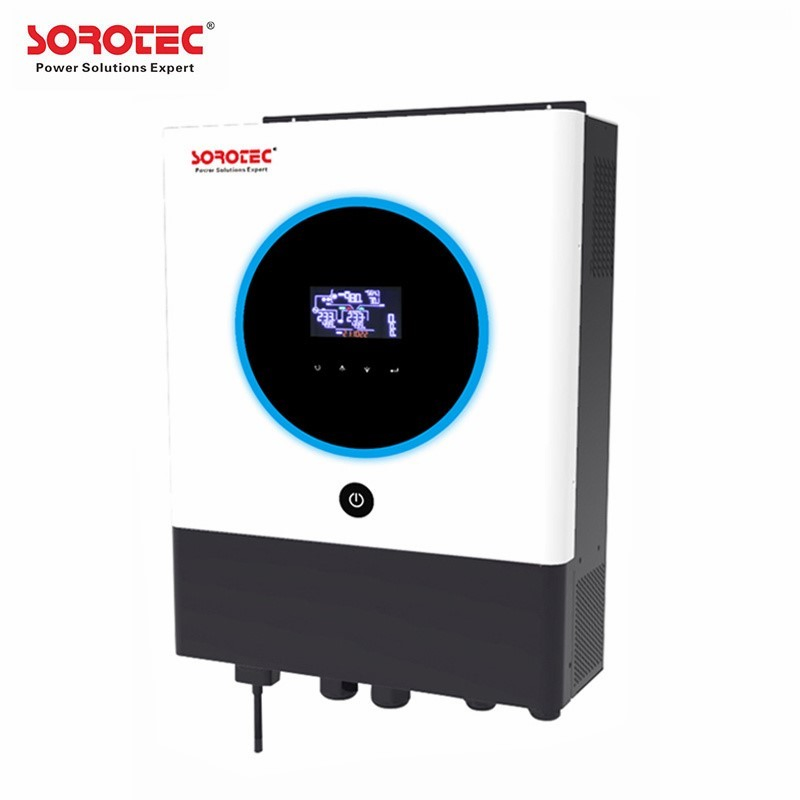

Sorotec Revo Vm IV-Smart Touchscreen Hybrid Inverter for Scalable Home and Commercial Energy Storage

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
REVO VM IV
Source Flow
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE
Type
DC/AC Inverters
Power Source
Solar Power
Output Frequency
50Hz/ 60Hz
Power
8kw
Efficiency
93%
Product Description

REVO VM IV 8kw Hybrid On/Off Grid Solar Inverter

Built-in Two 4000w MPPT Solar Charge Controller

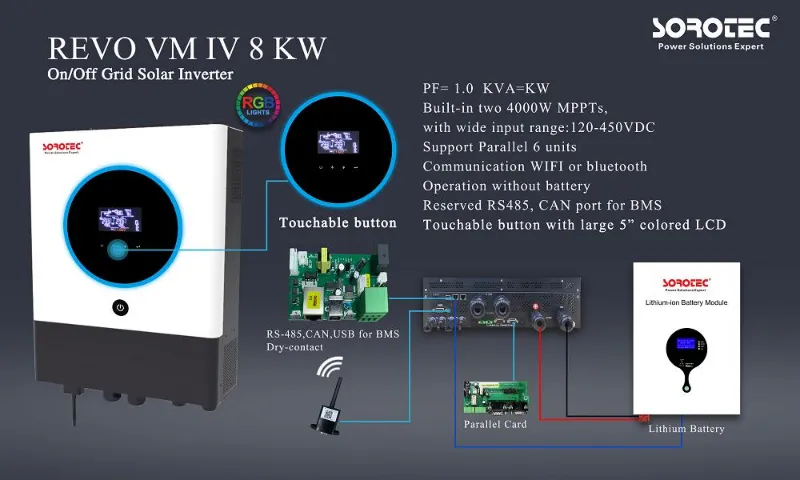

Hybrid Solar Inverter
Key Features
  • PF=1.0 KVA=KW
  • Customizable Status LED Ring With RGB Lights
  • Built-in two 4000W MPPTs, with wide input range: 120-450VDC
  • Support Parallel up to 6 units
  • Communication via WIFI or Bluetooth
  • Operation without battery capability
  • Reserved RS485, CAN port for BMS
  • Touchable button with large 5″ colored LCD
Product NameHybrid Solar Inverter
ModelREVO VM IV Series
Output Power8KW
FeatureCustomizable Status LED Ring With RGB Lights
Frequency Range50 Hz/60 Hz
Inverter Detail 1
Inverter Detail 2

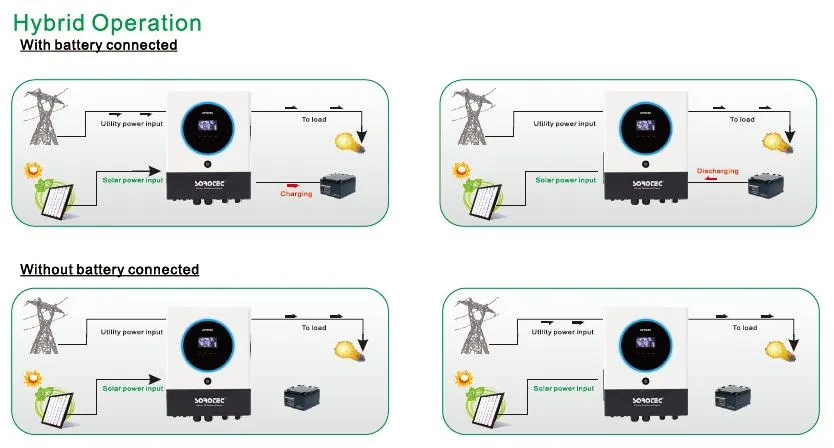

Inverter Detail 3

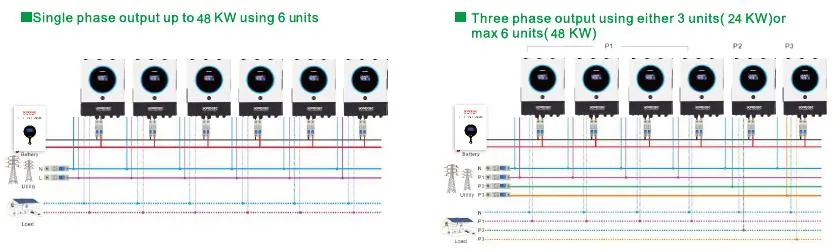

Inverter Detail 4

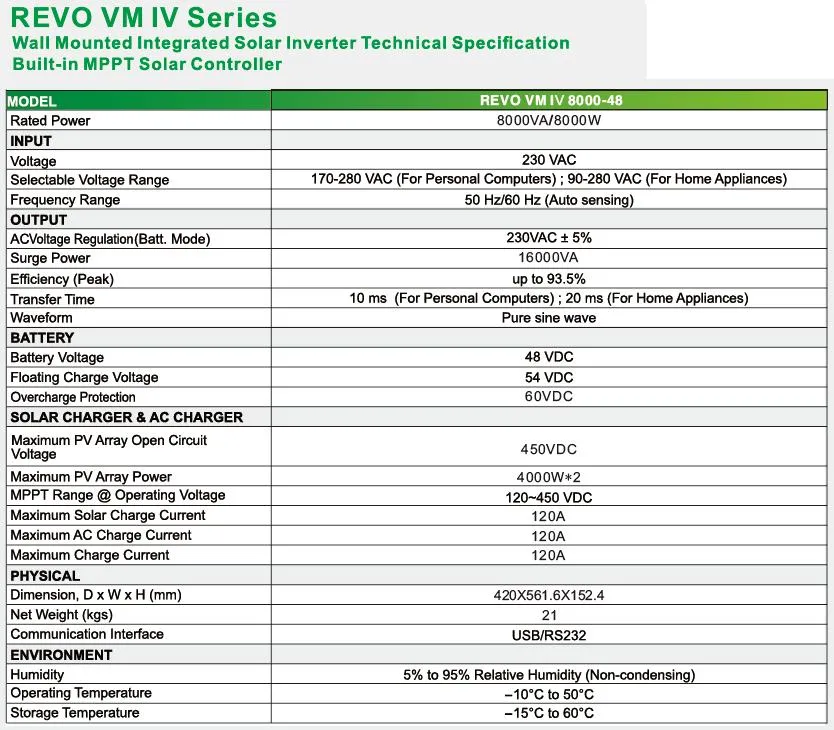

Inverter Detail 5
Packaging & Shipping
Package Size
80.00cm * 50.00cm * 52.00cm
Gross Weight
10.000kg
Packaging Detail
Company Profile

The manufacturer is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. With two large production sites, the company features an internal SMT department and has become a leading enterprise in the industry.

The company carries out three core strategies: operation innovation, people-oriented development, and technical guidance. Investing 10% of annual revenue into R&D, the facility utilizes advanced international equipment for developing, testing, and production, maintaining a perfect cooperation relationship with scientific research units to ensure world-standard products.

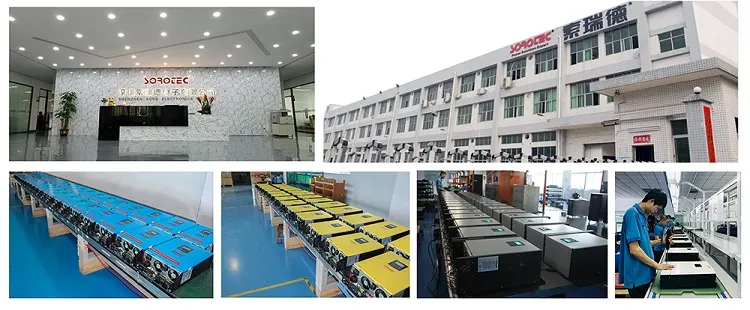

Factory View 1

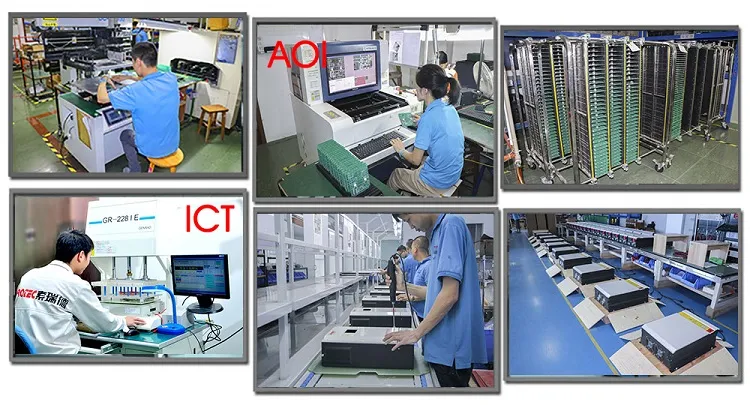

Factory View 2
Production Line
Certifications & Quality Control

1. Quality Control: The company holds ISO9001 international quality system certification. A complete quality system is established covering material sourcing, processing, assembly, and testing. Products meet international safety standards such as CE (LVD/EMC), CUL, and FCC.

2. Global Partnerships: With cooperative partners worldwide across Europe, South America, South Africa, Middle East, and Asia, the company offers a wide range of standard and custom-made quality products.

Certificates
Frequently Asked Questions
How to choose a suitable inverter?
For resistive loads like bulbs, a modified wave inverter is sufficient. For inductive or capacitive loads (fans, AC, fridges, computers), we recommend a pure sine wave inverter to ensure device longevity and performance.
How do I choose the size of the inverter?
Size depends on the load: Resistive loads match the inverter power; Capacitive loads require 2-5 times the power; Inductive loads require 4-7 times the power.
What is the requirement for battery-to-inverter cables?
Shorter cables are better (ideally under 0.5M). Longer distances cause voltage drops, which may trigger under-voltage alarms. Always match the correct polarity.
How do I calculate the working hours for a battery configuration?
Use the formula: Work hours = Battery Capacity (AH) * Battery Voltage (V) * 0.8 / Load Power (W). Note that battery age and condition can affect accuracy.
Can the REVO VM IV inverter operate without a battery?
Yes, this model supports operation without a battery, allowing solar energy to power the loads directly when sufficient sunlight is available.
What is the advantage of the built-in dual MPPT controller?
The dual 4000W MPPTs provide a wide input range (120-450VDC), allowing for more flexible solar panel configurations and maximizing energy harvest from the sun.
