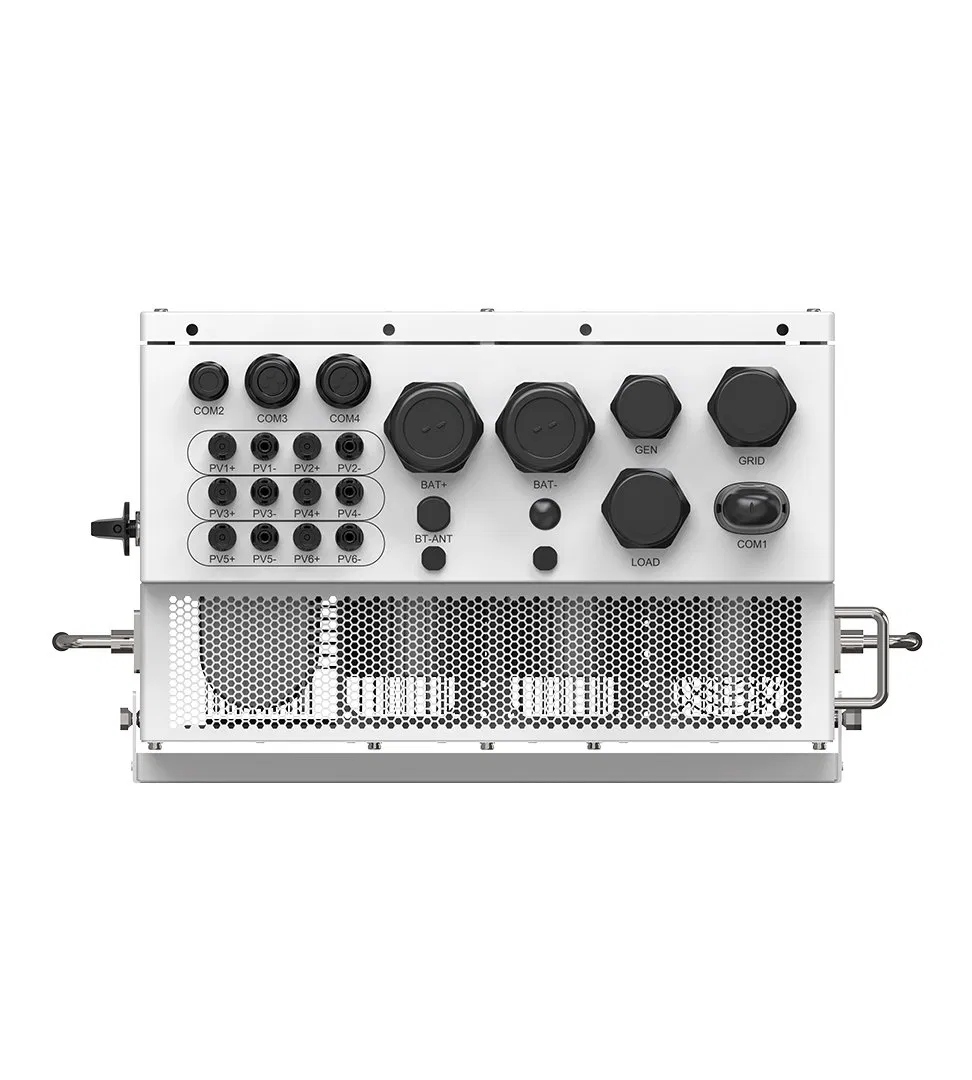

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
S6-EH1P(3-8)K-L-PLUS
Phase
Single
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Solis
Type
DC/AC Inverters
Input Voltage
500V
Output Voltage
220V/230V
Protection
IP66
Battery Type
Lead Acid / Lithium
D

Product Description

Solis Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS: A high-performance single-phase low voltage energy storage inverter designed for versatile residential solar applications. Supports power ranges from 3kw to 8kw.

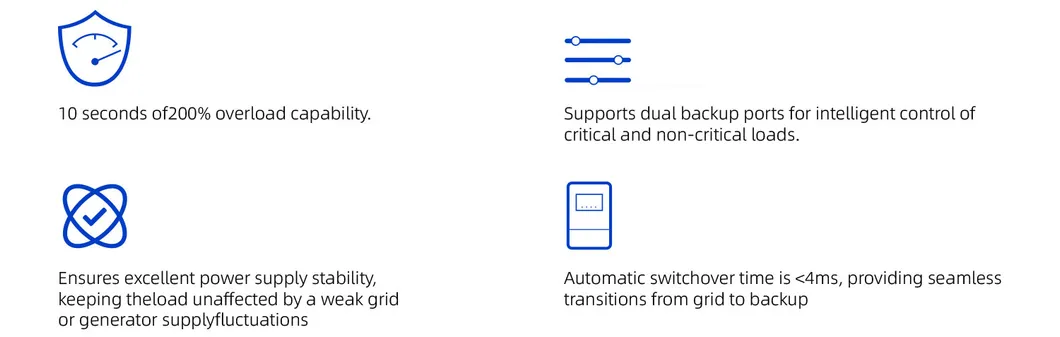

Solis Hybrid Inverter Overview Solis Hybrid Inverter Features
P

Product Parameters

Models 3K 3.6K 5K 6K 8K
Max. PV Array Size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. Input Voltage 500 V
MPPT Voltage Range 90-435 V
Battery Voltage Range 40-60 V
Max. Charge/Discharge Power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Rated Grid Voltage 220 V / 230 V
Back-up Switch Time < 4ms
Max. Efficiency 97.5%
Ingress Protection IP66
S

Basic System Architecture

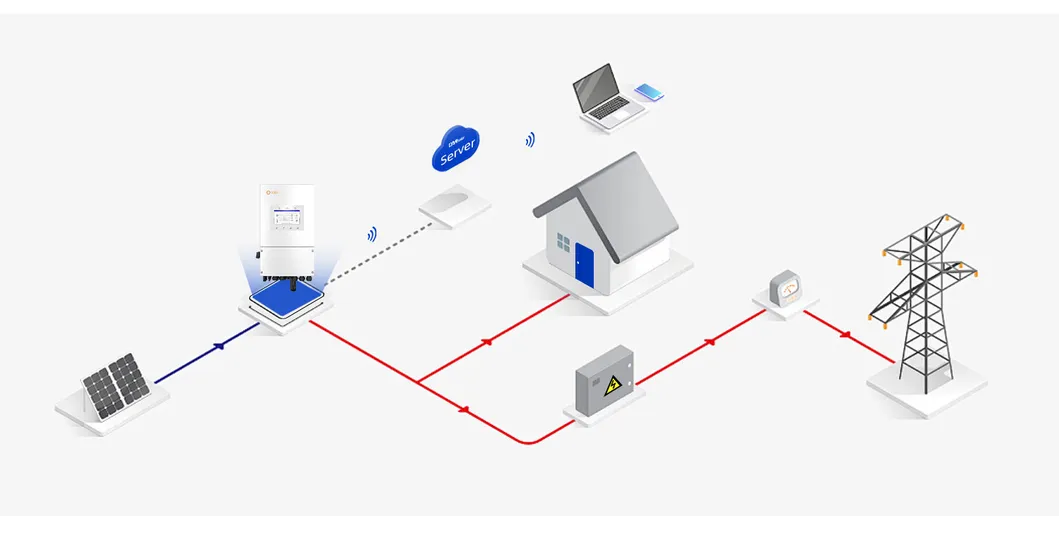

System Architecture Diagram
L

Packaging & Shipping

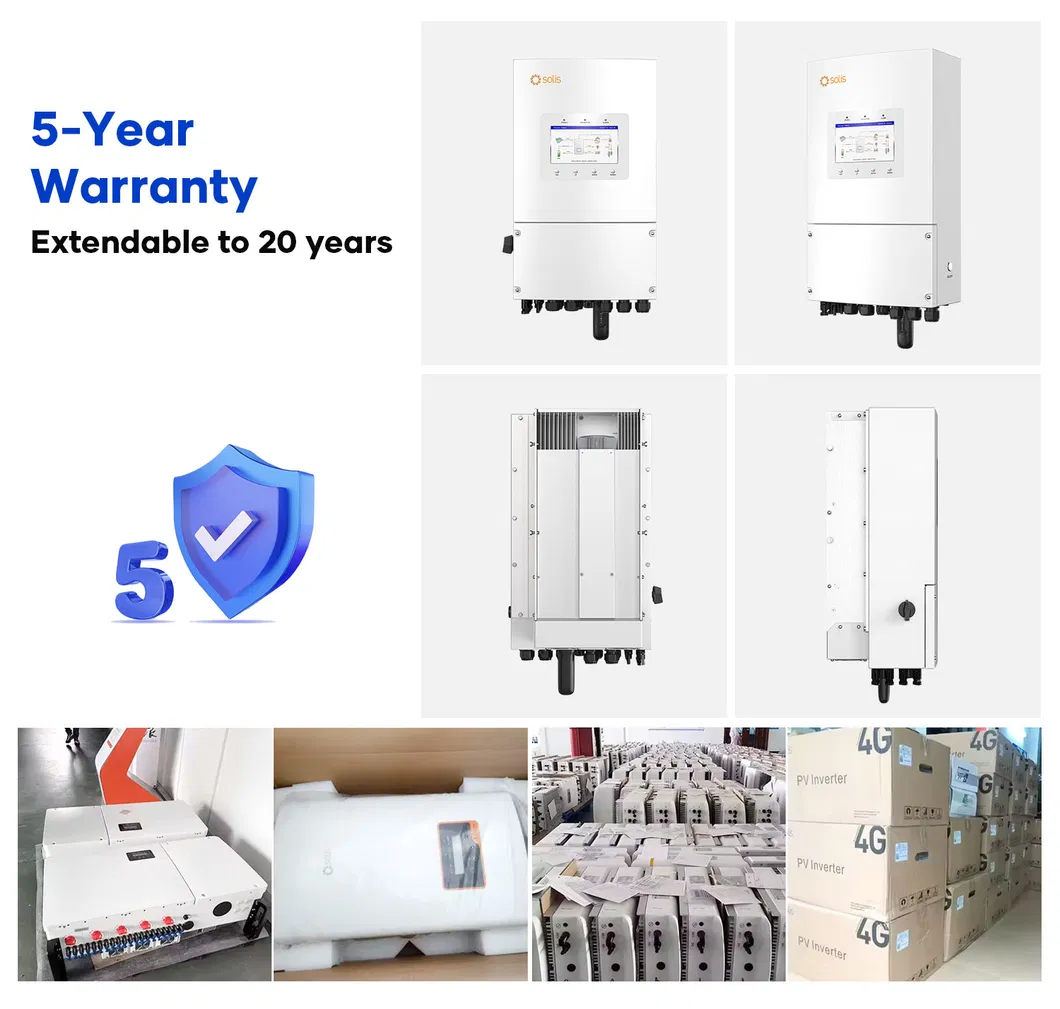

Packaging Details
C

Project Case

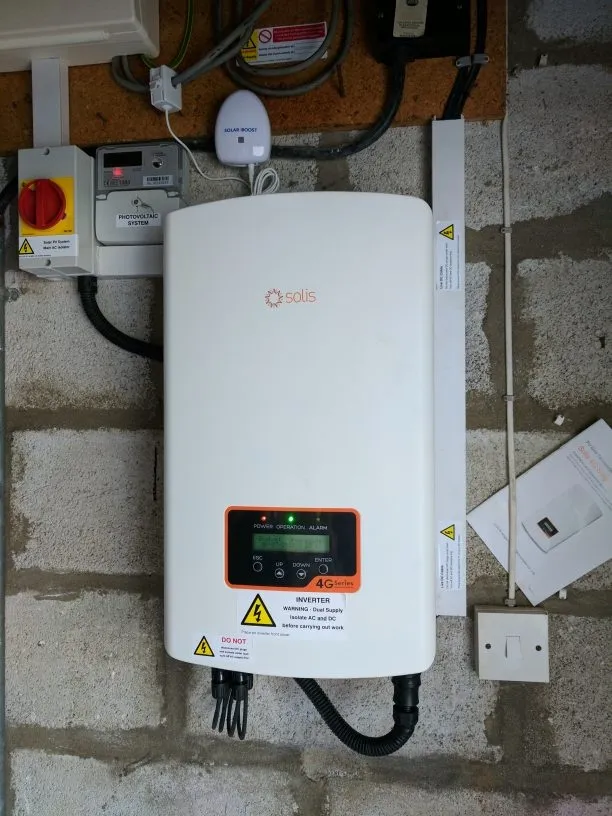

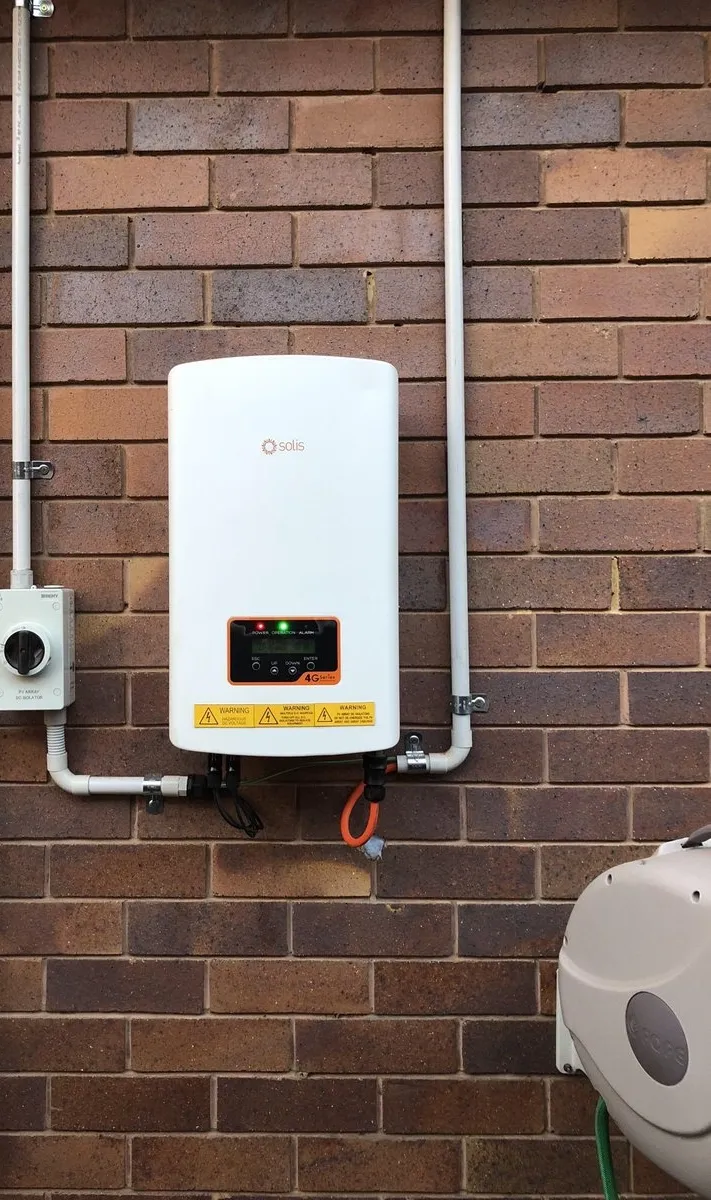

Project Case 1 Project Case 2

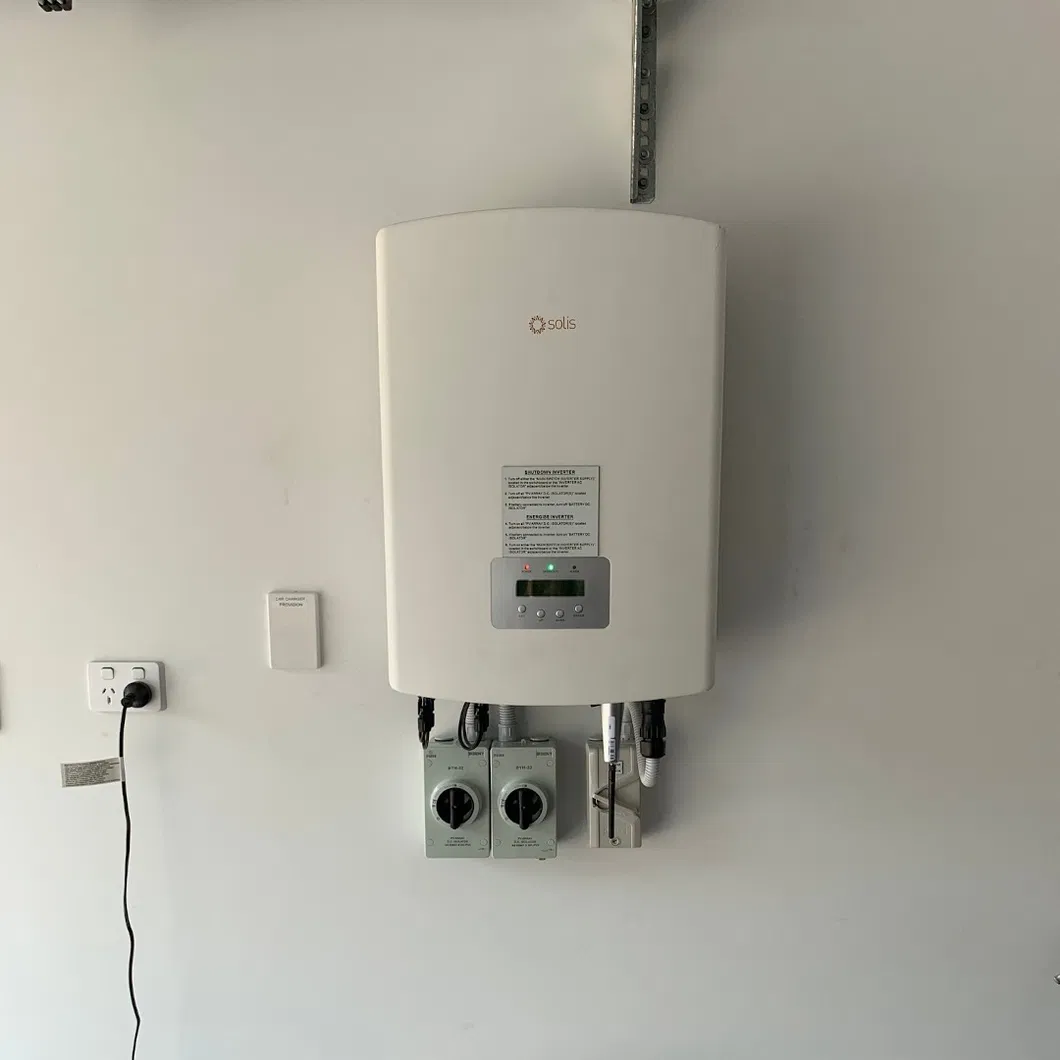

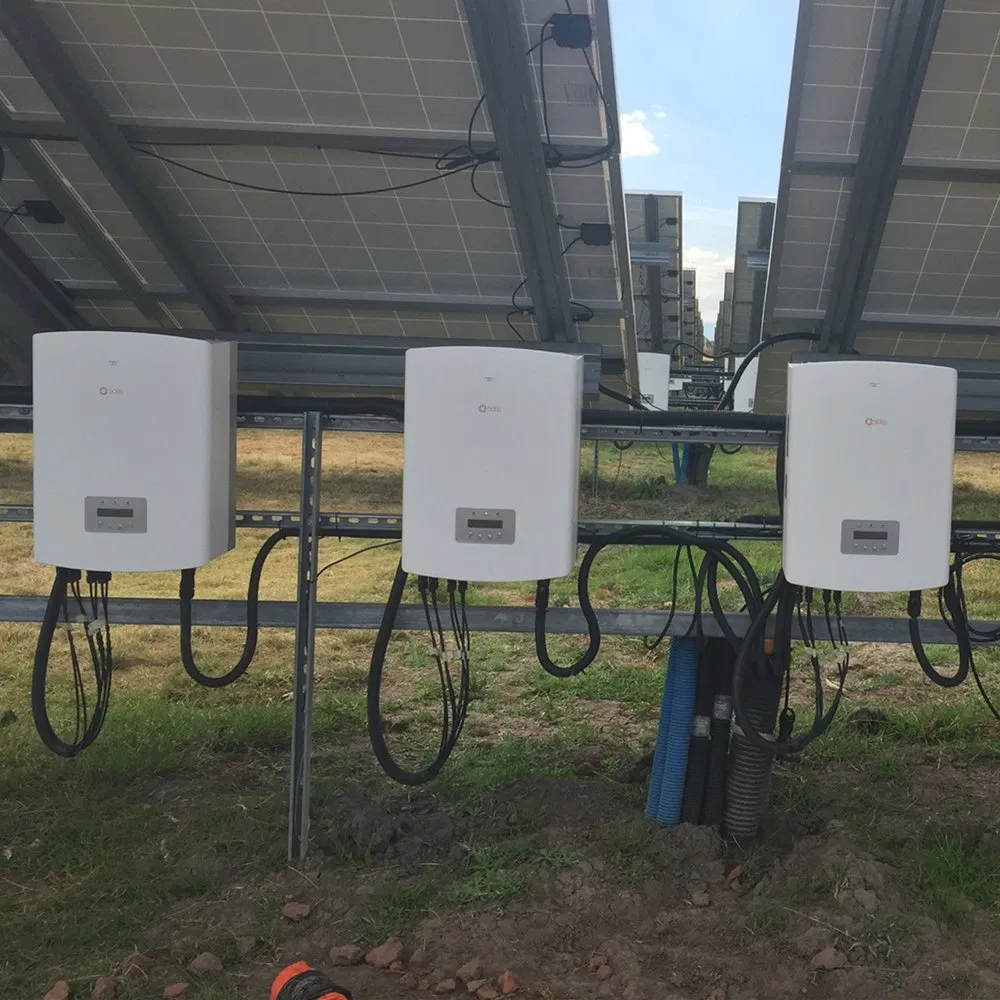

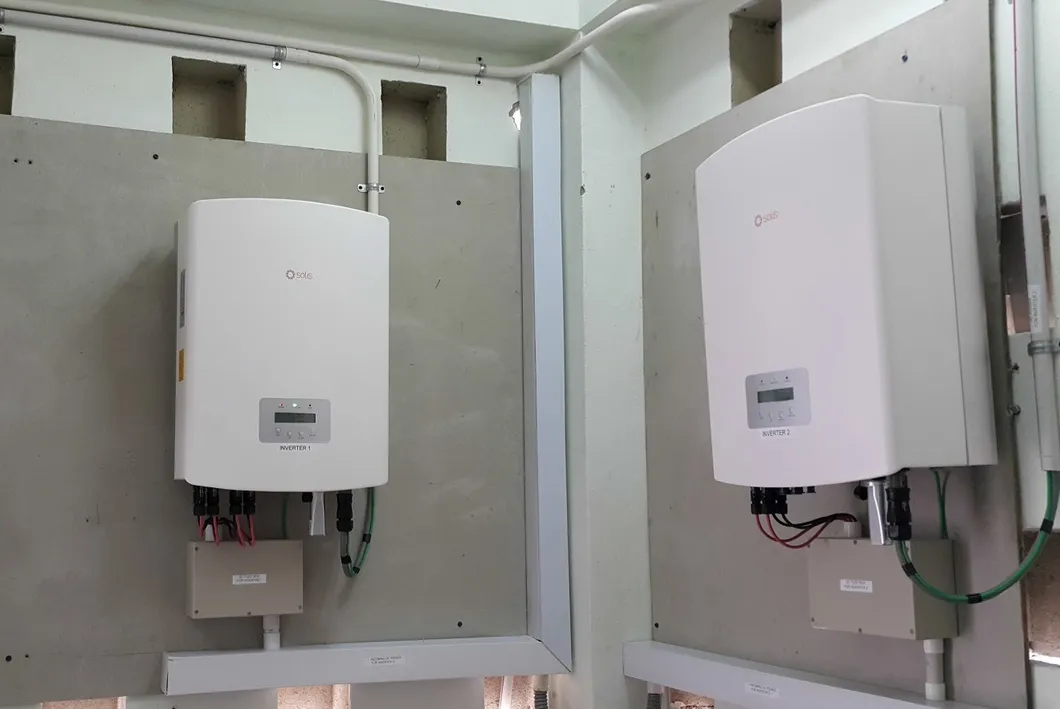

Project Case 3 Project Case 4 Project Case 5
?

Frequently Asked Questions

What is the output power range for the S6-EH1P series?
The series offers a power range from 3kW up to 8kW to suit different residential energy needs.
Is this inverter compatible with both Lithium and Lead-acid batteries?
Yes, the system is designed to work with both Li-ion and Lead-acid battery types within a 40-60V range.
What is the protection rating for outdoor installation?
The inverter features an IP66 rating, providing high-level protection against dust and powerful water jets.
How fast is the backup switch time during a power outage?
The backup switch time is less than 4ms, ensuring an uninterruptible power supply for critical loads.
What is the maximum efficiency of this hybrid inverter?
The S6-EH1P series achieves a maximum efficiency of up to 97.5%.
Does the system support remote monitoring?
Yes, it supports multiple communication methods including RS485, CAN, and optional Wi-Fi, GPRS, or LAN.
