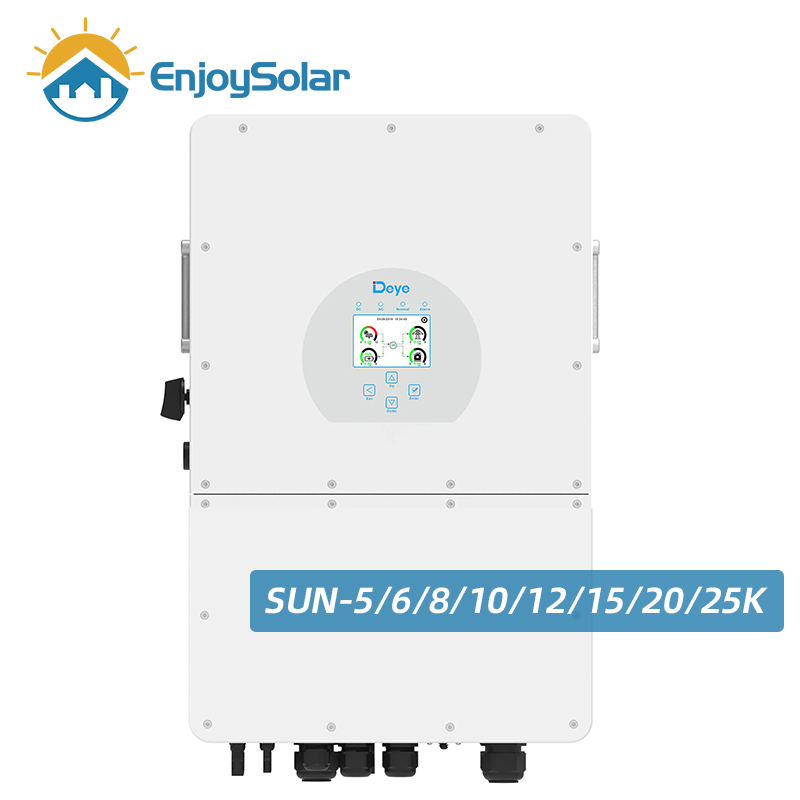

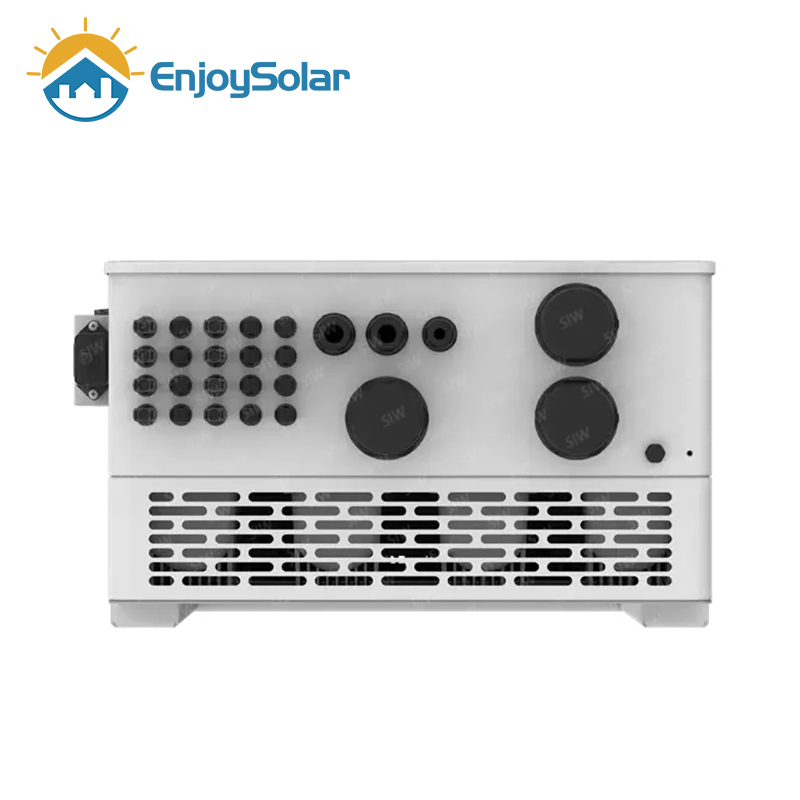

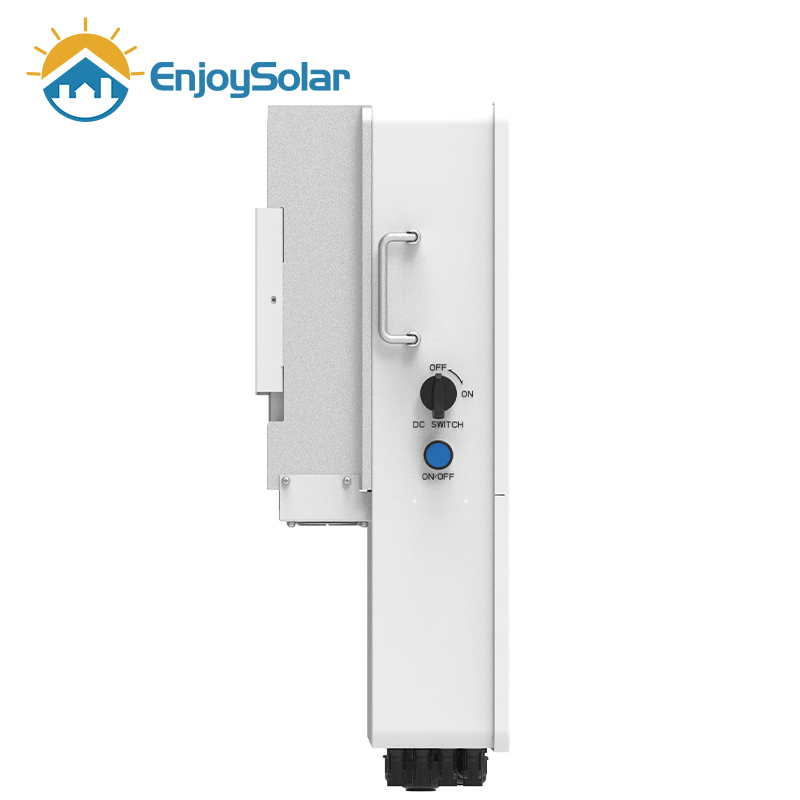

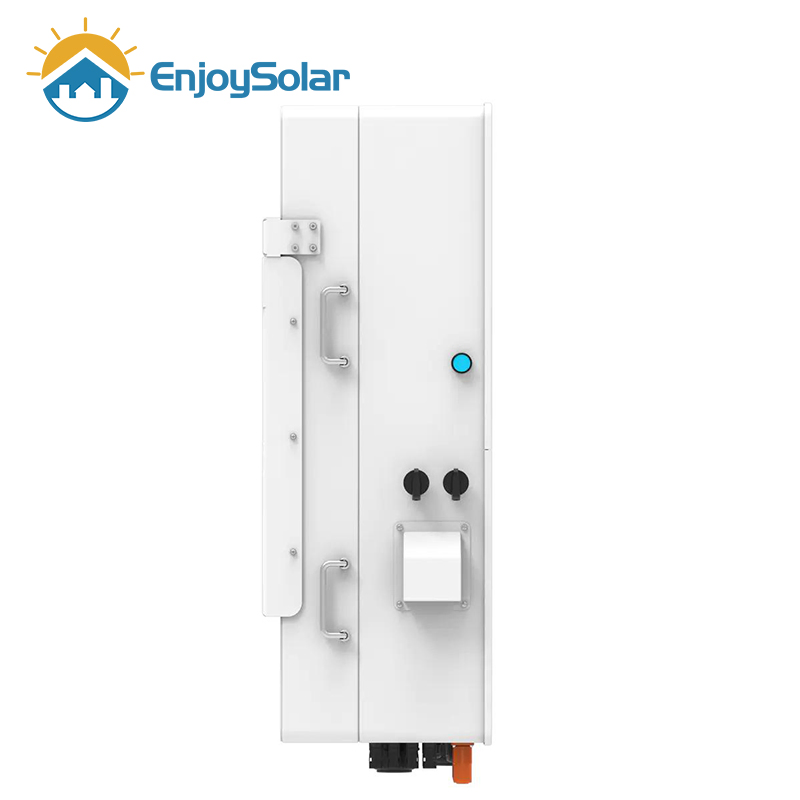

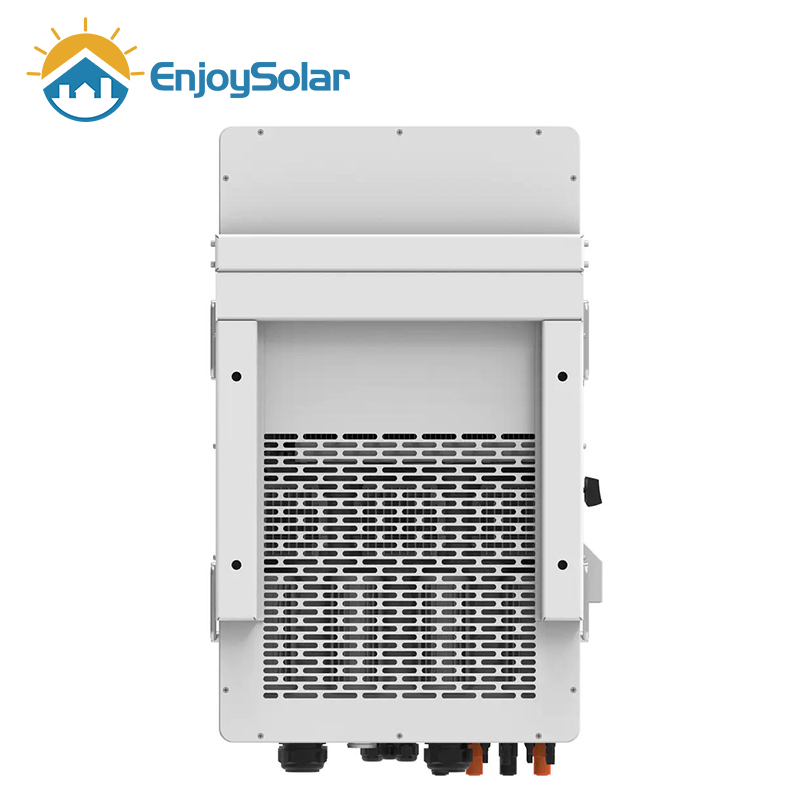

Deye EU 20kw 25kw 3 Phase 400V Home Use Solar Power Hybrid Inverter

Basic Specifications

ModelSUN-20K-SG01HP3-EU-AM2

Nature of SourceActive Inverter

PhaseThree Phase

Output Power20kW

CertificationSAA, CE, ROHS, ISO9001, CCC

Power SourceSolar Power

Protection RatingIP65

CoolingIntelligent Air Cooling

Battery TypeLithium-Ion

Weight30.5kg

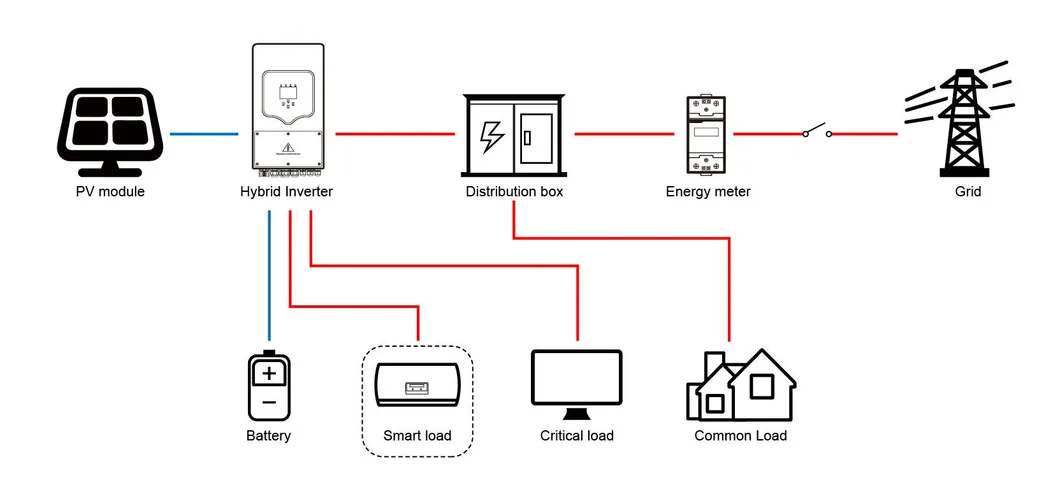

Energy Storage Solution Briefing

☀️

Maximizing solar self-consumption: During the day, the PV system generates electricity for loads initially. Excess energy charges the battery, which is released when needed.

🔋

Backup for critical loads: Independent output ports allow appliances like refrigerators and computers to remain powered during grid failure, switching in 4ms.

💰

Reducing electricity bills: Features 6 time periods for battery charging/discharging, allowing off-peak charging and peak-time discharging.

Product Description

5-25kW | Three Phase | 2 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

100% unbalanced output, each phase
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
Support multiple batteries parallel
High voltage battery for higher efficiency
6 time periods for battery charging/discharging

Product Parameters

Model Parameter	SUN-5K	SUN-8K	SUN-12K	SUN-20K	SUN-25K
Battery Voltage Range (V)	160-700V
Max. Charging Current (A)	30A	37A	37A	37A	50A
Max. DC Input Voltage (V)	1000V
MPPT Voltage Range (V)	150-850V
Rated Output Power (W)	5000W	8000W	12000W	20000W	25000W
Max. Efficiency	97.60%
IP Rating	IP65

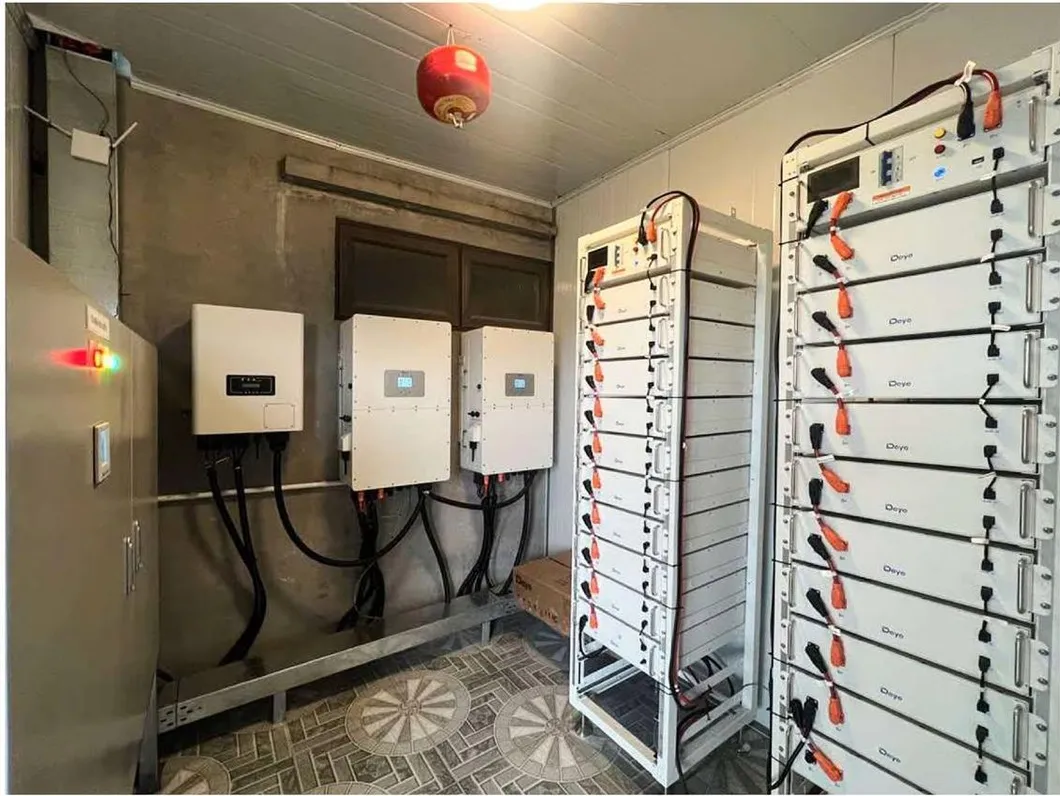

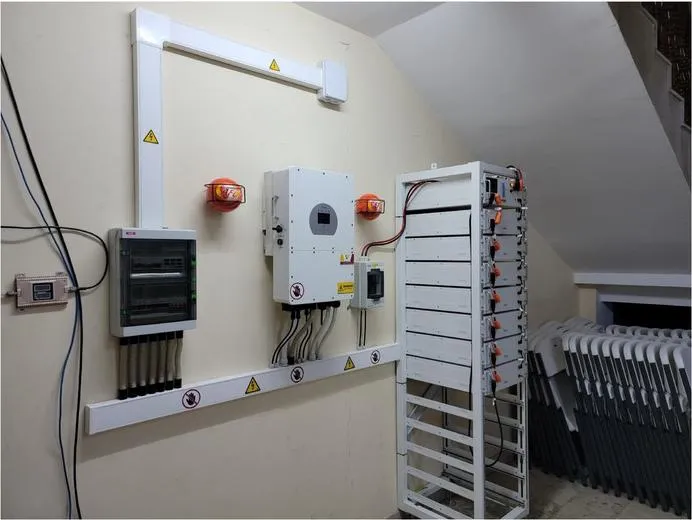

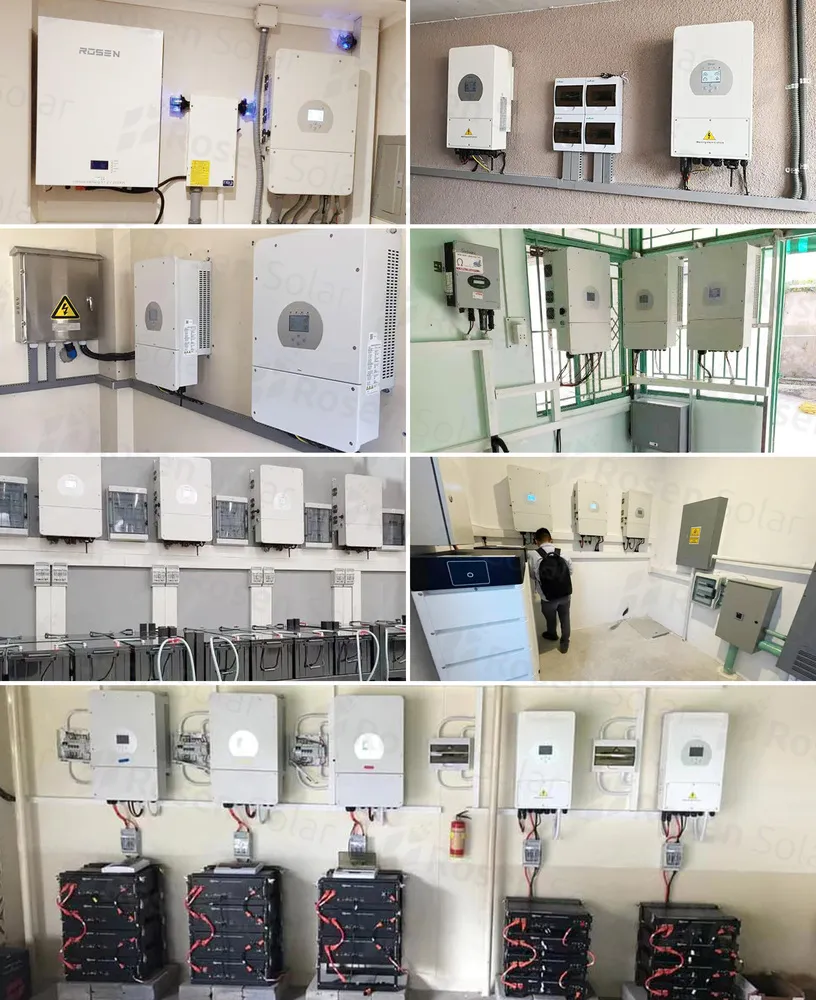

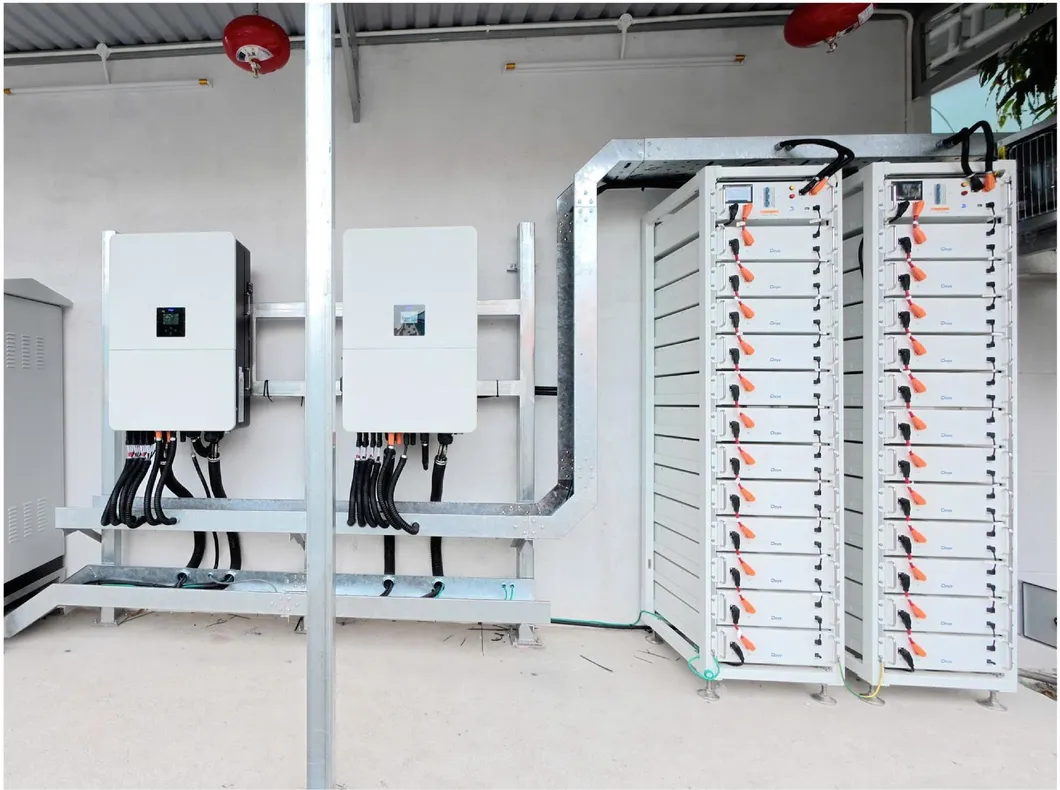

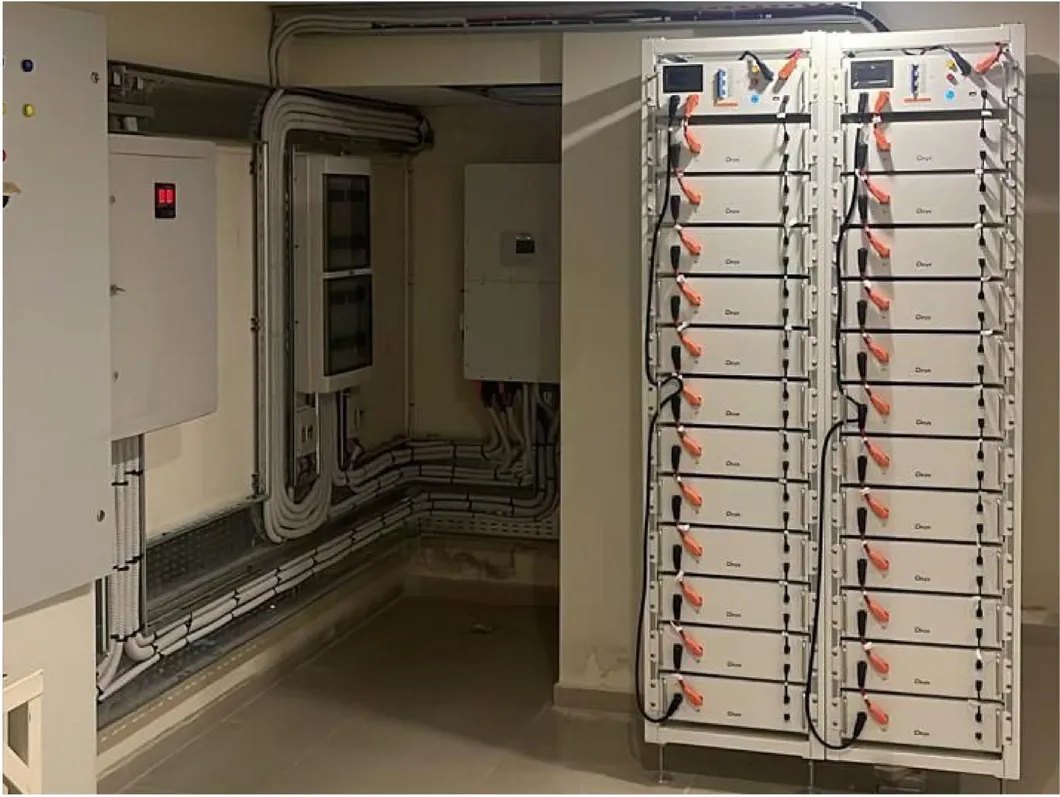

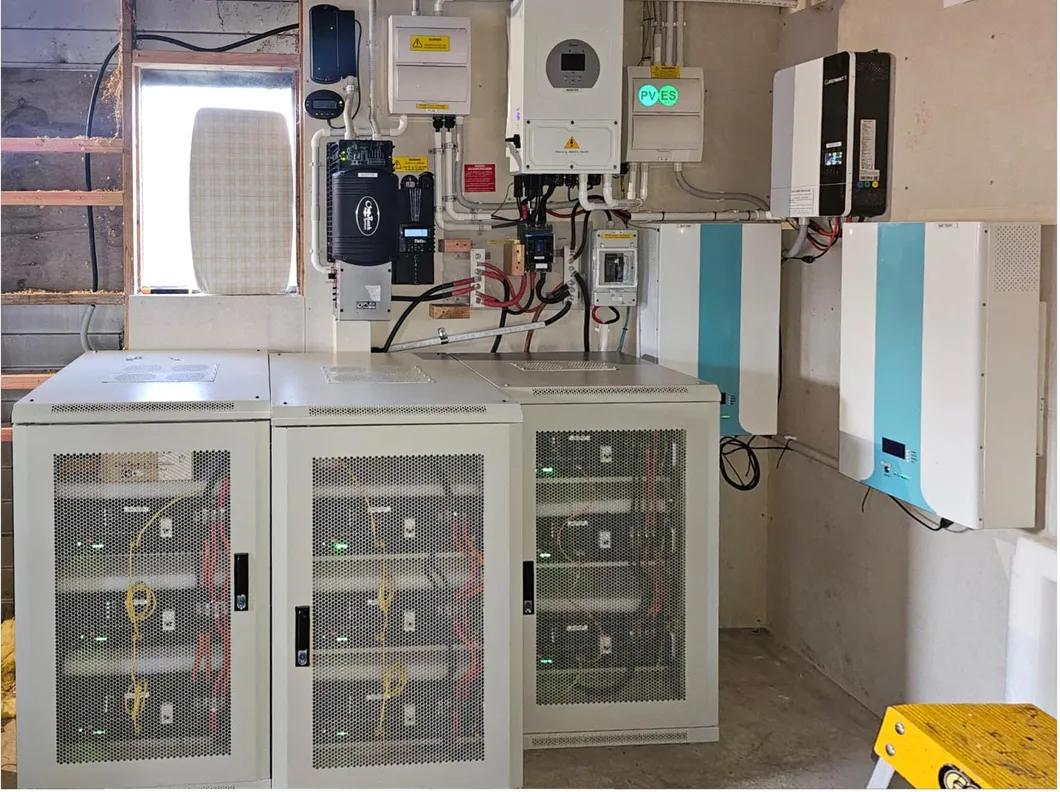

Portfolio

Frequently Asked Questions

What is the lifespan of a photovoltaic power generation system?

The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. Actual lifespan depends on usage and maintenance conditions.

How much maintenance do these systems require?

Maintenance is relatively simple. Regularly clean the photovoltaic panels and check the system's operating status to ensure maximum efficiency.

How much will I save on electricity bills after installation?

Savings depend on the system scale, local sunlight, and your usage patterns. Generally, a system can significantly reduce monthly electricity expenses.

What types of buildings are suitable for PV systems?

PV systems are suitable for residential, commercial, and industrial structures. The key requirement is an installation location with sufficient sunlight exposure.

How long does it take to install a system?

Residential installations typically take 1-3 days. Commercial or industrial systems are larger and may take several weeks depending on complexity.

Can these be combined with energy storage batteries?

Yes, photovoltaic systems can be combined with energy storage to improve energy utilization and achieve a more stable power supply during night or grid outages.
