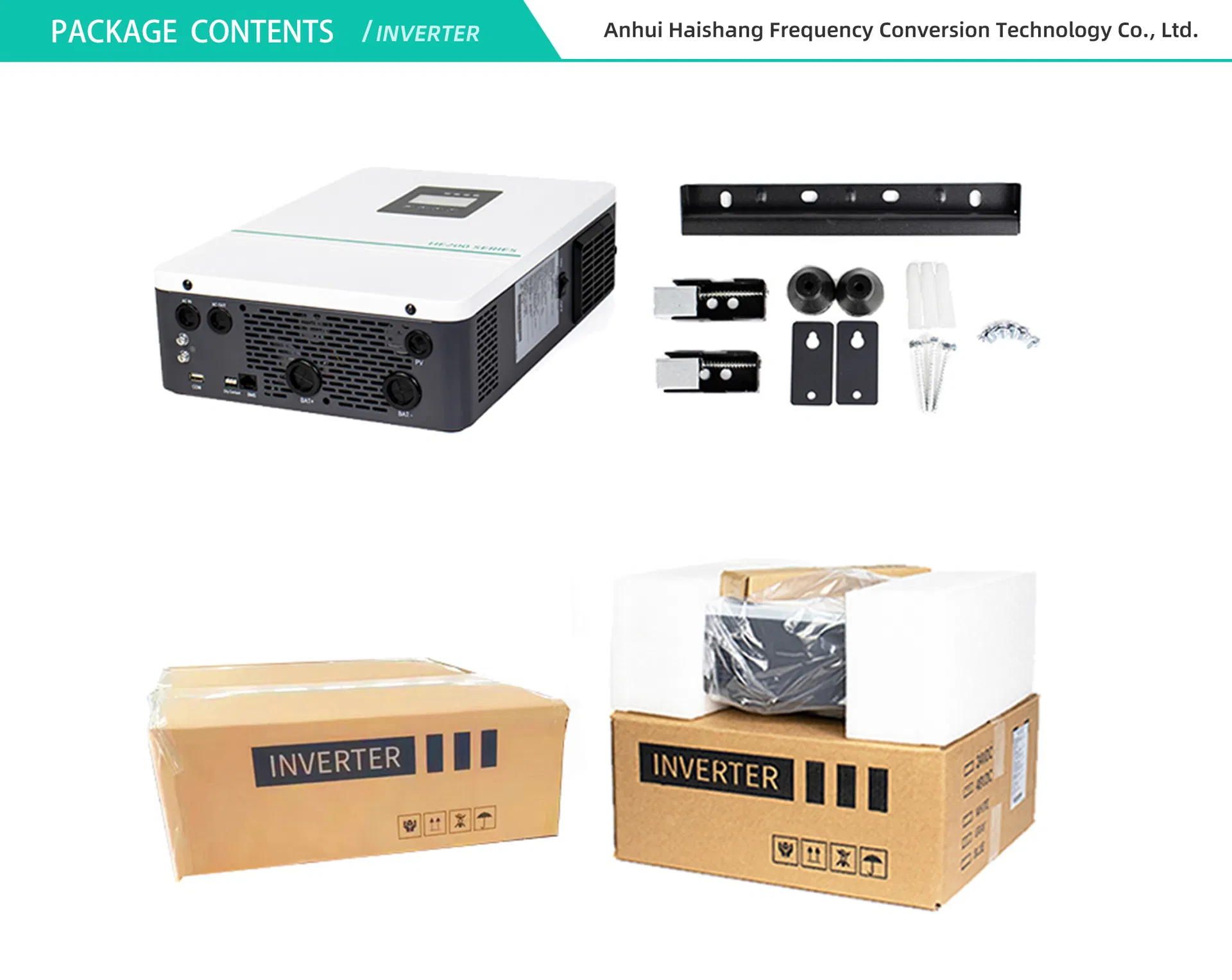

📦 Packaging & Delivery
Package Size: 63.50cm * 55.00cm * 23.50cm
Package Gross Weight: 24.000kg

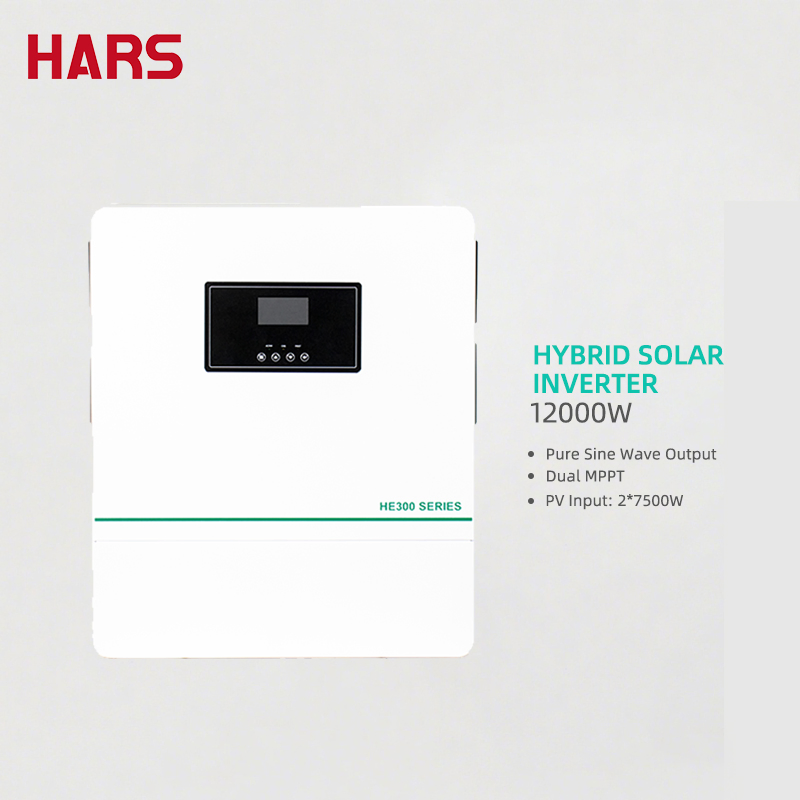

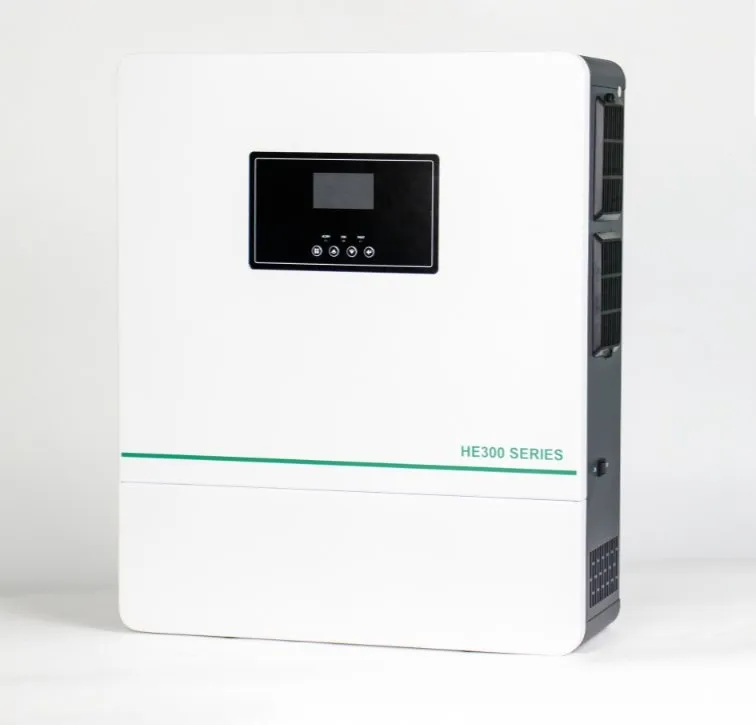

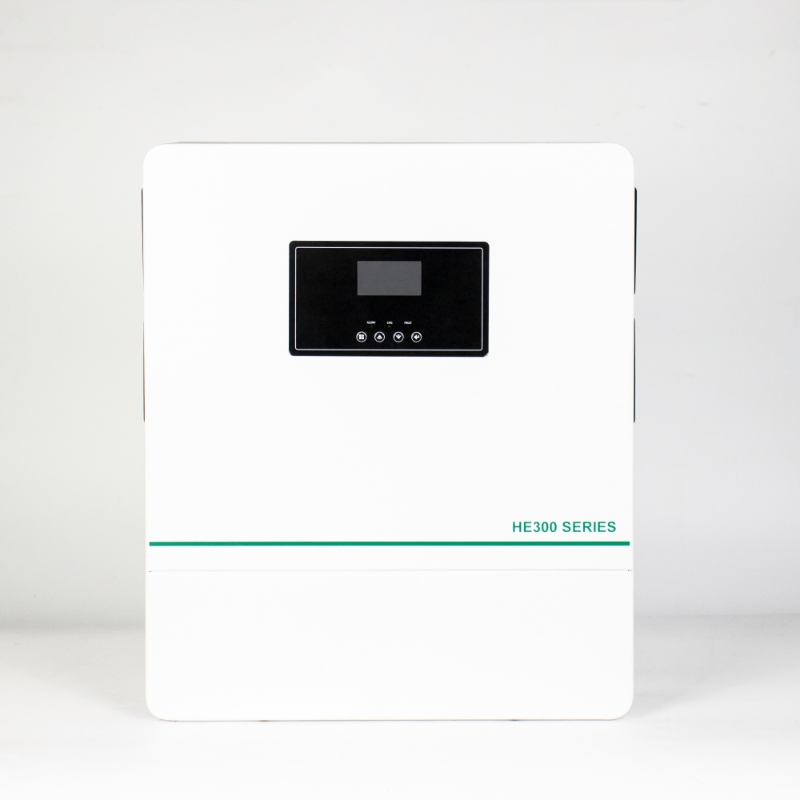

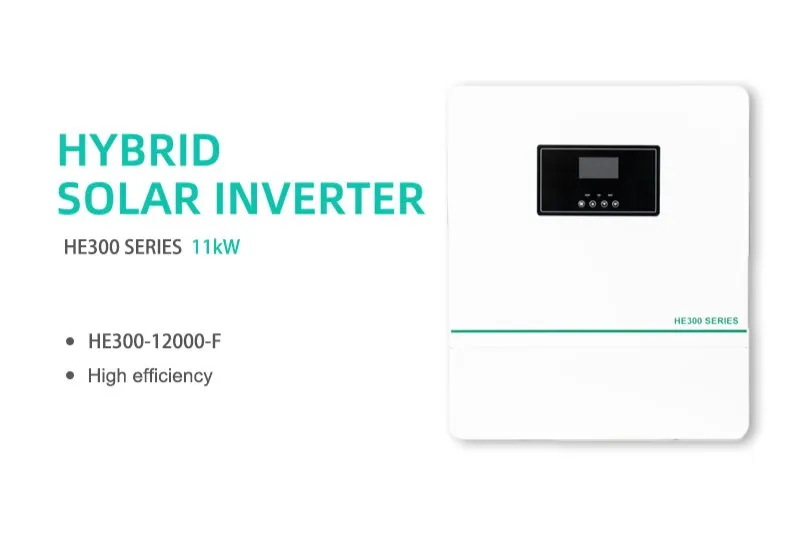

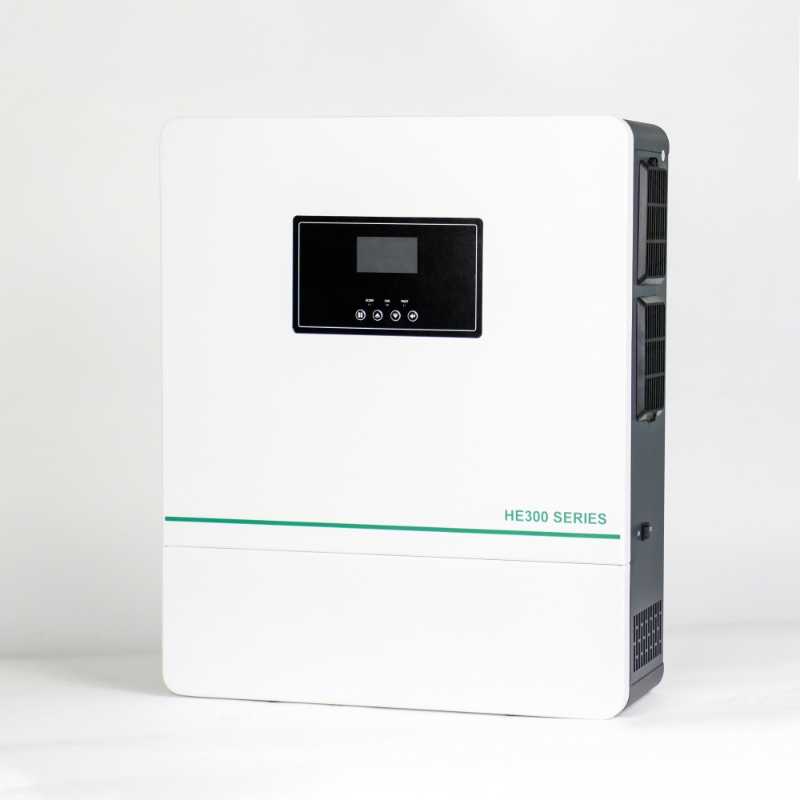

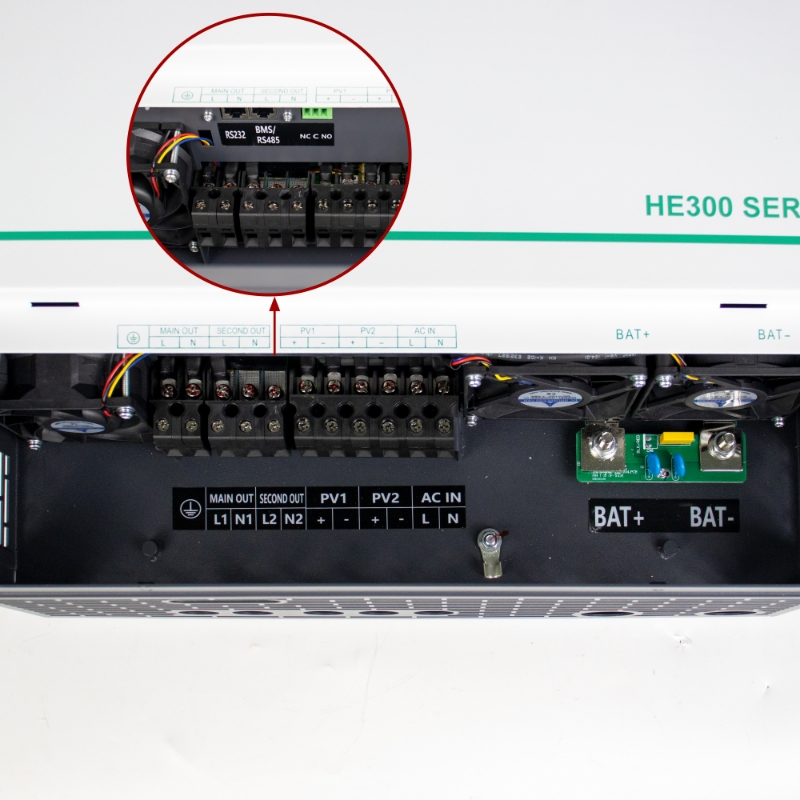

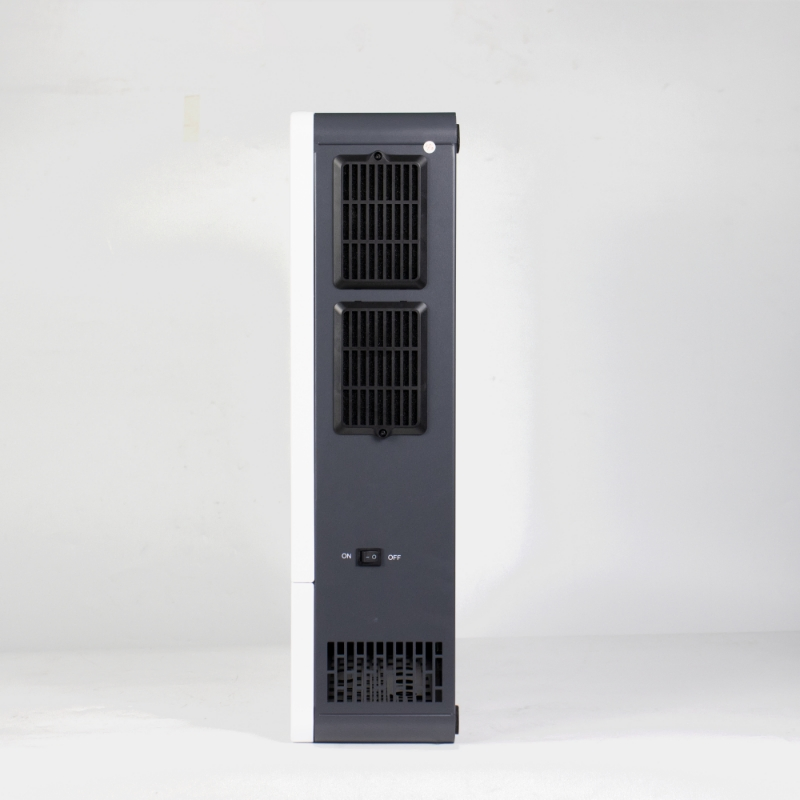

Hybrid Solar Inverter
The HE300 series solar inverter is a multifunctional hybrid solar inverter that outputs single-phase pure sine wave. It adopts a portable size, supports uninterruptible power supply (UPS) switching, and features customizable settings for battery charging voltage and current.

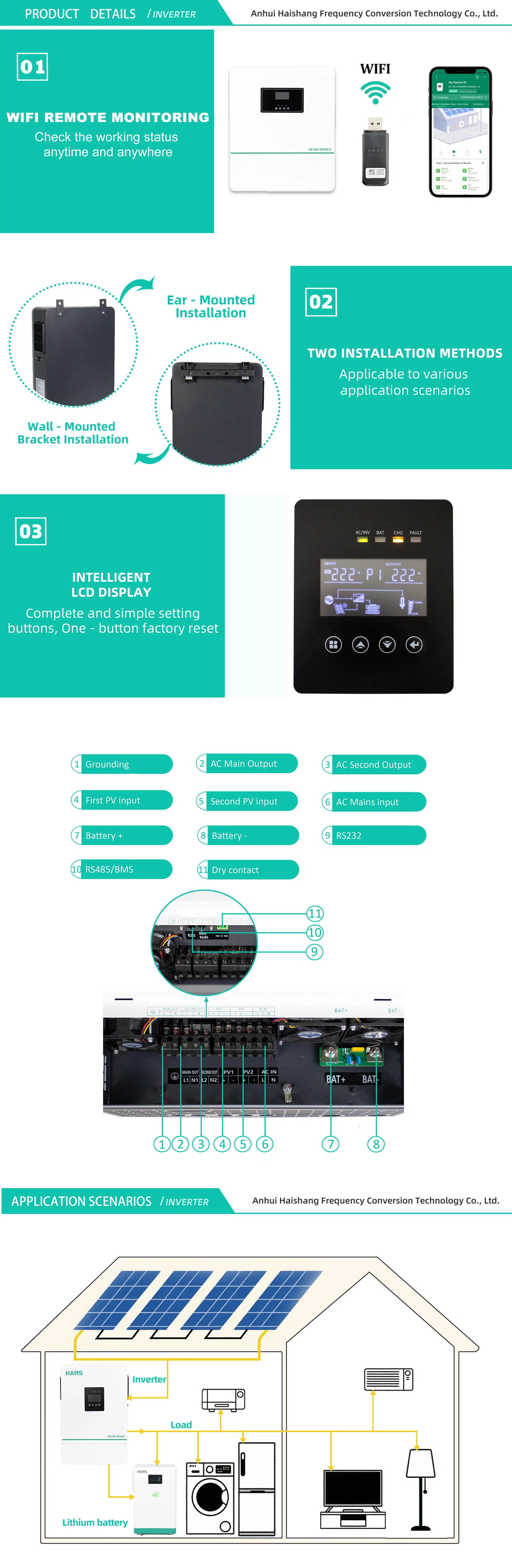

With multiple power input/output priority settings, adjustable AC voltage and frequency, it is suitable for various power grid environments and supports online data monitoring via a mobile APP.
| MODEL | HE300-12000-F |
|---|---|
| Inverter Output | |
| Rated Output Power | Battery: 11000W / PV: 12000W |
| Rated Output Voltage | 220/230/240Vac ±5% |
| Rated Output Current | 47.8A |
| Output Waveform | Pure Sine Wave |
| Battery & Charging | |
| Battery Type | Lead acid/Gel/Lithium |
| Rated Battery Voltage | 48V |
| Max PV Charging Current | 150A |
| PV Input | |
| Max Input Power | 2 * 7500W |
| Max Open Circuit Voltage | 500Vdc |
| Input Voltage Range | 90~450V |

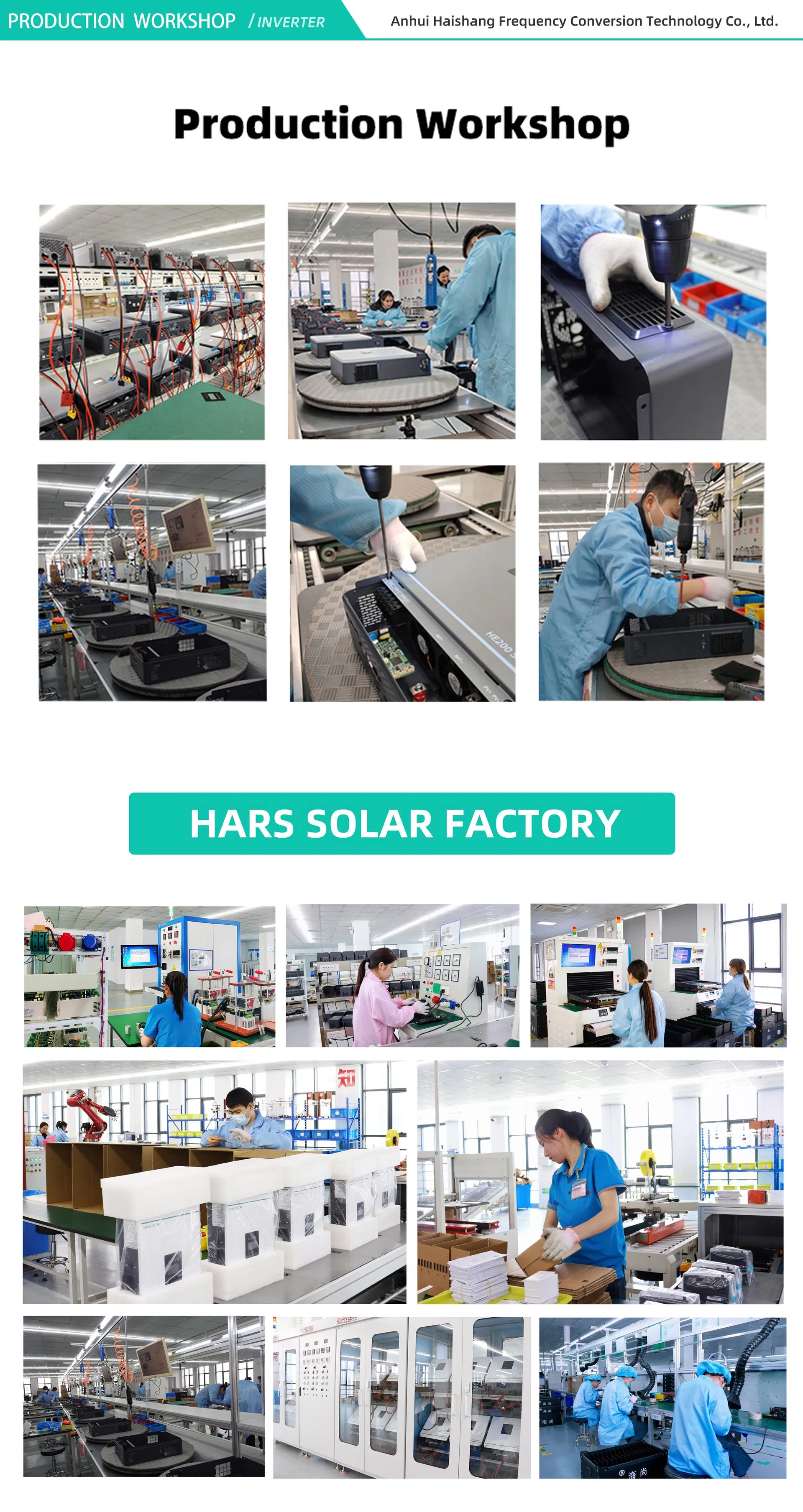

As a high-tech enterprise integrating R&D, production, and technical services, we maintain an automated production rate of 80%. Our sufficient inventory ensures reliable delivery times for global partners. We provide professional ODM and OEM services, supported by multiple technical centers and extensive production facilities dedicated to photovoltaic innovation.
