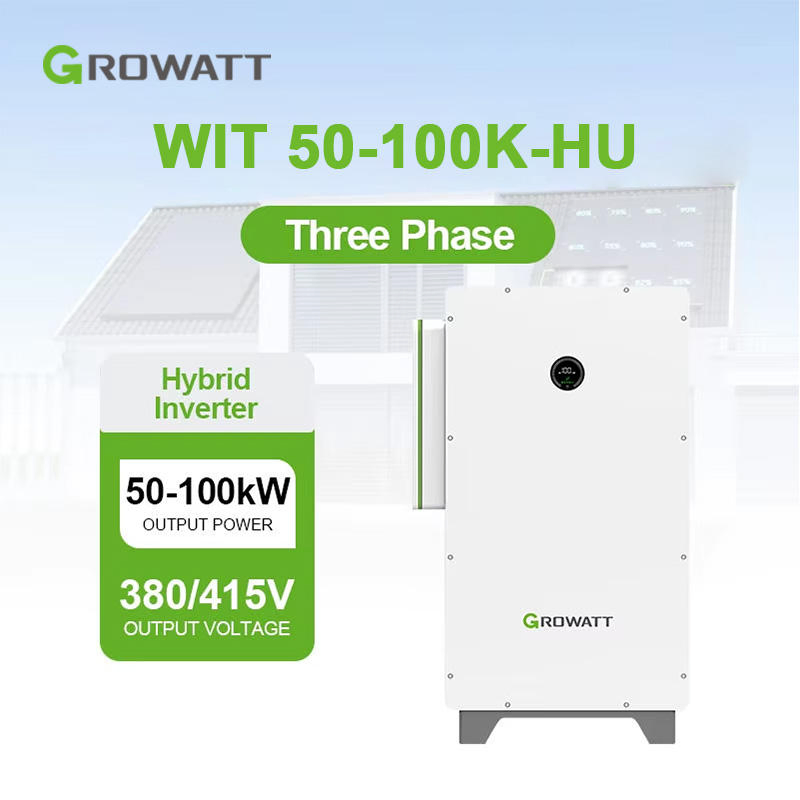

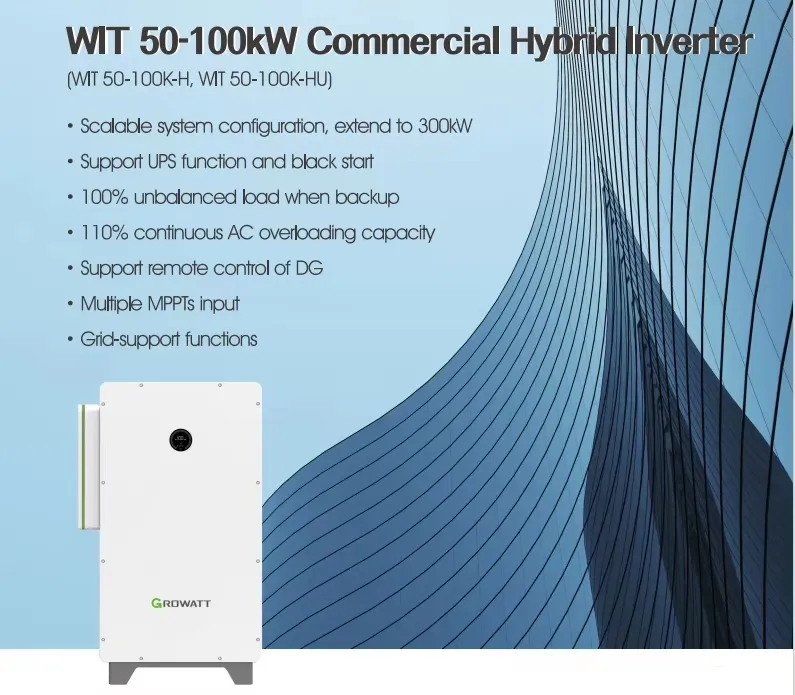

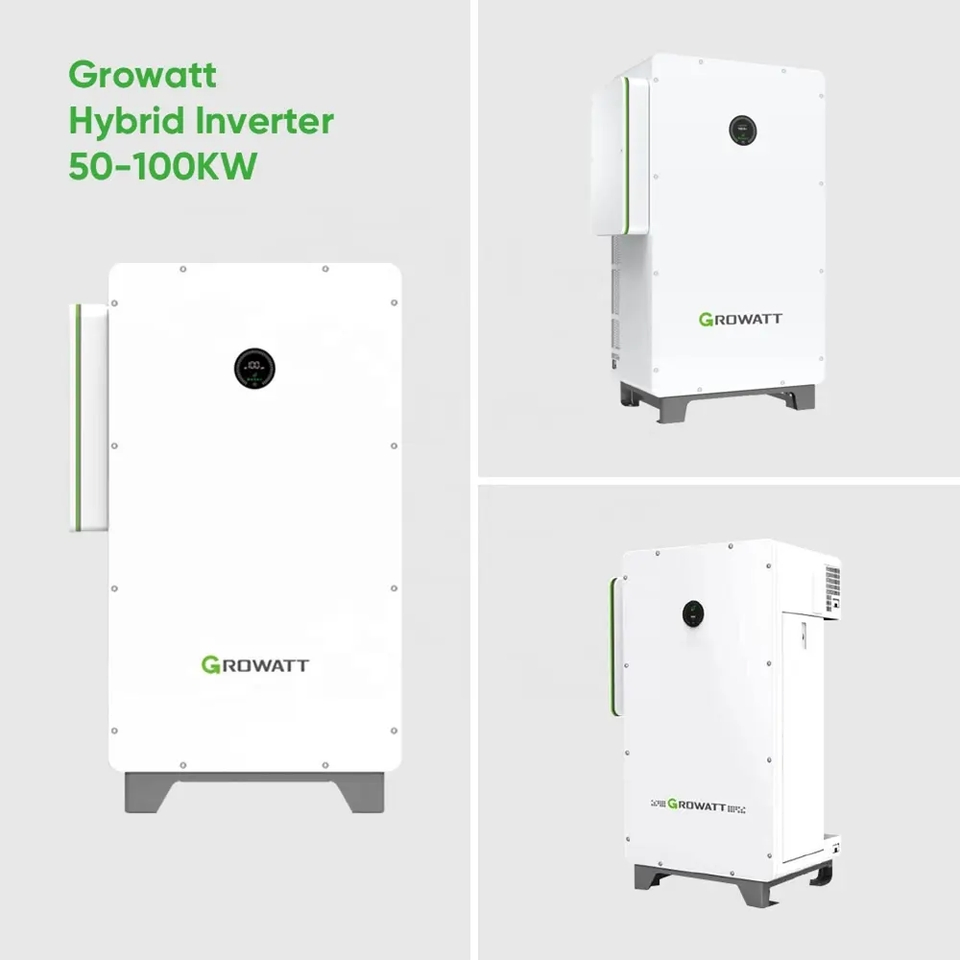

WIT 50-100KW Hybrid Inverter Advantage:

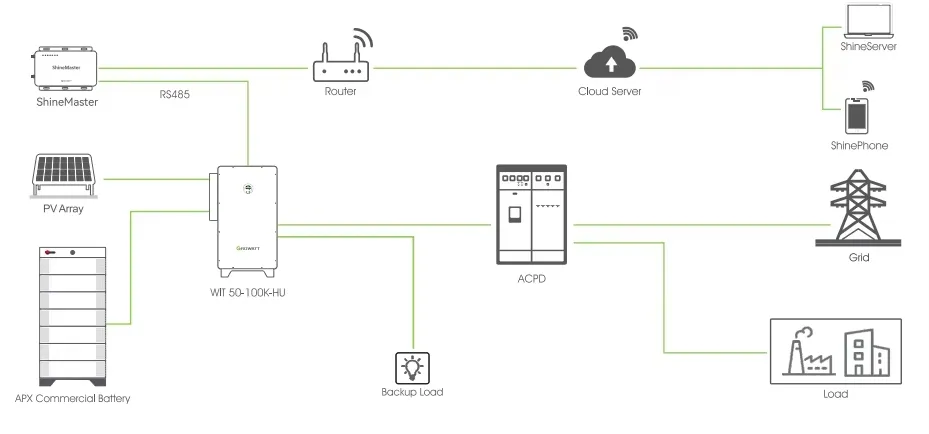

Compared with the AC coupling method of photovoltaic storage, the DC coupling system architecture is simpler and more convenient. It can flexibly meet various application requirements to achieve maximum benefits.
1. Improve Self-Consumption: Store excess PV power in batteries for peak load use, optimizing the consumption curve.
2. Peak Shaving & Demand Management: Charge during low-price valleys and discharge during high-price peaks to reduce transformer capacity demand.
3. Microgrid Capability: Supports diesel engine access, providing stable electricity for areas with frequent power outages.

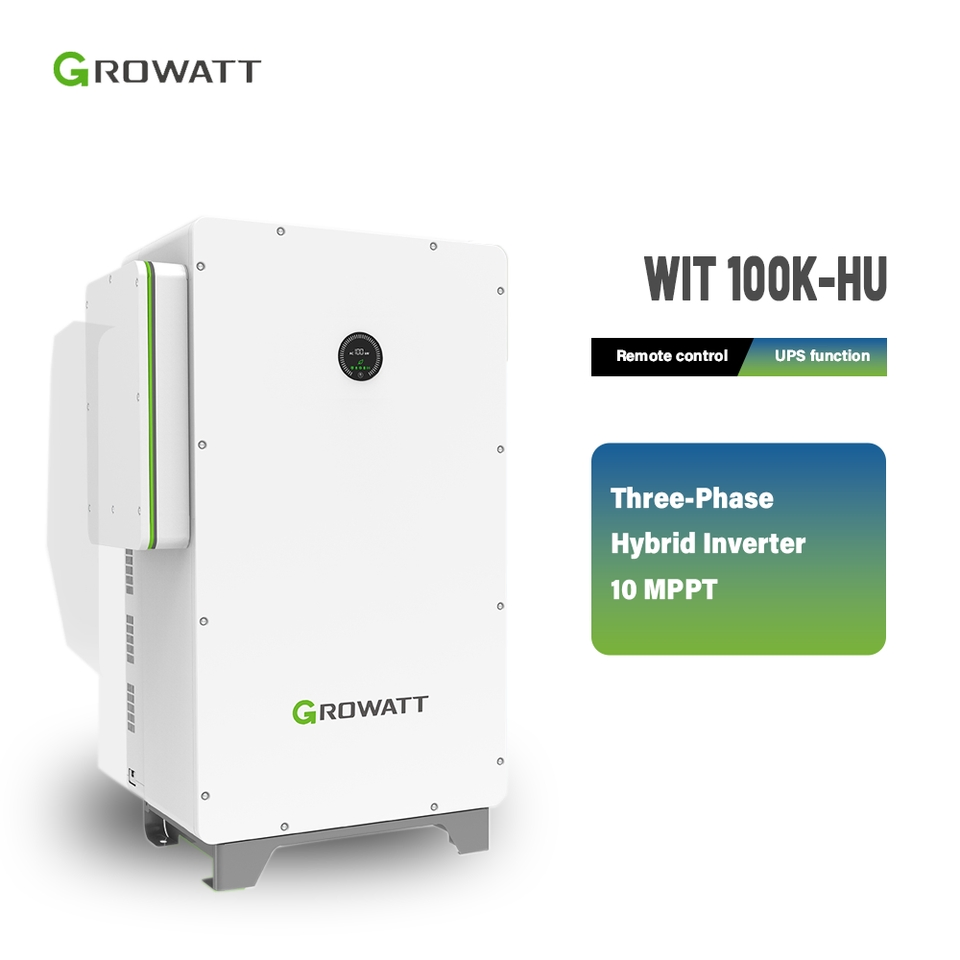

| Datasheet | WIT 50K-HU | WIT 63K-HU | WIT 75K-HU | WIT 100K-HU |
|---|---|---|---|---|
| Max. PV Power | 109.2kW | 124.8kW | 156kW | 156kW |
| Start Voltage | 195V | |||
| Max. Input Voltage | 1100V | |||
| MPPT Nominal Voltage | 550V (180V~800V Range) | |||
| No. of MPP Trackers | 7 | 8 | 10 | 10 |
| AC Nominal Power | 50kW | 63kW | 75kW | 100kW |
| Max. AC Apparent Power | 55kVA | 69.3kVA | 82.5kVA | 110kVA |
| Battery Voltage Range | 600-1000V (3P3W) / 680-1000V (3P4W) | |||
| Max. Efficiency | 98.2% | |||
| UPS Transfer Time | ≤20ms | |||
