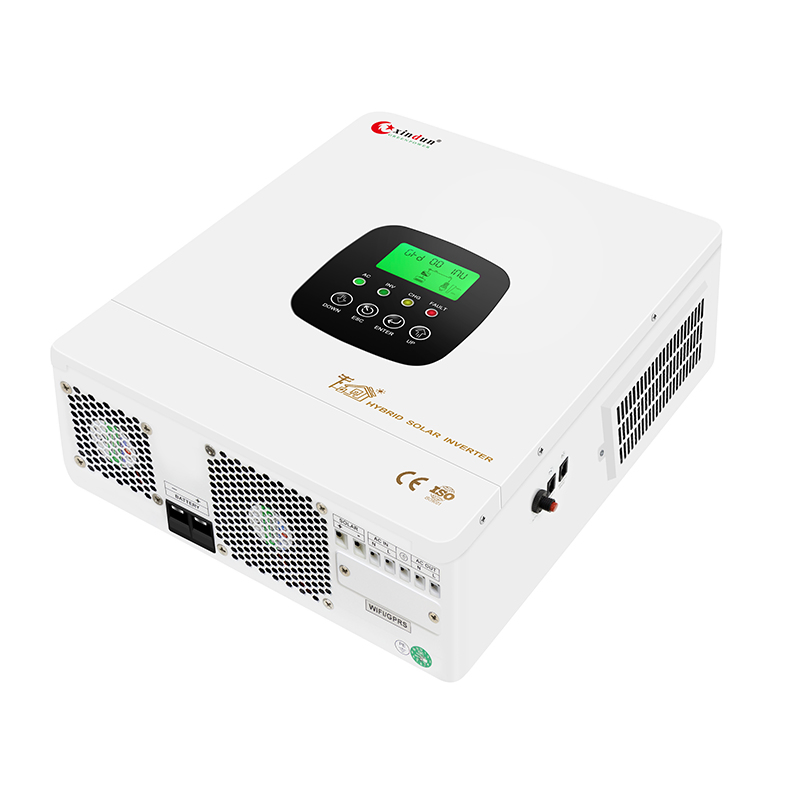

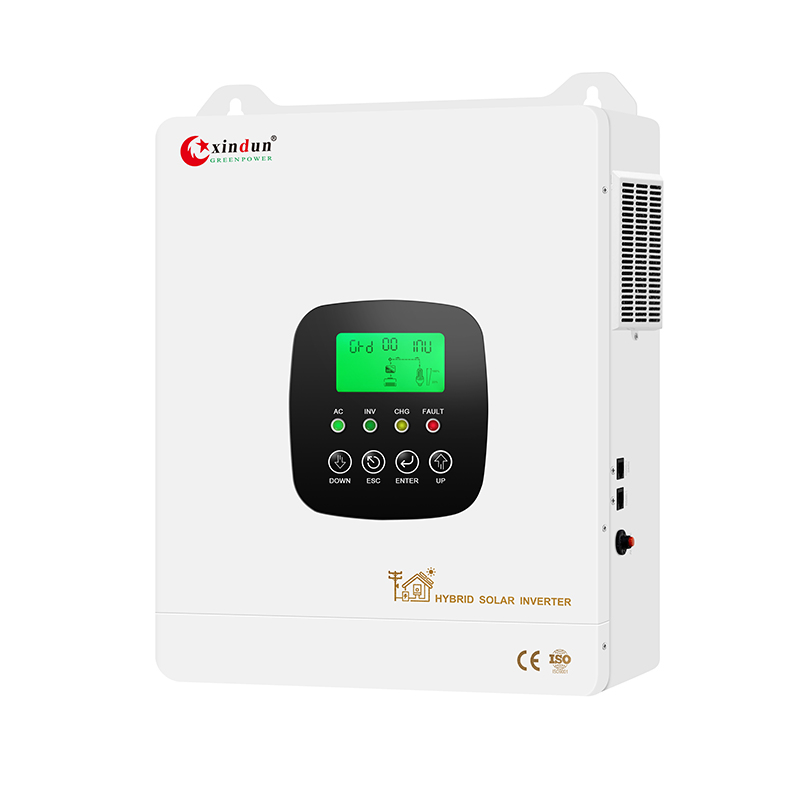

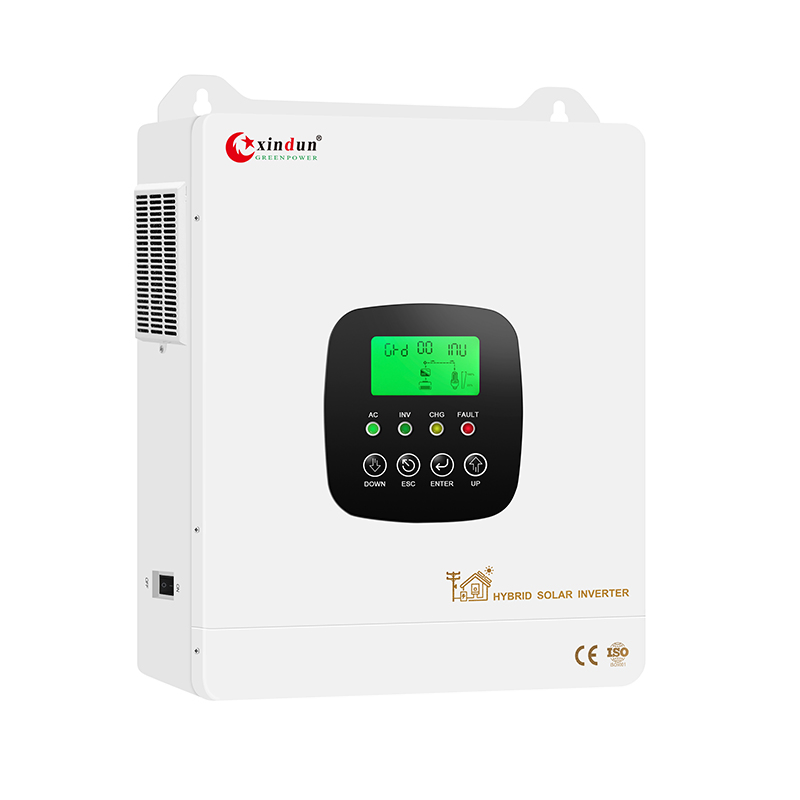

Renewable Energy Best Photovoltaic 12kw 3000W 10kw 3kw 6kw 4000W Single Phase off on Grid Pure Sine Wave MPPT Power Solar Hybrid Energy Inverter Price for Home

Customization:	Available
After-sales Service:	Yes
Warranty:	24 Months

Basic Information

Model NO.

XD-HFP

Nature of Source

Active Inverter

Phase

Single Phase Solar Inverter

Output Power

3300W to 12.3kw

Type

DC/AC Inverters

Wave Form

Pure Sine Wave

Rated Voltage

220V / 230V / 240V

Efficiency

94%

Charging Mode

MPPT Solar Inverter

Battery Type

Lithium / Lead Acid / Gel

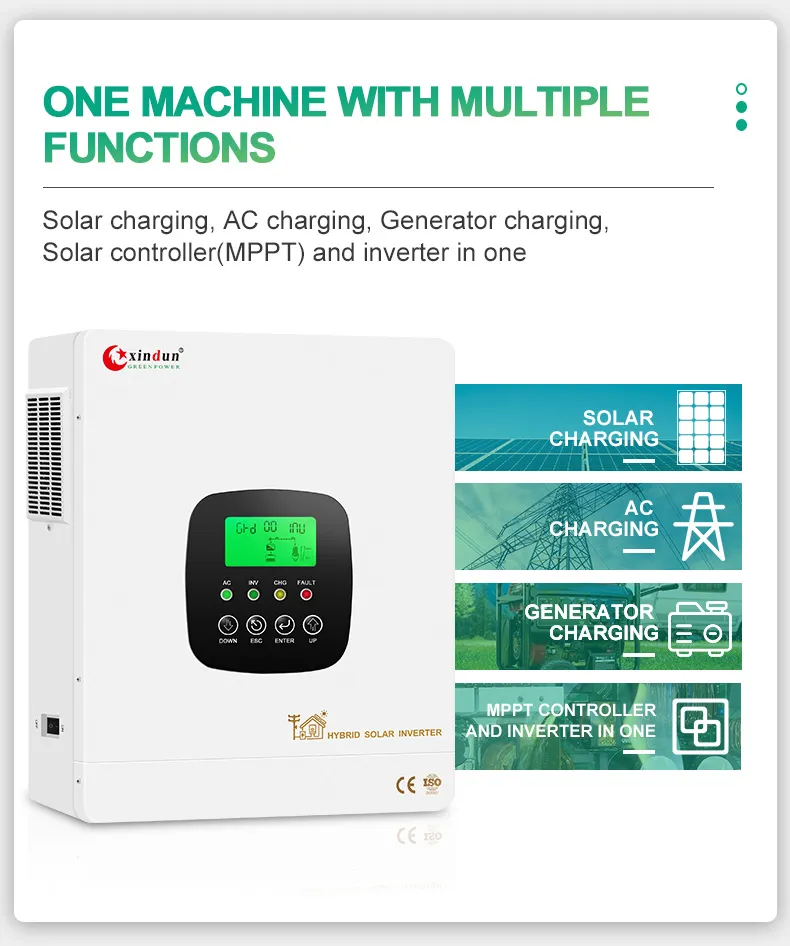

Inverter Features

✔High-frequency design with high power density and small size.
✔Bidirectional energy storage for controlled flow of PV and grid power.

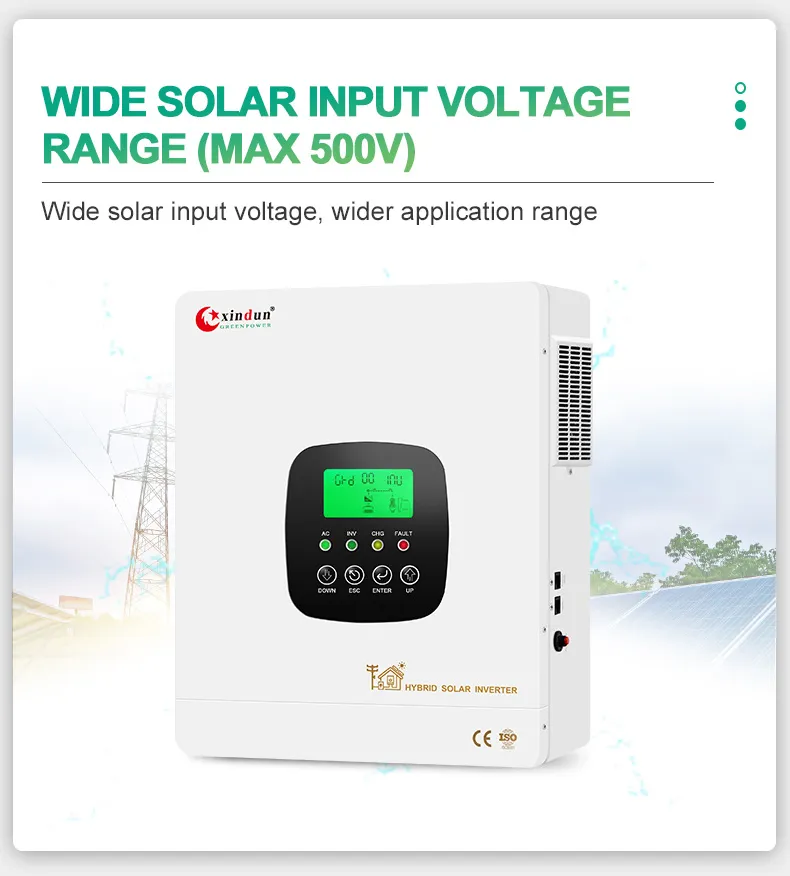

✔Ultra-wide MPPT range: min 40Vdc (24V) / 80Vdc (48V).

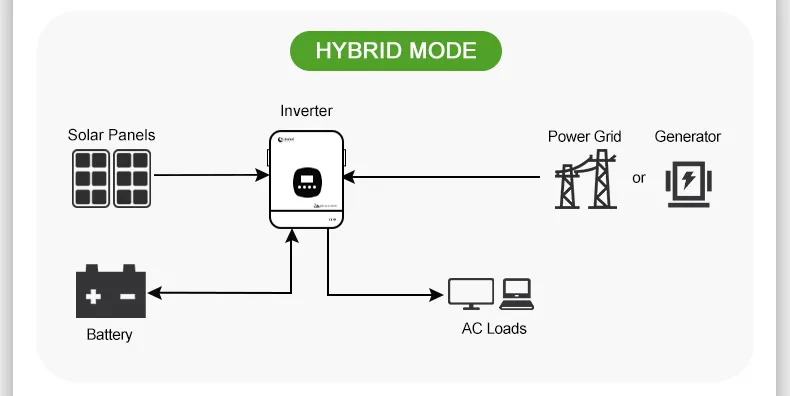

✔Multiple working modes: Grid-connected, off-grid, and hybrid.
✔Configurable grid-connected current and output priority settings.

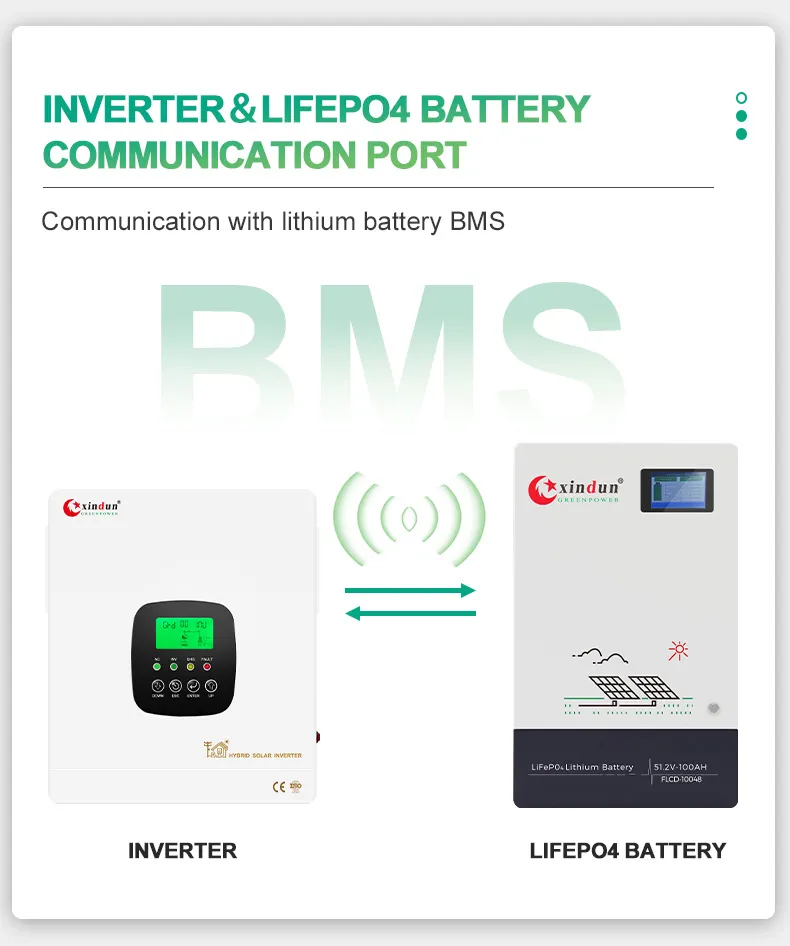

✔Equipped with lithium battery BMS communication function.

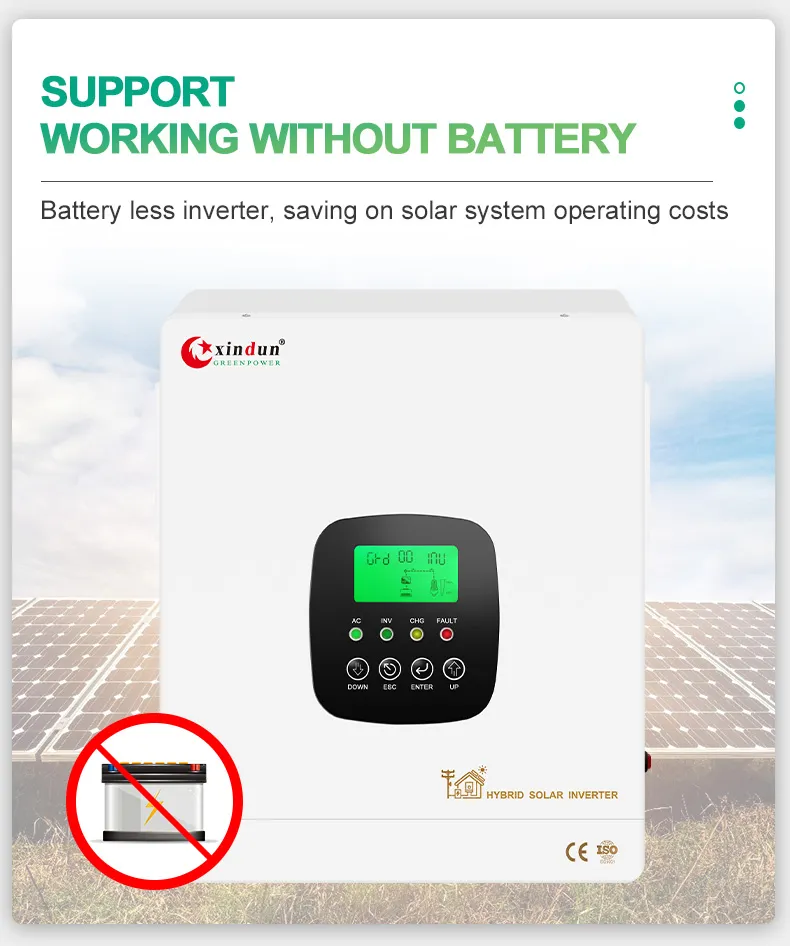

✔Supports battery-less operation mode.

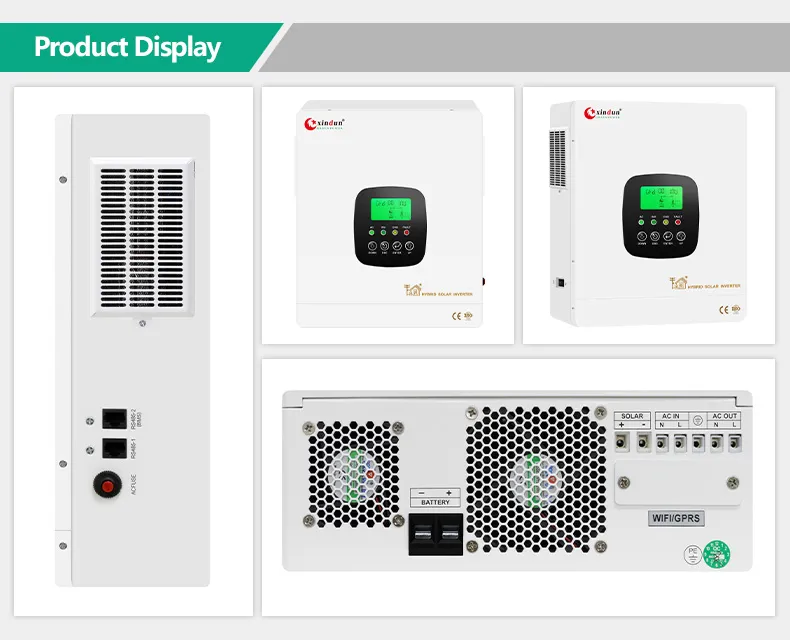

Product Details

Technical Specifications

Model : HFP		33224	43224	63248	83248	103248	123248
PV Input	Max PV Input Power	5000W	5000W	7000W	4500W*2	6000W*2	6000W*2
PV Input	MPPT Tracking Range	40VDC-450VDC		80VDC-450VDC
Battery	Rated Battery Voltage	24VDC		48VDC
Battery	Max Charging Current	120A	150A	120A	150A	180A	200A
AC Output	Rated Output Power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
AC Output	Output Wave	Pure Sine Wave

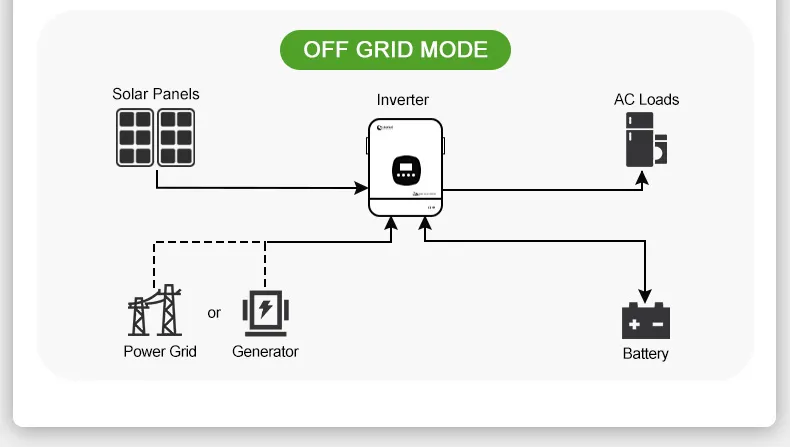

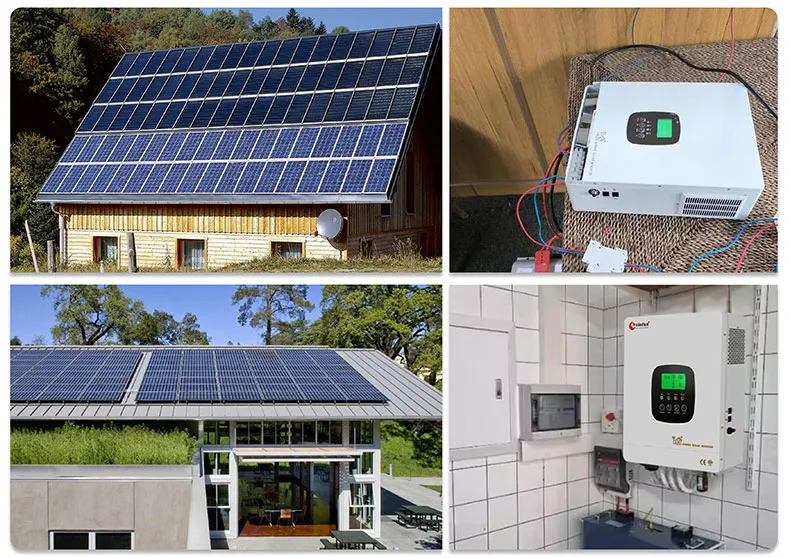

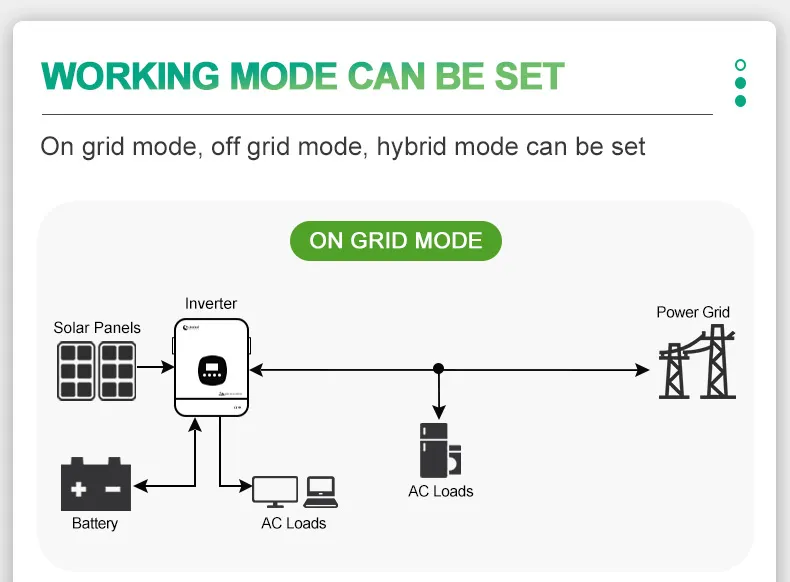

Wiring Diagram & Application

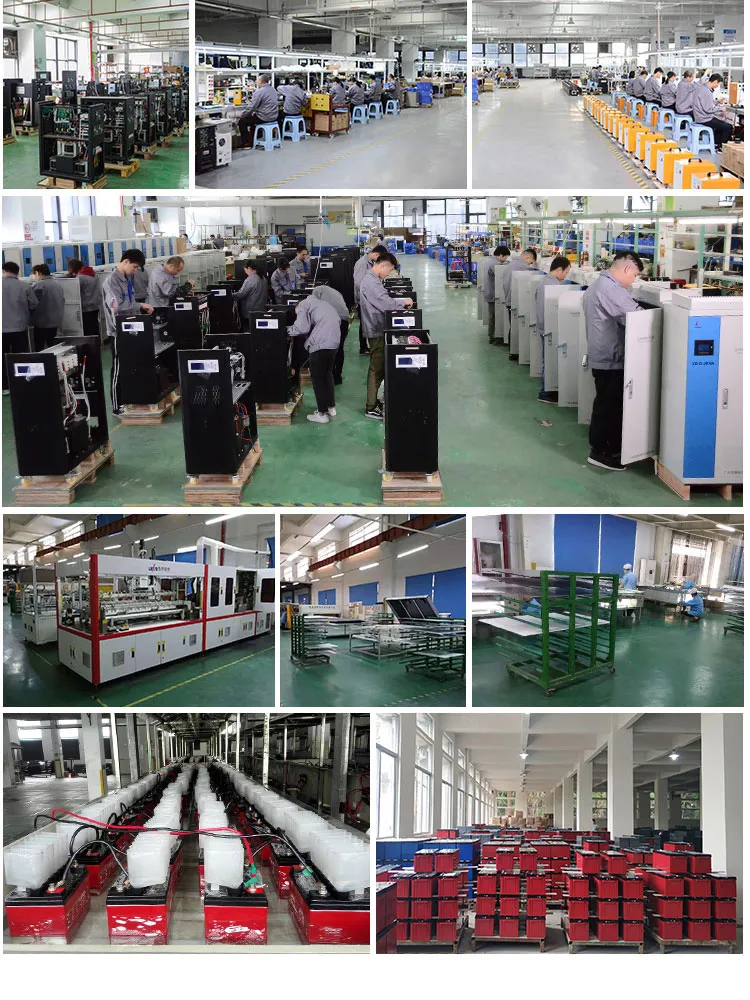

Packing & Production

Packaging Details

Standard Carton Boxes are used for packaging. For sample orders, wooden boxes are advised to provide maximum protection during transportation.

Shipping Methods

1. Express: FedEx/DHL/TNT/UPS for samples (door-to-door).
2. Bulk Orders: By air or sea for batch goods.
3. Delivery Time: Approx. 7 days for samples; 10 to 25 days for batch goods.

Frequently Asked Questions

What types of batteries are compatible with this hybrid inverter?

The inverter is compatible with Lithium, Lead-acid, and Gel batteries. It also supports custom battery parameter settings via the operation board.

Can this inverter operate without a battery?

Yes, this model supports a battery-less operation mode, allowing it to power loads directly from PV or grid sources.

What is the maximum conversion efficiency of the unit?

The inverter achieves a peak conversion efficiency of 94% during battery discharge and an MPPT tracking efficiency of ≥99.9%.

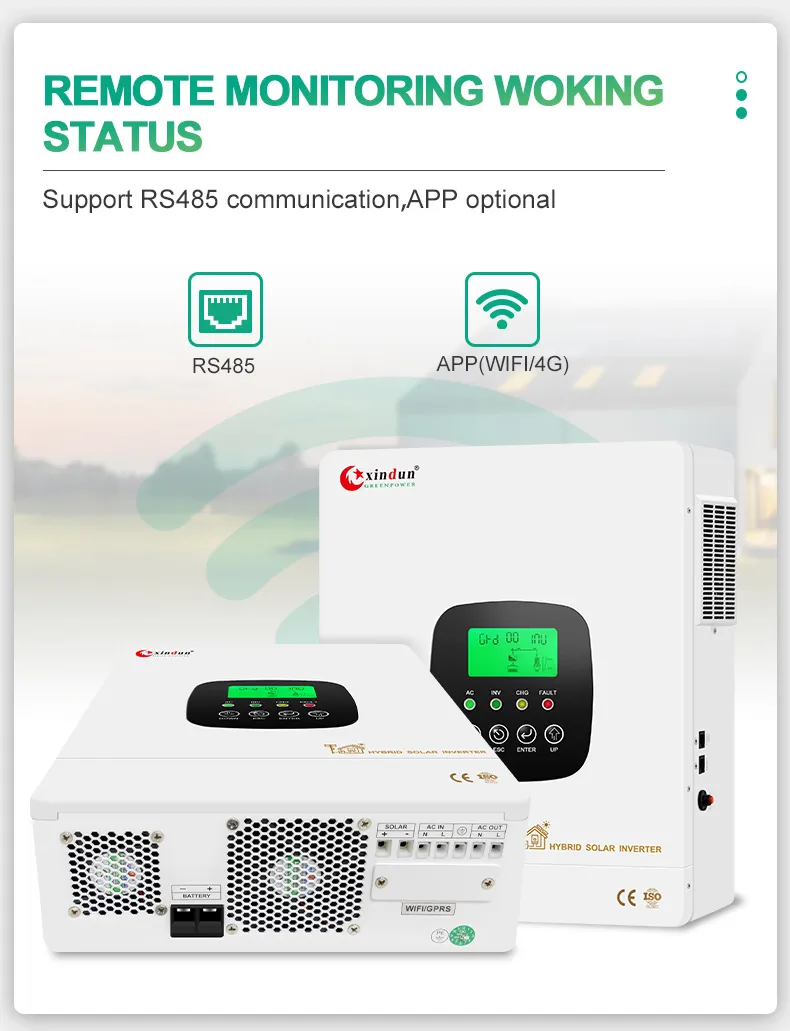

Does the system support remote monitoring?

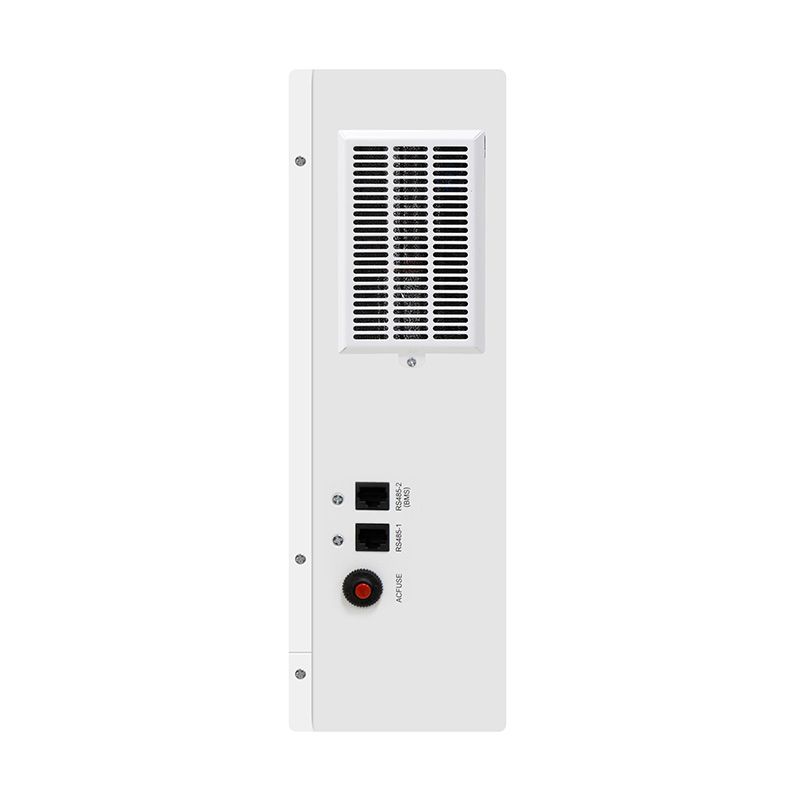

Yes, it supports communication via RS485 and can be integrated with a mobile app via WiFi or GPRS monitoring modules.

What protection features are built into the inverter?

It includes comprehensive protection against battery low voltage, overload, short circuits, and over-temperature (auto shut-off above 90°C).

What is the typical transfer time between power sources?

The typical transfer time is 10ms, ensuring a seamless transition for connected electronic equipment.
