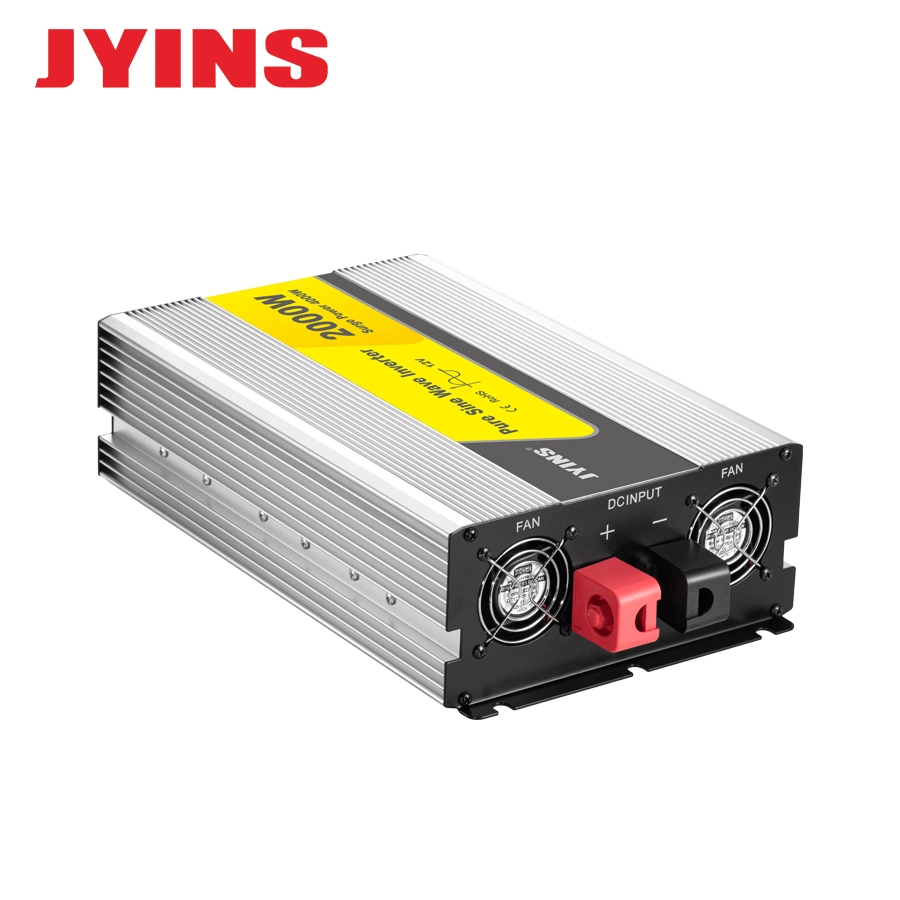

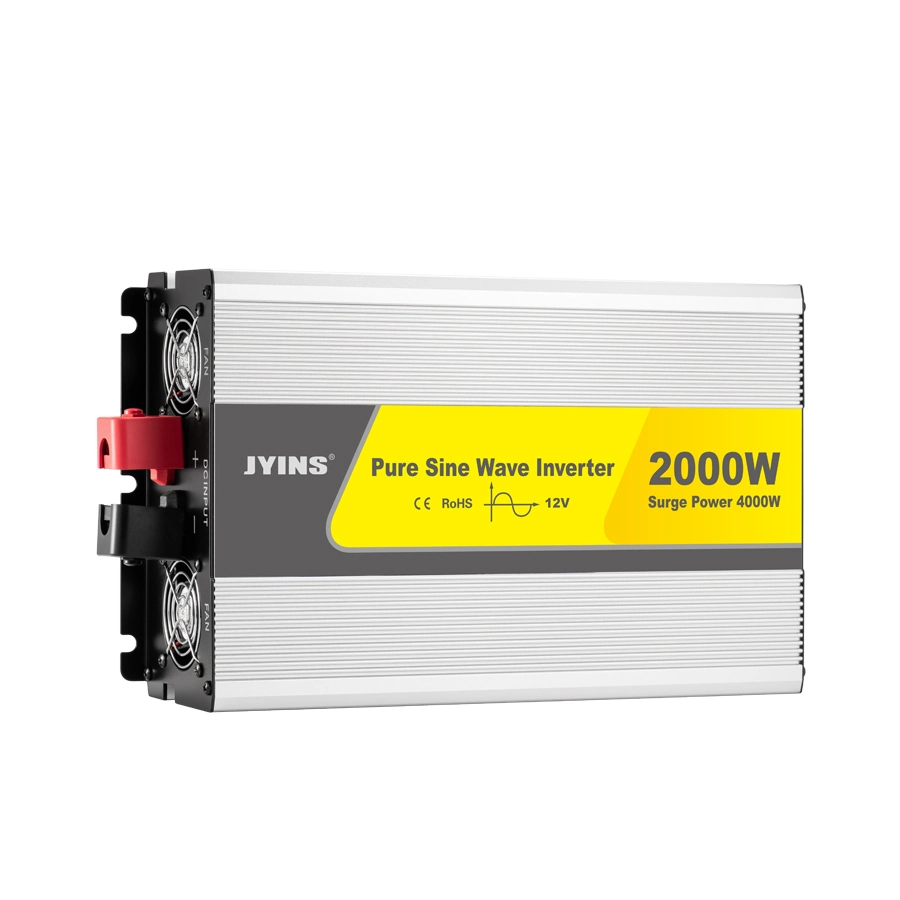

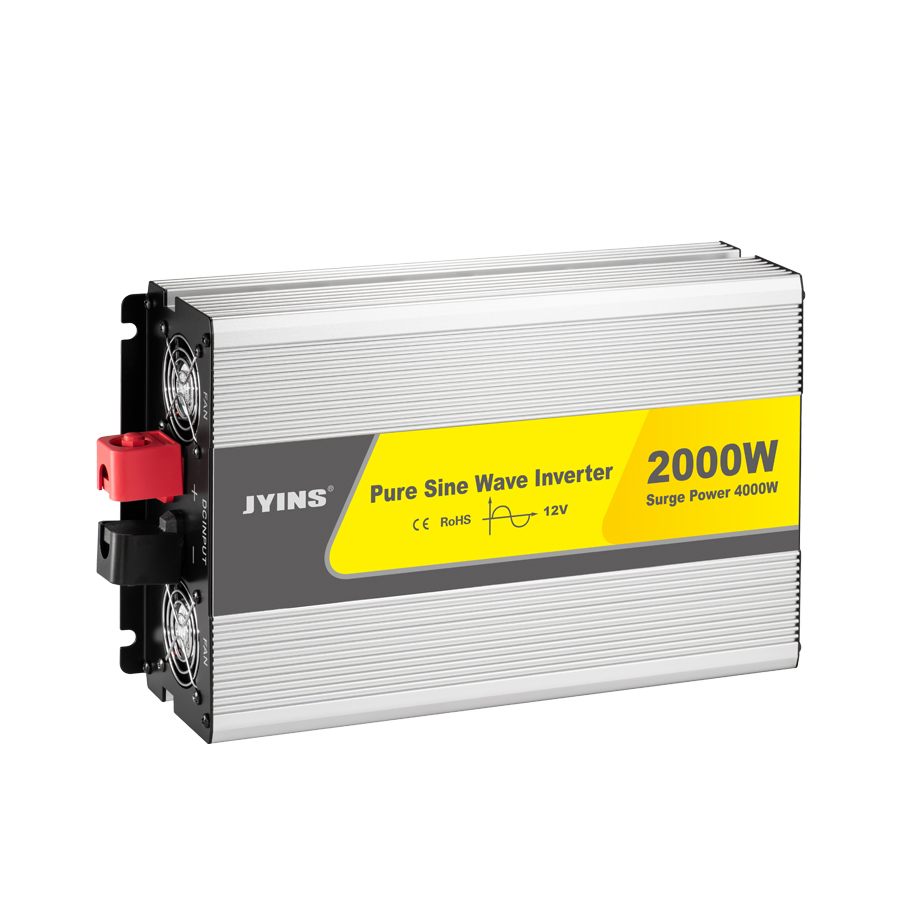

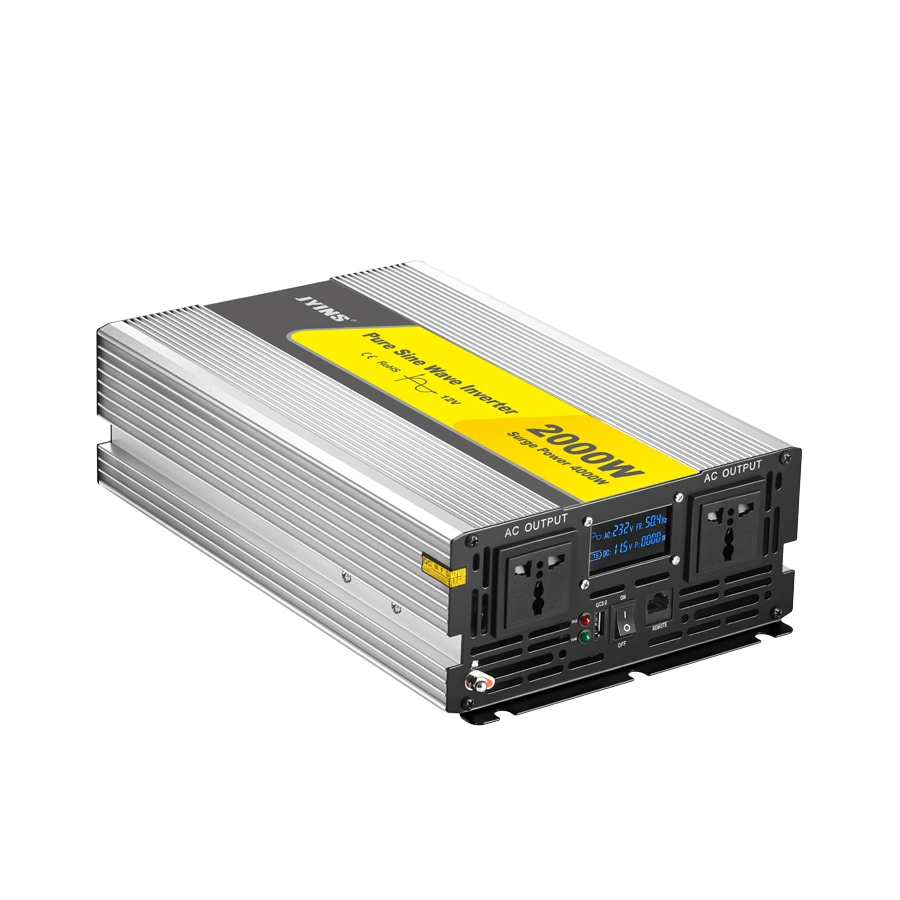

1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter

1 / 5

1000W/2000W/3000W/4000W/5000W/6000W Pure Sine Wave Power Inverter

Customization:	Available
Nature of Source Flow:	Passive inverter
Certification:	ISO9001, RoHS, CE

Send Inquiry

Product Description

Basic Info.

Model NO.

JYP-1000W~6000w

Output Power

>1000W

Grid Type

Off-Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Wave String

Pure Sine Wave Inverter

Input Voltage

12V/24V/48V

Warranty

12 Months

Application

Electric Tools

Specification

CE ROHS

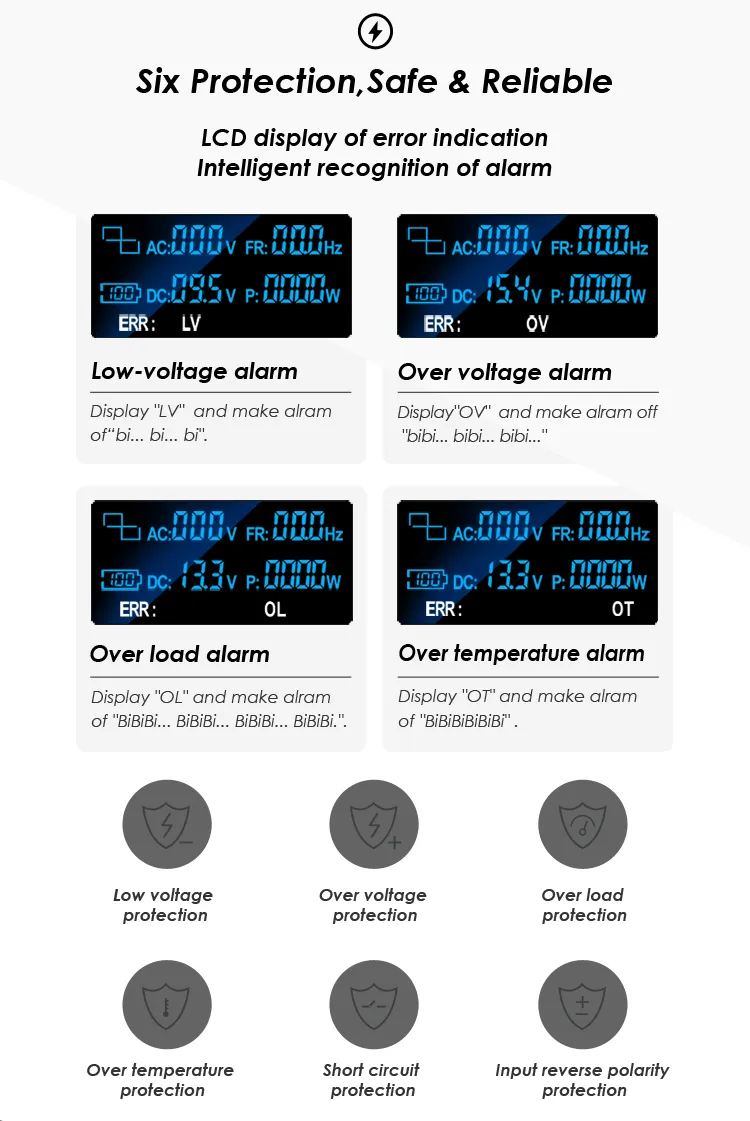

Protection Functions

⚡

Low voltage alarm & Shutdown

🛡️

Over voltage protection

⚖️

Overload protection

🔥

Over temperature protection

🚫

Short circuit protection

🔄

Reverse Polarity protection

🚀

Soft start & Auto-reset

Product Description

Product Parameters

Model	JYP-2K-1 (110V)	JYP-2K-2 (220V)
Rated Power	2000W
Peak Power	4000W
Input Voltage	DC12V / 24V / 48V
Output Voltage	100V-120VAC ±5%	220V-240VAC ±5%
Frequency	50Hz/60Hz ±0.5Hz
Output Waveform	Pure Sine Wave
Max Efficiency	90%

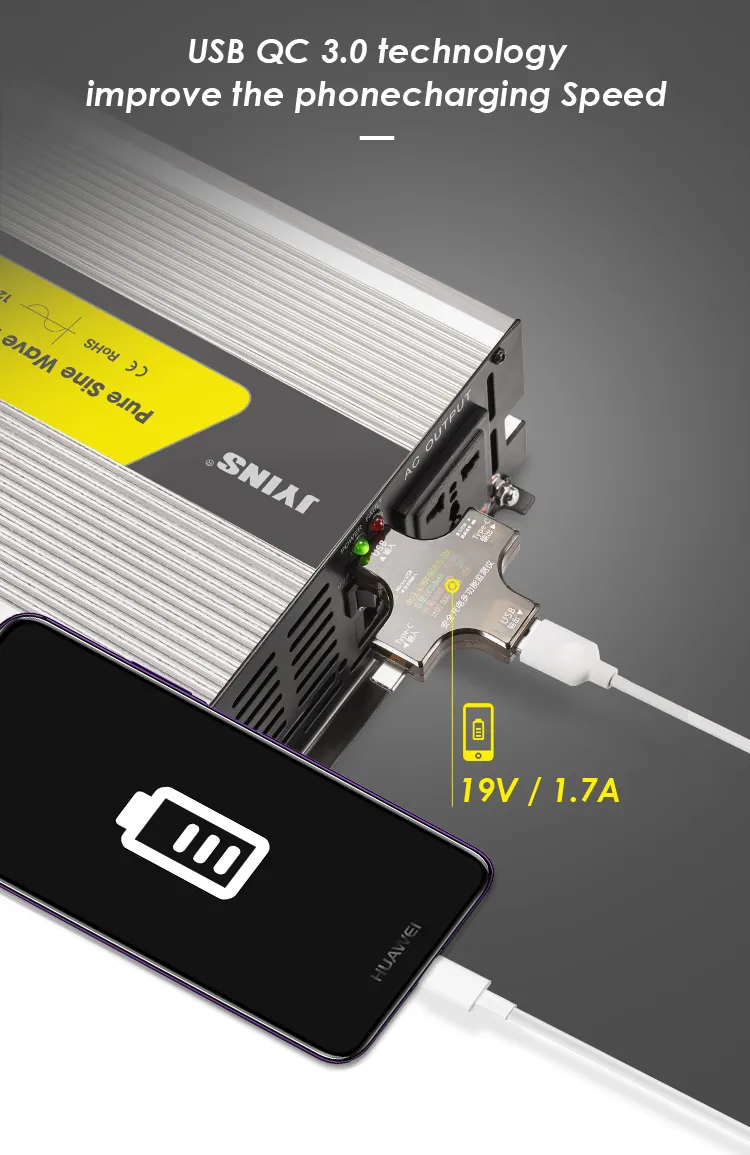

USB Port	5V 1A

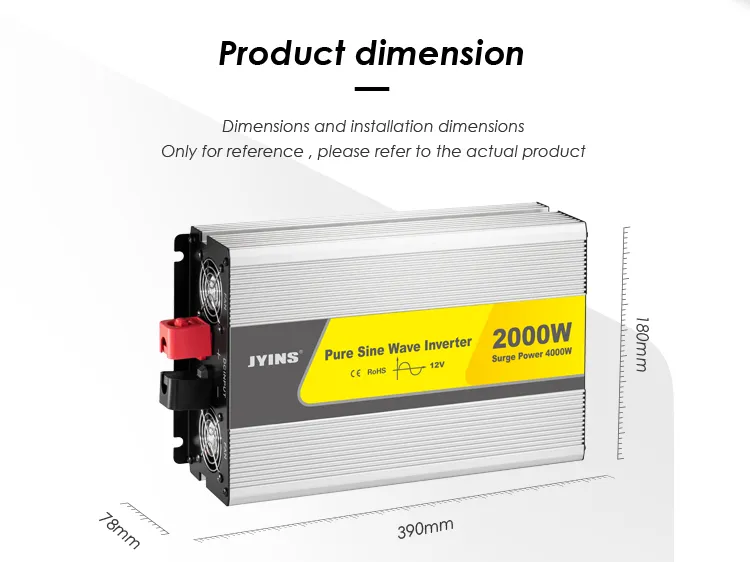

Dimension	397x180x78mm

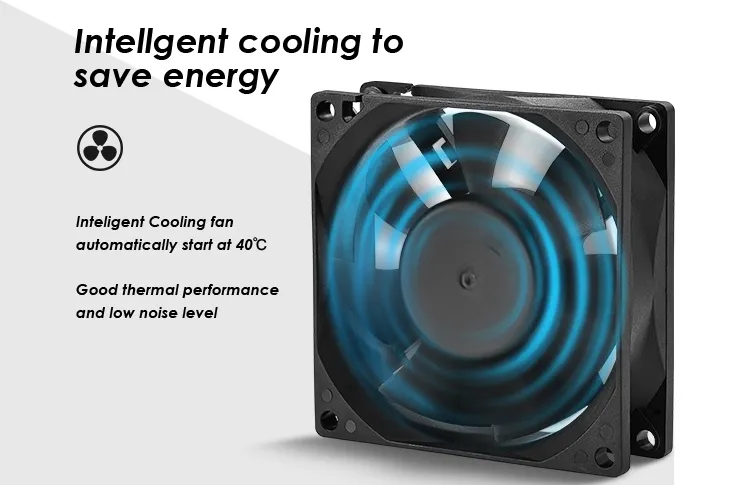

Cooling Method	Intelligent Air Cooling

Visual Showcase

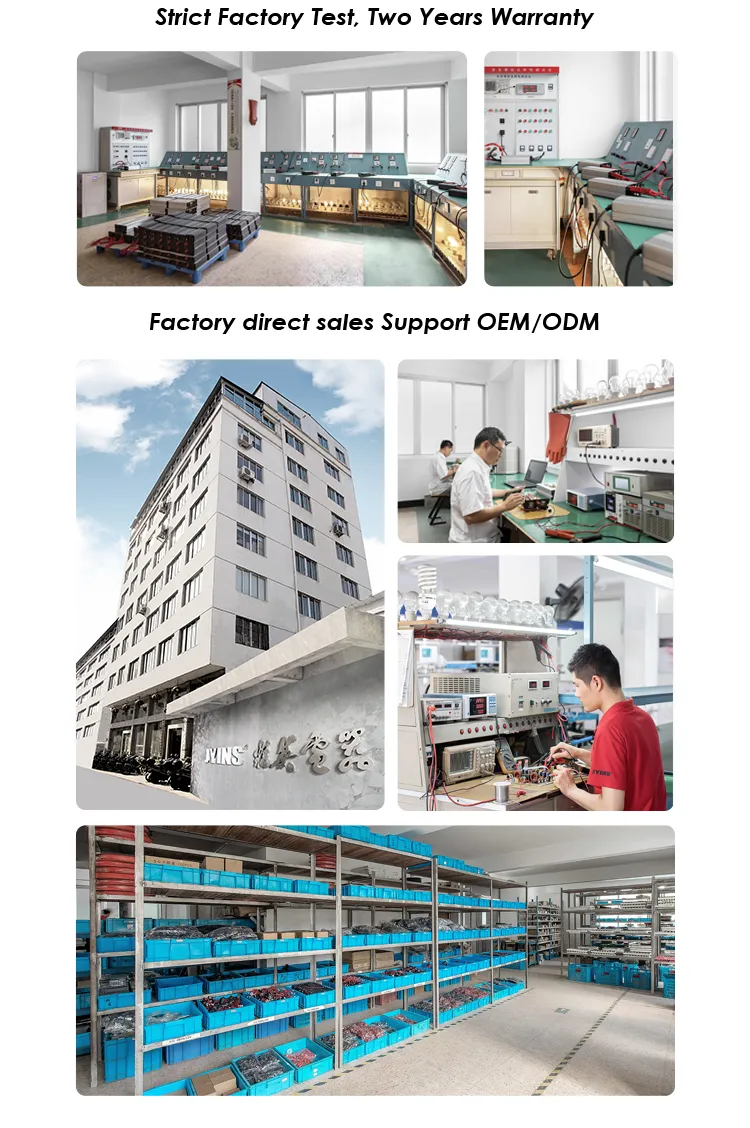

Manufacturing Excellence

Frequently Asked Questions

Why is pure sine wave better than modified sine wave?

Pure Sine Wave inverters provide high-quality output identical to grid power, suitable for all equipment, especially sensitive inductive loads like refrigerators and compressors, without interference or noise.

What are inductive load appliances?

These include products like motors, compressors, relays, and air conditioners. They require 3-7 times their rated power during startup, making a pure sine wave inverter essential for their operation.

Is the output voltage of the inverter stable?

Yes, our inverters are designed with high-quality regulator circuits. Note that ordinary multimeters may show unstable readings on non-pure waveforms; a true RMS multimeter is required for accurate testing.

What should I notice during installation?

Ensure the unit is placed in a well-ventilated, cool, dry, and water-proof location. Always turn on the inverter before powering on the connected appliances.

Can this inverter drive a TV or computer?

Yes, computers and LCD TVs are resistive loads. While modified sine wave inverters can run them, our pure sine wave inverter ensures zero interference and better protection for your electronics.

How does the protection function work?

In case of low voltage, overload, or overheating, the LED red light will turn on and the system will automatically shut down to protect both the inverter and your devices.
