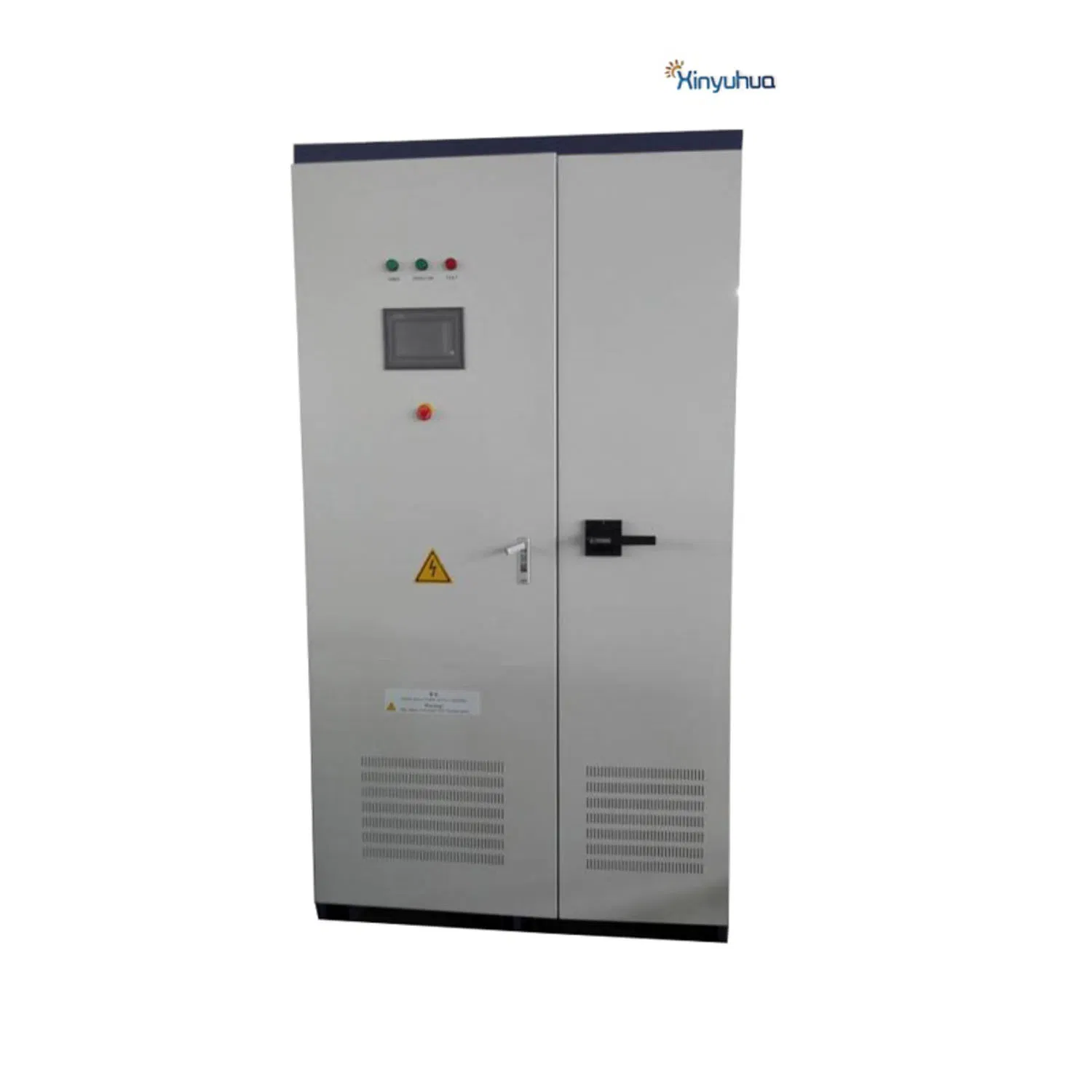

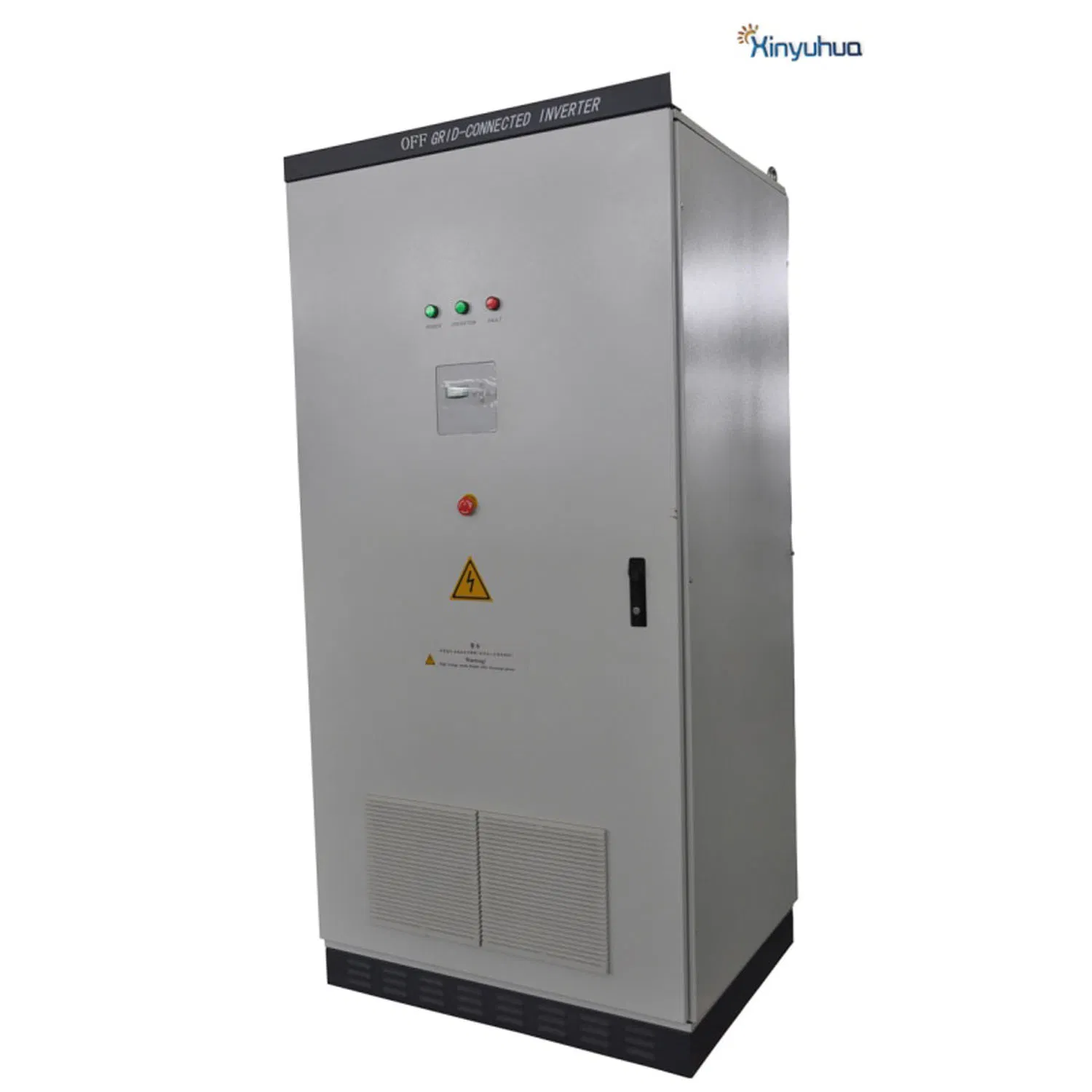

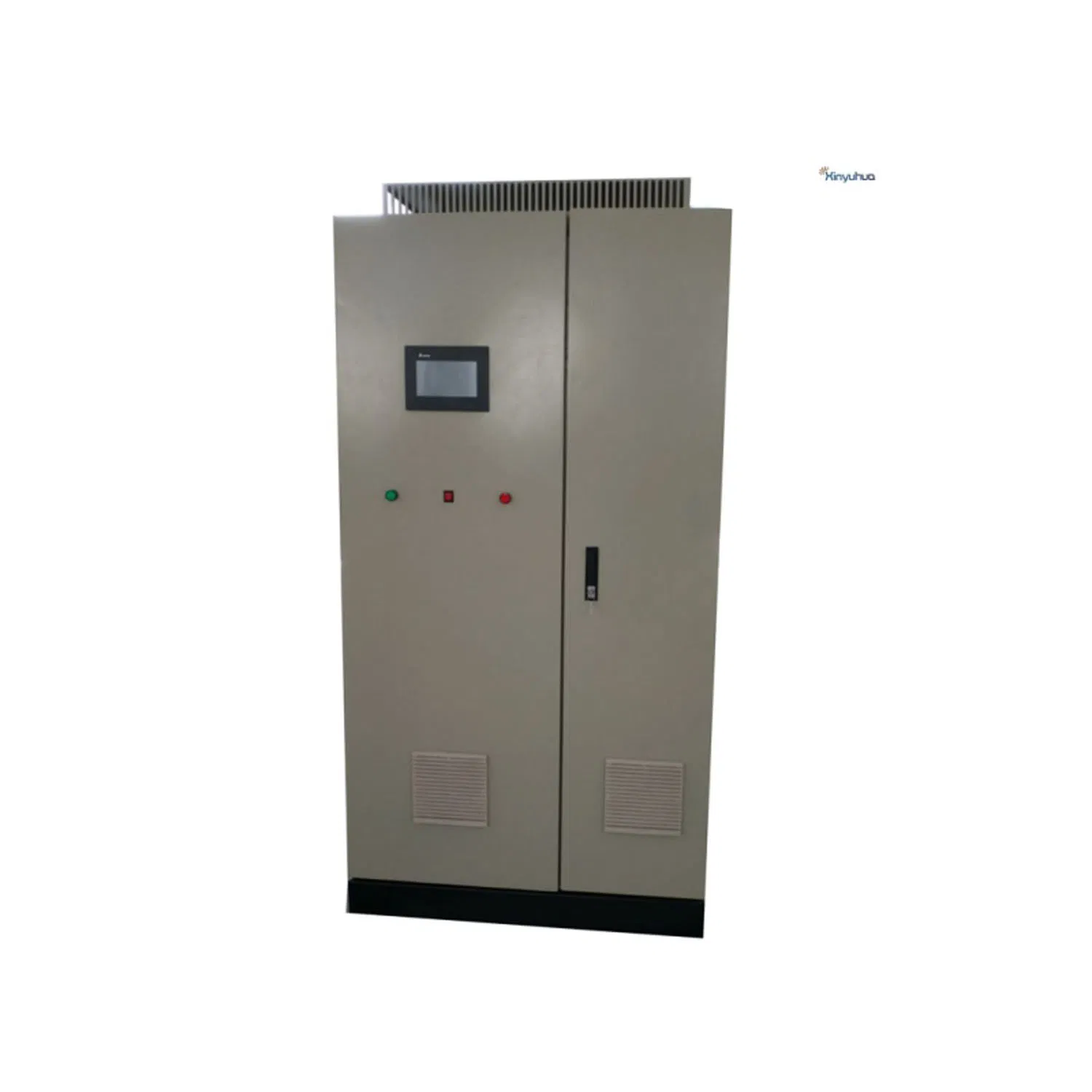

off Grid Hybrid Solar Inverter 10kw 20kw 30kw 50kw 60kw75kw 100kw 150kw Solar Power System Inverter

Customization:	Available
Warranty:	1year
Nature of Source Flow:	Active Inverter

Basic Information

Phase

Single

Output Power

3kw-2000kw

Certification

CE, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power, Wind Power

Circuit Topologies

Half-Bridge Type

Nature of Wave String

Sine Wave Inverter

Input Grid AC Voltage

380/400/415VAC 50/60Hz

Conversion Time

20ms~1s

Operating Temperature

-10~60℃

Cooling Method

Forced Air Cooling

Origin

China

Product Description

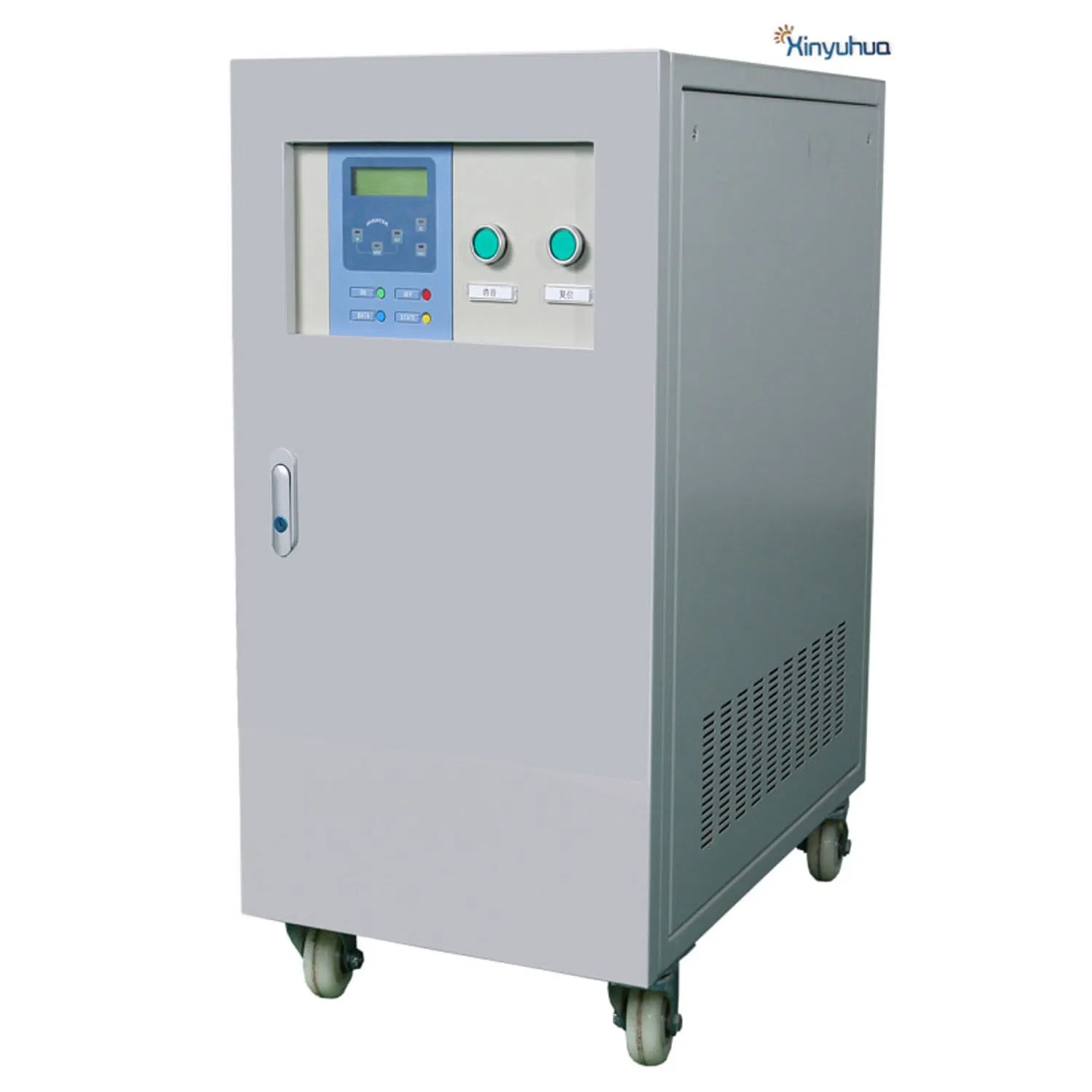

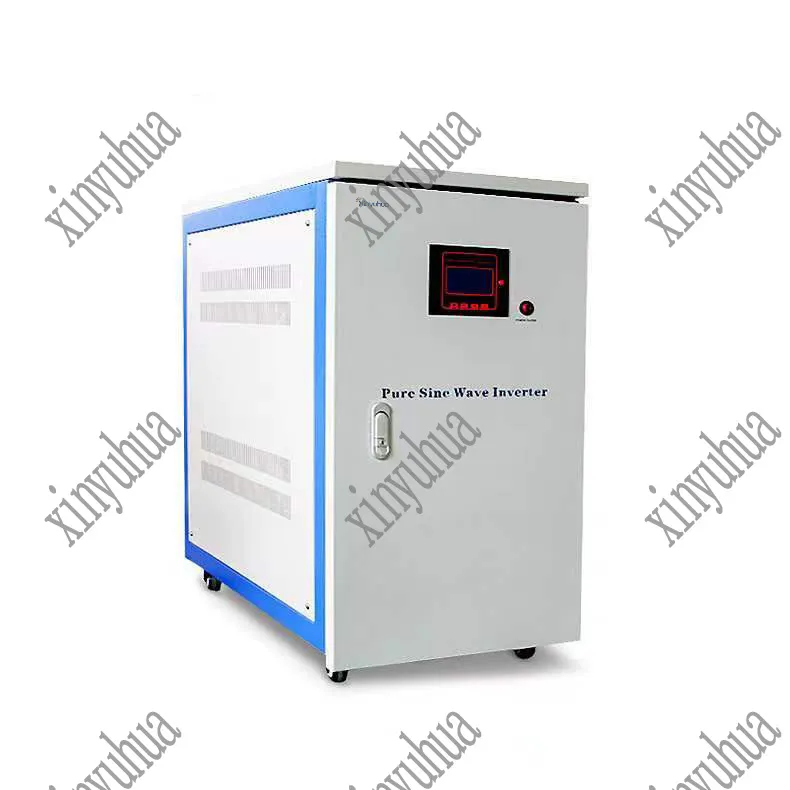

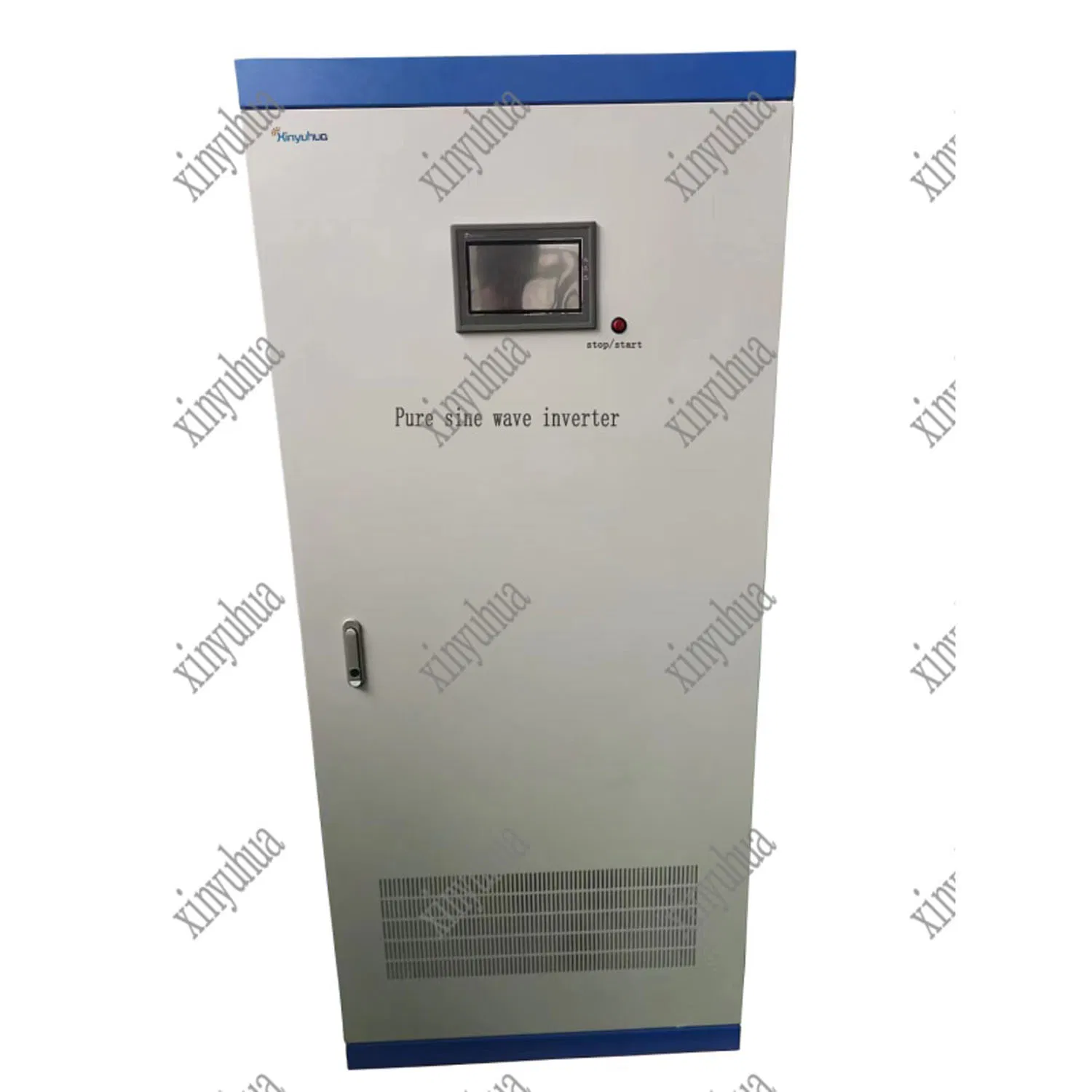

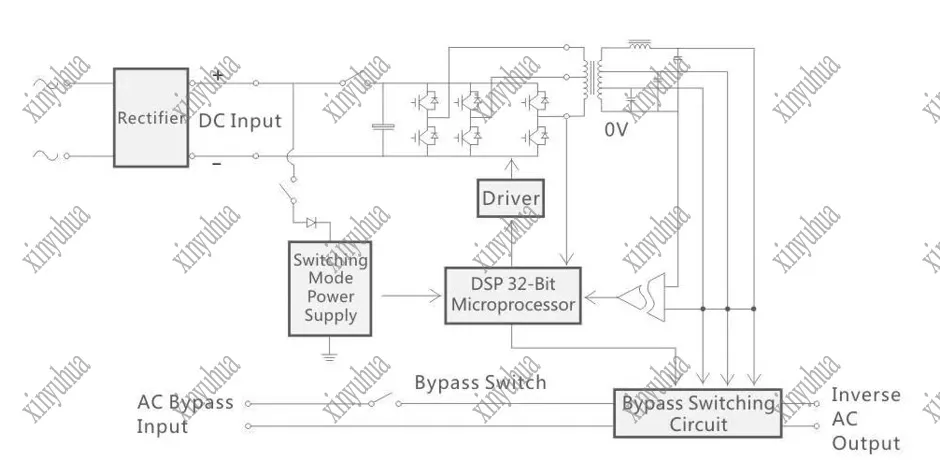

Low Frequency Off-Grid Inverter

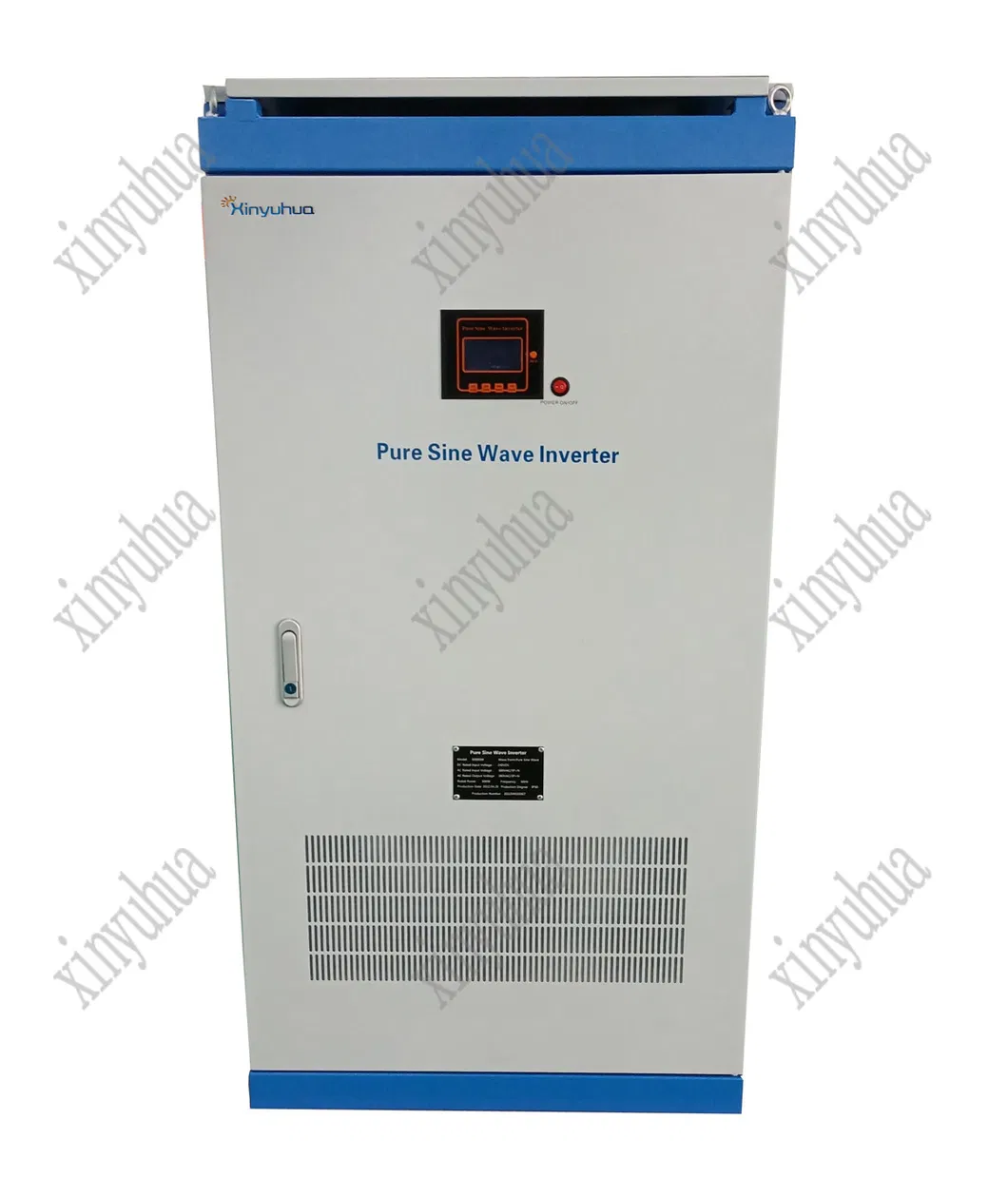

Core Features

Dual CPU single chip intelligent control technology, Microcomputer control.
Output high quality pure sine wave AC power with strong load capacity.
Perfect protection function to improve reliability.
CPU centralized control and SMT technology.
Stable operation, low distortion, no noise, and long service life.

Three-stage charging function with battery type selection.
Battery overvoltage and undervoltage protection.
Automatic state grid conversion (Optional).
Auto-resume working after voltage returns to normal.
High conversion efficiency and low load loss.

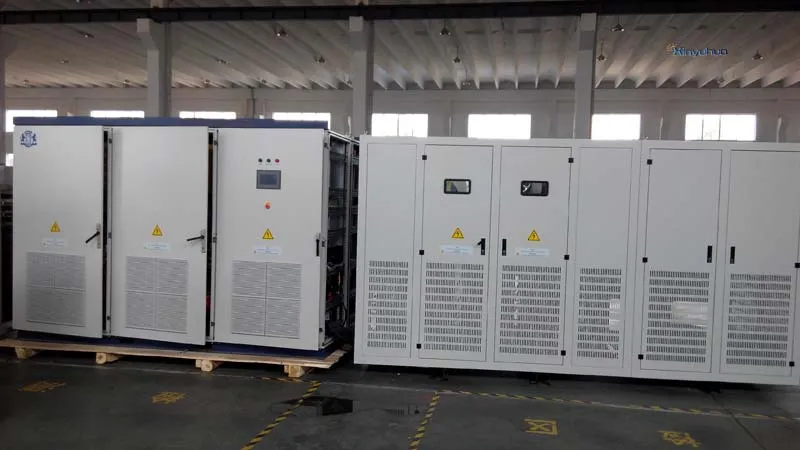

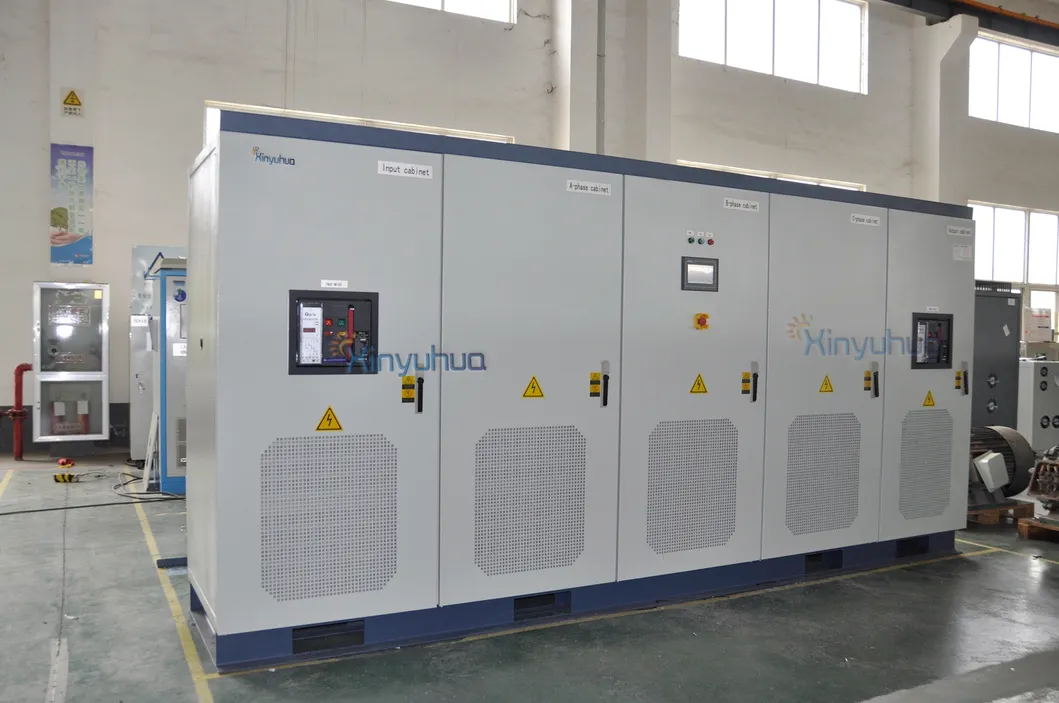

1500kw and 3000kw Bi-directional Inverter

The Bi-directional inverter converts DC to AC and AC to DC power. It controls battery charging and discharging as core equipment. Ideal for grid-tied systems requiring power storage for emerging or critical loads. Can be integrated with string inverters for separated PV systems.

Technical Parameters

Off Grid Inverter (3kw-20kw)

Mode	XYH-3000T	XYH-5000T	XYH-6000T	XYH-8000T	XYH-10000T	XYH-15000T	XYH-20000T
Rated Power	3kw	5kw	6kw	8kw	10kw	15kw	20kw
Battery Voltage	48V	48V	48V	96V	96V	120V	192V
Grid Voltage	380/400/415Vac 50/60Hz
Waveform	Pure Sine Wave
Efficiency	>90%

Off Grid Inverter (30kw-200kw)

Mode	XYH-30000T	XYH-50000T	XYH-60000T	XYH-80000T	XYH-100000T	XYH-150000T	XYH-200000T
Rated Power	30kw	50kw	60kw	80kw	100kw	150kw	200kw
Battery Voltage	240V	360V	384V	384V	384V	384V	384V
Max Current	163A	182A	206A	213A	266A	399A	531A
Inversion Eff.	>95%

Featured Products

1500kw/3000kw Bi-directional Inverter

Core control equipment for power storage systems, managing charging and discharging flows efficiently.

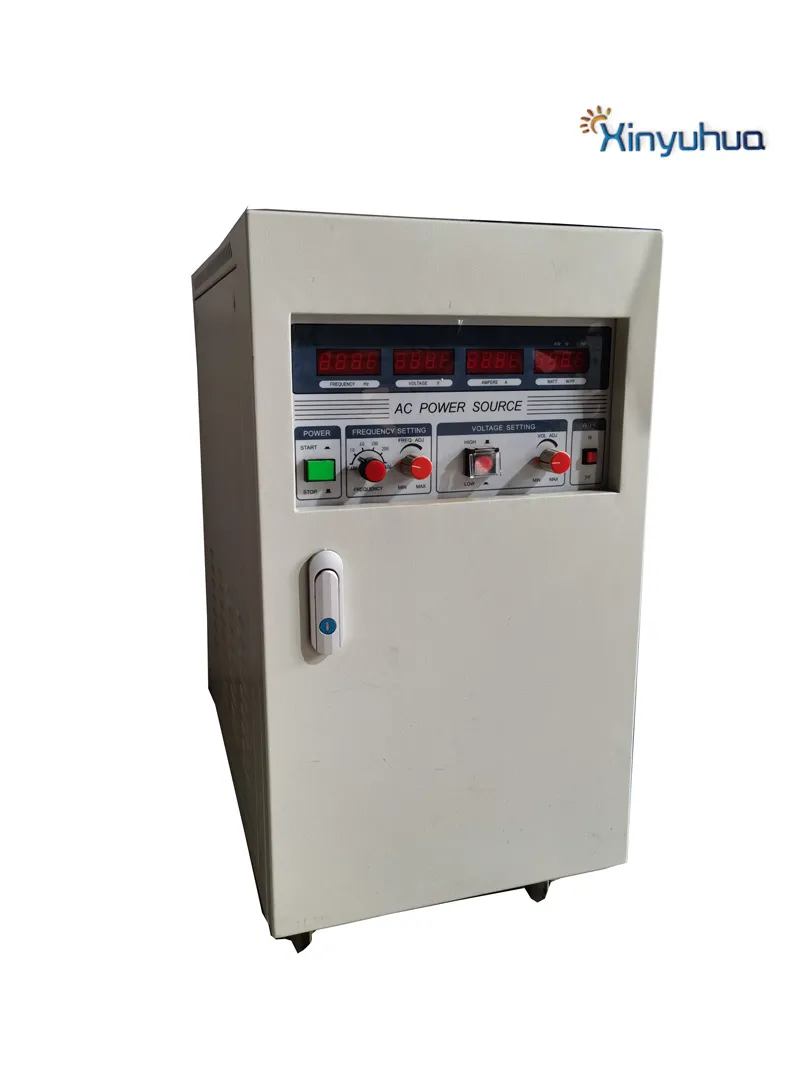

50Hz to 60Hz Static Frequency Converter

Supplies stable sine wave power with low harmonic distortion. Ideal for testing imported equipment and military 400Hz requirements.

Solar Hybrid On/Off Grid Inverter

Combines grid-feeding and battery storage functions. Features MPPT charger and customizable LCD operation.

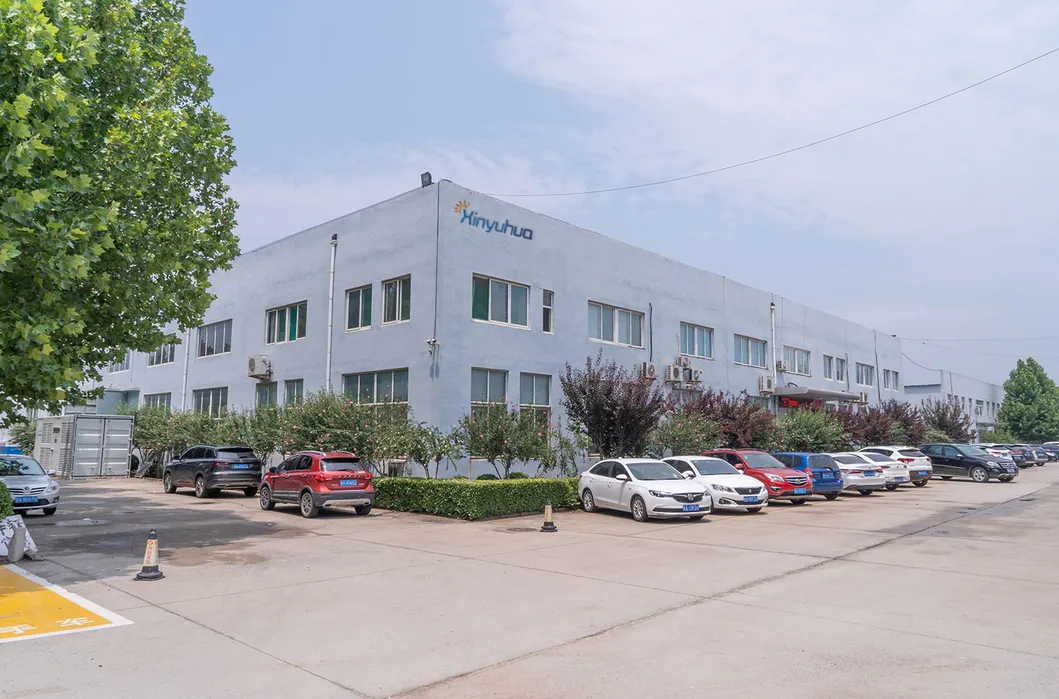

About Us

We firmly grasp the direction of "low-carbon economy and green development." Our strategic goal is to build a first-class new energy enterprise globally. We strive to contribute clean energy, improve power structures, and fulfill social responsibility.

Our products include solar systems, wind turbine systems, marine shore power supplies, DC power supplies, rectifiers, and voltage stabilizers. Our marketing network covers Europe, North America, and Asia Pacific, spanning more than 50 countries.

Our Advantages & Warranty

Why Choose Us?

Professional 7*24 after-sale service team.
Experienced R&D and professional sales teams.
OEM & ODM service with customized product design.
Confidentiality agreements to protect your business.

Warranty Commitment

One year free repair for the complete machine.
Lifetime technical support.
Response within 24 hours of notification.
Permanent cost-based maintenance.

Packaging & Shipping

Frequently Asked Questions

1. Are you a manufacturer? Yes, we are a professional power supply manufacturer with a high reputation in this field, specializing in advanced energy solutions.

2. What certifications do your products have? Our products are certified with CE and ISO9001 standard certifications to ensure international quality and safety compliance.

3. Can we customize products with our own logo? Yes, we provide OEM and ODM services. We can print your logo on both the power adapter and the packaging.

4. How do you control the quality of your products? Our production process follows ISO9001. We employ technical instructors for each stage, conduct regular QC inspections, and perform comprehensive performance tests upon completion.

5. What is the warranty period and after-sales policy? We offer a one-year free repair warranty for the complete machine and lifetime maintenance. Technical support is always available.

6. How fast do you respond to technical support requests? We guarantee a response within 24 hours after receiving a notification regarding technical issues or maintenance needs.
