| Model NO. | GD Series B | Nature of Source Flow | Active Inverter |
| Phase | Single | Output Power | >1000W |
| Certification | CE | Type | DC/AC Inverters |
| Power Source | Solar Power | Circuit Topologies | Full-Bridge Type |
| Nature of Wave String | Sine Wave Inverter | AC Input | 220/230/240VAC |
| Input Formation | L+N+PE | Input Frequency | 50-60Hz (Adaptive) |
| Output Wave | Pure Sine Wave | OEM&ODM | Accept |
| Transport Package | Carton | Specification | 570*500*148mm |
| Origin | China | ||

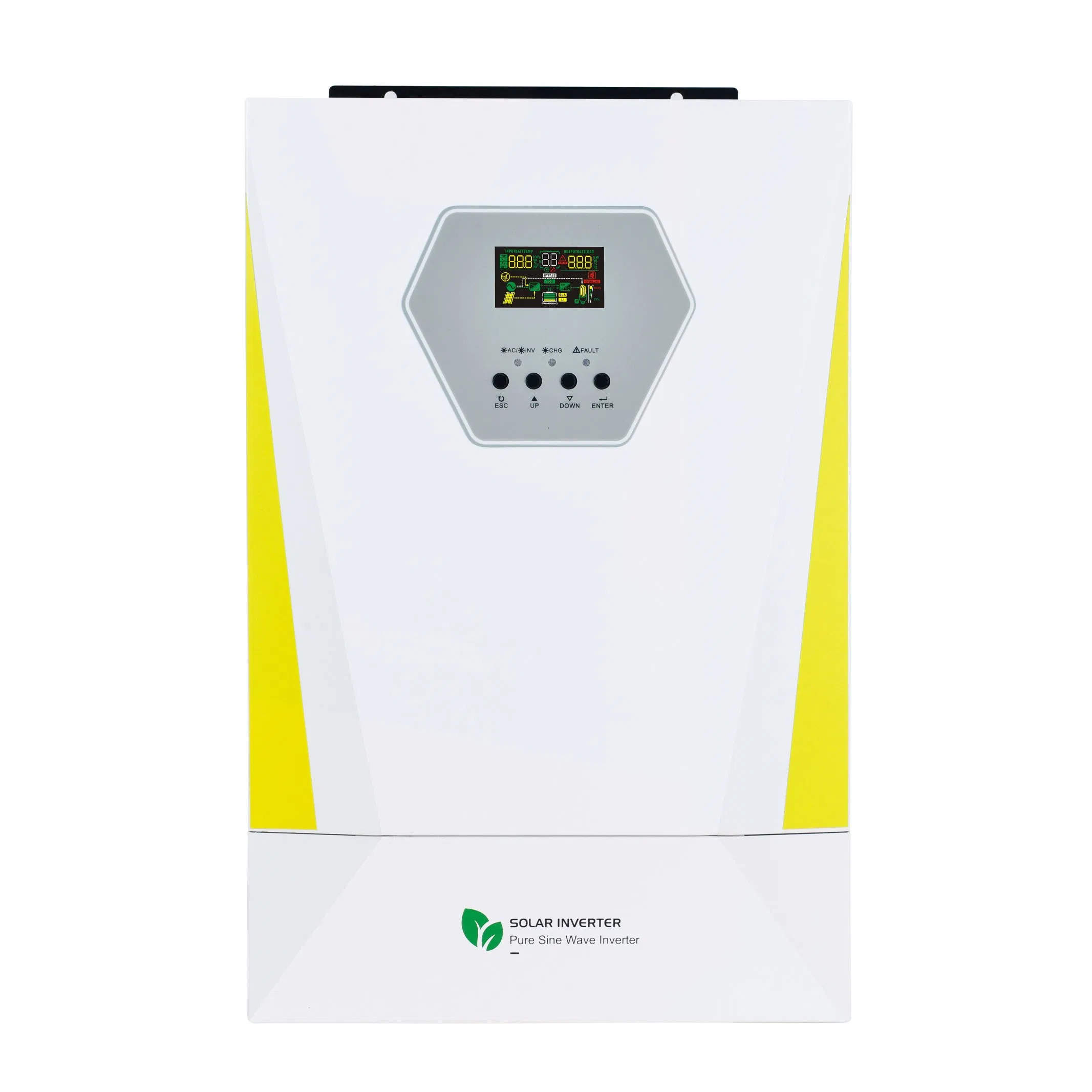

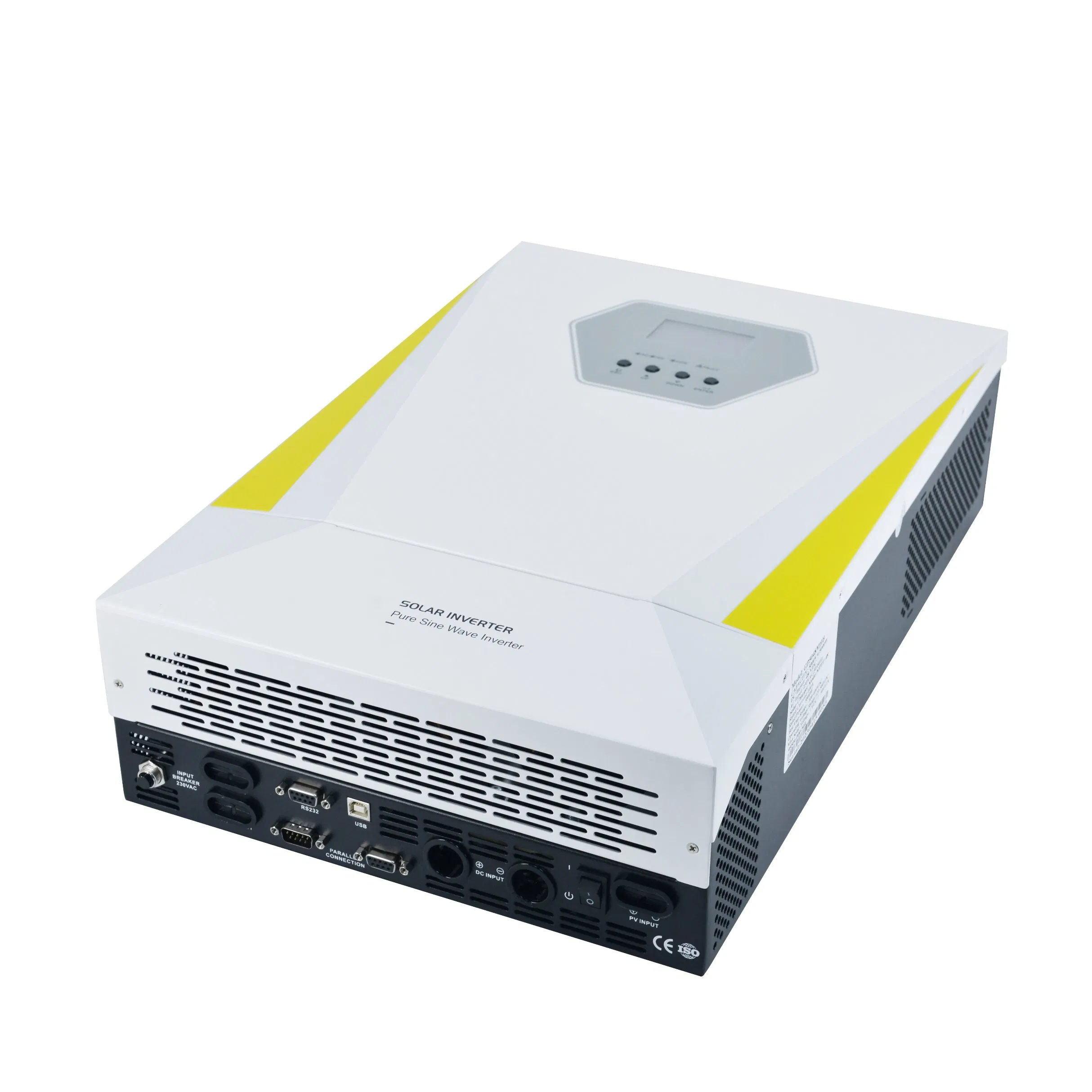

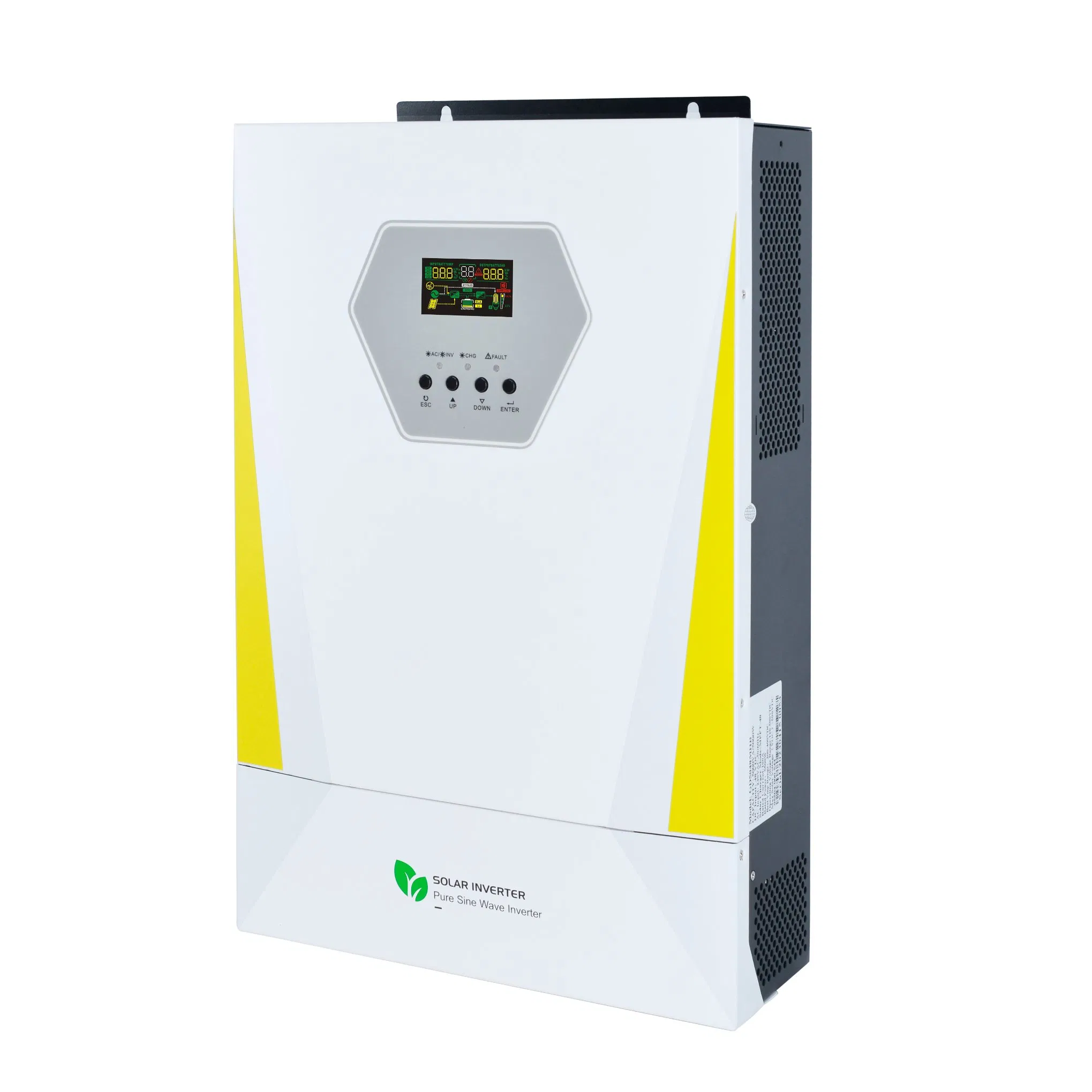

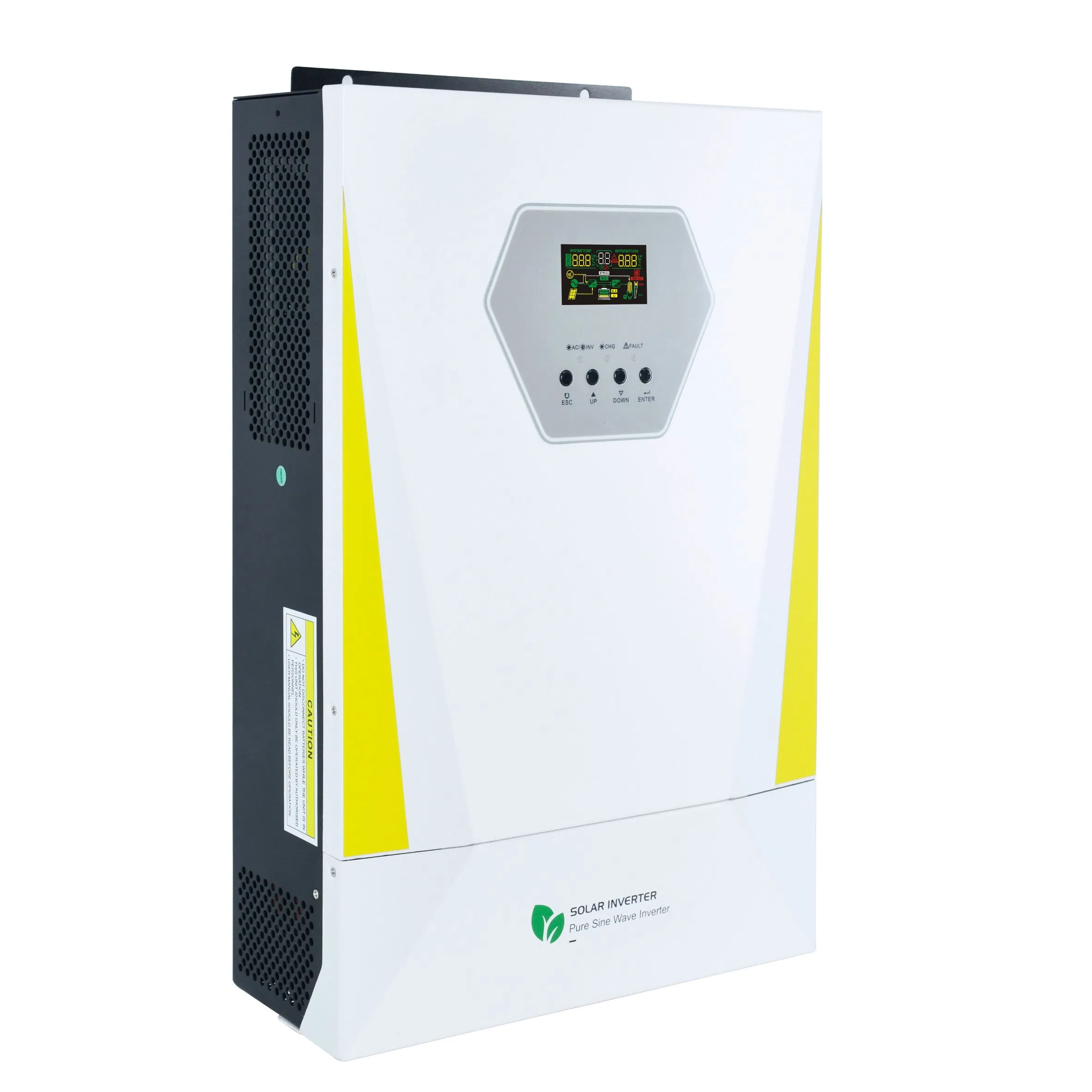

| Solar Inverter GD Series B (5500-11000W) | |||||
| Model | GD5548JMHB | GD6248JMHB | GD8648MHB | GD11048MHB | |
| Output | Rated power | 5500W | 6200W | 8600W | 11000W |
| Peak power | 11000W | 12400W | 17200W | 22000W | |
| Input | AC input | 220/230/240VAC | |||
| Voltage range | 90-280VAC (Normal) / 170-280VAC (UPS) | ||||
| Frequency | 50-60Hz (Adaptive) | ||||
| Charger | Max PV input | 6200W | 6200W | 2*5500W | 2*5500W |
| MPPT Range | 60-500VDC | 90-500VDC | |||
| Max Charge Current | 100A | 120A | 150A | 150A | |
| Efficiency | DC/AC Efficiency | 98% | |||
The company was founded in 2017, after more than 6 years of development, it has become a comprehensive integration of industry and trade, engaged in design, development and production of various pipeline systems and connectors professionally. We provide high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, and electrical installations.

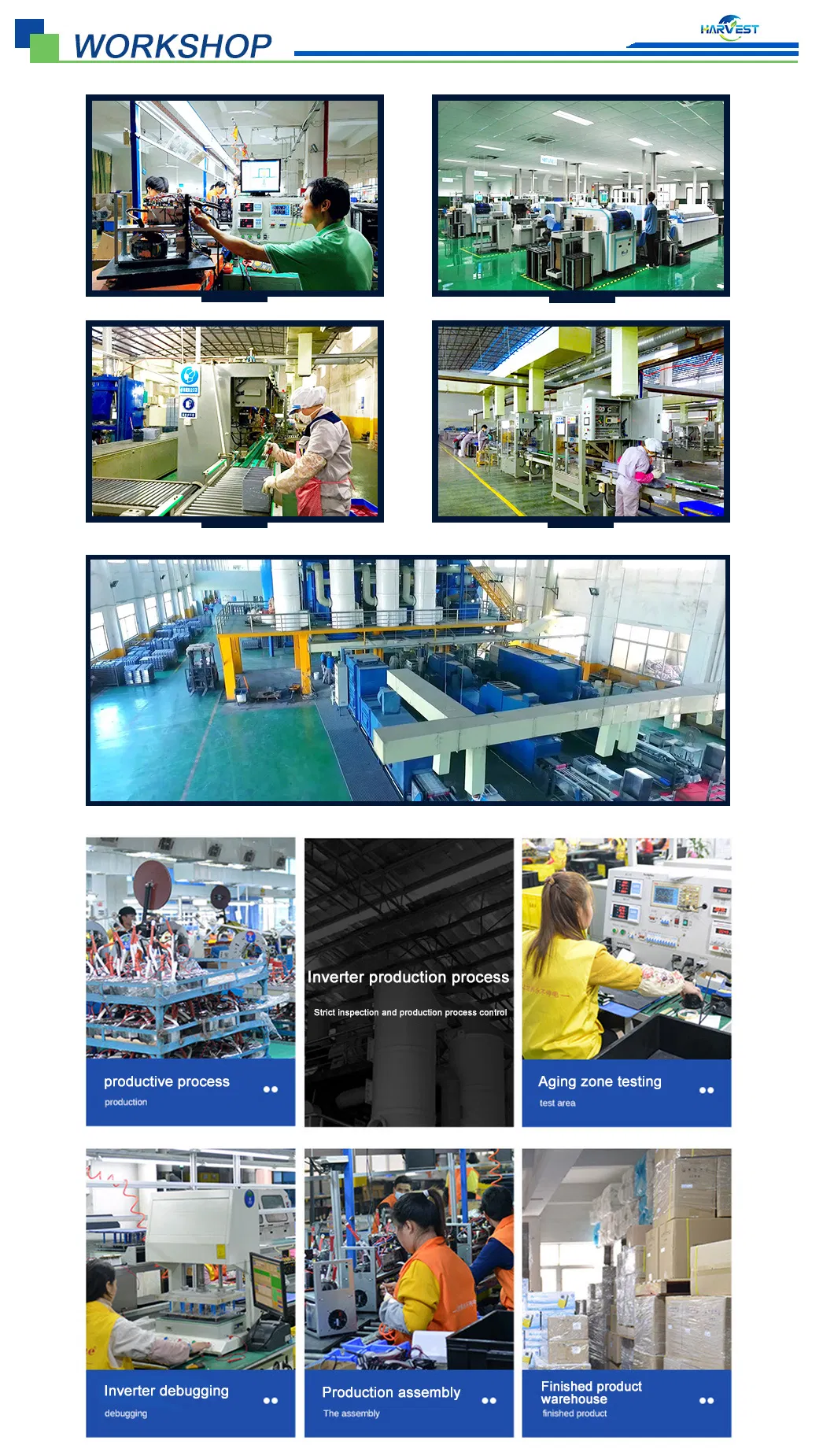

The excellence of every detail is the root of excellent quality. We have strong technical force, advanced techniques of production, and complete testing equipment. We maintain "Excellent quality, Exceeding customer needs" as our business purpose. We have established a quality system according to ISO9001 international standards, applied in the whole process control of product design, manufacturing, and service. Our products have passed EU CE Certification, conforming to ROHS standards and SGS Environmental Protection Certification, exported to the Middle East, Southeast Asia, European Union, United States, Australia, and South America.
