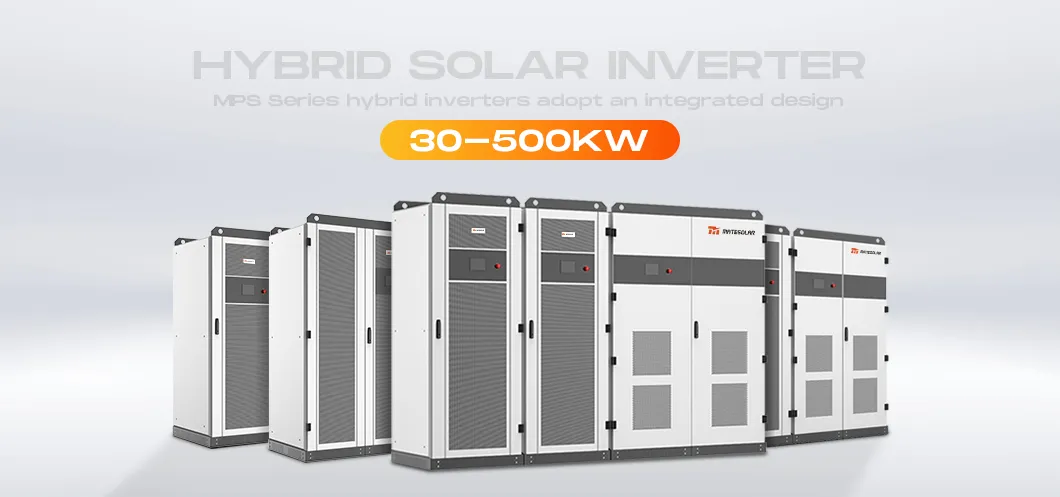

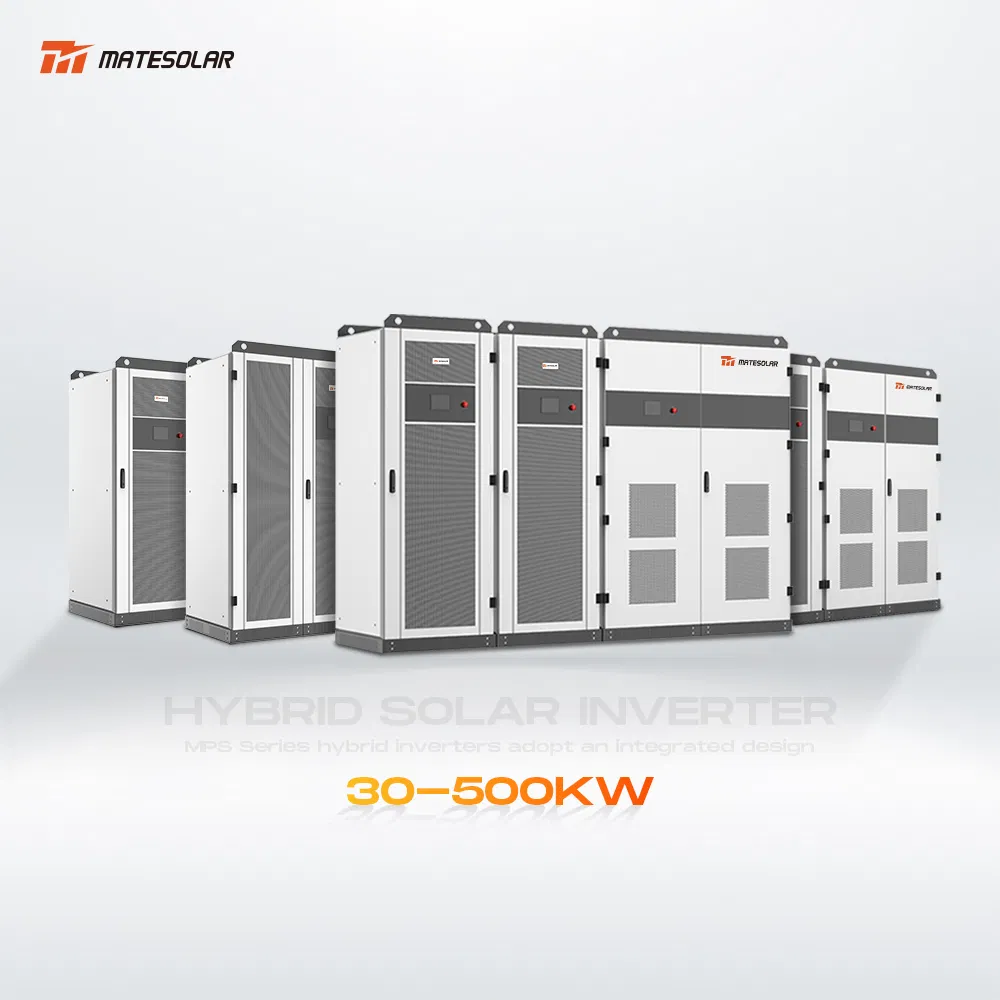

The system adopts a deeply integrated architecture, simplifying on-site installation and significantly shortening deployment and debugging cycles.
Supports simultaneous access to multiple fieldbuses (RS232/RS485/RS422) and Ethernet. Built-in protocol library includes Modbus RTU/TCP, IEC 60870, DNP3.0, and MQTT.

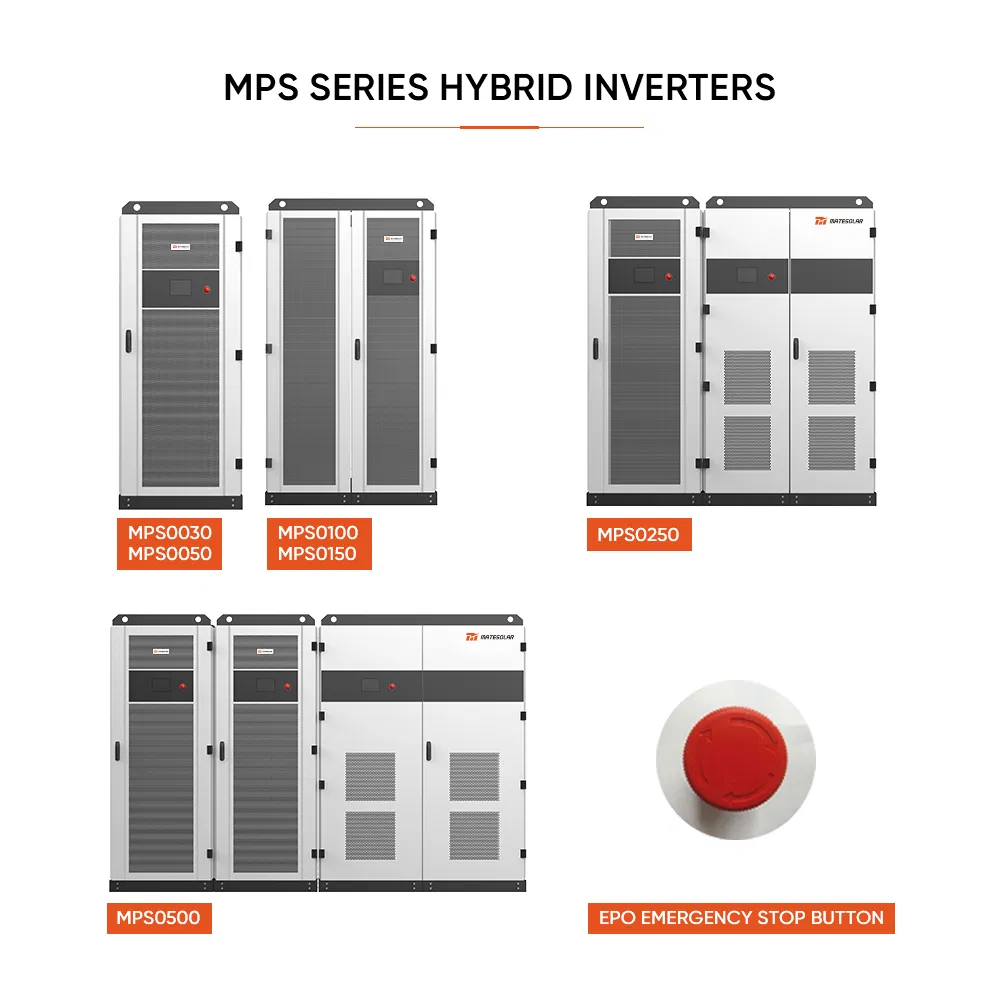

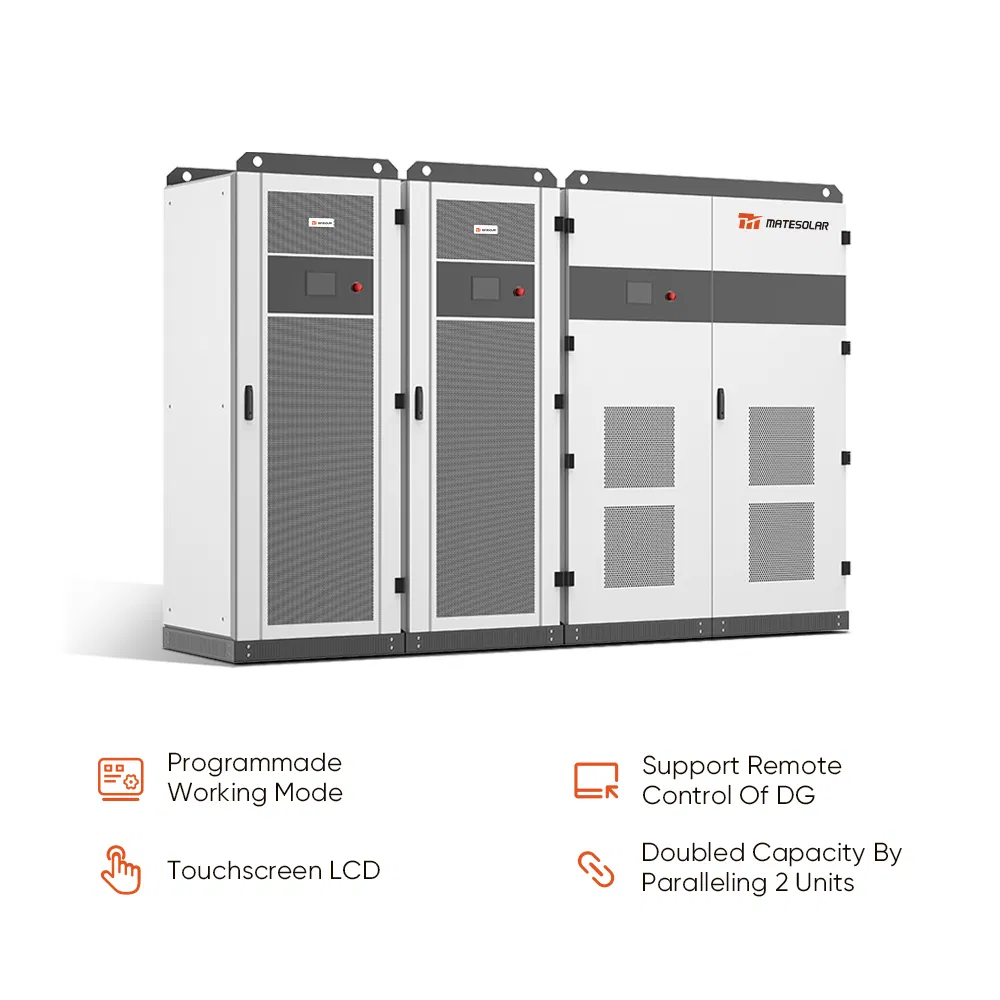

| Model | MPS30 | MPS50 | MPS100 | MPS150 | MPS250 | MPS500 |
| Rated Power (AC) | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | |||||
| Max. PV Voltage | 1000VDC | |||||
| PV MPPT Range | 200V-850V | |||||
| Protection | IP20 | |||||
| Dimensions (WxDxH) | 800x800x1900mm | 1200x800x2050mm | 1800x800x2050mm | 2800x800x2050mm | ||

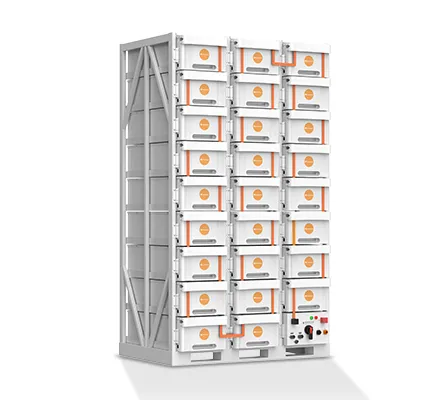

Capacity Range: 100Kwh-215Kwh
Three-stage BMS module (ESMU) with CAN, RS-485, and RJ45 Ethernet communication. Designed for seamless integration with high voltage boxes and PCS/UPS systems.
As a world-class solar products manufacturer, we specialize in the research, development, and production of high-efficiency solar PV products. With over a decade of development, our factory covers 150,000 square meters and employs over 600 experienced professionals dedicated to quality and innovation in the renewable energy sector.
