Flexible expansion, on-demand configuration: Supports flexible configuration of photovoltaic capacity, convenient and efficient system expansion, and perfectly adapts to future growth needs.
Intelligent EMS built-in: The energy management system (EMS) is deeply integrated into core equipment to achieve better energy scheduling and economic operation.
Unattended intelligent operation: Fully supports remote monitoring and unattended operation, greatly improving the efficiency of power station operation and maintenance.
BR3000 Communication Machine
Supports RS232/RS485/RS422 and Ethernet. Built-in protocols: Modbus, IEC 60870, MQTT, etc.
EMS (Energy Management System)
Real-time control of PCS and battery data with 5-year historical review and mobile APP support.

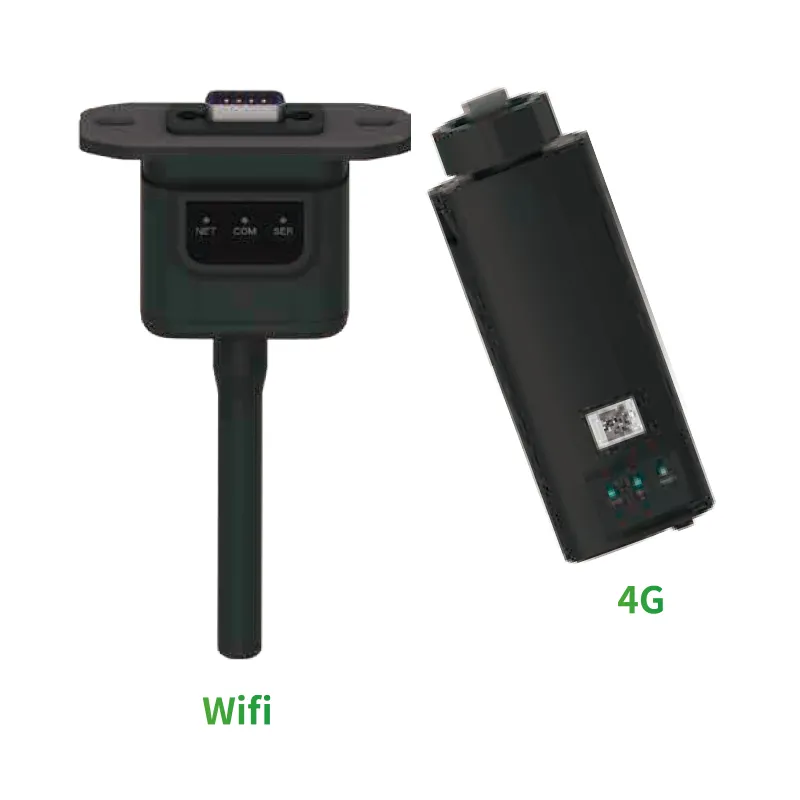

Data Acquisition Stick
Supports GPRS, WiFi, 4G, and Ethernet for long-term PV system monitoring.
| Model | MPS30 | MPS50 | MPS100 | MPS150 | MPS250 | MPS500 |
| AC (Grid-Connected) | ||||||
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage | 400V | |||||
| Rated Current | 43A | 72A | 144A | 217A | 361A | 722A |
| PV Input | ||||||
| Max. PV Voltage | 1000VDC | |||||
| MPPT Voltage Range | 200V-850V | |||||
| Battery | ||||||
| Voltage Range (V) | 250-850 | 320-850 | 420-850 | 420-850 | 420-850 | 500-850 |
| General Data | ||||||
| Dimension (WxDxH) | 800x800x1900mm | 1200x800x2050mm | 1800x800x2050mm | 2800x800x2050mm | ||
High Voltage Rack Mount LiFePO4 Battery Pack
With a focus on research, development, and production of solar PV products since 1998, we have exported solar solutions to 86 countries. Our facility covers 150,000 square meters, backed by a team of 600 experienced professionals dedicated to high-quality energy storage and conversion systems.
