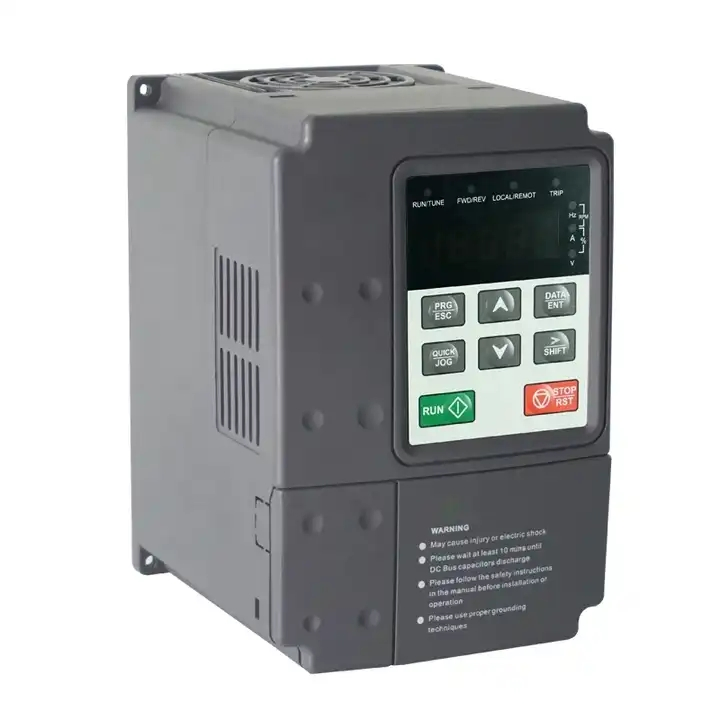

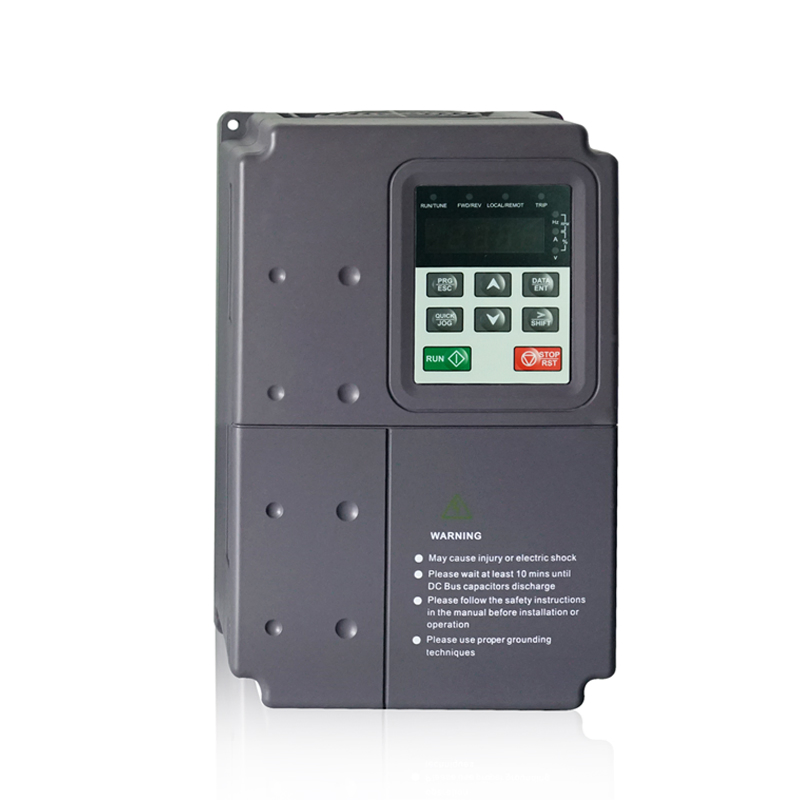

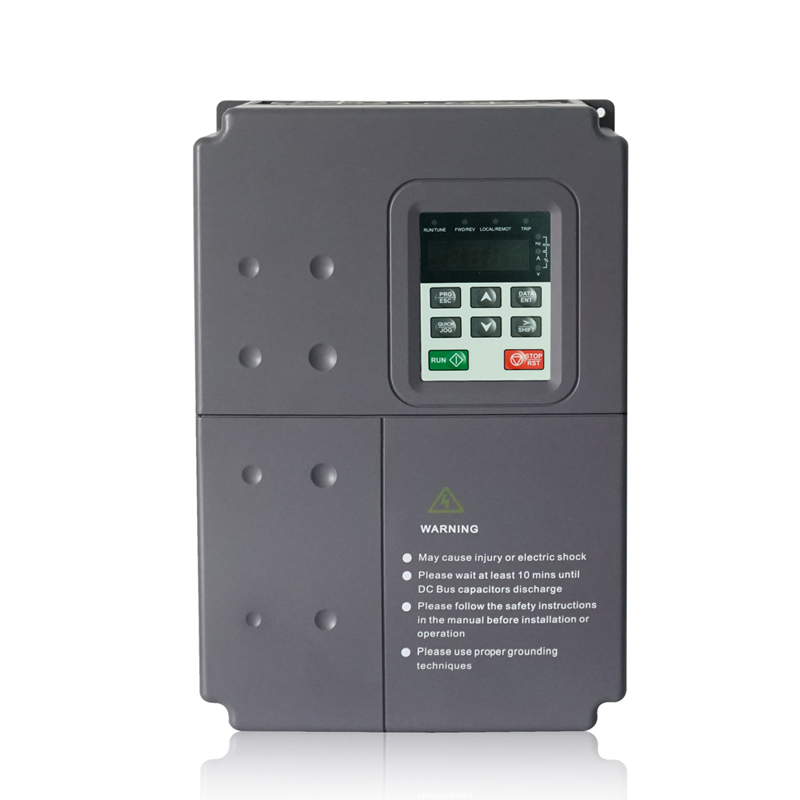

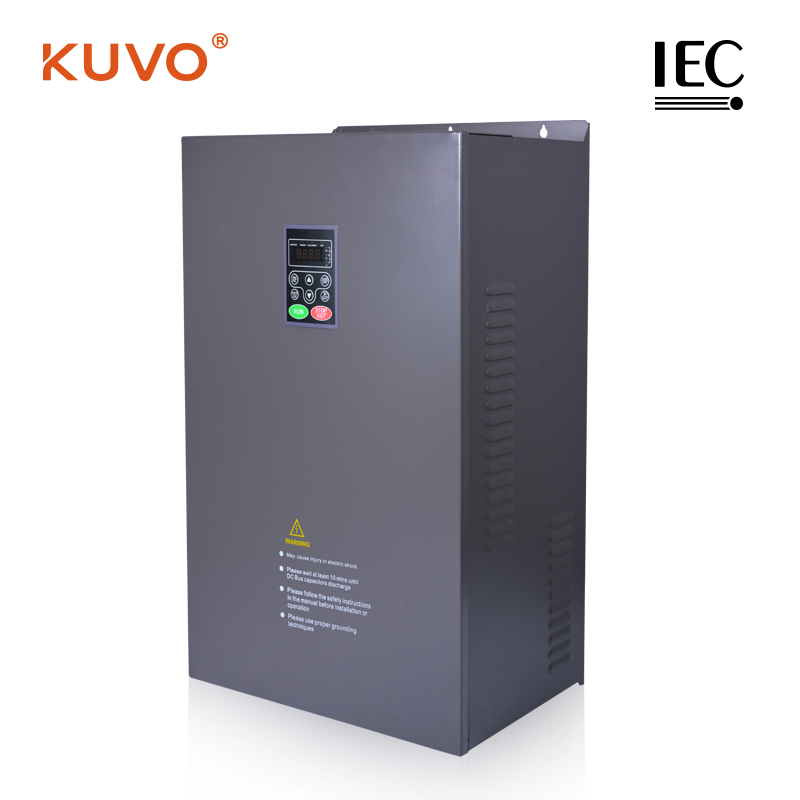

Kuvo CHF100A 37kw Intelligent VFD Inverter for Industrial Cooling Tower Applications

Still deciding? Get samples of $ !
Request Sample

Product Description

i
Basic Information
Model NO.
CHF100A-037G-4
Principle of Work
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Main Circuit Type
Voltage
Power Supply
Low Voltage Variable-Frequency Drive
Function
Constant Torque Universal Type, Pump Special
Rated Power
37kw
Output Current
75A
Output Frequency
0Hz~60Hz
Output Voltage
230V Three Phase
1
Product Introduction
Intelligent VFD Inverter

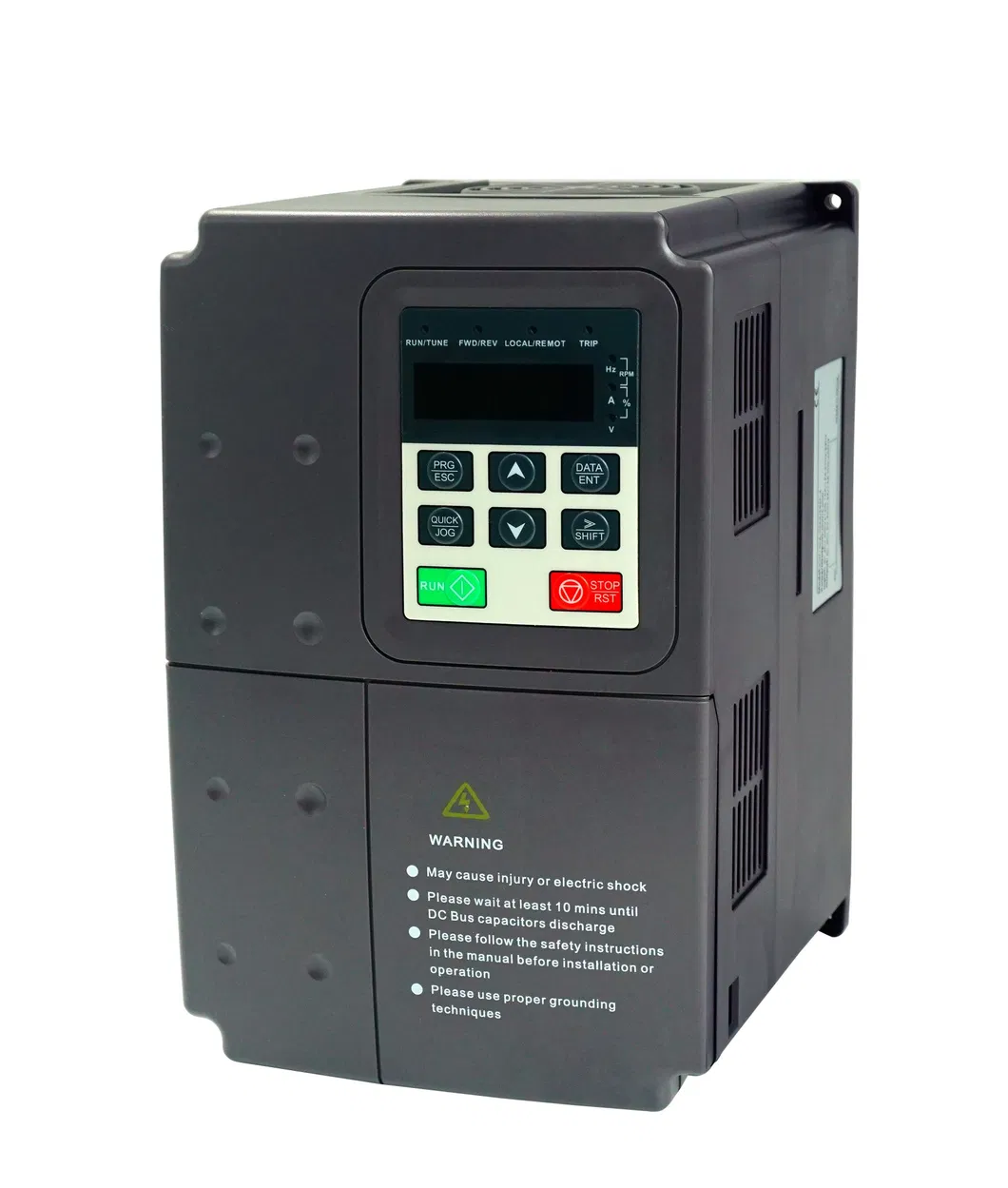

Product View 1

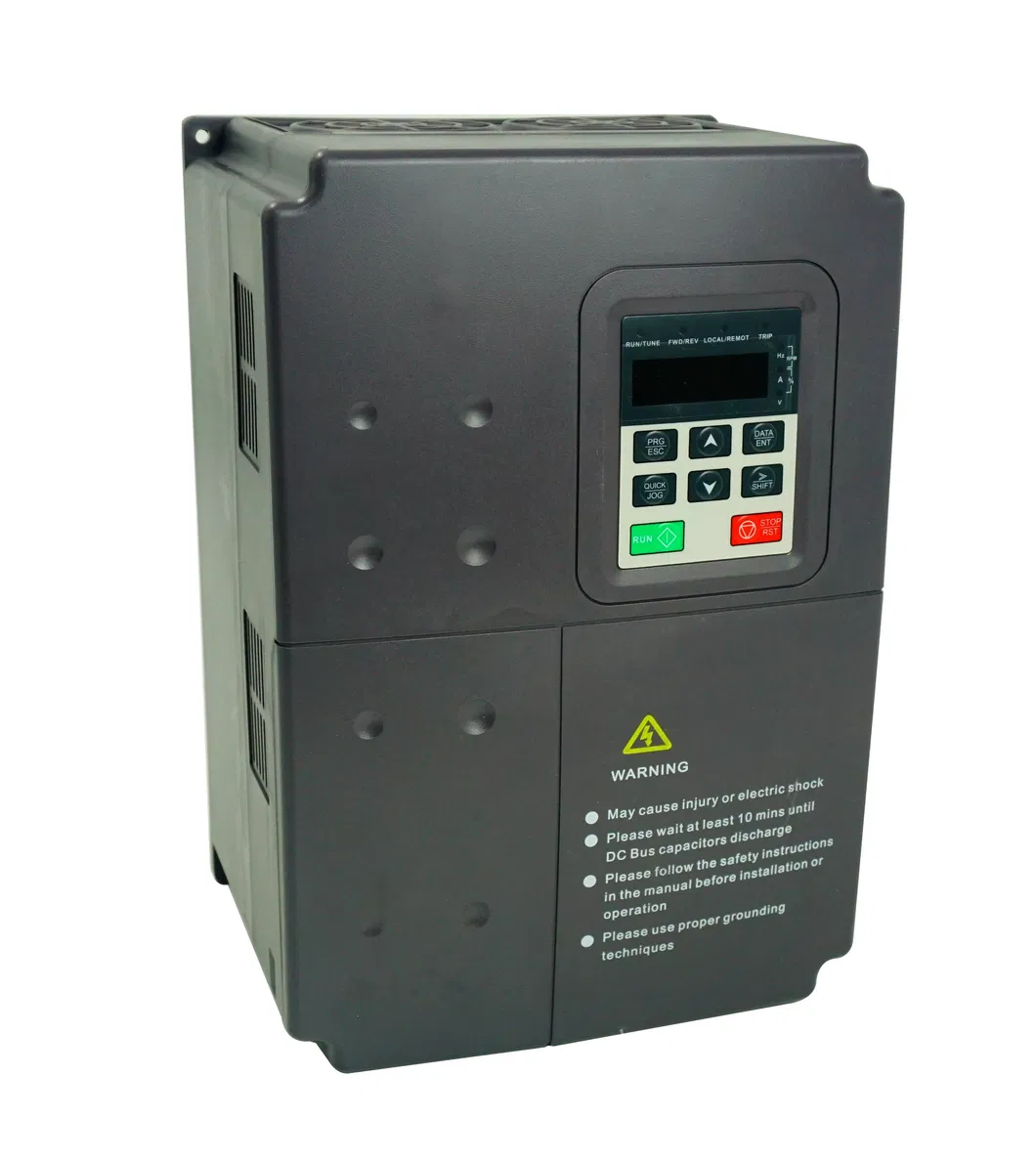

Product View 2
Product Detail 1

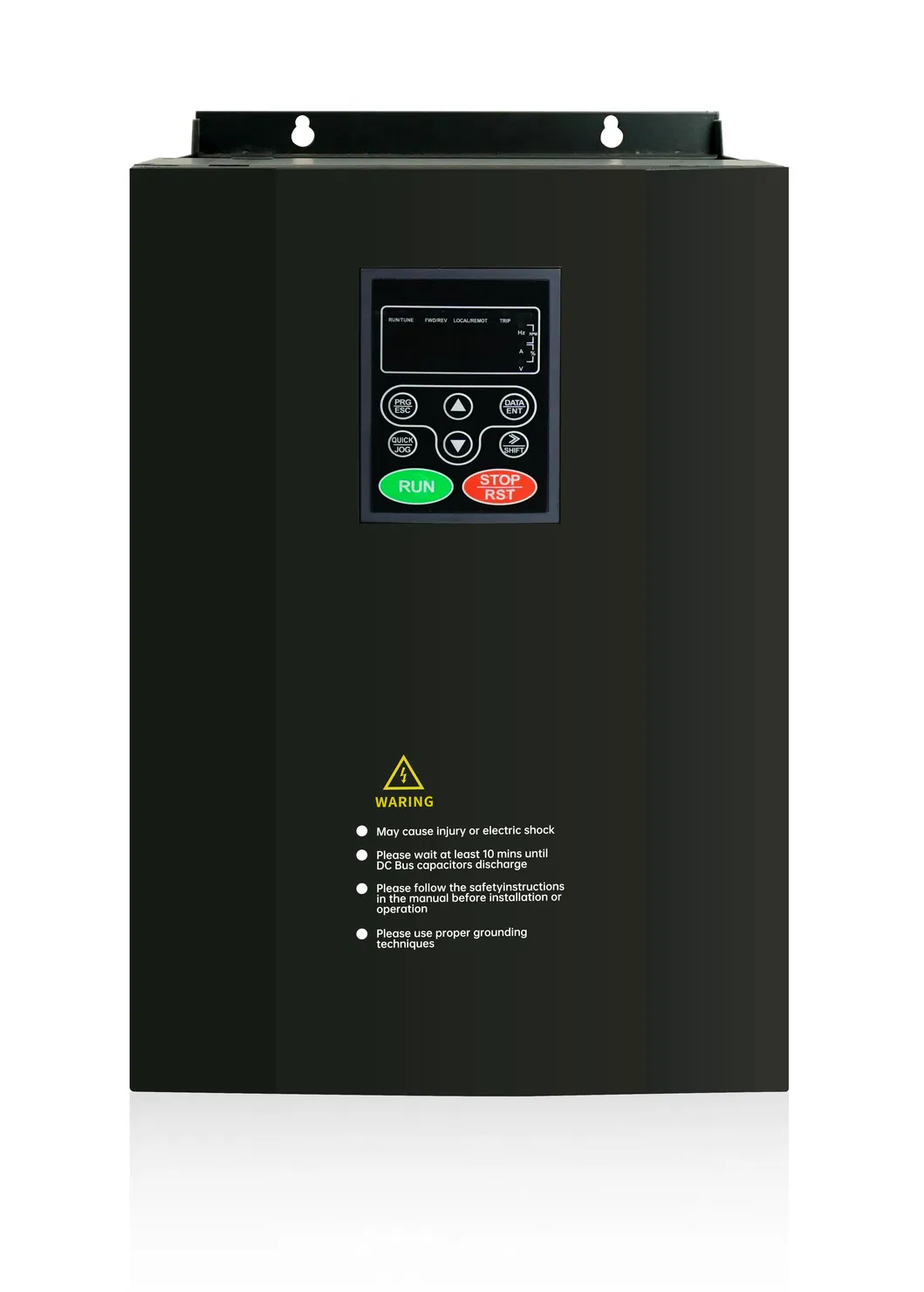

Product Detail 2
2
Model Specifications
Voltage Rated Power (KW) Input Current (A) Output Current (A) Adapted Motor (KW)
Three phase 220V2.2KW239.62.2KW
Three phase 380V0.75KW3.42.10.75KW
1.5KW53.81.5KW
2.2KW5.85.12.2KW
37KW767537KW
3
Product Parameters
Input VoltageInput 350-750VDC
Output Voltage3 phases 380VAC
Control MethodV/f control, sensorless magnetic flux vector control (SVC)
Starting Torque150%/0.5Hz (V/f), 180%/0.25Hz (SVC)
Frequency Range0.00~ 600.00Hz
4
Product Advantages
Ultra-high-speed operations for complex vector calculations.
Built-in RS485 communication and multiple protection measures.
Operates efficiently even in low sunlight conditions.
Detachable panel with remote control support up to 20 meters.
Human-computer interactive panel with real-time data monitoring.
New generation DSP chip with high-precision motor protection.
Aluminum cooling plate and independent air duct for fast heat dissipation.
Flame retardant shell with thick, rigid material for stability.

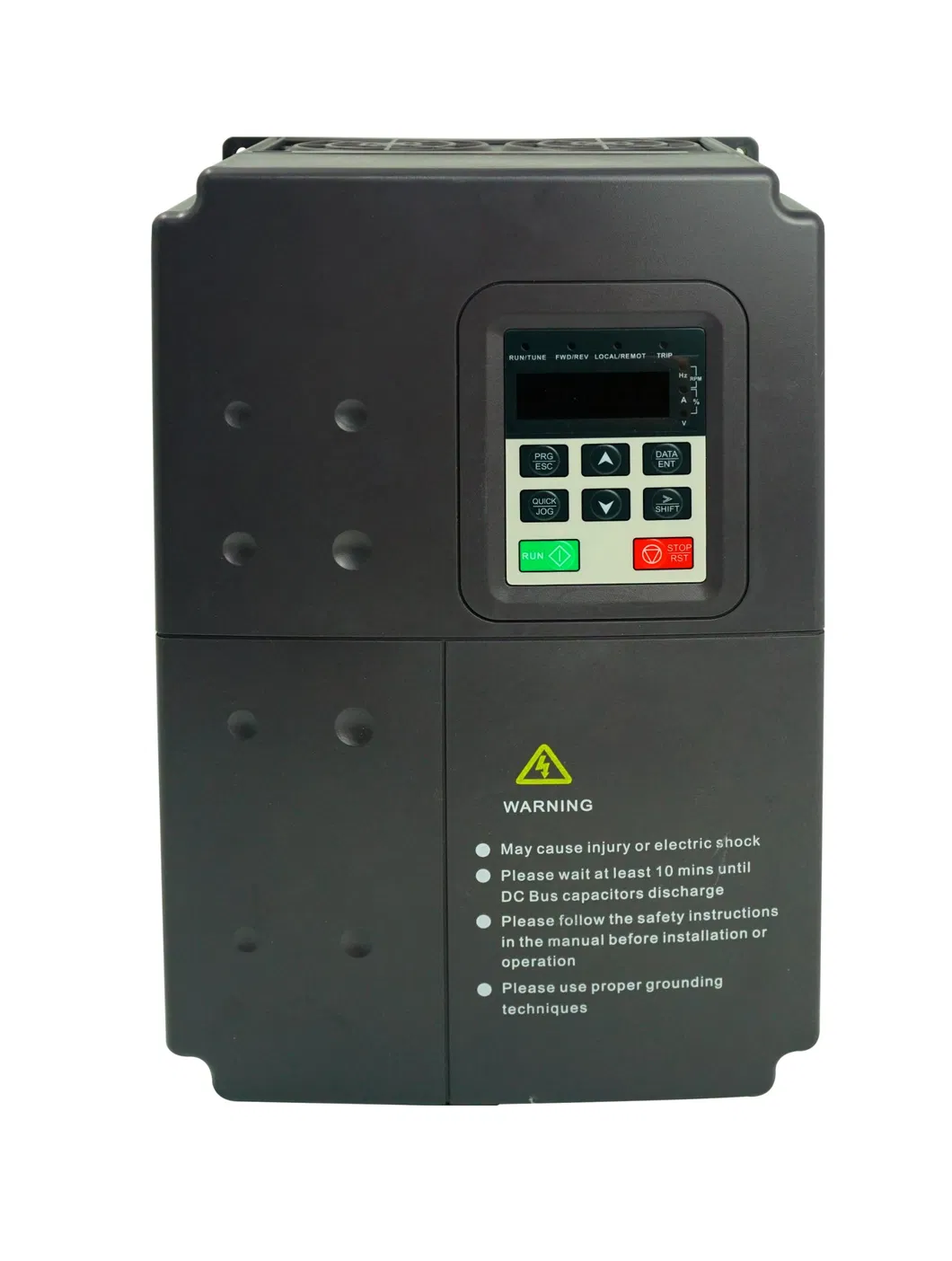

Energy Saving Feature

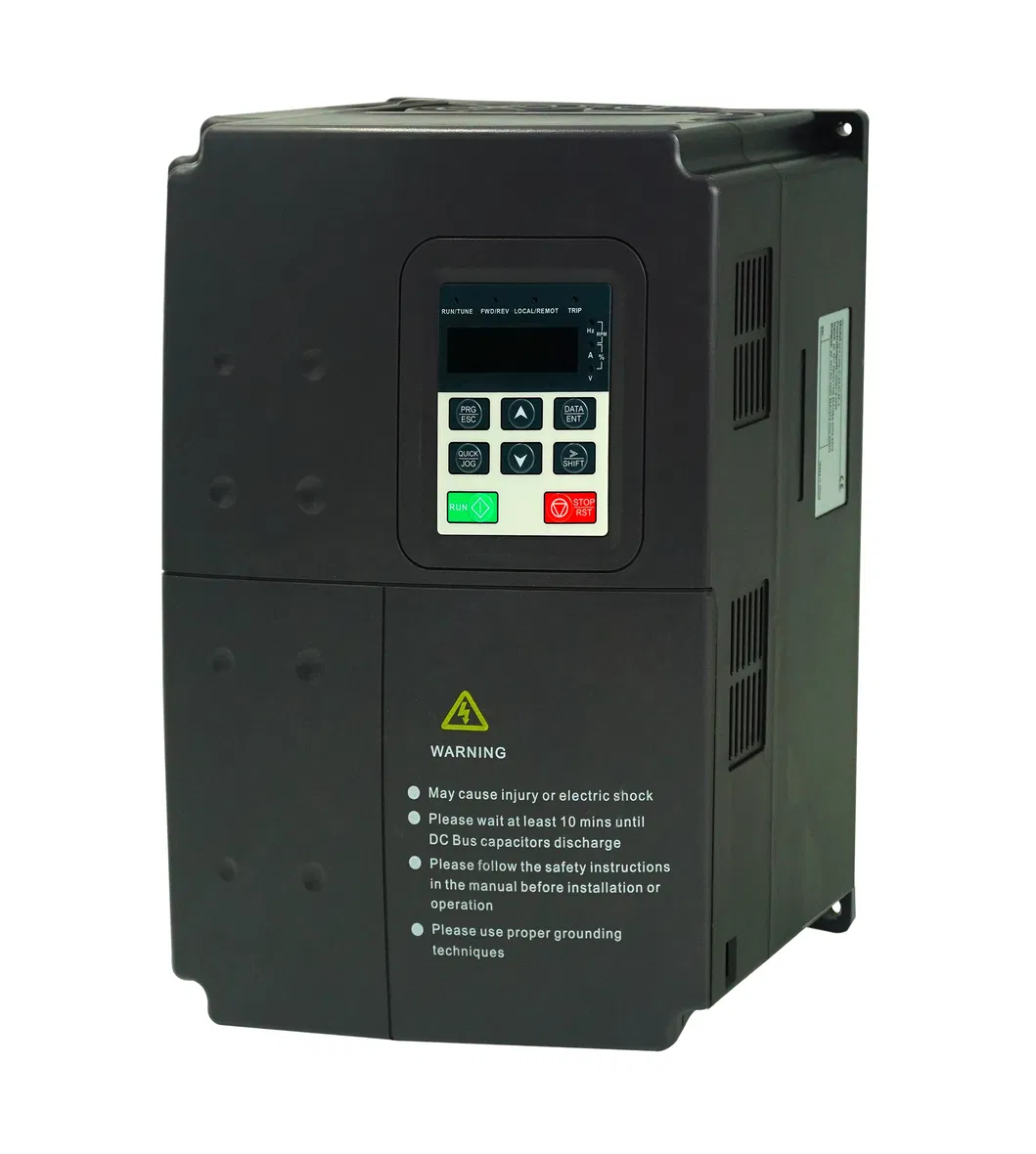

Precision Control
5
Manufacturer Overview
A leading manufacturer of high-quality inverters and drive solutions with 30 years of experience. The 10,000-square-meter modern factory is equipped with fully automated production lines, supported by a 150-member technical team, ensuring an annual capacity of 300,000 units.
Main Products
Factory View
Production Line
6
Certifications & Exhibition
Certifications
Exhibition
?
Frequently Asked Questions
Q: What is the MOQ?
A: The MOQ is 1pc.
Q: Can I get some samples for testing?
A: Sure, sample orders are available for quality checks and market tests.
Q: Do you accept OEM/ODM?
A: Yes, we accept OEM/ODM services with your formal authorization.
Q: What is the estimated delivery time?
A: Generally, it takes 7-15 days for regular types. For large quantities or custom orders, please negotiate with our team.
Q: What is your warranty period?
A: We offer a 12-month warranty service along with lifetime technical support.
Q: How do you ensure product quality?
A: We use a comprehensive end-to-end assurance system, from research and development to fully automated mass production.
