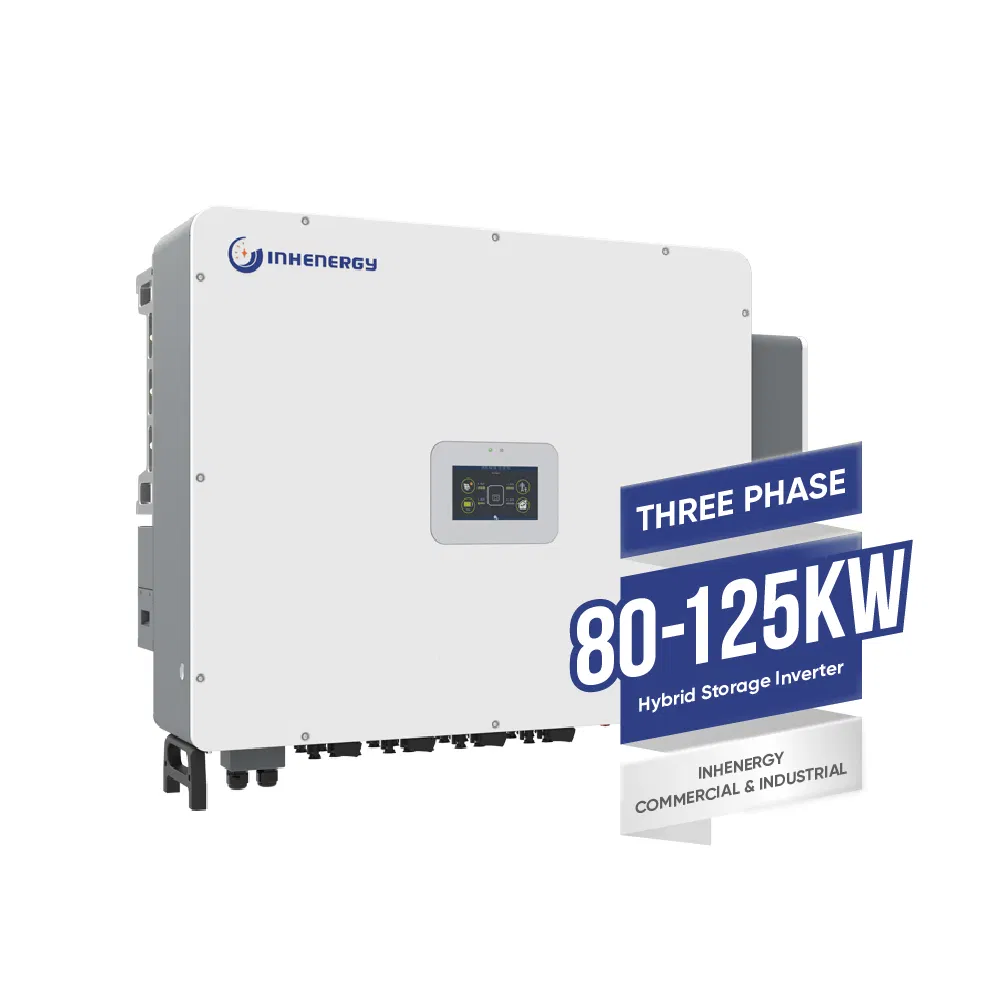

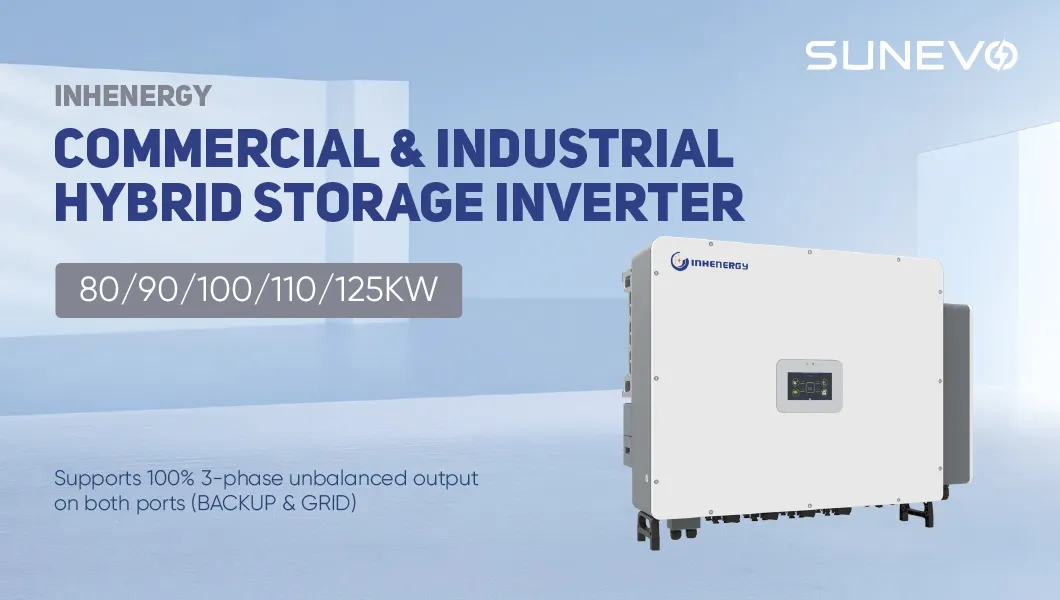

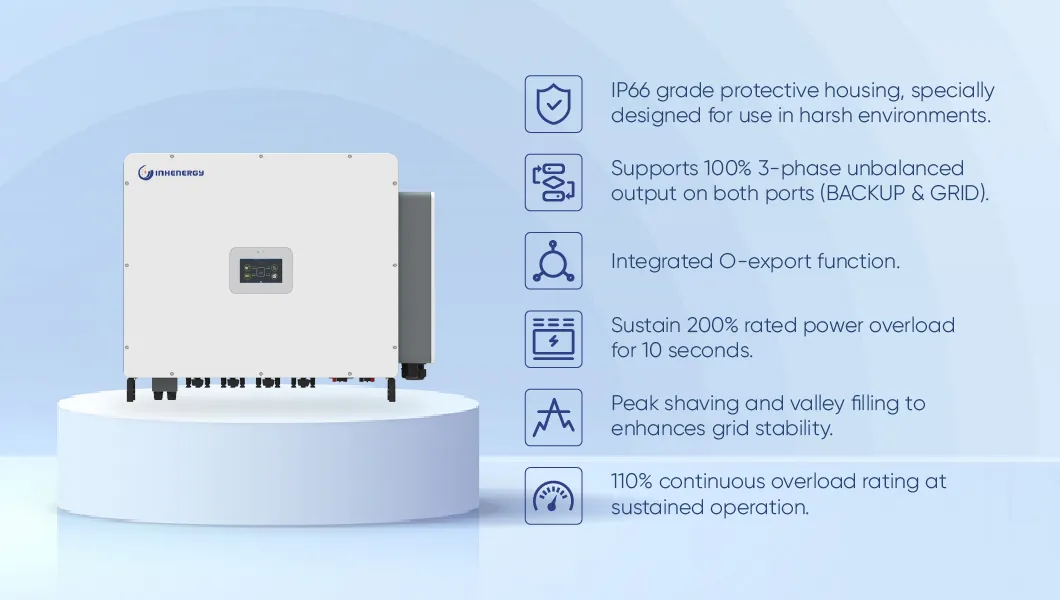

Commercial & Industrial Hybrid Storage Inverter supports 100% 3-phase unbalanced output on both ports (BACKUP & GRID). The power range is designed for project customization, including 80/90/100/110/125KW options.
MODEL
H3-50-Plus
H3-60-Plus
H3-75-Plus
H3-80-Plus
H3-100-Plus
H3-125-Plus
PV INPUT
Max. Array Power [kW]
100
120
150
160
200
250
Input Voltage Range [V]
180 ~ 950
No. of MPP Trackers
4
4
8
8
8
8
BATTERY SPECIFICATION
Battery Type
LFP
Voltage Range [V]
180 ~ 950
Battery Port
3
AC OUTPUT
Nominal AC Power [kW]
50
60
75
80
100
125
Max. AC Output [kVA]
55
66
75*/82.5
88
110
137.5

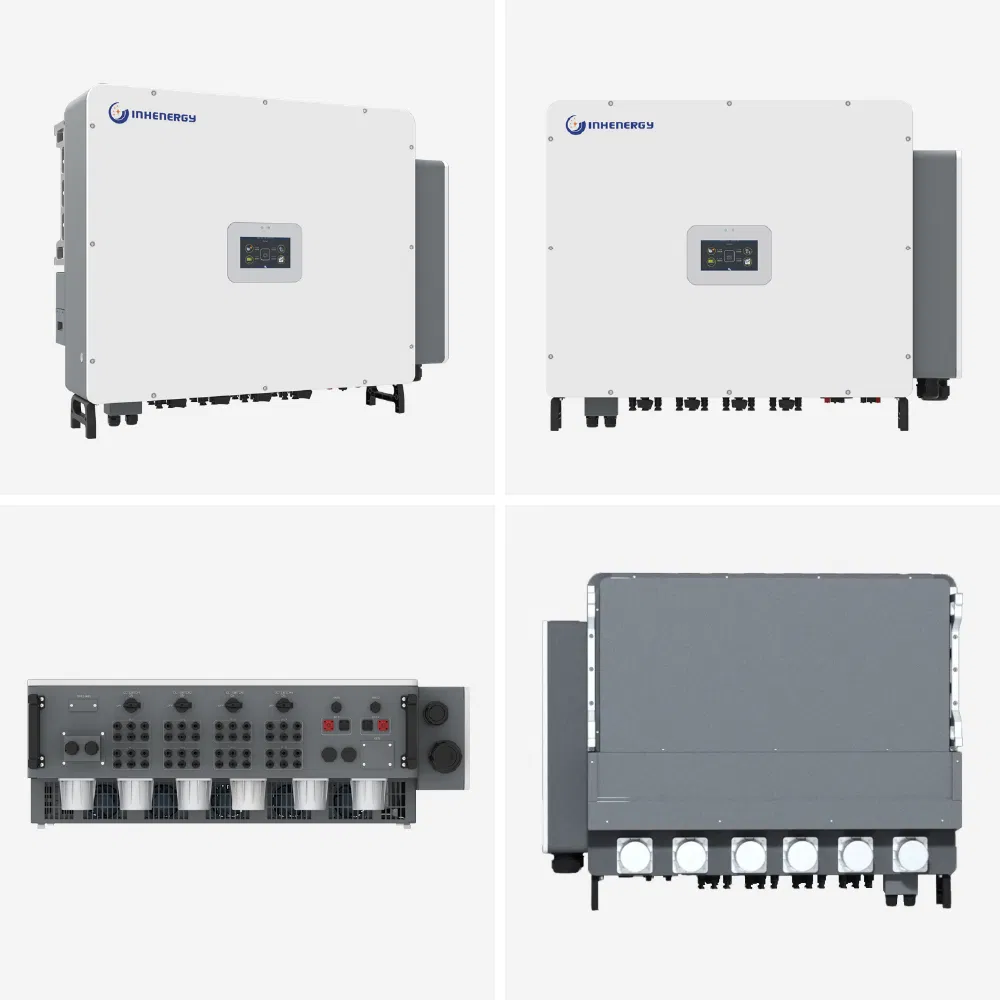

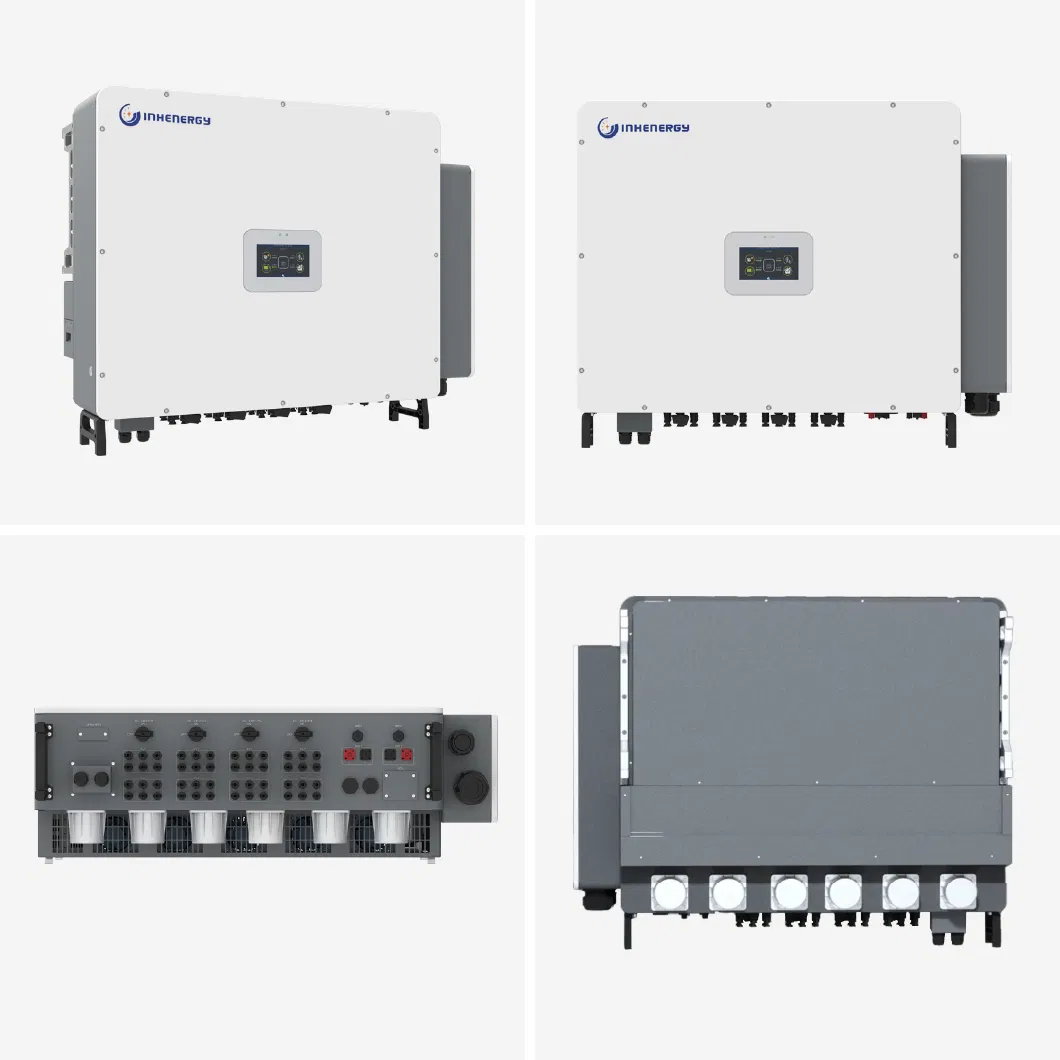

Product Detail
Application & Characteristics

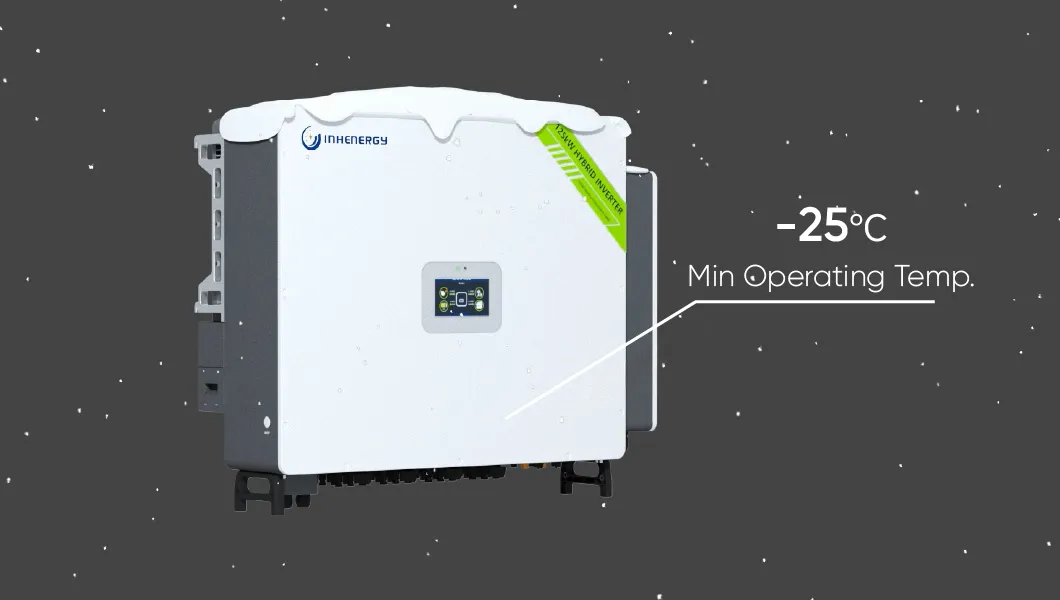

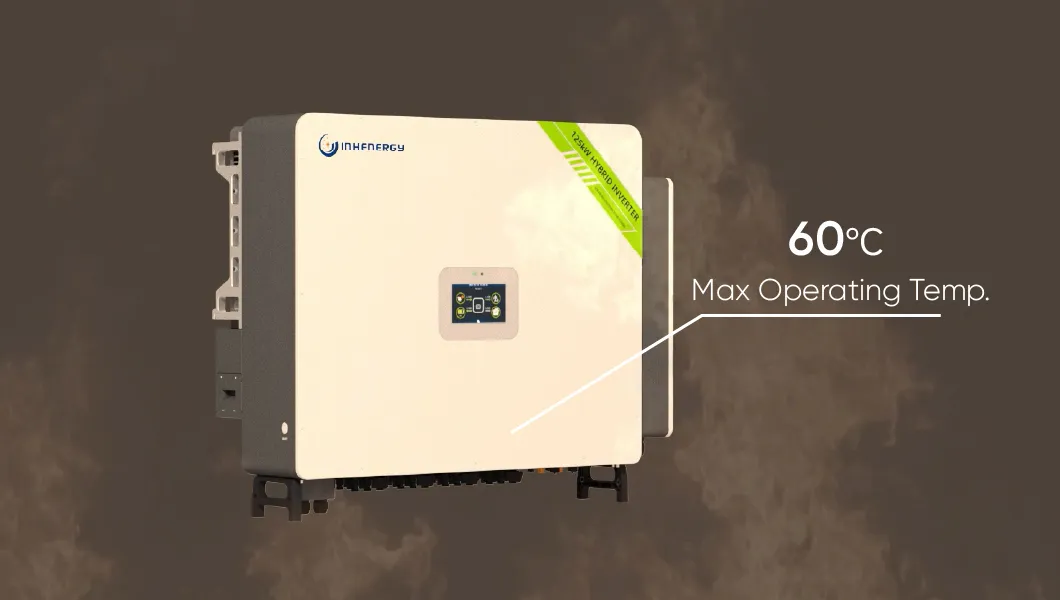

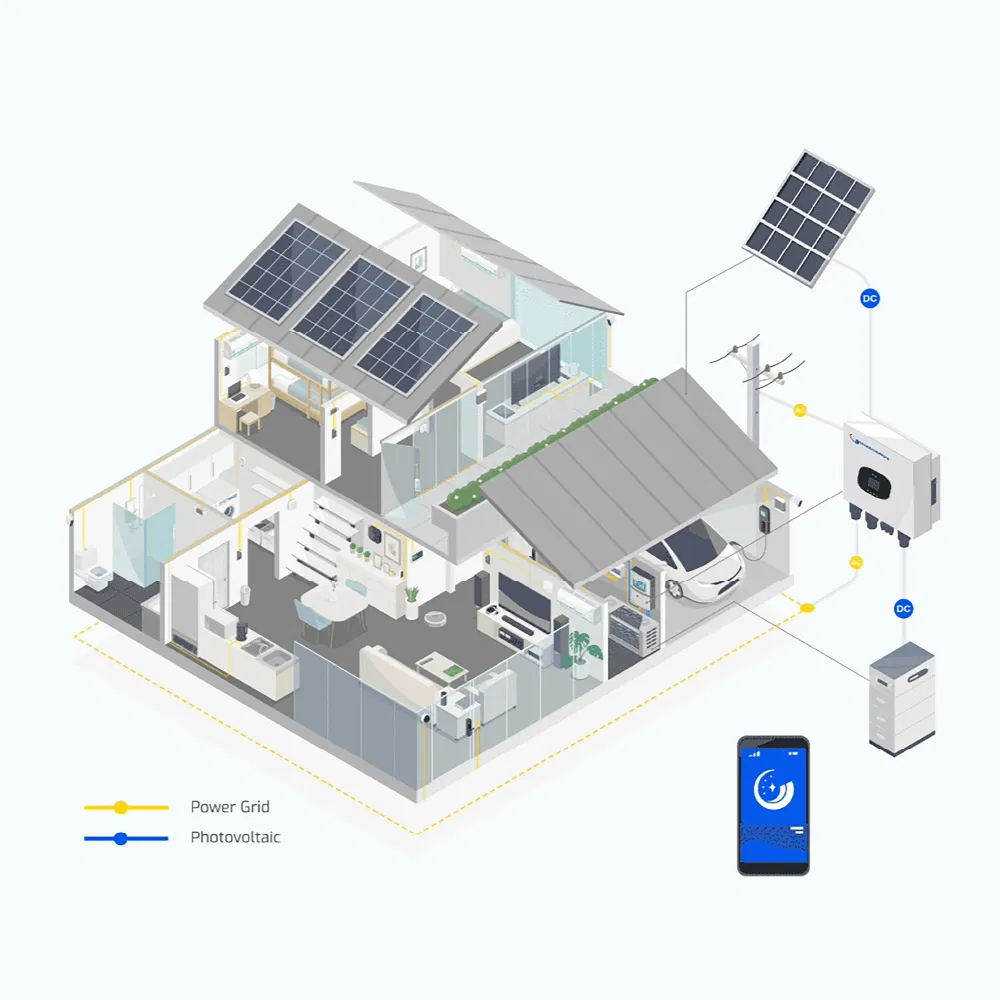

Our C&I Hybrid Storage Inverters are compatible with photovoltaic arrays, lithium battery systems, and charging piles. They operate efficiently in extreme environments (-25°C to 60°C).
Certifications
Products are certified by CE, TUV, IEC 62109-1/2, EN IEC 61000, VDE AR4105, PSE, and more, ensuring strict quality standards.

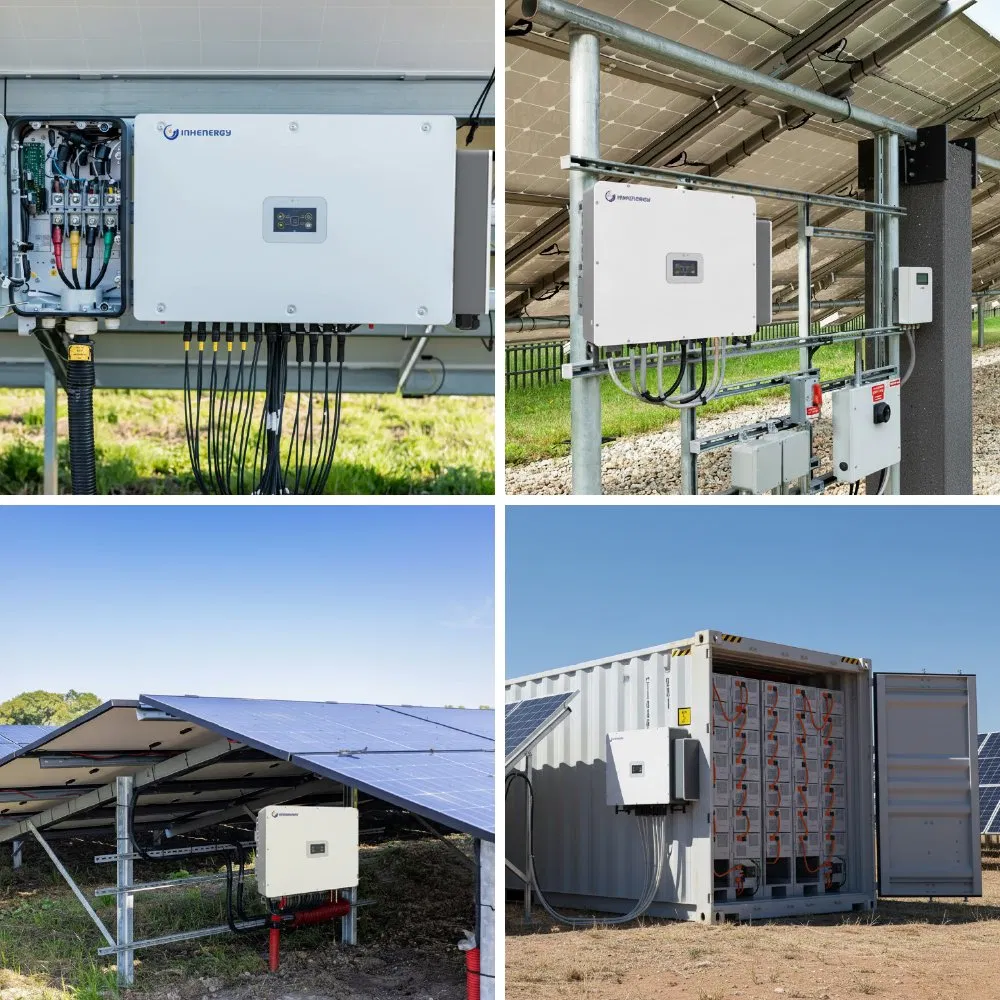

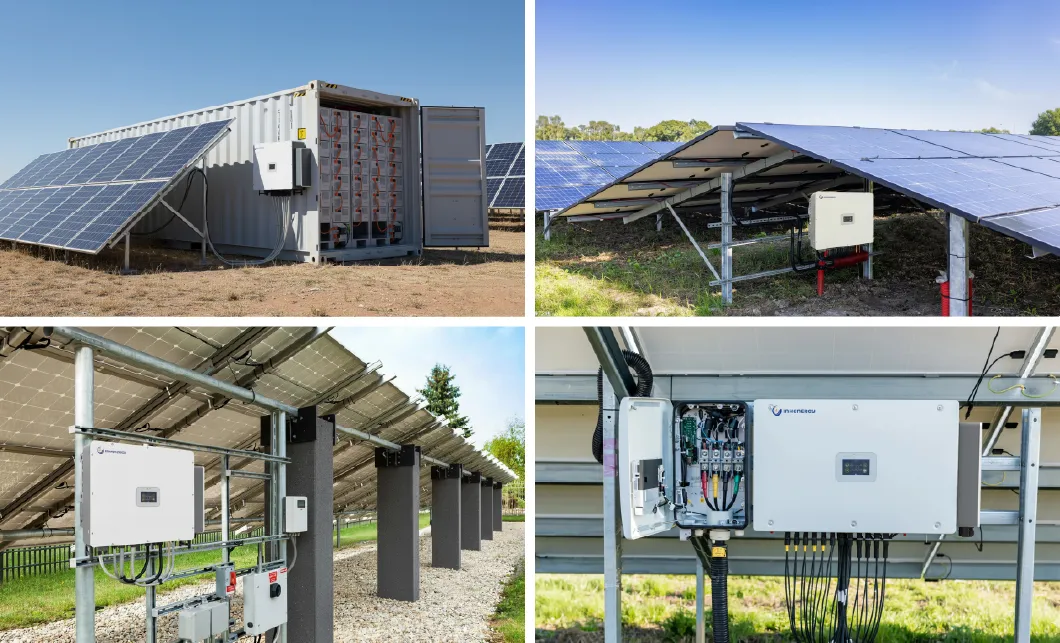

Factory & Customer Photos
Frequently Asked Questions
Q1: What is the power range available for these hybrid inverters?
A: We offer a variety of power options including 80kW, 90kW, 100kW, 110kW, and 125kW to suit different commercial and industrial needs.
Q2: Does the inverter support unbalanced loads?
A: Yes, the system supports 100% 3-phase unbalanced output on both the BACKUP and GRID ports.
Q3: What are the environmental operating conditions?

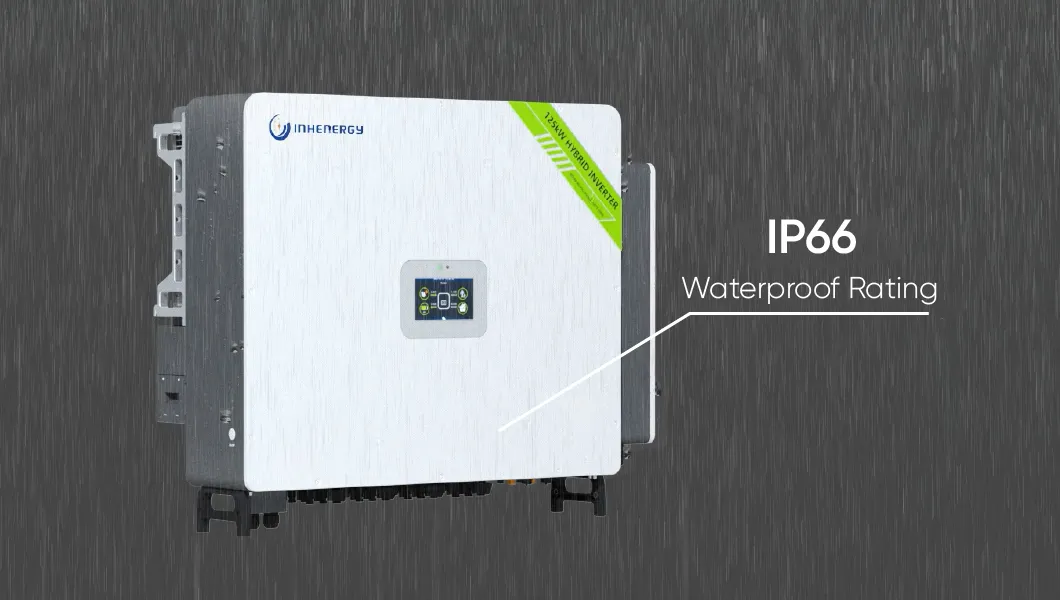

A: These inverters are designed to operate efficiently in temperatures ranging from -25°C to 60°C and are rated IP66 for ingress protection.
Q4: What types of batteries are compatible with the system?
A: The system is primarily designed for use with LFP (Lithium Iron Phosphate) battery types within a voltage range of 180V to 950V.
Q5: What safety certifications do these inverters hold?
A: Our products are fully certified with CE, TUV, IEC 62109-1/2, RoHS, and various regional standards like VDE AR4105 and SAA.
Q6: What communication methods are supported for monitoring?
A: The inverters support multiple communication interfaces including CAN*3 and display options via LED, LCD, and Wi-Fi+APP.
