Basic Information
Product Description

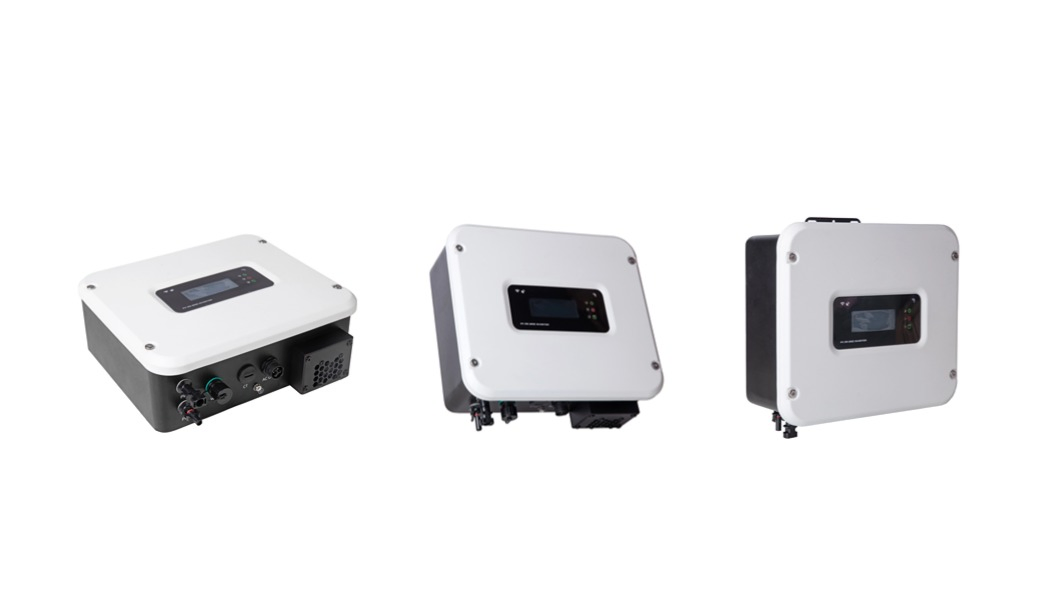

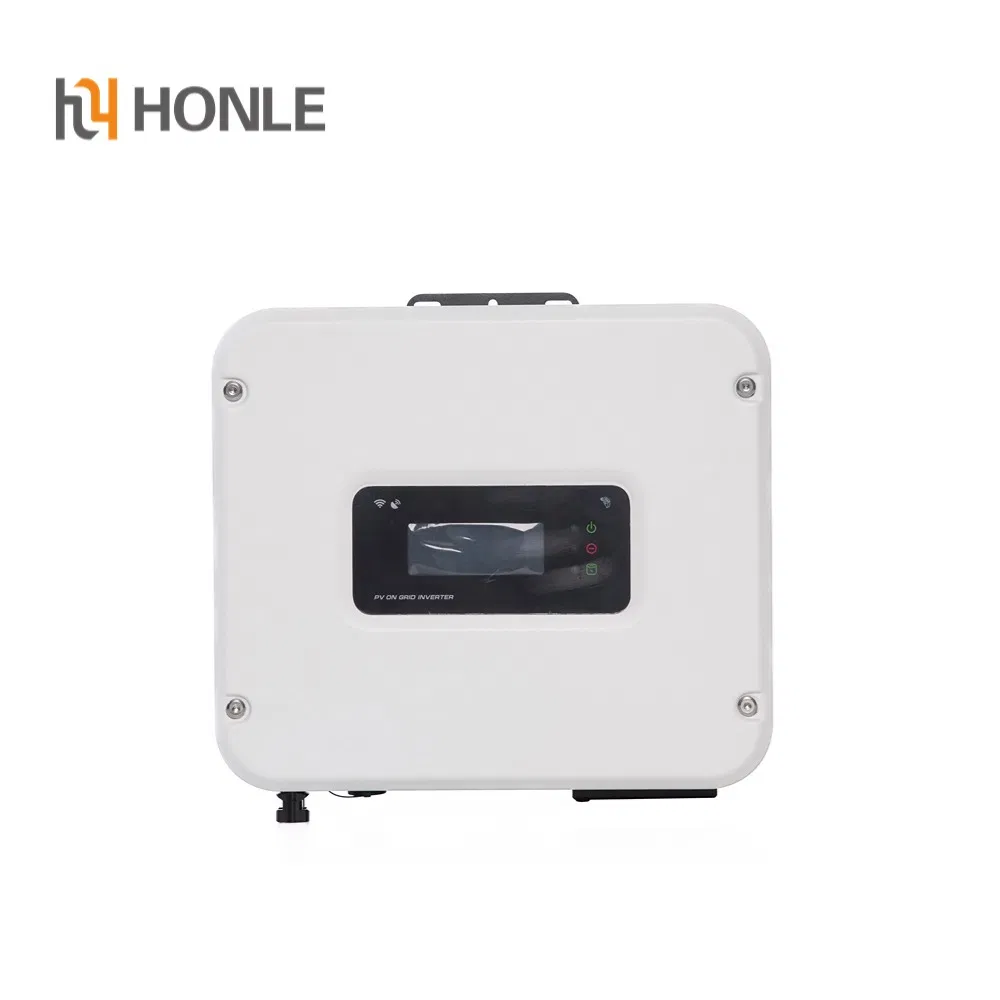

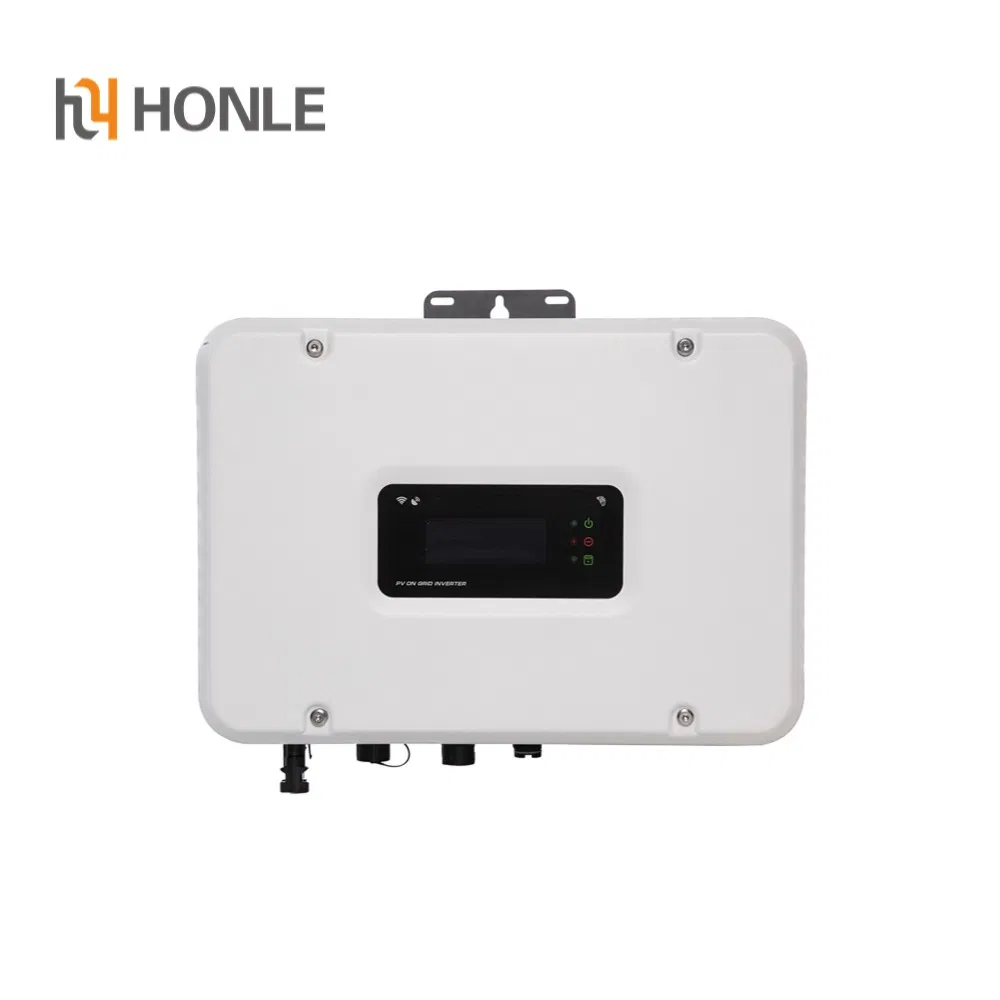

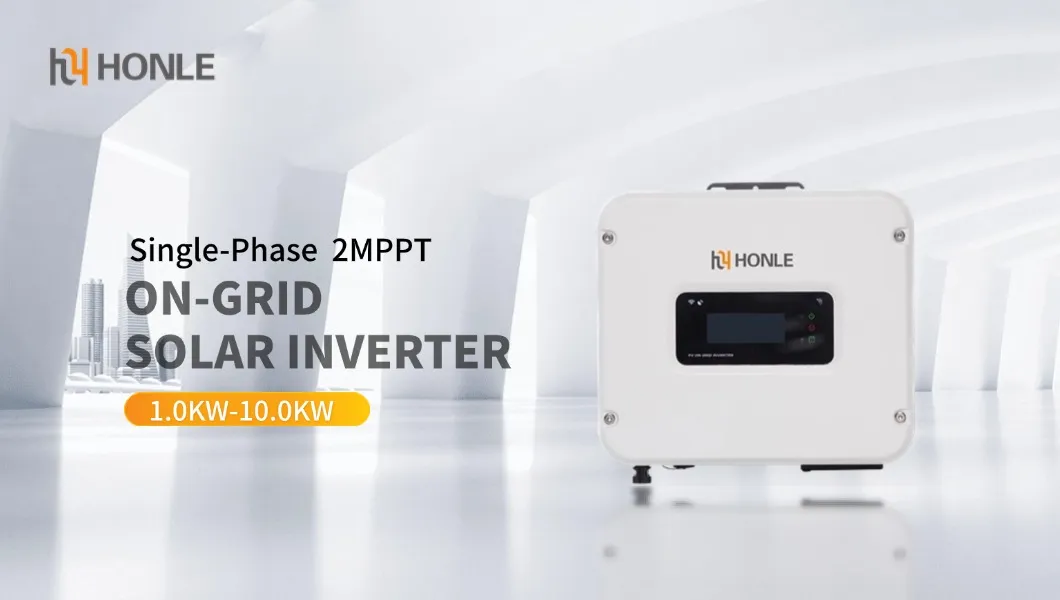

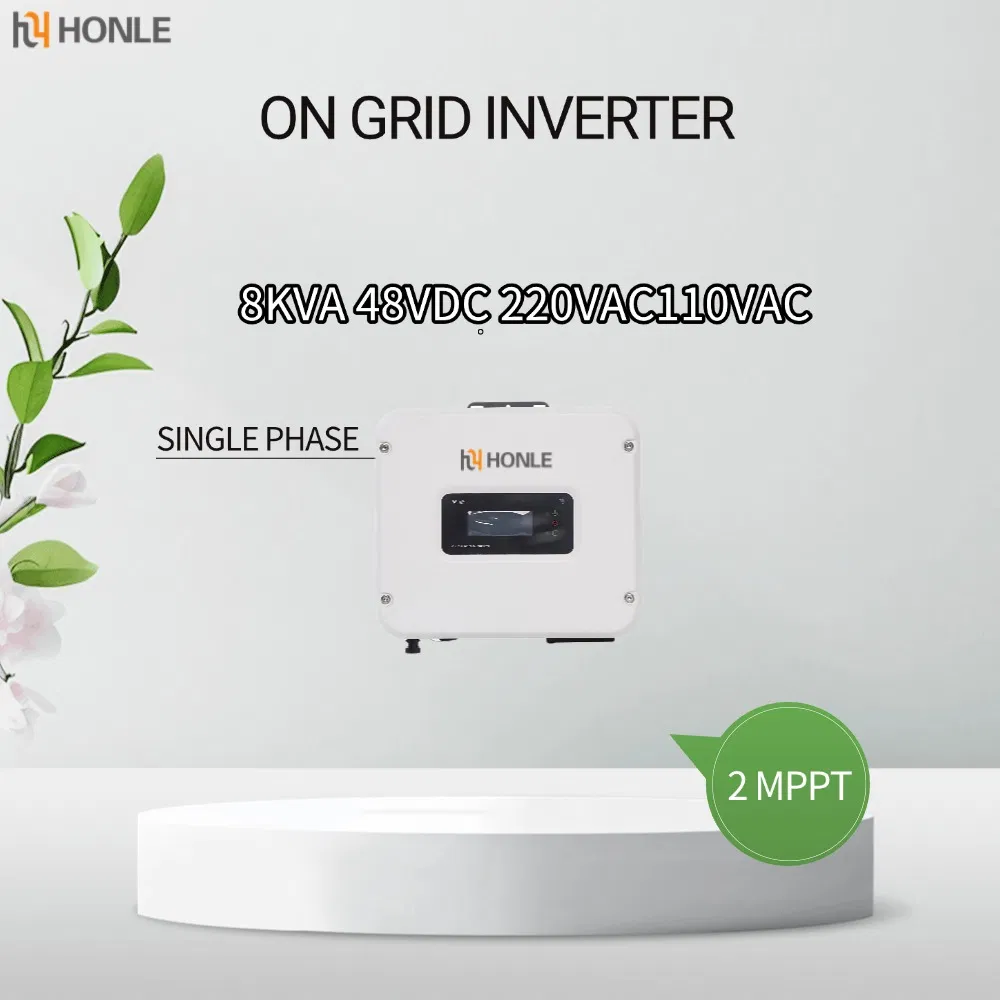

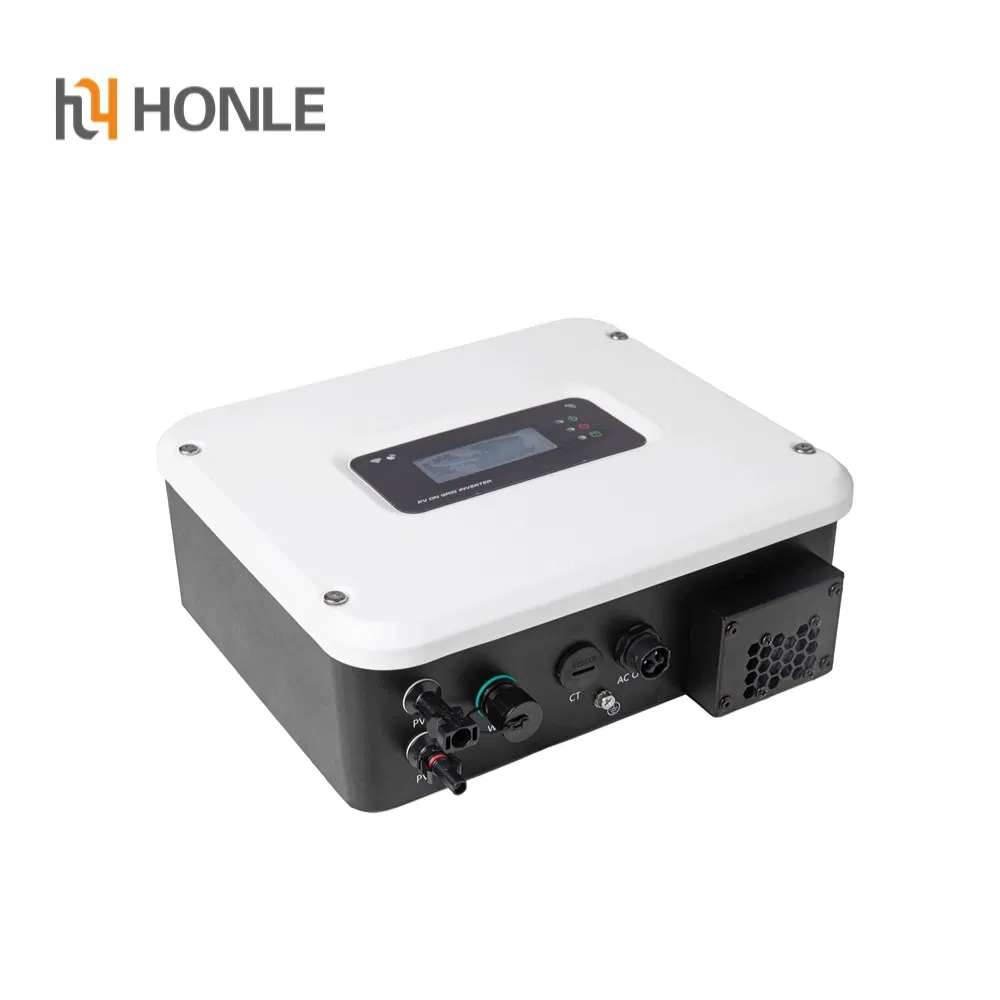

Solar Single Phase On Grid 1kw-10kw Inverter with 2 MPPT
The S series 1kw-10kw inverter is a compact residential solar grid-connected inverter specifically designed to bring comfort and enjoyment as well as high efficiency to households. It features a clear display view from a large LCD screen, easy remote settings, and intuitive graphic operations via app and web. Communications are supported by WIFI, P2P, LAN, GPRS, and RS485.
Our Advantages
Product Parameters
| Model No | S1000TL | S2200TL | S3000TL | S3600TL | S4400TL | S5000TL | S6000TL |
|---|---|---|---|---|---|---|---|
| DC Input Parameters | |||||||
| Max DC power (W) | 1500W | 3300W | 4500W | 5400W | 6600W | 7500W | 7500W |
| Max DC voltage (Vdc) | 450 | 450 | 500 | 500 | 500 | 500 | 500 |
| MPPT Voltage Range | 70~450 | 100~450 | 100~450 | 100~450 | 100~450 | 100~450 | 100~450 |
| MPP Trackers | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| AC Output Parameters | |||||||
| Nominal Output Power | 1000W | 2200W | 3000W | 3600W | 4000W | 5000W | 6000W |
| Max Output Current | 6A | 12A | 16A | 16A | 21A | 23A | 26A |
| Efficiency (Max) | 97.3% | 97.4% | 97.5% | 97.8% | 97.8% | 97.5% | 97.6% |

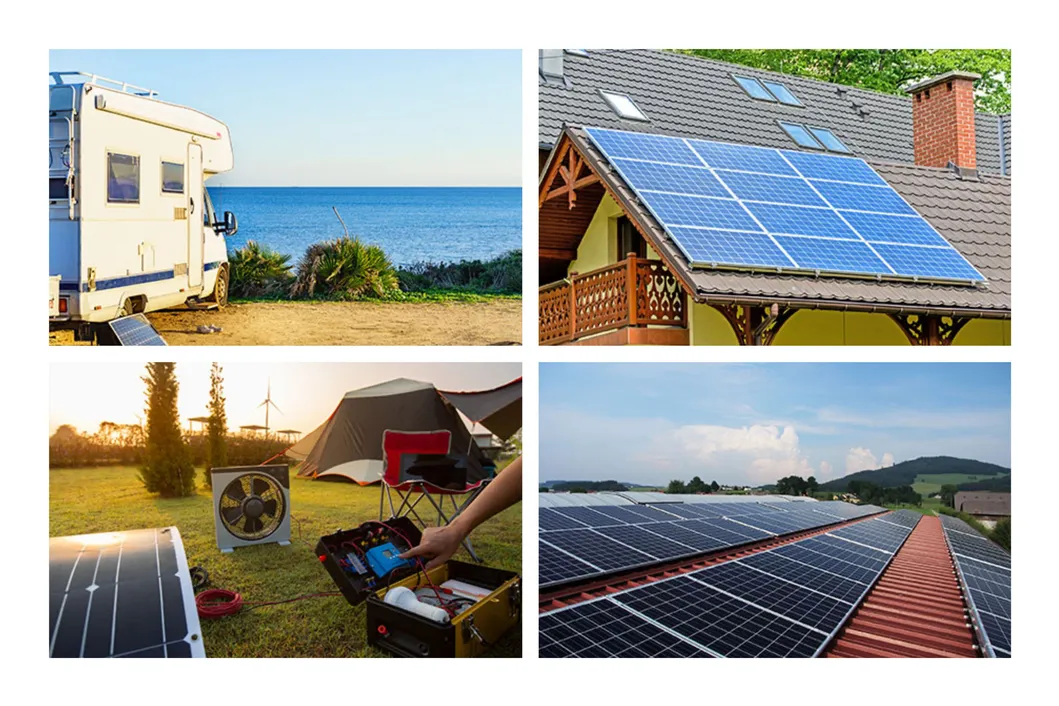

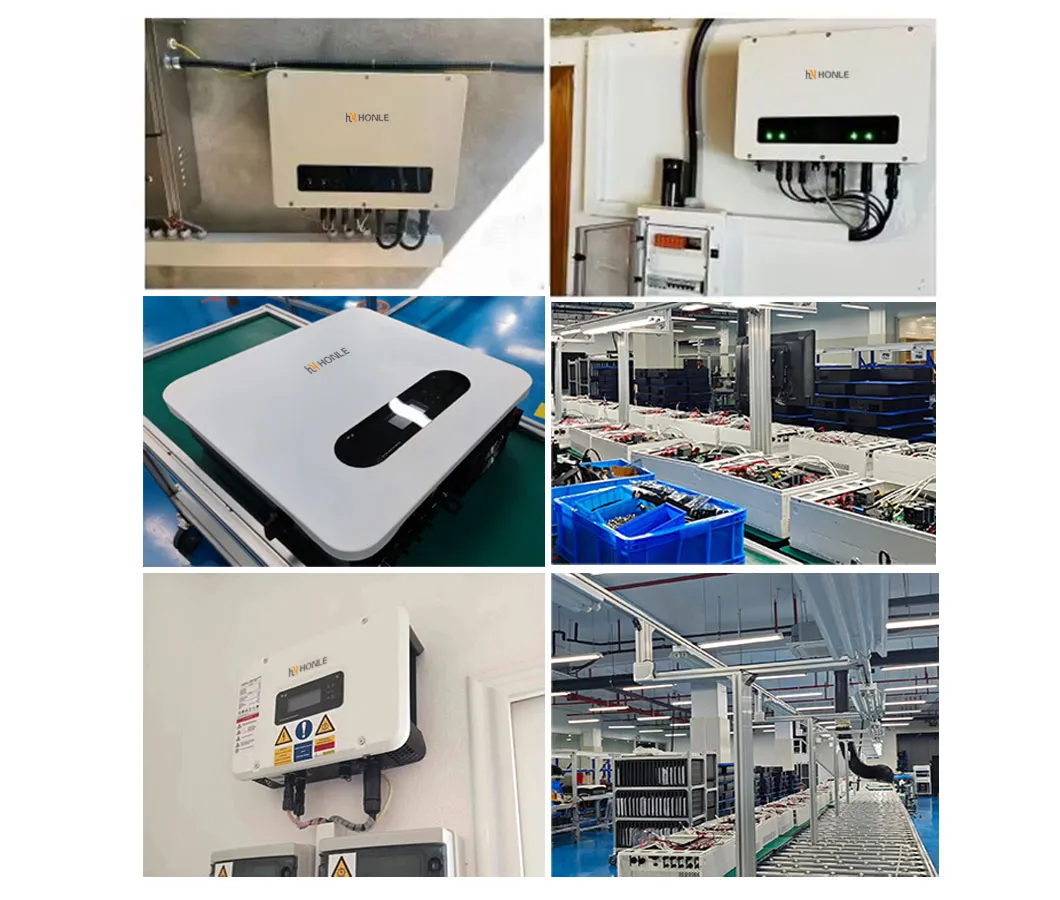

Applications

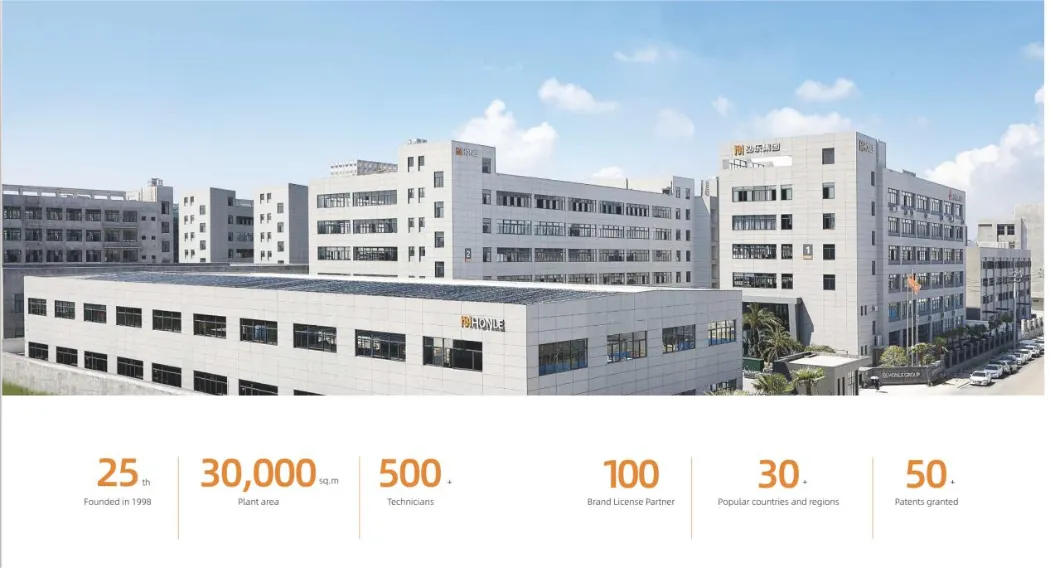

Company Profile
The company is a globally recognized supplier of sustainable, eco-friendly energy storage solutions. With more than two decades of experience in the electric and new energy industry, we have established branches and agents in over 30 countries and regions including Russia, Indonesia, Nigeria, and the UAE.
Our production facility boasts an annual capacity across 30,000 square meters. Our power solutions find wide applications in traditional household energy storage, power walls, and commercial energy storage systems.

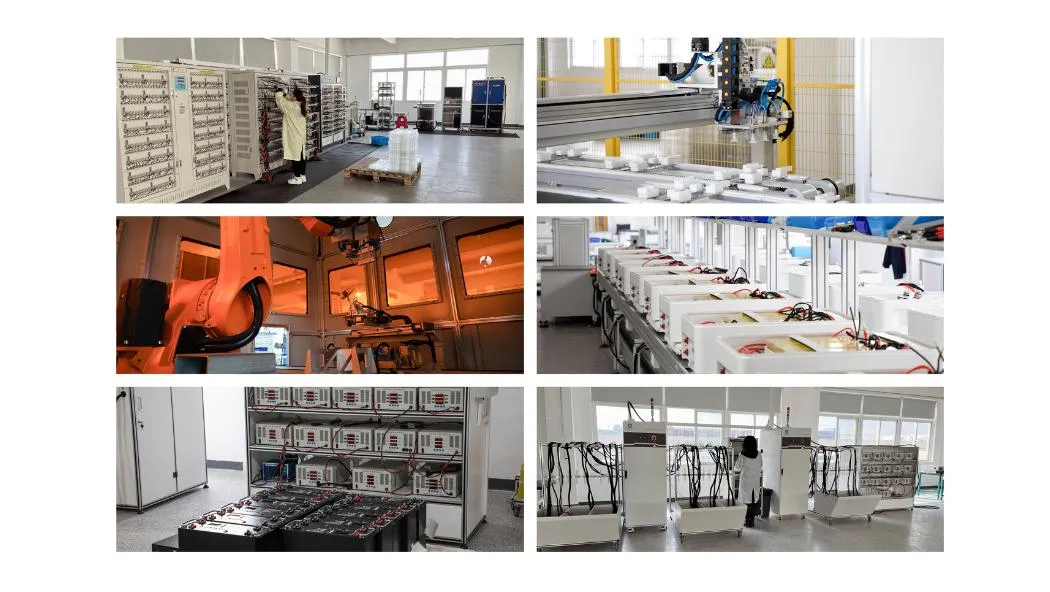

Production Line
Our production line is equipped with the latest technology and high-level testing machinery. Our skilled team ensures every product meets strict international quality standards.

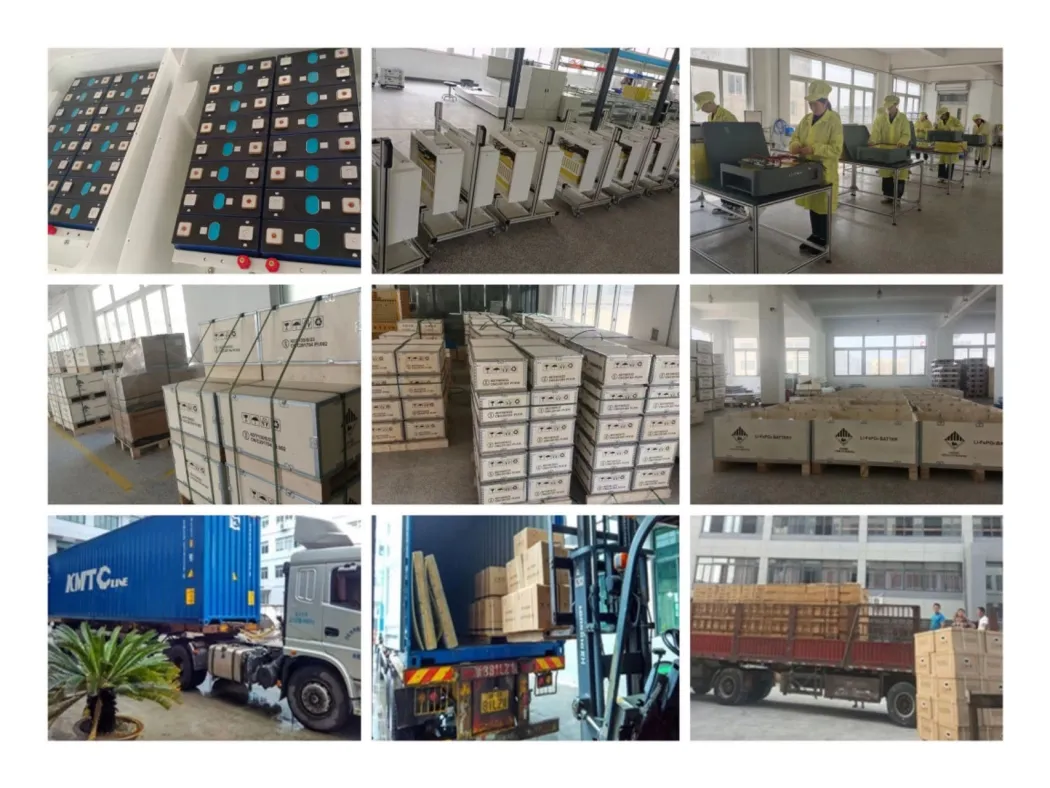

Certifications & Shipping
Frequently Asked Questions
