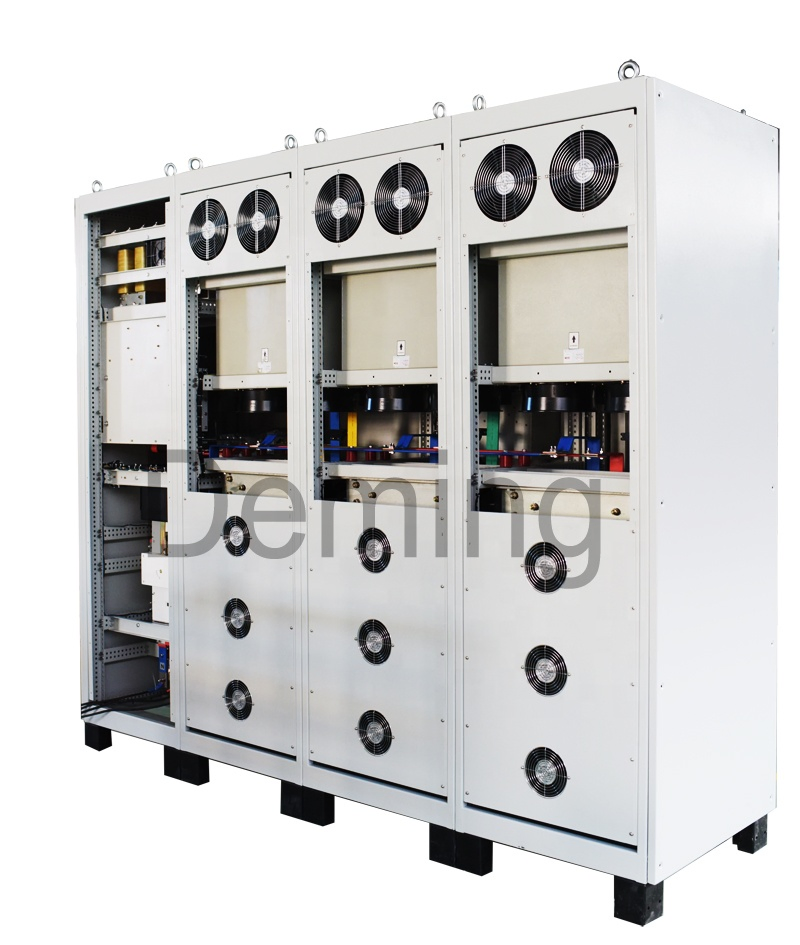

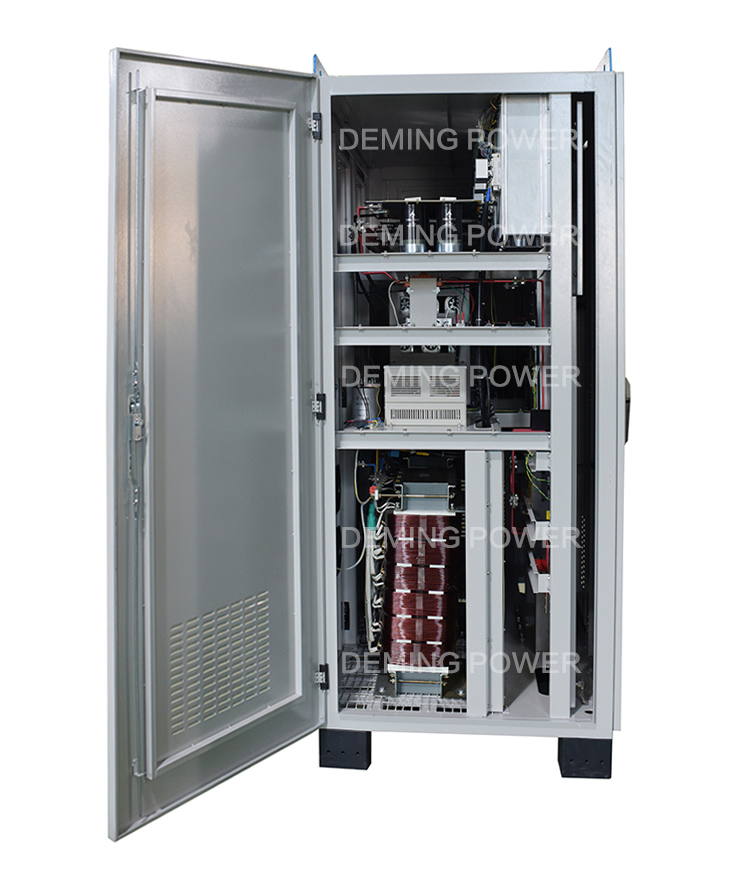

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

1 / 5

High-Efficiency 1MW Solar Hybrid Inverter for off-Grid Solar Portable Generator Use

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	ISO9001, CE

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

NB576-1000KSZ

Output Power

1000kw

Grid Type

Off-Grid Inverter

Output Type

Triple (3 Phase)

Efficiency

Max. ≥94%

Wave Form

Pure Sine Wave

Battery Type

LiFePO4 Lithium

AC Wiring

3 Phase 3 Wire / 4 Wire

💡 Key Features & Functionality

1000KVA Pure Sine Wave Inverter DC to AC System

High-performance IGBT components from Mitsubishi or Infineon for superior power reliability.
Advanced American ATEMEL microprocessor control for precise digital operation.
Comprehensive protection and warning functions to ensure system longevity.
Compact circuit design with maximum efficiency reaching up to 94%.
Wide DC input voltage range suitable for diverse battery configurations.
Multiple communication interfaces available including RS232 and RS485.
User-friendly English LCD/LED big-screen display for real-time monitoring.
Built-in Isolated Transformers to support inductive loads like water pumps and motors.

⚙️ System Configurations

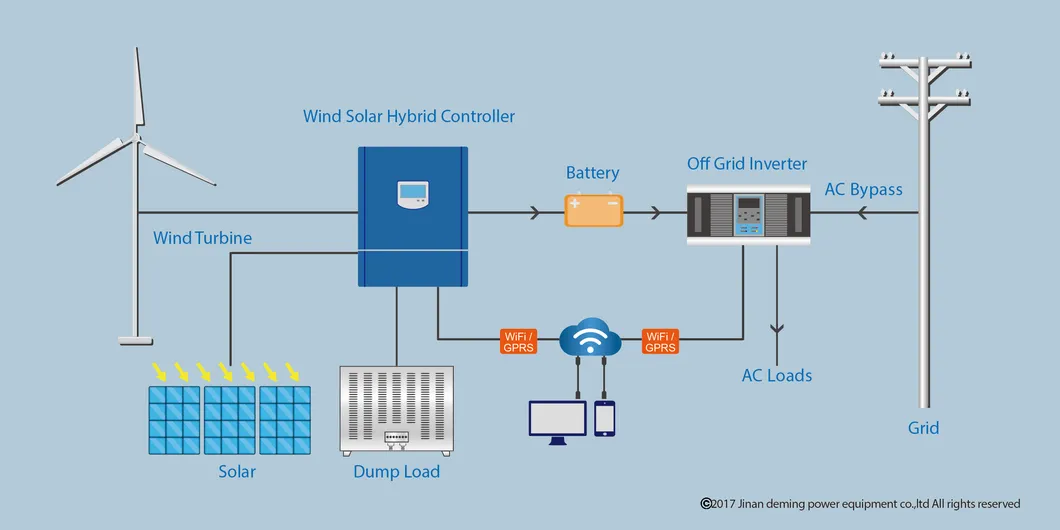

Off-grid Solar Wind Hybrid System:

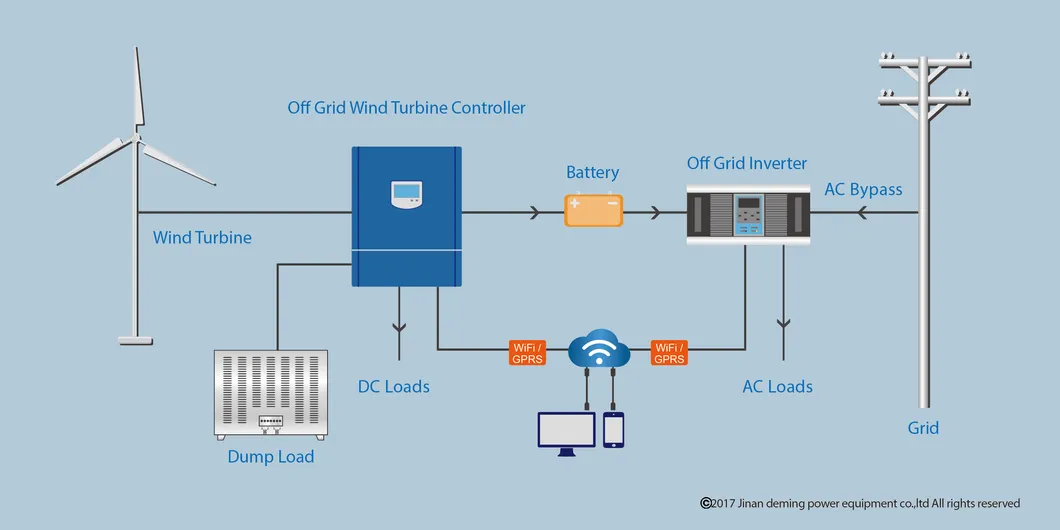

Off-grid Wind Power System:

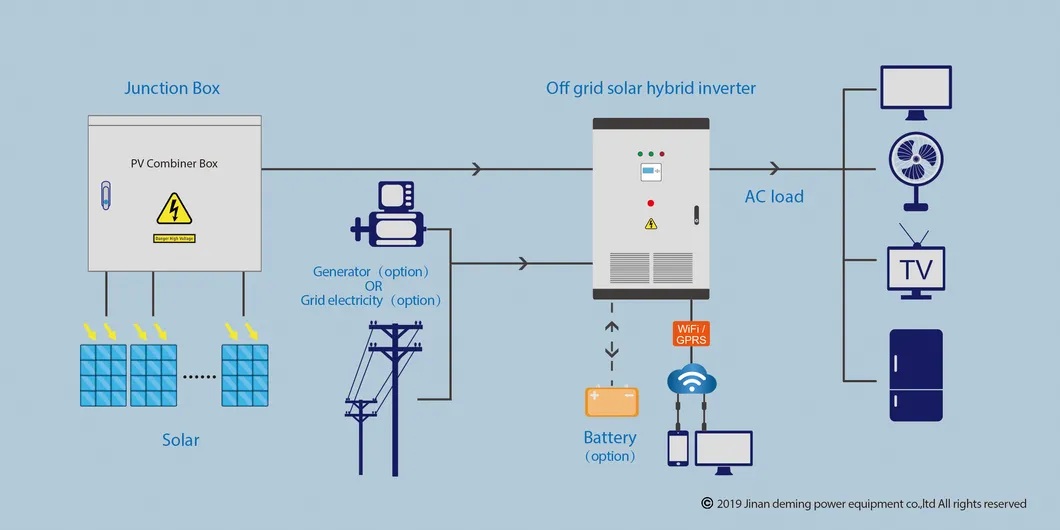

Off-grid Solar Power System:

📋 Technical Parameters

Model Type		NB576-1000KSZ
DC Input	Rated Voltage	576 VDC
	Rated Current	1929 A
	Voltage Range	480-744 VDC
AC Input (Bypass)	Voltage Range	220V / 380V / 400VAC ± 15%
	Rated Current	2624A / 1519A / 1443A
	Transfer Time	≤ 200 ms
AC Output	Rated Capacity	1000KVA / 800KW
	Voltage & Frequency	220V/380V/400VAC, 50/60Hz
	THD (Linear Load)	≤3%
	Power Factor (PF)	0.8
	Overload Capacity	120% (10 mins), 200% (10 secs)
Environment	Noise (1m)	≤50dB
	Ambient Temp	-10ºC ~ +50ºC
	Altitude	<2000m

🖼️ Product Details & Packaging

Technical Design Drawing:

Package Size

560cm * 430cm * 320cm

Gross Weight

60,000kg

❓ Frequently Asked Questions

What is the maximum efficiency of the 1000KW inverter?

The system utilizes high-quality IGBT components from Mitsubishi or Infineon, allowing it to achieve a maximum efficiency of ≥94%.

Can this inverter run heavy machinery like water pumps?

Yes, the inverter is equipped with built-in isolated transformers, making it capable of supplying inductive loads such as water pumps and industrial motors safely.

What types of protection does the inverter offer?

It includes comprehensive protection features: input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, and thermal protection.

Is the output frequency adjustable?

The inverter supports both 50Hz and 60Hz output frequencies with an accuracy of ±0.05%, suitable for different regional electrical standards.

What communication interfaces are available for monitoring?

The unit comes with RS232/485 communication ports, and multiple communication interfaces can be selected to fit your local monitoring system requirements.

What is the surge capacity for start-up loads?

This inverter features a high overload capacity, supporting 120% load for 10 minutes and up to 200% load for 10 seconds to handle peak start-up currents.
