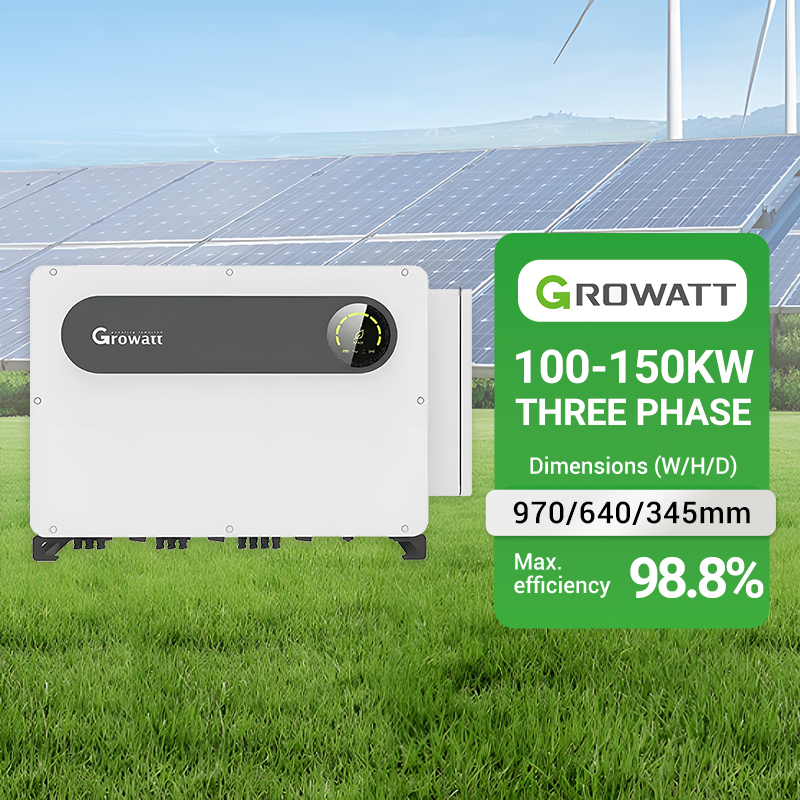

Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
1 / 5
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel
Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel

Growatt MPPT Commercial Solar Inverter 100kw 110kw 120kw 125kw 150kw on Grid IP66 3 Phase Solar String Inverters for Solar Panel

Customization: Available
After-sales Service: Yes
Warranty: 5 Years
Send Inquiry

Product Description

Basic Information
Model
MAX 100KTL3-X LV
Source Flow
Active Inverter
Phase
Three Phase
Output Power
>1000W
Certification
CE, ISO9001
Power Source
Solar Power
Output Frequency
50/60 Hz
Inverter Efficiency
98.8%
Protection
IP66
Cooling
Smart Air Cooling
Product Features
10 MPPTs Design
Equipped with 10 independent MPPTs, ensuring maximum energy harvest and flexible system design with a fuseless reliability.
High String Current
Supports max. string current up to 22.5A, compatible with high-power modules (500W+) for future-ready systems.

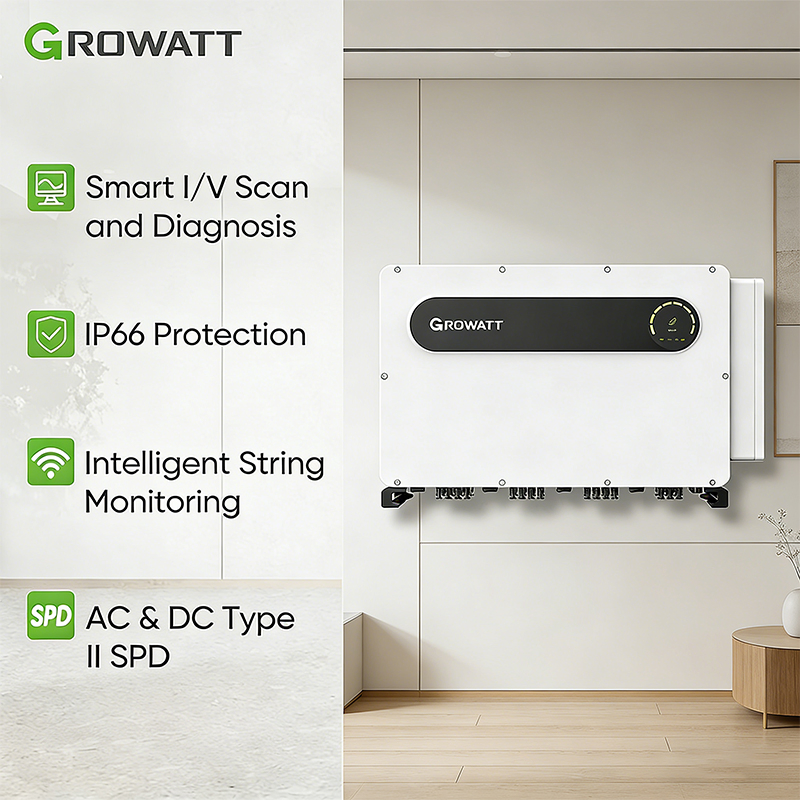

Smart Diagnosis
Built-in smart IV curve diagnosis and individual string monitoring for real-time fault detection and optimization.
Total Protection
Integrated Type II SPD on both AC and DC sides, plus IP66 rating for harsh outdoor environmental conditions.

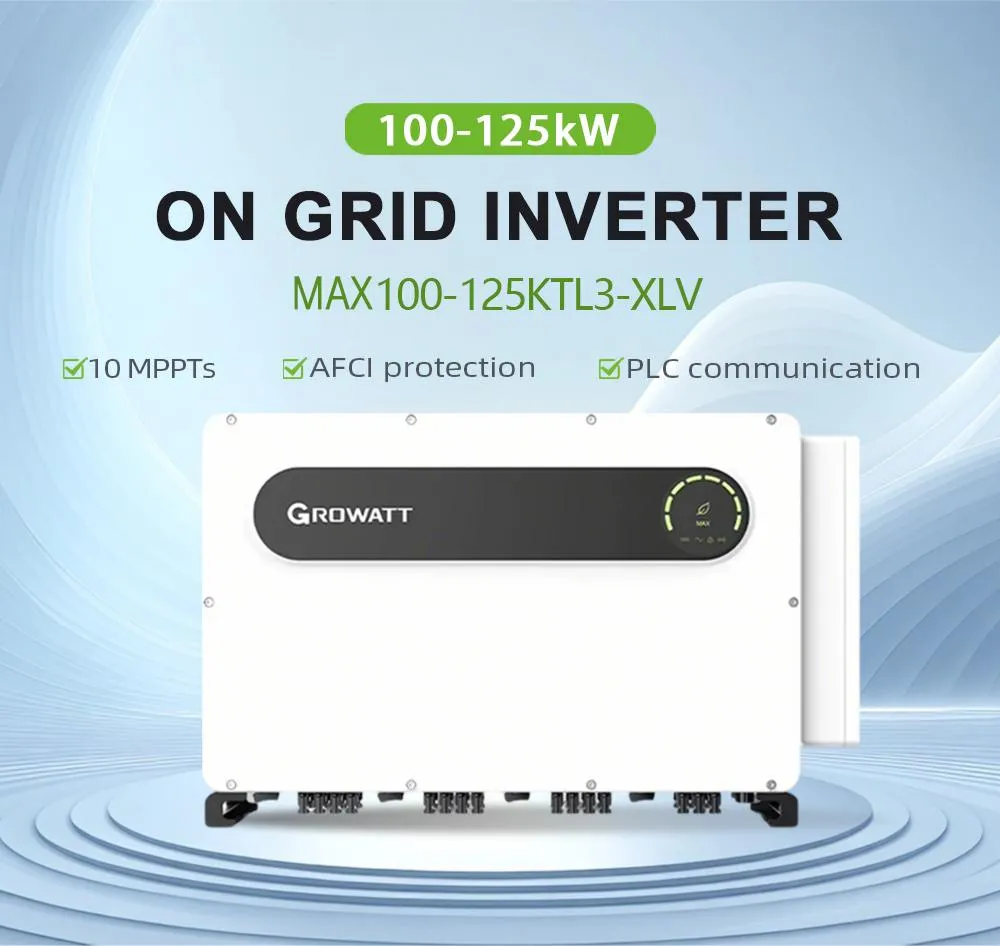

Solar Inverter Overview
Inverter Feature Detail 1

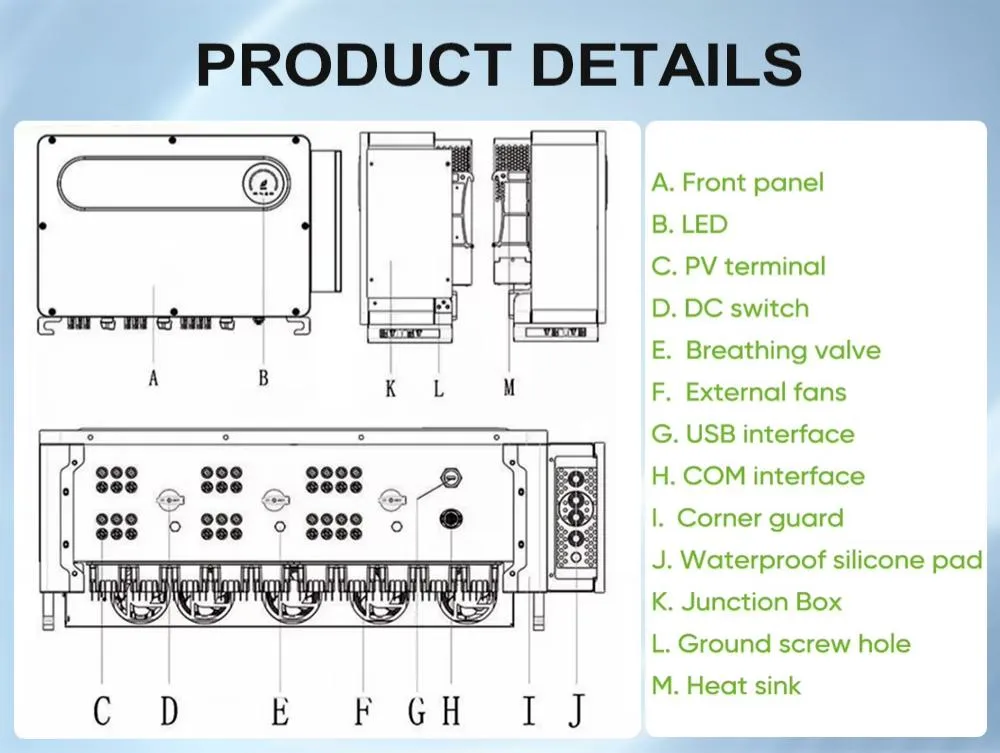

Inverter Feature Detail 2
Technical Specifications
Datasheet MAX 100KTL3-X LV MAX 110KTL3-X LV MAX 120KTL3-X LV MAX 125KTL3-X LV
Input Data (DC)
Max. DC voltage1100V
Nominal voltage600V
MPP voltage range180V-1000V
No. of MPP trackers10
Max. input current per MPPT32A
Output Data (AC)
AC nominal power100000W110000W120000W125000W
Nominal AC voltage220V/380V, 230V/400V
AC grid connection type3W/N/PE
Efficiency & Protection
Max. efficiency98.8%
Surge protectionType II (AC) / Type II (DC)
Dimensions (W/H/D)970 / 640 / 345mm
Weight84kg
Working Principle & Application

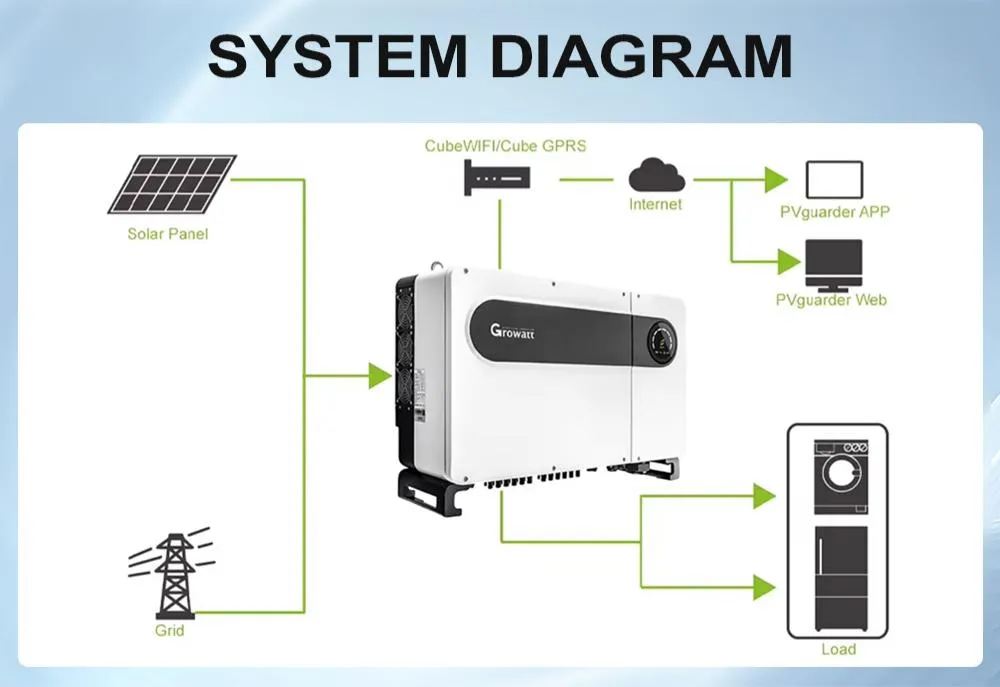

Inverter Working Principle

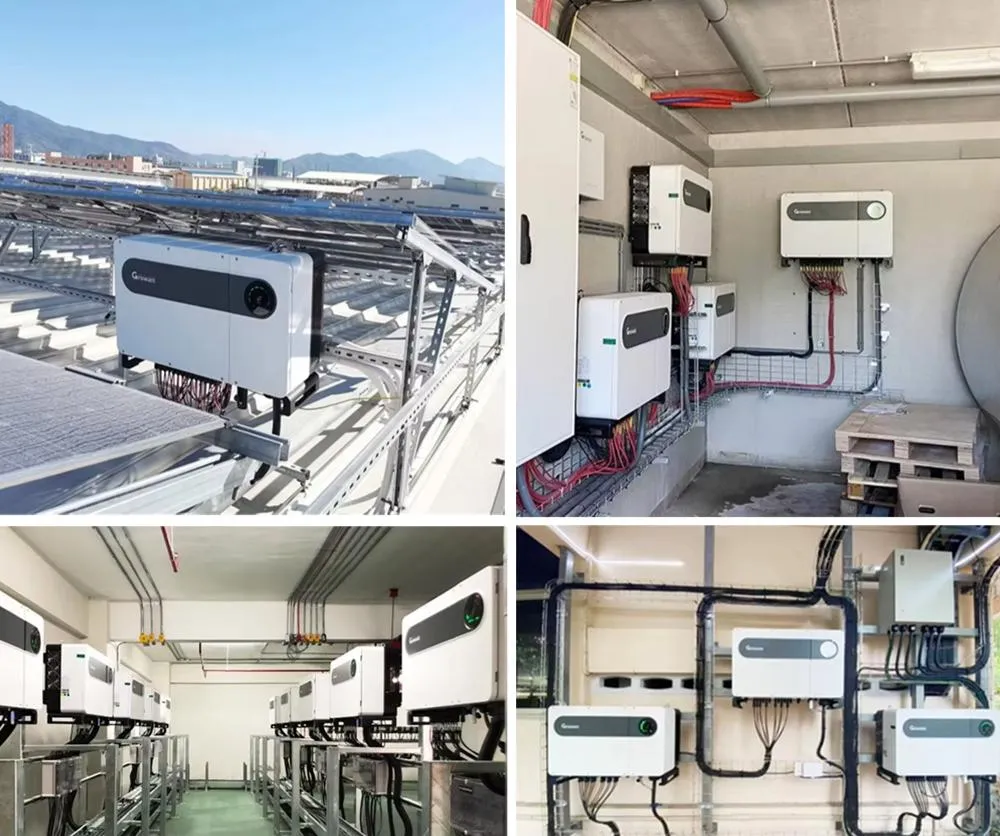

Project Case
Solar Project Case
Product Video Presentation
Video Cover

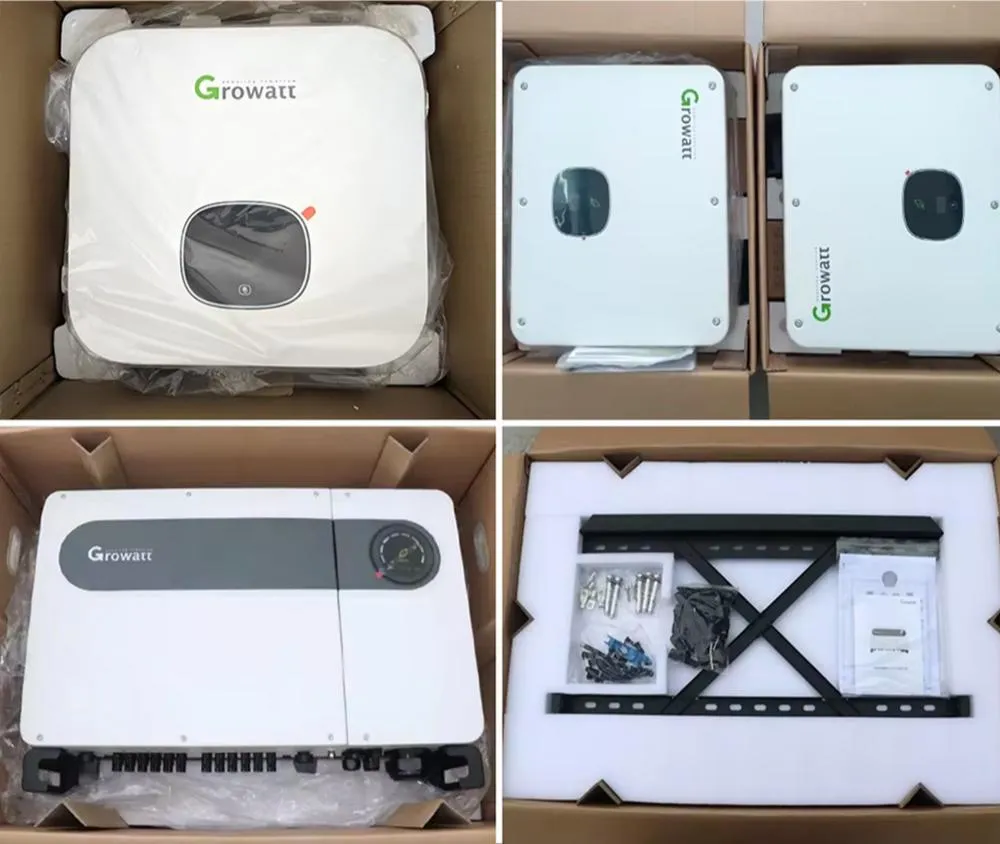

Packing & Delivery
Packing Details
Authorization Certificate
Frequently Asked Questions
● Q1: What is the power range of these inverters?
A1: The series covers 100kW to 125kW, while the MAX 150KTL3-X LV model offers 150kW output, ideal for large commercial and industrial solar projects.
● Q2: How many MPPTs do these inverters feature?
A2: These models feature 10 independent MPPTs, allowing for flexible system design and maximizing energy yield from multiple roof orientations.
● Q3: Are they compatible with high-power bifacial solar modules?
A3: Yes. With a max string current of 22.5A, they fully support 500W+ bifacial and high-efficiency modules.
● Q4: What smart monitoring features are included?
A4: They support smart IV curve scan and diagnosis, plus intelligent string monitoring for real-time fault detection and performance optimization.
● Q5: Do they come with built-in surge protection?
A5: Yes. Type II SPDs are integrated on both AC and DC sides, protecting the system from lightning strikes and voltage surges.
● Q6: What is the enclosure protection rating for outdoor use?
A6: The inverters are rated IP66, offering excellent dust and water resistance for reliable outdoor installation in harsh environments.
