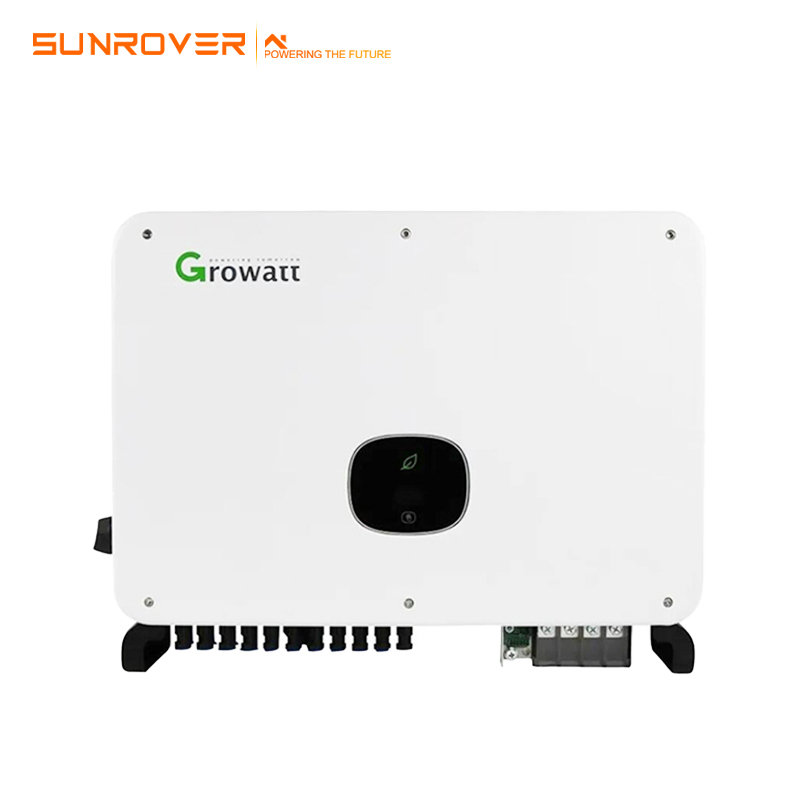

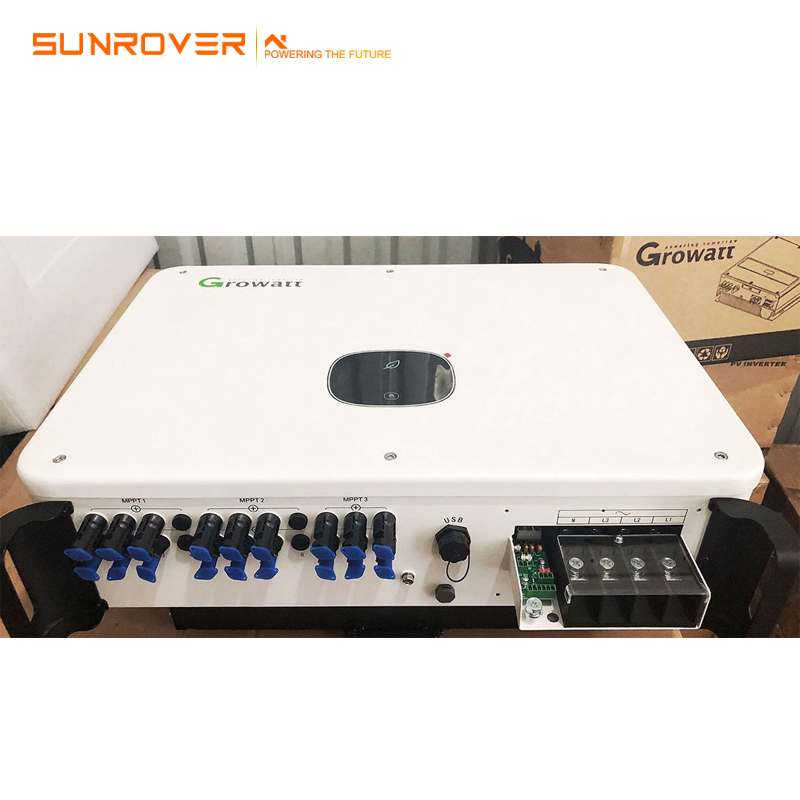

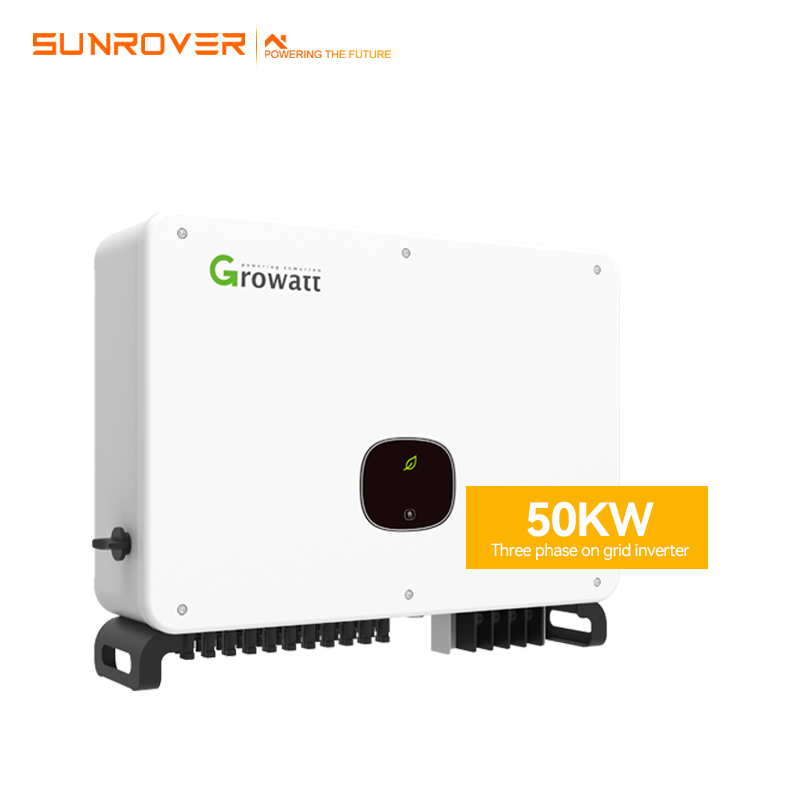

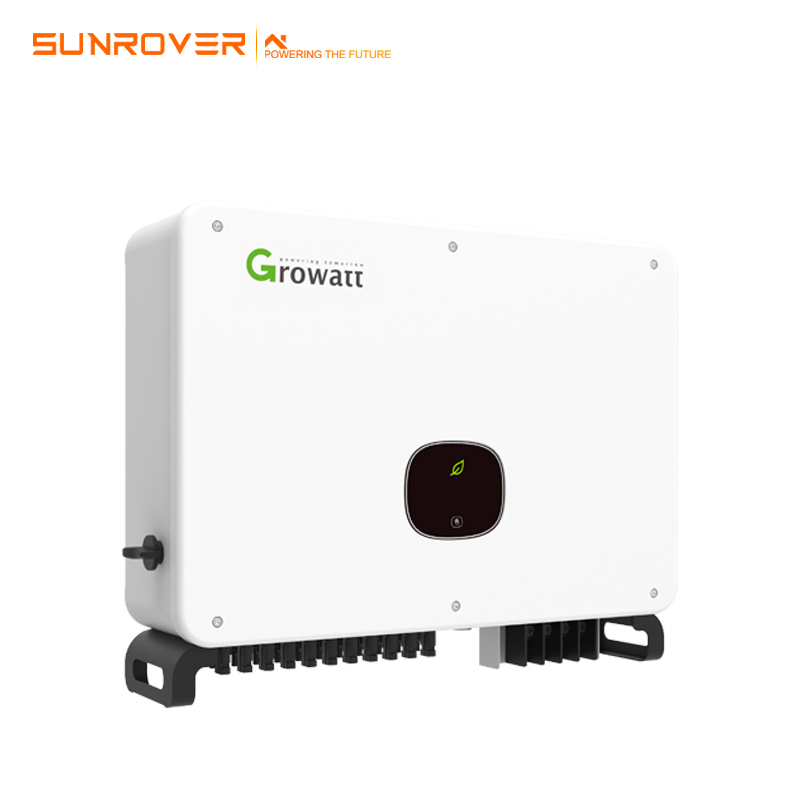

Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
1 / 5
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters
Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters

Growatt on Grid Solar Inverter 50kw 80kw Grid Tie Inverter Three Phase Max 50-80ktl3-LV Commercial Inverters

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
MAX 50-80KTL3-LV
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
>1000W
Certification
CE, ISO9001, CCC, TUV, VDE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Application
Grid-Tied Solar System
Display
LED/WiFi+APP
Specification
860/600/300mm
Production Capacity
50000PCS/Month
Product Overview

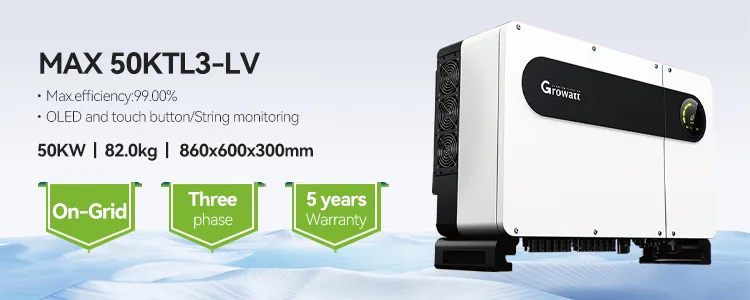

Product Banner

MAX 50~80KTL3 LV Series Highlights

✓ 6 /7 MPPTs
✓ Smart Diagnosis
✓ High Efficiency up to 99%
✓ Local WIFI Configuration
✓ String Monitoring
✓ AC&DC Type II SPD
✓ AFCI Protection
✓ 25 Years Data Storage
Product Features Detail
Technical Parameters
Datasheet MAX 50KTL3 LV MAX 60KTL3 LV MAX 70KTL3 LV MAX 80KTL3 LV
Input data (DC)
Max. PV Power75000W90000W105000W120000W
Max. DC Voltage1100V
Nominal Voltage585V585V600V600V
MPPT Voltage Range200V-1000V
No. of MPP Trackers6677
Max. Input Current26A per MPPT
Output data (AC)
AC Nominal Power50000W60000W70000W80000W
Max. Apparent Power55500VA66600VA77700VA88800VA
Nominal AC Voltage220V/380V, 230V/400V
Max. Output Current80.5A96.6A112.7A128.8A
Efficiency
Max. Efficiency98.8%98.8%99%99%
European Efficiency98.4%98.4%98.5%98.5%
Physical Display & Packaging

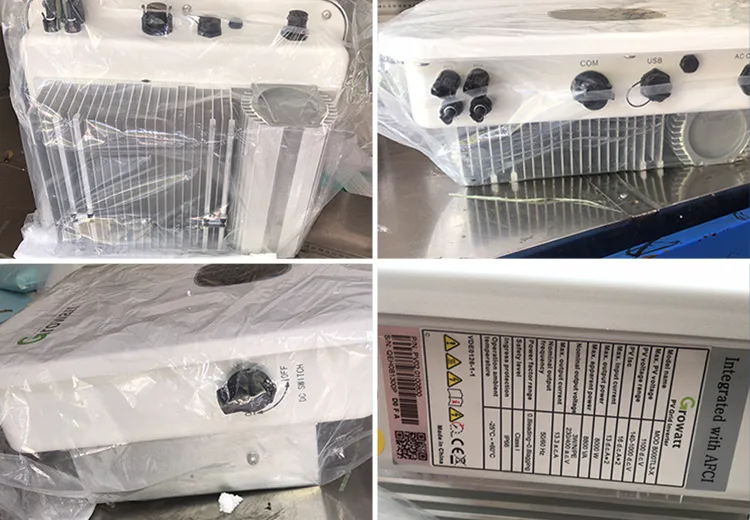

Physical Display
Packaging
Our Projects

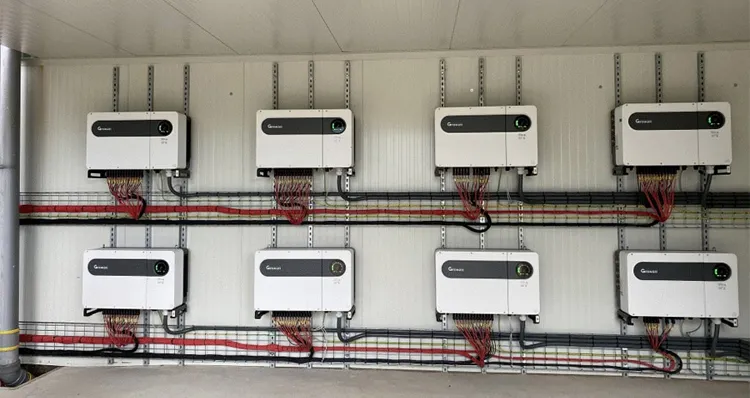

Project Case 1

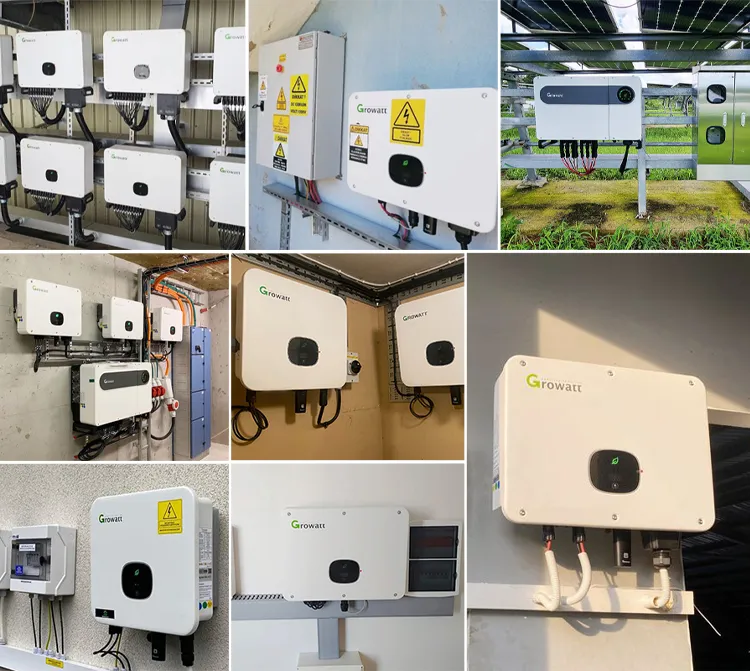

Project Case 2
Production Environment
Factory Environment
Frequently Asked Questions
1. What is the maximum efficiency of the MAX 50-80KTL3-LV series?
The series offers high efficiency performance, reaching a maximum efficiency of up to 99% for the higher wattage models.
2. How many MPP trackers are available in these inverters?
Depending on the specific model, the inverter comes with either 6 or 7 independent MPPTs to optimize solar energy harvest.
3. What kind of monitoring and configuration options are supported?
It supports local WiFi configuration and remote monitoring via WiFi/APP, along with dedicated string monitoring for performance tracking.
4. Does the system include safety protections like AFCI?
Yes, it features integrated AFCI (Arc-Fault Circuit Interrupter) protection as well as AC & DC Type II Surge Protective Devices (SPD) for enhanced safety.
5. Is this inverter suitable for outdoor installation?
With an IP65 protection degree and a wide operating temperature range (-25°C to +60°C), it is designed to withstand various outdoor environmental conditions.
6. What is the standard warranty for this product?
The standard warranty is 5 years, with an optional extension to 10 years available.
