| Model NO. | 50K-SDT-C30 |
| Nature of Source Flow | Active Inverter |
| Phase | Three Phase |
| Output Power | 50kw |
| Certification | SAA, CE, ROHS, ISO9001, CCC |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Circuit Topologies | Full-Bridge Type |
| Wave String Nature | Sine Wave Inverter |
| Application | Commercial |
| Protection Rating | IP66 |
| Communication | RS485, WiFi + LAN + Bluetooth |
| Cooling | Smart Fan Cooling |
| Operating Temperature | -30ºC ~ +60ºC |
| Specification | 646.00 * 484.00 * 230.00mm |

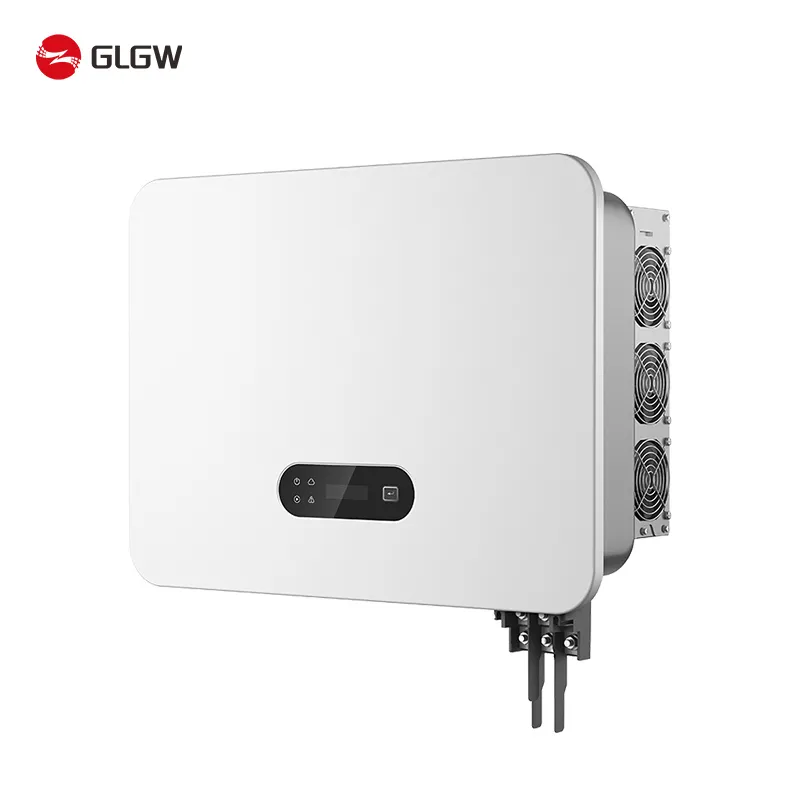

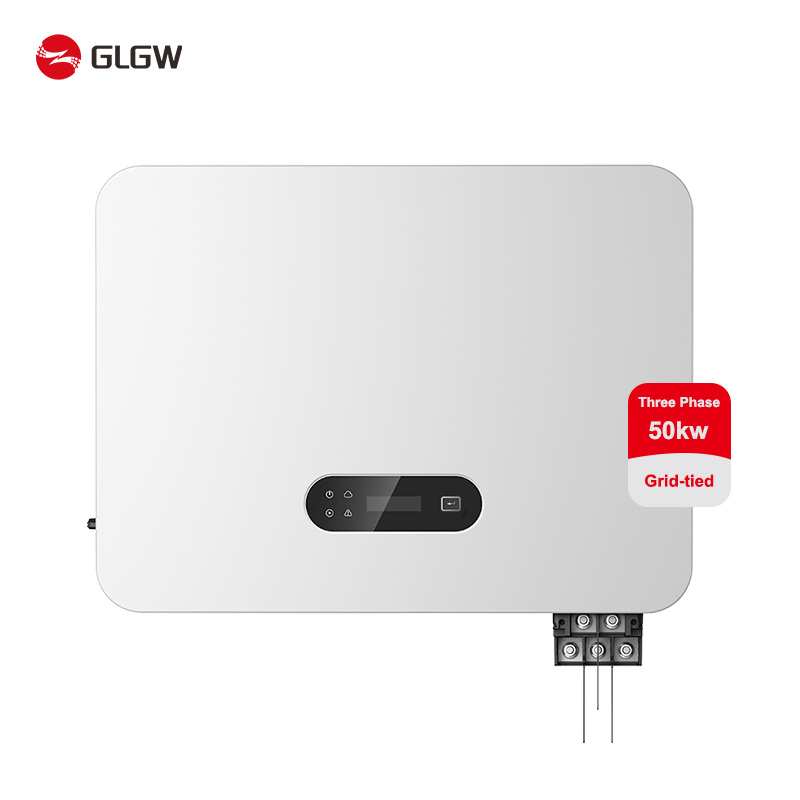

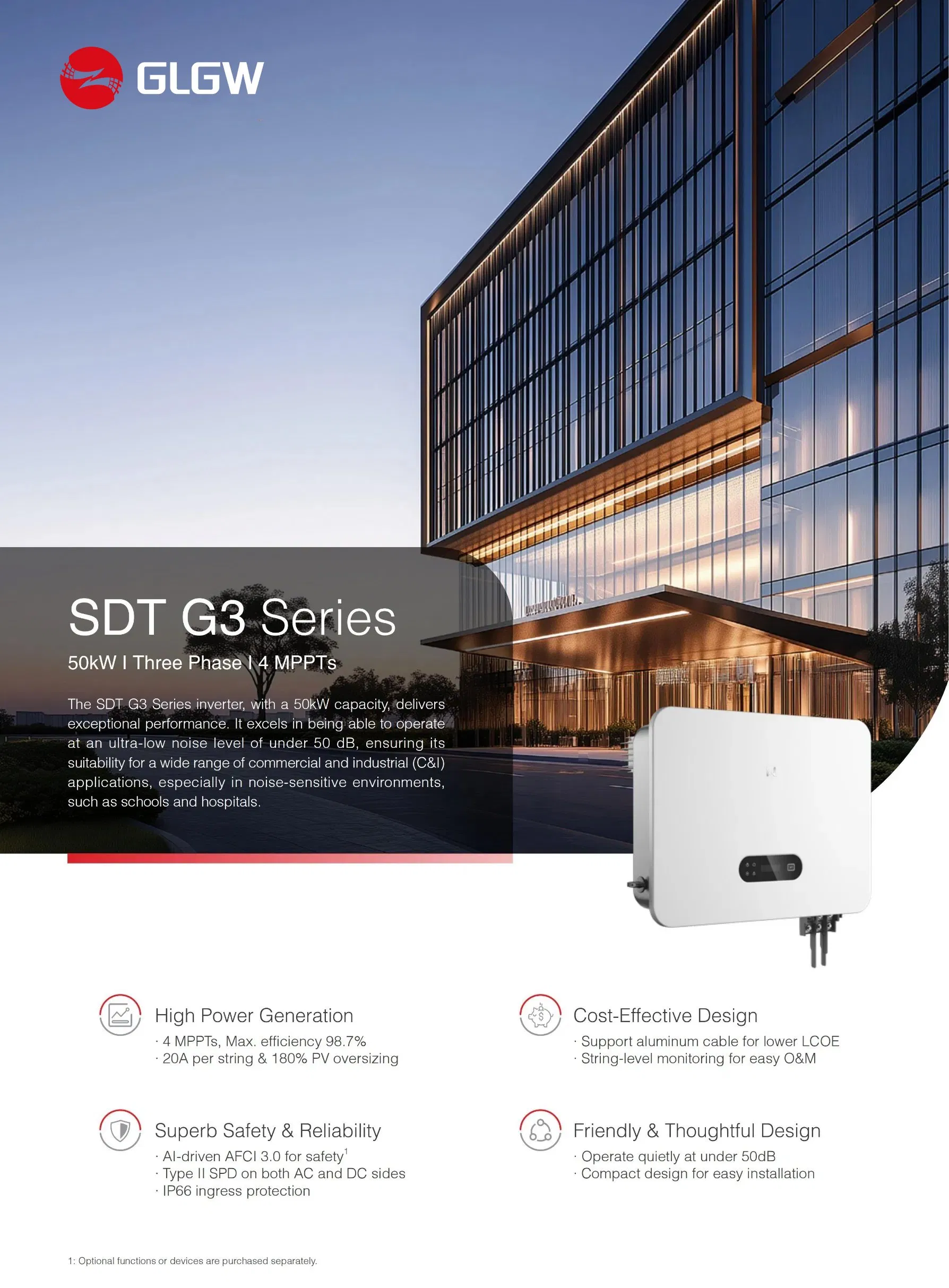

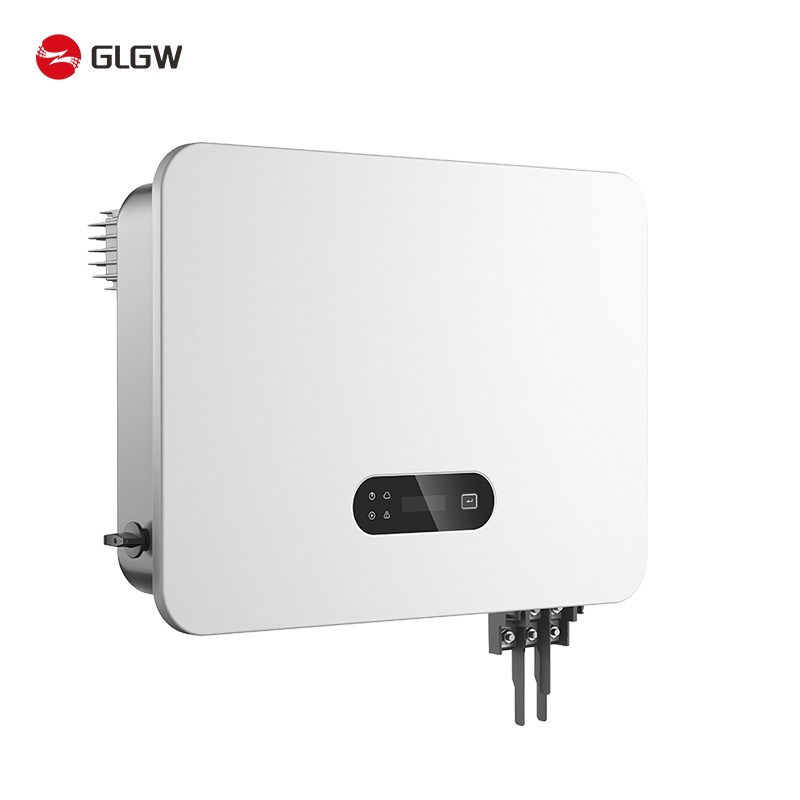

This intelligent and efficient inverter integrates advanced functions suitable for commercial solar energy systems. It delivers a stable and reliable solution for factories and power plants, maximizing energy yield even in challenging grid conditions.

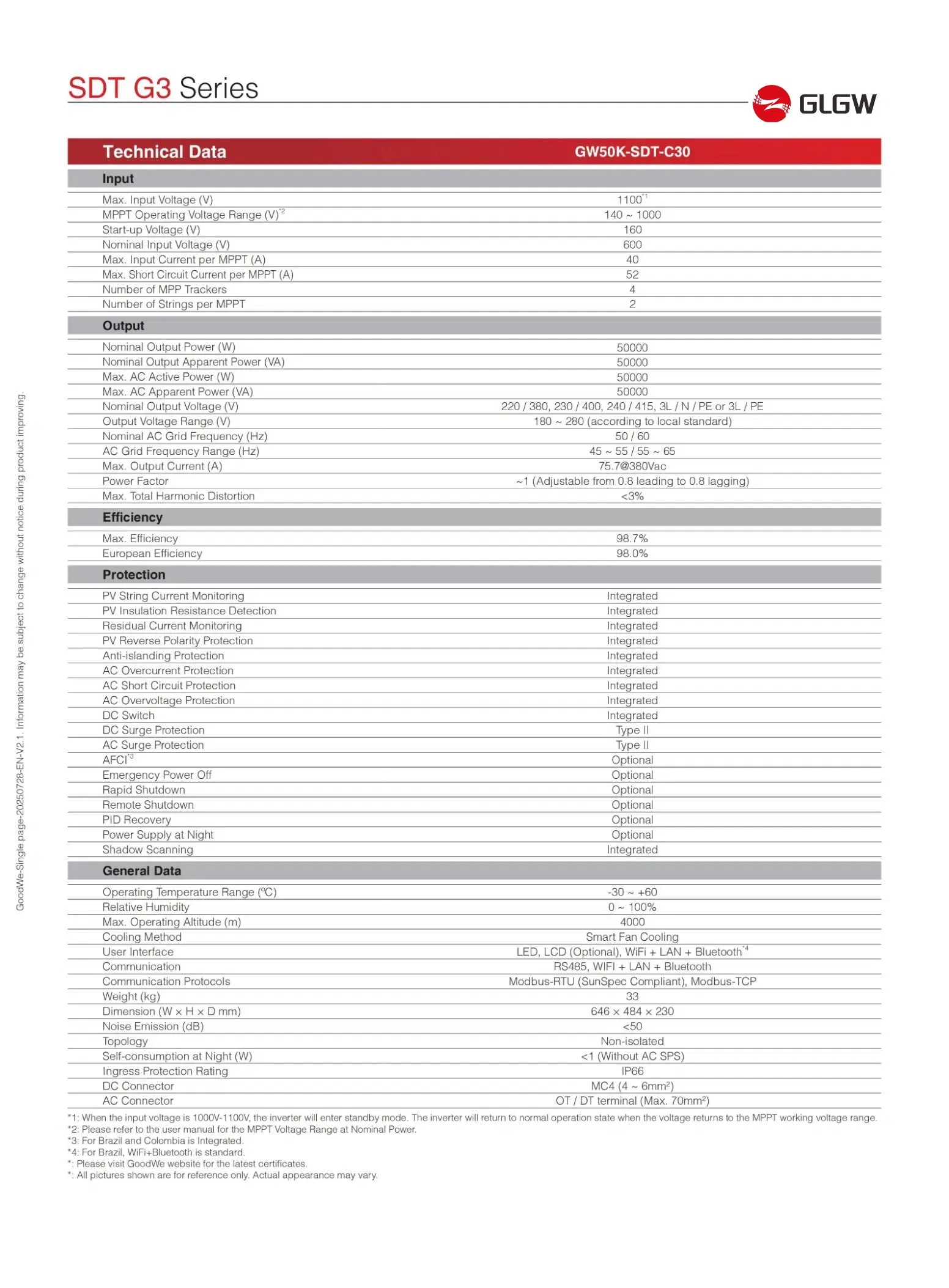

| Input Data | |
| Max. Input Voltage | 1100V |
| Start-up Voltage | 160V |
| Number of MPP Trackers | 4 |
| Output Data | |
| Nominal Output Power | 50,000 W |
| Nominal Output Voltage | 230 / 400V, 3L / N / PE |
| Max. Total Harmonic Distortion | <3% |
| Efficiency | |
| Max. Efficiency | 98.7% |
| European Efficiency | 98% |
| General Data | |
| Weight | 33 kg |
| Dimensions (W×H×D) | 646 × 484 × 230 mm |
| Noise Emission | <50 dB |
