| Model NO. | IVGM10048 | Phase | Three |
| Output Power | 10kw | Certification | CE, ROHS, ISO9001 |
| Type | DC/AC Inverters | Power Source | Solar Power, Grid |
| Nature of Wave | Sine Wave Inverter | Battery Voltage | 40V~60V |
| Max.PV Voltage | 550V | Max.Efficiency | 97.6% |

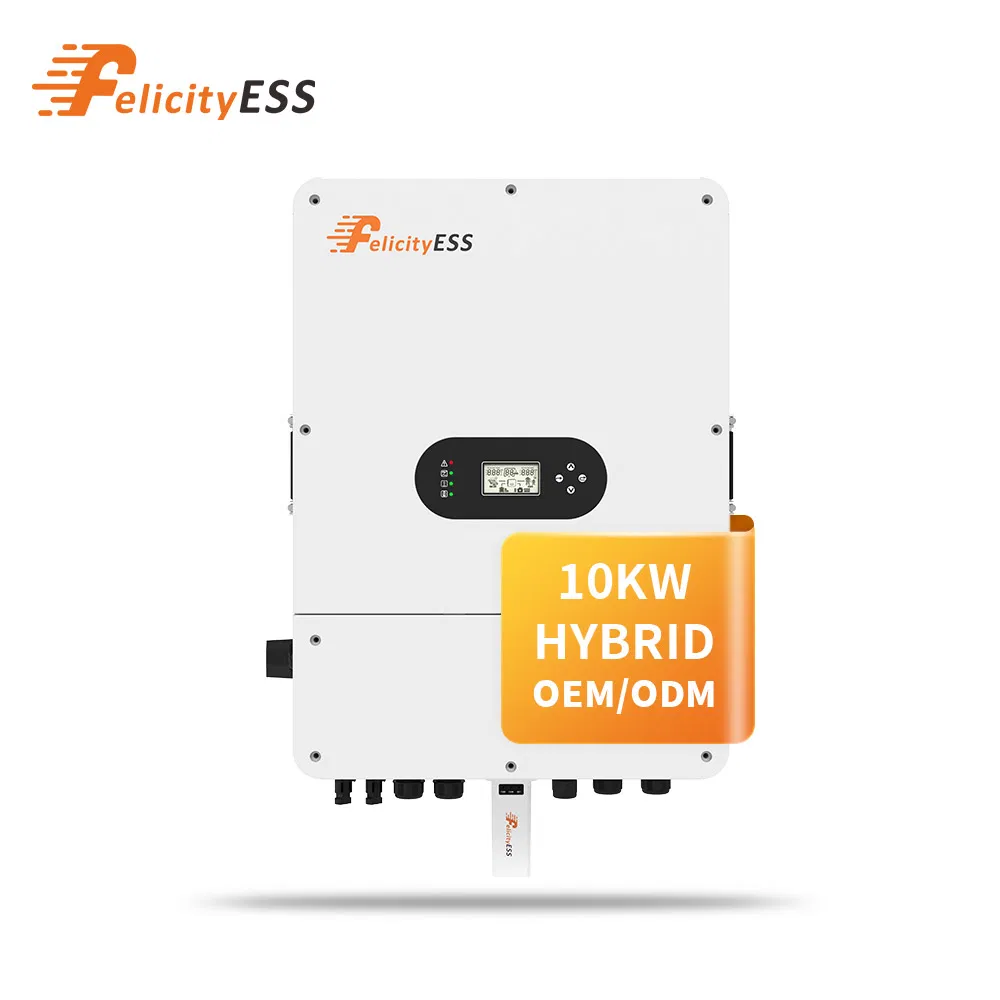

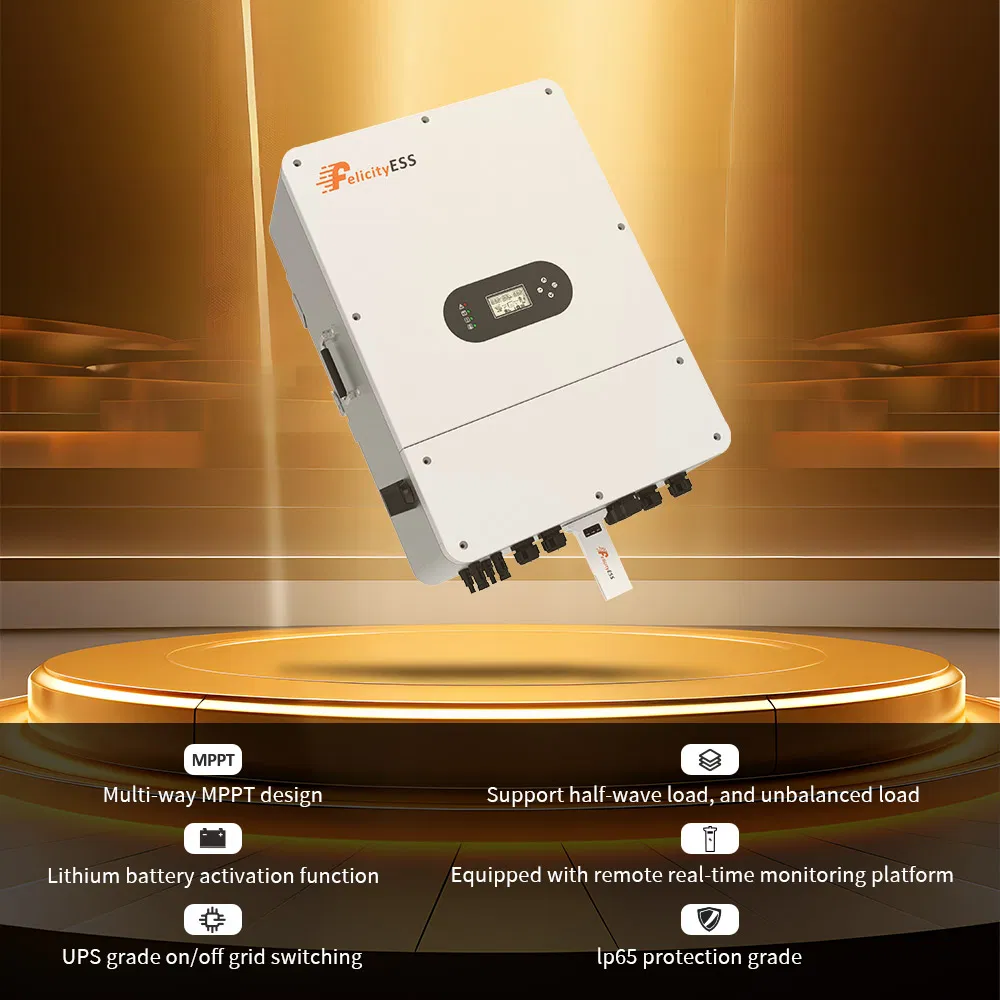

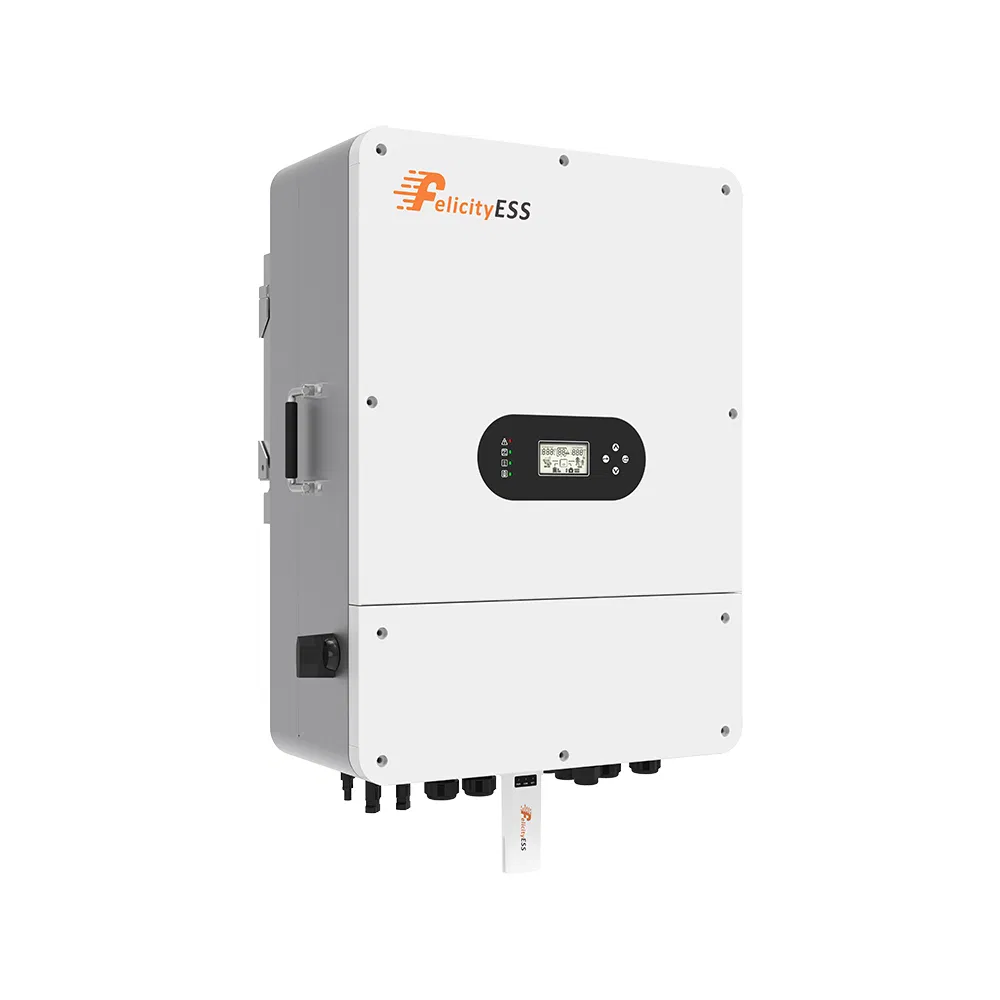

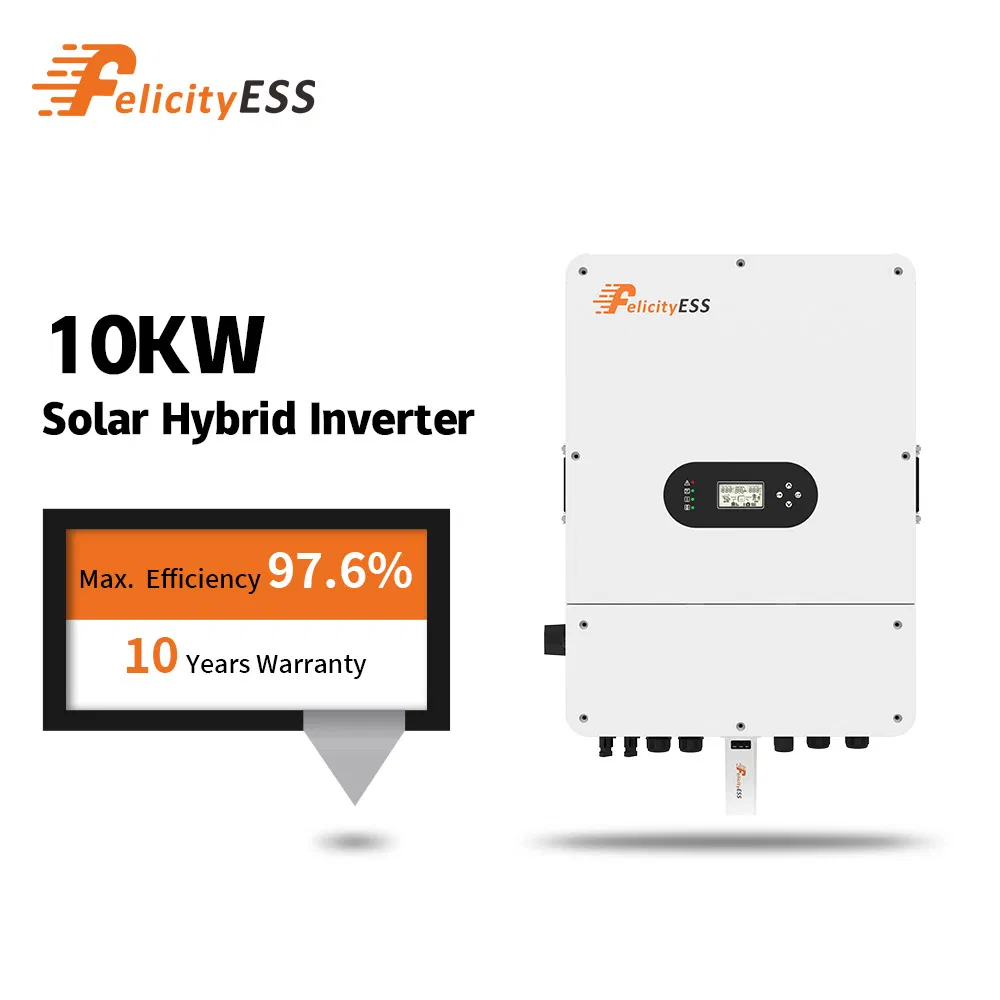

10kw On/Off Grid High Frequency Hybrid Solar Inverter with MPPT Controller Technology (IP65 Protection)

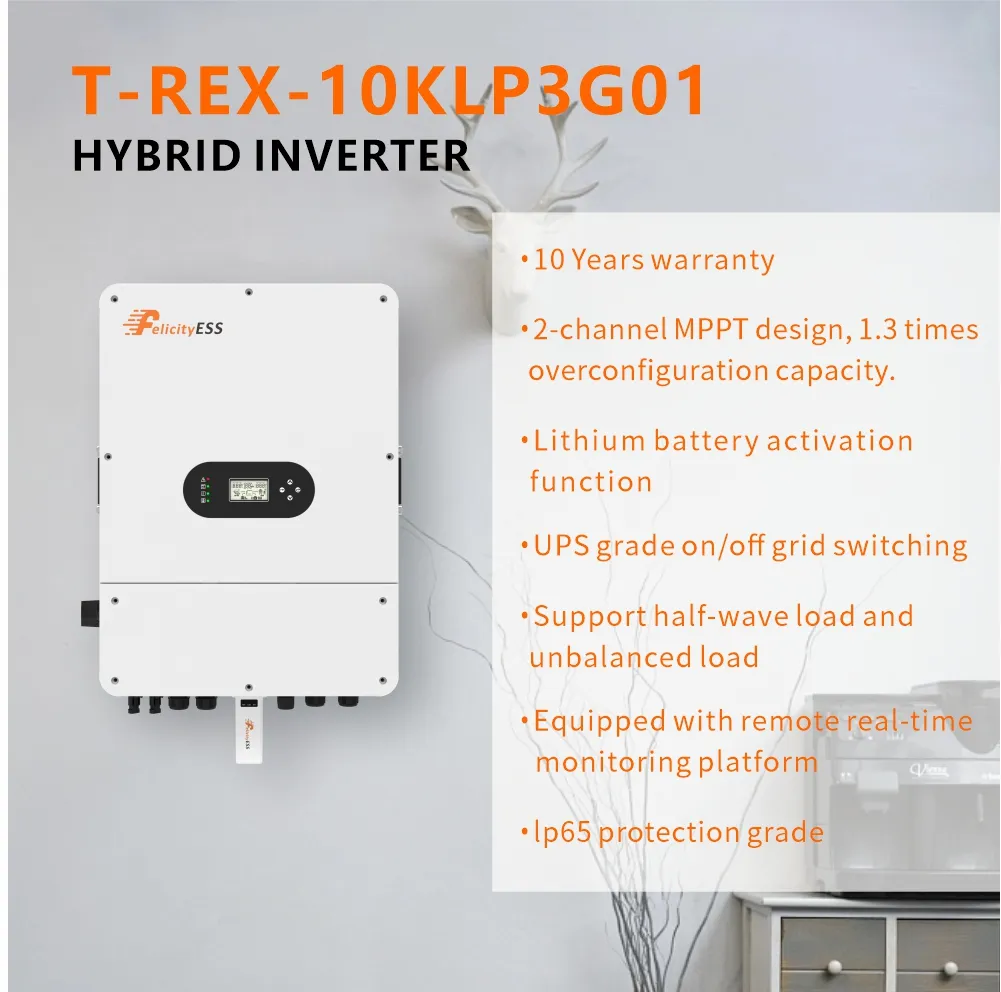

| Model: T-REX-10KLP3G01 | |
|---|---|
| Battery Voltage Range | 40V~60V |
| Max. Charging/Discharging Power | 10000W |
| Max. Recommended PV Power | 13000W |
| Max. PV Voltage | 900V |
| MPPT Voltage Range | 200V-850V |
| Nominal Grid Frequency | 50/60Hz |
| Max. AC Output Power | 10000W |
| Protection Degree | IP65 |
| Warranty | 10 Years |
| Net Weight | 38.9KG |

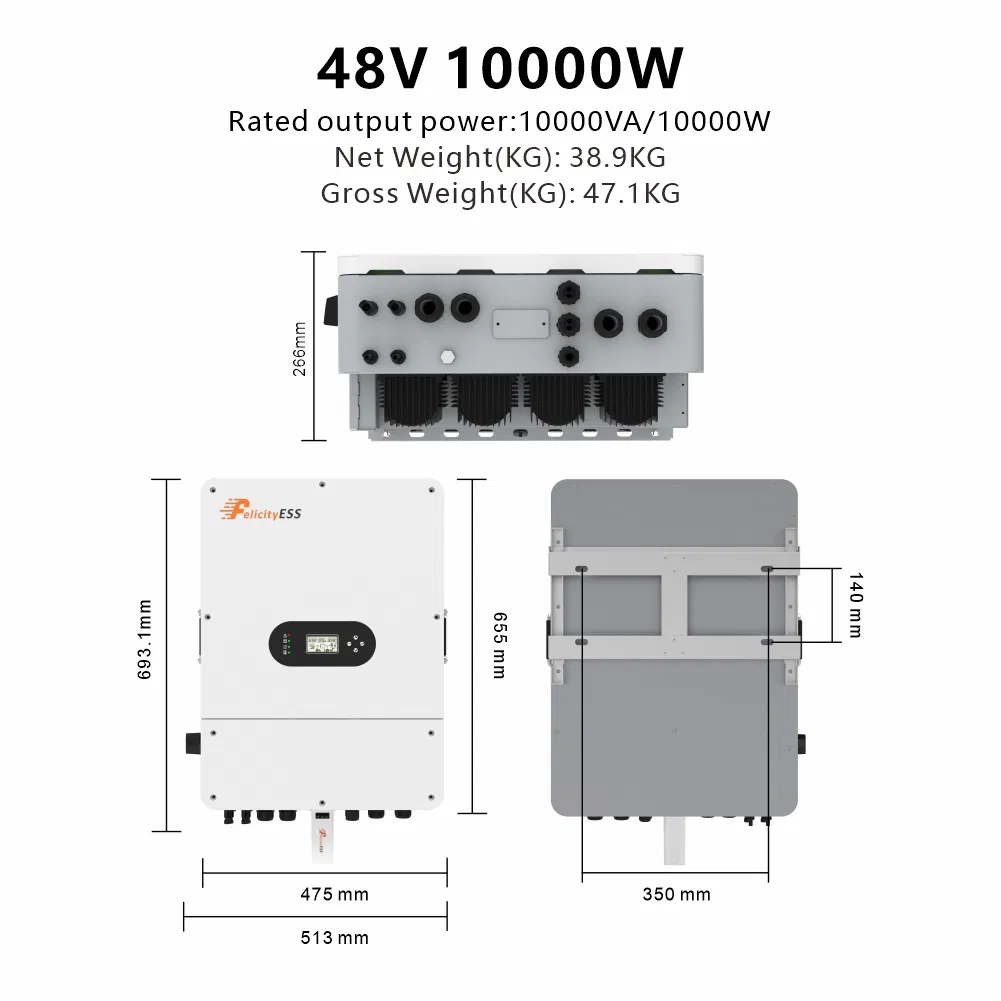

| Product Dimension | 655*475*266MM |

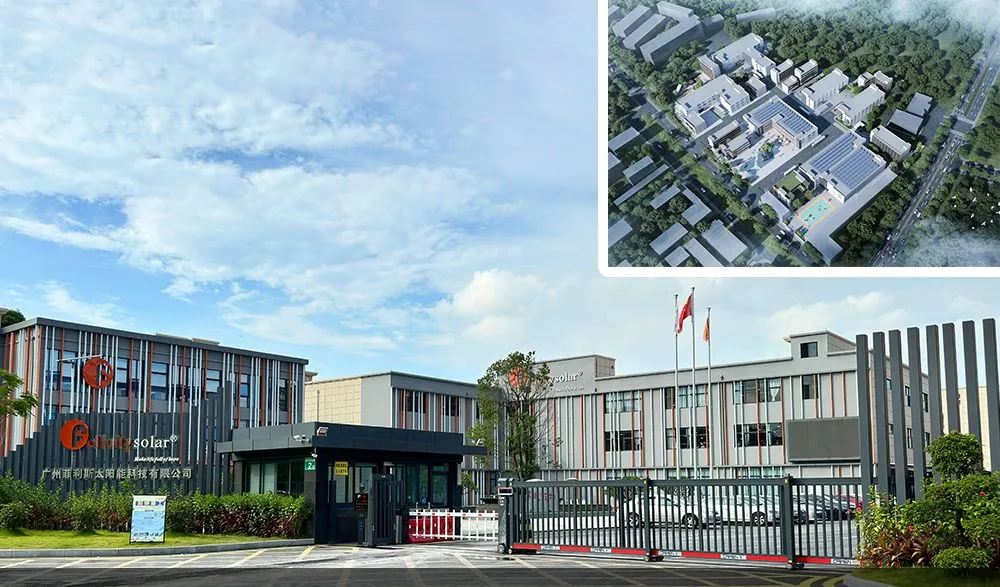

With a 40,000 square meter facility and more than 1,000 employees, the manufacturing process integrates advanced energy storage technologies. Our products include home energy storage batteries, all-in-one systems, and solar inverters, offering flexible energy conversion and efficient storage solutions.
