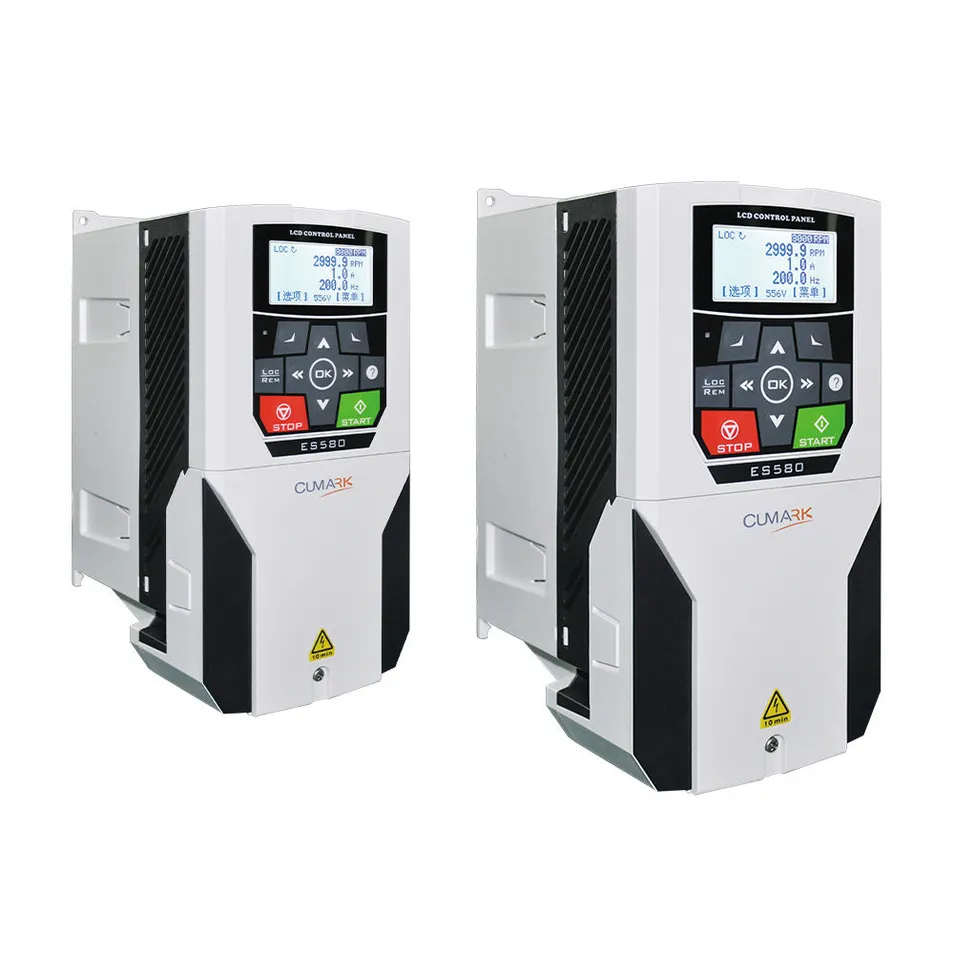

Es580p Industrial Water Pump Multi-Pump Master-Slave VFD Frequency Inverter 0.75-710kw

1 / 5

Es580p Industrial Water Pump Multi-Pump Master-Slave VFD Frequency Inverter 0.75-710kw

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

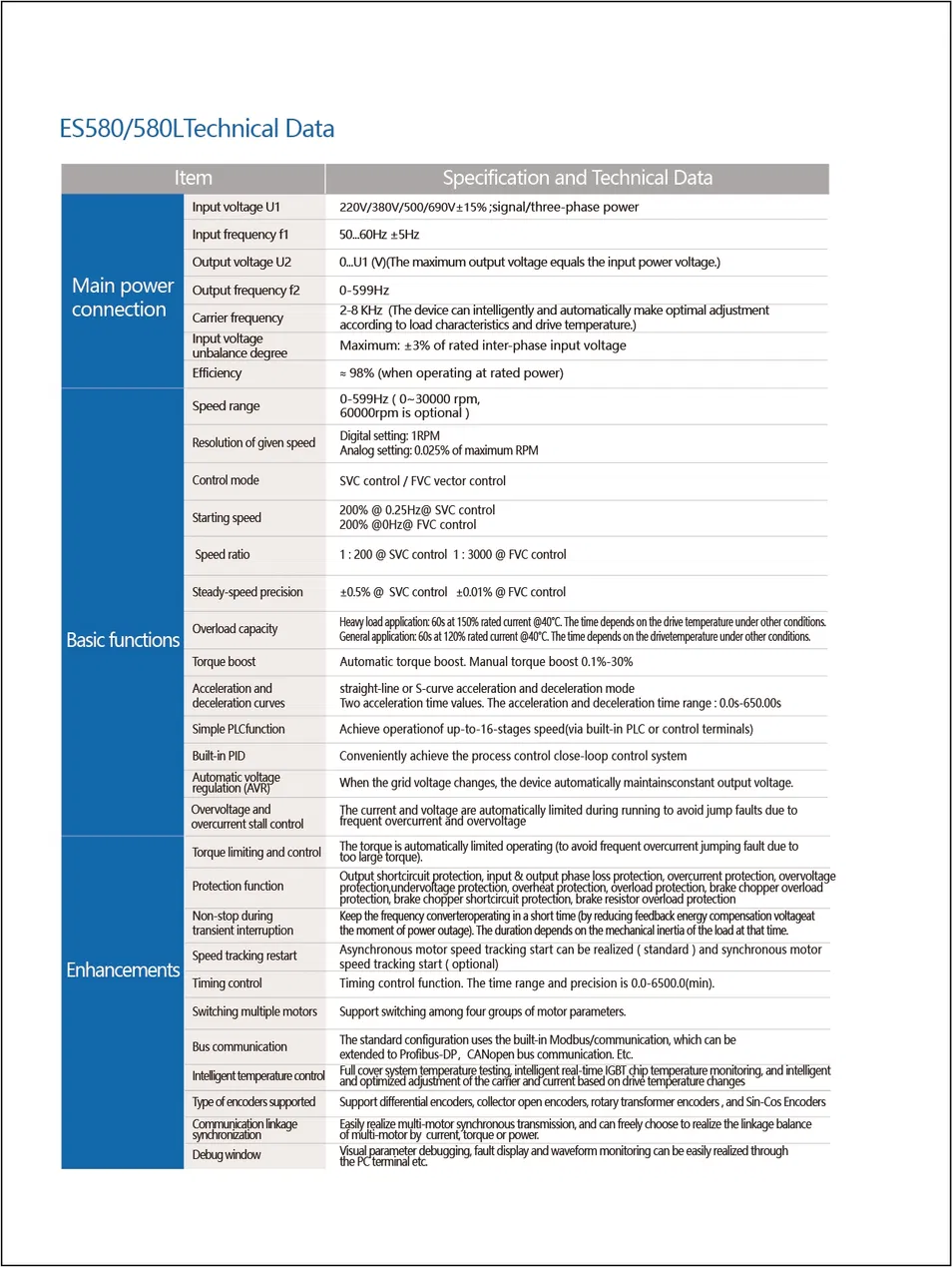

📋 Basic Specifications

Model NO.

ES580P

Principle of Work

Vector Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Current

Function

Pump Control

Warranty

20 Months

Power Range

0.75-710kw

Phase

3 Phase

Voltage

380V

Quality

100% Tested

🎯 Core Product Positioning

The ES580P is a frequency inverter dedicated to pump applications. Focused on fluid transfer needs such as constant pressure water supply, industrial circulating water, and municipal secondary pressure boosting, it features "precision master-slave coordinated control + efficient multi-pump linkage" as its core. Compatible with both single-pump independent operation and multi-pump parallel expansion, it covers a power range of 0.75kW-560kW, balancing energy efficiency, redundancy reliability, and scenario flexibility.

⚙ Master-Slave & Multi-Pump Control

🔁

Master-Slave Coordination Logic: Supports "1 master + N slaves" (up to 8 pumps). The master drive synchronizes commands via CAN bus/DI hard wire, handles PID constant pressure/flow calculations, while slave drives execute speed commands.

⚠

Fault Redundancy Switching: When the master drive fails, the slave drive automatically takes over within 0.5 seconds via DI signal to avoid water supply interruption.

💧

Full-Scenario Protection: Built-in dry pump protection, water leakage detection, overpressure, overcurrent, and overheating protection.

🌿

Energy-Saving Design: Slave pumps enter sleep mode under low load. Saves 30%-55% more energy than power frequency operation.

🏭 Typical Application Scenarios

Municipal Water Supply: 1-master-3-slave architecture; saves up to 180,000 kWh annually for high-rise residential buildings.

Industrial Cooling: Soft start/stop prevents pipe water hammer, reducing maintenance costs by 70%.

Injection Molding: 1-master-2-slave confluence increases product qualification rate from 96% to 99.5%.

PV-Complementary: Compatible with solar energy models for rural centralized water supply and irrigation.

❓ Frequently Asked Questions

Q1: Can I use my own logo or design on the product?

Yes, we provide OEM/ODM services. Your logo and design can be customized on the products.

Q2: Are you a professional manufacturer?

Yes, we are a professional manufacturer with our own factory specializing in industrial frequency inverters.

Q3: What is your monthly production capacity?

Our current production capacity is approximately 2,000 units per month.

Q4: What is the typical lead time for shipping?

Inventory items can be shipped within 5 days. Customized product orders are generally delivered within 2 weeks.

Q5: What is the warranty period for the ES580P?

The standard warranty period for this model is 20 months from the date of purchase.

Q6: What certifications do your products hold?

Our products are compliant with CE, ISO9001, and CCC certification standards.
