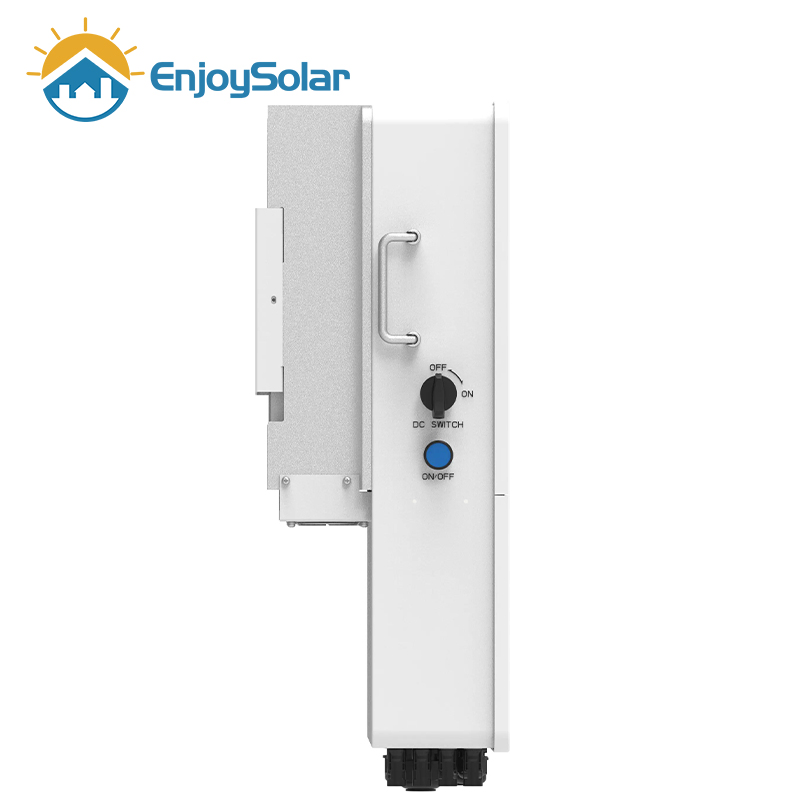

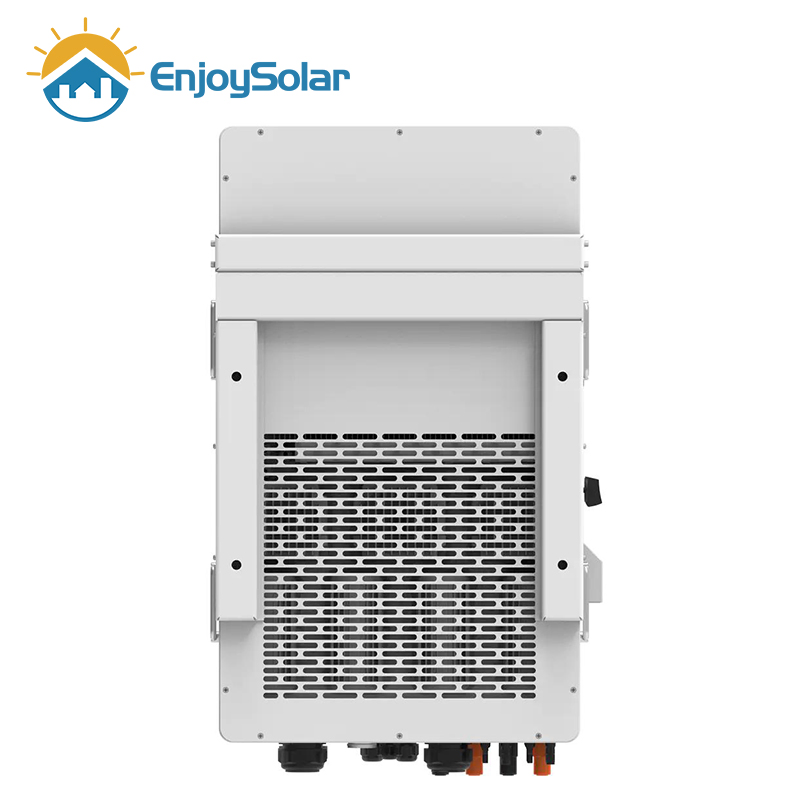

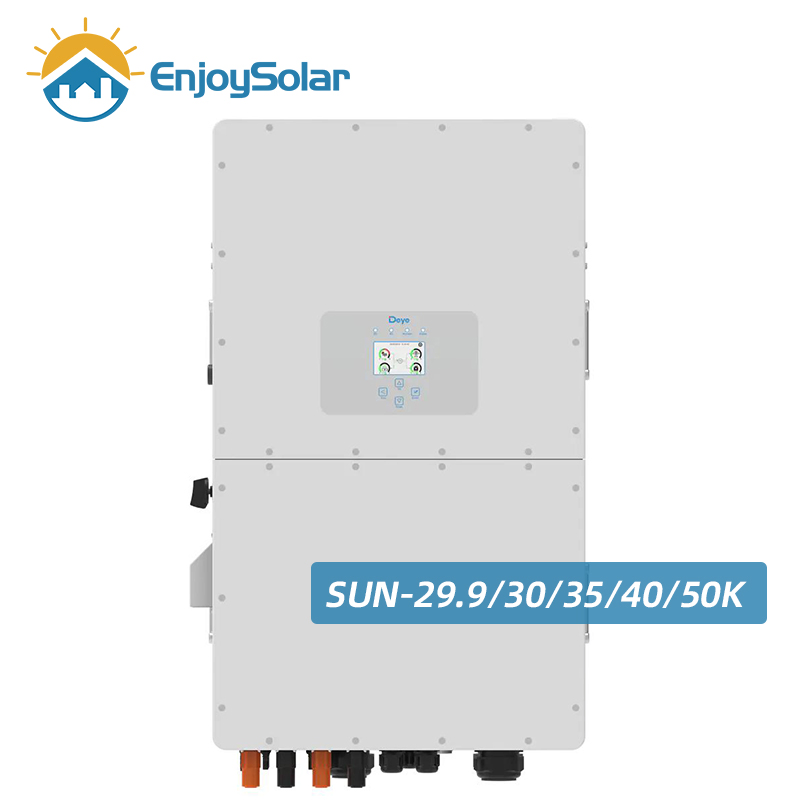

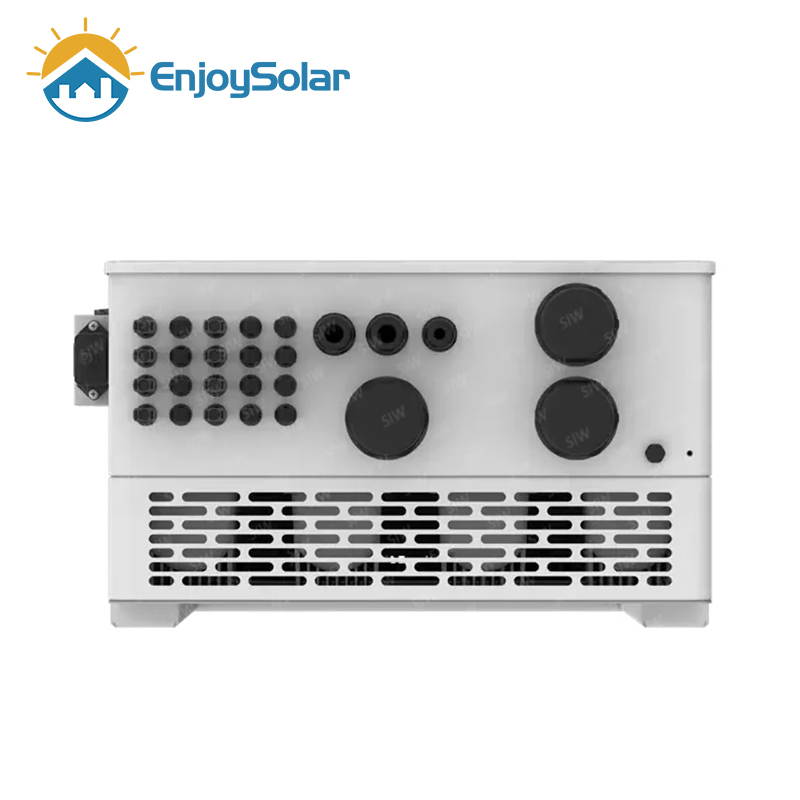

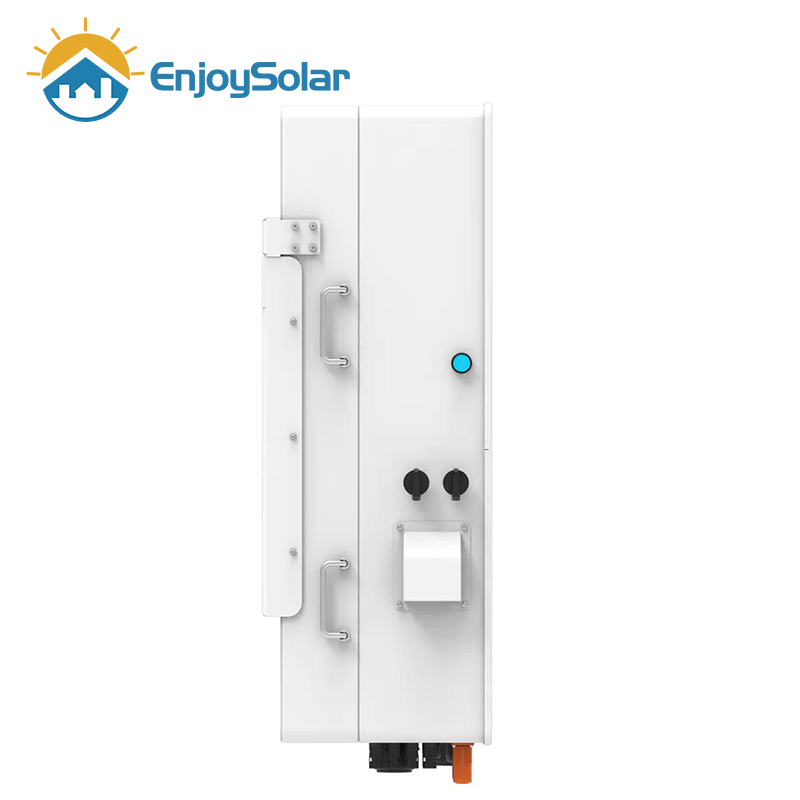

Popular Deye Top 40kw 50kw Solar Power Inverter for Commercial Use

Overview - Basic Information

Model NO.SUN-50K-SG01HP3-EU-BM4

PhaseThree Phase

Output Power50kw

TypeDC/AC Inverters

Power SourceSolar Power

IP RatingIP 65

Battery TypeLithium-Ion

Battery Voltage160-800V

Weight80 Kg

CoolingIntelligent Air Cooling

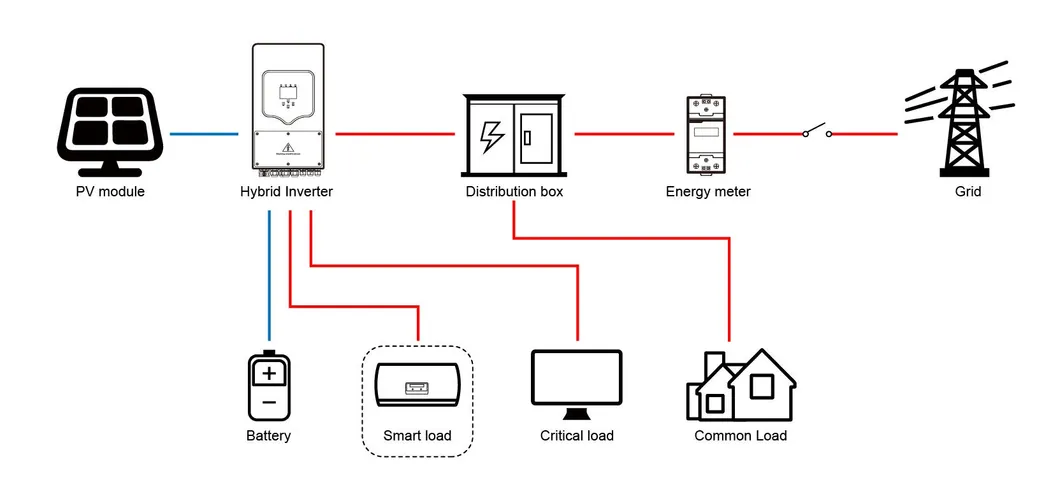

Solution Briefing

✔ Maximizing solar self-consumption: Excess energy generated during the day charges the battery via the hybrid inverter for later use.

✔ Backup for critical loads: Independent ports for critical loads ensure appliances like refrigerators and computers stay powered during grid failure with 4ms switching.

✔ Reducing electricity bills: 6 time periods for battery charge/discharge allow users to optimize based on peak/off-peak rates.

Product Description

SUN-29.9/30/35/40/50K-SG01HP3

Three Phase | Hybrid Inverter | HV Battery Supported

✦100% unbalanced output; each phase
✦AC couple to retrofit existing solar system
✦Max. 10 pcs parallel for on-grid and off-grid
✦Max. charging/discharging current of 100A
✦High voltage battery for higher efficiency

Product Parameters

Model	SUN-30K-SG01HP3	SUN-35K-SG01HP3	SUN-40K-SG01HP3	SUN-50K-SG01HP3
Battery Input Data
Battery Type	Lithium-ion
Voltage Range (V)	160-800
Max Charging Current	50A + 50A
PV String Input Data
Max PV Input Power (W)	60000	70000	80000	100000
Max DC Input Voltage (V)	1000
MPPT Voltage Range (V)	150-850
No. of MPP Trackers	3	3	4	4
AC Output Data
Rated Output Power (W)	30000	35000	40000	50000
Max Efficiency	97.60%

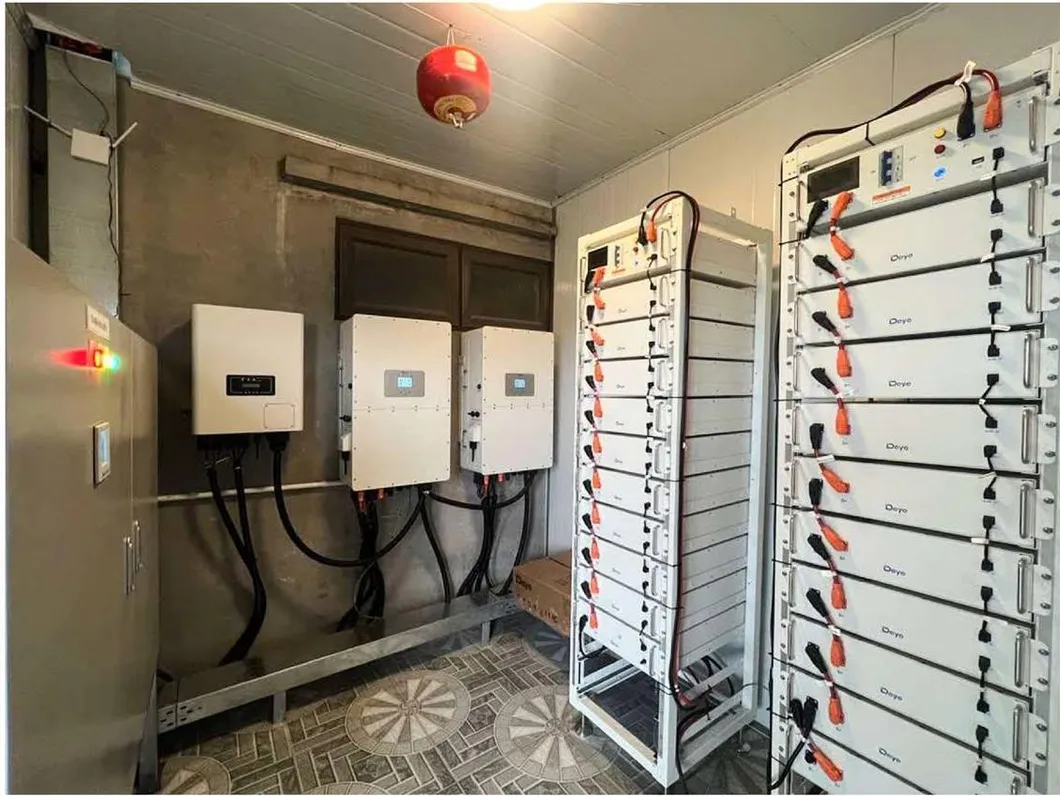

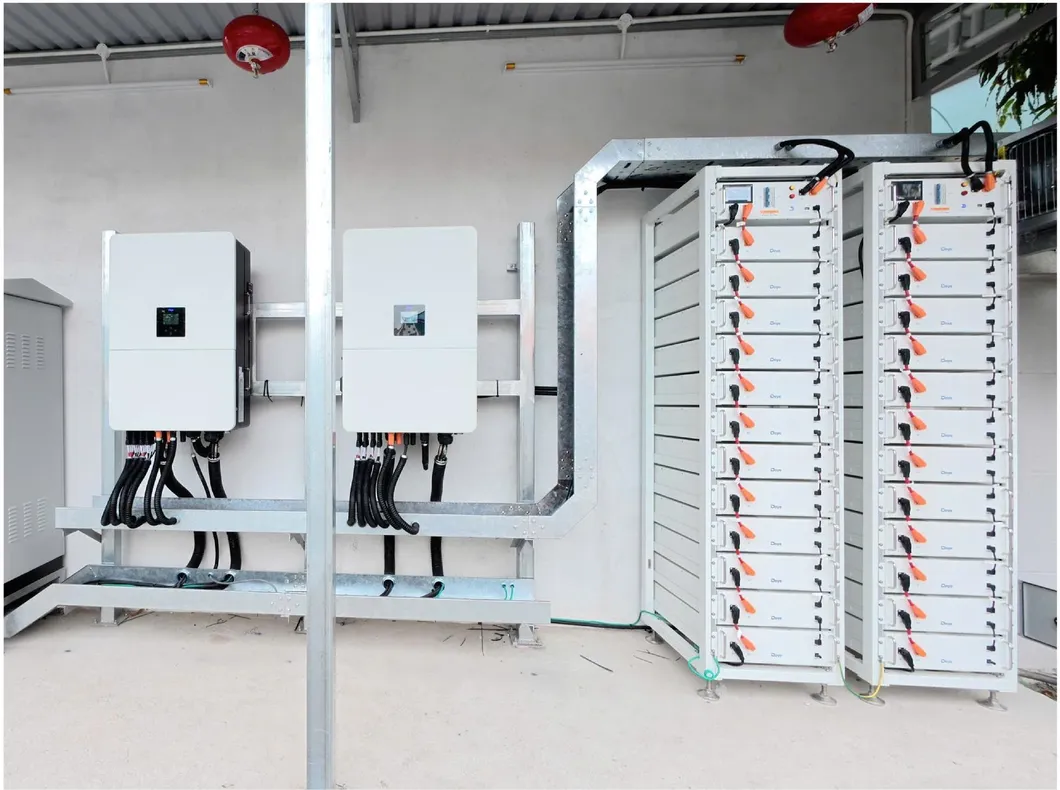

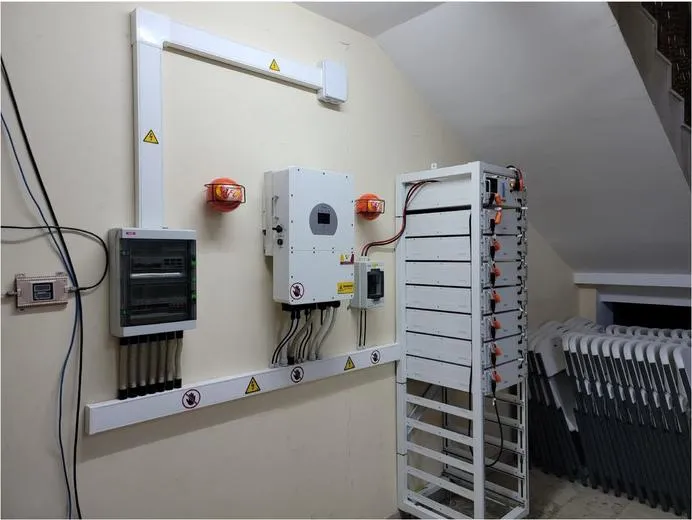

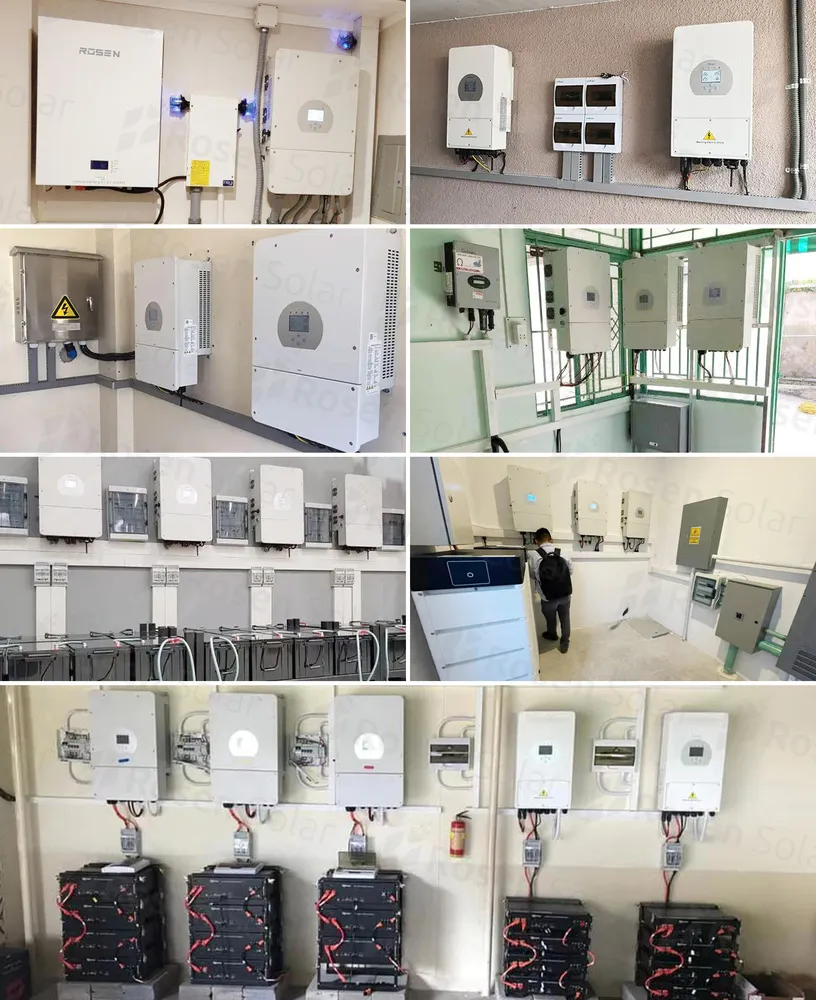

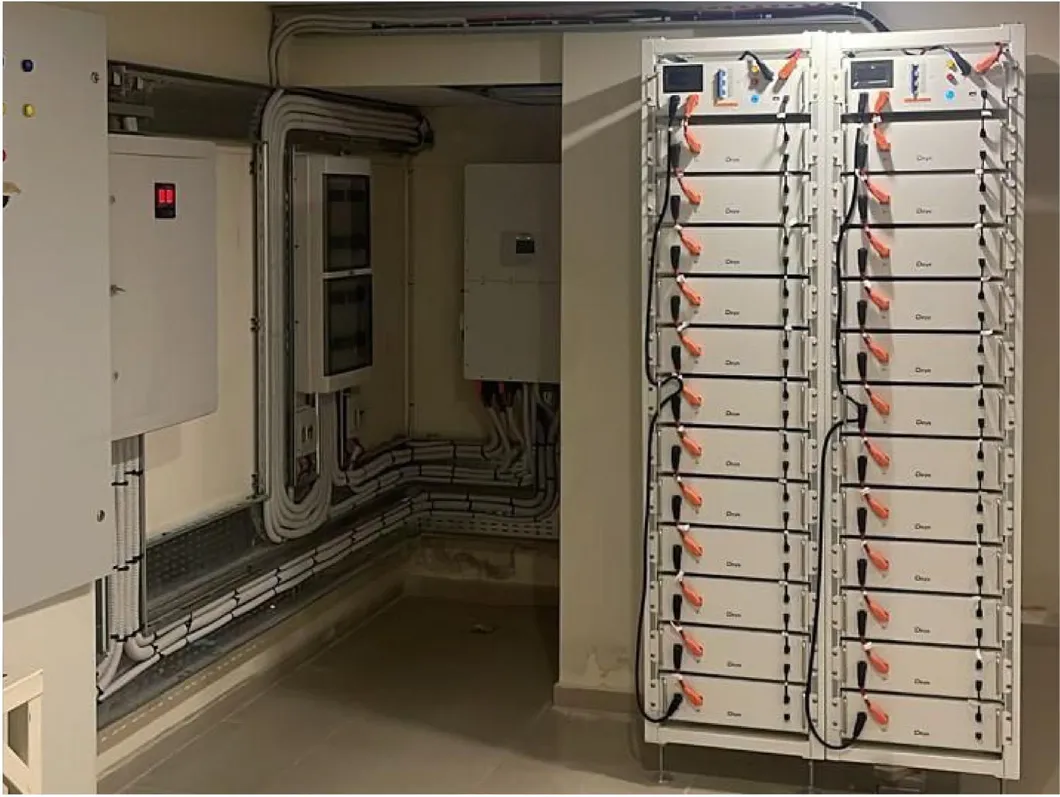

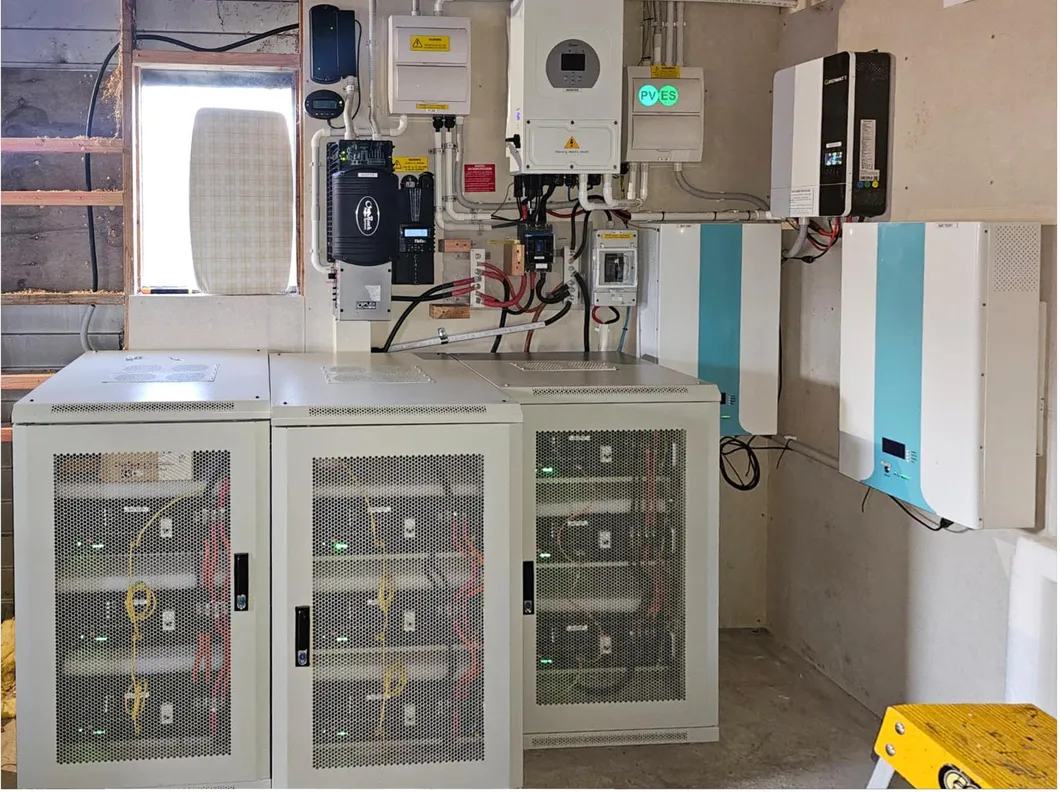

Portfolio

Frequently Asked Questions

Q: What is the lifespan of this photovoltaic power generation system?

A: Photovoltaic panels generally last 25-30 years, while inverters typically have a lifespan of 10-15 years, depending on usage and maintenance.

Q: How much maintenance is required for the system?

A: Maintenance is simple. Regularly clean the panels and monitor the system status via the provided online platform.

Q: Can this system be combined with battery storage?

A: Yes, these hybrid inverters are specifically designed to work with high-voltage energy storage systems to improve energy utilization and stability.

Q: What types of buildings are suitable for installation?

A: They are suitable for residential, commercial, and industrial structures with sufficient sunlight exposure.

Q: How can I monitor the system performance?

A: We provide an online monitoring platform where you can view real-time data and historical performance records of your system.

Q: Are these systems environmentally friendly?

A: Absolutely. They use clean, renewable solar energy, significantly reducing greenhouse gas emissions and your carbon footprint.
